Parameters

Please note:980nm is IR lasers which can not be seen by naked eyes.It can only be captured by night vision camera or IR laser detection equipment.The dot is rectangular,not a round one.Kindly please make sure you know it before ordering.Thanks.

Wavelength:980nm

Output Power:30mw

Working Voltage:5V

Working Current:<100mA Working Temperature:＋10 ℃~＋40 ℃ Laser Shape:Dot(rectangular to oval) Focusable:Yes TTL:0-15Khz TTL Modulation Voltage:0-5V Off low, high open, normal status open Material and Color:Brass Lens:Plastic Dimensions:8x13mm Features Three-wire input, the red line is positive, black line is negative,TTL signal yellow line is positive,If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+. This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.

Package

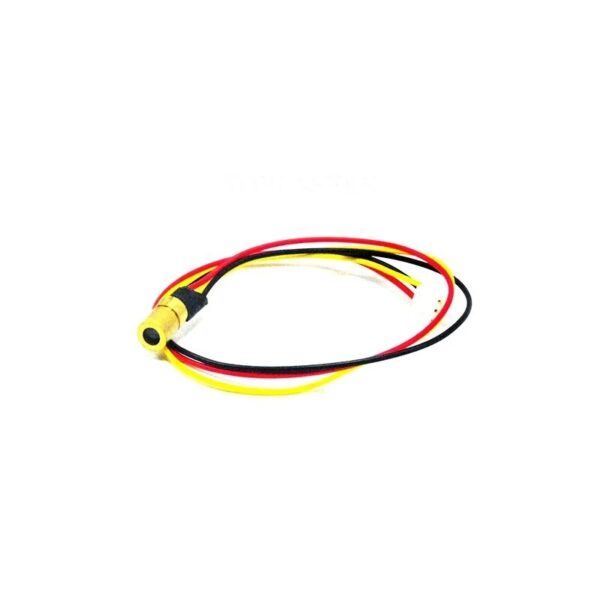

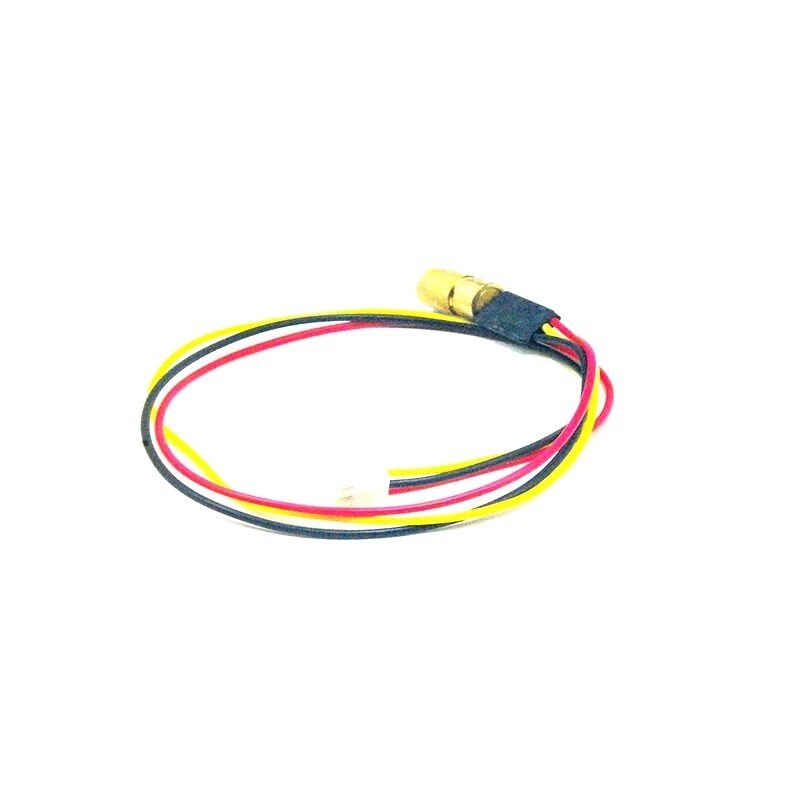

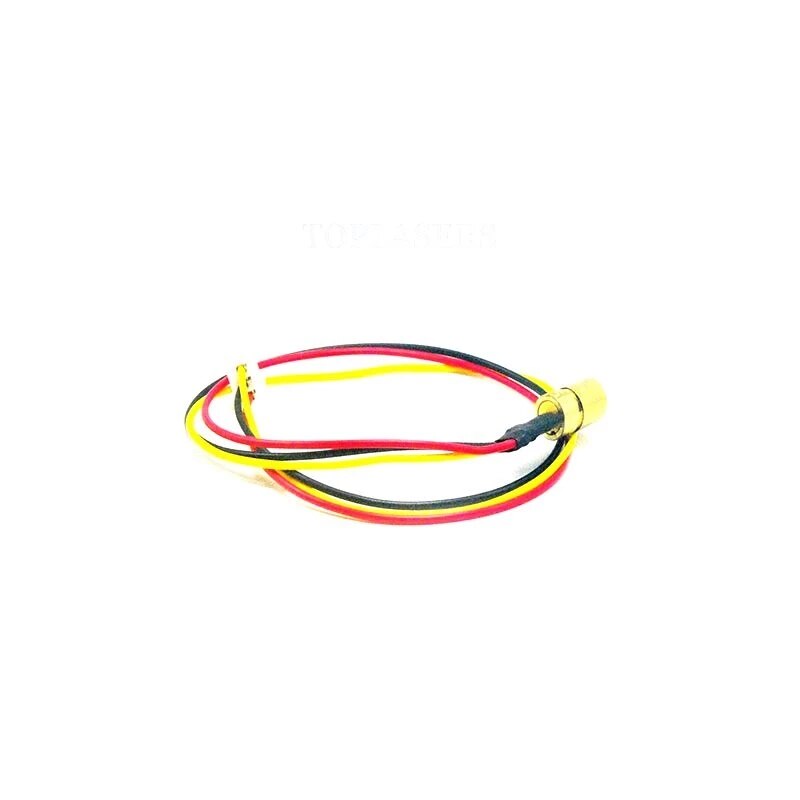

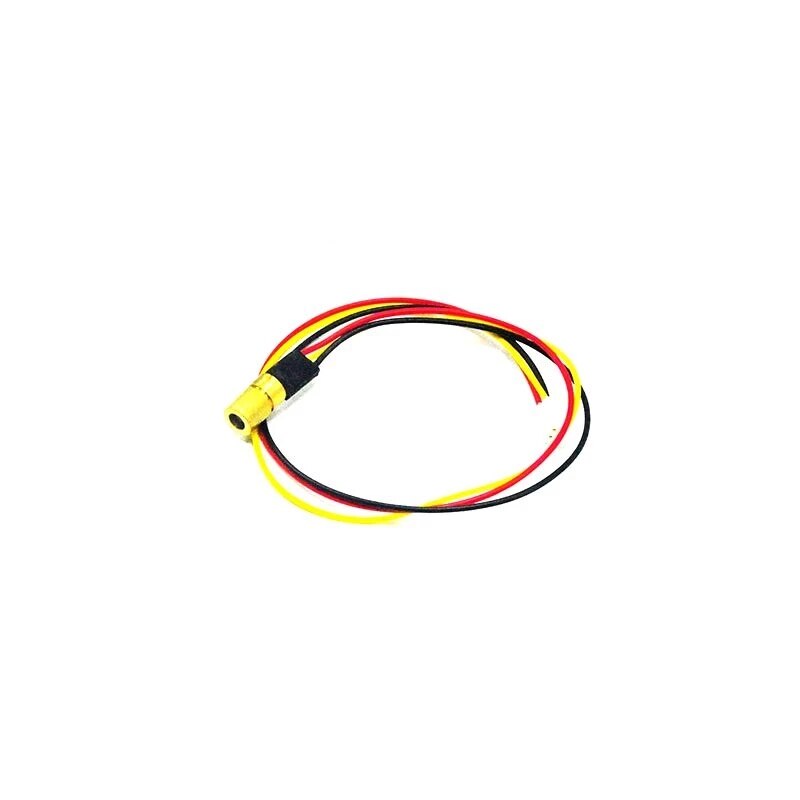

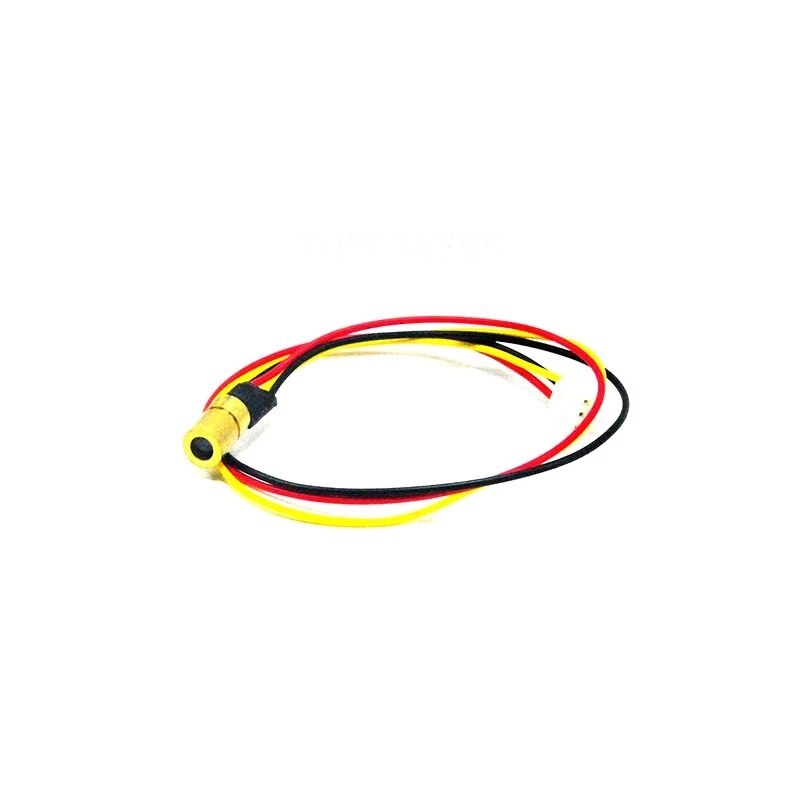

5pcs 980nm 30mW Infrared IR DC3- 5V Laser Dot Diode Module w/ TTL 0-15KHz 8x13mm
