Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±20%
- Technology: Thin Film
- Type: Trimming Potentiometer
- Operating Temperature: as the description
- is_customized: Yes
- Size: 3pin
- Max. Operating Voltage: 300V
- Model Number: 3386P-1-103
- Rated Power: as the description
Feature:
Rotation Angle: 300° ±10°
Gyroscopic Moment: 10-200gf.cm
Rotational Stopper Strength: 3Kgf.cm
Push-Pull Strength: 8kGF Max
Shaft Wobble: 0.6xL/20MM p-p Max
Total Resistance Tolerance: ±20%
Residual Resistance: R less than or equal to 10K Ohms 10 Ohms Withstand Voltage: 1 minute at 300V AC
Rotation Life: 10000 times

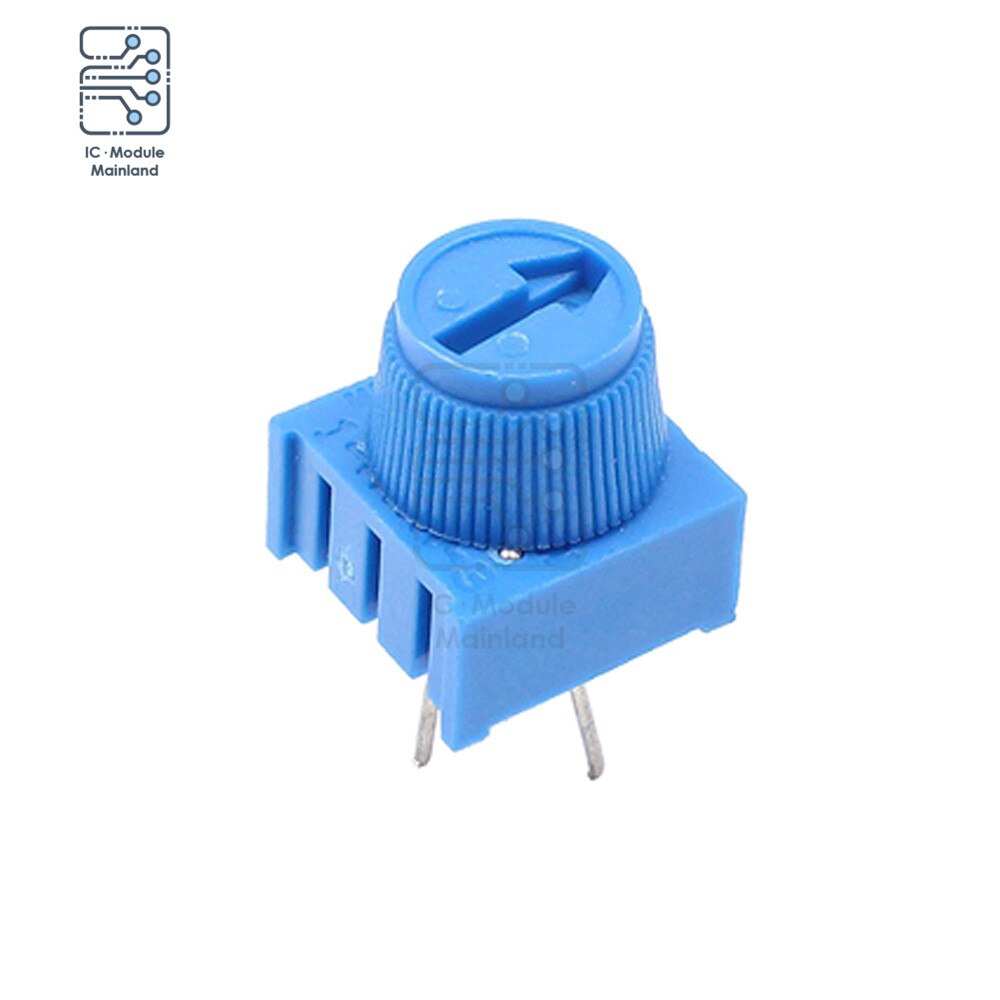

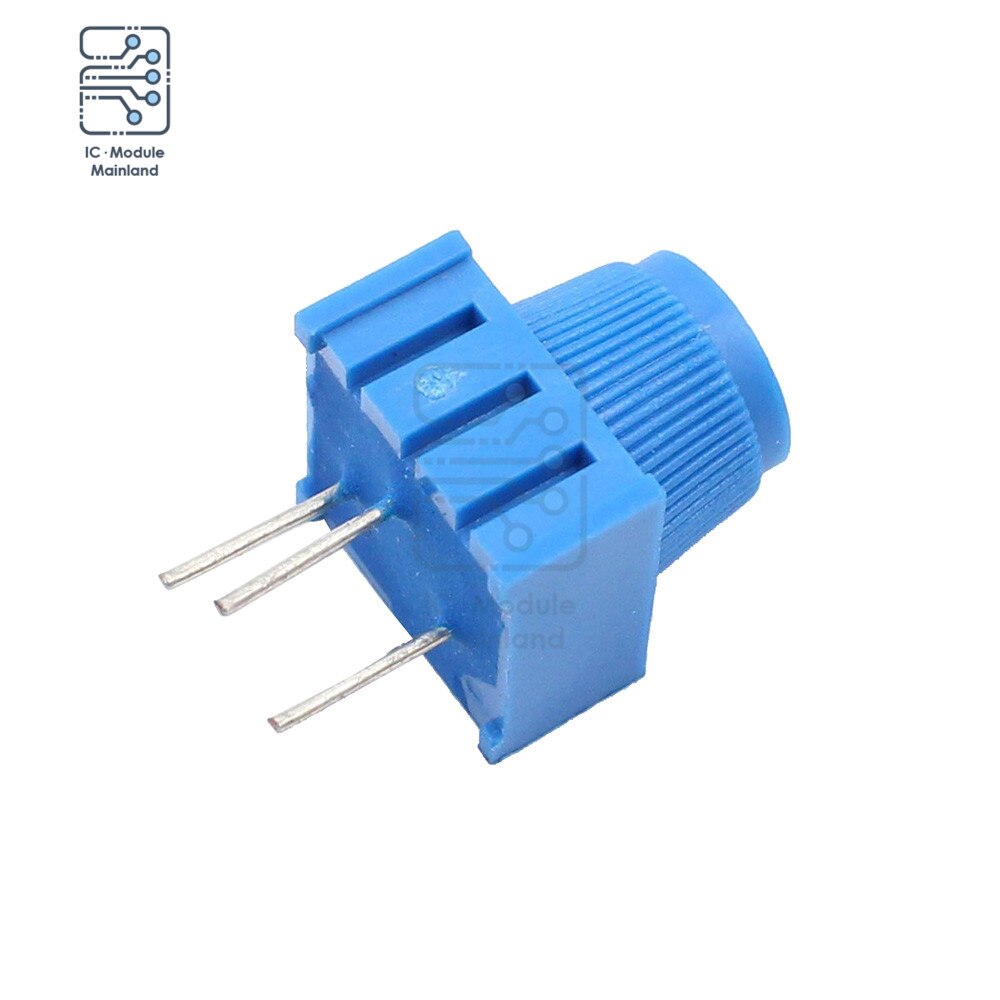

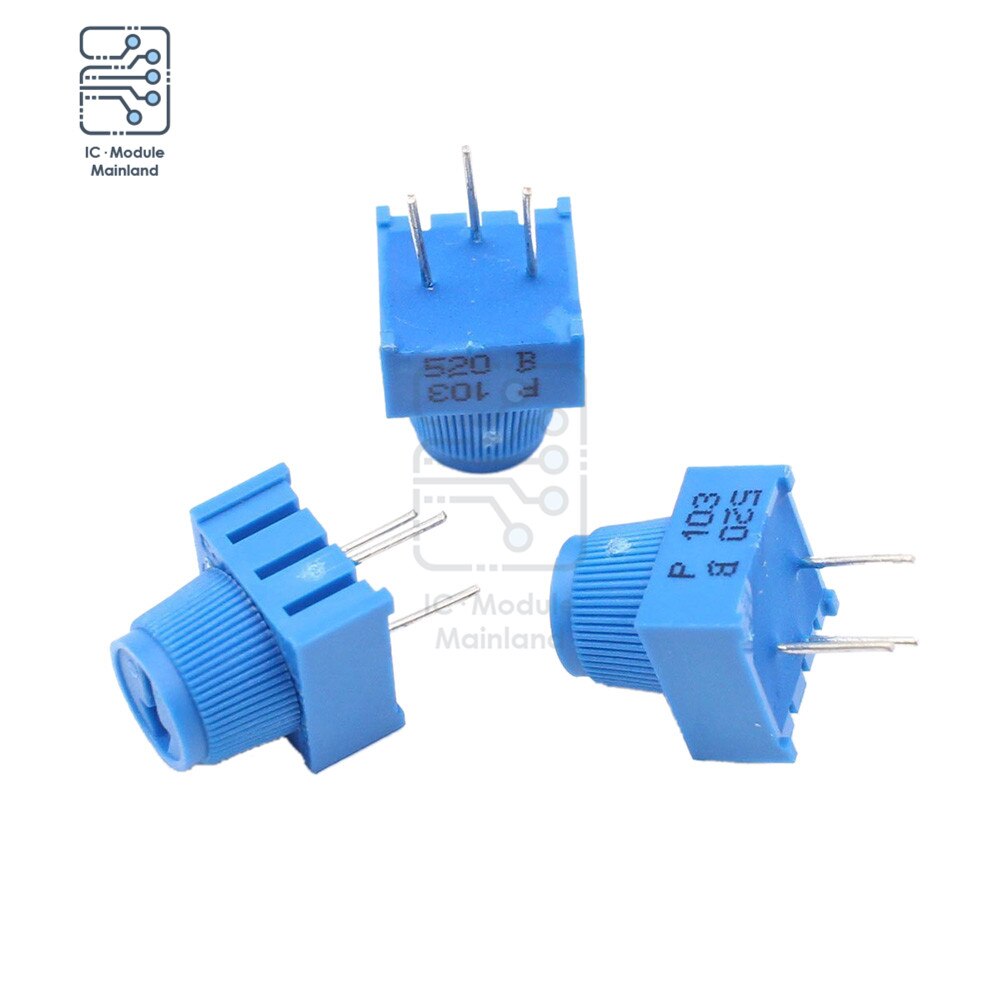

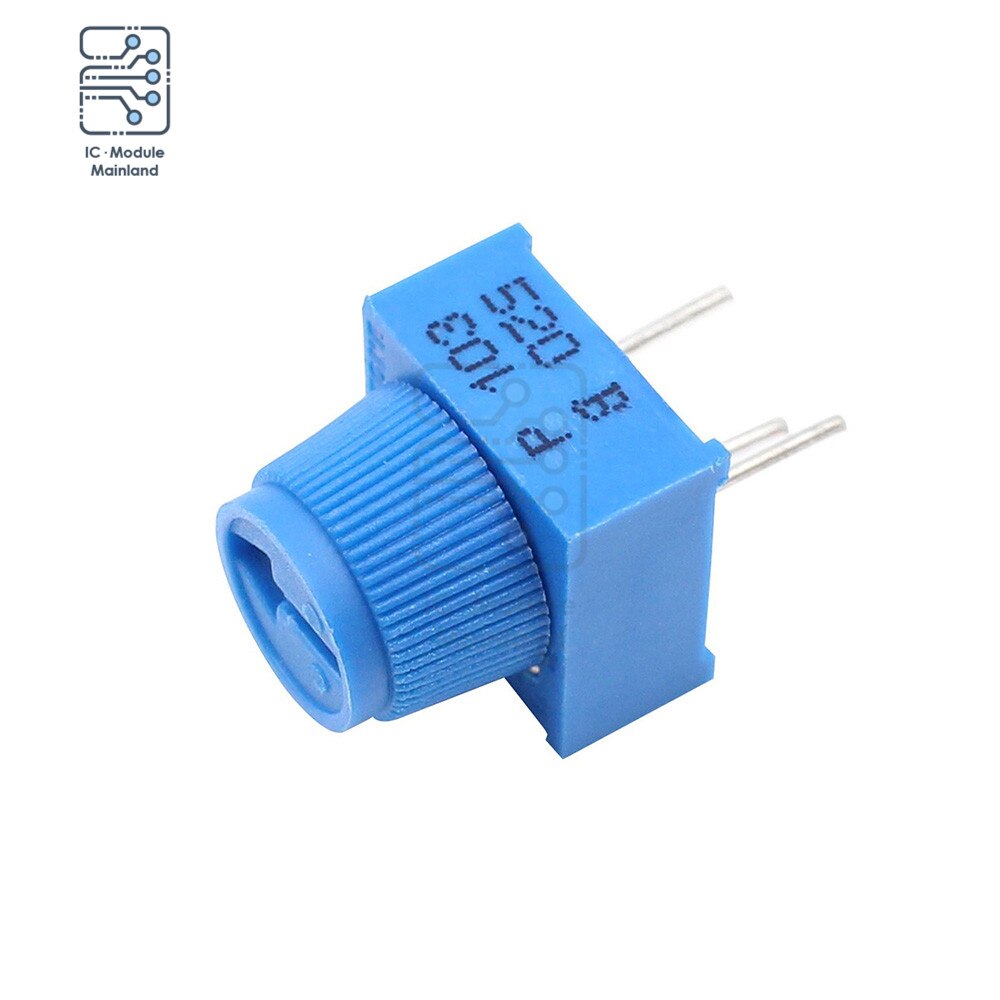

High quality potentionmeter, with knob, easy to operate, 3 Pins can easily insert into breadboard or universal board, simple installation, specially suitable for Arduino etc. projects.
Part StatusActive
Resistance10 kOhms
Power (Watts)0.5W, 1/2W
Tolerance±10%
Temperature Coefficient±100ppm/°C
Number of Turns1
Adjustment TypeTop Adjustment
Resistive MaterialCermet
Mounting TypeThrough Hole
Termination StylePC Pins
Size / DimensionSquare – 0.375″ x 0.375″ Face x 0.190″ H (9.53mm x 9.53mm x 4.83mm)
Package Included:

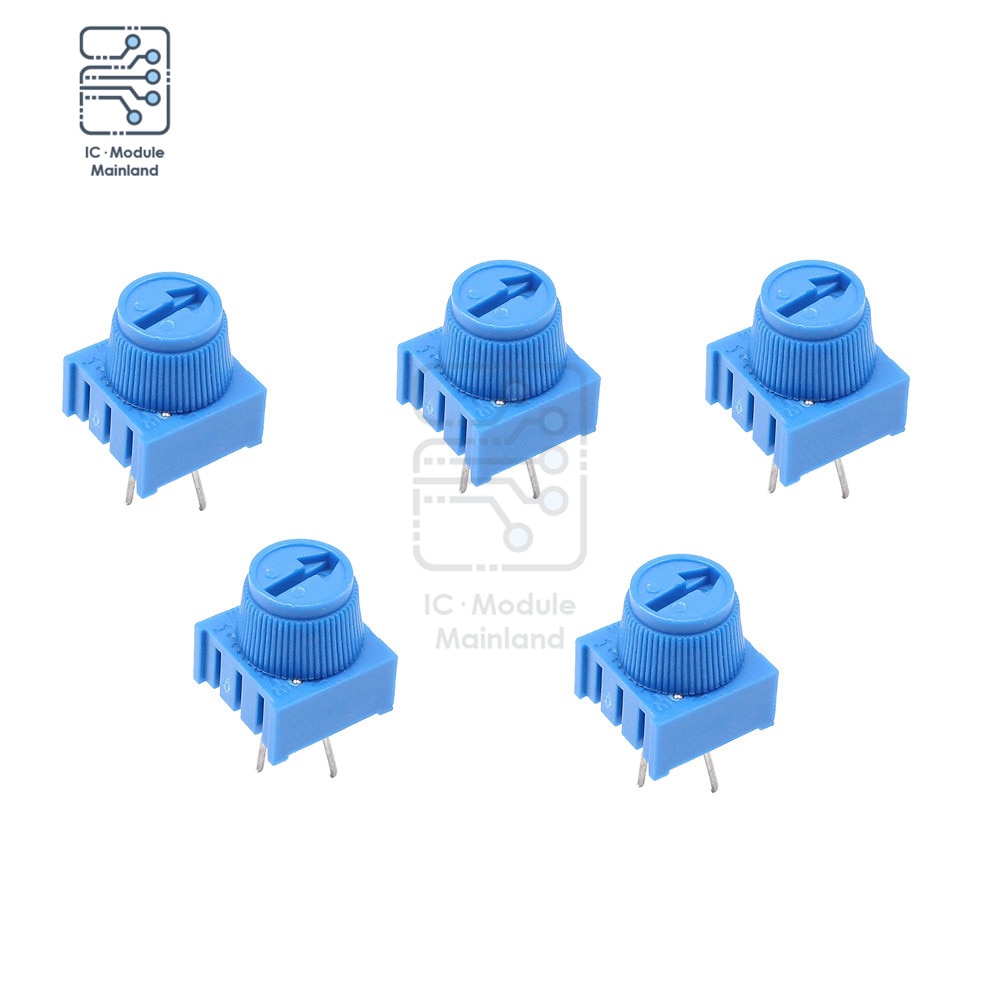

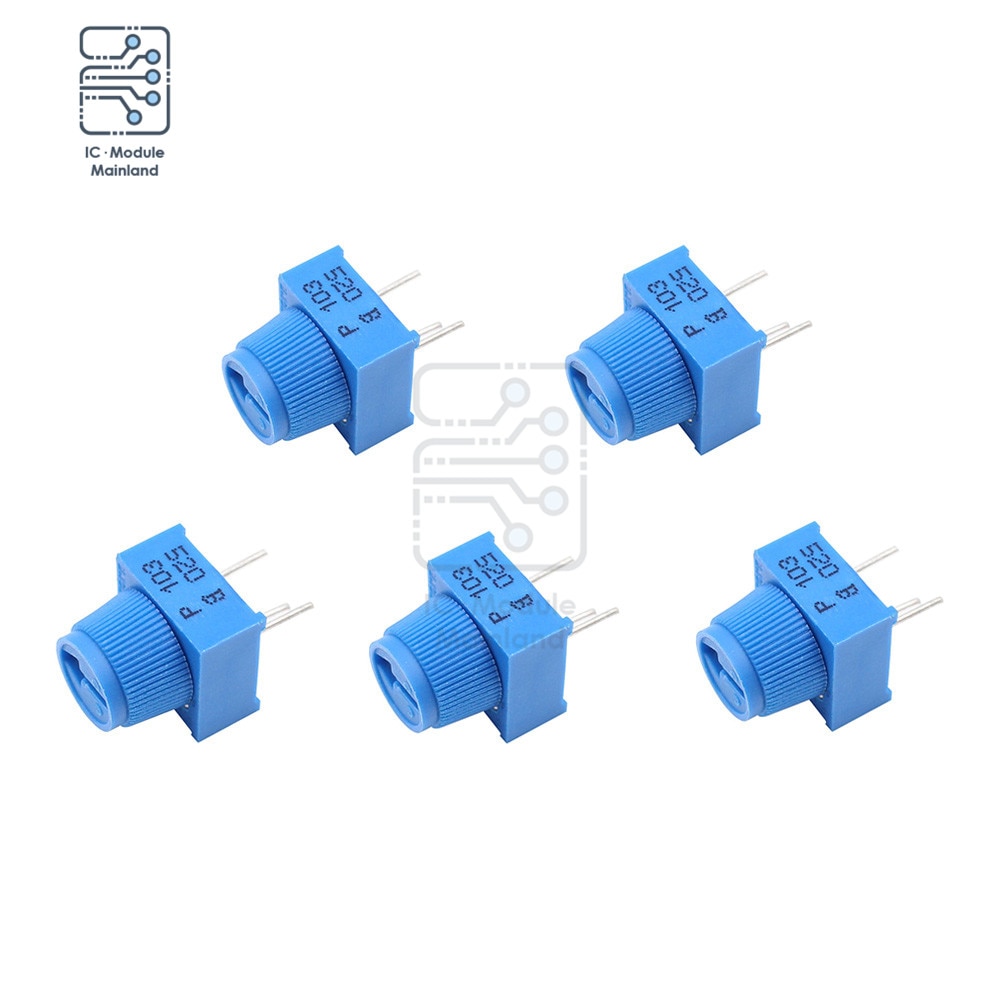

5 * 3386P-103 Trimpot 10K Ohms High Precision Trim
Potentionmete
Potentionmete
