Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 0
- Model Number: 980MD-30-0813-TTL-BL/5pcscs
- Voltage: 0
- Occasion: Professional Stage & DJ
Parameters
Please note:980nm is IR lasers which can not be seen by naked eyes.It can only be captured by night vision camera or IR laser detection equipment.
The dot is rectangular,not a round one.Kindly please make sure you know it before ordering.Thanks.
Wavelength:980nm
Output Power:30mw
Working Voltage:5V
Working Current:<100mA
Working Temperature:+10 ℃~+40 ℃
Laser Shape:Dot(rectangular to oval)
Focusable:Yes
TTL:0-15Khz
TTL Modulation Voltage:0-5V Off low, high open, normal status open
Material and Color:Brass
Lens:Plastic
Dimensions:8x13mm
Features
Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive,If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+.
This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Package

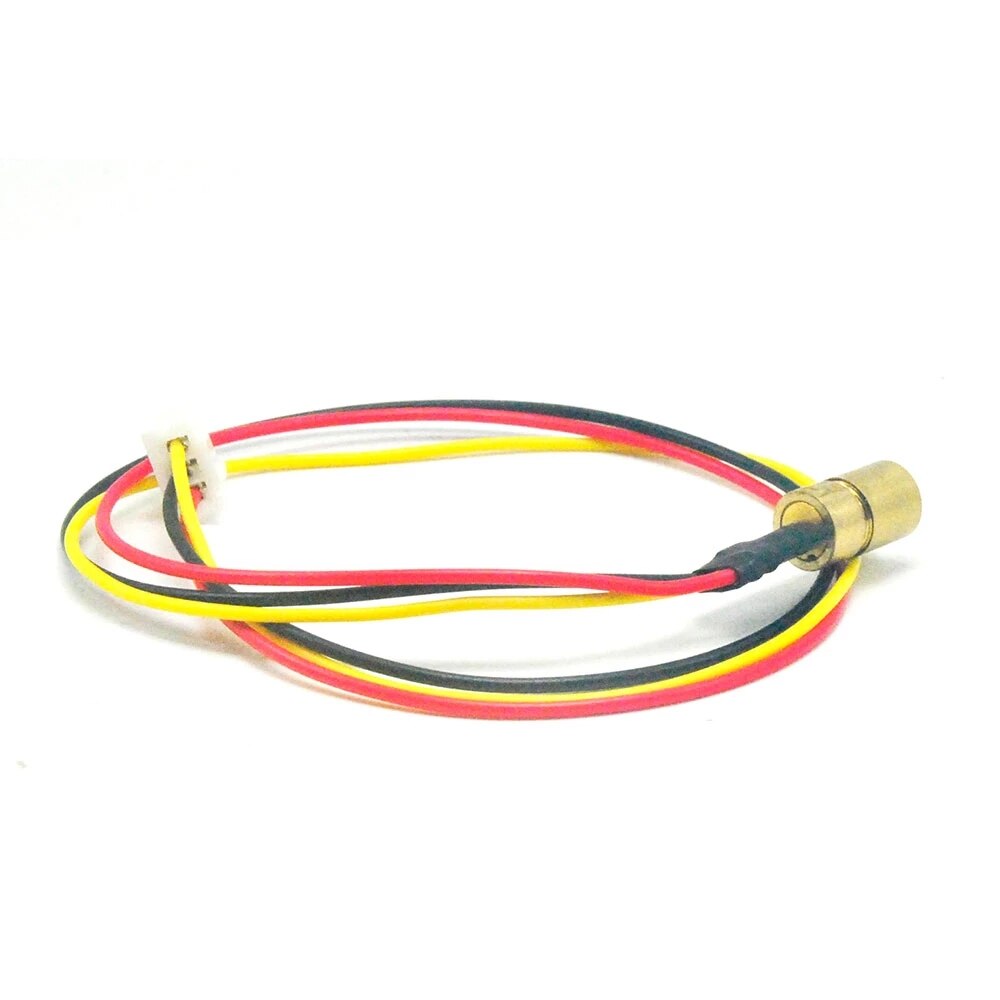

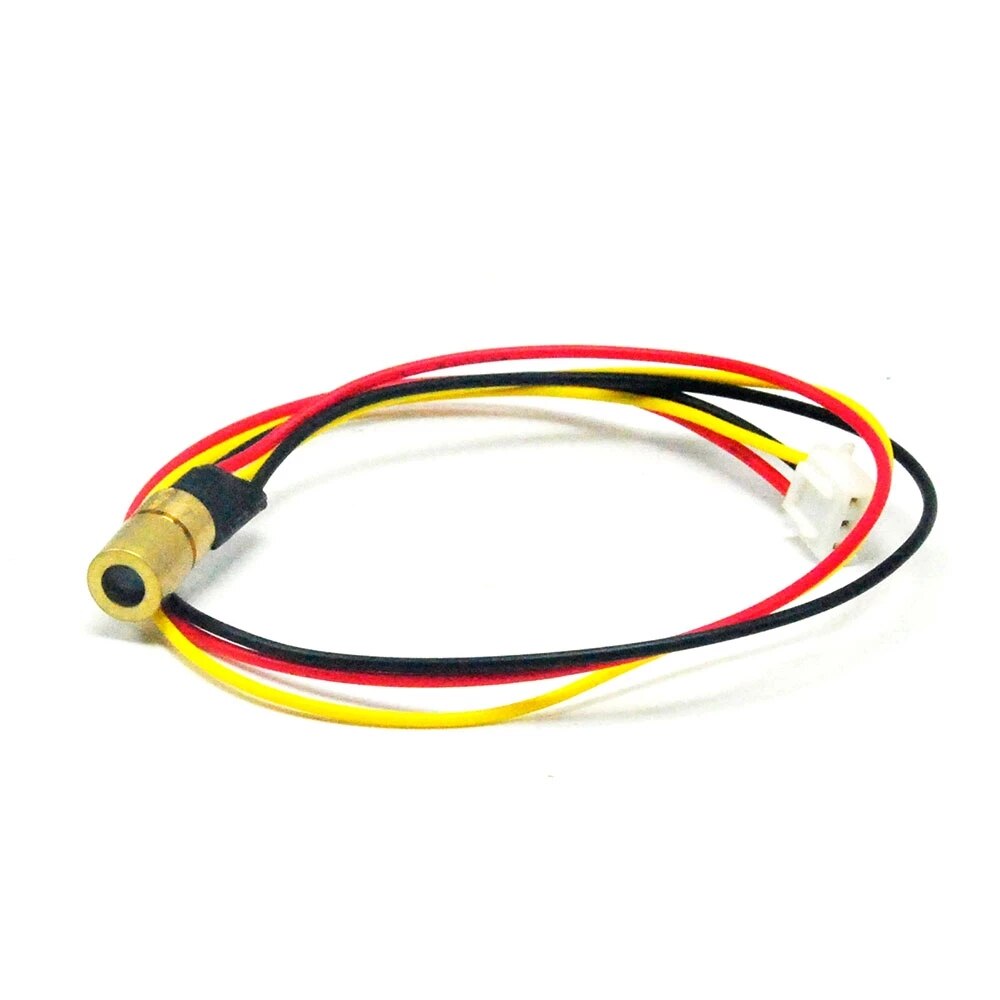

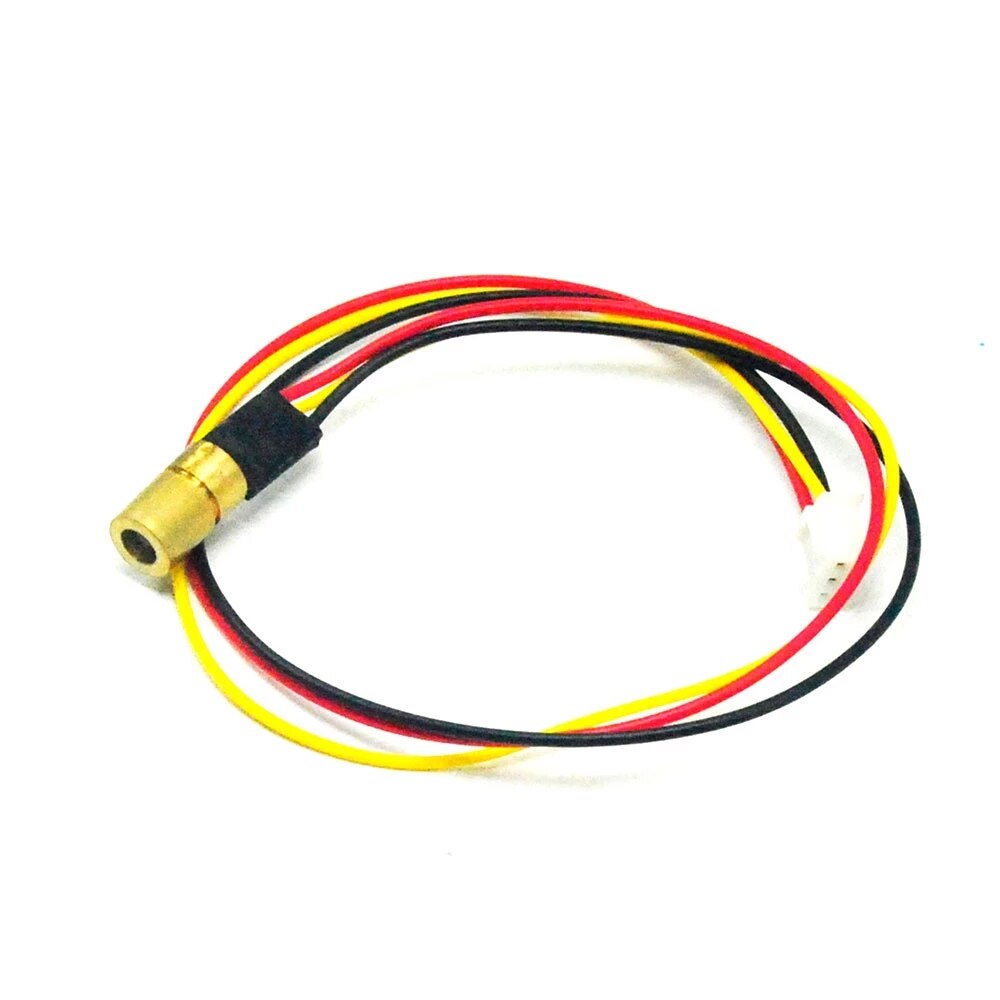

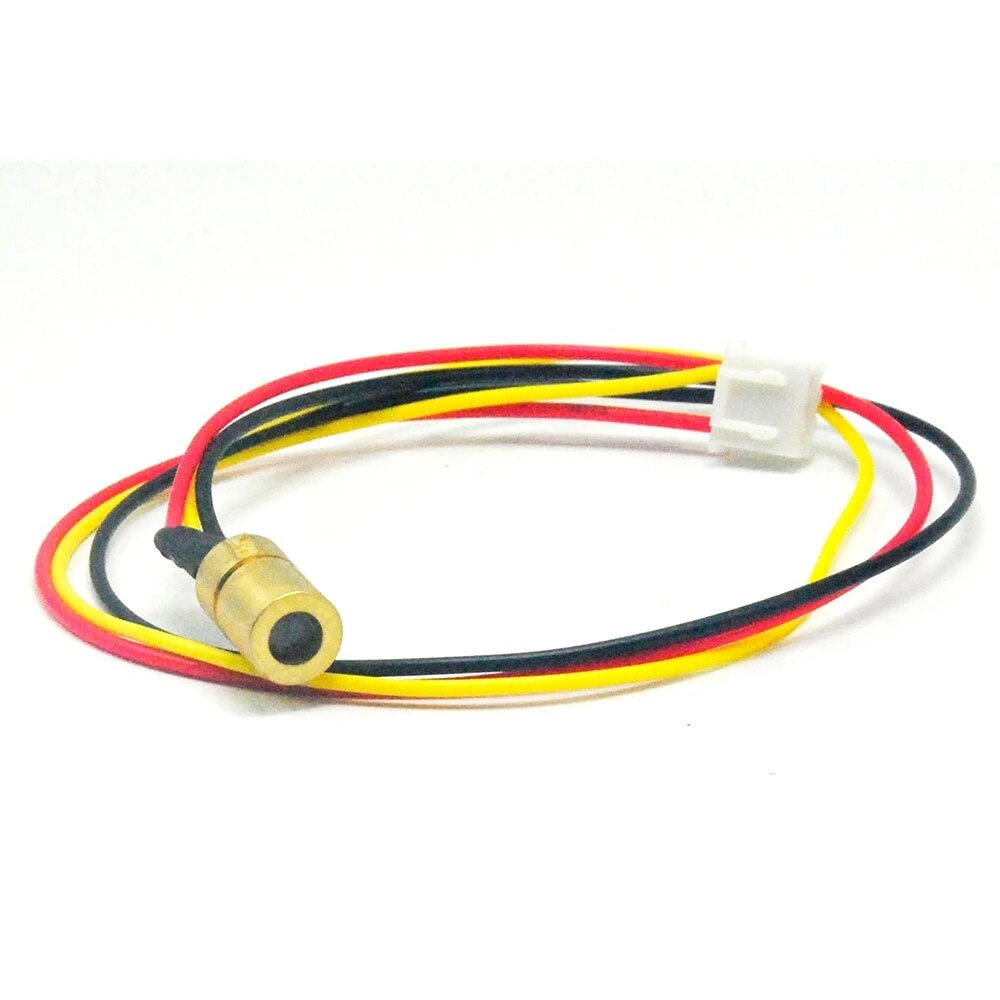

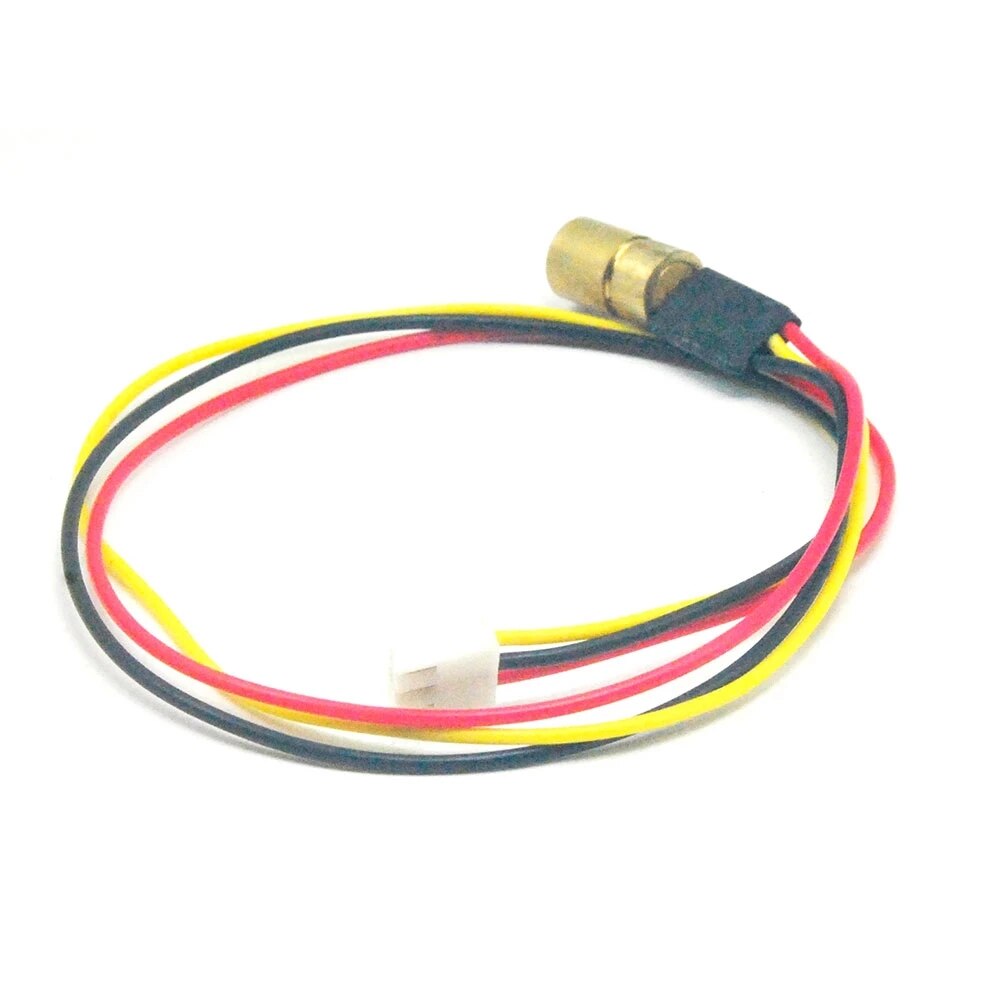

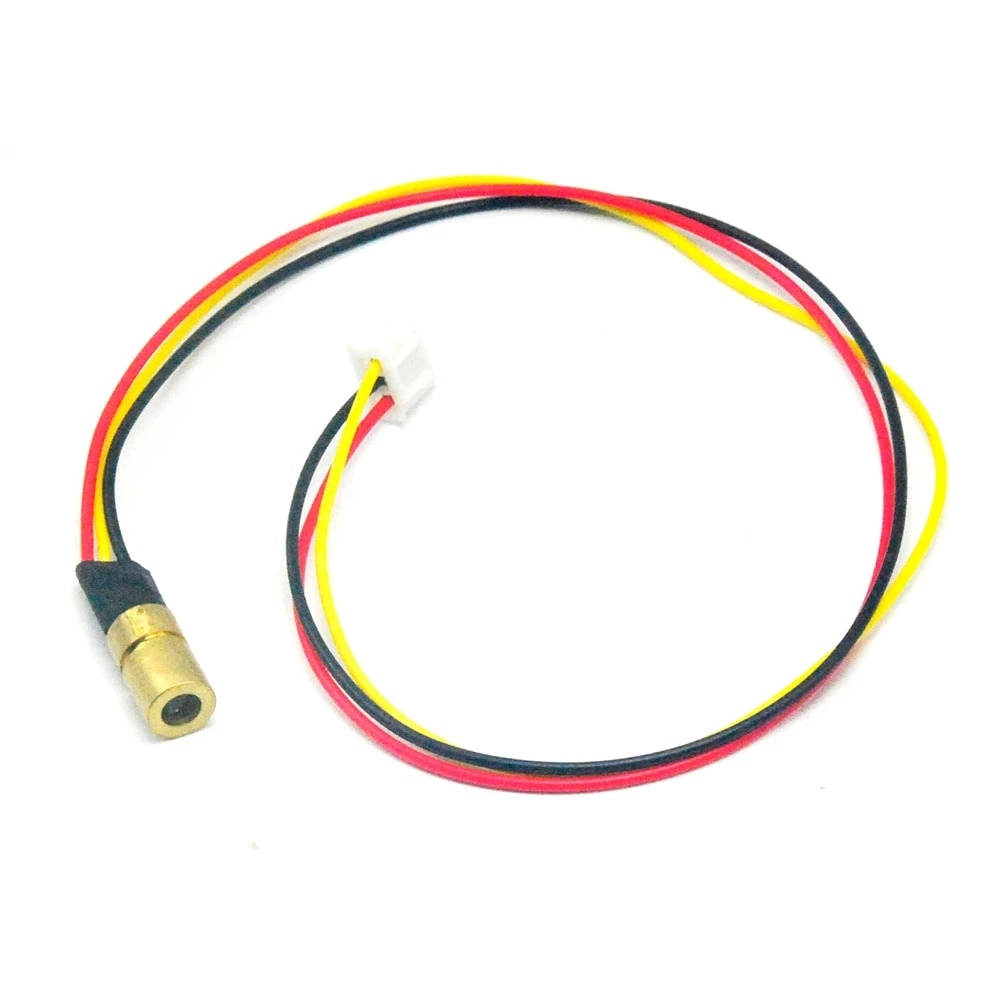

5pcs 30mW 980nm Infrared IR DOT Laser Diode Module TTL Fine Focusable 5V 8X13mm
