Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±20%
- Technology: Carbon Film
- Type: Rotary Potentiometer
- Operating Temperature: -10 -100℃
- is_customized: Yes
- Max. Operating Voltage: 200V
- Model Number: WH148
- Rated Power: 1/2W

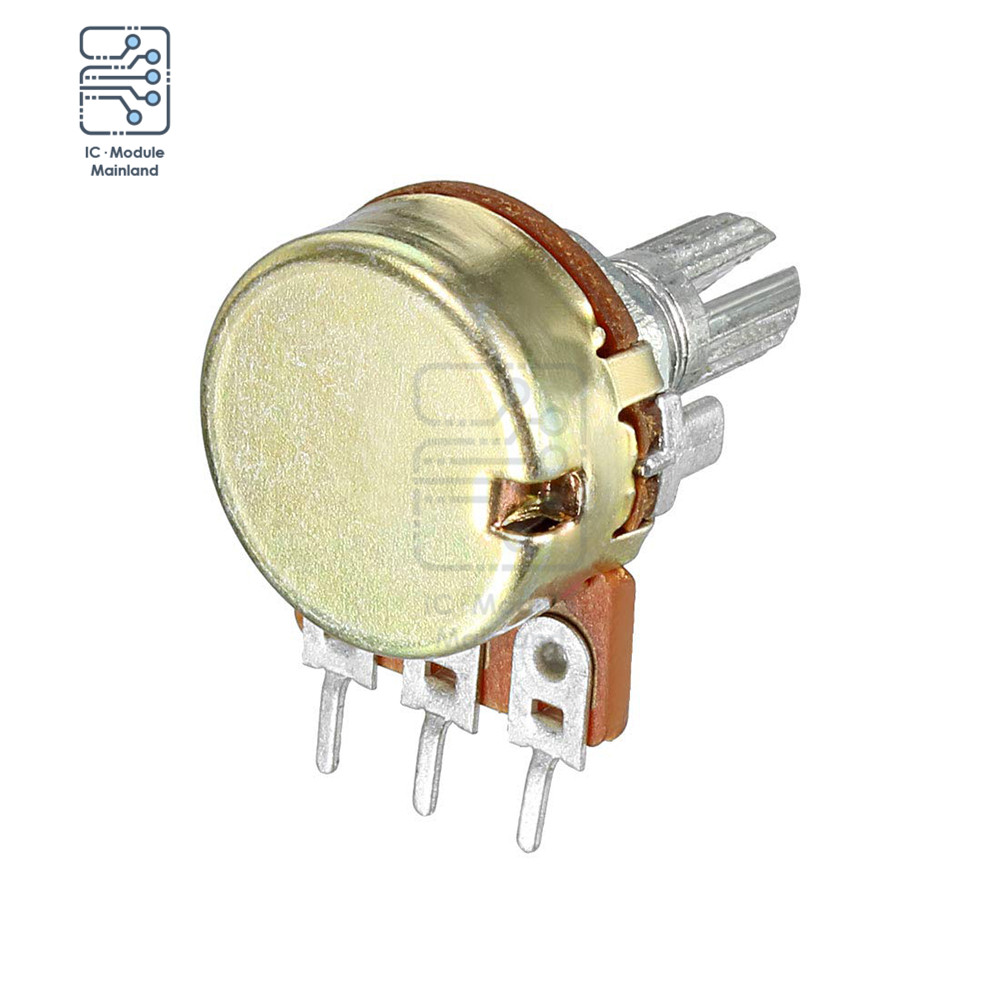

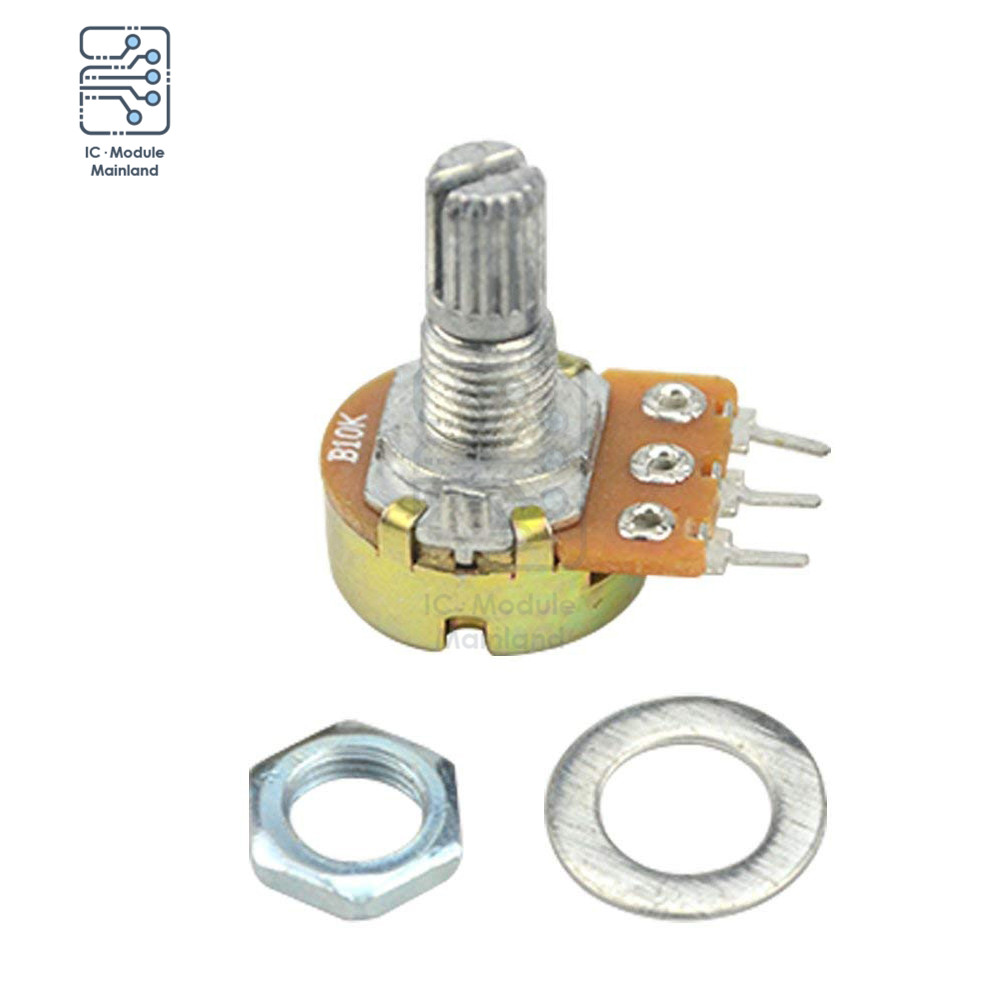

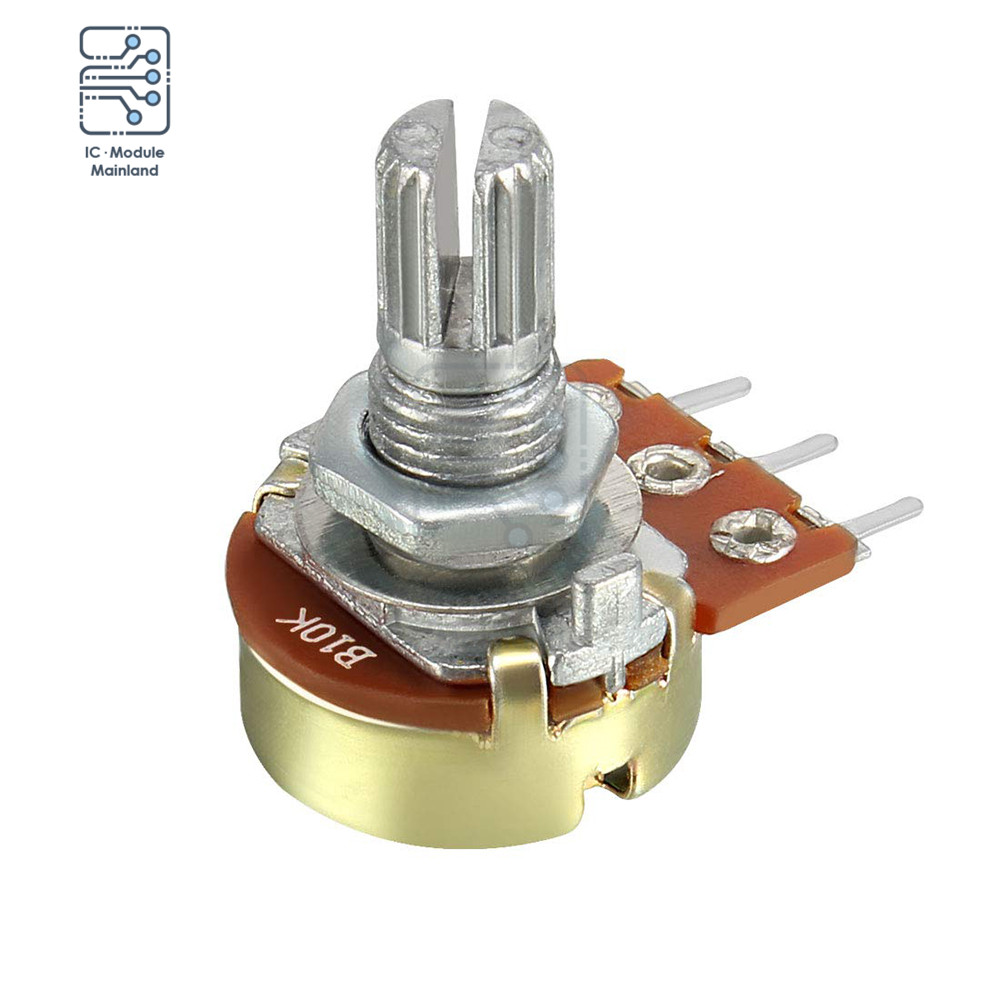

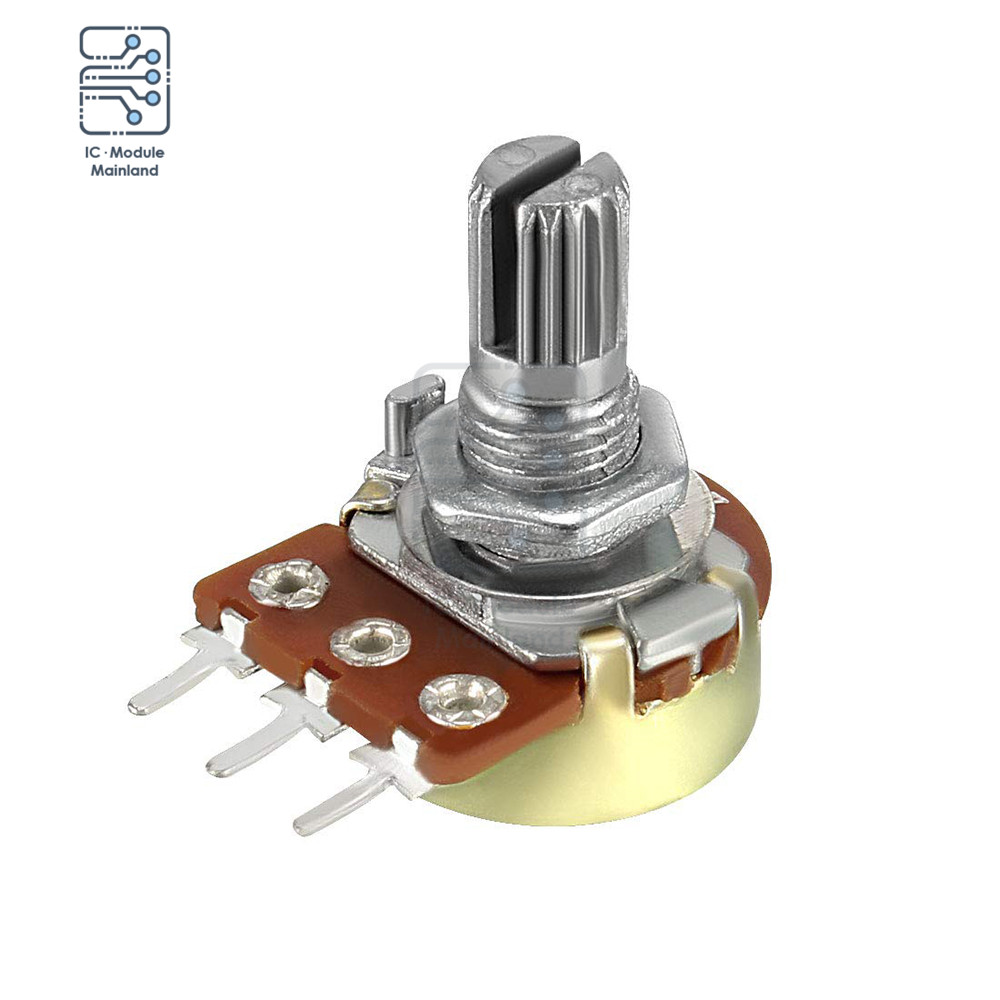

5PCS 15mm Shaft Potentiometer Resistor 1K 2K 5K 10K 20K 50K 100K 500K 1M Ohm 3 Pin Linear Taper Rotary Potentiometer for Arduino
Feature:
Durable product
Convenient and practical
Easy to adjust voltage and electric current with Cap
Parameter:
Model: WH148
Resistance Taper: B
Type: single linear rotary
Material: Carbon Film+Metal
Terminal: 3 Pin

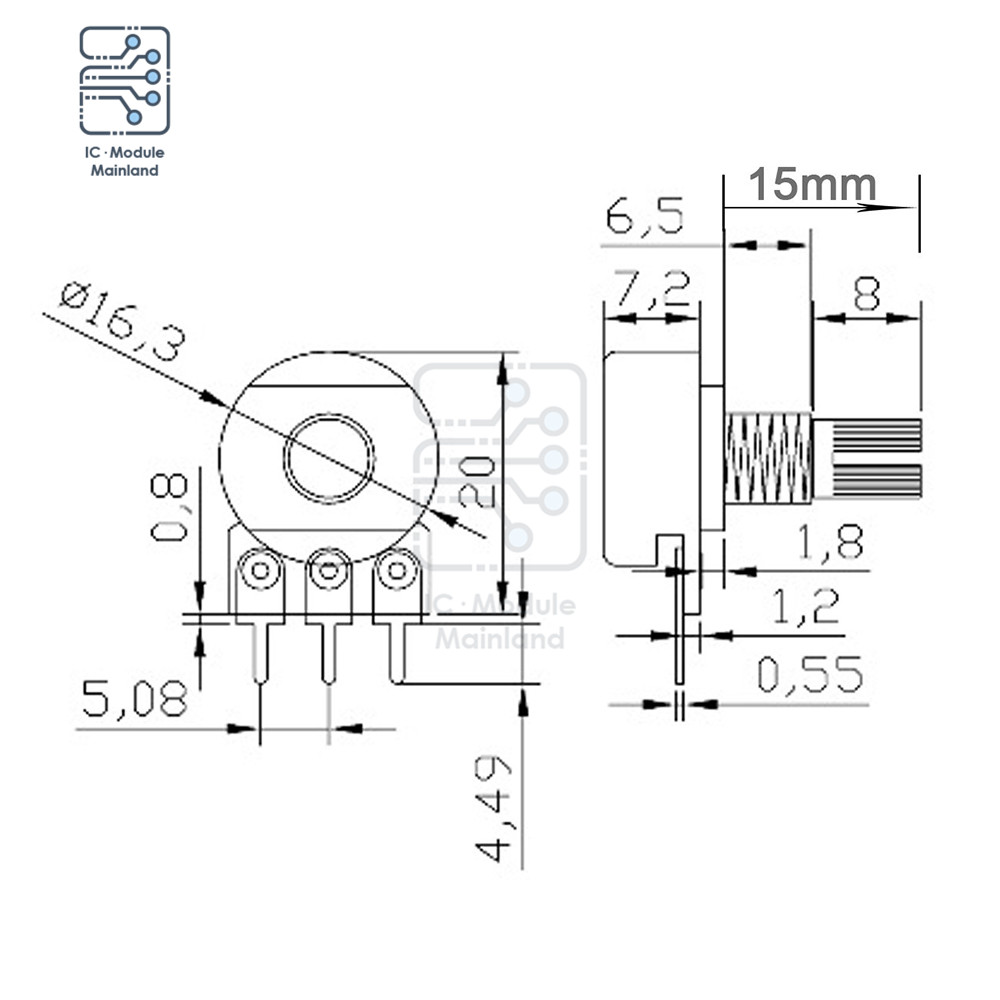

Shaft: 15mm
Resistance tolerance: ±10% -30% (According to the resistance value of potentiometer)
Total Rotation: 300°±5°
Rotation Torque: 20 -200gf.cm

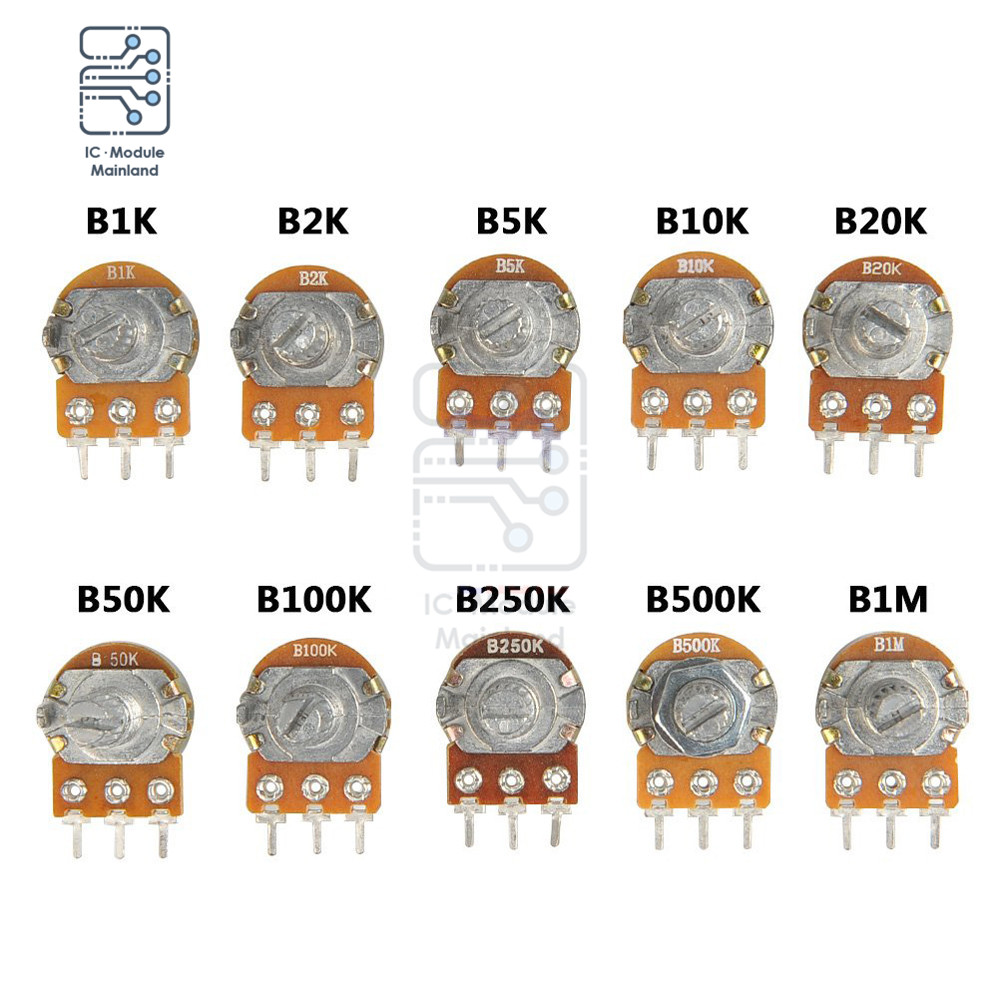

Resistance Value: 1K Ohm, 2K Ohm, 5K Ohm, 10K Ohm, 20K Ohm, 50K Ohm, 100K Ohm, 250K Ohm, 500K Ohm, 1M Ohm
Package Included:
5 * WH148 Resistor Rotary Potentiometer
