Description
- Type: Hand Tool Parts
- Origin: Mainland China
- Place of Origin: Jilin, China
- Condition: Used
- Warranty: 1 Year
- Spare Parts Type: laser
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: Hot Product 2022
- Brand Name: CNI
- Key Selling Points: Competitive Price
- Showroom Location: None
- Weight (KG): 4.5 KG
- Product name: INFRAFED LASER
- Certificate: CE Certification/FAD/RoHS-CERT
- Keywords: INFRAFED LASER
- Wavelength (nm): 589±1
- Output power (mW): >1, 5, 10, 20, … , 100
- Power stability (rms, over 4 hours): <2%, <3%
- Transverse mode: TEM00
- Longitudinal mode: Single
- Spectral linewidth (nm): <0.00001
- Coherent length (m): >50
Product Description

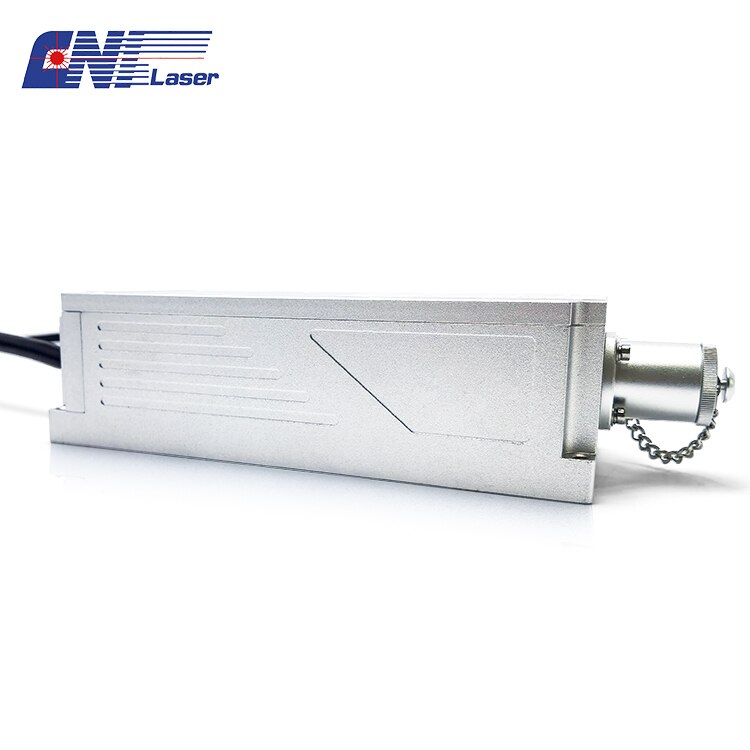

SINGLE LONGITUDINAL MODE YELLOW LASER AT 589nm
All solid state single longitudinal mode yellow laser at 589nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.
|
Wavelength (nm)
|
589±1
|
||
|
Operating mode
|
CW
|
||
|
Output power (mW)
|
>1, 5, 10, 20, … , 100
|
>100, … , 200
|
|
|
Power stability (rms, over 4 hours)
|
<2%, <3%
|
<2%, <3%, <5%
|
|
|
Transverse mode
|
TEM00
|
||
|
Longitudinal mode
|
Single
|
||
|
Spectral linewidth (nm)
|
<0.00001
|
||
|
Coherent length (m)
|
>50
|
||
|
Noise of amplitude (rms, 1Hz~20MHz)
|
<1%, typical<0.5%
|
||
|
M2 factor
|
<1.2
|
||
|
Beam diameter at the aperture (1/e2, mm)
|
<2.5
|
||
|
Beam divergence, full angle (mrad)
|
<1.2
|
||
|
Polarization ratio
|
>100:1, Horizontal±5 degree (Vertical Optional)
|
||
|
Warm-up time (minutes)
|
<10
|
||
|
Pointing stability after warm-up (mrad)
|
<0.05
|
||
|

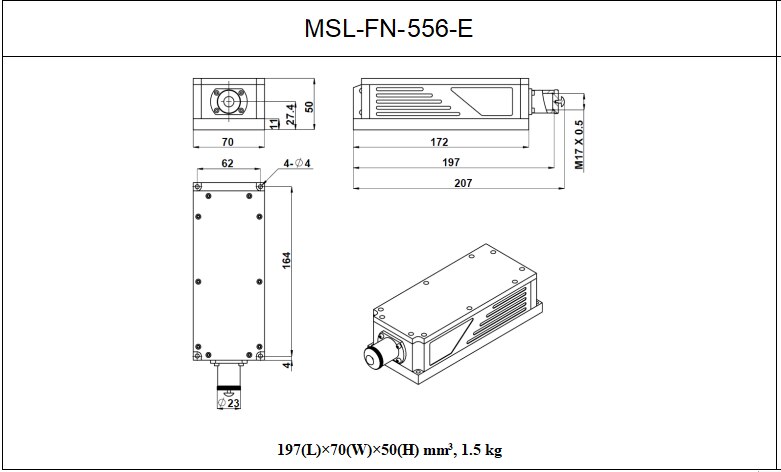

Beam height from base plate (mm)
|
27.4
|
||
|
Operating temperature (℃)
|
15~35
|
||
|
Power supply (90-264VAC)
|

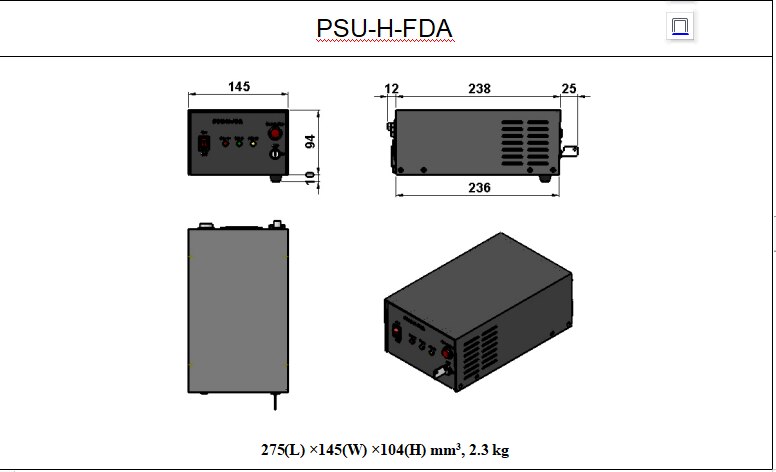

PSU-H-FDA
|
||
|
Expected lifetime (hours)
|
10000
|
||
|
Warranty
|
1 year
|
||

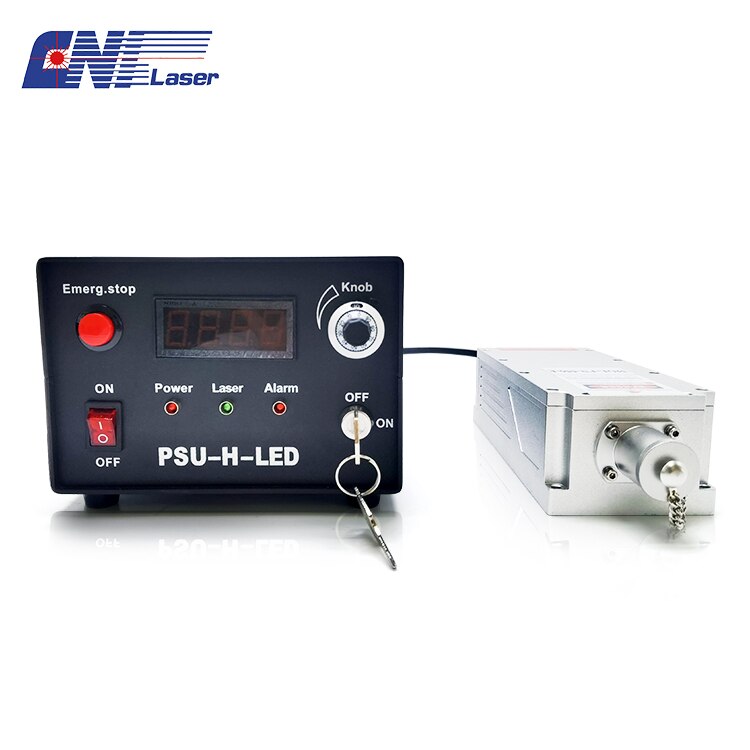

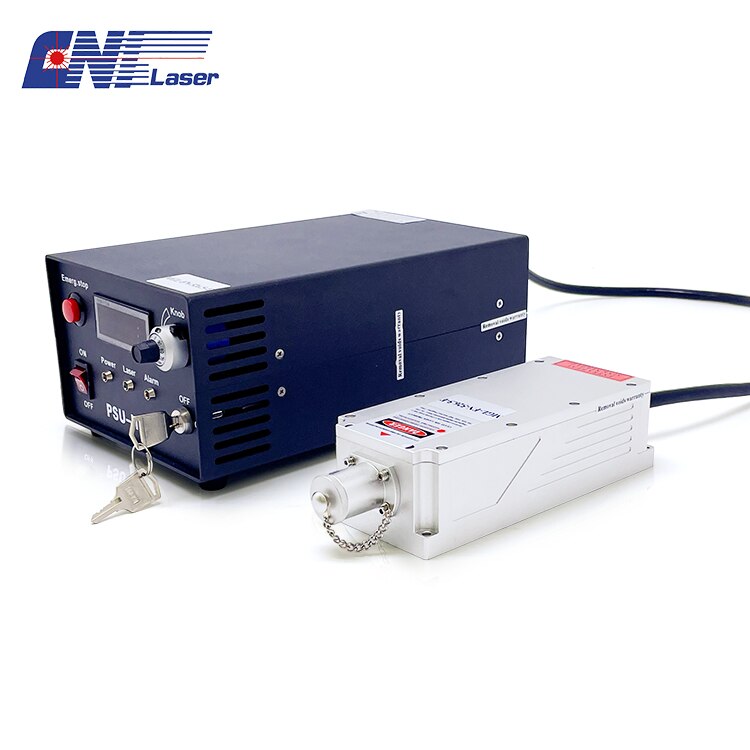

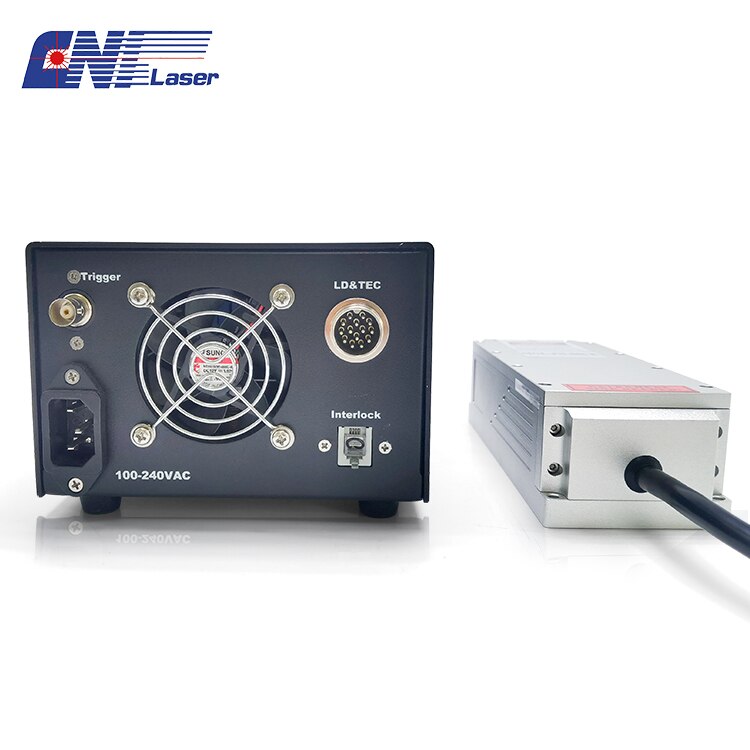

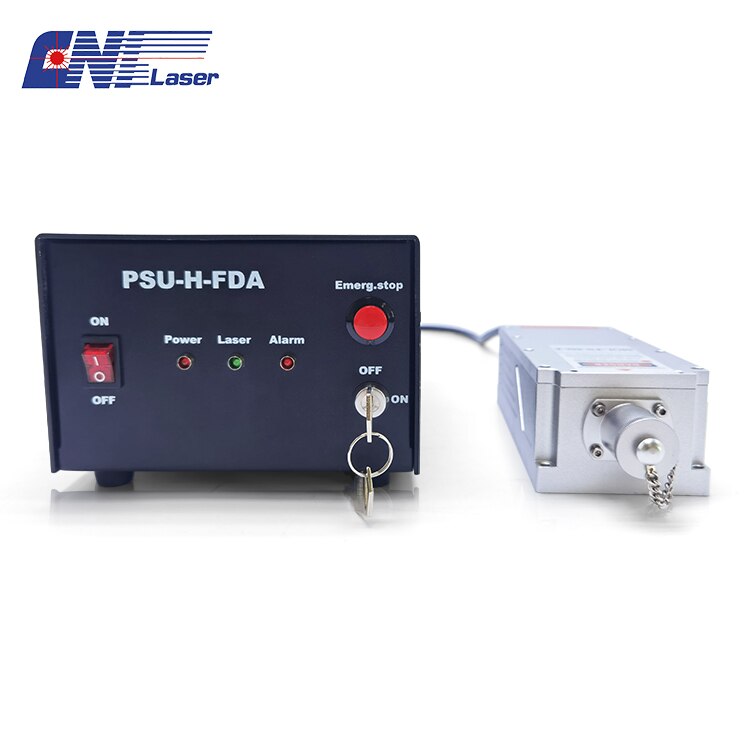

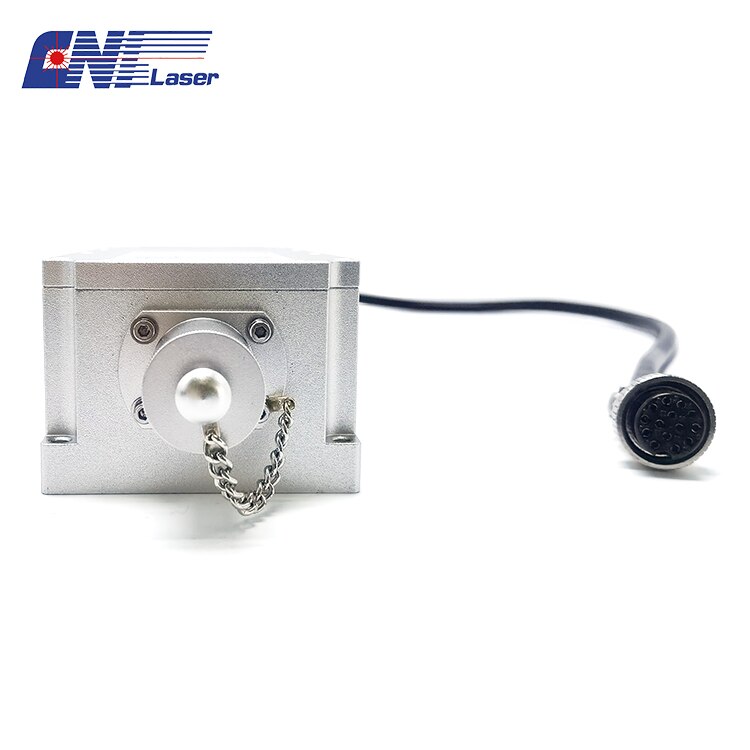

Product Show
Applications
