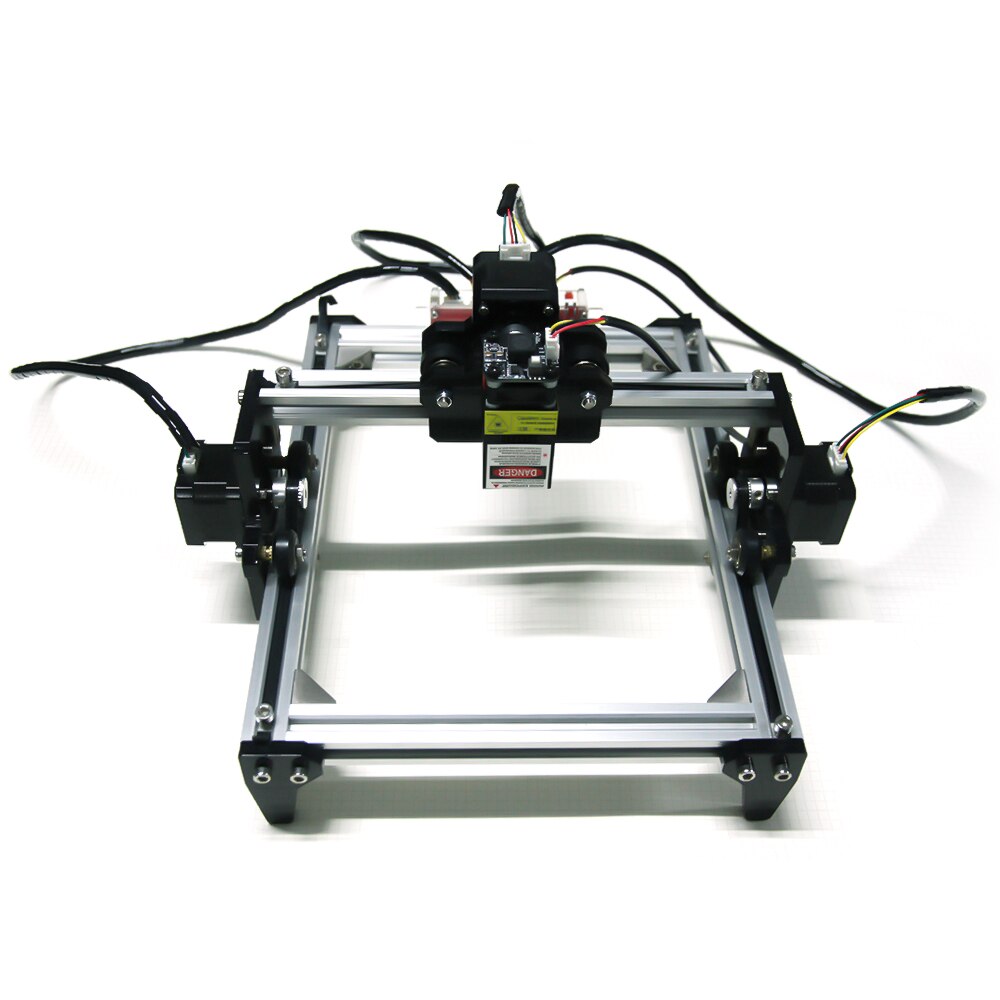

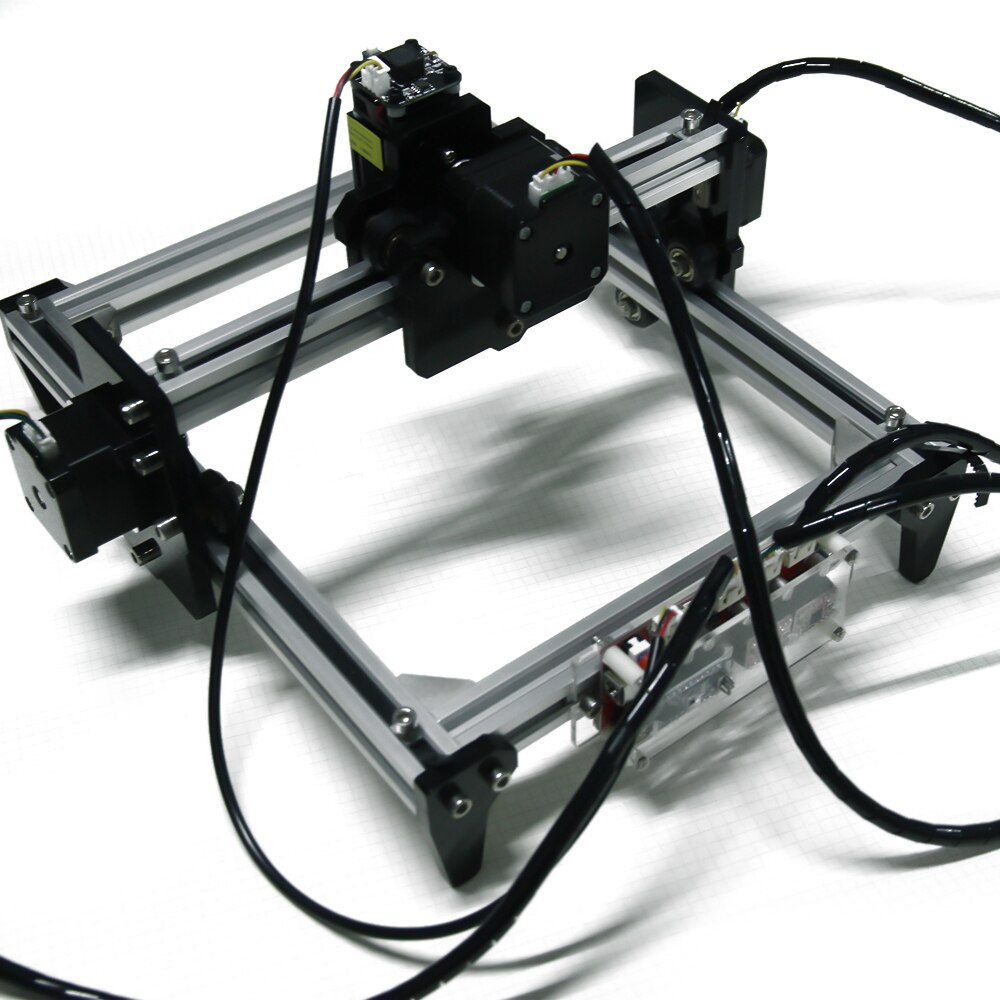

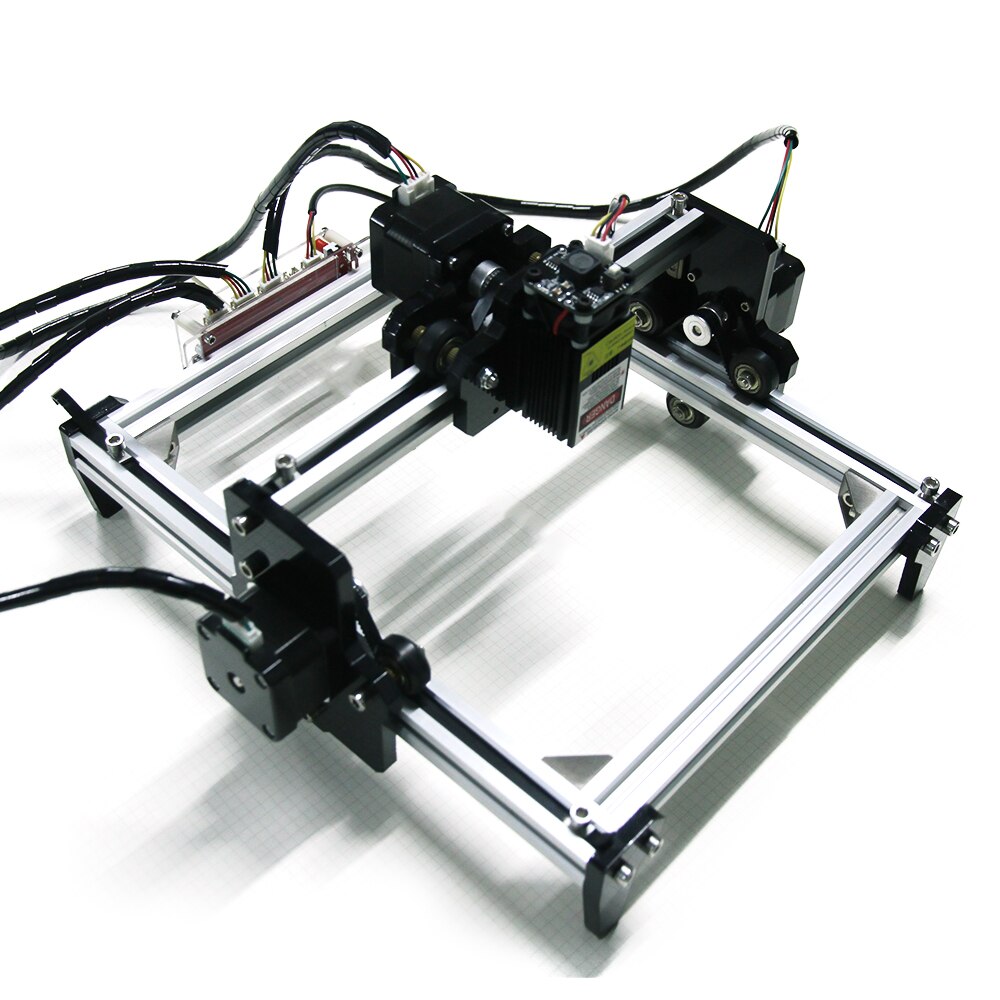

This brand new VG-L5S Pro is especial designed for DIY Laser Engraving Machine with professional control software, from control board development to software and hardware organization to provide you with the ultimate portable experience.

Features:
Desktop DIY laser engraving machine for laser carving and more cost-effective than normal engraving machine.
Support Win7 and above software system, support Chinese and English bilingual operation interface.Very easy to operate.

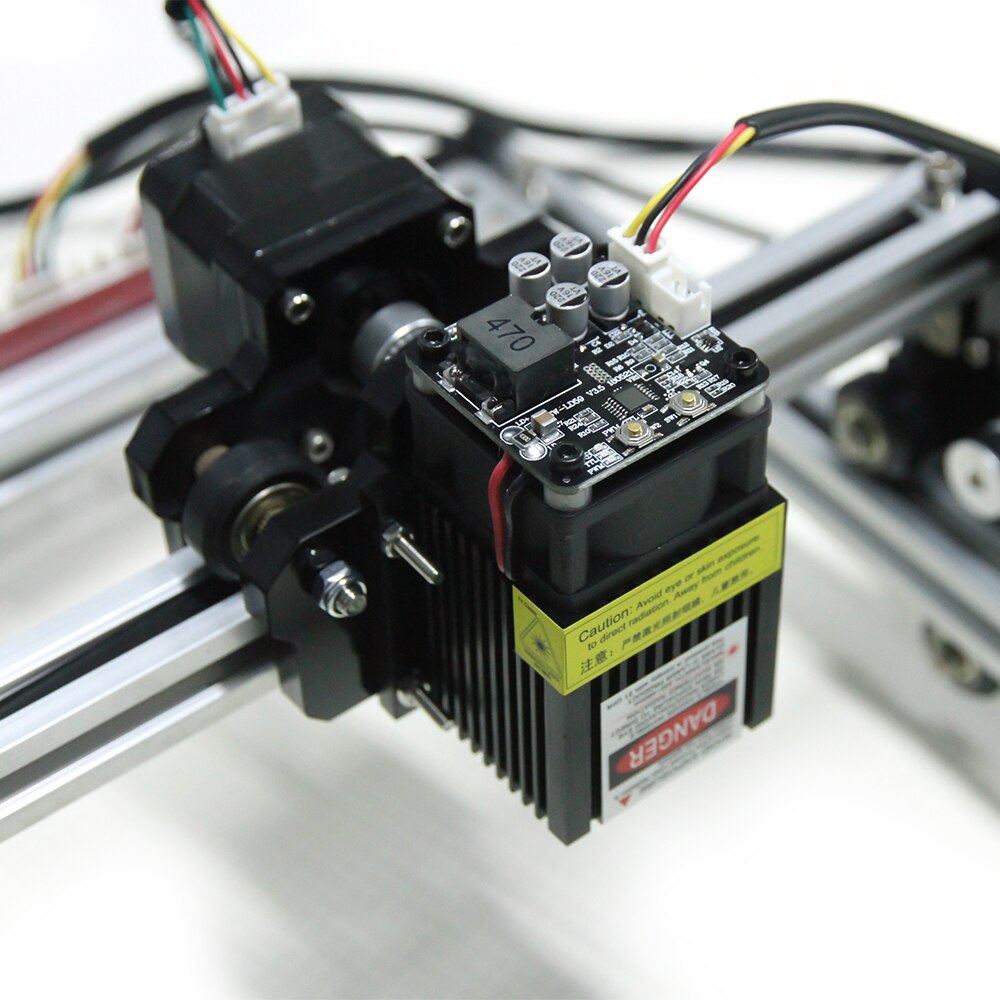

Y axis double motor, three stepper motor providing faster moving speed，laser with heatsink fan, high laser engraving power and long working time.
Unique frame and weak light positioning makes the image positioning easier.
Matching ball bearings, higher accuracy, better stability, engraving accuracy of 0.05 mm
Adjustable laser power, achieve all kinds of effects.

Specifications:
Material: Aluminum Alloy + Acrylic
Main Color: Silver
Power Supply: AC 100-240V Output 12V 5A
Plug Type: US
Laser Power: 300mW/ 500mW / 1600mW/2500mW / 5500mW (Optional)
Laser Wavelength: 405nm (300mW/500mW), 445nm (1600mW/2500mW/5500mW)
Supported OS: Win 7 and above
Controller Board: VigoTec
Communication Port: Micro USB
Stepper Motor: 26mm thick 42SHD0503, Step Distance Angle 1.8°
Supported Software: Engraving machine software uses VigoEngraver, Support GRBL, benbox, elekscam, if you have firmware you can use.
Supported Formats: jpg / bmp / DXF / G-code
Image Size: No Limitation

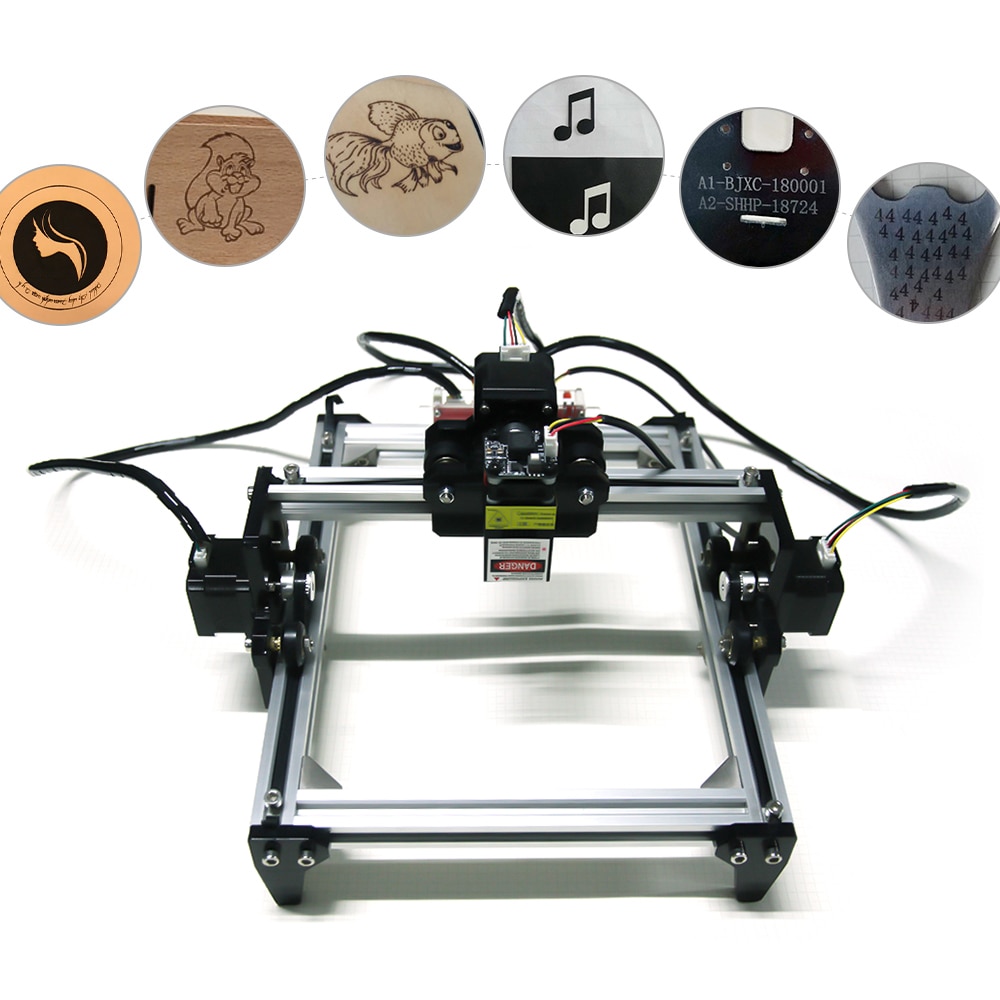

Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Pixel Carving, Grayscale, Black White
Laser Quick Replace: Support
Continuous Work Time: Sustainable Working (With Heat Dissipation Fan)
Working Voltage: DC 12V
Working Current: DC 5A
Engraving Accuracy: 0.05mm
Engraving Area: 190×130mm（L×W）
Laser Focus Distance: about 5-8cm
Can Not Carve Objects: All metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.

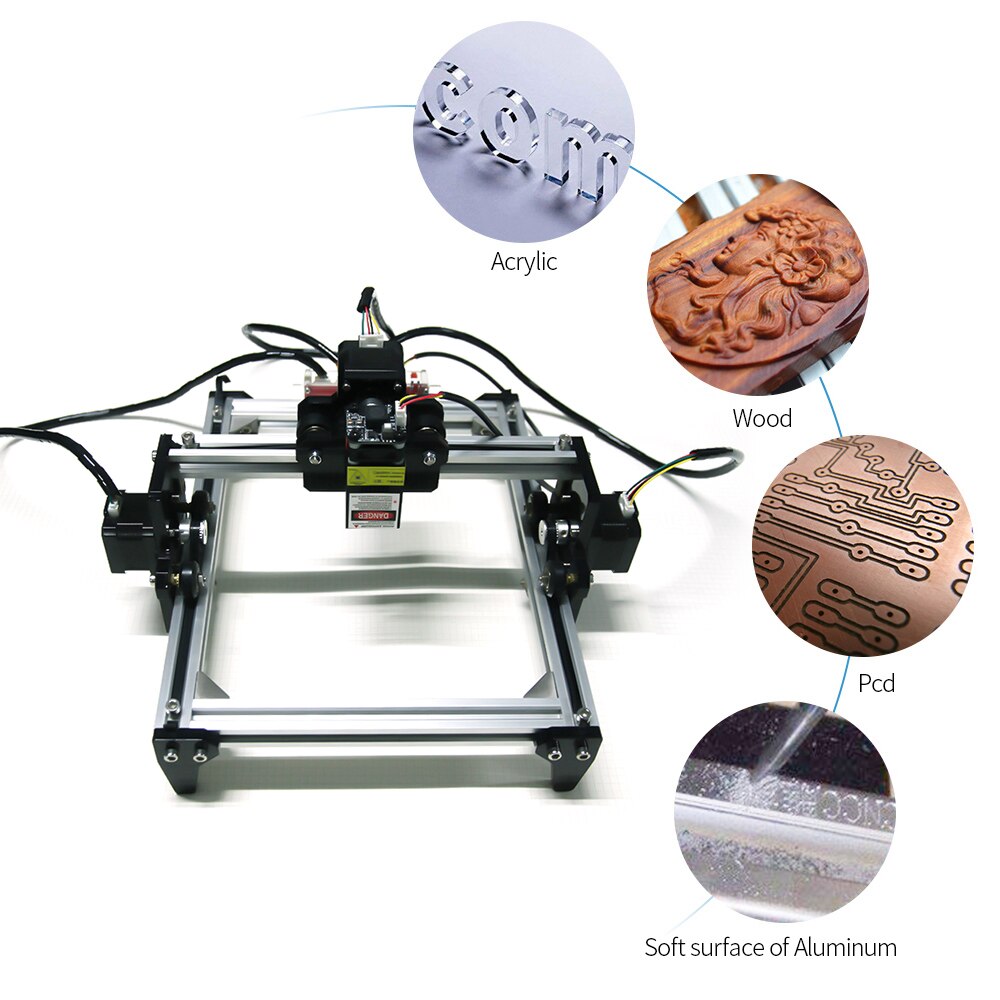

Can Carve Objects: All wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc.
Can Cut Objects: Paper-thin, light wood, sponge paper, felt, fabric, sticker.

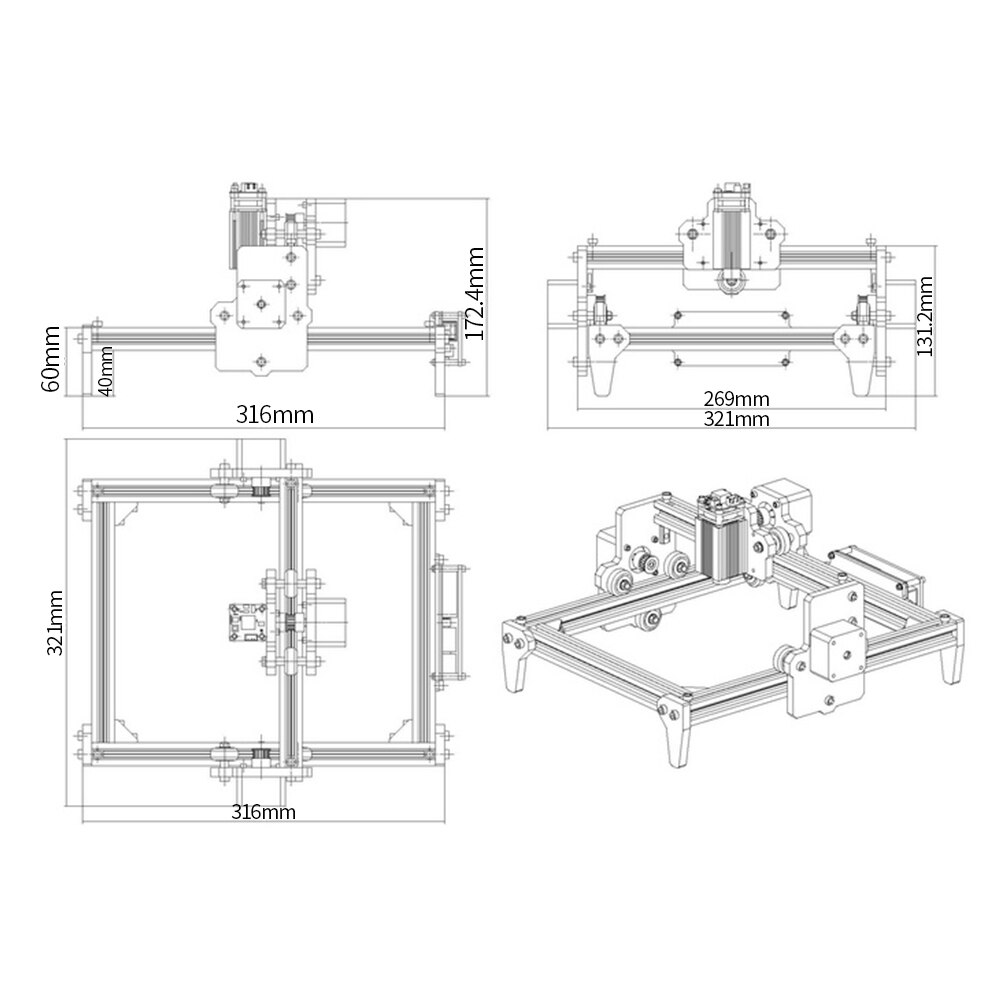

Item Size: 31.6*32.1*19.3cm (L×W×H)
Item Weight: 3.2kg
Package Size: 50.5*40.5*10.5cm / 19.9*15.9*4.1in
Package Weight: 3.6kg

NOTE:
1. DIY Kit, Need To Assemble By Yourself. (Installation link: http://www.vigotec.cn)
2. Please wear laser goggles during using and avoid touching the laser directly with your eyes and skin!
3. Materials can be plane sculpture engraved: wood, bamboo, paper, plastics, leather, rubber, horn, some acrylic, sponge sheet or other easy carving plastic (such as phone case, mouse, pencil, name card, wallet, plastic comb).
4. Materials can’t be engraved: metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.

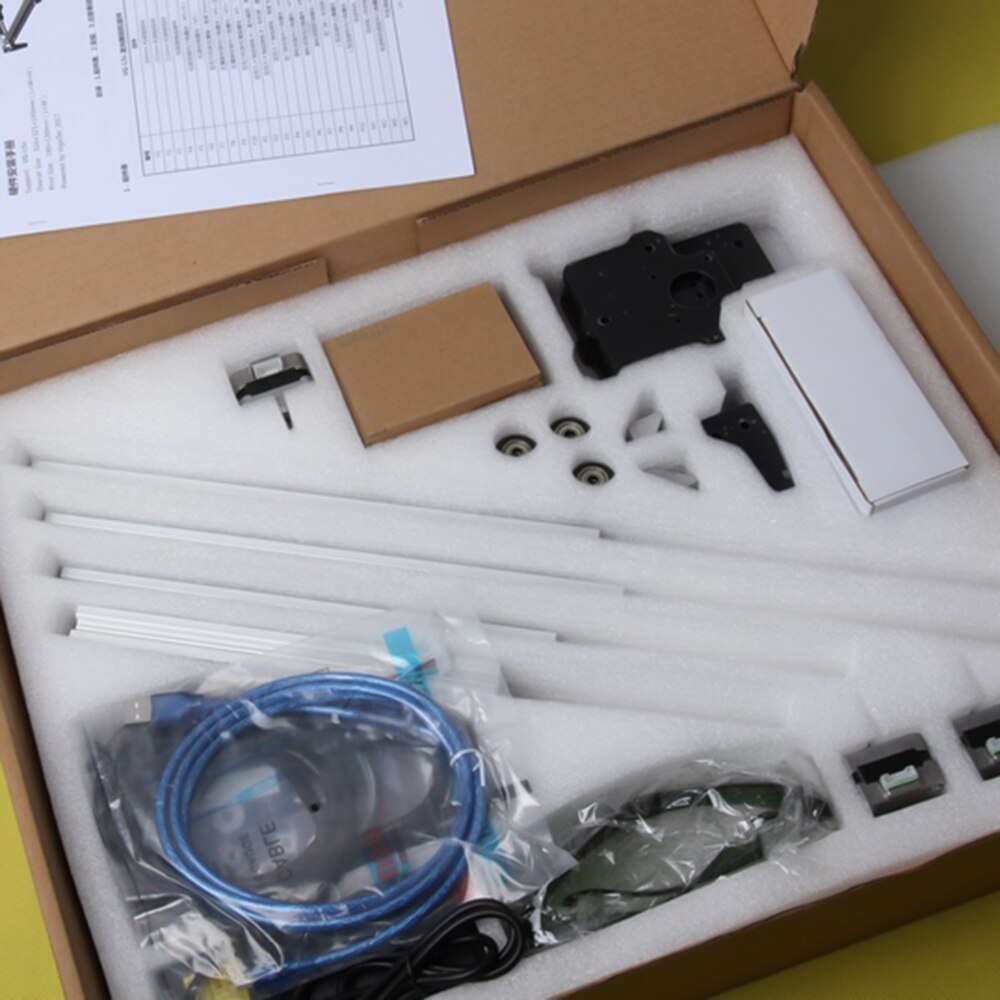

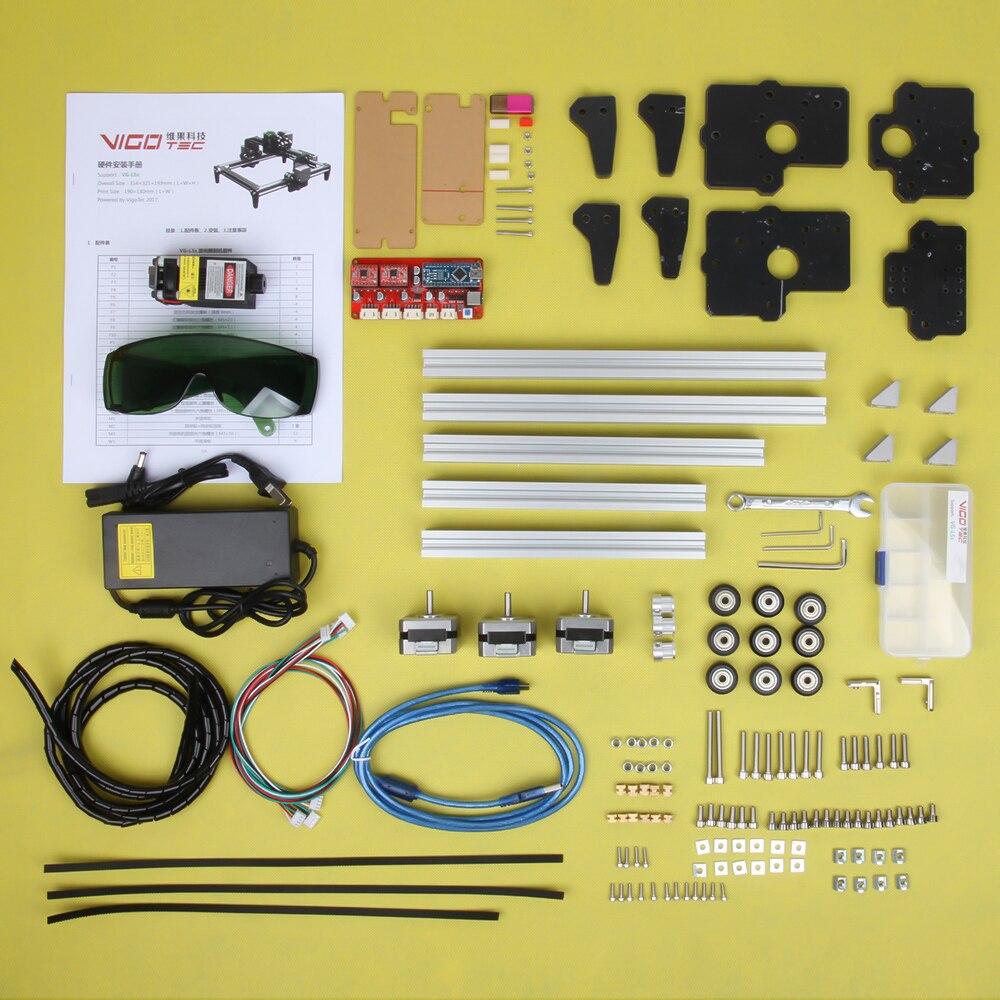

Package List:
1 * Laser Engraver DIY Kit Parts
1 * Power supply
1 * USB cable
1 * Safety glasses
