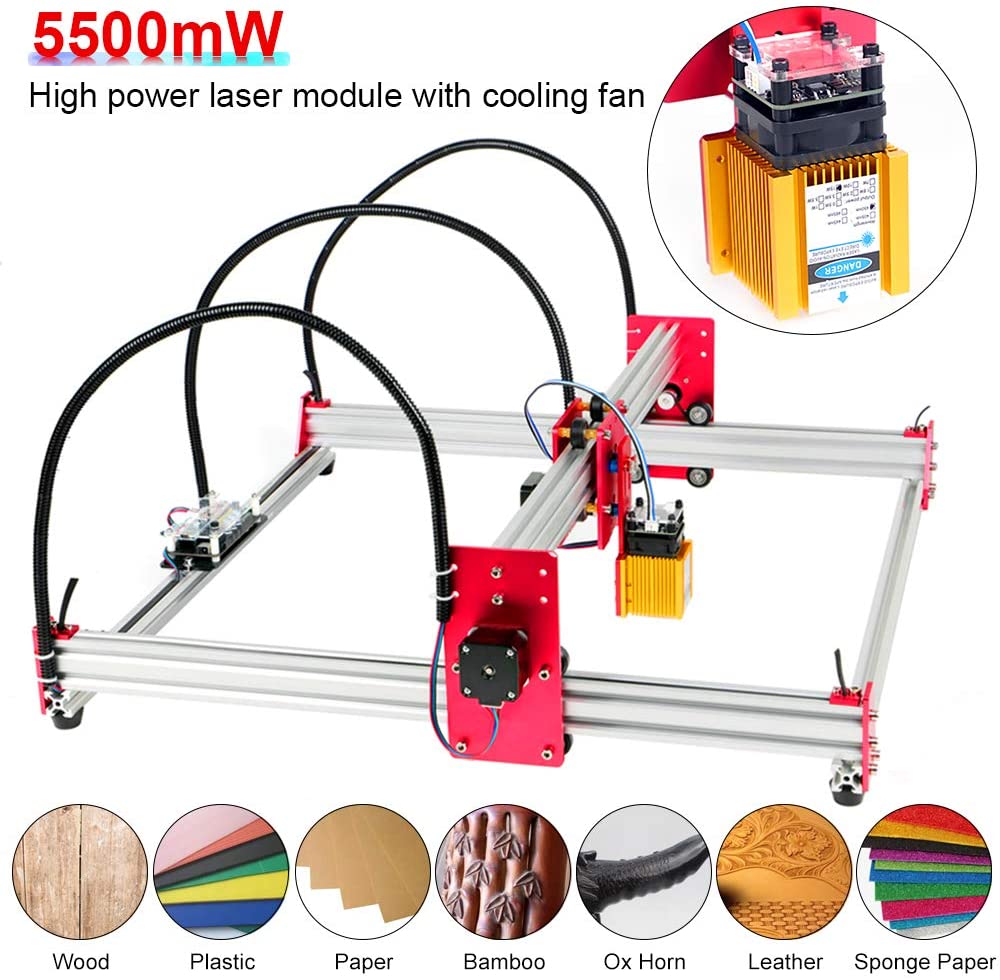

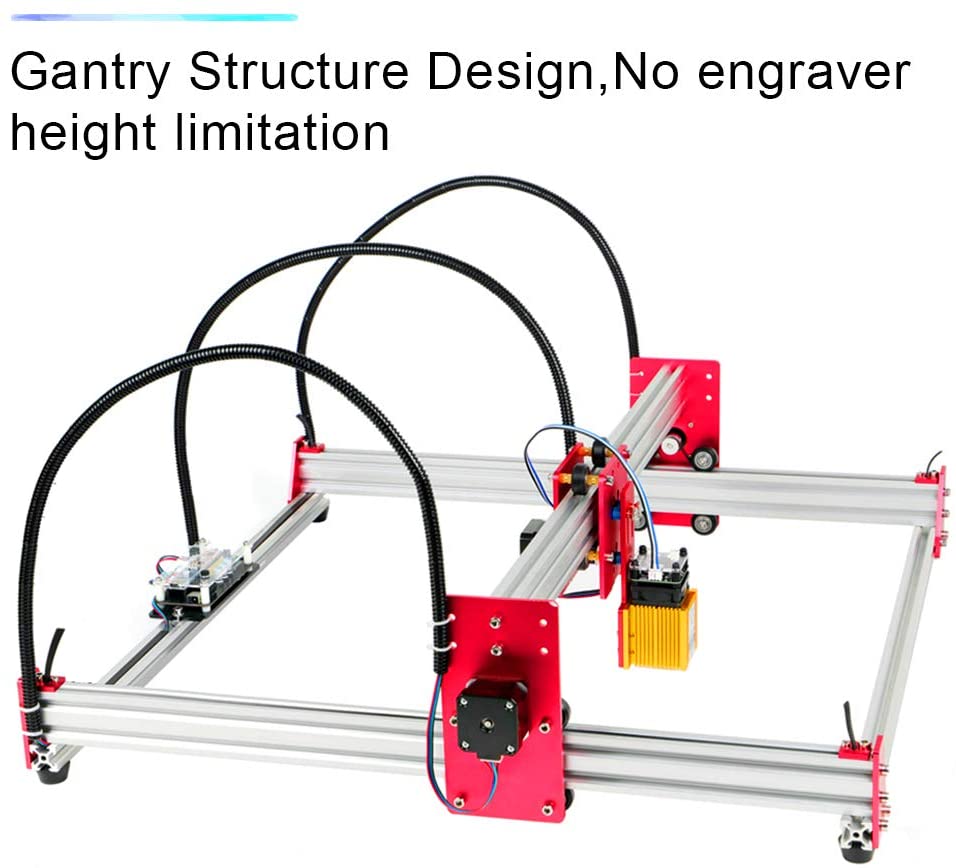

5500mW/15W DIY Laser Engraver Machine 45*45 Engraving Machine 2Axis Wood Router Mini Marking Machine Laser Cutter Printer

Package Includes:

1pcs 45*45 Engraving machine + 5500mw laser





Parameter:



45*45 Engraving Machine

Model: 4550

Material: Aluminum Profile

Working area: 45cm *45cm

Can Engrave: Determined by laser module power

Input voltage：AC 100V-240V，50 / 60Hz

Output：DC 12V 5A

Engraving area：450mm*450mm

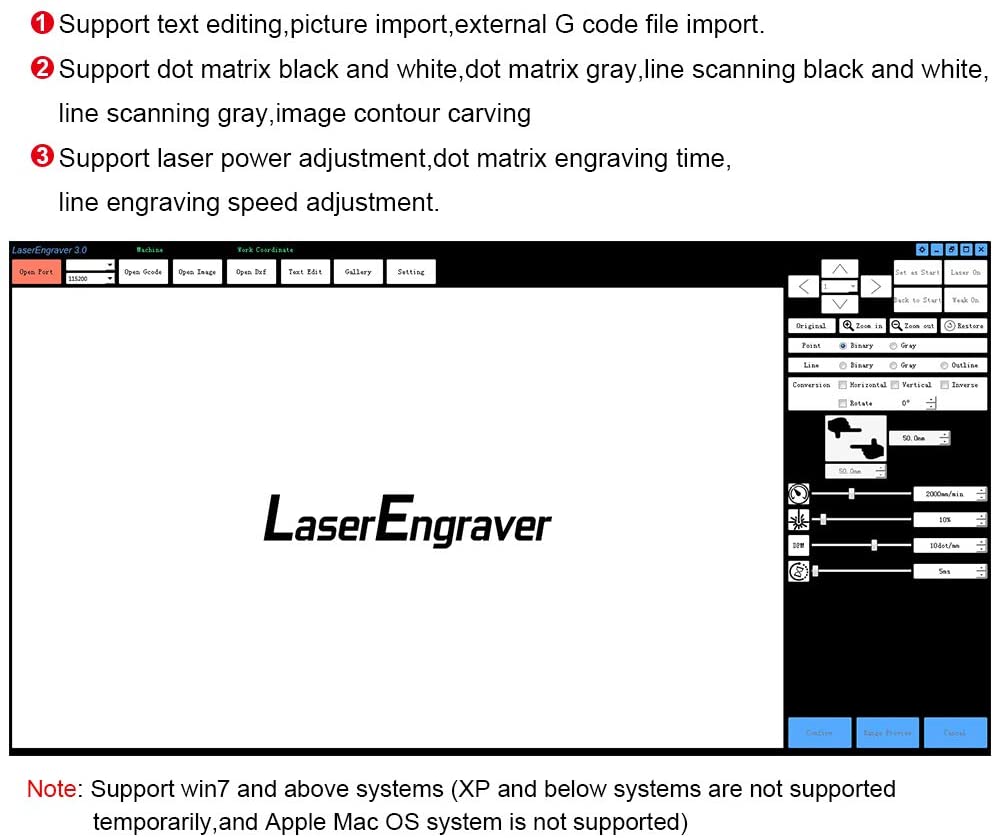

Support software include: weidiao master, GRBL. etc.

Support PWM TTL modulate laser power

Support gray engraving, sketch route cutting, line scanning engraving, spot engraving.etc.





Laser:

Laser Power: 5.5W/15W

laser Wavelength: 450nM

Beam Shape: 0.1mm Point

Focal Length: Less than 3cm

Material: Aircraft Aluminum,Copper

Power Support Input Voltage: DC 12V

PWM Support Input Voltage: DC 5V

Power Supply Interface : XH2.54*3P

Driving mode: External ACC Constant Current Drive

Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/

Plywood/Stainless steel

Can Not Engrave:Metal/Glass/PCB/Reflective Material/ Transparent Material Stone



15w fixed focus laser can be engraved on part of 201/304 stainless steel surface and anode colored aluminum alloy surface.

(Cut light wood board, 3mm one-time cutting, 3mm cutting with laminated raft board, also related to cutting speed)





Notice:

1.Please wear laser goggles during use to avoid direct contact with the eyes and skin!

2.The laser module cannot be used continuously for more than 30 minutes at a time.

3.If you have any problems with the machine, please feel free to contact our customer service.

4.If you have any problems with your laser module, do not disassemble it, it will damage the laser module.

5.If you have any problems with the machine, please do not initiate a dispute immediately, please contact us immediately.

6.Many operational issues can be resolved and you can send us a description of the problem via image or video. We will find the perfect solution for you.
