Description

Model number:SE1253280D-2290

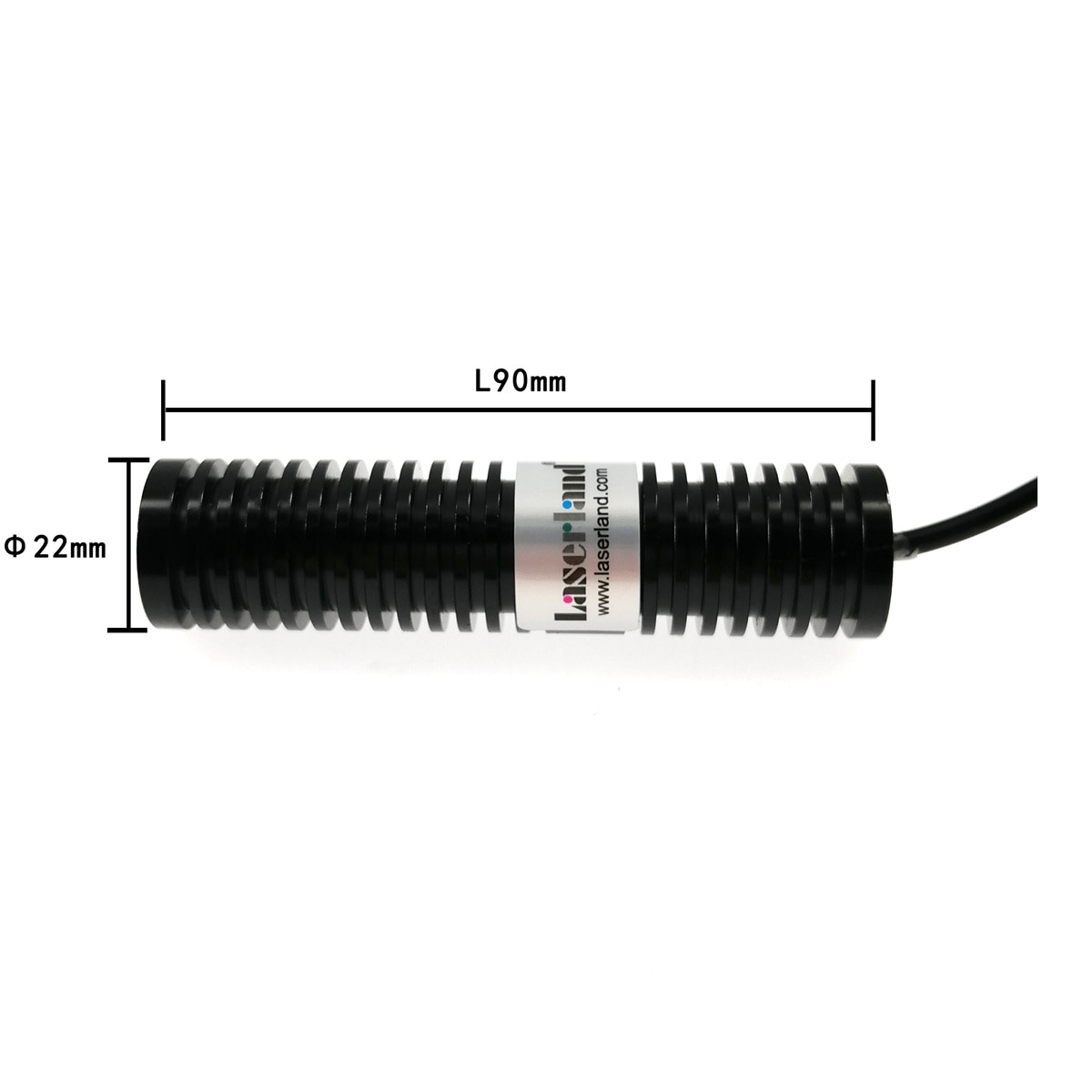

Size:Φ22x90mm(focusable)
Material : copper + aluminum
Surface treatment/color: black (surface insulation matte black treatment)
Output wavelength: 532nm±10nm
Exit pupil power: 40-80mW (tube core power 80mW)
Range: 5000 meters away (in the indoor environment, the clarity of the laser will be different due to the interference of ambient light)
Spot shape: dot, round (the exit pupil beam is about 8mm)
Spot size: The exit pupil beam is about 8mm, and guests can adjust the beam. This model is also suitable for small spots in a long distance. The spot can be adjusted to about 3mm at 10 meters (different distances, different sizes of spots) )
Circuit control: ACC
Working voltage: 4.8~25VDC
Working current: I＜350mA
Working temperature: +15℃~+35℃
Storage temperature: -40℃~+80℃
Life: continuous output, > 10000 hours
Tail wire:  5.5/2.1, female terminal wire is 1 meter long, and it can also be used as 26# red and black electronic wire ( power adapter is equipped with a 1 meter long DC female plug wire)
Safety class: LASS IIIA
Package: a laser
