Description

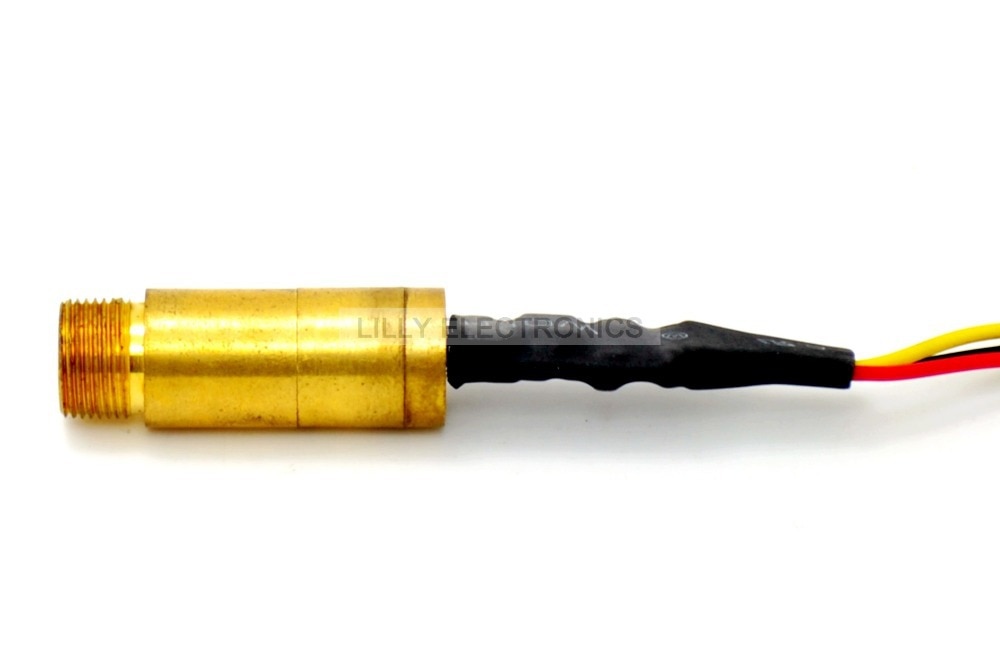

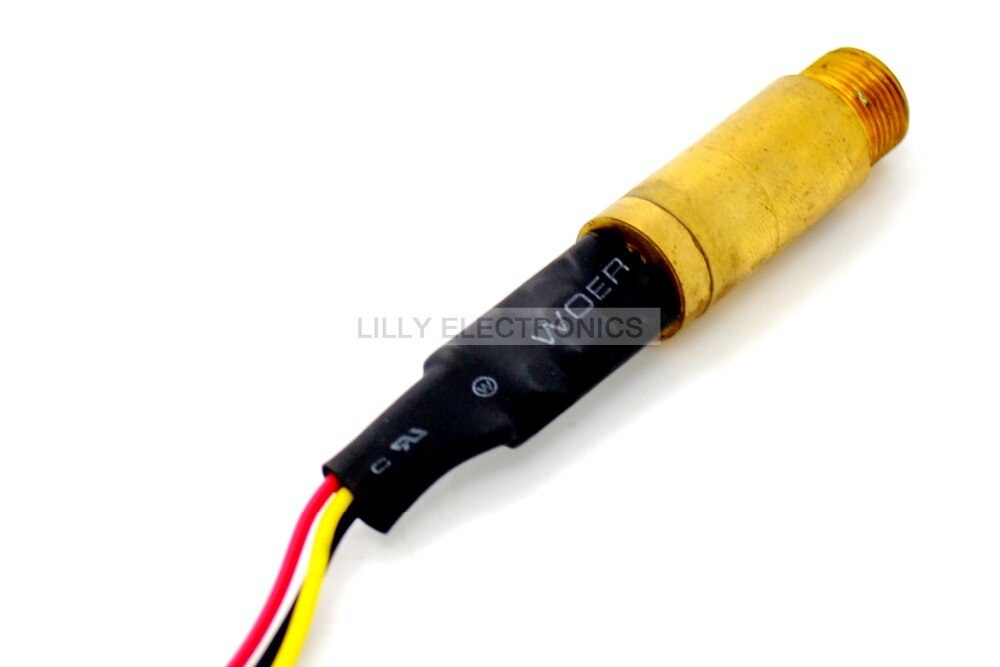

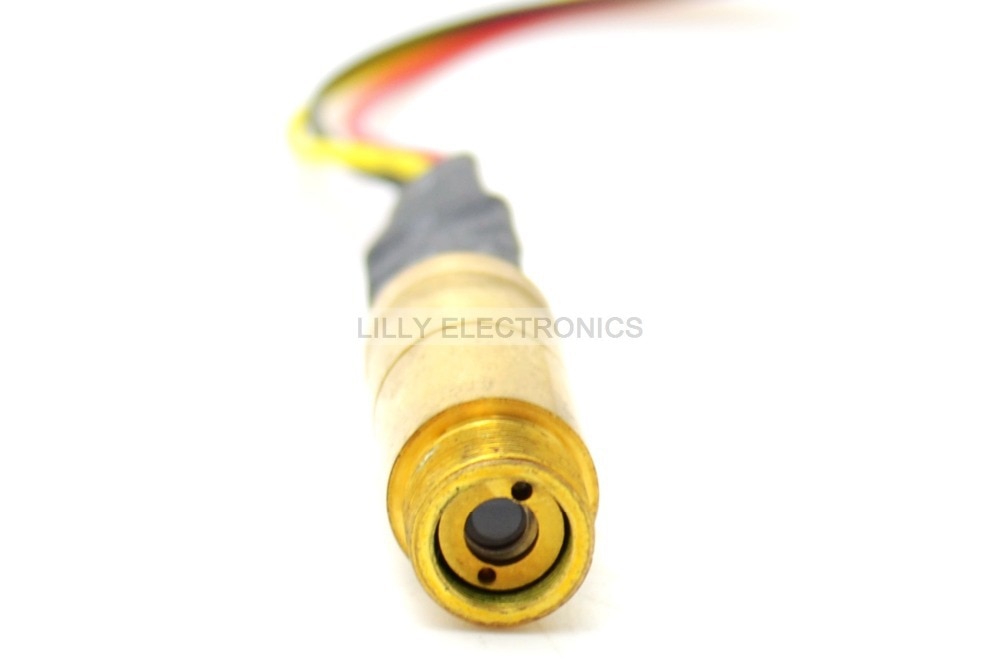

532nm 30mW 3V DC Green Laser Dot Diode Module w/TTL
Features:
Output Power: 30mw
Wavelength 532 nm
Working Temperature +15 ~ +35 degree C
Duty Cycle 45 seconds ON, 15 seconds OFF
Laser Shape DOT
TTL Modulation 0-30khz
Material and Color Brass
Red wire for 3V+, Black wire for 3v-, yellow wiere for TTL +
Dimensions 12 mmX60mm(including PCB)
Package:
1 x 532nm 30mW Green Laser Module 3v with TTL
TTL stands for transistor-transistor-logic and describes a special kind of show laser modulation for laser sources. Laser sources with TTL modulation cannot be dimmed and are only able to turn the power on / off. A regulation of brightness is not achievable.
