Description
Product Description
|
Central wavelength (nm)
|
520± 10
|
||
|
Operating mode
|
CW
|
||
|
Output power (mW)
|
>4000,5000, … ,7000
|
>7000,8000, … , 10000
|
|
|
Power stability (rms, over 4 hours) at 25℃
|
< 1%, <2%, <3%
|
||
|
Polarization direction
|
Horizontal+ Vertical
|
||
|
Beam diameter at the aperture (mm)
|
<5×5
|
~7.5×5
|
|
|
Beam divergence, full angle (mrad)
|
~3.0
|
~3.0
|
|
|
Warm-up time (minutes)
|
<5
|
||
|
Operating temperature (℃)
|
10-35
|
||
|

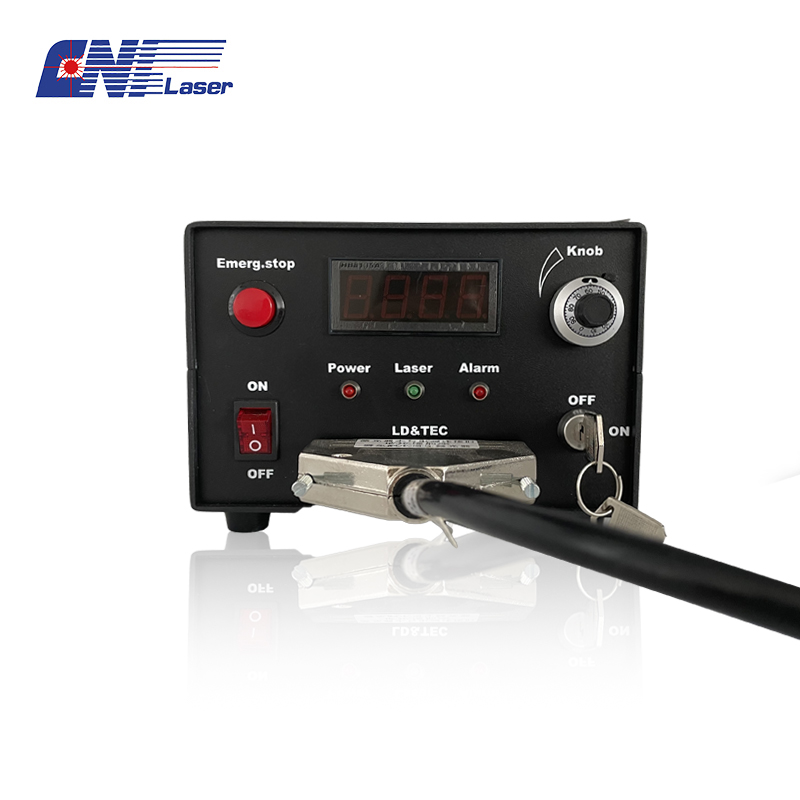

Power supply ( 100-240VAC)
|
PSU-N-LED/ PSU-N-FDA
|
||
|
TTL / Analog modulation
|
TTL or Analog with 1Hz- 1kHz 1kHz- 10kHz, 10kHz-30kHz optional
|
||
|
Expected lifetime (hours)
|
10000
|
||
|
Warranty
|
1 year
|
||

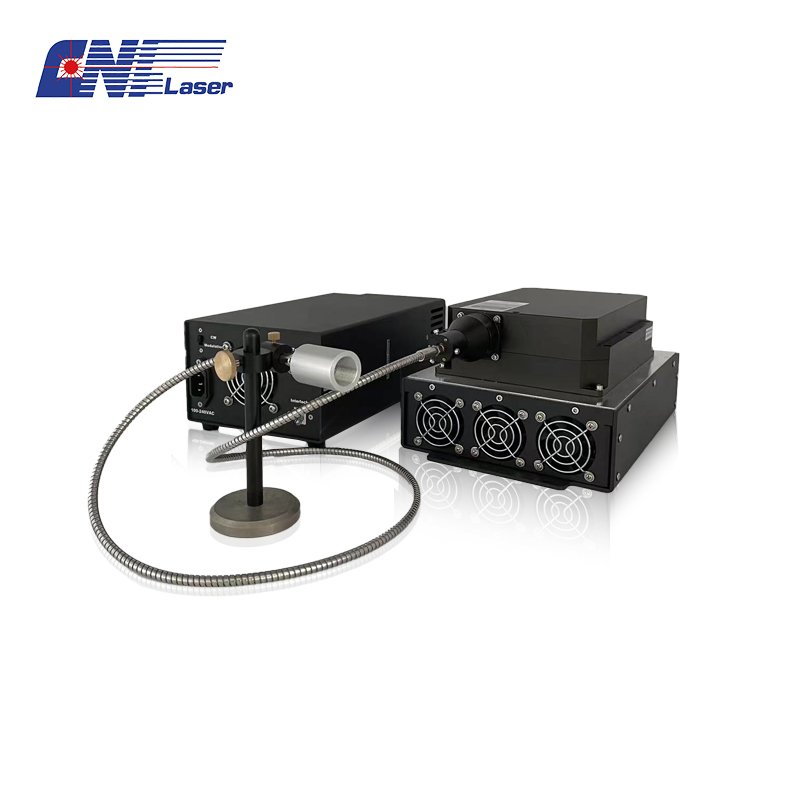

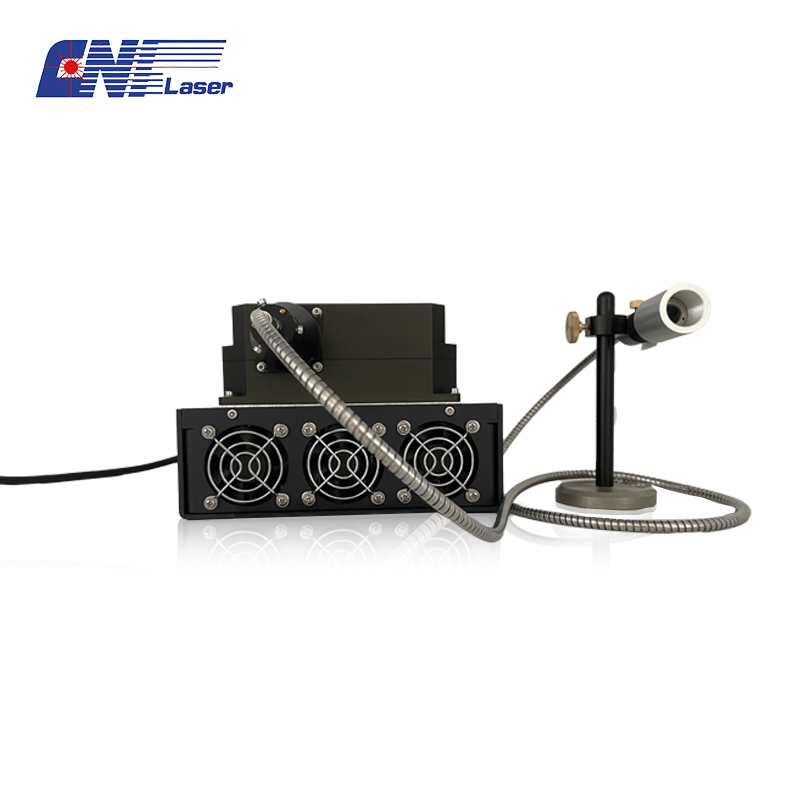

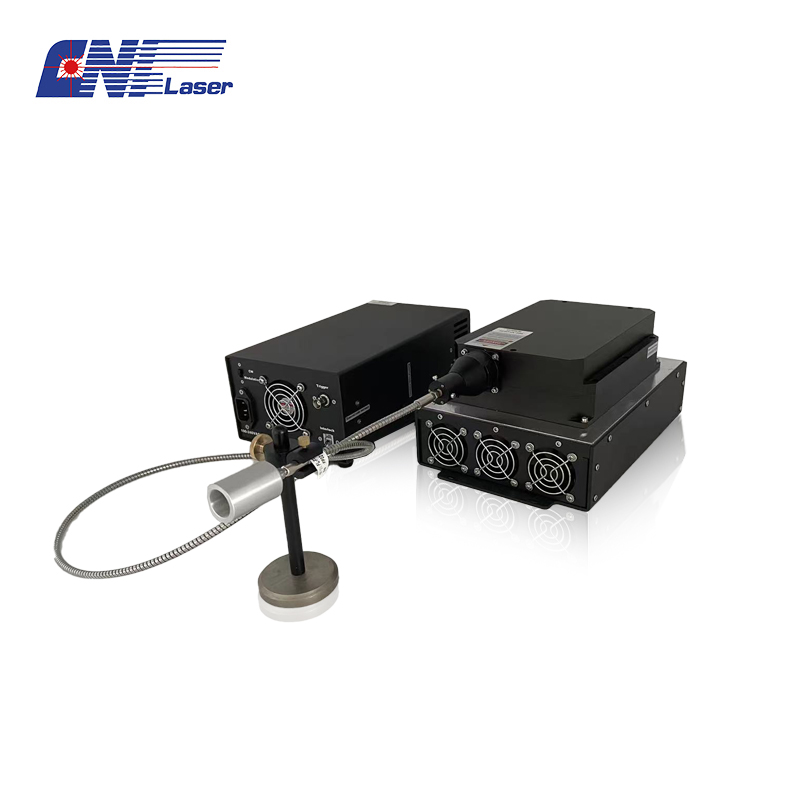

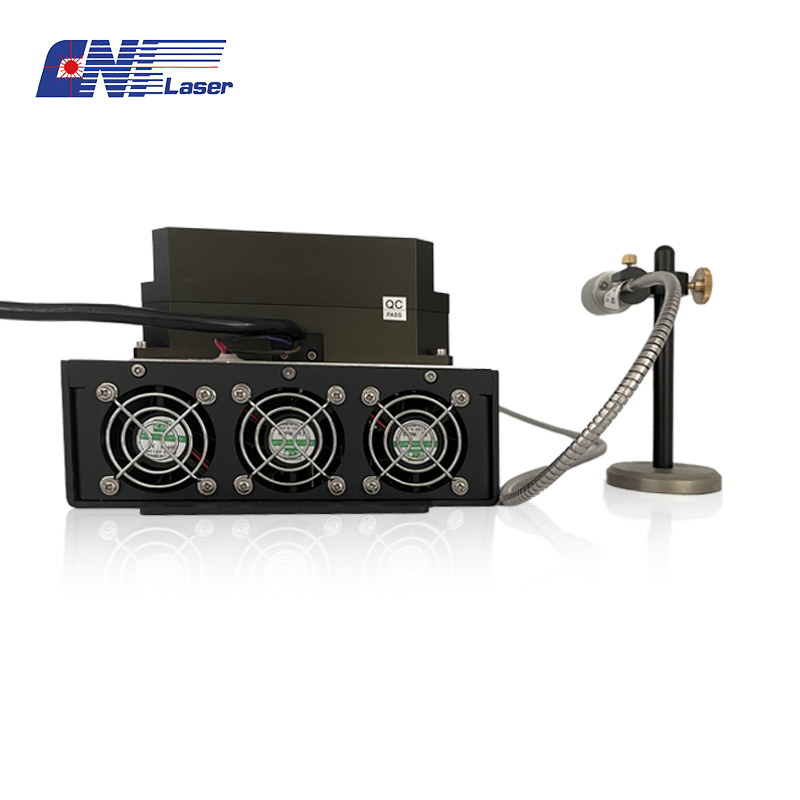

Product Show
Applications
Certificate
