Description
- Brand Name: Q-BAIHE
- Certification: CE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Model Number: 520ML-5-30-1242-AC
- Wavelength:: 520±10nm
- Output Power:: <5mW
- OperatingVoltage:: DC3V
- Operating Current:: <80mA
- Operating Temperature:: -20°- 60°
- Storage Temperature:: -40°- 85°
- Mean time to failure:: >10000H
- Line width at 1 meter:: <3mm

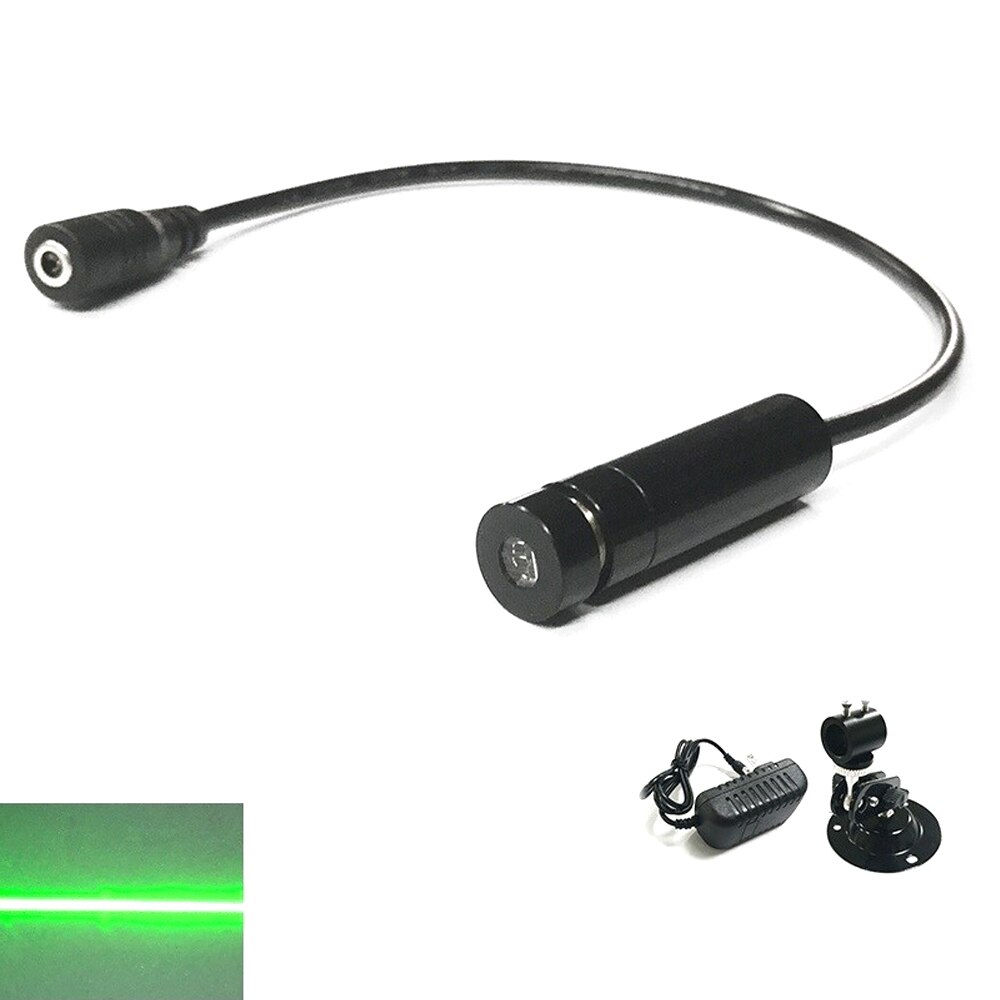

520nm 5mW 30mW Tunable Green Line Laser Module Laser Marker Positioning Light DIY
|
Wavelength: |
520±10nm |
Output Power: |
<5mW,<30mW, |
|
Operating Voltage: |
DC3V |
Operating Current: |
<80mA,<180mA |
|
Operating Temperature: |
-20°~+60° |
Storage Temperature: |
-40°~+85° |
|
Mean time to failure: |
>10000H |
Laser Safety: |
Class 3B |
|
Divergence Angle: |
88°, the line length is about 2 meters at 1 meter |
Range (indoor): |
> 10 meters |
|
Lens: |
Acrylic |

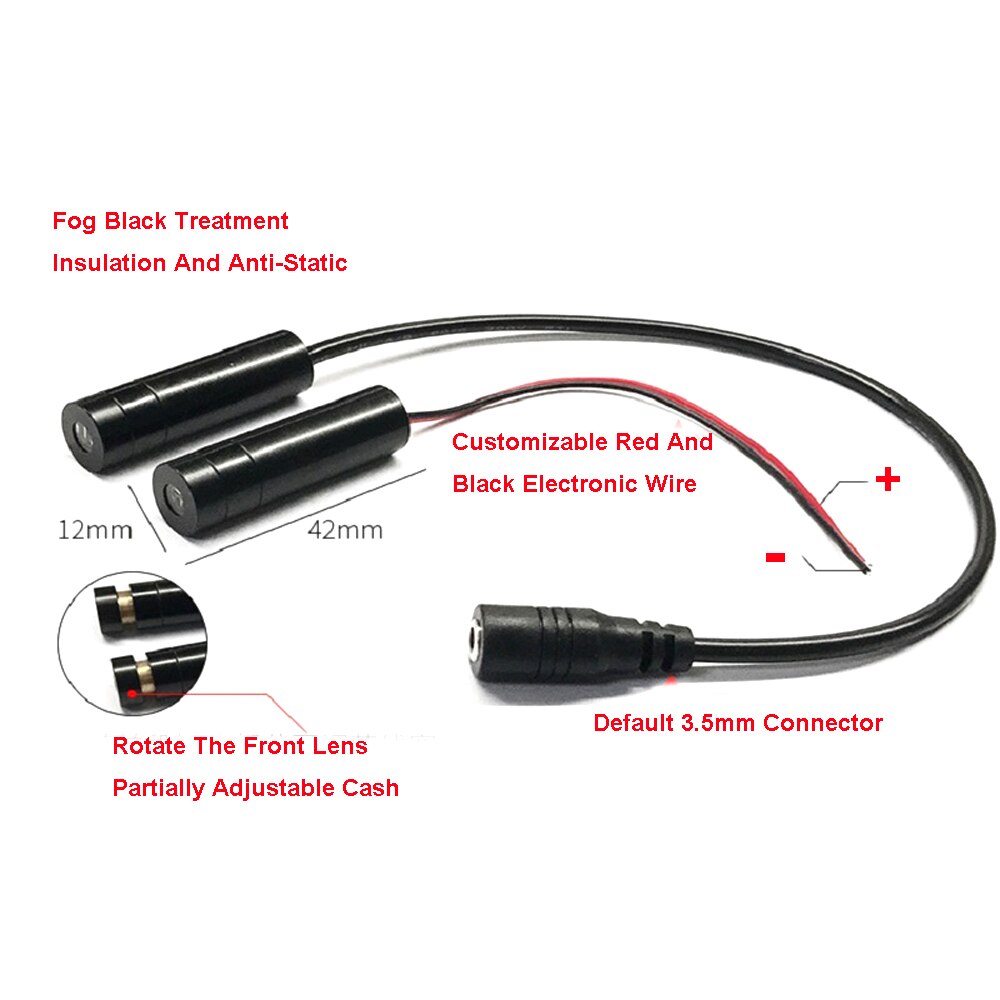

Size: |
12x42mm |
|
Driver circuit: |
ACC |
Working mode: |
Continuous work |
