Description
- Brand Name: Q-BAIHE
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 100mW
- Model Number: 520MD-100-12V-XL
- Voltage: 12V
- Occasion: Home Entertainment
- Wavelength: 520nm
- Laser Color: Green
- Modulation frequency: adjustable 0-30kHZ
- Operating current: I <1.7A

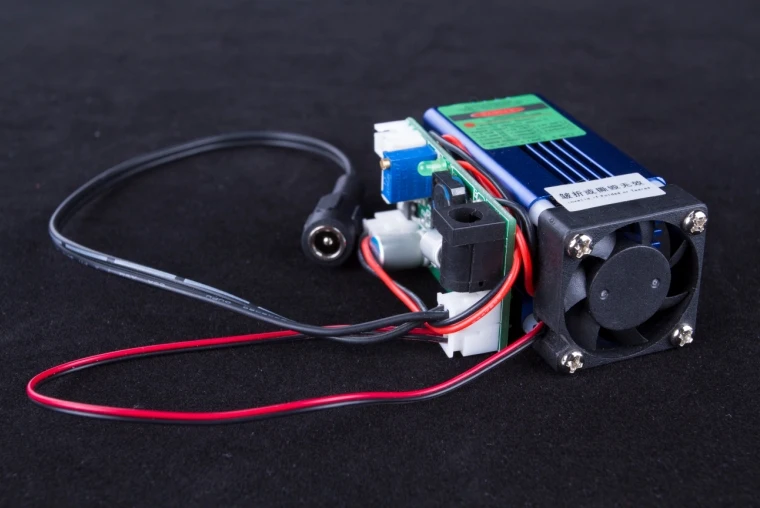

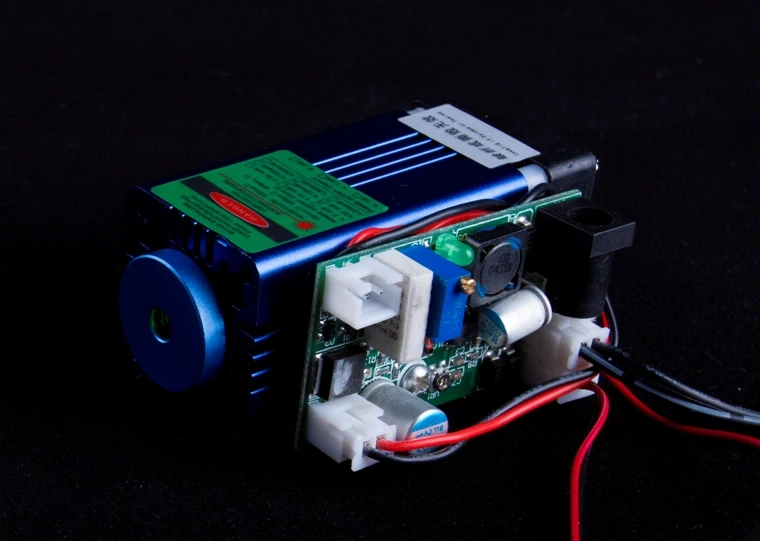

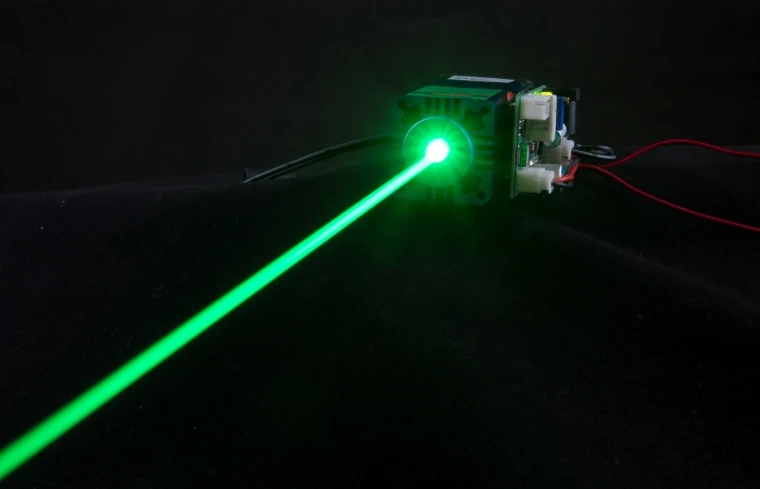

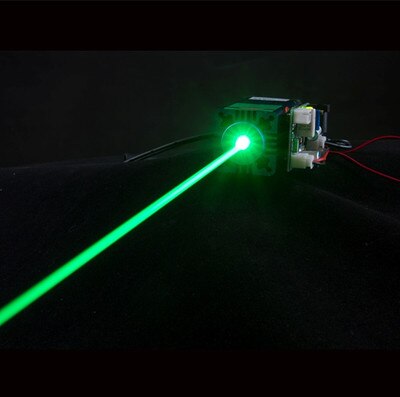

520nm 100mW Green Laser Module Diode Positioning Stage Laser Light with TTL Moudel 0-30 kHZ
Specifications:
Host size: length 69mm * width 30mm * height 30mm
Circuit size: length 47.5mm * width 31.5mm * high 16mm
Output wavelength: 520nm
Output power: 100mW 120mW 150mW 1W optional
Refrigeration method: aluminum heat dissipation
Modulation frequency: adjustable 0-30kHZ
Job features: continuous work
Surface treatment: blue
Shell material: aluminum
Circuit control: constant current
Reverse protection: with automatic identification of positive and negative
Operating voltage: DC = 12V
Operating current: I <1.7A
Warm-up time: none
Operating temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃
Structural features: laser tube + lens + cooling shell
Note: The power supply is external.
Package:
1x 650nm 100mW Green Laser Module Diode Positioning Stage Laser Light with TTL Moudel 0-30 kHZ
Special Note: The input voltage is 12V, the maximum is 14V. Overpressure will lead to instant damage to the circuit and module, the shop has 12V transformer sold, please contact the owner. If you have any technical problems, please consult, thank you!
