Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: LD-PL515 30mw 5.6 w PD
Parameter:
Output power: CW 30mW
Working current: Max 120mA
Working voltage: Max 7V
Package form: T018 (5.6mm)
Working temperature: +0/+60℃
Storage temperature: -40℃/+85℃
Welding time: less than 10 seconds
Welding temperature: less than 260℃
Working life: less than 10000 hours
Application:
Laser beauty, Laser medical treatment, laser modules, stage Laser Lighting, laser pointer, laser flashlight, laser projector, laser positioning, laser sight, and a variety of laser devices and products.
Precautions:
This component is sensitive to static electricity. Please do not directly touch the laser tube body without anti-static measures. In addition, this product must have a qualified drive circuit to work normally. The voltage of different powers is the same, but the working current is different. The drive current needs to be controlled within a safe range, otherwise it will affect the life.
Package:

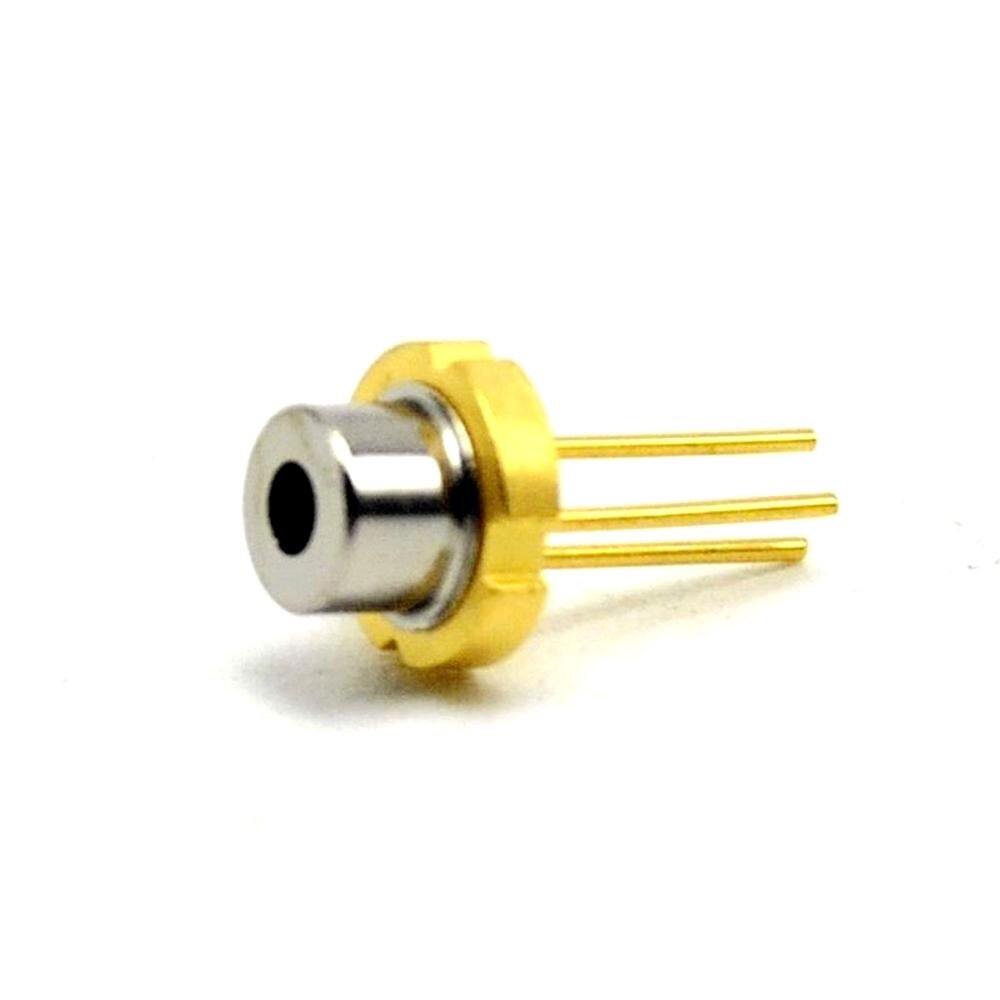

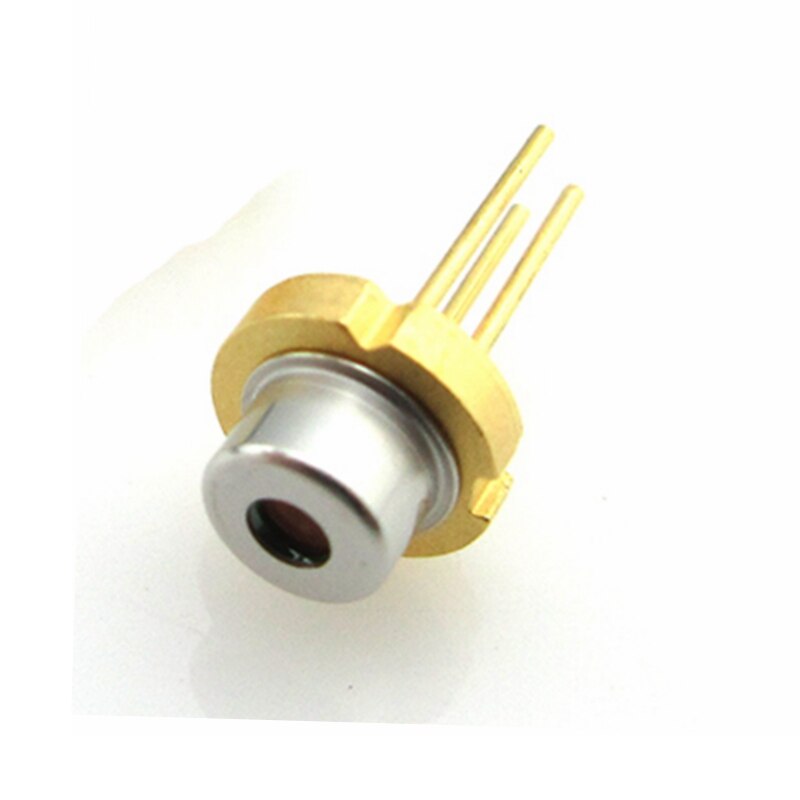

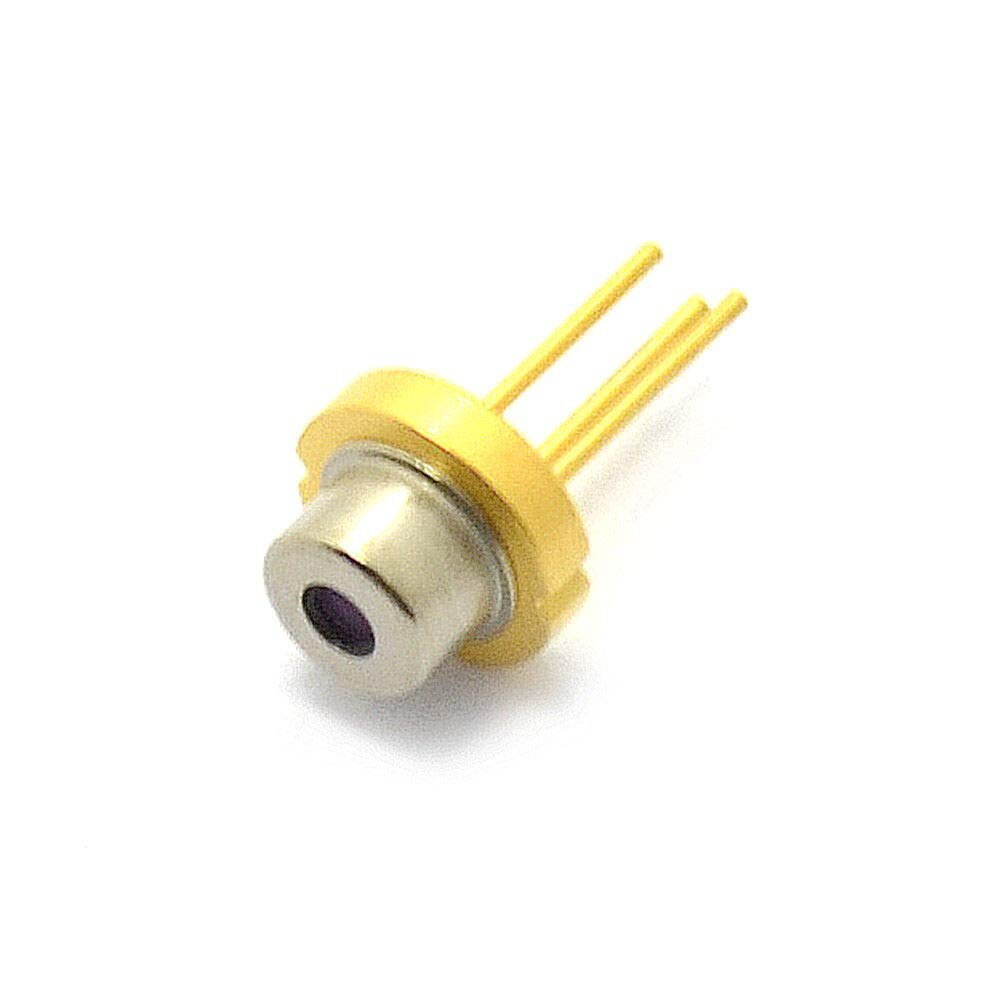

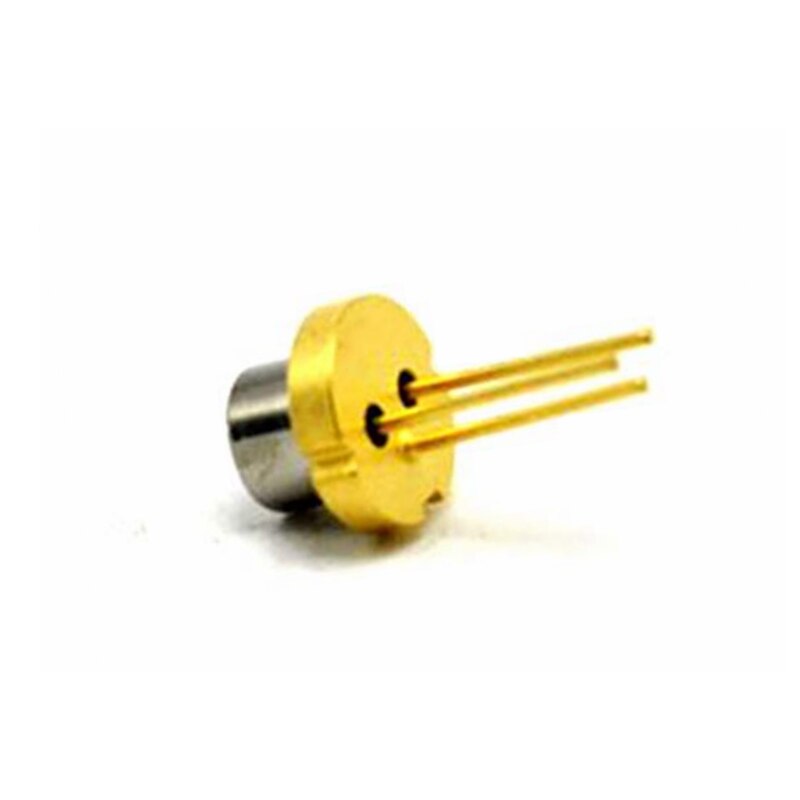

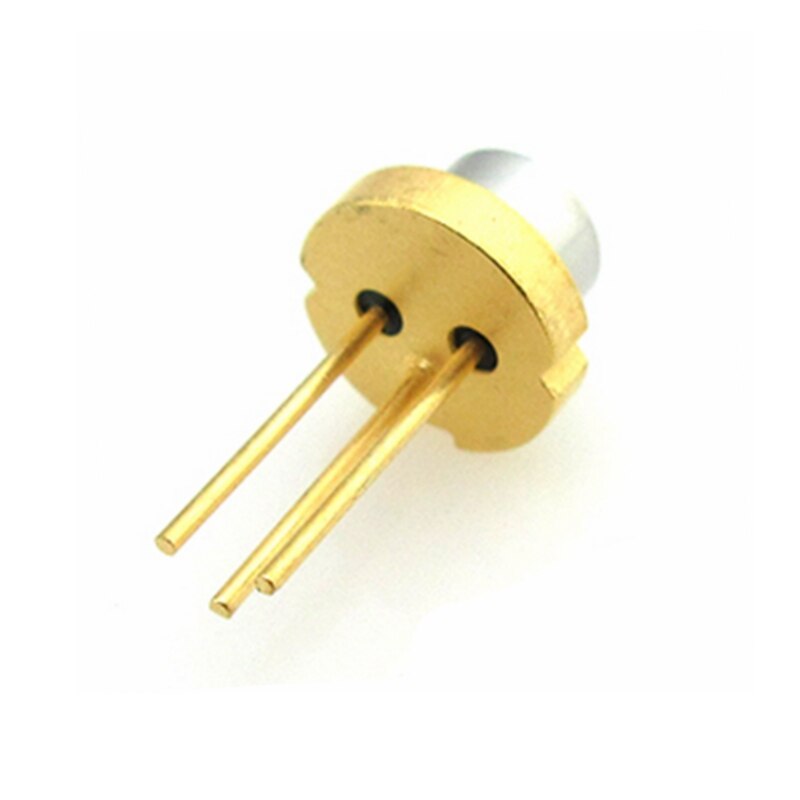

1pc x 515nm Green Laser Diode 520nm 30mw 5.6mm LD with PD
