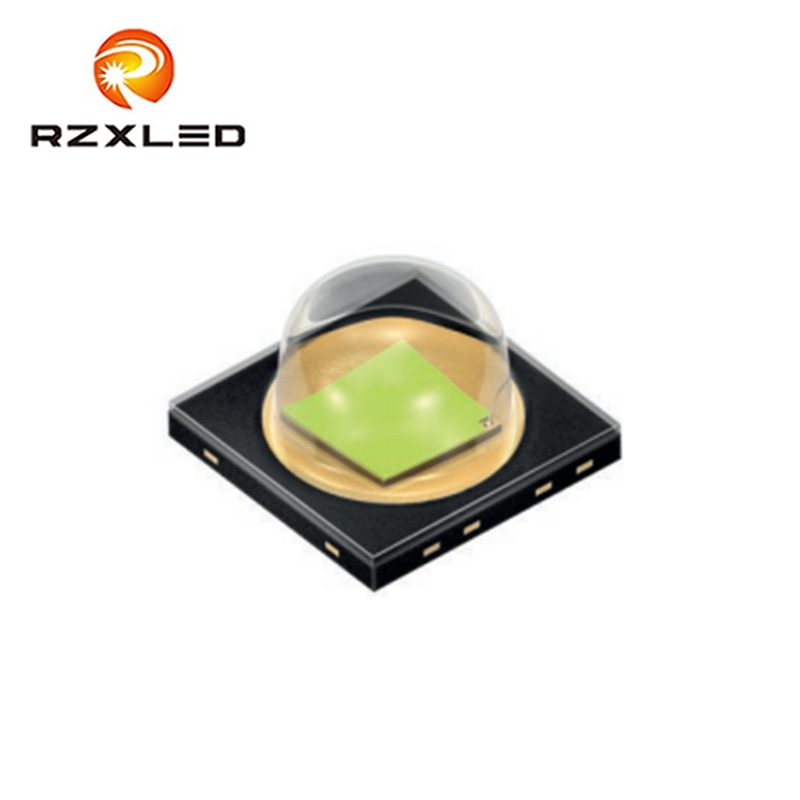

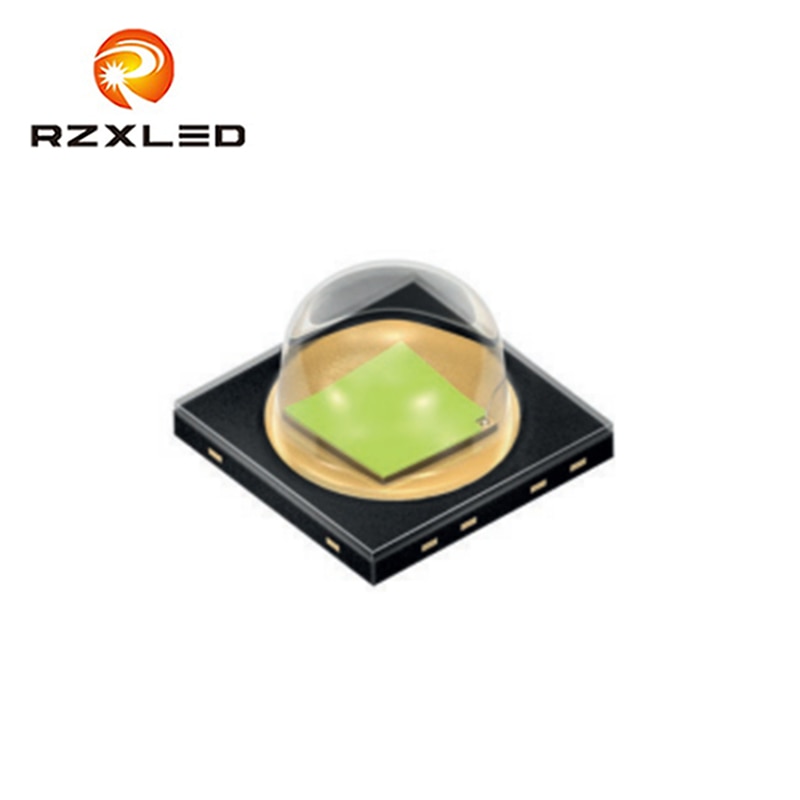

Description
- Brand Name: NoEnName_Null
- Color Temperature: Cool White(5500-7000K)
- Occasion: HIGHWAY
- Voltage: 3-3.7v
- Luminous Flux: 250 – 499 Lumens
- Average Life (hrs): 50000hrs
- Item Type: LED Bulbs
- Led Bulb Type: Car Bulb
- Certification: CCC
- Certification: ce
- Certification: EMC
- Certification: ROHS
- Beam Angle(°): 90°
- Power Tolerance: 5%
- Luminous Flux(lm): 400-480LM
- Color Temperature: 6000-6500K
- Product Type: Suface Mount 4040Package
- Forward Current: 100-1000MA
- Application: Cluster, Button Backlighting
- Lens: SMD epoxy package with silicone lens 90
- Size: 3.95*3.95*2.41MM
- CCT: ultra white Cx = 0.31, Cy = 0.32
luminous diameter:3.95(L)x3.95(W)x2.41(H) mm
Forward Voltage:3-3.7V
Forward current:100-1000ma
Power:1-5w
Chromaticity Coordinates:ultra white Cx = 0.31, Cy = 0.32
Color Temperation: 5500-6500K
Viewing Angle:90
luminous flux:white:400-450LM
Optical Attenua:0.05
Color Rendering Index:CRI:80
storage tempe:-40-125
operating tem:-40-125
packing:50pcs/Lot
Packaging Details:reel and tape in carton
4040(5W 3V 100-1000MA)
|
Dimension |
3.95×3.95×2.41mm |
|
Power Consumption |
5W 3V 100-1000MA |
|
Color Temperature |
5500K-6500K |
|
Efficiency |
130 lm/W(WW)/150 lm/W(CW) |
|
Lumens Output |
400 lm(WW)/450 lm(CW) |
|
CRI |
80 |
|
Application |
Cluster, Button Backlighting |
