Description

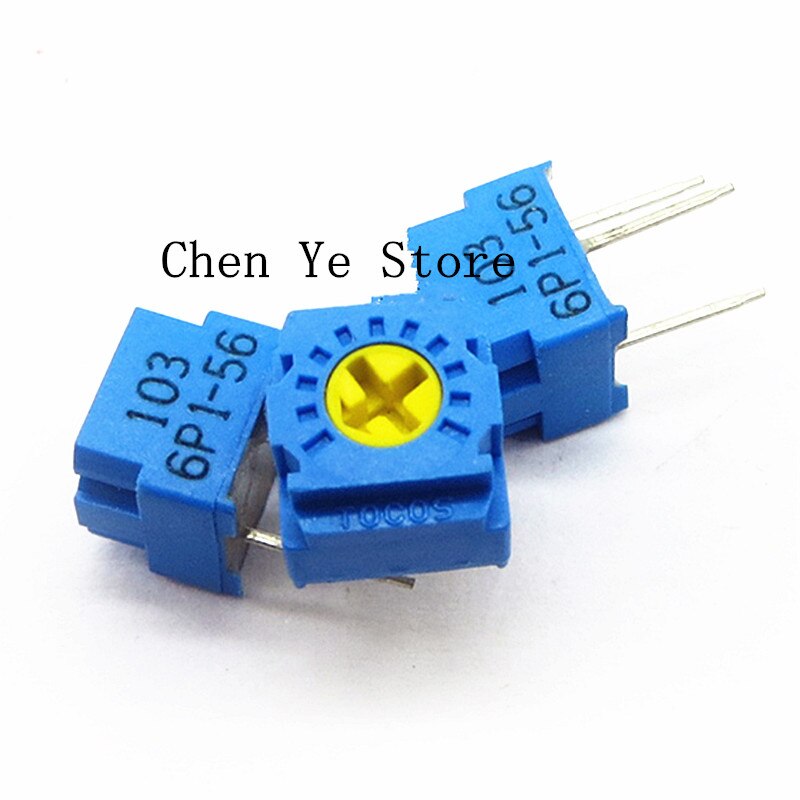

50PCS GF063P1 1K 2K 5K 10K 20K 50K 100K 200K 500K 1M B103 102 105 202 204 504 502 Adjustable precision potentiometer
- Condition: New
- Resistance Tolerance: 10
- Technology: Metal Alloy
- Type: Trimming Potentiometer
- Operating Temperature: 125
- Size: 3pin
- Max. Operating Voltage: 250V
- Model Number: GF063P1
- Rated Power: 0.5W
FAQ:
1.Wholesalers and retailers are welcomed.
For wholesale,we will offer discount or free express shipping which only takes short time to arrive.
If you are a retailer and want make your own business, we could send the goods to your customers directly and wonβt leave information about us if youβd like to.
2.What should I do if I donβt receive my item?
Please contact us first, we will track your item. If you canβt receive it, we will full refund or resend it for you. We are honest seller, so donβt worry.
3.If the products have problems how to do it?
Please contact with us in time, we will help you solve it.
Electrical characteristics:
Nominal resistance range βββββββββ 10 Ξ© to 5M Ξ©
Allowable deviation of resistance value βββββββββ Β± 10 and Β± 20%
Zero resistance ββββββββββββββ€ 1% R or 1 Ξ©
Resistance law ββββββββββ- linear
Contact resistance change (c.r.v) ββββββ- β€ 1% R or 1 Ξ©
Rated power
70 Β° C βββββββββββββ- 0.5 w
125 Β° C βββββββββββββ- 0 Watt
Maximum input voltage βββββββββ β₯ 250VDC or rated power
Temperature coefficient βββββββββββββΒ± 100 ppm / β
Insulation resistance ββββββββββββββ₯ 1000m Ξ©, 500VDC
Dielectric strength ββββββββββ- one minute, 900vac
Adjustment stroke βββββββββββ 210 Β° Β± 10 Β° (single turn)
Environmental characteristics:
Temperature range ββββββββββ- 55 Β° C to + 125 β
Low temperature operation βββββββββ 55 Β° C, 0.5 W, 2 hours, β³ T / R β€Β± 2%, S.S β€Β± 2%
Exposure to maximum temperature βββββ- + 125 β, 250 hours, β³ T / R β€Β± 2%, S.S β€Β± 2%
High temperature load life βββββββββ 70 Β° C, 0.5 W, 1000 hours, β³ T / R β€Β± 3%, S.S β€Β± 2%
Impact βββββββ 55 Β° C to + 125 β, 5 cycles every 30 minutes, β³ T / R β€Β± 1%, S.S β€Β± 1%
Collision ββββββββ- 100g, 6ms every three times, 6 directions β³ T / R β€Β± 1%, S.S β€Β± 1%
Vibration ββββ- 20g, 12h, 10-2000Hz, 1.5mm amplitude, β³ T / R β€Β± 1%, S.S β€Β± 1%
Relative temperature ββββ + 40 β, 90-95% RH, 0.5 Watt, 500 hours, β³ T / R β€Β± 3%, S.S β€Β± 2%
Moisture resistance ββββ 10 β to 65 β, 80-98% RH, 0.5 Watt, 10 cycles, 240 hours, β³ T / R β€Β± 2%
Weldability and weldability ββββ 350 β, 3 seconds, β³ T / R β€Β± 2%
Sealing test βββββββββ + 85 β, in hot water for one minute
Rotation life βββββββ- 100 uninterrupted, β³ T / R β€Β± 2% (2 Ξ© + 3%)
Note: β³ T / R refers to the total change of resistance value, and S.S refers to the voltage ratio

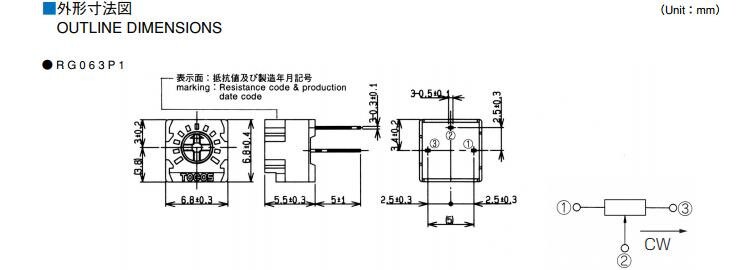

physical characteristics
Total mechanical stroke βββββββββββββ rated 250 °± 10 Β°
Shaft torque βββββββββββββββ β€ 200gf cm (2.77 ounces per inch)
End stop strength βββββββββββ- β₯ 500g cm (6.93 ounces per inch)
Flame retardancy βββββββββββββ- UL 94V-0
Nominal weight ββββββββ 0.4g (P, P1, W, U), 0.5g (P2, s, S1, x, x1, U1)
