Description

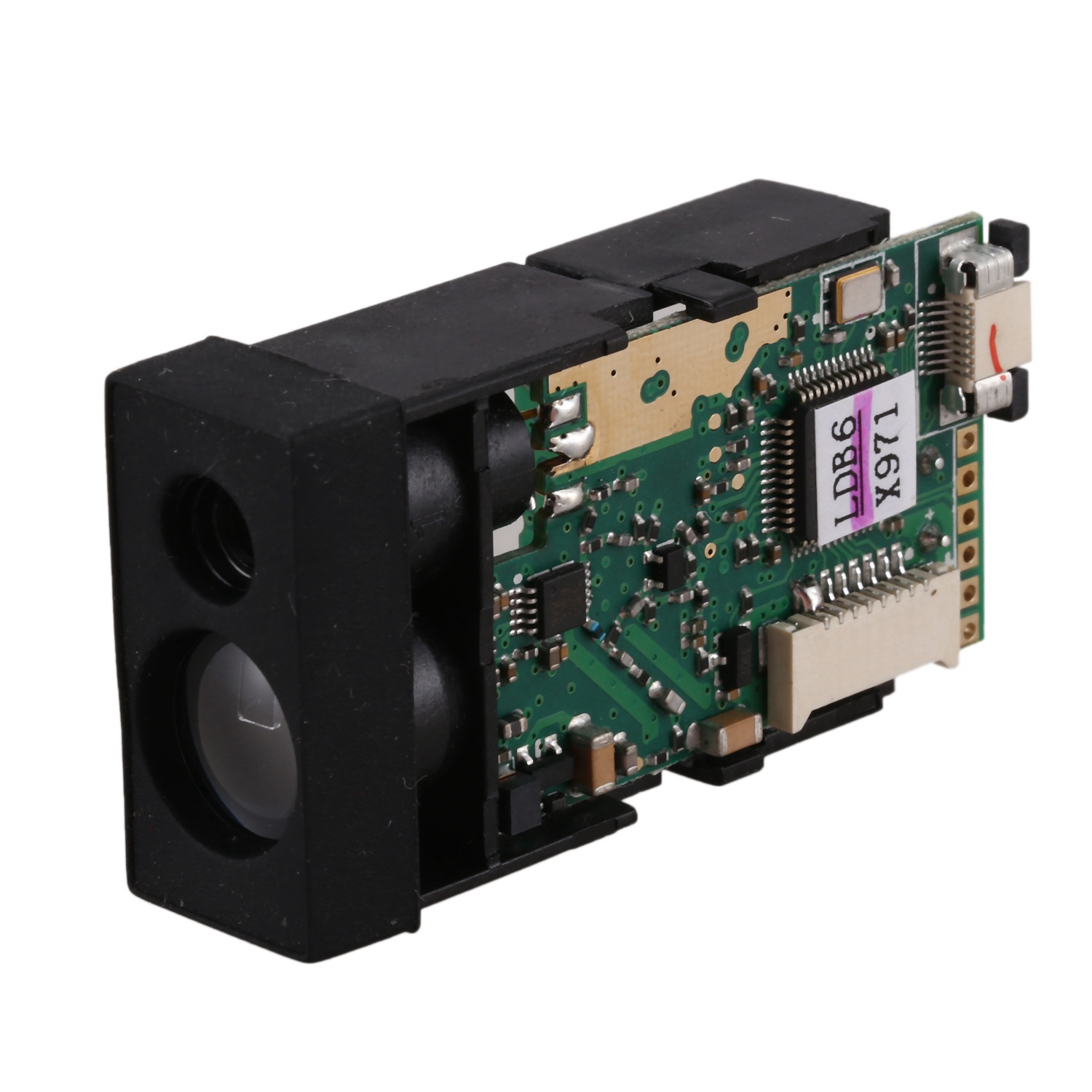

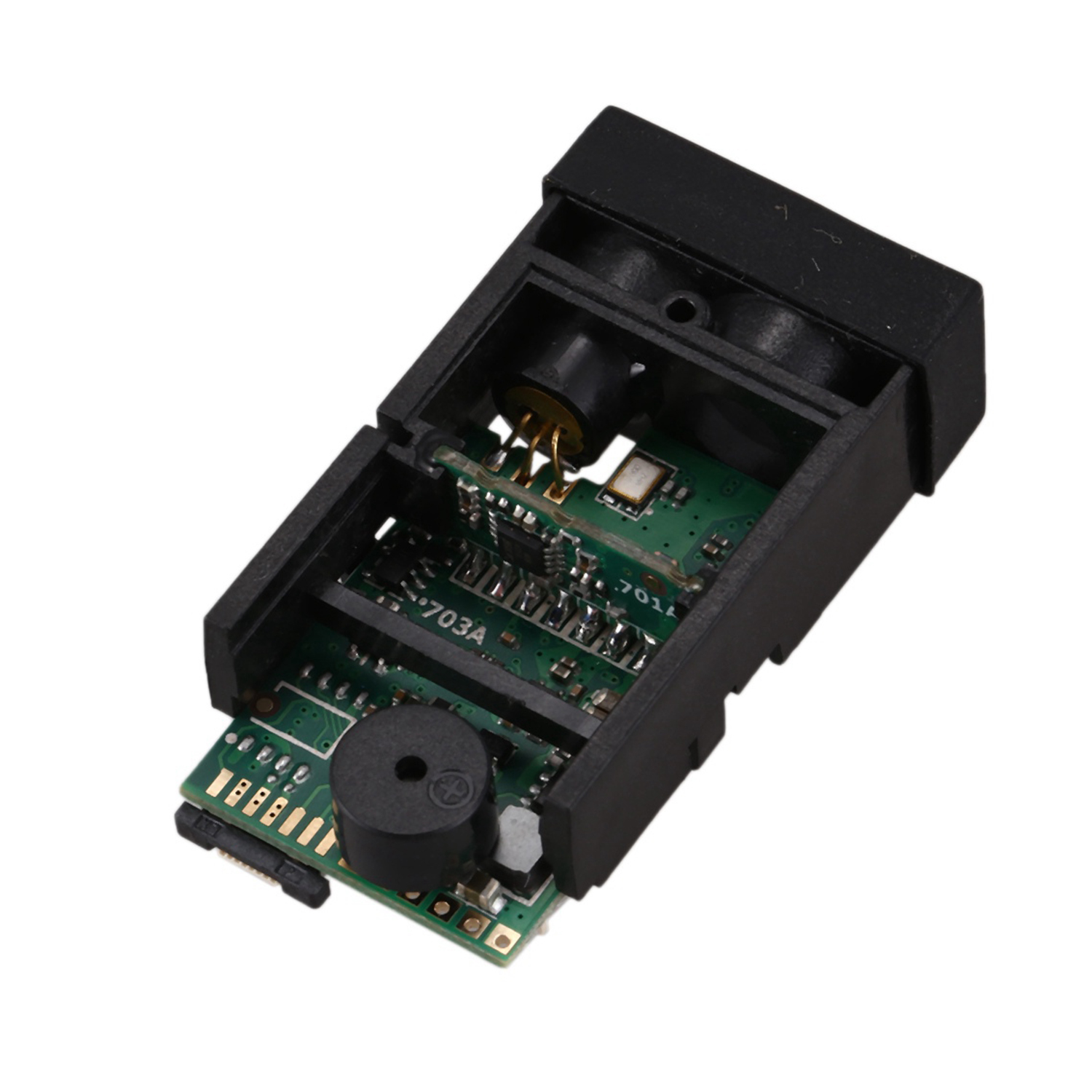

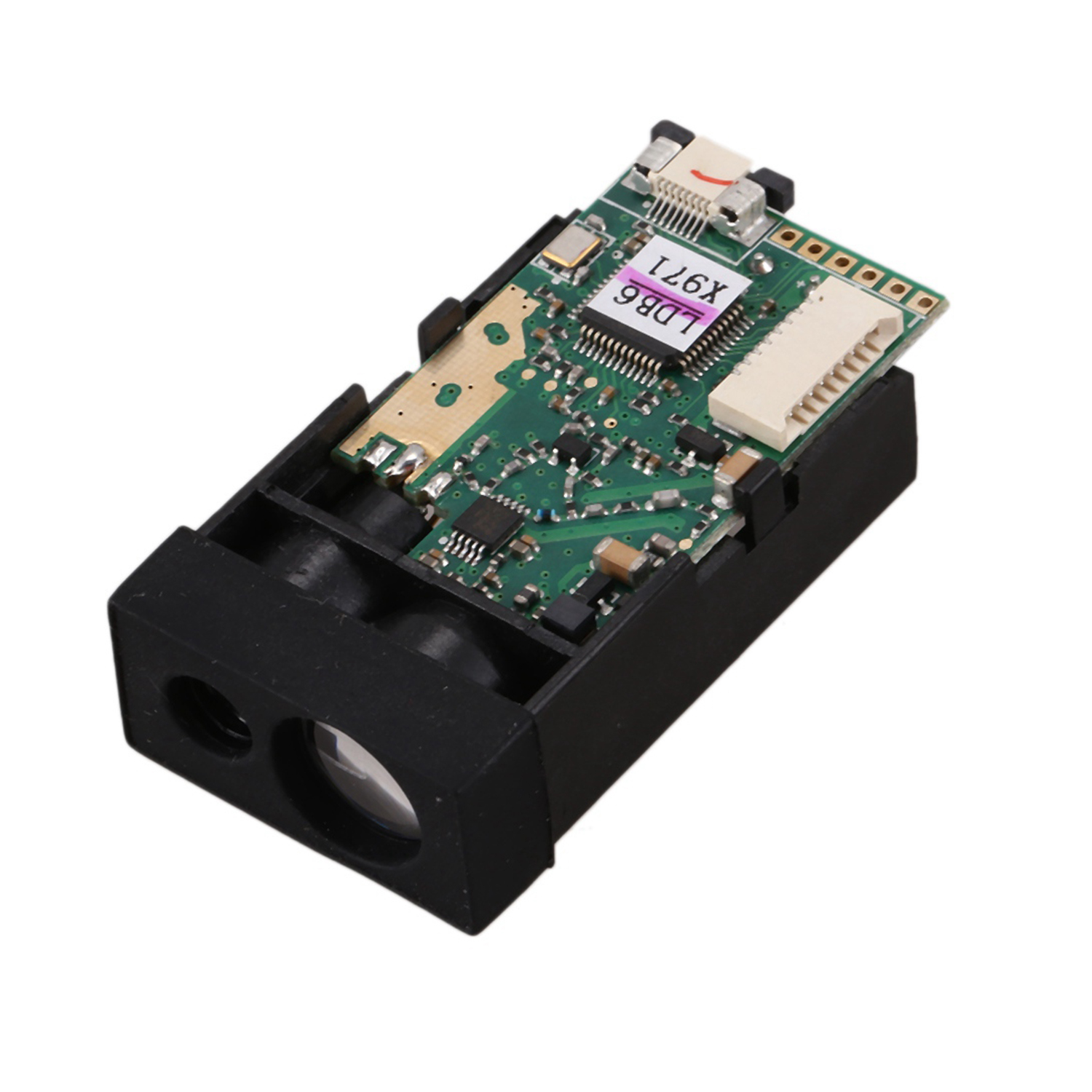

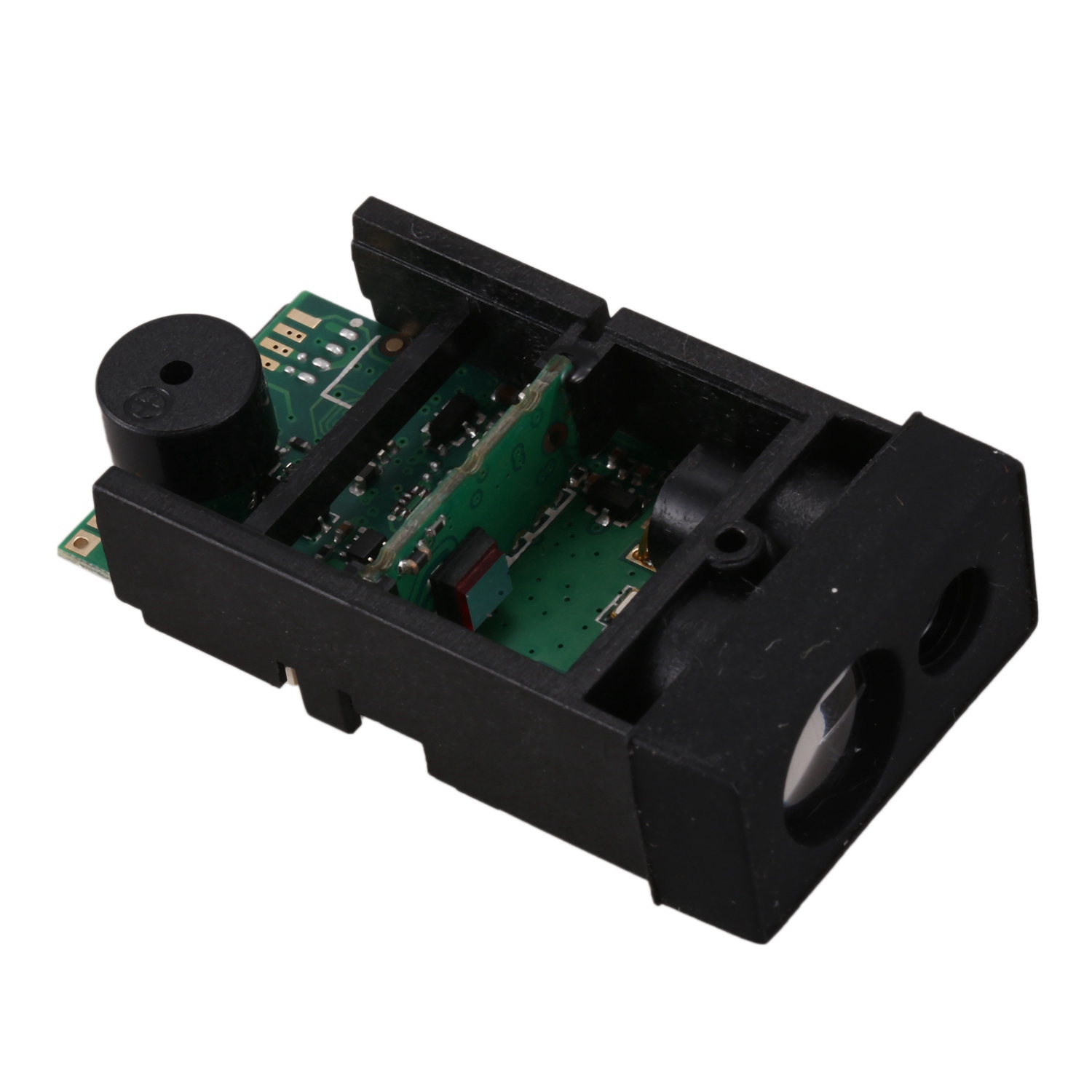

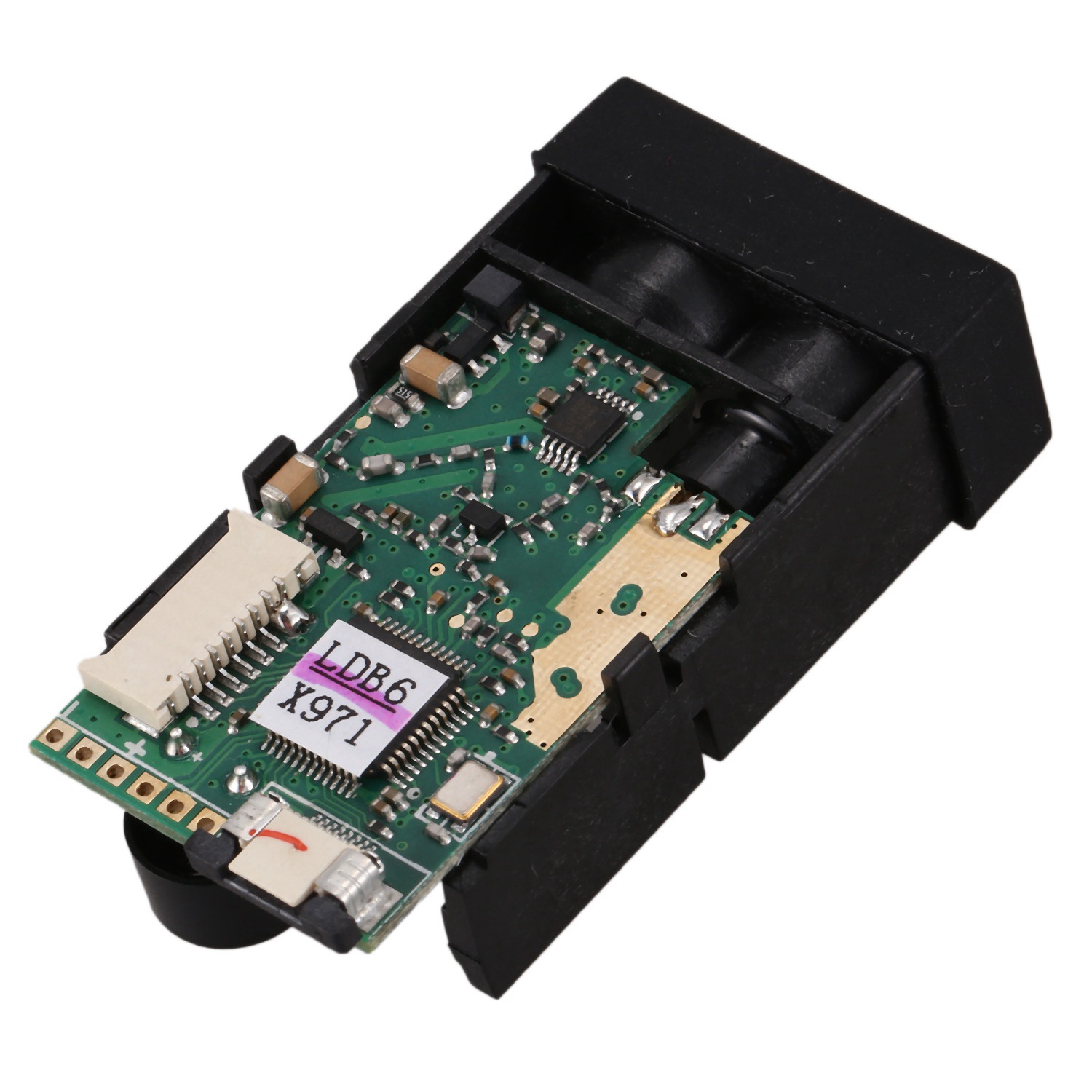

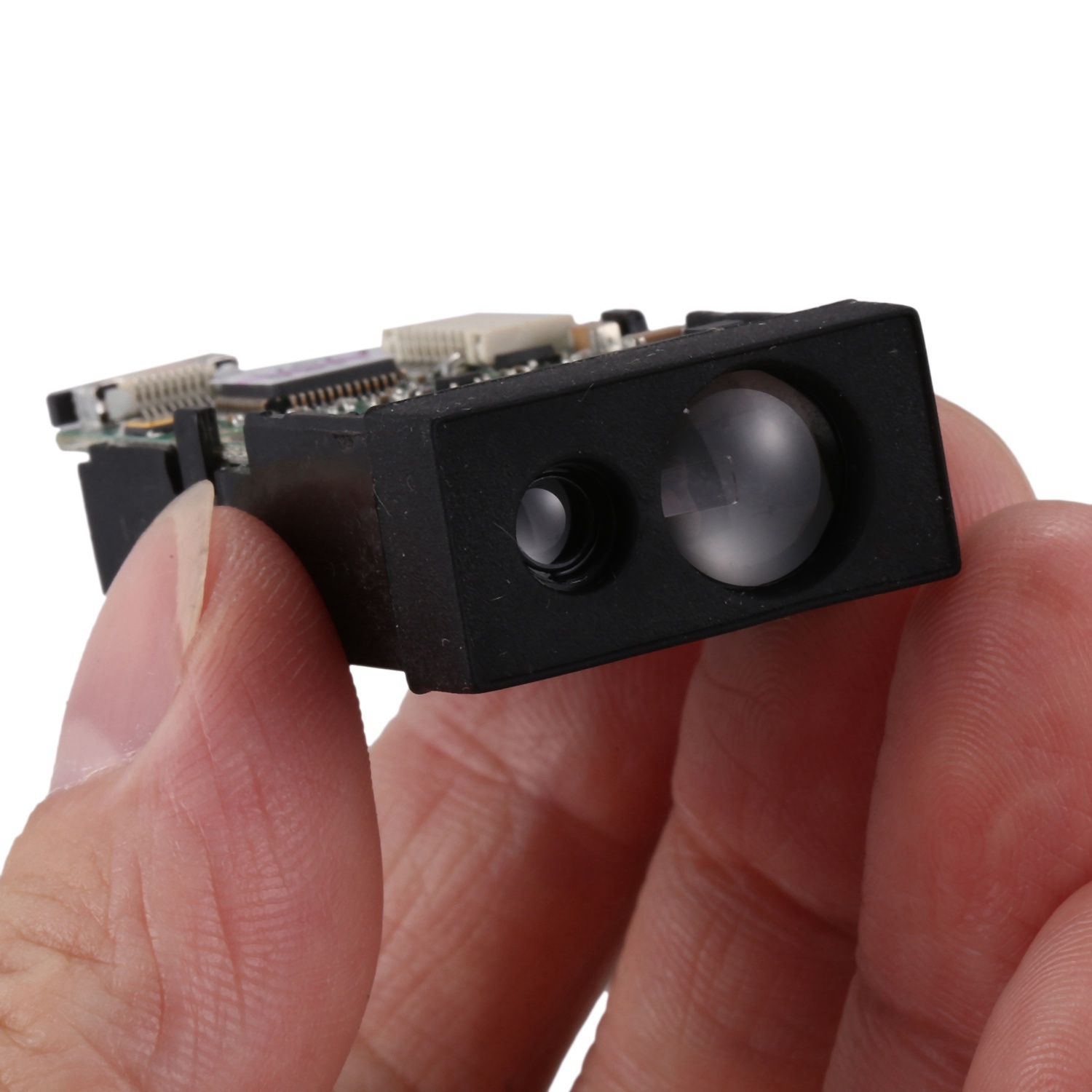

50M Distance Measuring Sensor Range Finder Module Single Continuous Measurement Communication TTL Level
- Model Number: Laser range finder sensor
- Size: 45 25 12 mm
- Measurement Accuracy: 1mm
- Power Type: BatteryPowered
- Model Number: HI50
function: send capital letters “O” to open the laser, capital letters “C” to close the laser, capital letters “D” to measure distance, capital letters “S” to display the module temperature and power.
Instructions: open the laser, laser, a single measurement, get to the supply voltage and the temperature.
Profession laser serial module Design and development.
communication interface: serial communication (TTL), 19.2 K
transmission rate parity bit: no parity
data bit: 8
nterface: 3.0 v TTL signal
2 ma of electric flow: DC3V, standby, measure 120 ma
Laser type: 635nm, 1 mw. (Red)
Range: 0.3 to 50 meters
measurement speed: 0.3-3 s
typical precision: +/- 1mm
storage temperature: -20-60 Celsius
operating temperature: -10-40 Celsius
Color: Black
Material: ABS
Size: 45 * 25 * 12mm
Package Contents:
1 X Laser range finder sensor

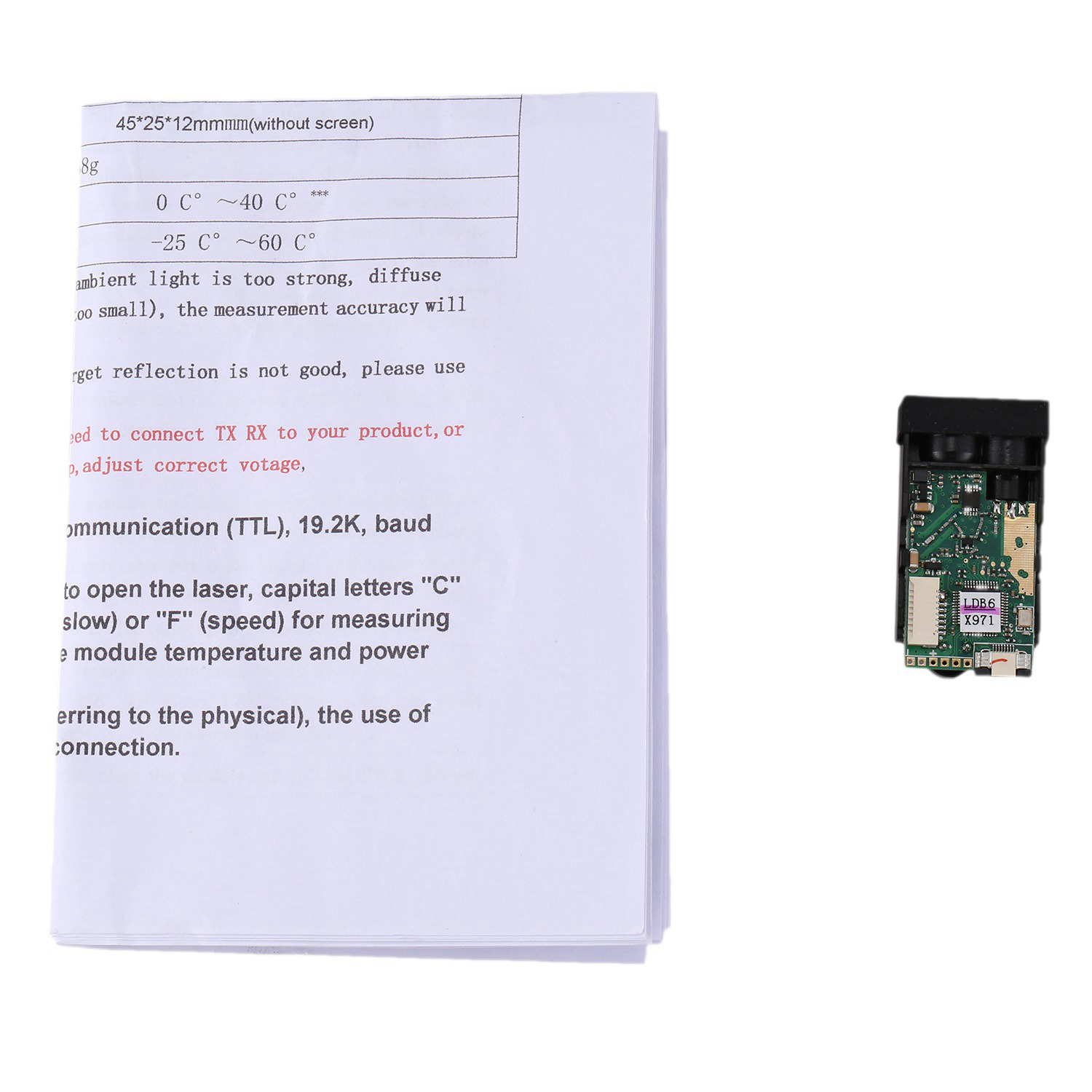

1 x english Instruction manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Instructions: open the laser, laser, a single measurement, get to the supply voltage and the temperature.
Profession laser serial module Design and development.
communication interface: serial communication (TTL), 19.2 K
transmission rate parity bit: no parity
data bit: 8
nterface: 3.0 v TTL signal
2 ma of electric flow: DC3V, standby, measure 120 ma
Laser type: 635nm, 1 mw. (Red)
Range: 0.3 to 50 meters
measurement speed: 0.3-3 s
typical precision: +/- 1mm
storage temperature: -20-60 Celsius
operating temperature: -10-40 Celsius
Color: Black
Material: ABS
Size: 45 * 25 * 12mm
Package Contents:
1 X Laser range finder sensor
1 x english Instruction manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
