Description
- Brand Name: WOLIKE
- Origin: CN(Origin)
- Certification: NONE
- Condition: New
- Model Number: 40502
- CNC or Not: CNC

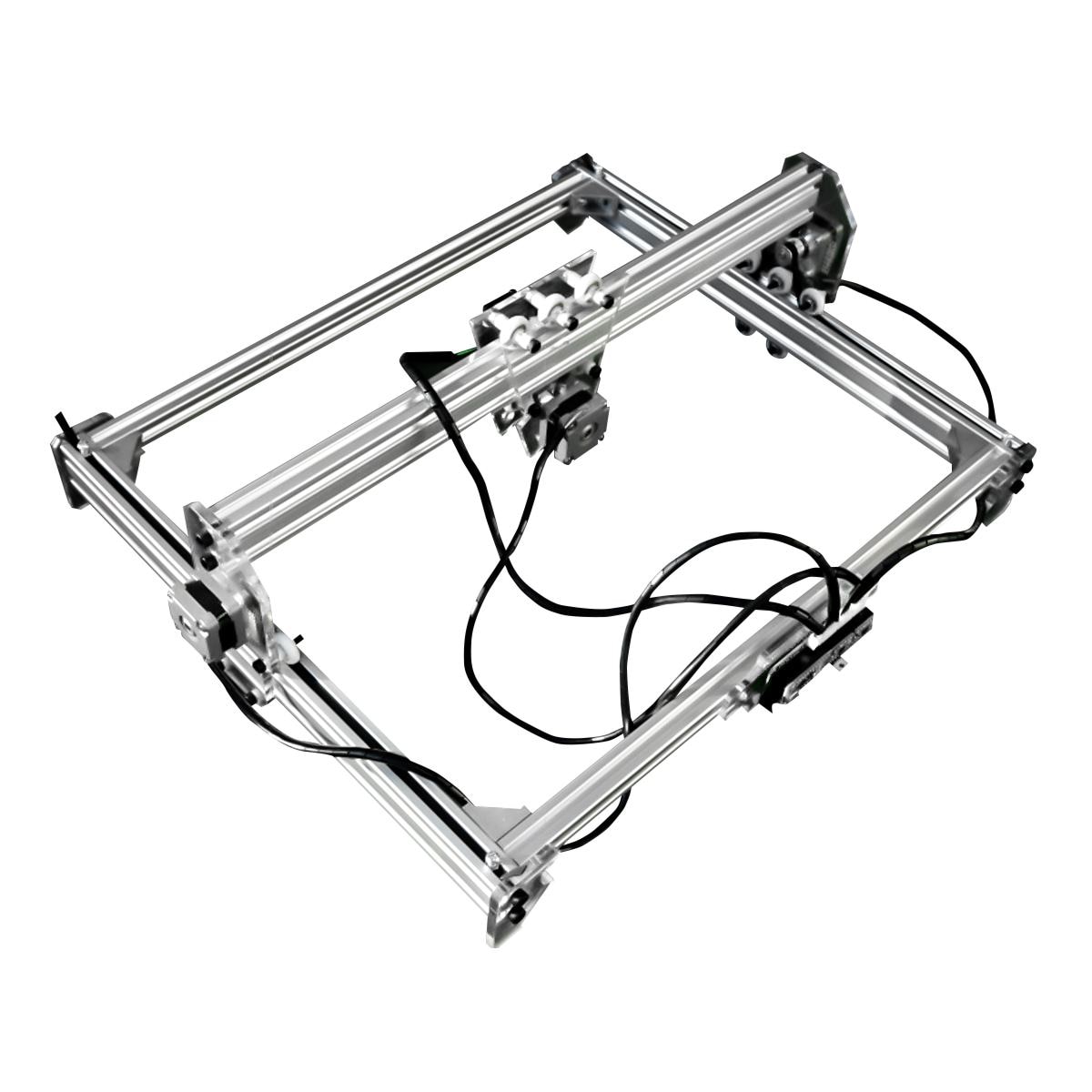

- Name: 15W DIY Desktop Mini Laser Engraver
- Material: Stainless Steel and Acrylic
- Working Voltage: DC 12V
- Laser Power: 15W
- Engraving Area: 65x50cm
- Size: 72x63cm
Description:
This 3000mW DIY desktop blue laser engraving machine is ideal for amateur
laser engraving usage with grayscale printing,low-light positioning and freedom
positioning functions.It only need you to connect it to the computer,then you can
print any pictures your like with your own creativity.
Specifications:
Material:stainless steel and acrylic
Working Voltage:DC 12V
Laser Power:3000mW
Drive system: stepper motor(step accuracy: 0.1mm)
Engraving speed: 200-2000m/min
Cutting speed: 1-100ms/pixels
Operating temperature: -10 – 45 degrees
Engraving Area:65x50cm(maximum)
Size:72x63cm
Cooling mode: air cooling
Whole machine weight: 5kg or so
Machine net weight: About 4kg
Control software: benbox software support power can be adjusted, weak light positioning
Accessories: Aluminum 4, 5mm axis, import acrylic accessories 1 sets, control panel kits, stepper motors, screws, accessories, tools, 1 boxes, power supply, USB wire, anti laser glasses, laser module,
Engraving Material Note:
1.can engraving materials: wood,bamboo,plastic,paper,leather,bank card,rubber
2.can not engraving material:metal,stone,ceramic,shell,light-reflecting material,
transparent material
The product has a lifespan of 8,000 hours, it can last for 1 hour, and then it takes 10 minutes to rest.
It can cut the maximum thickness of the product is about 1mm cutting board, 2mm plywood, 1mm mdf, 2mm PVC board, 4mm foam, 3mm paper.
Cutting Material:
It can only cut foam,paper,thin leather material.
Note:
1.In the process of using, please wear professional protective glasses
2.Forbid children to play

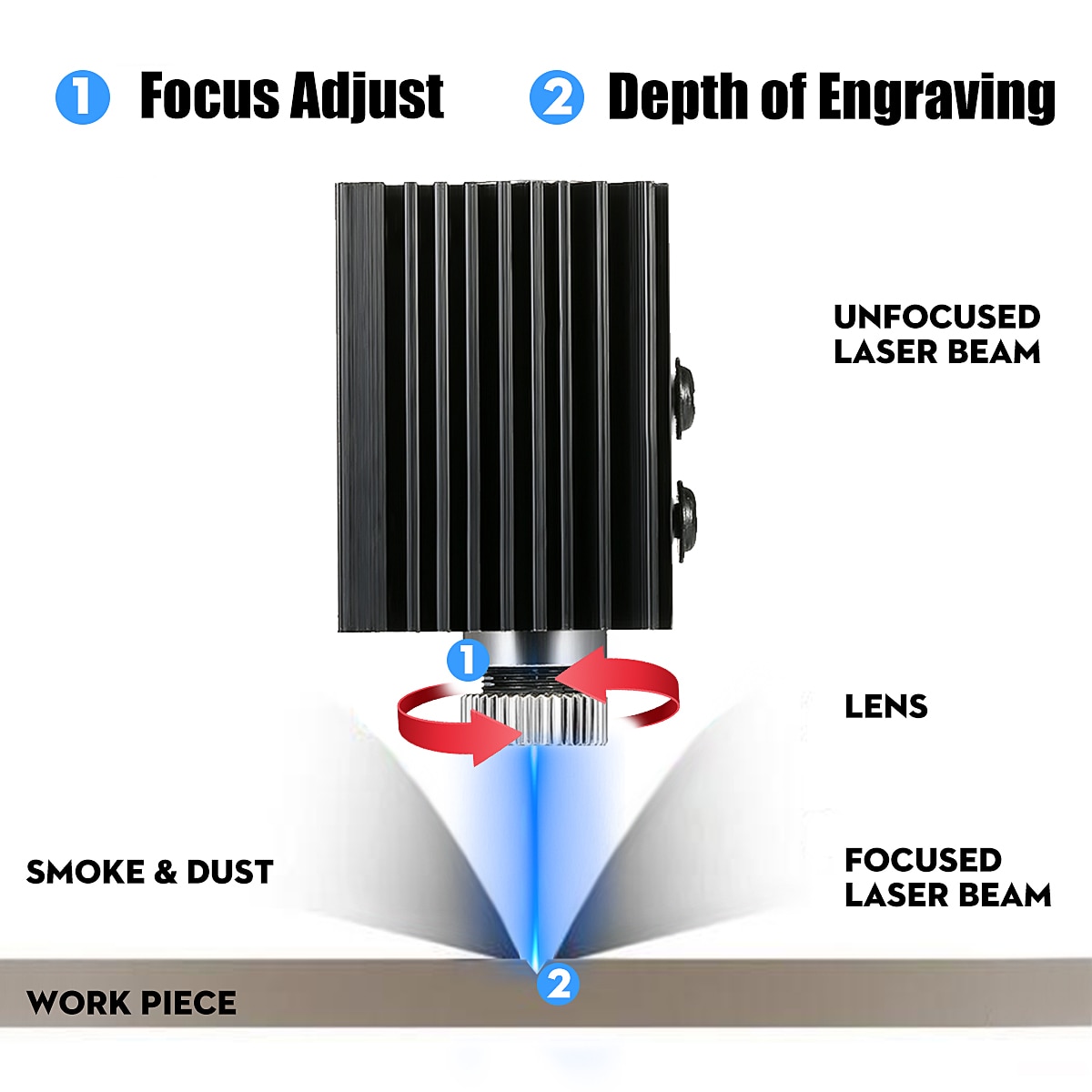

3.Suggested that the laser light in the case of-focus, the power is too strong, do not use strong
light to illuminate the skin
4.Avoid the use of flammable objects or gases in order to avoid causing a fire/explosion
5.Don’t update the firmware. Can not change the original firmware.
This link is about how to assemble the engraving machine.
https://youtu.be/7jj5ea1MvEo
There is already a video on this link for assembling and using this product. However, every customer who purchases this product needs to install the software, which can be downloaded from this link.
This link is about
all
the assembly of products, software, videos using the product and so on.
all
the assembly of products, software, videos using the product and so on.
Notice: If you need the instruction of the machine, please contact us freely, and we will send it to you by e-mail.

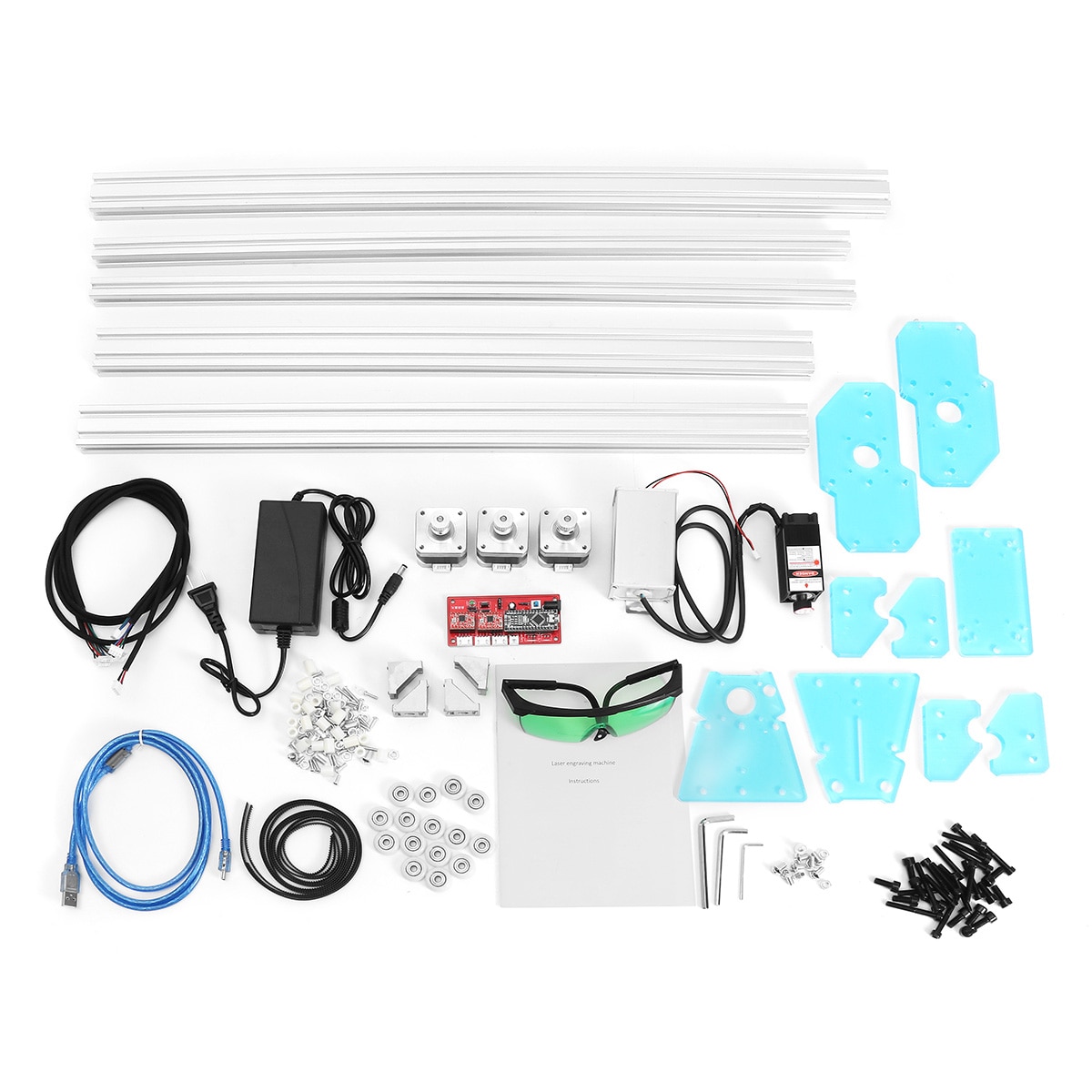

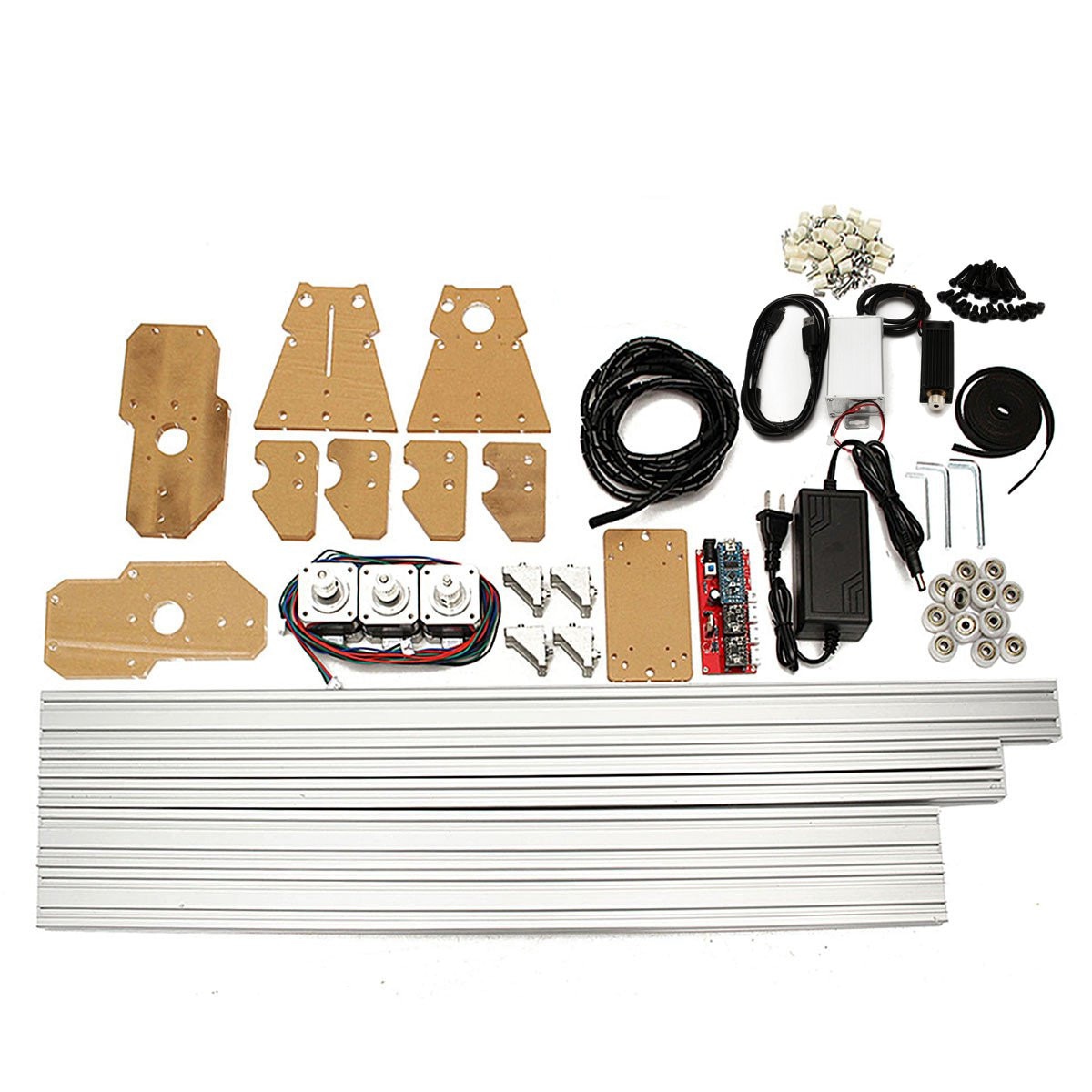

Package include:
1x DIY Desktop Mini Laser Cutting/Engraving Machine (assembly kit)
1x user manual
1x Product List
1x Goggles (only with goggles shipped from China)
