500*400mm GRBL 1.1f CNC Laser Engraver 5500mW 15W 40W 450nm Wood Engraving Machine 12V 5A 2-Axis Cutting Printing Tool CNC5040 6550 4030

Parameter

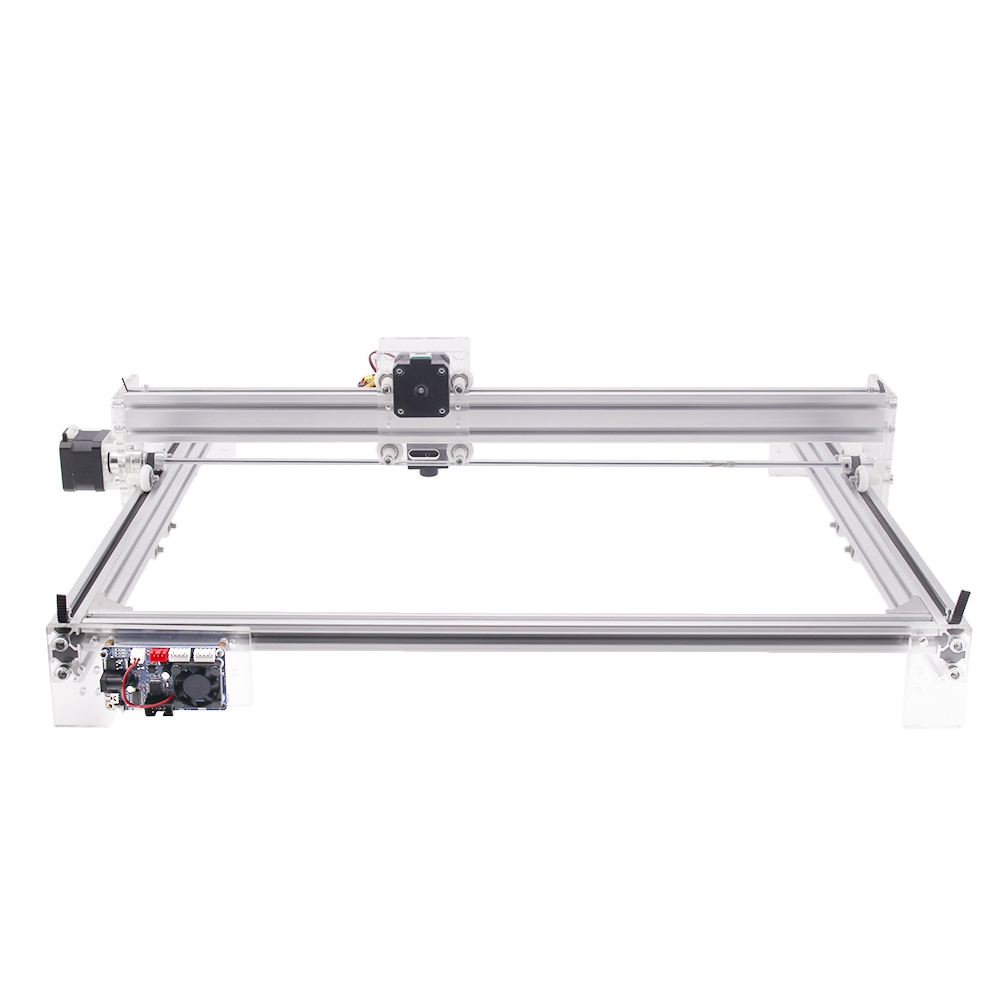

Model: CNC5040/6550/4030 Laser Engraver
Engraving area:50*40cm/65*50cm/40*30cm
Bulilt-in firmware: GRBL 1.1f
Frame Material: Aluminum and Acrylic
Control Software: Lasergrbl
Working mode: USB with PC for Windows XP/7/8/10 or Offline controller
Power Supply:DC12V 5A, Input 100V-240V AC,50/60Hz

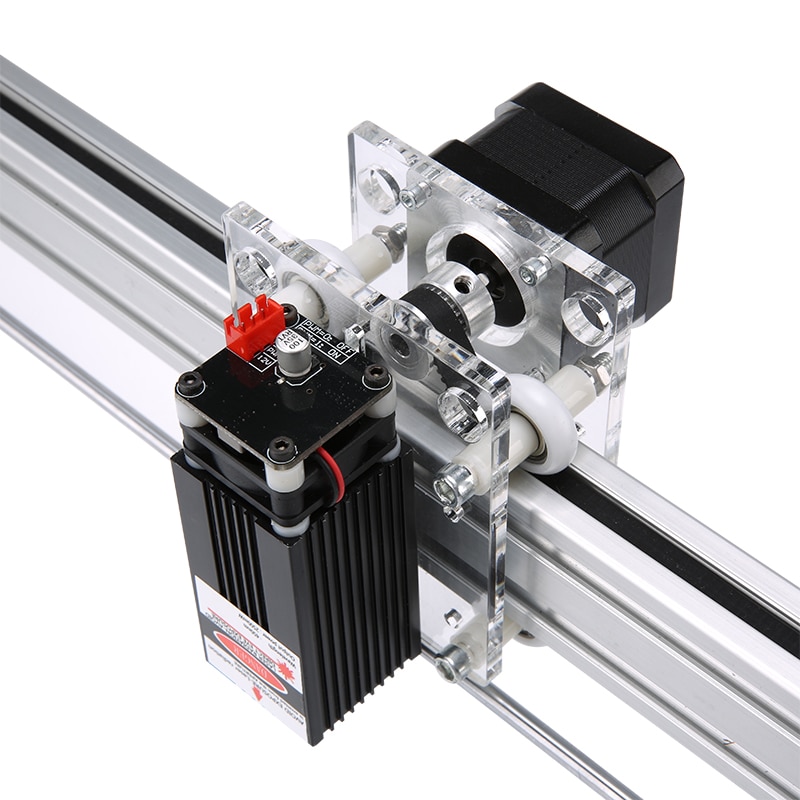

Laser Power:5500mW(Focus adjustable), 15W/40W(18mm fixed focus)
Support PC System: Windows XP,Win7/8/10

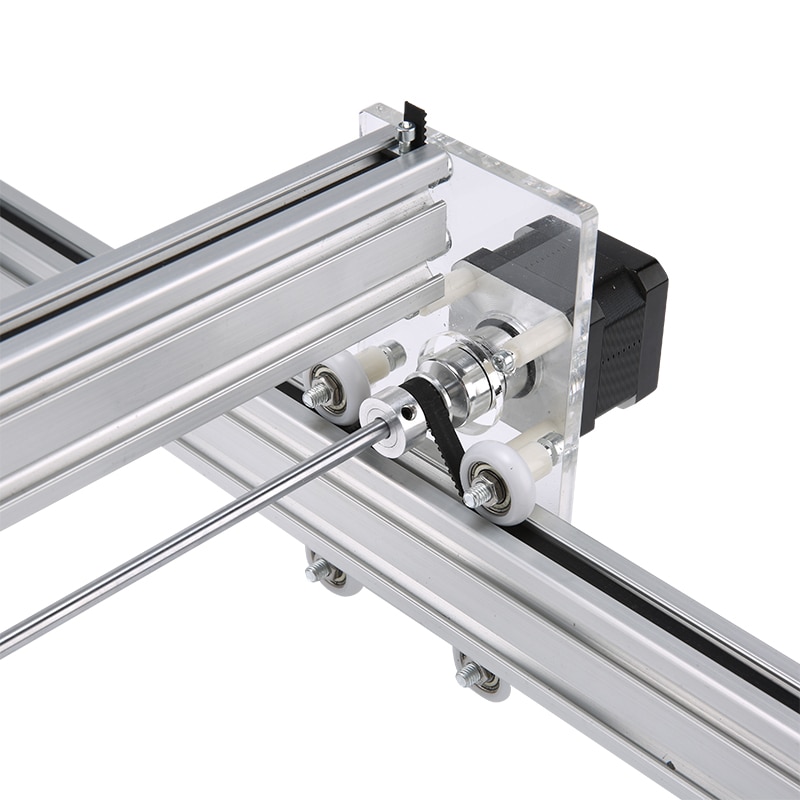

Drive system: 42 Nema17 stepper motor(step accuracy: 0.1mm)

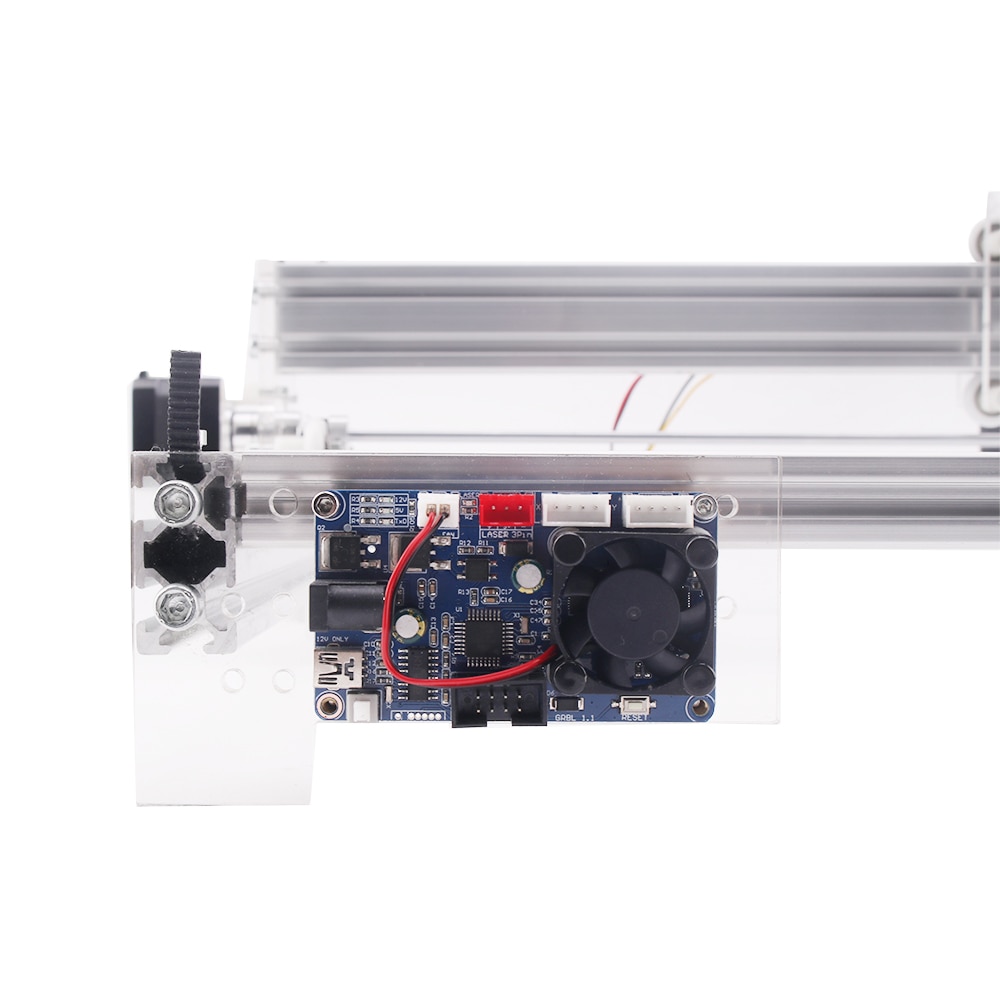

Stepper motor driver:Integrated A4988
Engraving speed: 100-5000m/min
Cutting speed: 1-100ms/pixels

Note:

If you need some more information about software and working video please contact with me, we will offer link to you,thanks for your understanding!

Material for working:

1.5500mW laser is adjustable lens for focus, suitable focus length is 6-7cm, it can engrave on wood,plywood,bamboo,leather,black acrylic,plastic,rubberm etc. It also can cut about 2mm carbon board and wood board;
2. 15W and 40W laser is fixed 18mm focus, engrave much faster,large power, it can engrave on stainless steel easily and fast speed,and also suitable for some other metal printing, it can cut about 3-4mm wood,leather,black acrylic and etc.

Compare with 3-Axis CNC engraver

1.Lighter and more convenient;
2.Engraving speed is much faster;
3.Engraving area is much larger.
4.More powerful laser for supporting.

Package include

1*CNC5040/6550/4030 Laser engraver Kits
1*DC12V 5A power supply
1*USB connector
Optional Parts:

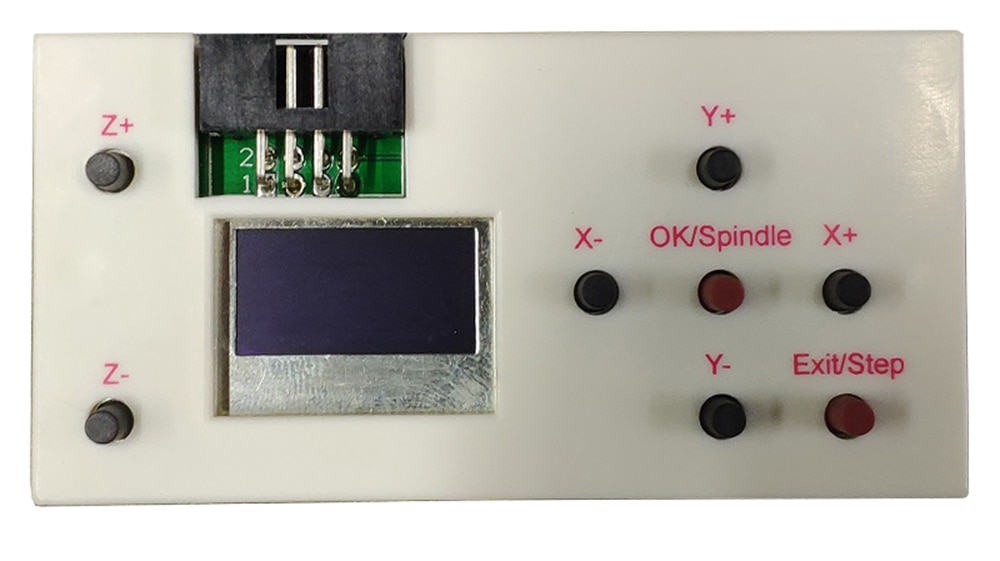

1* Offline controller
1* Laser(power as your choice)
1*Protect Goggle
