Description
- Brand Name: pcbfun
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±20%
- Technology: Carbon Film
- Type: Rotary Potentiometer
- Operating Temperature: -10-100℃
- is_customized: Yes
- Size: 3pin
- Max. Operating Voltage: 200V
- Model Number: WH148 Potentiometer
- Rated Power: 1/2W
Features:
Durable product
Convenient and practical
Easy to adjust voltage and electric current with Cap

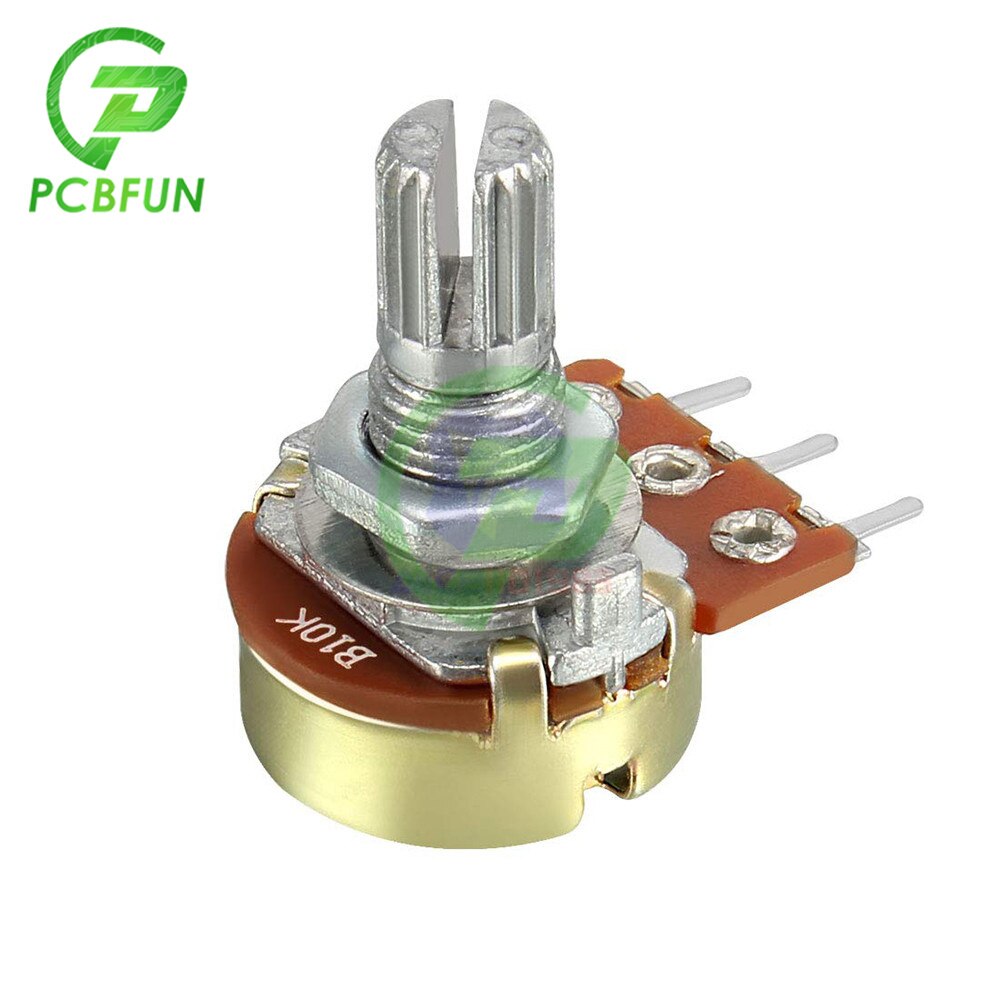

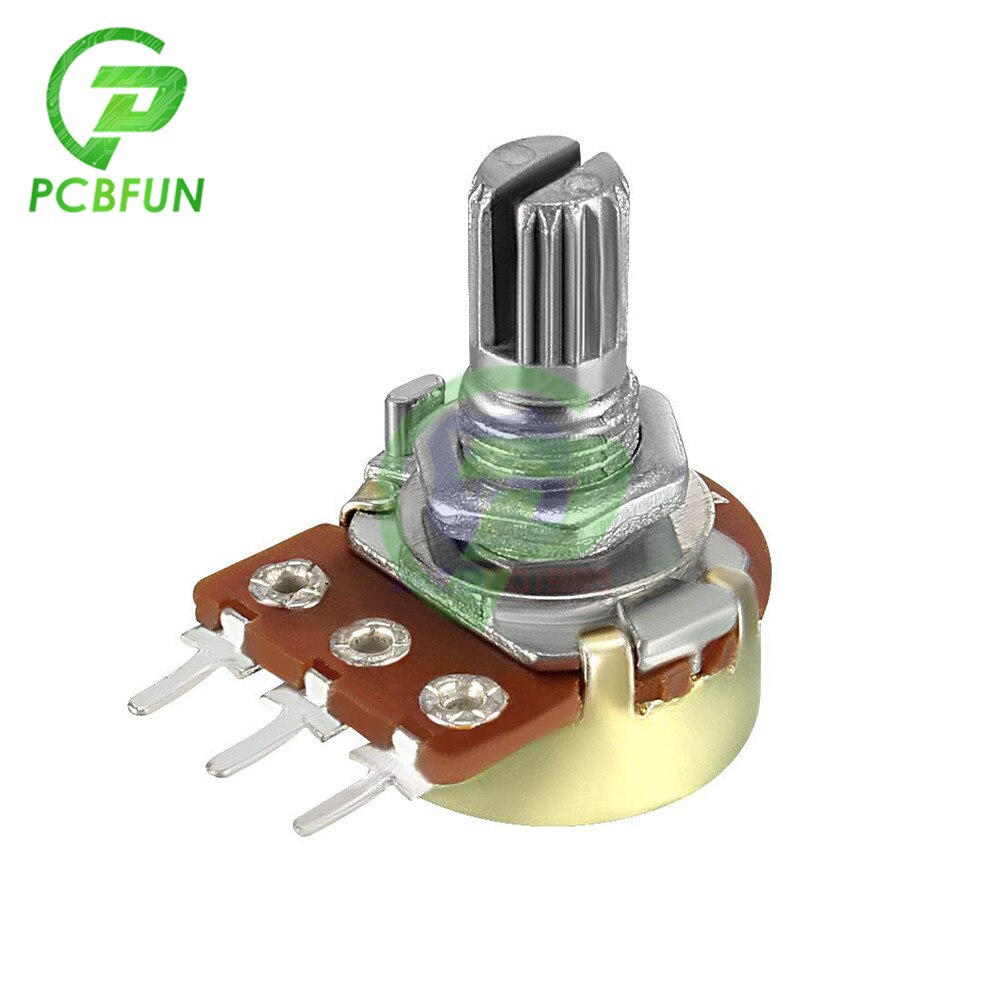

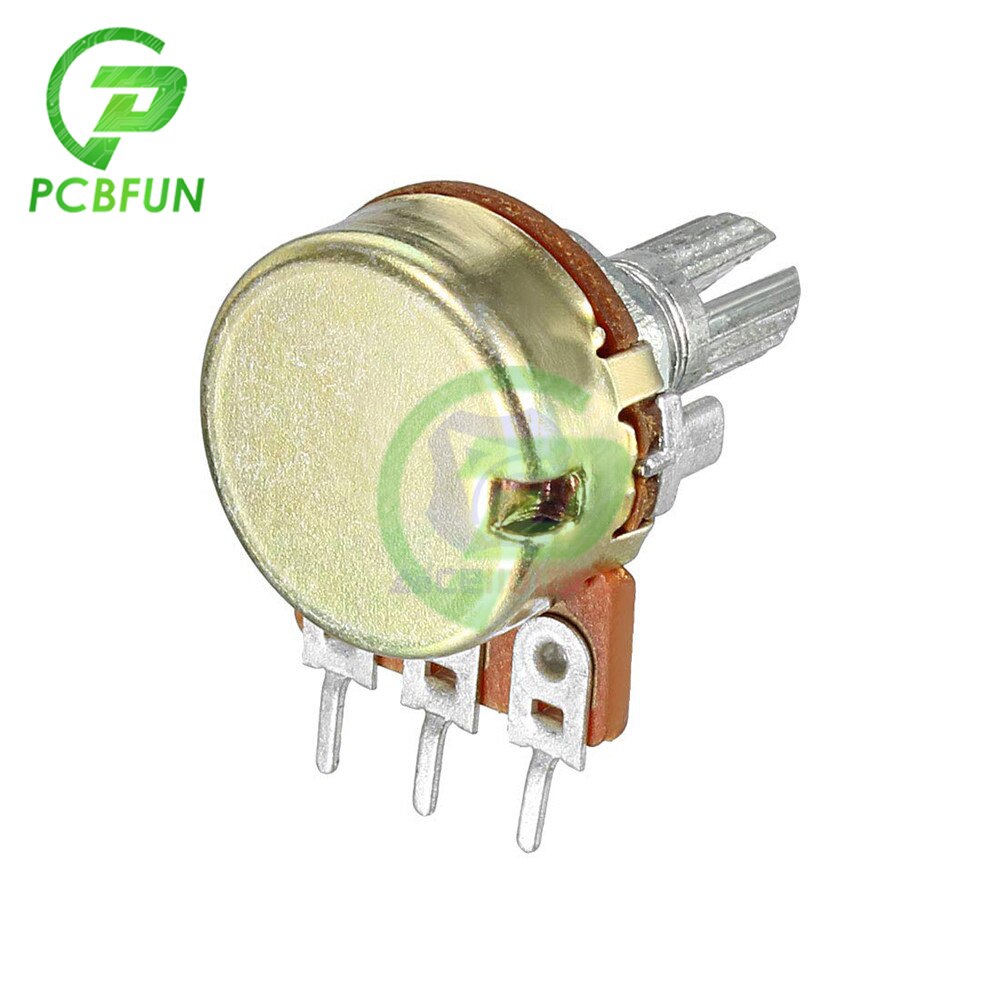

Parameter:
Model: WH148
Resistance Taper: B
Type: single linear rotary
Material: Carbon Film+Metal
Terminal: 3 Pin
Shaft height: 15mm
Resistance tolerance: ±10% -30% (According to the resistance value of potentiometer)
Total Rotation: 300°±5°
Rotation Torque: 20~200gf.cm

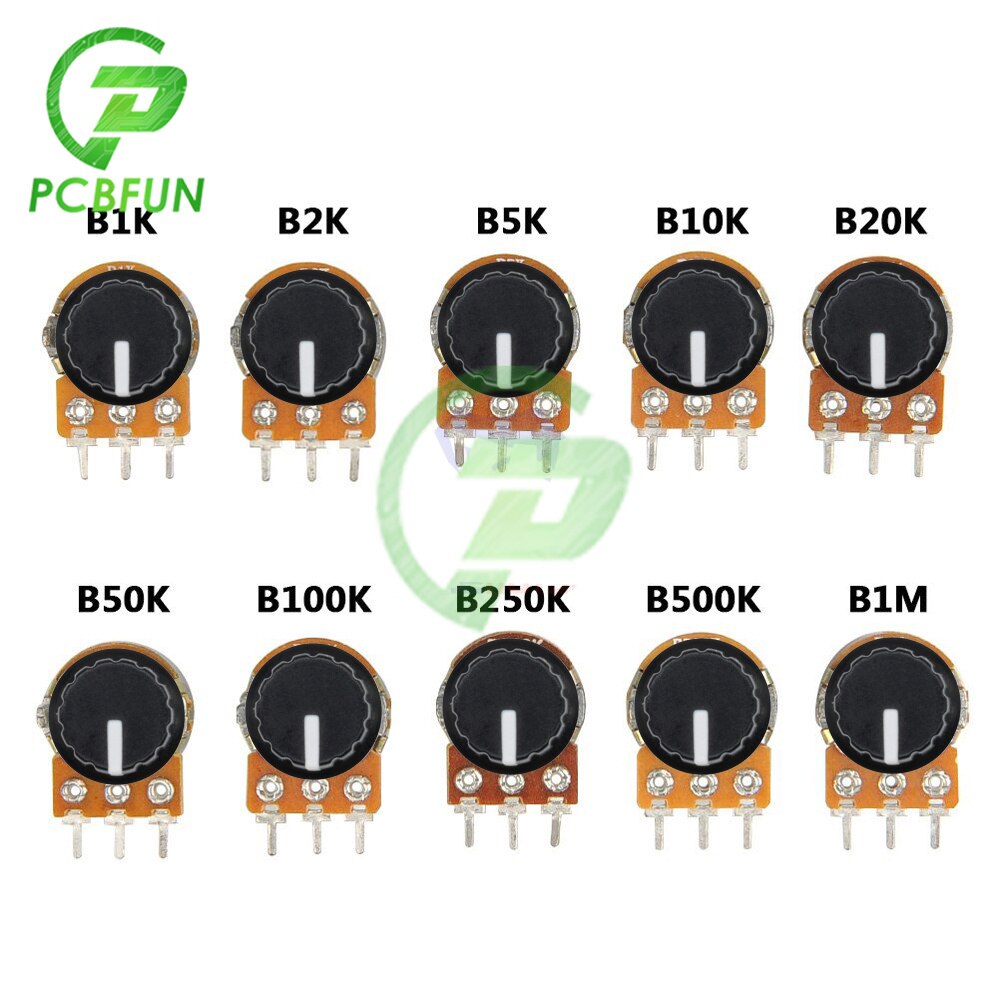

Resistance Value: 1K Ohm, 2K Ohm, 5K Ohm, 10K Ohm, 20K Ohm, 50K Ohm, 100K Ohm, 250K Ohm, 500K Ohm, 1M Ohm
Knob Specification:
Item Name: Rotary Knob.
Material: Plastic, Metal
Color: Black, Silver Tone
Fit for Knurled Shaft Diameter: 6mm
Size: 15 x 16.5mm/ 0.59″ x 0.65″(D*H)
Package Included:
5* WH148 Potentiometer
5* Knob
