Description
- Brand Name: CRONOS
- Model Number: 5500mw

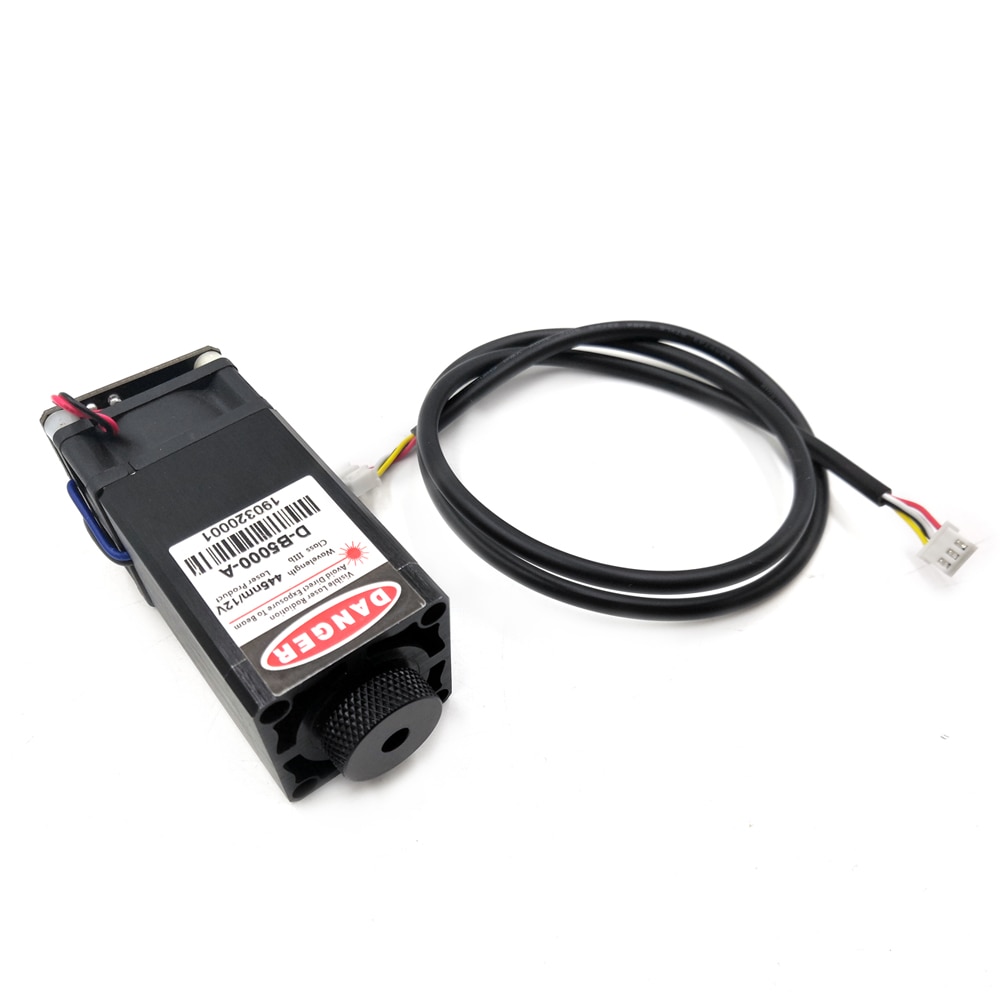

5.5W Cutting Laser High Power Engraving 5500mW Laser Head Blue Violet Cutting Laser Module PMW Module + Glasses
Friendly reminder:Our laser suitable our control baord,if you choose our laser,but use you own control board,in order
to you can choose suit you product,please confirm with customer service before placing an order,wishing you a
happy shopping!
1,The spot is fine and clear, the divergence angle is small, the collimation is good, and the volume is small.

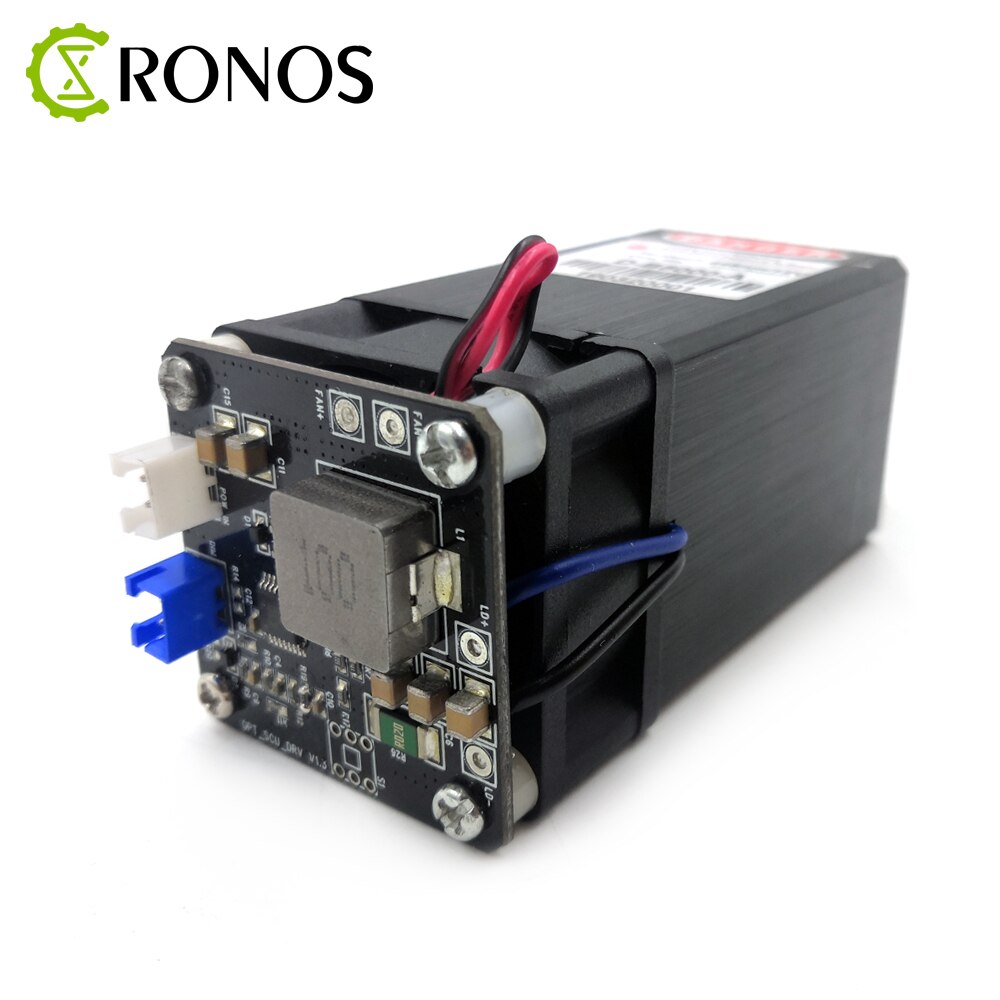

2,Temperature control, drive and laser are fully integrated, compact and compact, externally powered by DC
3,After high and low temperature storage and vibration shock test, it has reliable stability. When the temperature is in the
range of -10~7 degrees, it can work stably for 24 hours.

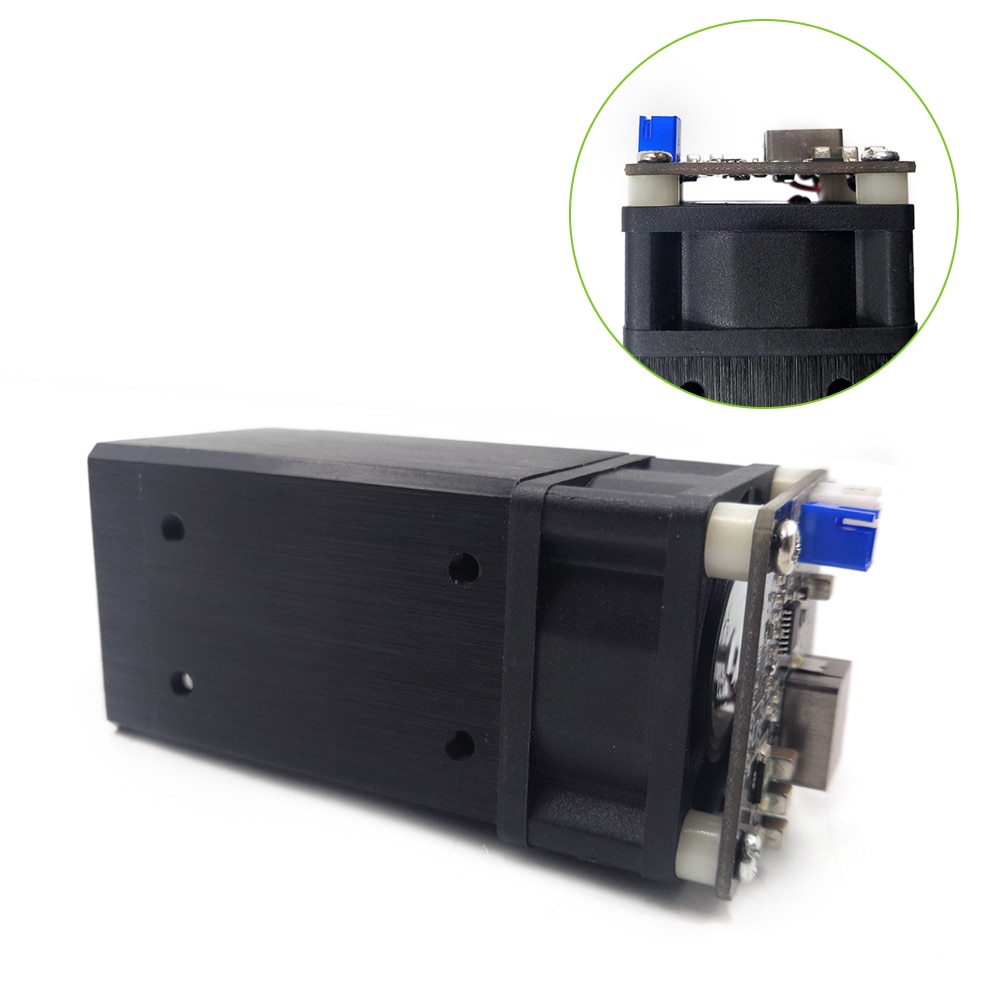

4,Precision scientific heat dissipation design, two-way temperature control and perfect temperature protection function
can extend the life of the laser as much as possible.
Wavelength:445nm
Output power:≧4500mW

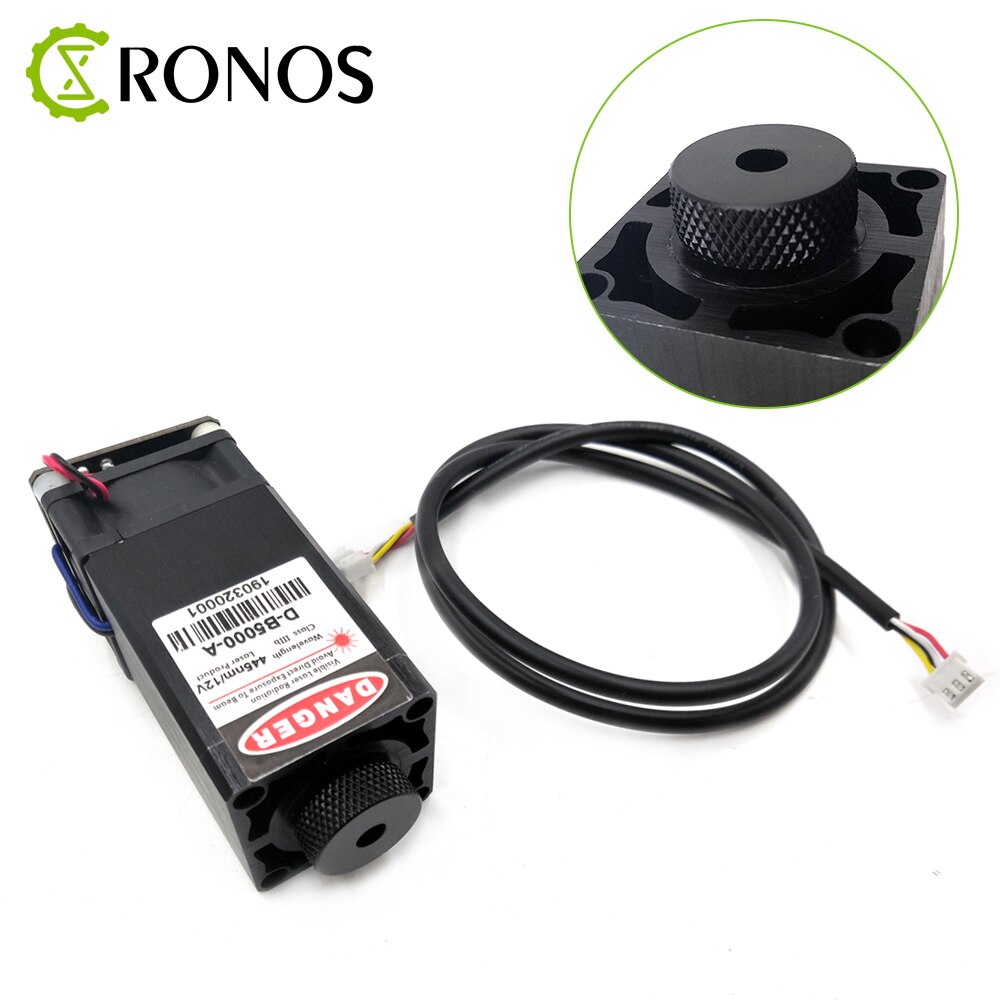

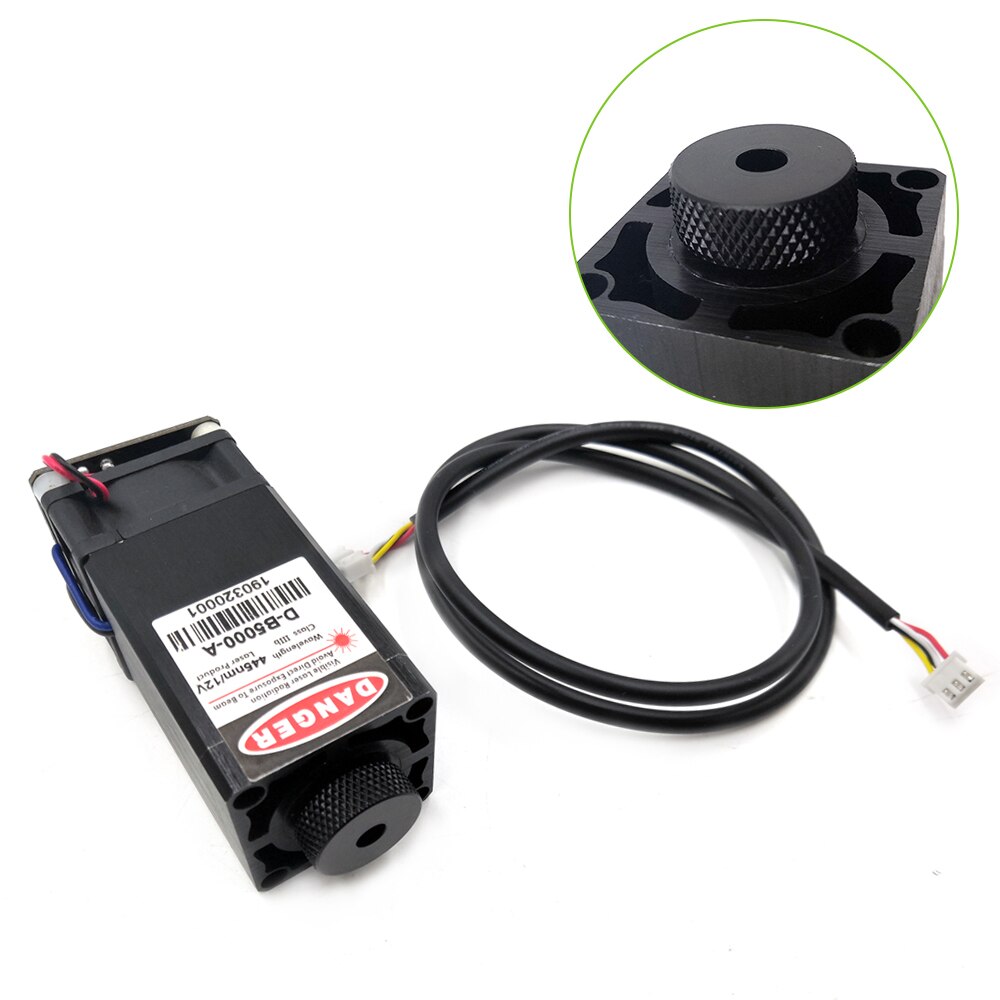

Focal length (adjustable focus):30~200mm
Focus spot size: ≤0.5mm
Lens material:professional focusing optical glass
Wire length:can be customized

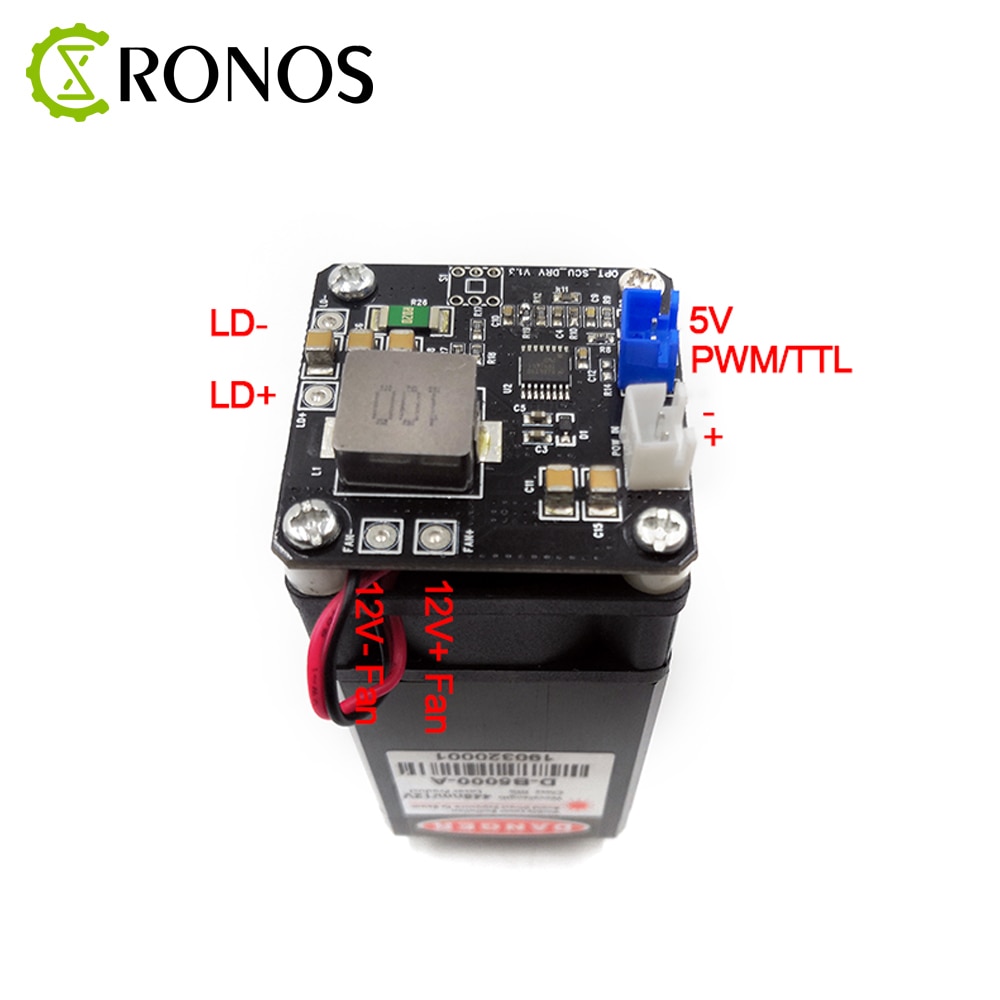

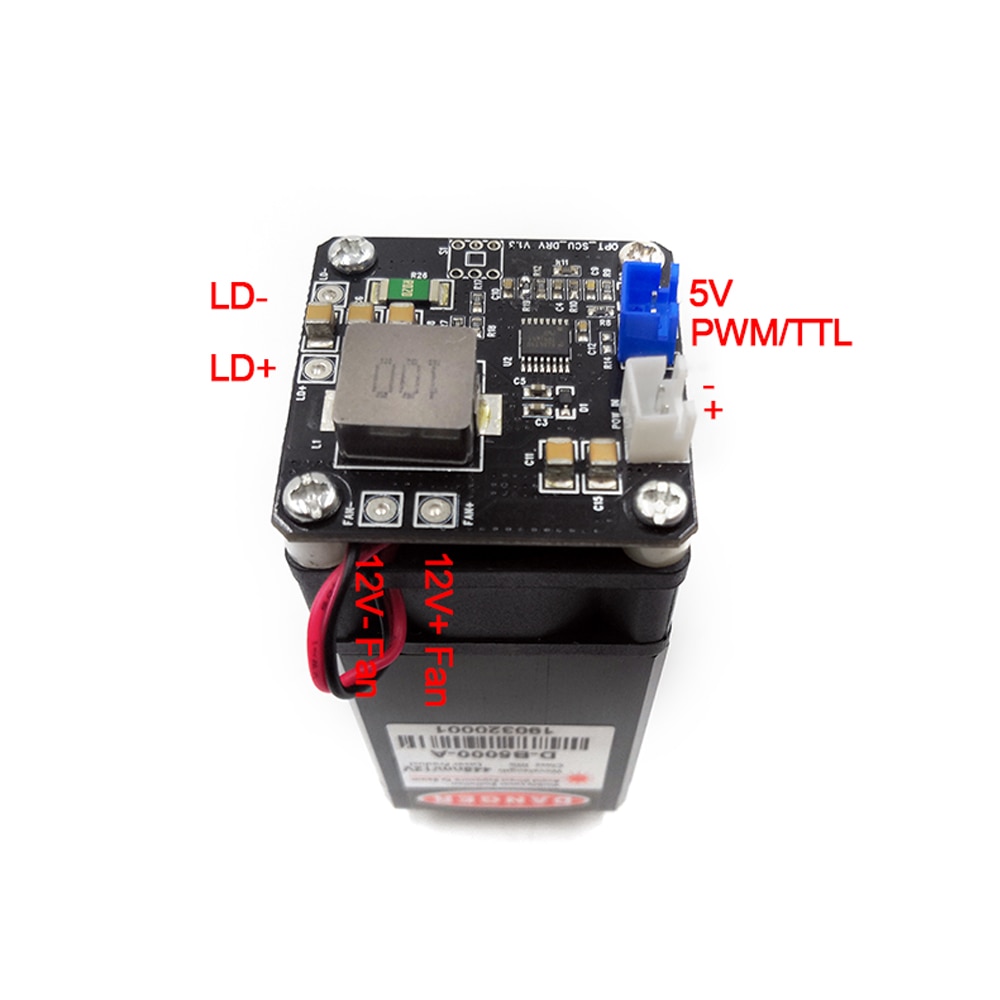

Modulation mode:TTL modulation / analog modulation
Input stability: ±5%
LD input voltage:5V
LD input current:4500mA
Rated power consumption:54W
Weight :245g

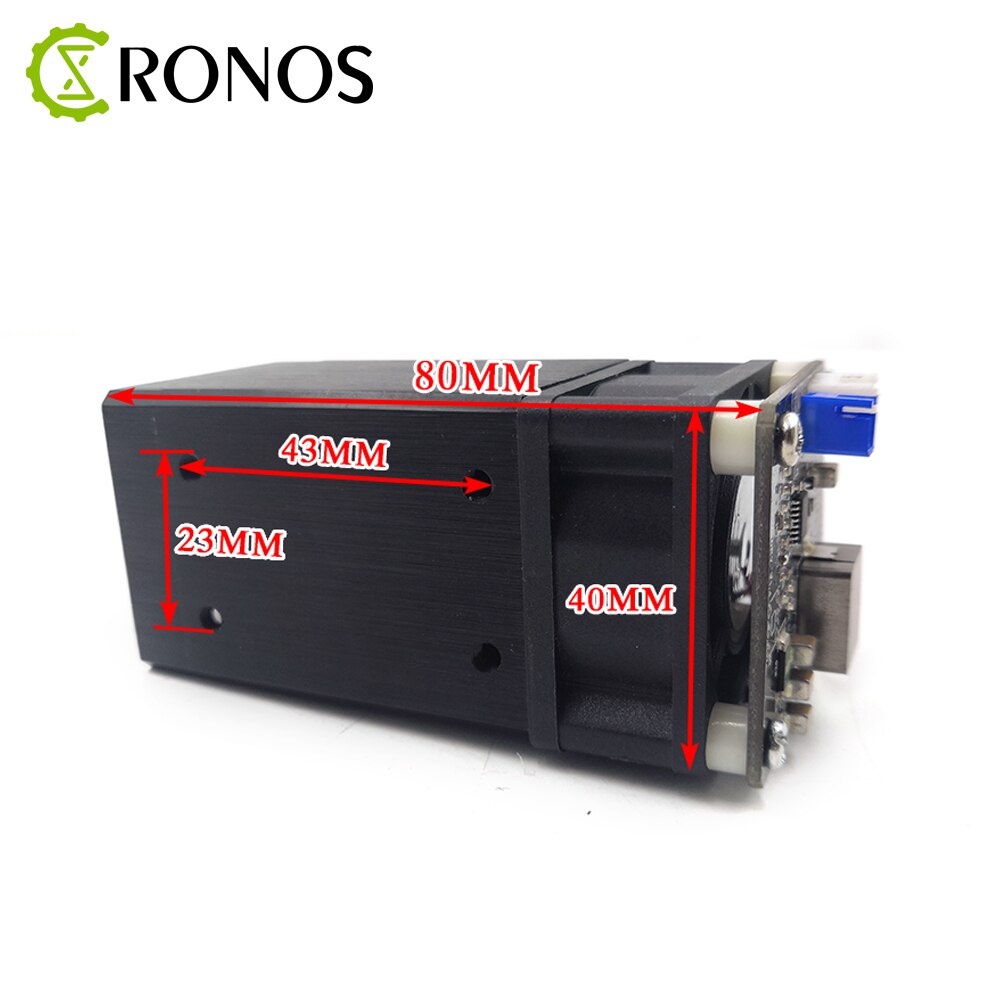

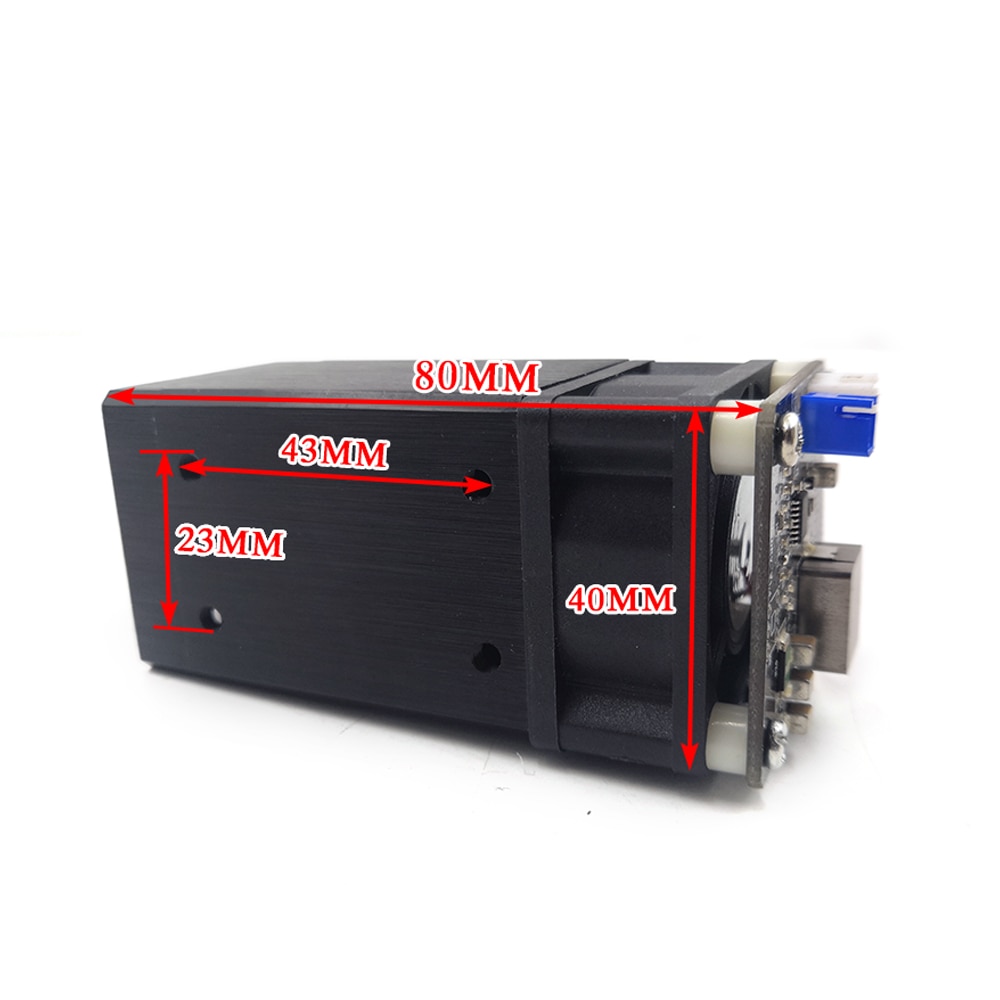

Size:40*40*85mm
Recommended ambient temperature -10~40°C

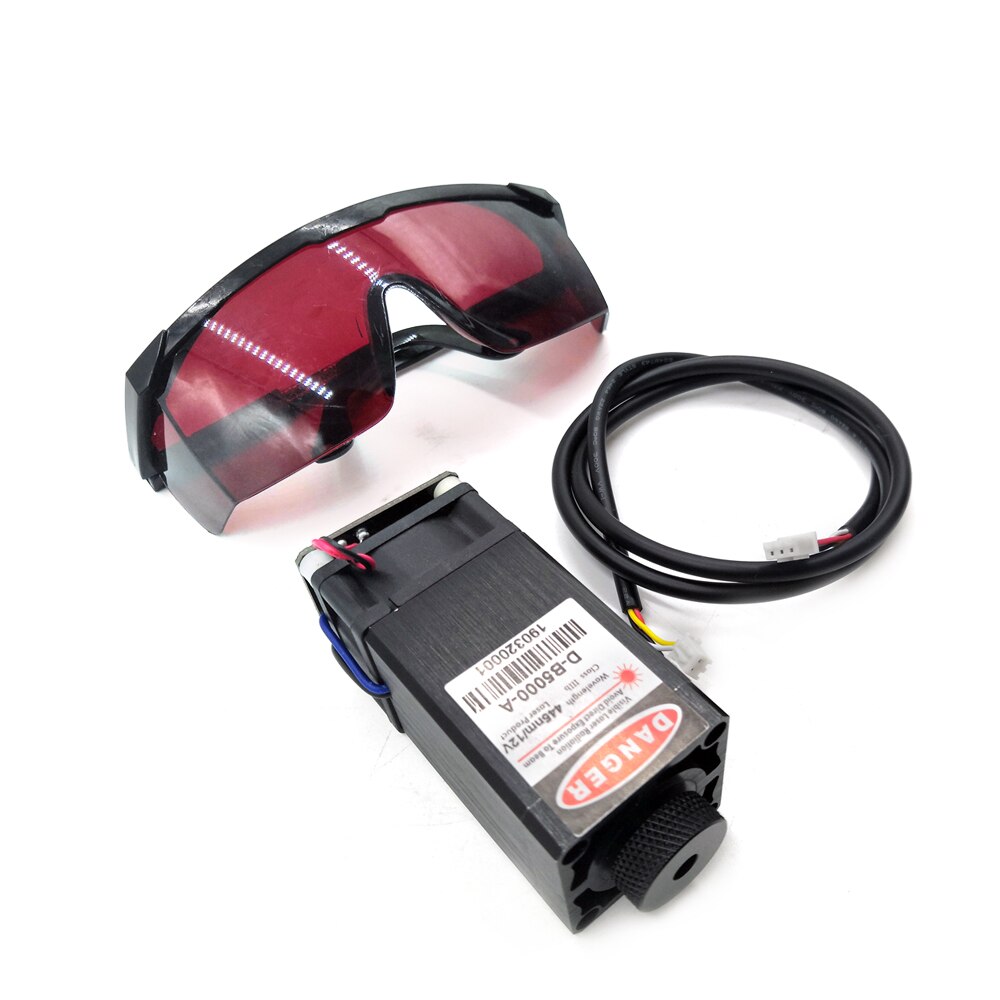

Packing List :
Laser *1
Cable*1
Glasses*1
When you received your goods ,please test it in the first time!Test method ,as shown
below!

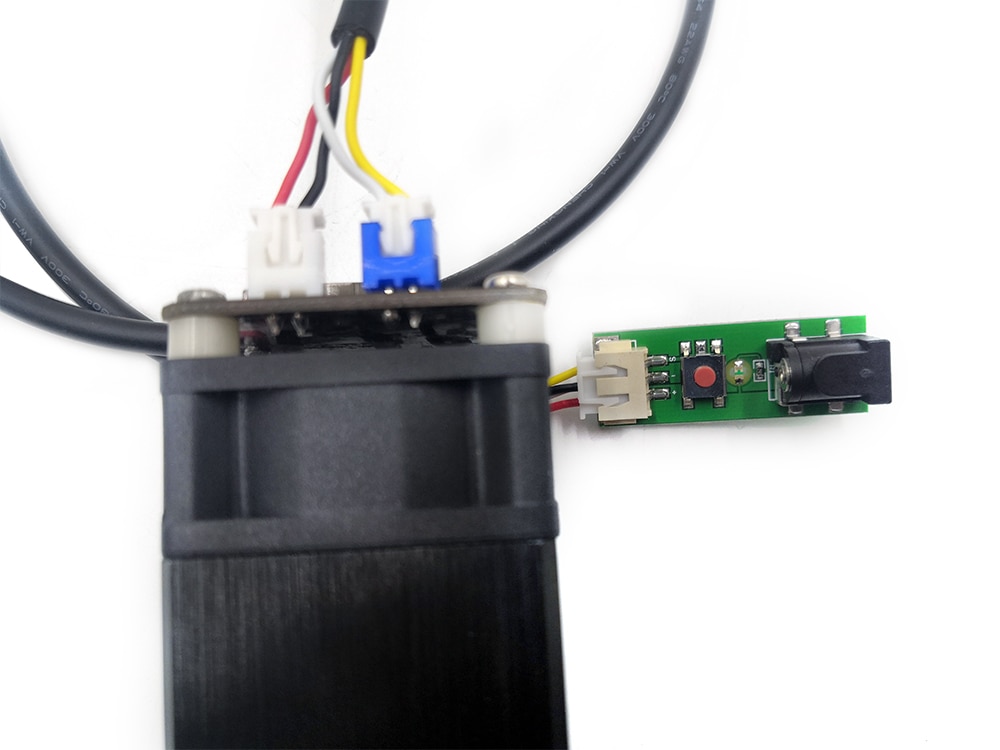

Test laser:
