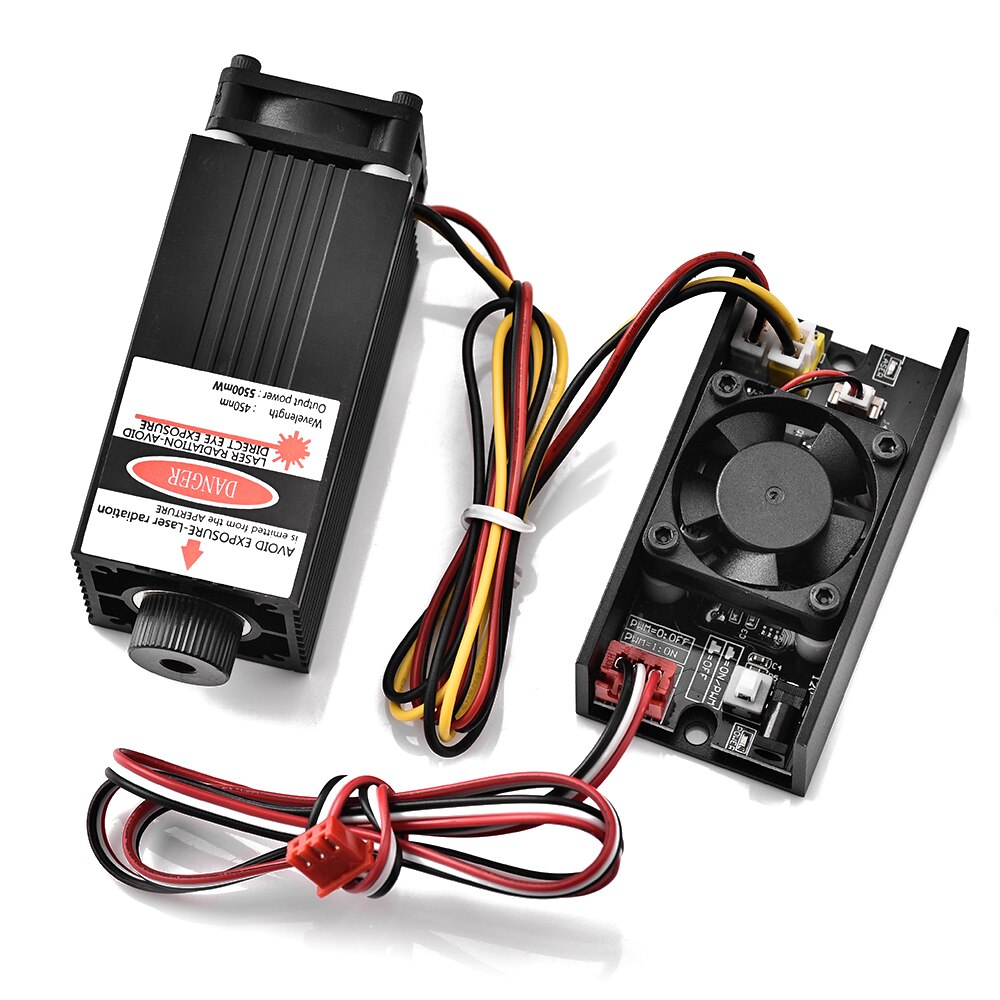

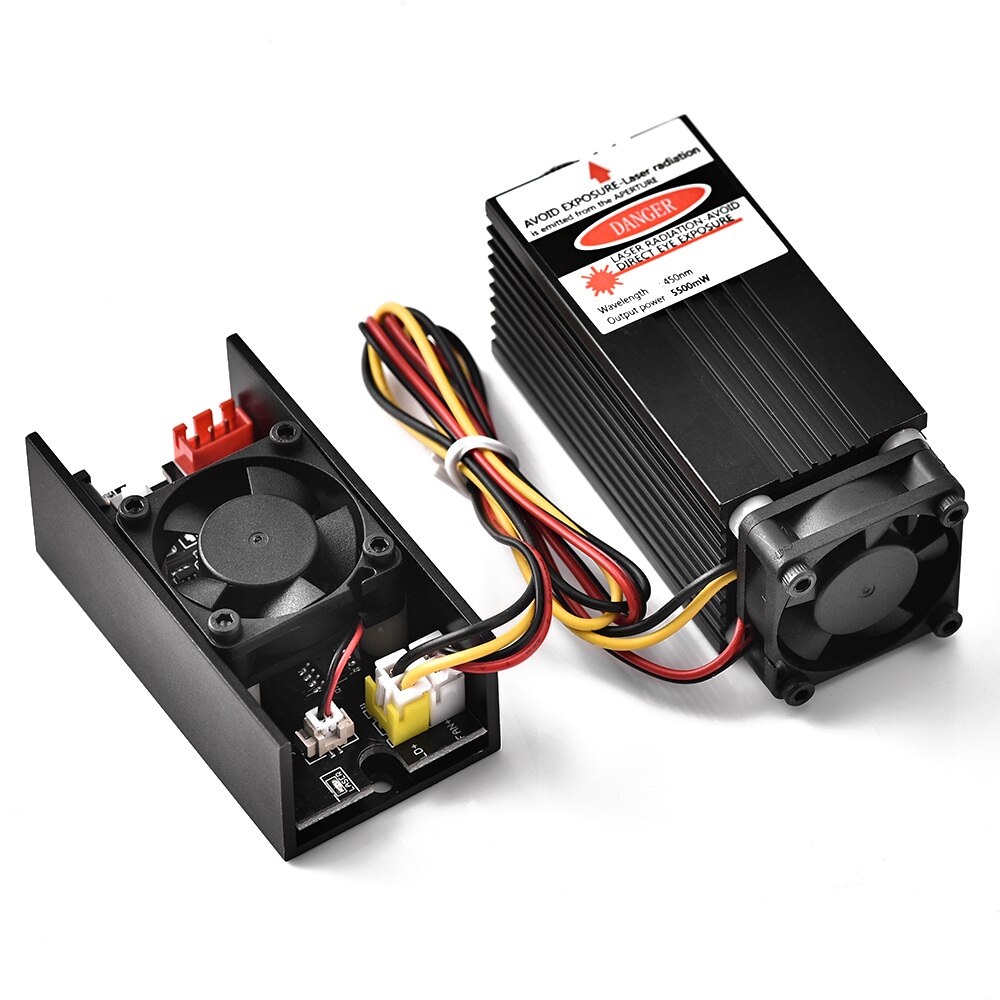

5.5W 450nm TTL PWM Control Blue Laser Module, DC 12V Focal Adjustable Laser Head,

100-240V Laser Head Engraving Module+goggles for DIY Laser Engraver Machine



1.5.5W laser module & 450nm blue laser light, large heat sinks and cooling fan ensure better heat dissipation during work

2.High grade laser diode with optical lens, has advantages of clear spotlight, low divergence, good collimation and small size ( Light Form: Dot, adjustable-focus )

3.Adopting intelligent feedback control circuit, external ACC constant current driving Mode , stable performance, good consistency, convenient to use

4.Output Power: 5500mW (5.5W); Suitable for industrial laser engraving machine equipment, wood craving, aluminum name card marking (Not suit for iron or other metal)

5.Laser module power is relatively large, limited to industrial use, prohibit exposure to the eye, otherwise it will cause permanent eye blindness, at your peril.

6.Low power consumption with high performance, support continuous light output working mode and can work for long time



Parameter:

Laser Wavelength: 450nm (blue)

Output Power: 5500mW (5.5W)

Driving Mode: External ACC constant current drive

Power Supply Voltage: 12VDC

AC Adaptor Input Voltage: 100-240V

Lens Material: Optical glass with coating

Light Form: Dot, adjustable-focus

Modulation: TTL

PWM Control: Support

Other Function: Weak light positioning

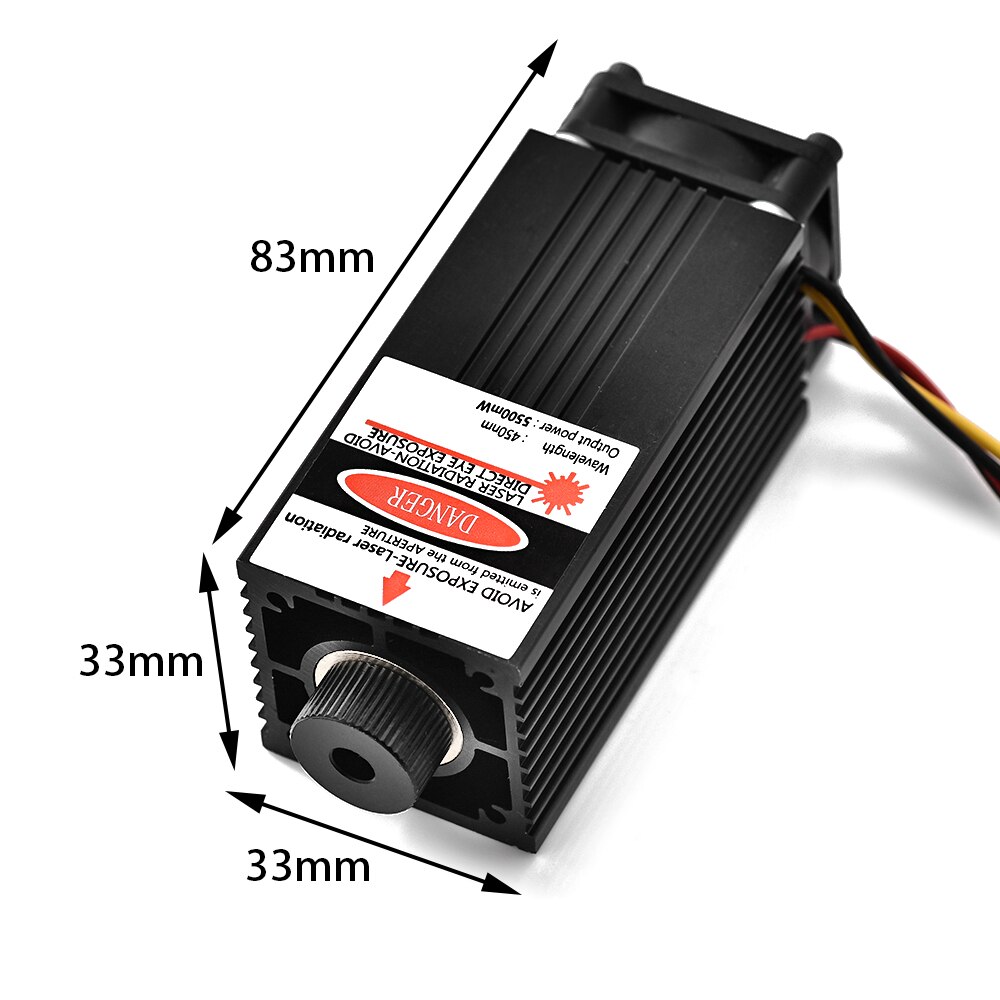

Dimensions：33*33*100 mm

Laser net weight：170 g

Spot form：Point-like adjustable focus

power input：12V 1A

Drive mode：External ACC constant current

Heat dissipation method：Active/forced air cooling

Interface parameter：XH2.54-3Pin/Support PWM



User must read:



–Reflexes will damage the laser when engraving the mirror metal



–Laser module power is relatively large, only for industrial use, to prohibit the exposure of the



eye, otherwise it will cause permanent blindness, the consequences at your own risk.



–Do not use in flammable and gas atmospheres to avoid fire and explosion.



–Prohibit children from exposure to this laser product.



–Do not open the module to avoid damage.



★Package Contents:

1 × Laser Module

1 × Goggles
