Description
- Brand Name: EleksMaker
- Certification: NONE
- Origin: CN(Origin)
- Model Number: 5/10/20/50/80mW
Description:

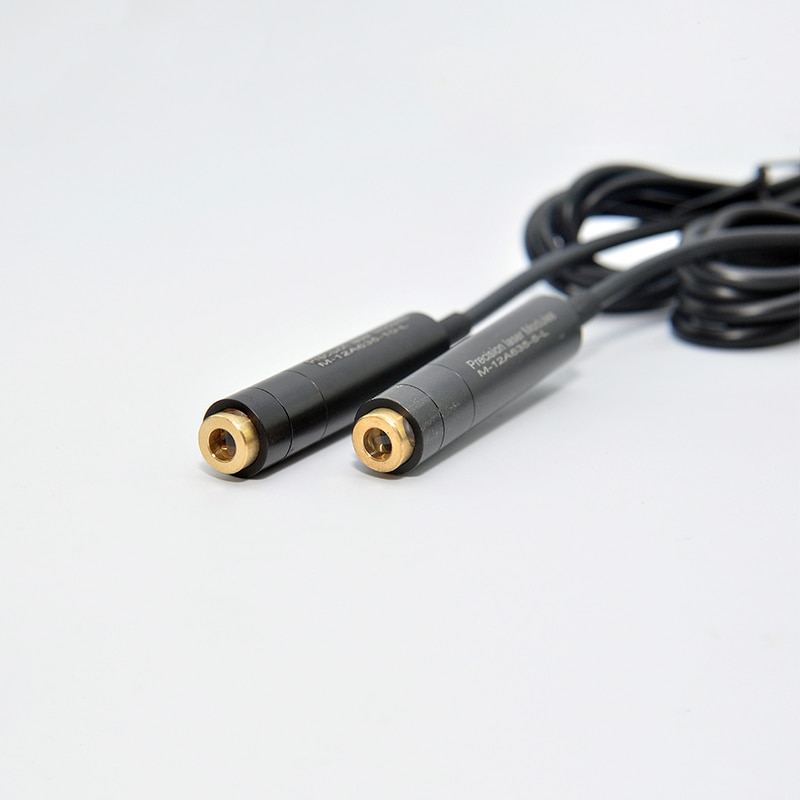

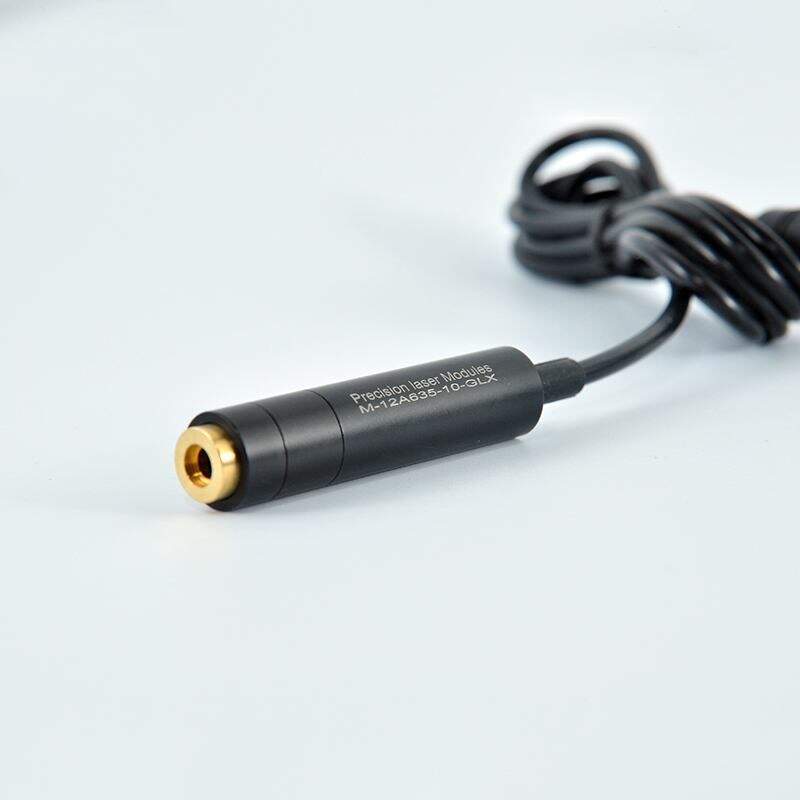

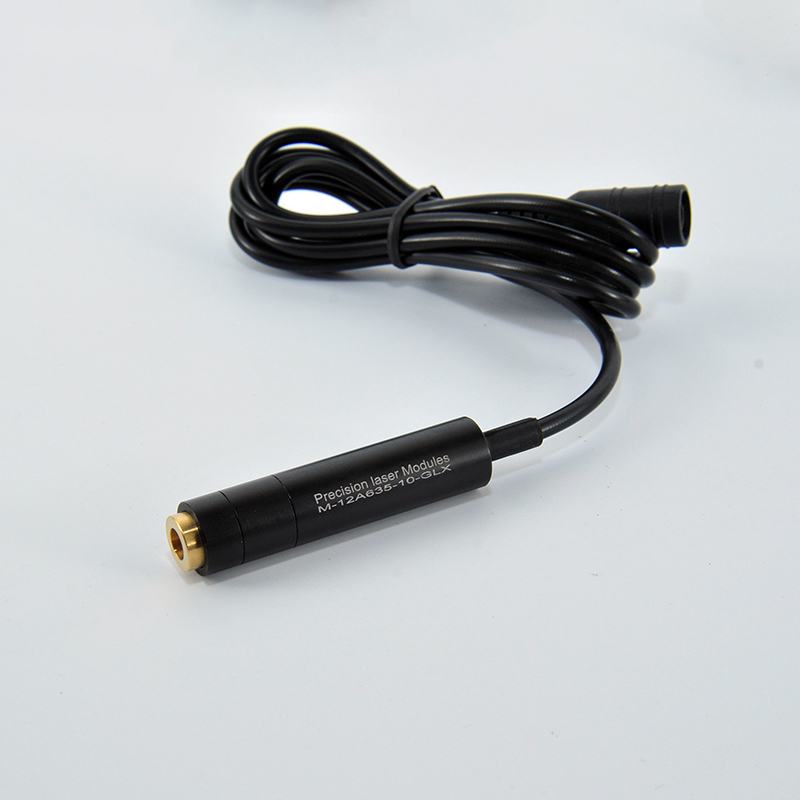

This variable focu 5/10/20/50/80mW 648nm red line laser module employs qualified 648nm red laser diode, generates the stable and reliable red laser line applicable for various industrial alignments and positioning work. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.
Specification:
| Laser Power | 5/10/20/50/80mW for Option |
| Wavelength | 648nm |
| Beam Shape | Line, 90° Fan Angle |
| Variable-focus | YES |
| Output Light | Visible Light |
| Working Voltage | DC 5V |
| Optics | PVC Focu-Lens + Cylindrical Glass Line Lens |
| Shell Material | Aircraft Aluminum |
| Operation Temperature | ±50℃ |
| Service Life | 8000h |
| Dimension (D*L) | 12mm x 55mm |
| Adapter Plug | US Plug |
| Adapter Input Voltage | AC 100-240V |
| Optimum Working Distance |
5mW, within 1m, indoor 10mW, within 2m, indoor 20mW, within 2.5m, indoor 50mW, within 3 m, indoor 80mW, within 4m, indoor |
Features:
– Constructed of high quality laser diode, small size, emitting clear laser light.
– Rotate the laser head to adjust focu-to an appropriate spot size, adaptting to different applications.
– Compact size, easy to install, multi-angle adjustment of installation, easy to operate.
– Come with mount holder, rotate the adjust the angle for easy placement and installation.
– Widely used in laser alignment, positioning for sewing equipment, embroidery machine, machine tools, woodworking machinery, and other industrial, medical and laboratory equipment.
Package Included:
1 x Red Line Laser Module
1 x Power Adapter
1 x Mount Holder
