Parameter

Note:
1. 50mW more power spot light is not directly to the naked eye

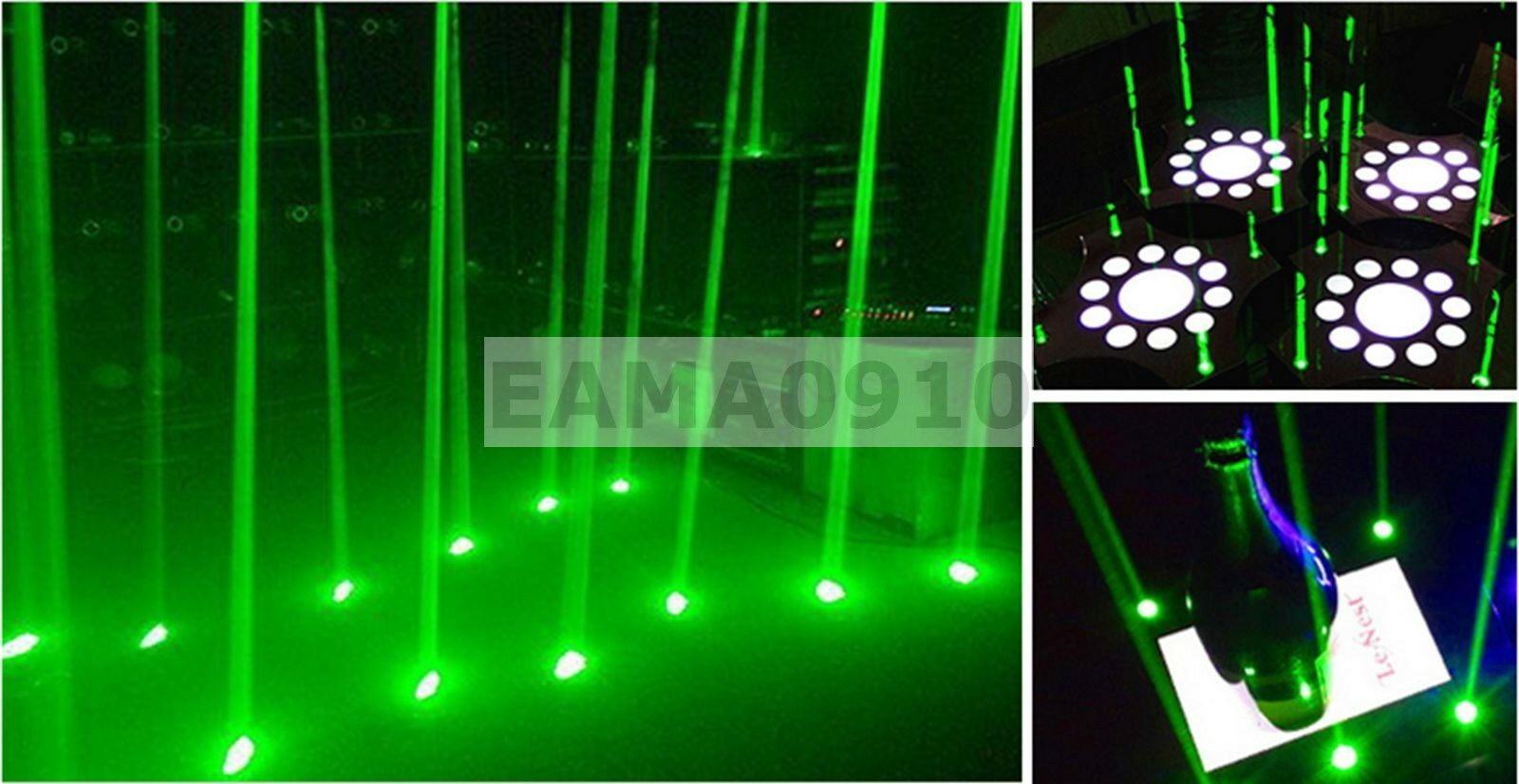

2. Beam effect It is in a dark environment Plus smoke to taken.

Characteristic：
Visible laser wavelength: 532NM green light
Main purpose: bar supplies, wine display stand, wine holder laser, laser effects stage chamber to escape, and other widely used
Main features: sprinkled it or KTV room environment, gorgeous spot, the light mirror waterproof, can work long hours, etc.

Parameter：
Type:M-22B532-50-G
wavelength:532NM
Output power:50mW(When the module heat generating, turn off to cool before use,
This is conducive to the life of the product)
Power supply:DC 4.2-5.0V(Available single 18650 or other 3.7V lithium battery)
Spot diameter:Dot 14-16mm

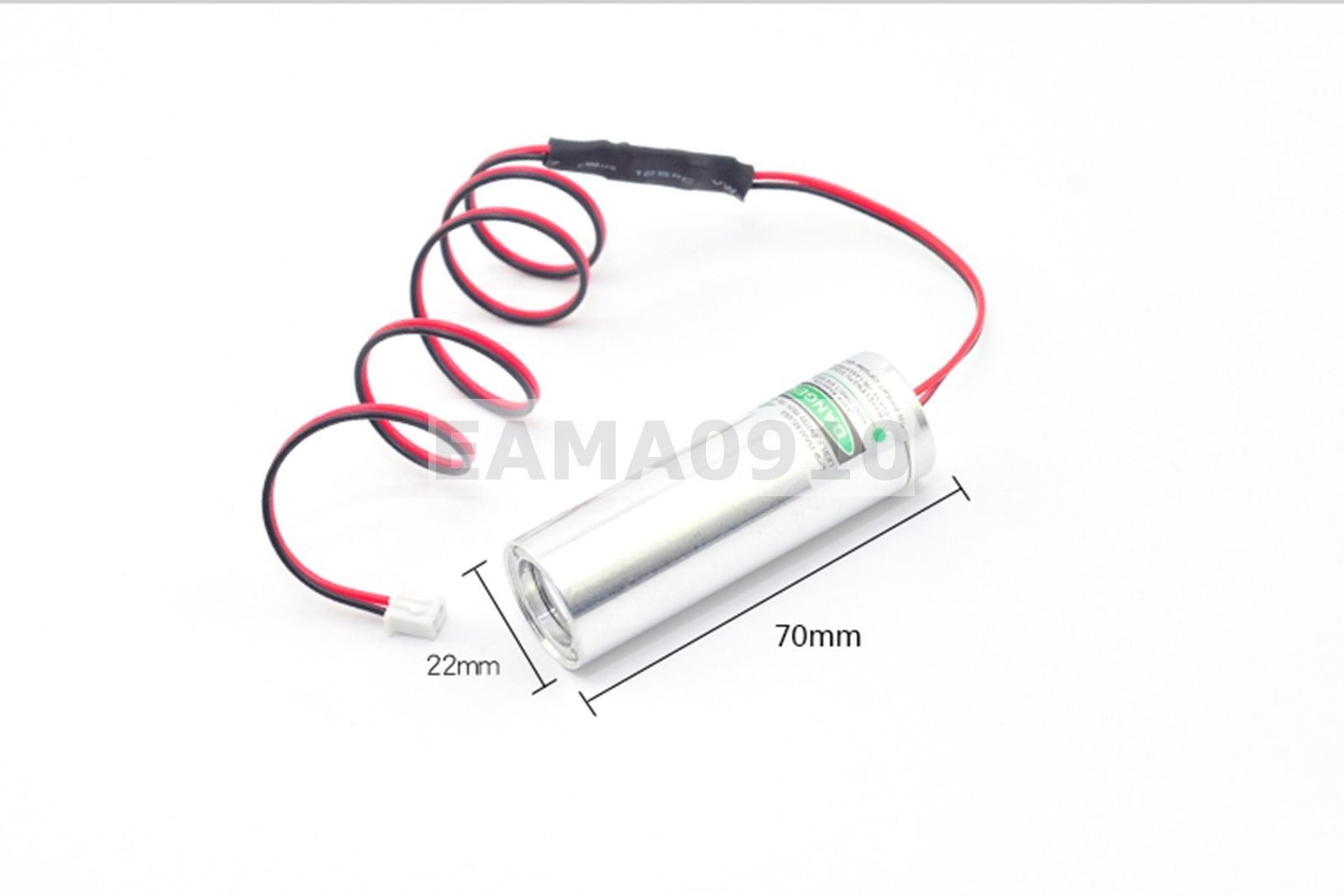

Size:22*70mm(Mounting cutout 22mm mirror waterproof)
Working current:320 mA(Such as: four lamp 4 * 320MA power consumption per hour 520MA,2400MA battery can be 1.8 hours)
Core device:Roma RLD80E30
Storage temperature:－40℃～80℃
Laser class:B3 class
Working life:6000hours(Can work continuously for 2 hours)
Material:Aluminum
1 Structure: Japanese original laser diode + large area coating copper sleeve + quality coated lens + microcontroller controls the drive circuit + wire
2. Materials Features: laser tube: Japanese factory output power guaranteed; copper pieces: a large volume of work designed to ensure the stability of performance
3 circuit characteristics: unique to the industry MCU control circuit, with anti-surge, brownout protection, secondary purification, LDO technology features: stable

Package

4pcs 532nm 50mW DOT Laser Module
