Description
- Brand Name: Q-BAIHE
- Model Number: 635MD-5-0414-CAB
- Item Type: Laser Flashlight
- Output Wavelength:: 635nm /- 5nm
- Output Power:: <5mw
- Range:: <300M
- Circuit Control:: APC Line
- Working Current:: <45mA

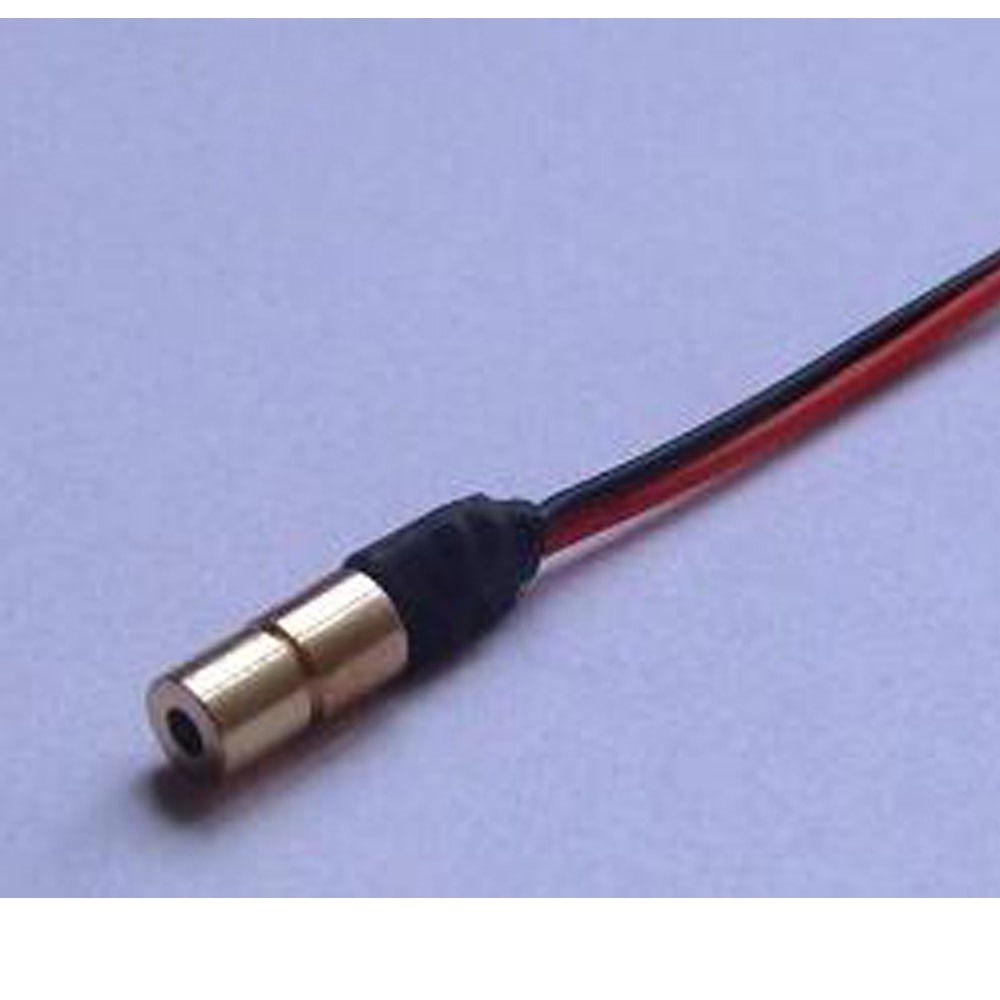

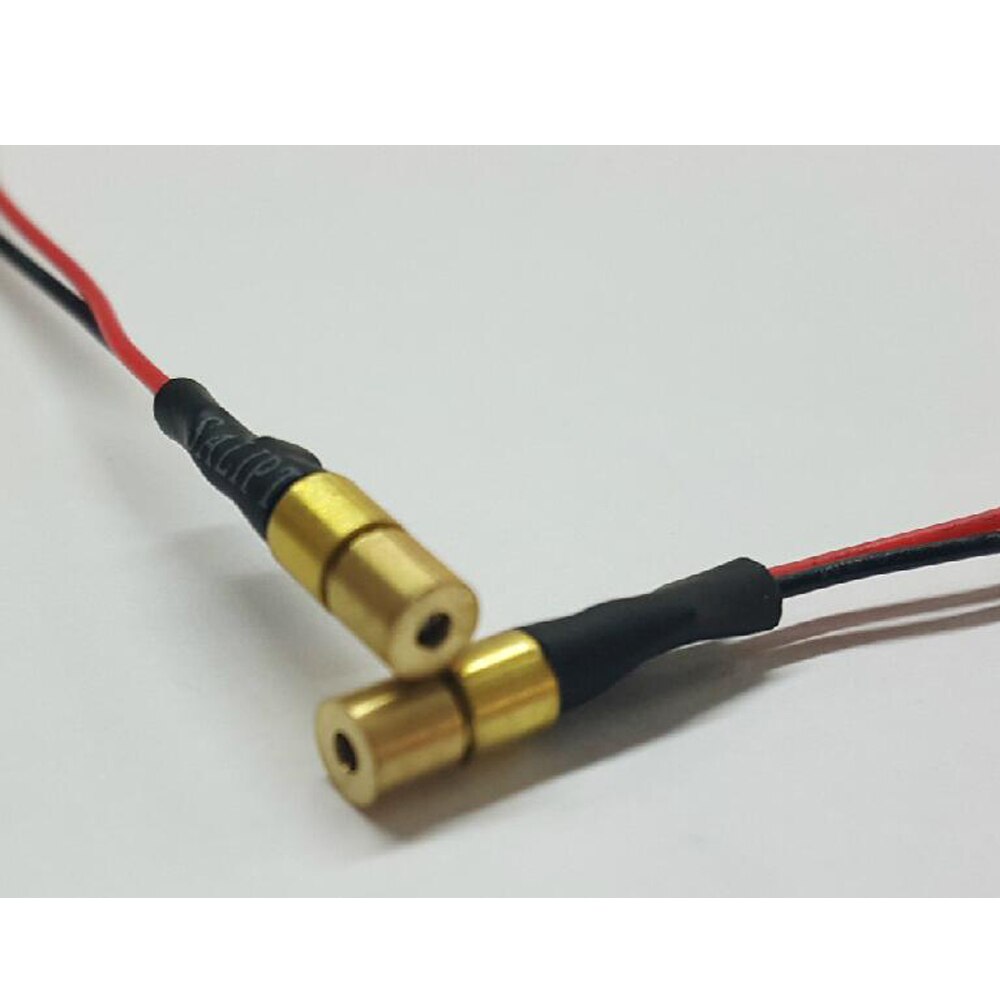

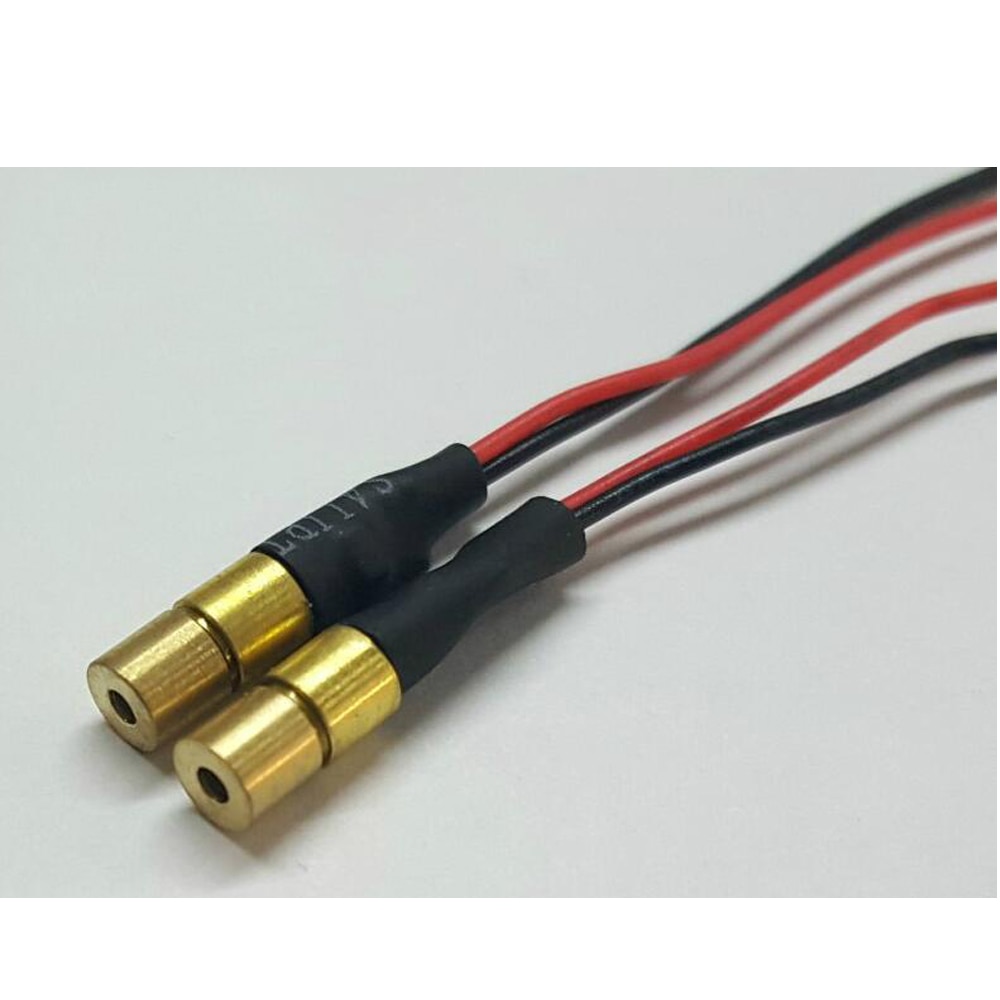

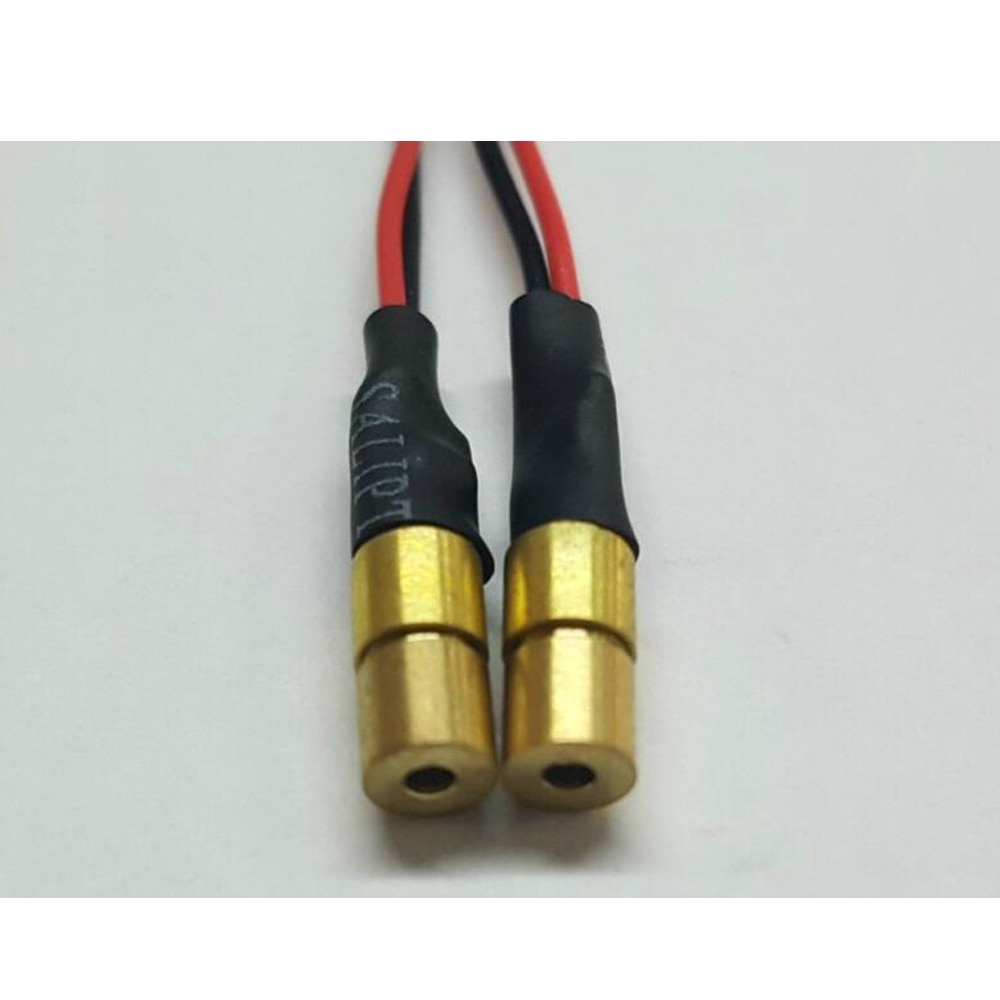

Class Ⅲ A 4mm635nm5mw Mini Red Spot Positioning Laser Module Emitting Diode Lamp
Product Specification:
1. Size: φ4*13.8mm (including PCB board), other sizes can be customized
2. Material: Environmental Protection Copper
3. Surface Treatment /Color: Primary Color
4. Service Life: Continuous Output, Service Life > 10000 hours
5. Output Wavelength: 635nm +/- 5nm
6. Output Power: <5mw
7. Range: <300M
8. Spot Shape / Diameter: 10M Light Spot 10*20mm
9. Circuit Control: APC Line
10. Working Voltage: 3V (two 7-cell batteries, the best choice for alkaline batteries)
11. Working Current: <45mA
12. Working Temperature: -10 ℃ to +40 ℃
13. Storage Temperature: -40 ℃ to +70℃
Package:
1*Laser Module
