Description
- Brand Name: diymore
- Origin: CN(Origin)
- Condition: New
- Type: Voltage Regulator
- Model Number: PCB Ruler
- Application: Computer
- Operating Temperature: PCB Ruler
- Supply Voltage: PCB Ruler
- Dissipation Power: PCB Ruler
- Package: SMD
- is_customized: Yes

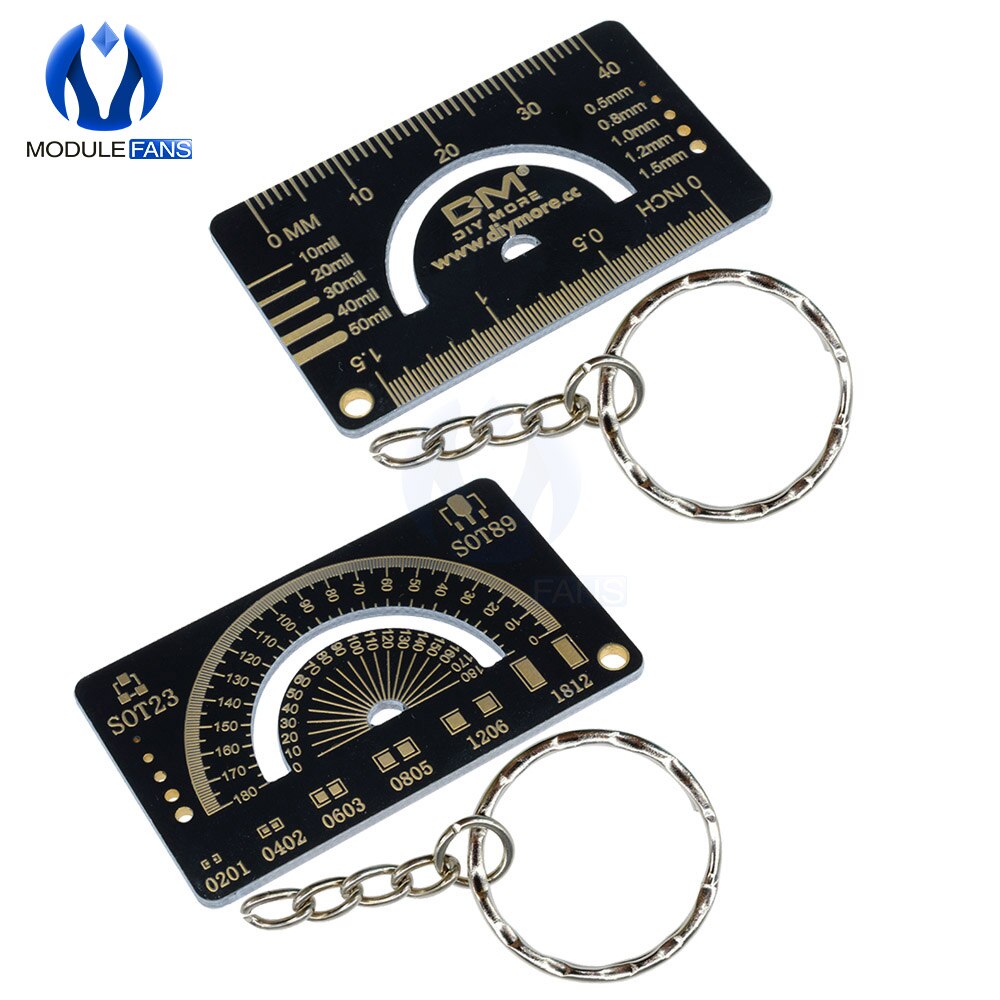

4CM PCB Ruler

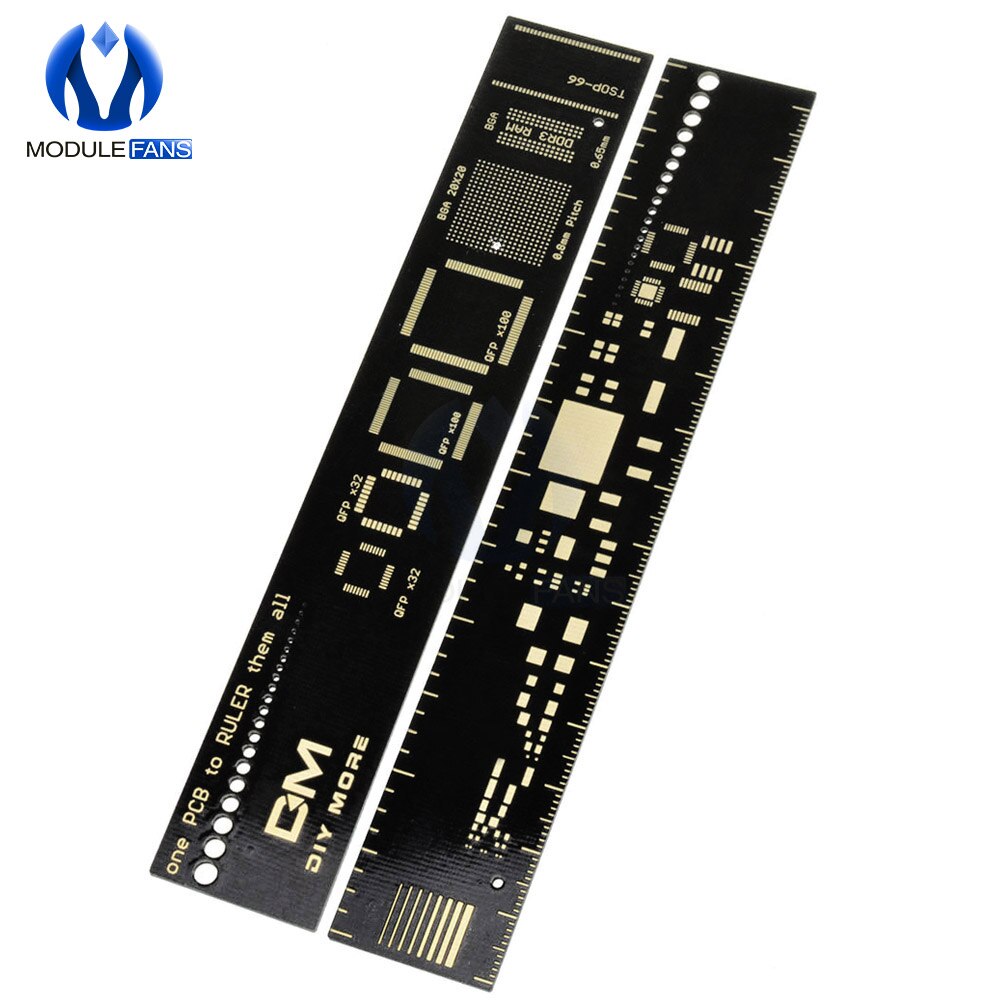

15CM PCB Ruler
Features:
Material: PCB
Font size guide, trace-width diagram, and a set of AWG-sized drills
Centimeter side: 0.1cm marks
Material: PCB
Font size guide, trace-width diagram, and a set of AWG-sized drills
Centimeter side: 0.1cm marks

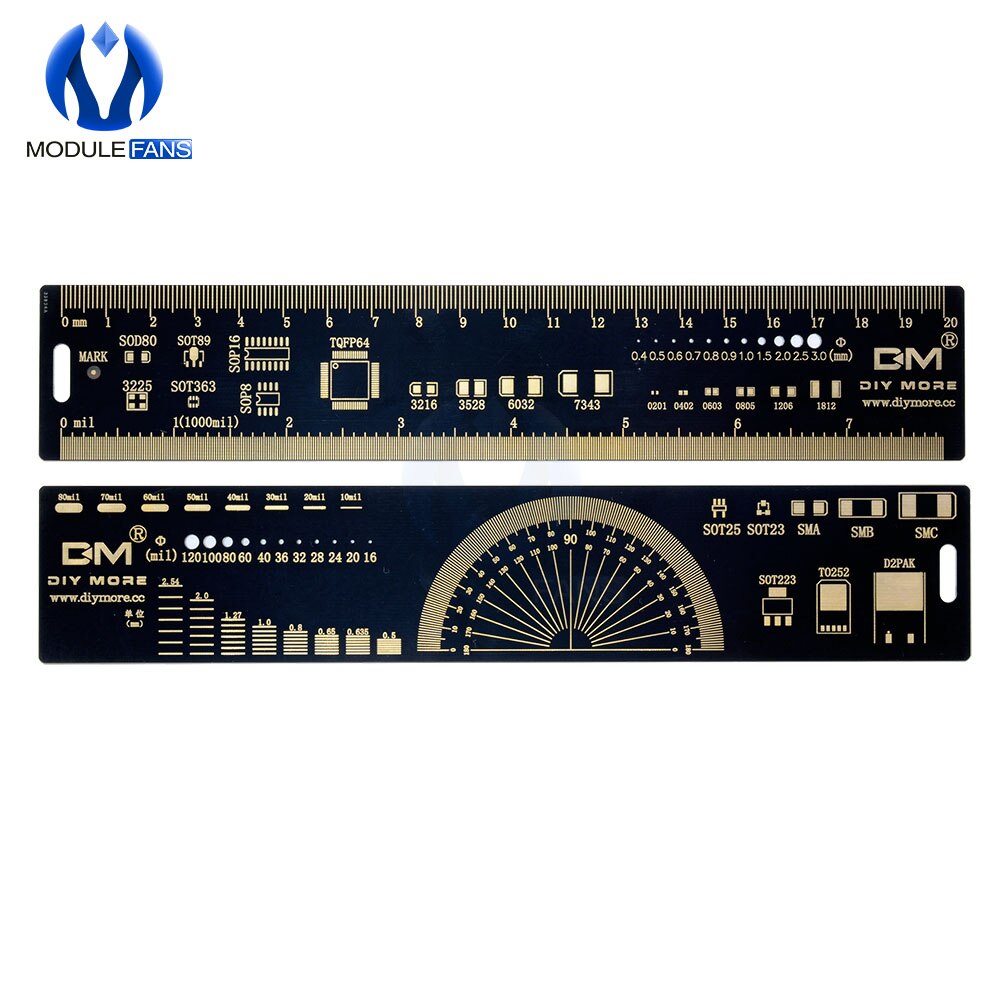

20CM PCB RULER
Product Description:
This versatile PCB ruler,
It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.
Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.
In addition to measuring the basic functions of millimeter and inch sizes,
It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables,
Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference
We printed this information on FR-4 gold-plated PCBs.
R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance
Positive Specifications:
The measurement length: 20 cm
Measuring length : 7.8 inches
Commonly used packages: SOT89, SOT8, SOP16, SOT363, 3225, SOD80, MARK, TQFP64.
Commonly used resistance and capacitance patch package: 0201,0402,0603,0805,1206,1812,3216,3528,6032,7343.
Common bore diameter reference dimensions (unit: mm)
Slot for hanging straightedge
Back Specifications:
Commonly used line width reference (unit: mil)
Angle measurement: 180 degrees
Device, IC pin spacing table: 0.5mm, 0.635mm, 0.65mm, 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm;
Commonly used MOS, diode, transistor package: SOT23, SOT223, SOT25, TO252, D2PAK, SMA, SMB, SMC.

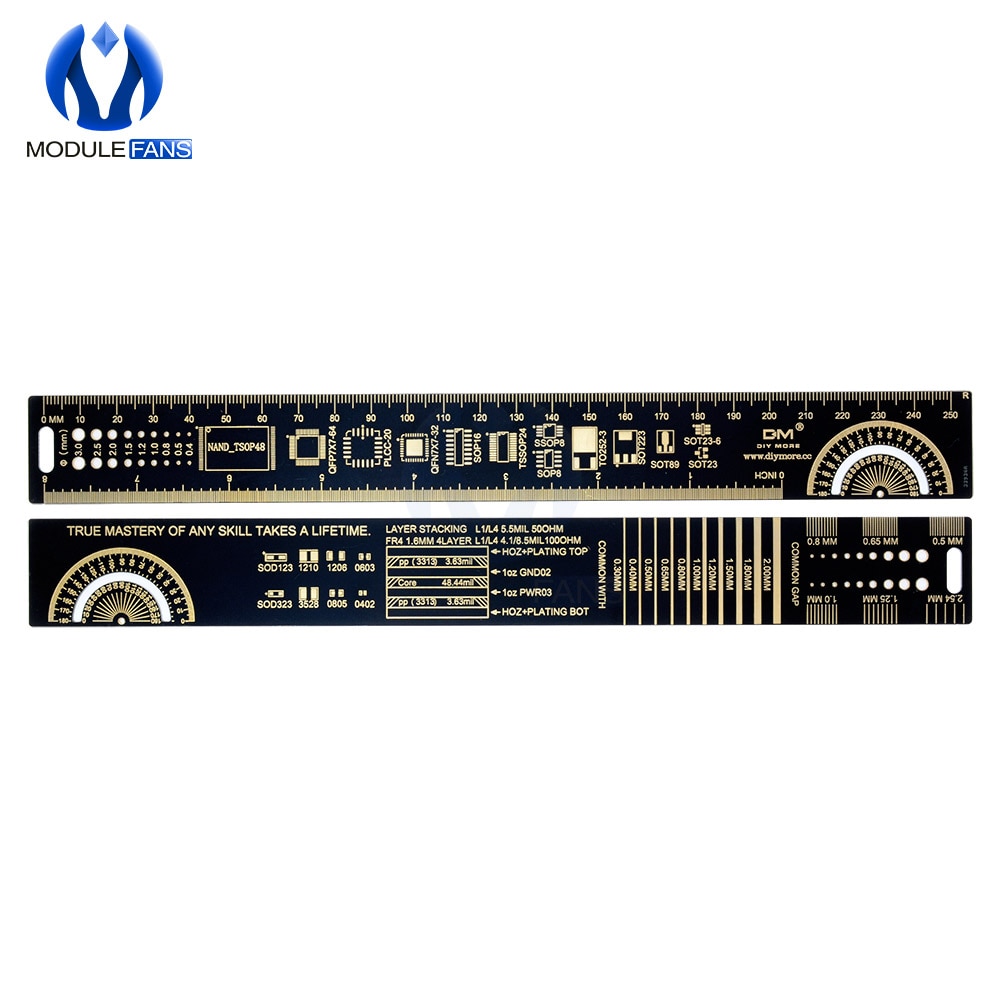

25CM PCB RULER
Description:
This versatile PCB ruler, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.
Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.
In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference
We printed this information on FR-4 gold-plated PCBs.
R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance
Positive Specifications:
The measurement length: 25cm
Measuring length: 10 inches
Commonly used IC package: 1.NAND_FLASH_TSOP48 2.QFP7X7-64 3.PLCC-20 4.SOP16 5.TSSOP24 6.SSOP8 7.SOP8
Commonly used CHIP component: 1.TO252-3 2.SOT223 3.SOT89-3 4.SOT23-6 5.SOT23-3 6.SOD123 7.SOD323 8.1210 9.3528 10.1206 11.0805 12. 0603 13. 0402 14.TO92
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Slot for hanging straightedge
Back Specifications:
Commonly used line width reference (unit: mm)
Angle measurement: 180 degrees
Device, IC pin spacing table: 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm;
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Package Included:
1 x PCB RULER
