FC-488-1200-MM

Optical Parameters^[1]

Parameters

Symbol

Typical Value

Unit

Central Wavelength

λc

488

nm

Wavelength Tolerance

+/-3

nm

Output power(after fiber)

P

160

mW

Power stability

Ps

<3%^[2]

%

Fiber core diameter

62.5/100/200/400 etc.

um

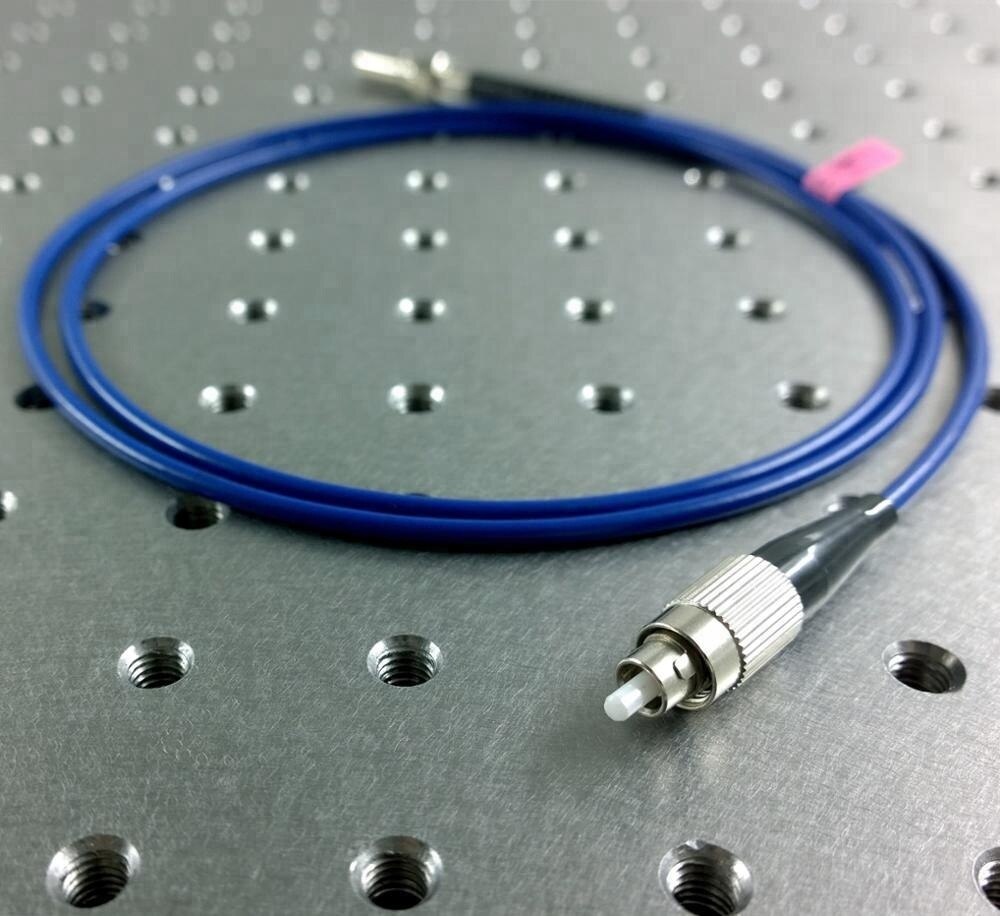

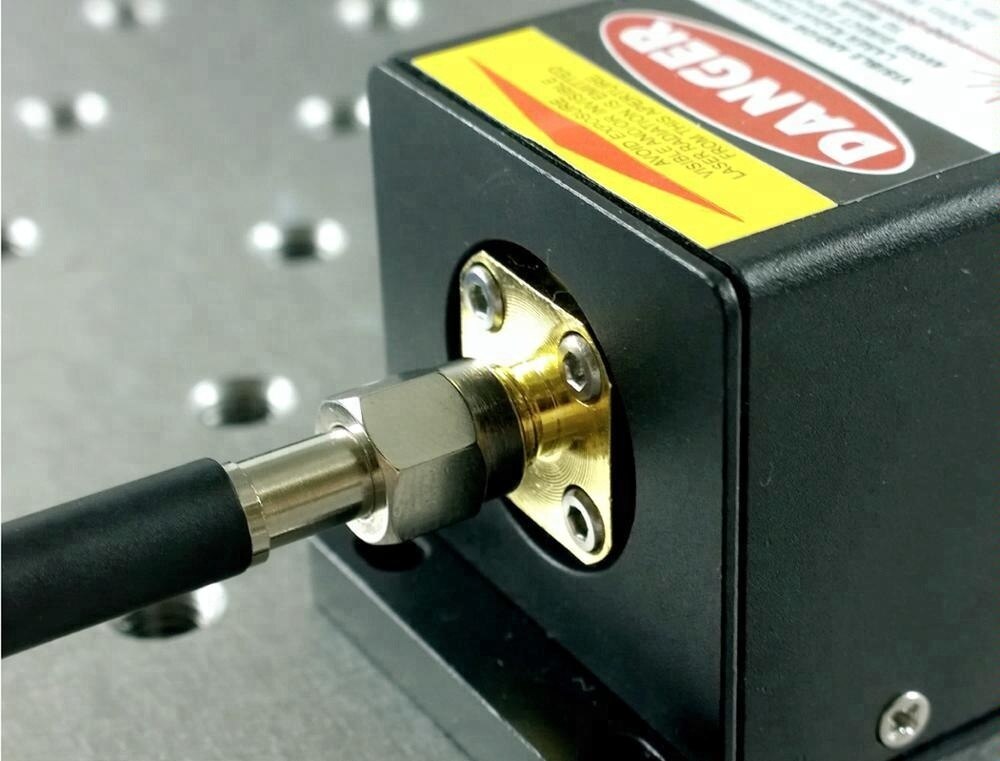

Fiber Connector

FC-PC or FC-APC or SMA

Fiber Protective Outer Jacket

SP

φ3.0mm^[3] SUS+PVC tubing

Numerical Aperture

NA

0.12 / 0.22 ^[4]

Expected operating lifetime

MTBF

10000

hrs

Warranty time

1^[5]

year

Environmental Parameters^[6]

Operating temperature

Top

0~40

℃

Storage temperature

Tst

-40~85

℃

Note:

[[1]: Test data under 25℃.

[2]: High power stability value available upon request.

[3]:φ5.0mm fiber tubing can also be optional.

[4]: other numerical aperture value requirement pls contact with sales.

[5]: 2-year warranty time available upon request.

[6]: case temperature.

Part Number

Multimode fiber coupled laser

FC-488-AAA-MM-BB

AAA

Output power: 30mW,50mW,100mW etc.

MM

Multimode fiber coupled laser

BB

Package type

T: laser head and driver separated, head size: 35*35*102mm, temperature stabilized

T2: laser head and driver separated, head size: 49*42*140mm, temperature stabilized

T7: 5 or 12 VDC driver included, head size: 49*42*140mm, temperature stabilized

00: to be customized

Package and legend

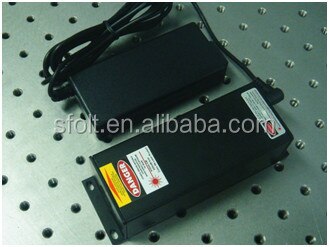

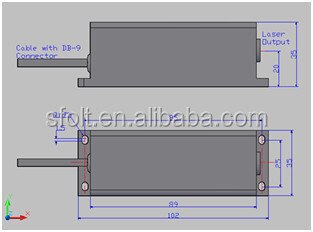

T-serial package: laser head size: 35*35*102mm, laser driver separated, temperature stabilized

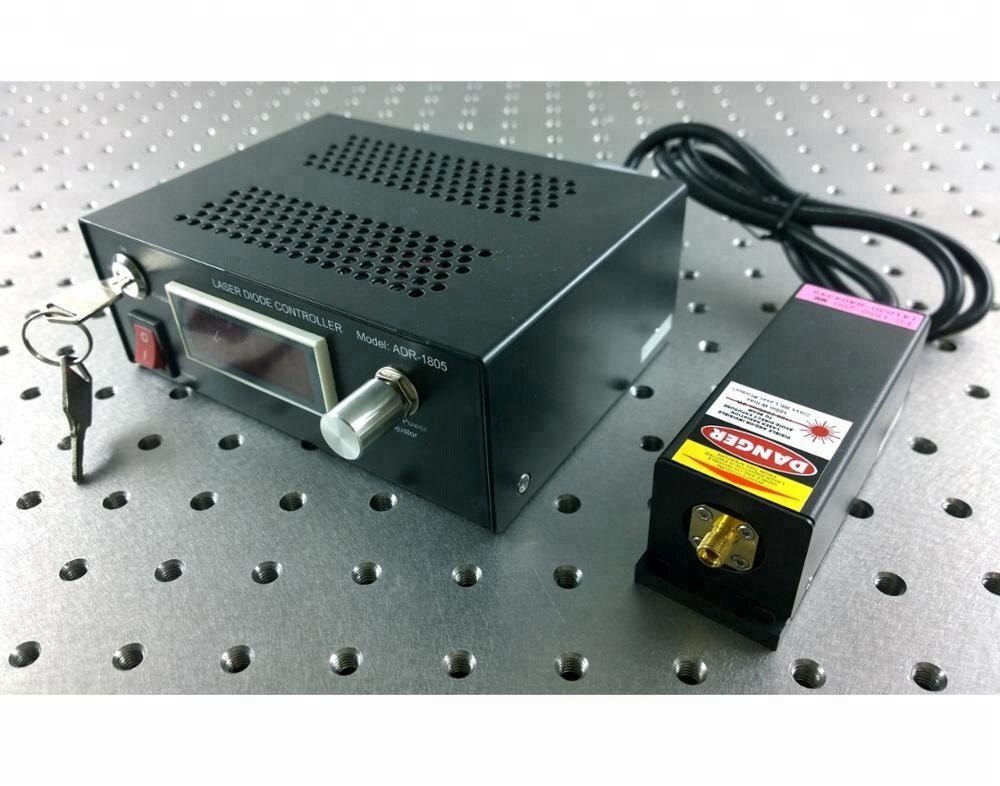

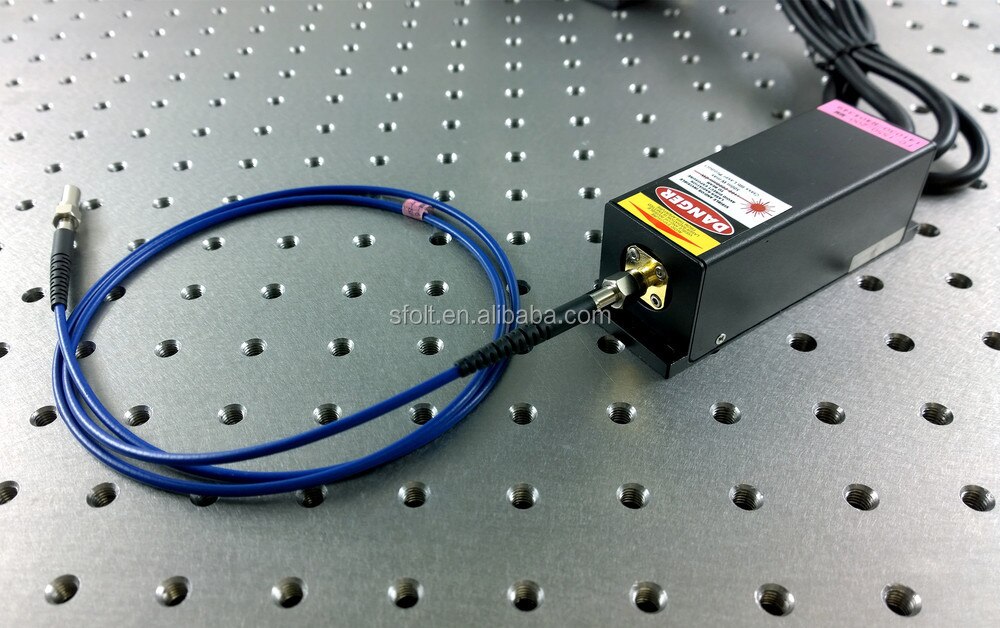

T2-serial package: laser head size: 49*42*140mm, driver separated, temperature stabilized

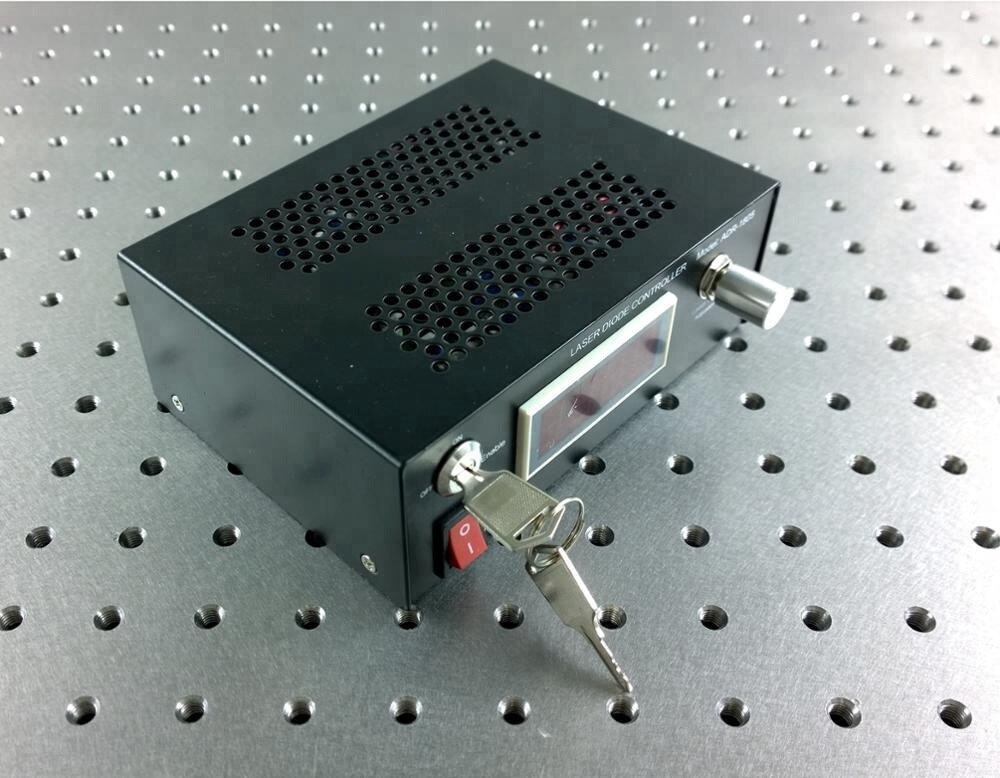

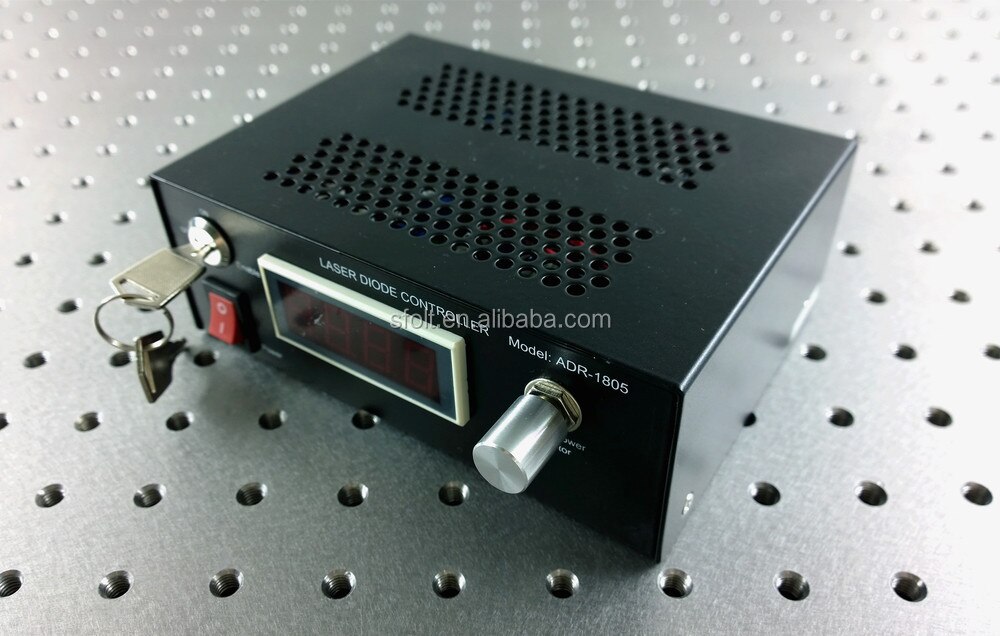

ADR-1805 laser driver, 90-240VAC power supply, with power adjustor and digital display

T7-serial package: laser head size: 49*42*140mm, driver separated, temperature stabilized
