Description
- Type: Hand Tool Parts
- Origin: Mainland China
- Place of Origin: Jilin, China
- Condition: New
- Warranty: 1 Year
- Spare Parts Type: None
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: New Product 2019
- Brand Name: CNI
- Key Selling Points: Long Service Life
- Showroom Location: None
- Applicable Industries: Other
- Weight (KG): 5 KG
- Wavelength (nm): 488±5
- Output power (mW): >80, …,150
- Transverse mode: Near TEM00
- Operating mode: CW
- Warm-up time (minutes): <5
- Beam divergence, full angle (mrad): ~1.0
- Polarization ratio: >100:1
- Modulation option: TTL/Analog 1Hz-5KHz, 1Hz-10KHz, 1Hz-30KHz, and TTL on/off
- Expected lifetime (hours): 10000
- Warranty period: 1 year
- Local Service Location: None
My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! Please contact me for more details: Mobile: 86+15096131687 Whatsapp / Wechat: +86-15096131687
#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-3{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{margin:0;padding:0}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;overflow:hidden;width:256px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;overflow:hidden;width:445px;box-sizing:content-box}#detail_decorate_root .magic-11{display:none}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;overflow:hidden;width:164px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;overflow:hidden;width:188px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;overflow:hidden;width:235px;box-sizing:content-box}#detail_decorate_root .magic-15{width:750px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:1044px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:742.5px;height:1043.9px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:1007.76px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:1007.76px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:1034.11px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:1034.11px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:637.637px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:637.637px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:563px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:499.688px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:429px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:429.375px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:553px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:553.125px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:543px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:543px}
Title goes here.

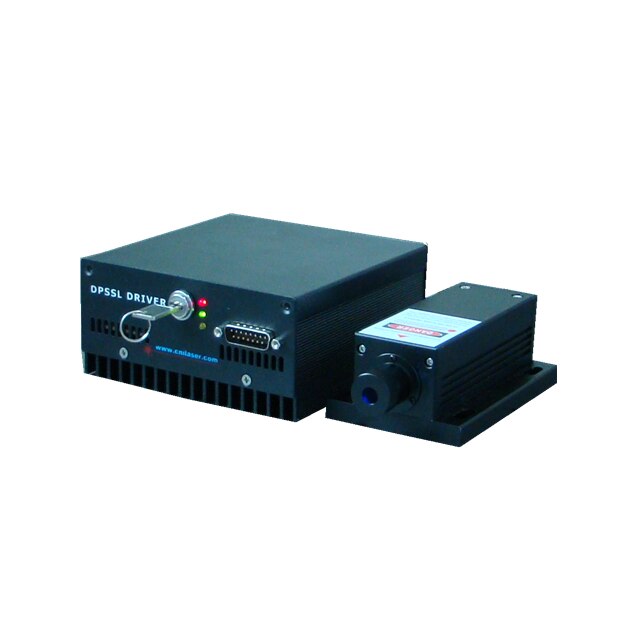

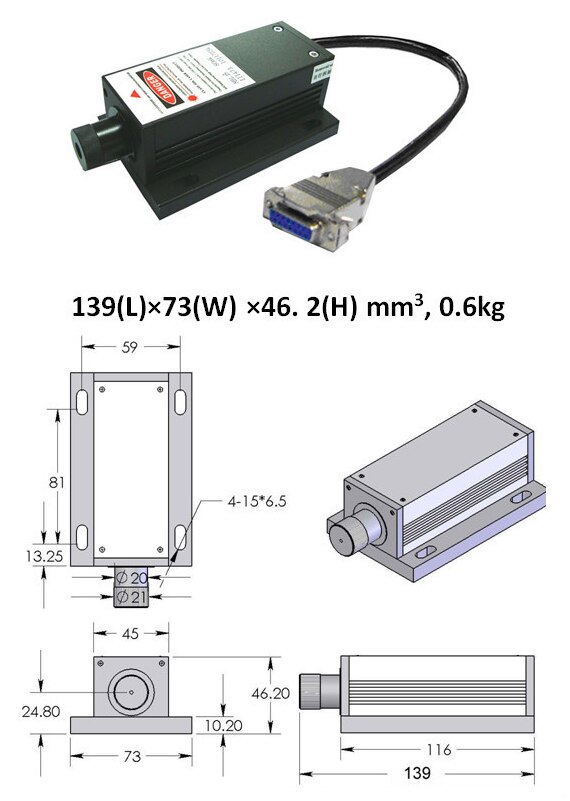

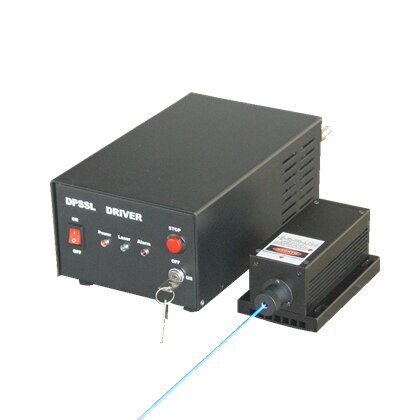

Blue laser module at 488 nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in medical imaging, flow cytometry, DNA sequencing, etc.
Wavelength (nm)
|
488±5
|
|
Output power (mW)
|
>50, …,150
|
|
Transverse mode
|
Near TEM00
|
|
Operating mode
|
CW
|
|
Power stability (rms, over 4 hours)
|
<1%, 3%
|
|
Warm-up time (minutes)
|
<5
|
|
Beam divergence, full angle (mrad)
|
~1.0
|
|
Beam diameter at the aperture (mm)
|
3.0×5.0, elliptical
|
|
Polarization ratio
|
>100:1
|
|
Beam height from base plate (mm)
|
24.8
|
|
Pointing stability after warm-up (µrad/°C)
|
<6
|
|
Operating temperature (℃)
|
10~45
|
|

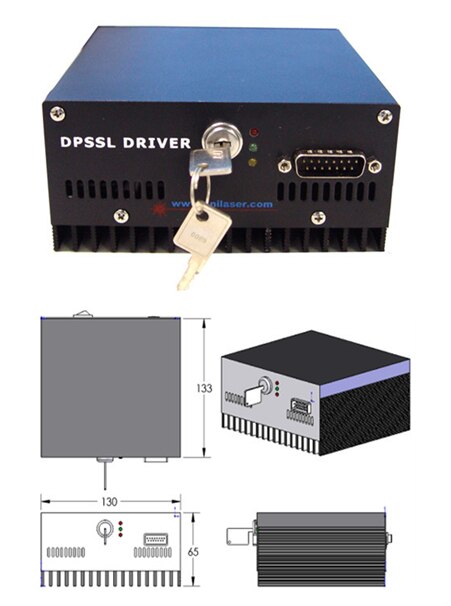

Power supply (90-264VAC)
|
PSU-III-LED
|
PSU-III-AF
|
Modulation option
|
TTL/Analog 1Hz-5KHz, 1Hz-10KHz, 1Hz-30KHz, and TTL on/off
|
|
Expected lifetime (hours)
|
10000
|
|
Warranty period
|
1 year
|
|

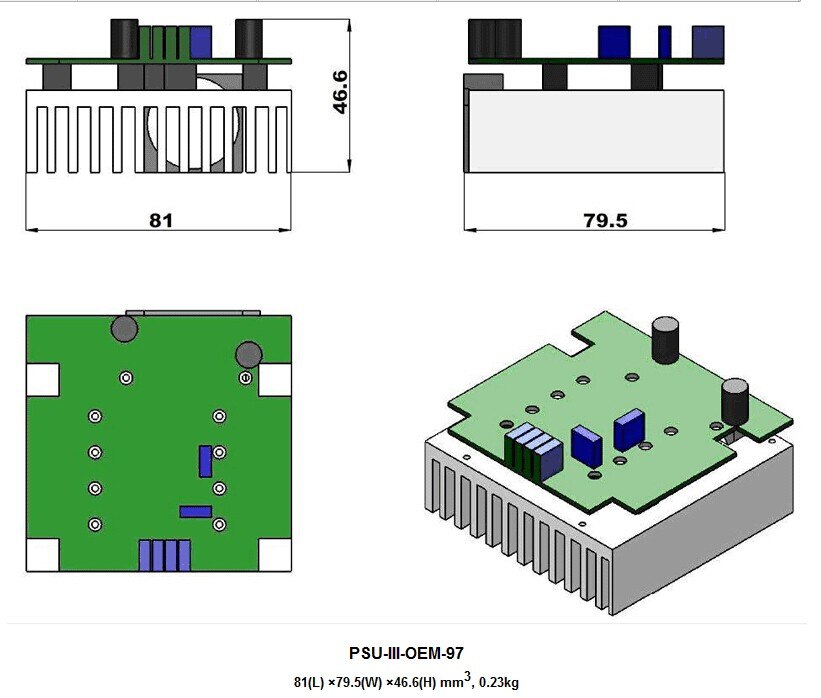

Power Supply—PSU-III-OEM-97

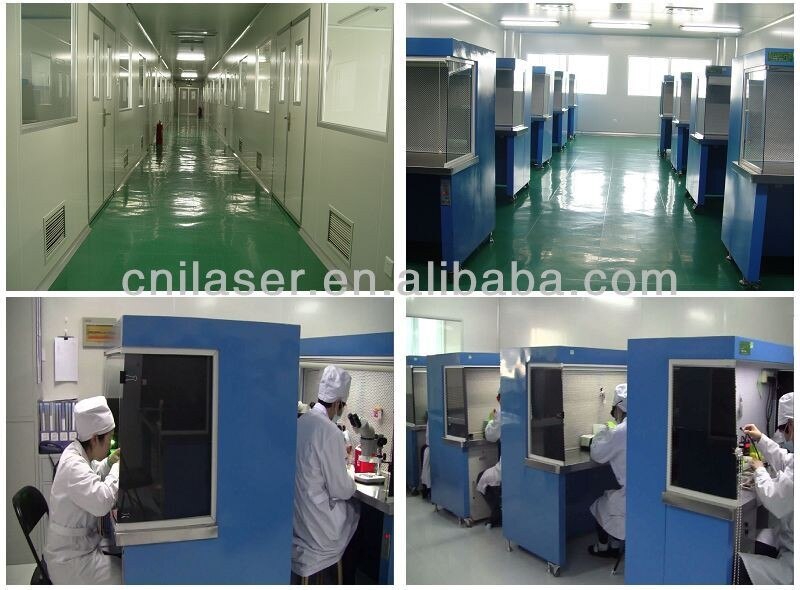

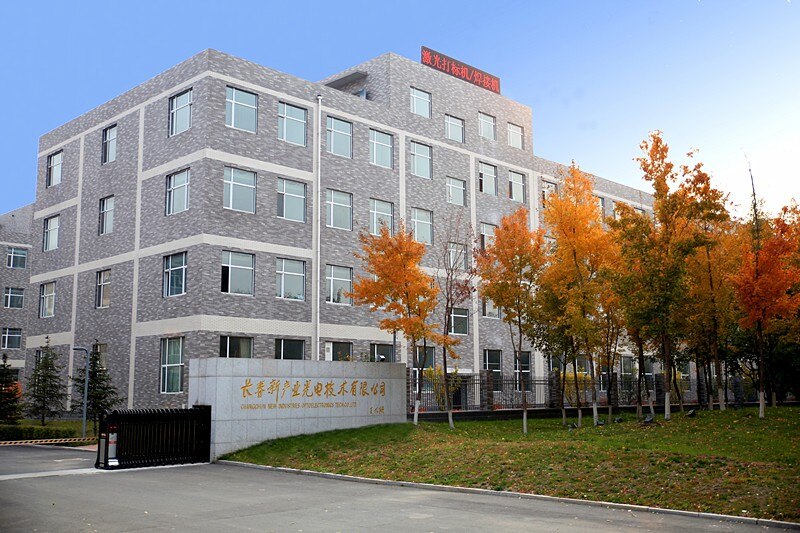

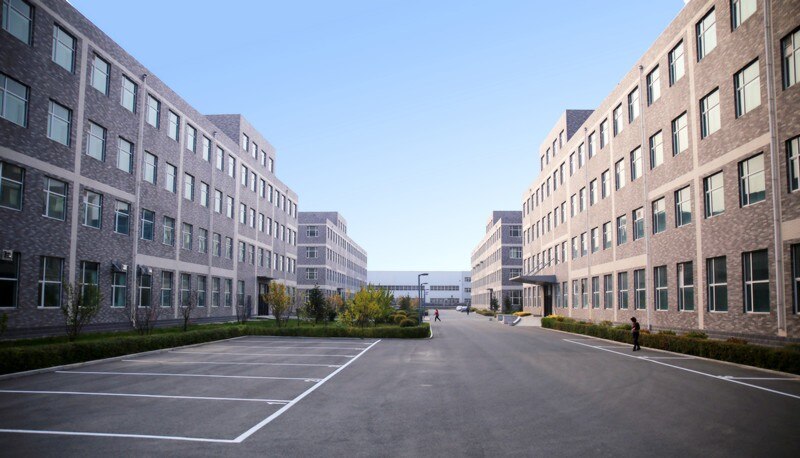

Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a good manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our convenient and rapid service.
1. What about the delivery?
2. What about the warranty?
3.How to pay?
T/T Western Union
4. How to find more product of our company?
Search our web to find more products(including more contact way )
www.cnilaser.com
