Description
- Brand Name: Q-LINE
- Certification: NONE
- Origin: Mainland China
- Item Type: Stage Lighting Effect
- Style: Mini
- Occasion: Home Entertainment
- Power: 30mw
- Model Number: 488D-30-1235
- Voltage: 3.7v

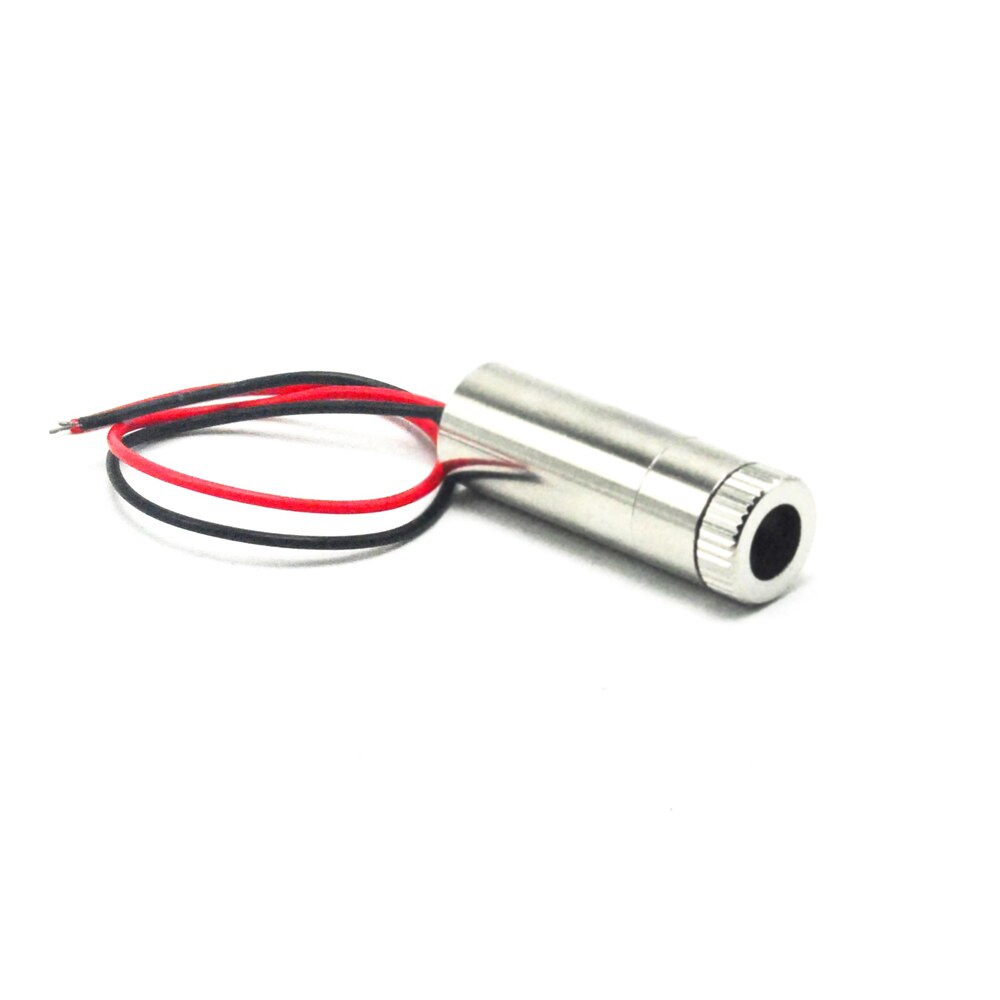

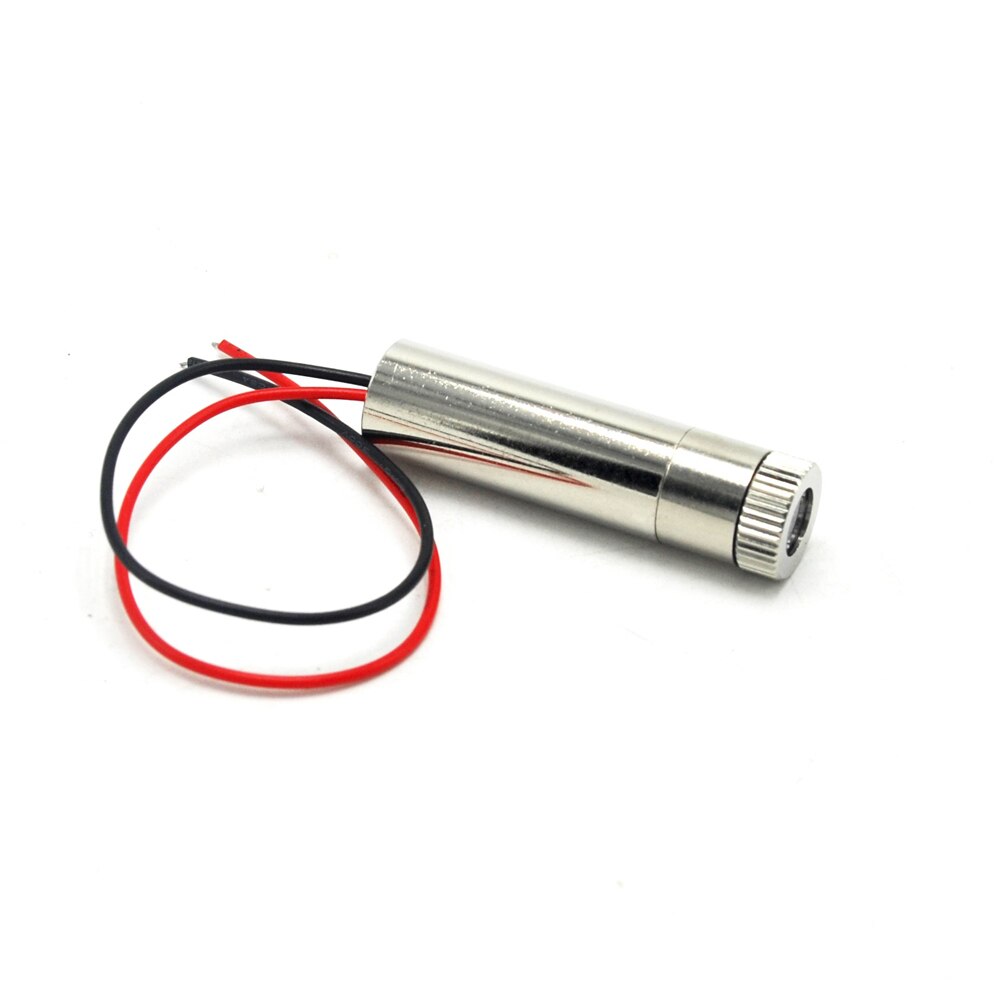

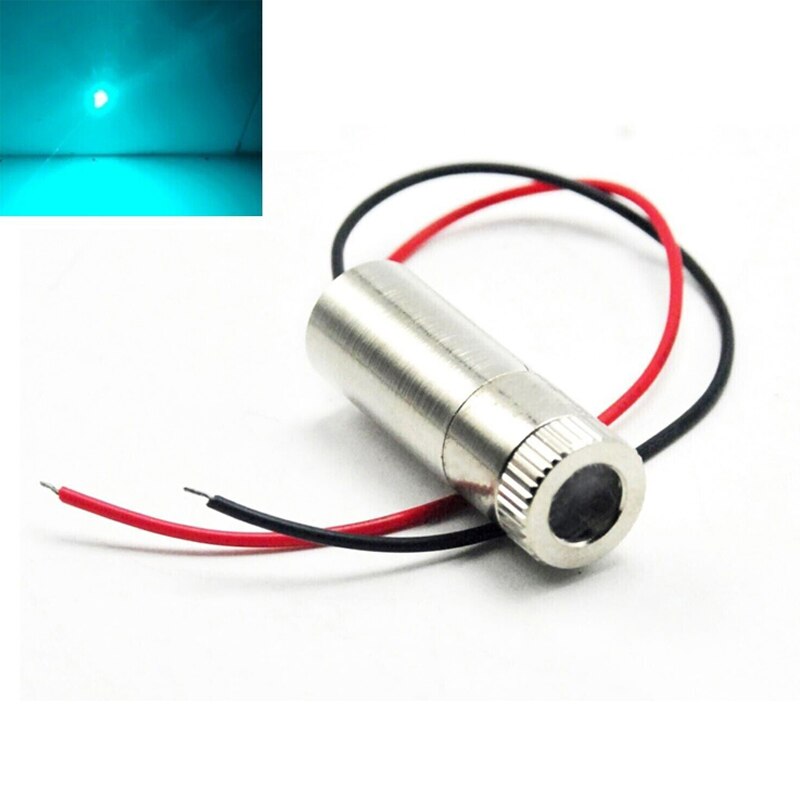

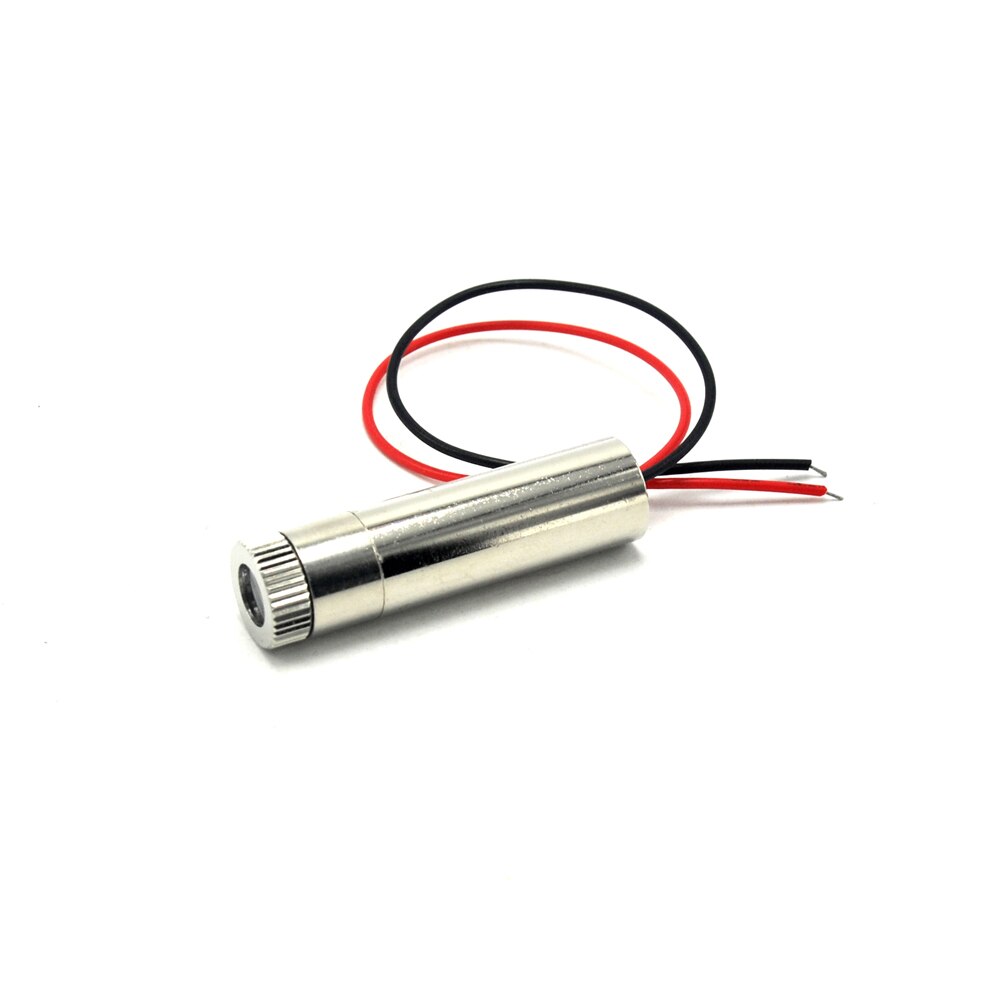

488nm Cyan-Blue 30mW-50mW Focusable Dot Laser Diode Module
Parameters:
Output wavelength: 480-490nm
Diode Power: 50mw
Output power: >30mw
Supply voltage: 3.2V-5V (3.2V is recommended, 3.V lithium battery can also be used)
Working current: 150mA
Spot Mode: Dot

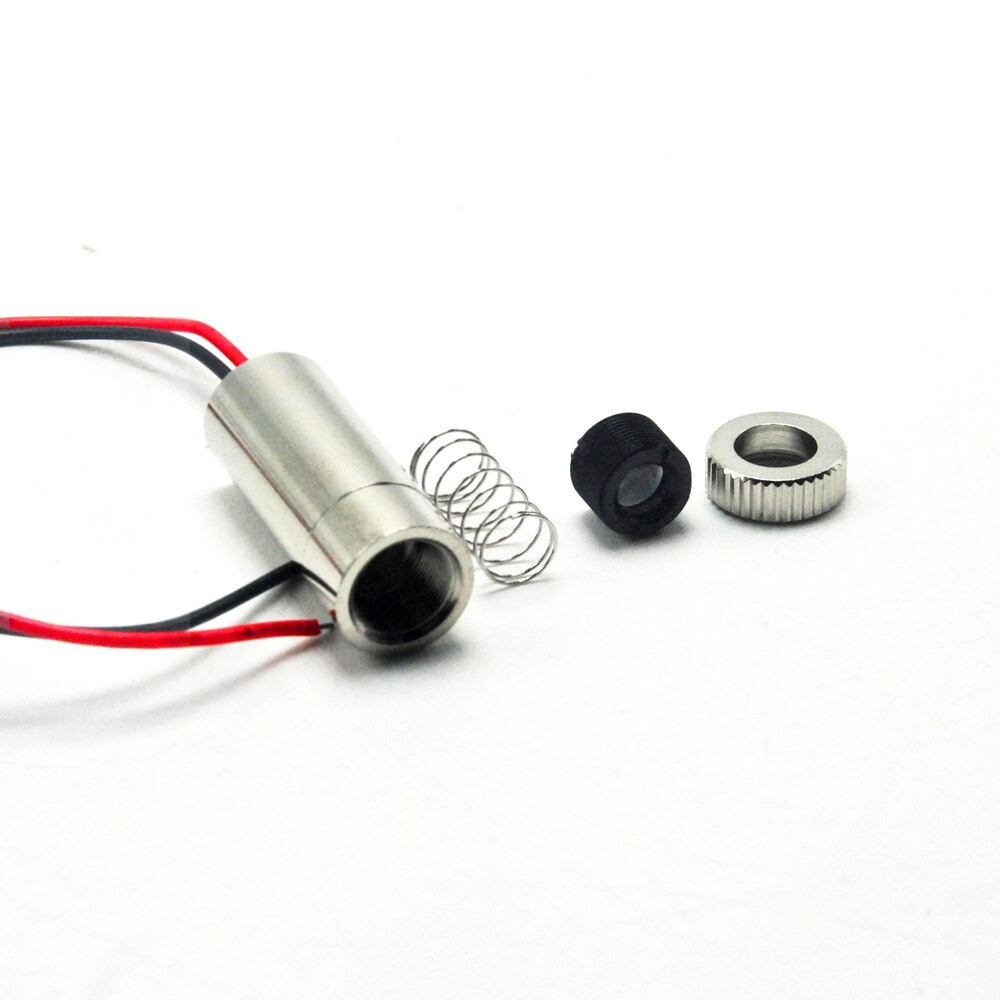

Focusable:Yes
Working temperature: -10℃-35℃
Storage temperature: -20℃-65℃
Size: 12x35mm
Duty Cycle: 45s on, 15s off
Operation mode: continuous laser, the red wire is connected to the positive electrode, and the black wire is connected to the negative electrode
Package:
1x 488nm Laser Module
