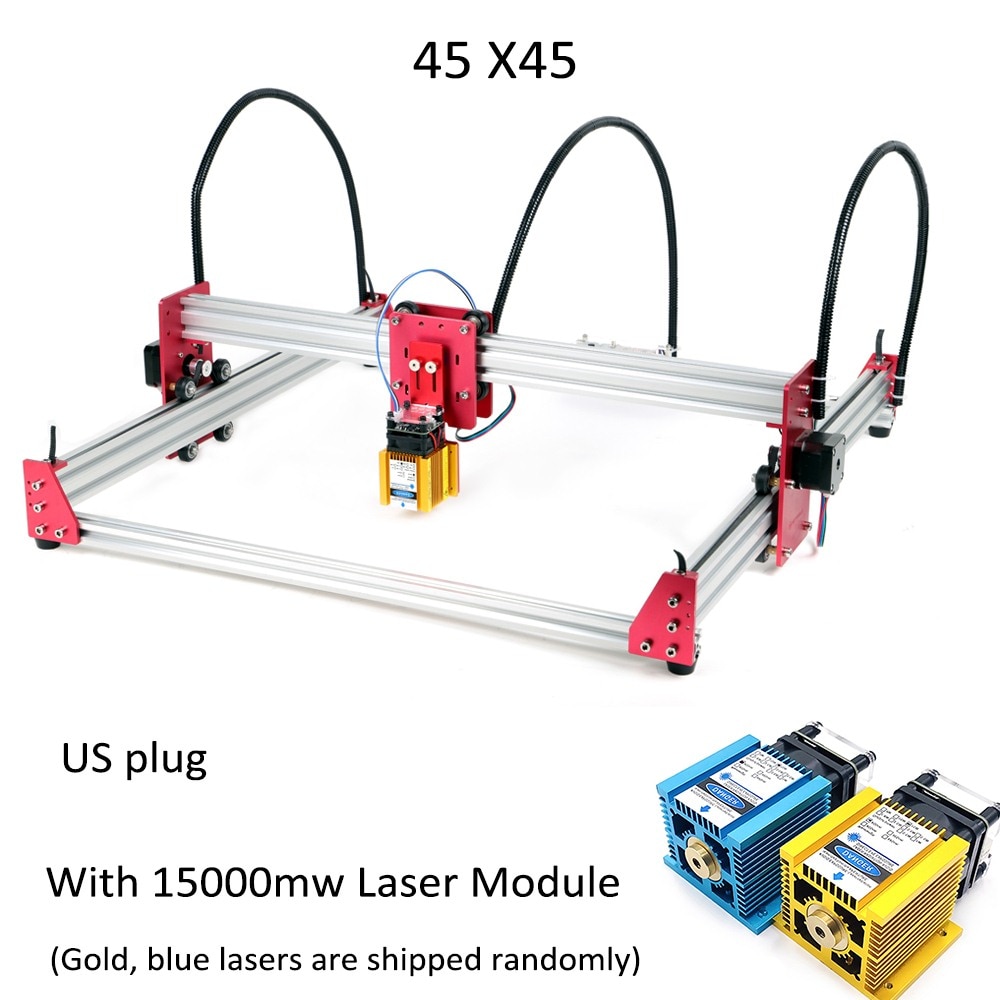

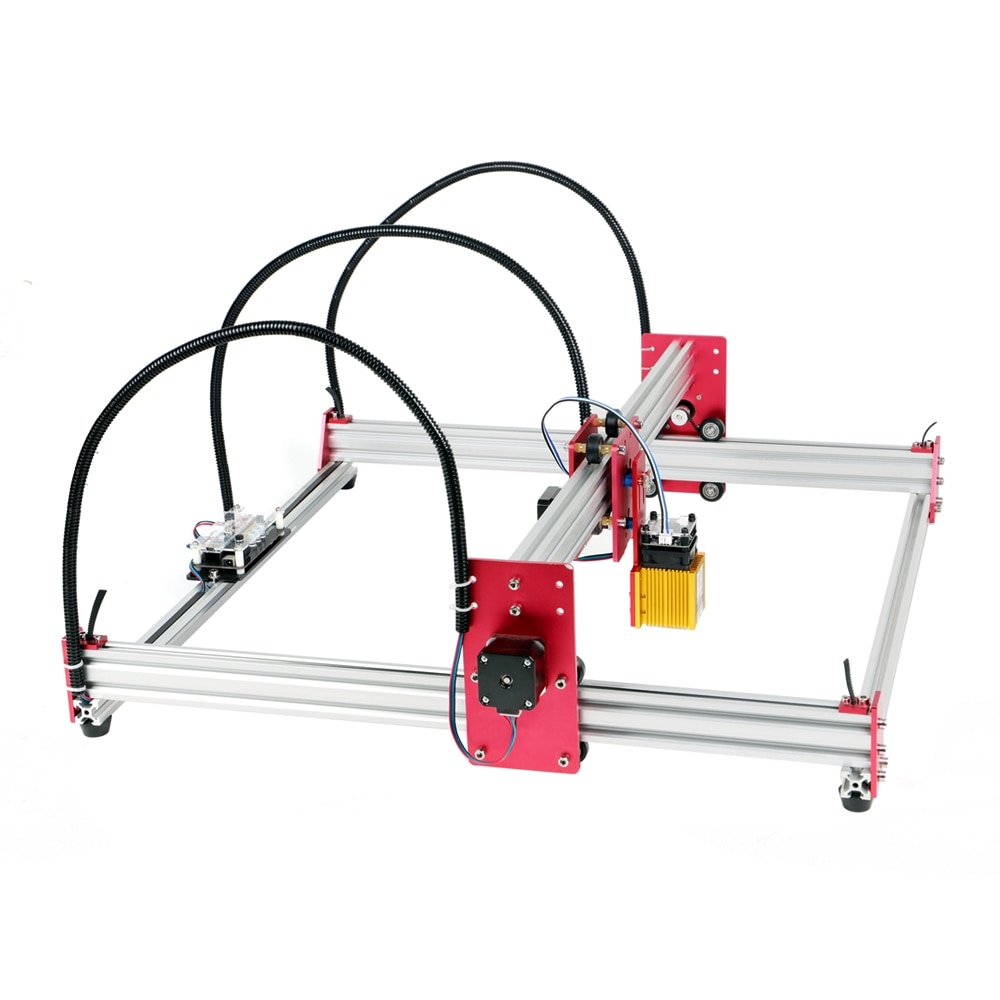

1 Set Mini Blue CNC Laser Engraving Machine 500mw/2500mw/15W DC 12V DIY Engraver Desktop Wood Router/Cutter/Printer CNC Laser

Specifications:

Material :Aluminum Profile
Packaging Size:68x40x12cm / 26.77×15.75×4.72inch (L*W*H)
Assembled Product Size:68x63x19cm / 26.77×24.80×7.48inch (L*W*H)
Package Weight :6.50kg
Can Engrave:Determined by laser module power
Technical Parameters

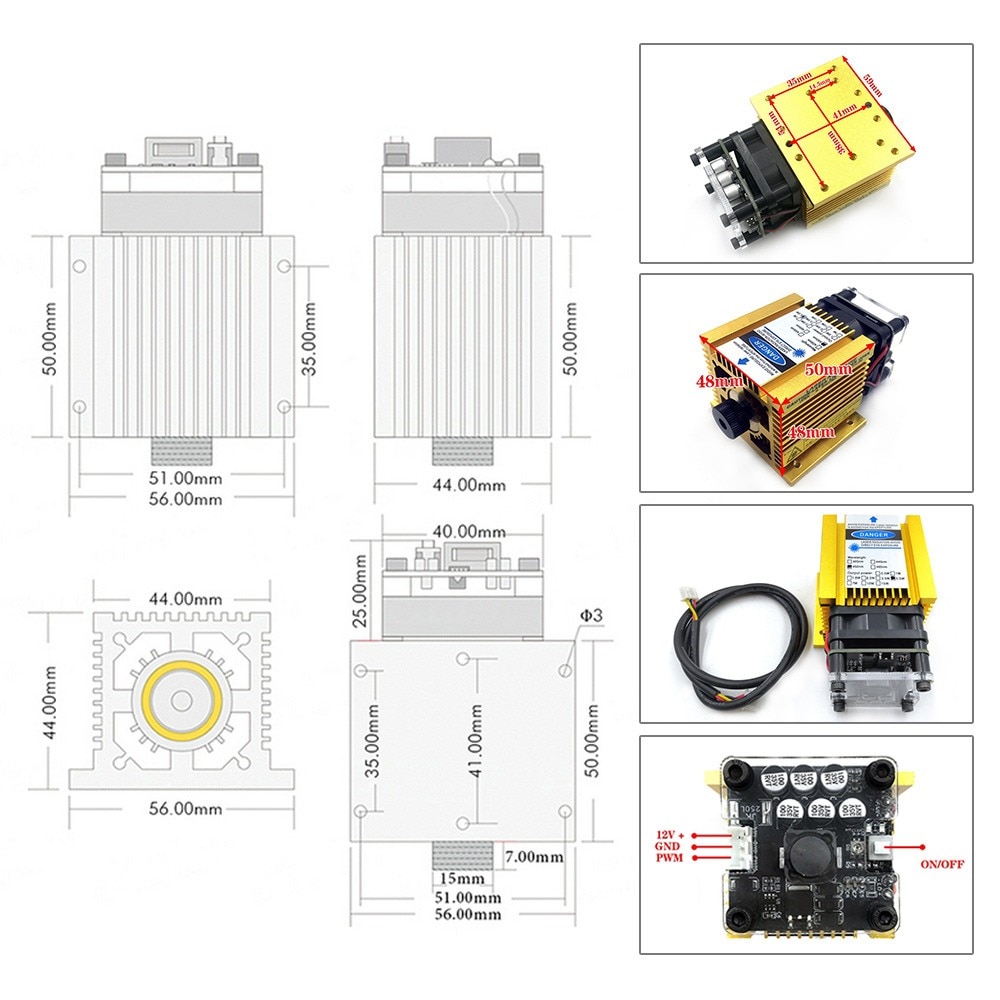

Laser Power:500mw/2500mw/5500mw/15W
Laser Wavelength:455nm (blue-violet light)
Laser focal length is not adjustable, focal length is 2cm
Working area: 45×45cm
Data interface: USB
Laser Quick Replace :Support

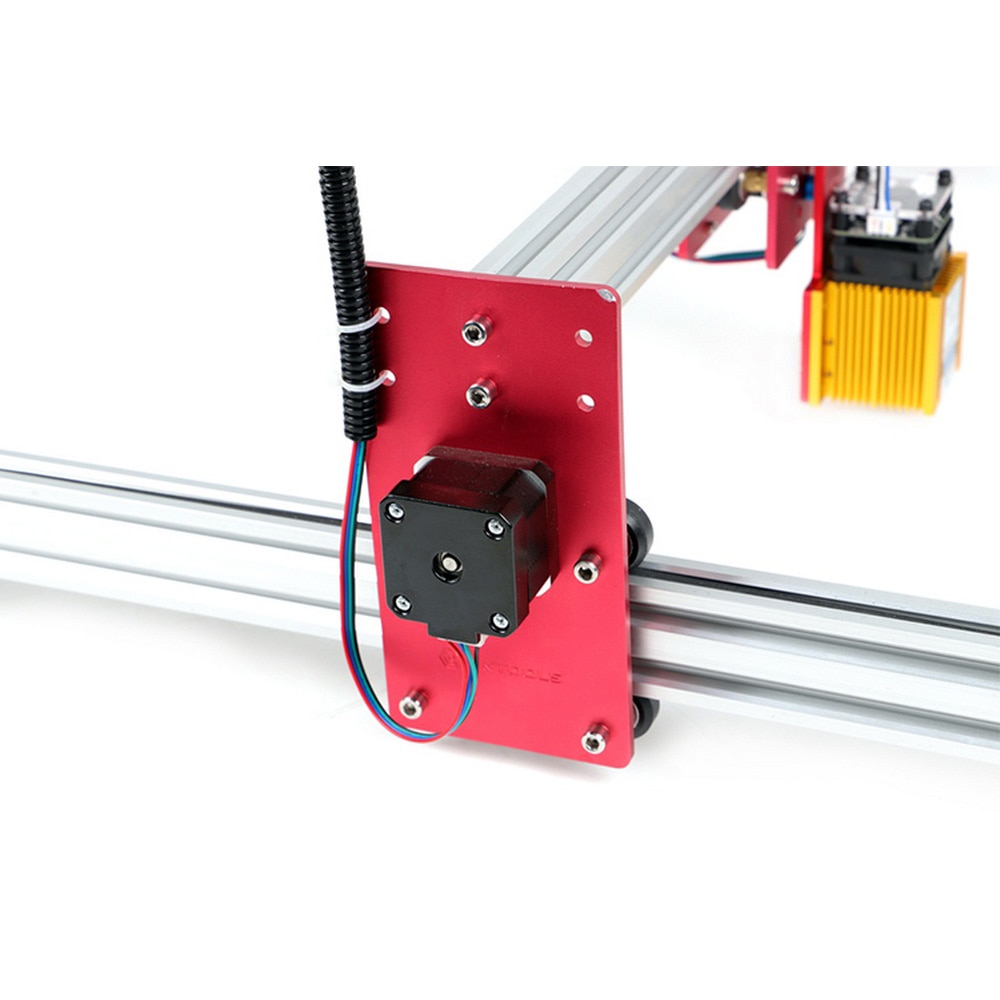

SStepper Motor:1.3A42 stepper motor, – double rail Y axis
Power Input:AC100-120V
Working Voltage :DC 12V
Type: US Plug
Working Current :DC 4-5A
System Support:Win XP/7/8/10
Engrave Mode:Photo, Word, Scan, outline, Pixel Laser Engraving
Supported Formats:jpg, bmp, svg, G-code
Control Software System:EleksCam, T2-Laser, GrblController, LiteFire, Laser GRBL, etc. (Can NOT use Benbox)
Engraving Accuracy :0.01mm
Engraving Area:45x45cm / 17.72 x 17.72inch (maximum)
Engraved Object Height limitation:No Limitation

Carving materials: bamboo, wood, paper, plastic, leather/ acrylic, etc.

Can not engrave metal / aluminum / glass, etc.

Aluminum profile and acrylic acid frame is stable and pretty

500mw/2500mw/5500mw engraved material: Plastic, wood, acrylic, PVC, PCB and other soft materials
Cuttable material: paper, wood board within 3MM (slow speed, need to cut repeatedly), leather, cloth, etc.

The 15W can also be engraved on the stainless steel surface and the anode colored aluminum alloy surface on the basis of 5500mw. (When drawing the surface of the 304 stainless steel, please use a large pen to blacken the surface and then engrave)

Special material description!!!

In the range of engraved materials, transparent, transparent, and some white materials need to be completed with the aid of auxiliary tools.
(for example, black engraving with a black whiteboard pen)

The package includes:
1 X 45×45 rack
  OR
1 X 45×45 engraving machine +500mw / 2500mw / 5500mw / 15000mw laser

Notes:

1. Please wear laser goggles when using it.

2. This is a diy laser machine kit, you need to assemble it.

3. We had updated the laser machine, some parts are different from the old version, you can refer to the photos below.

4. Notice that the laser module can’t work more than 30 mins in one time, otherwies it will be too hot, better add cooling fan.

5. This price does not include product clearance fees. The expenses incurred by customs clearance are borne by the buyer, and the seller can cooperate with the buyer to clear customs,thanks for your understanding
