Description
- Origin: Mainland China
- Model Number: Engraving Module
- CNC or Not: CNC
- Condition: New
- Certification: CE
5.5W/10W/20W/30W/40W

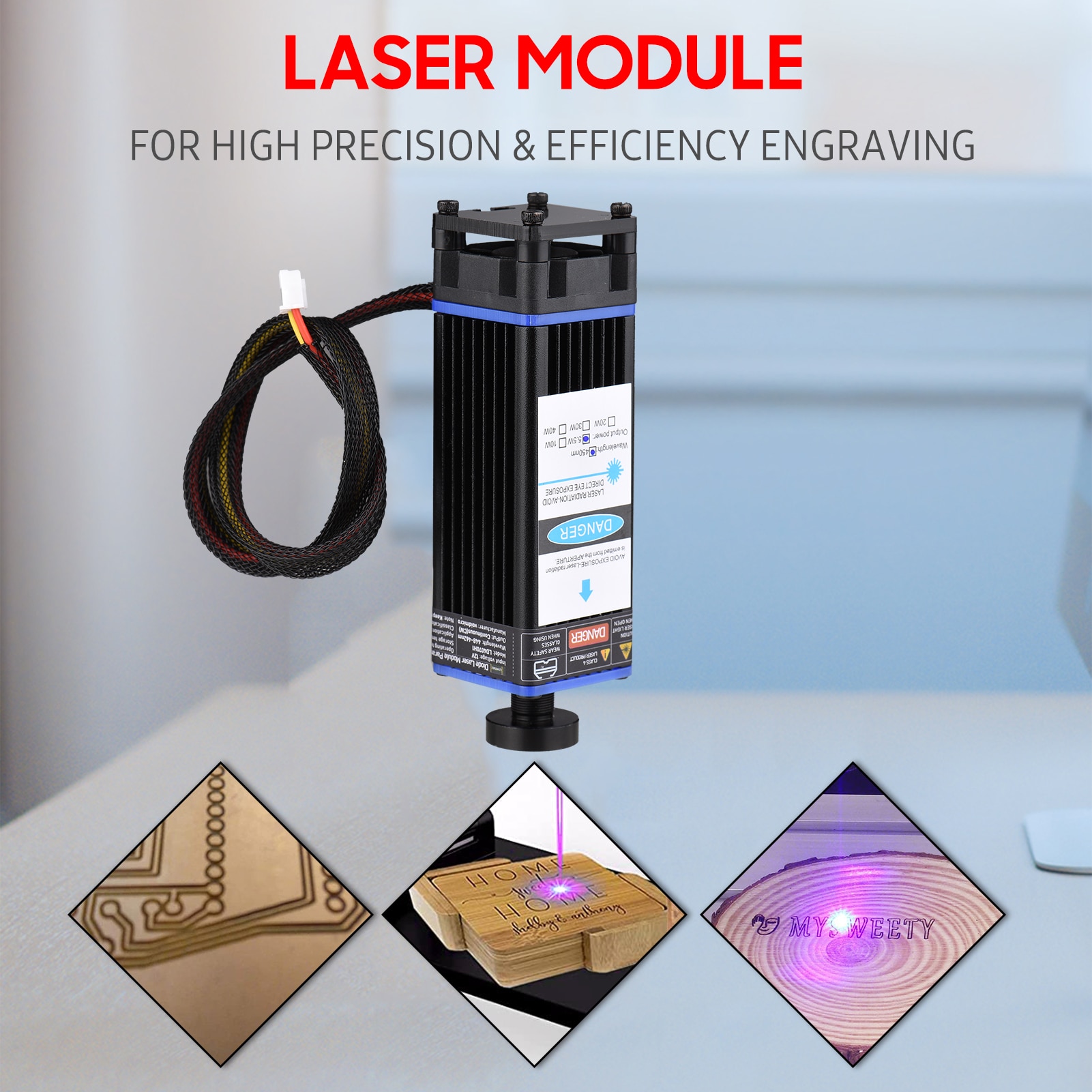

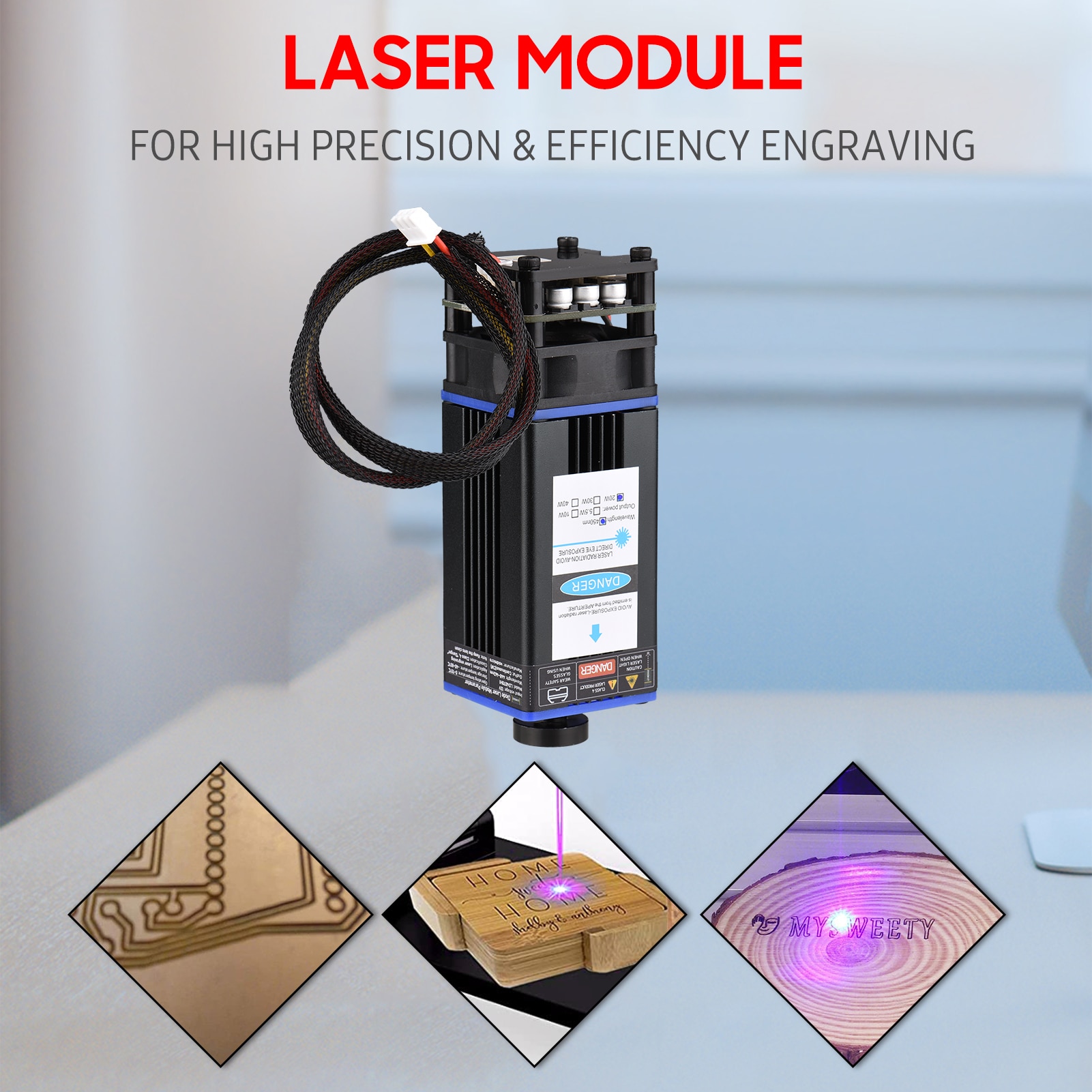

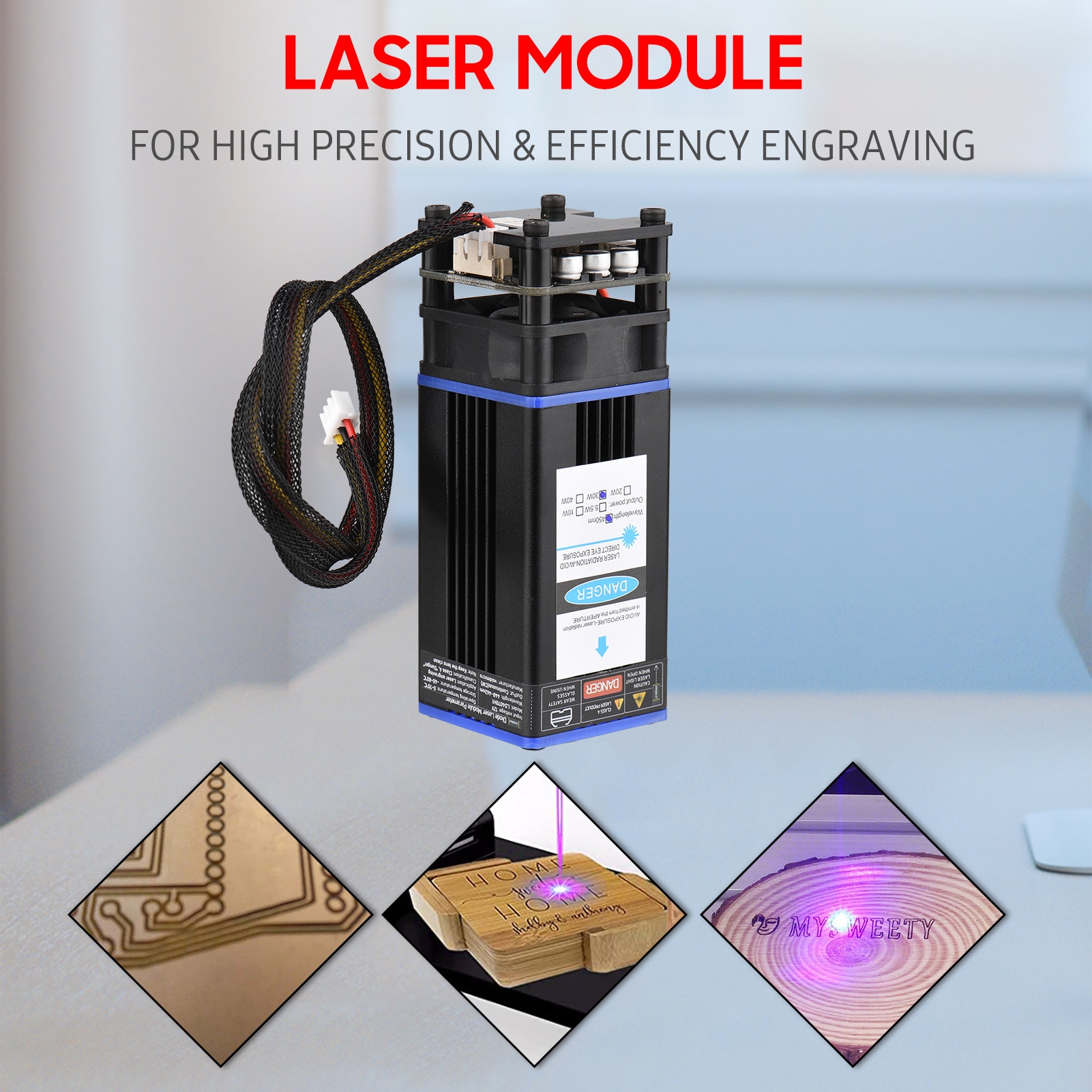

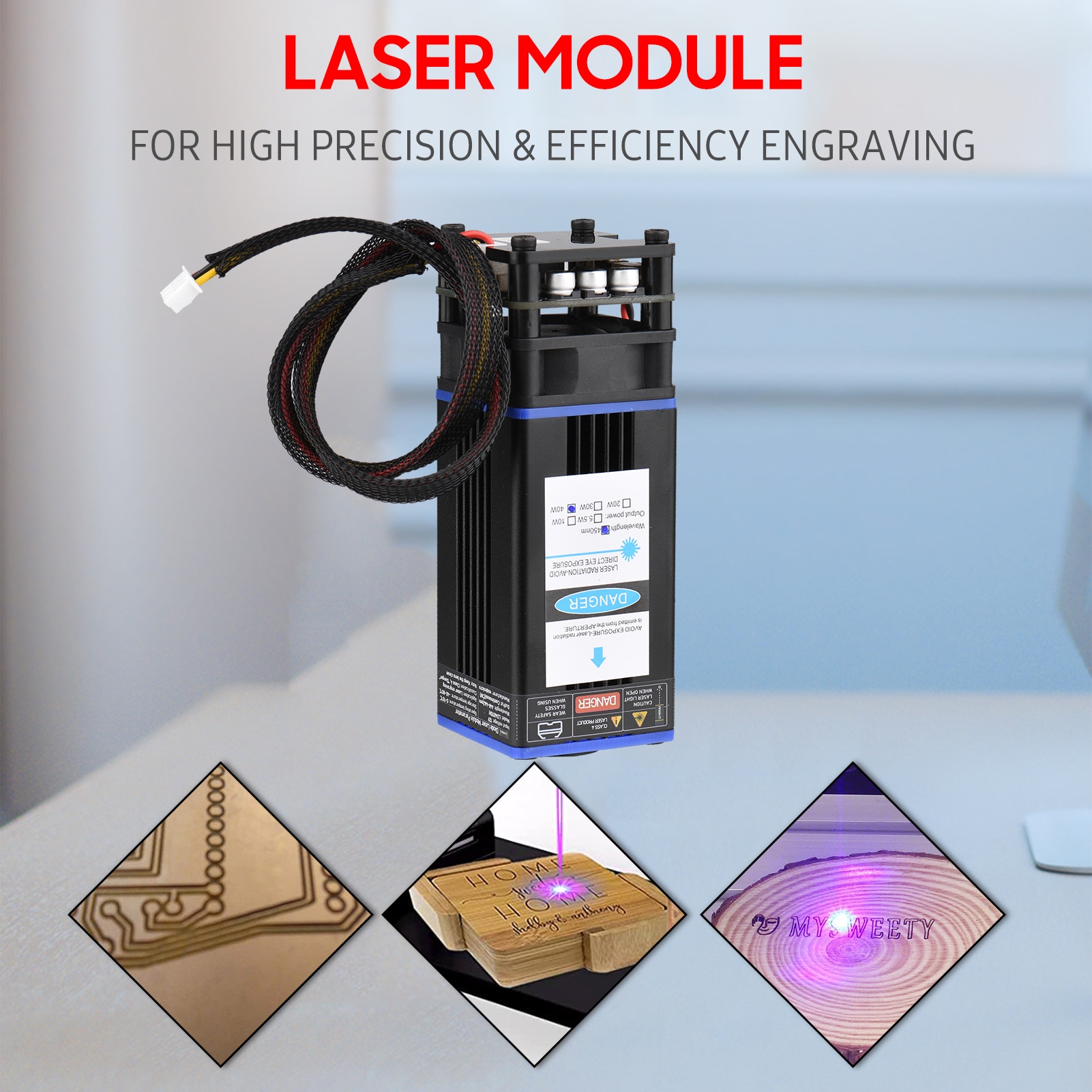

Professional laser module, easy to install, with lower loss, provides 450nm wavelength, for efficient, precise engraving and cutting of plastic, wood, leather, paper and so on, suitable for a wide range of engraving machines.

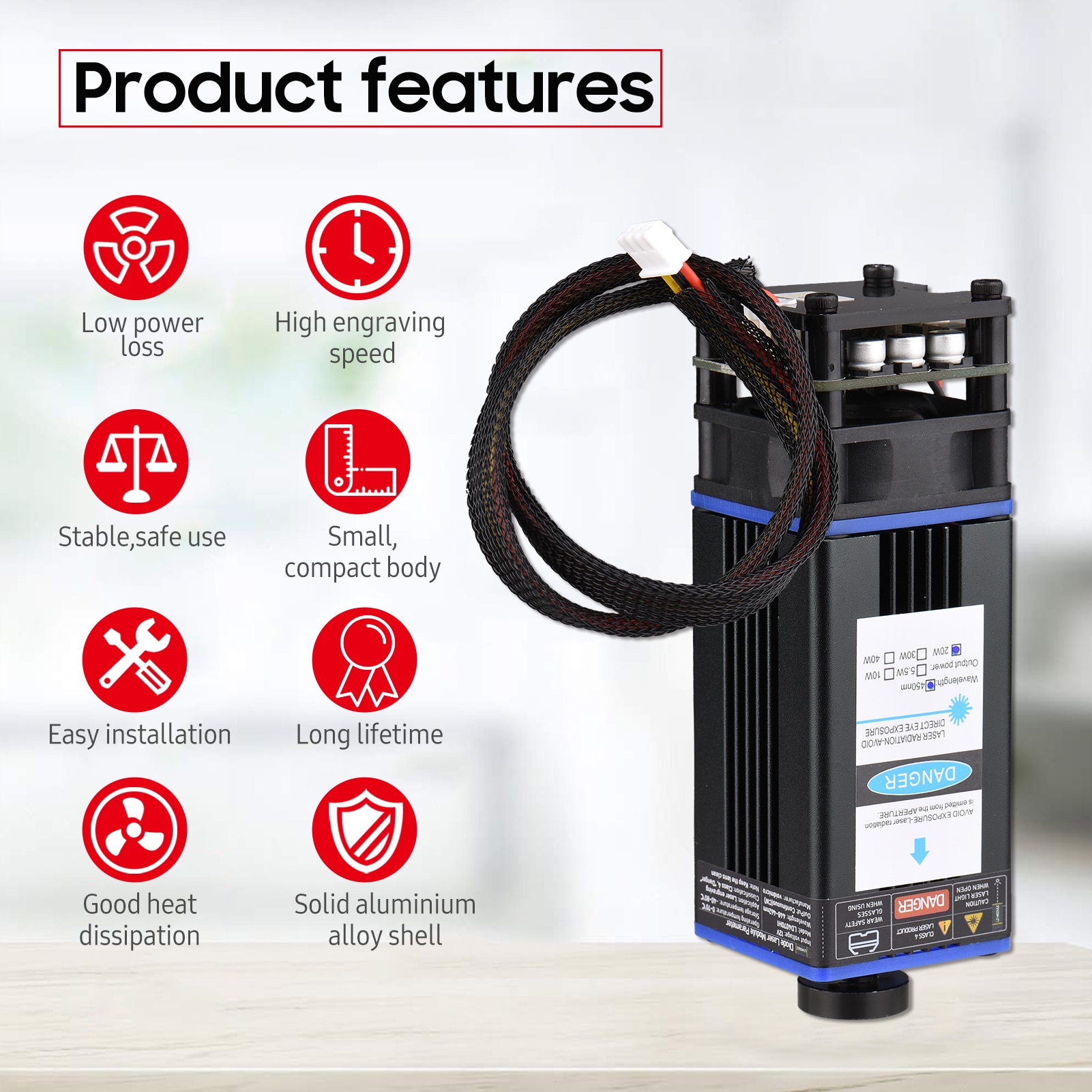

Features:

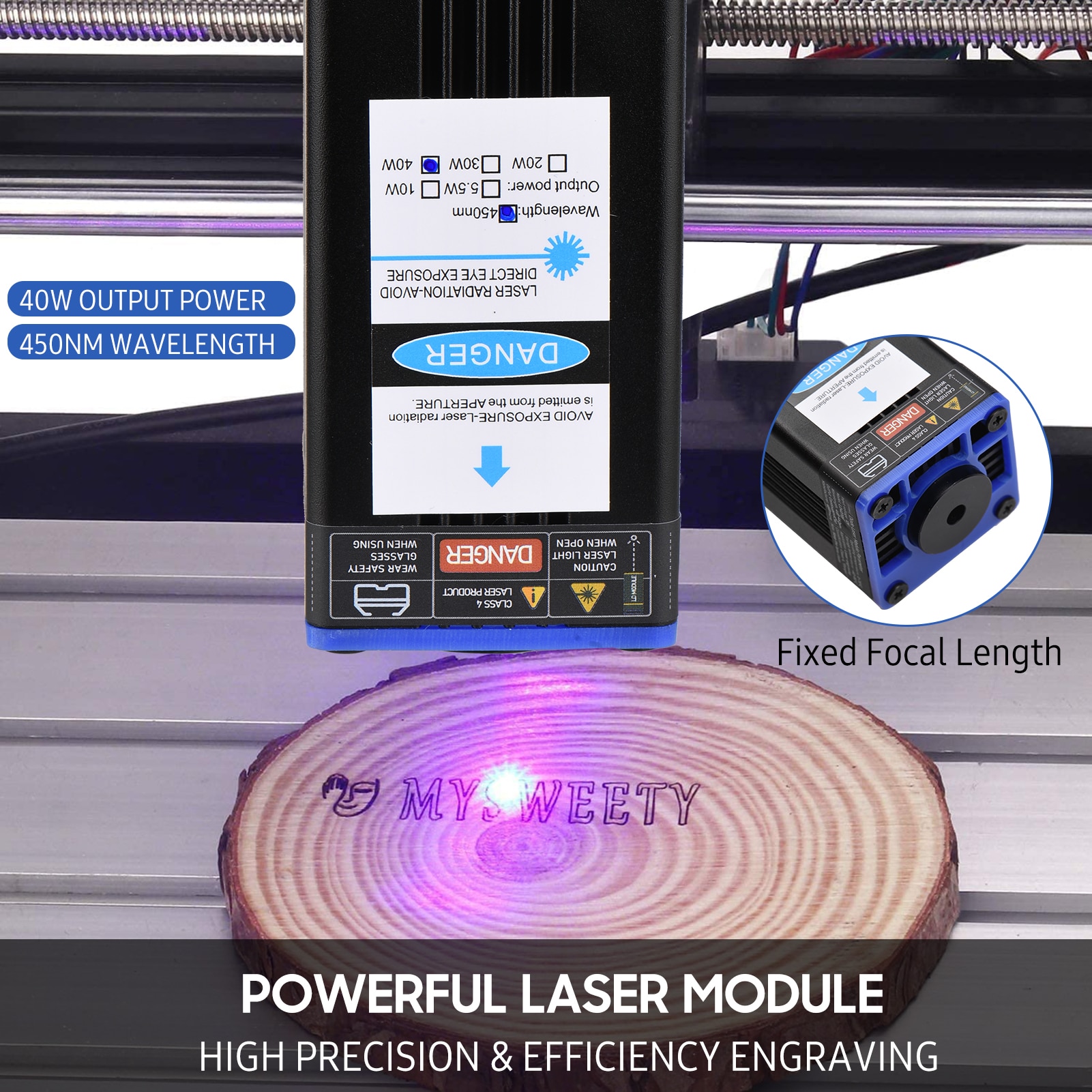

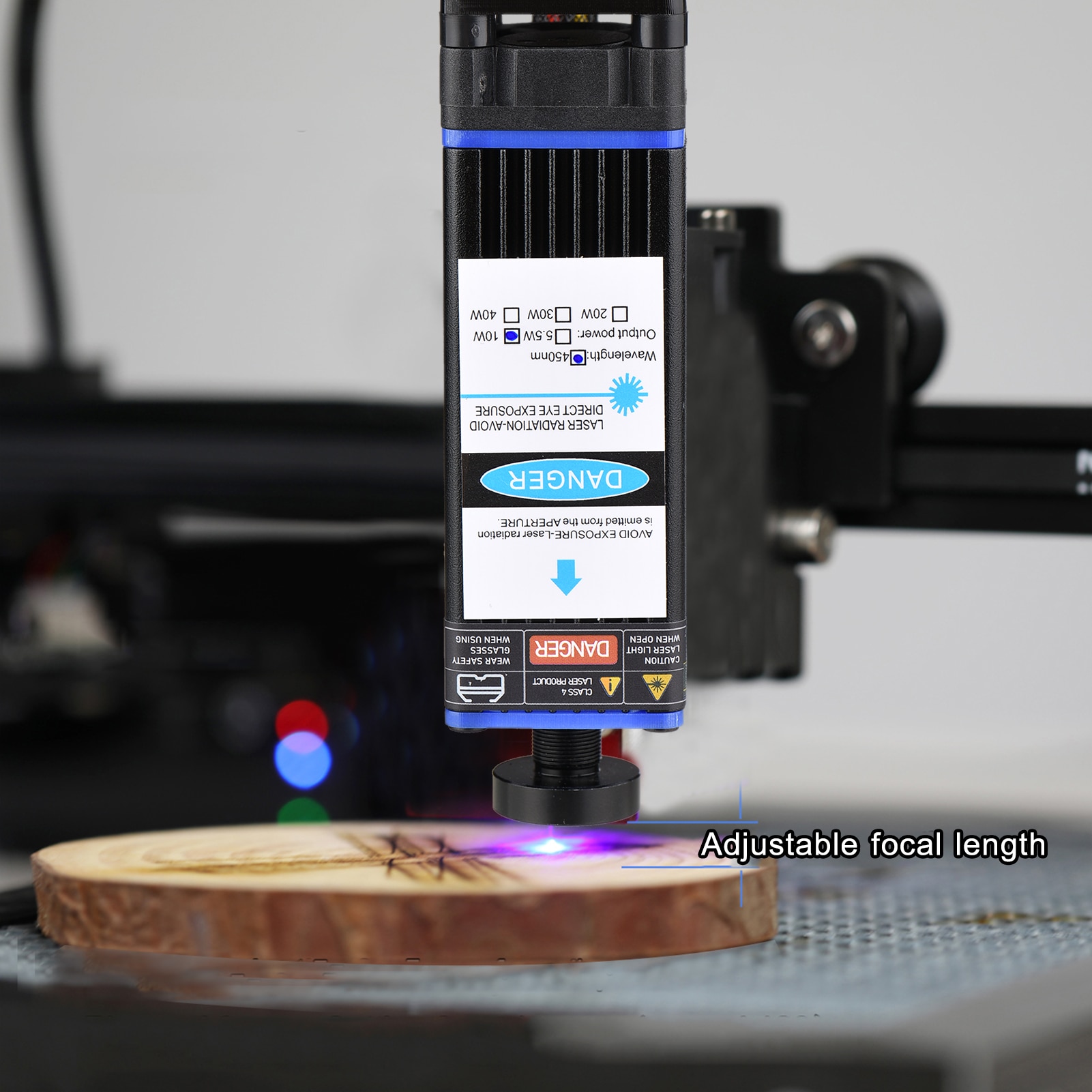

With adjustable focal length (5.5W/ 10W/ 20W) or fixed focal length (30W/ 40W). Made of premium quality aluminum alloy casing with great durability.

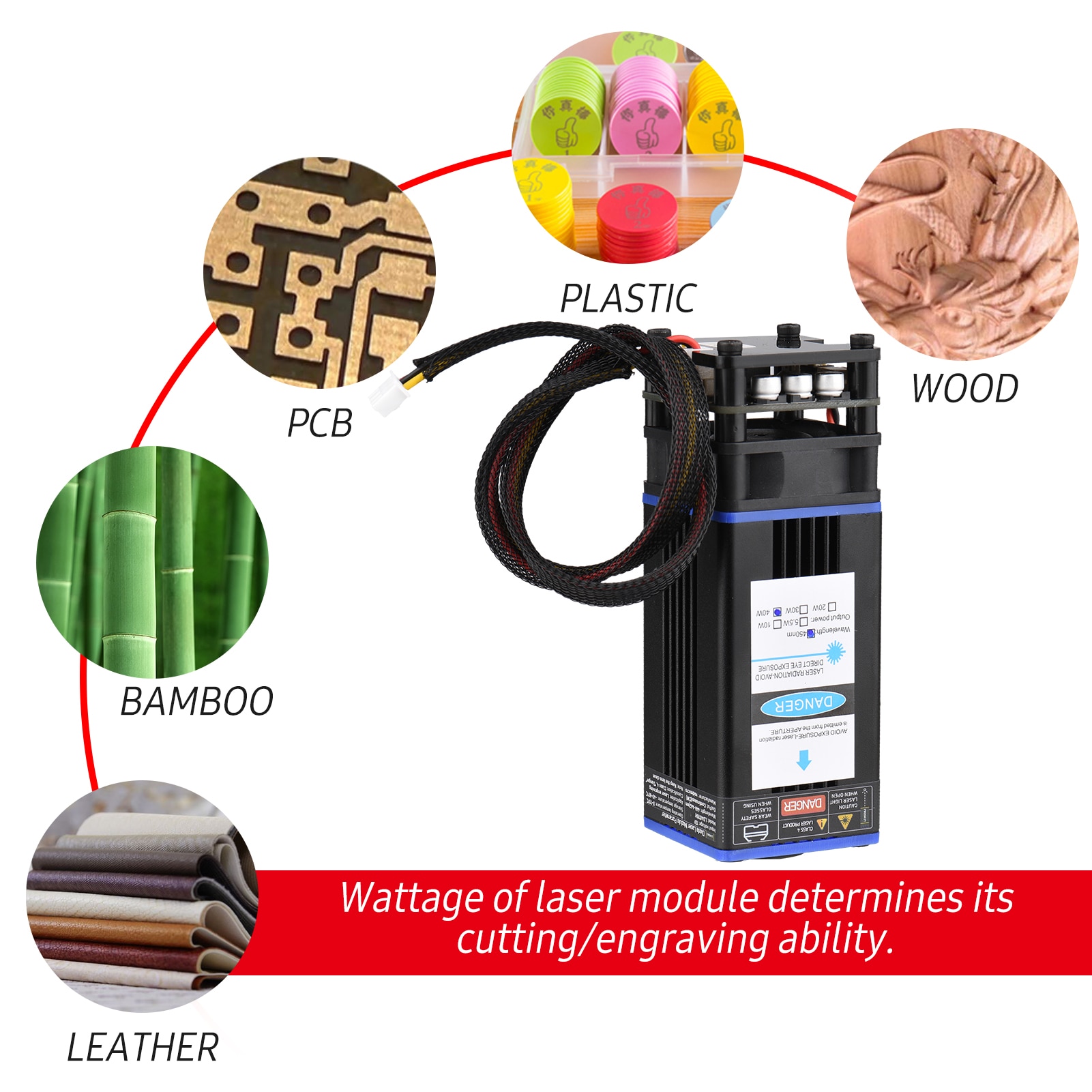

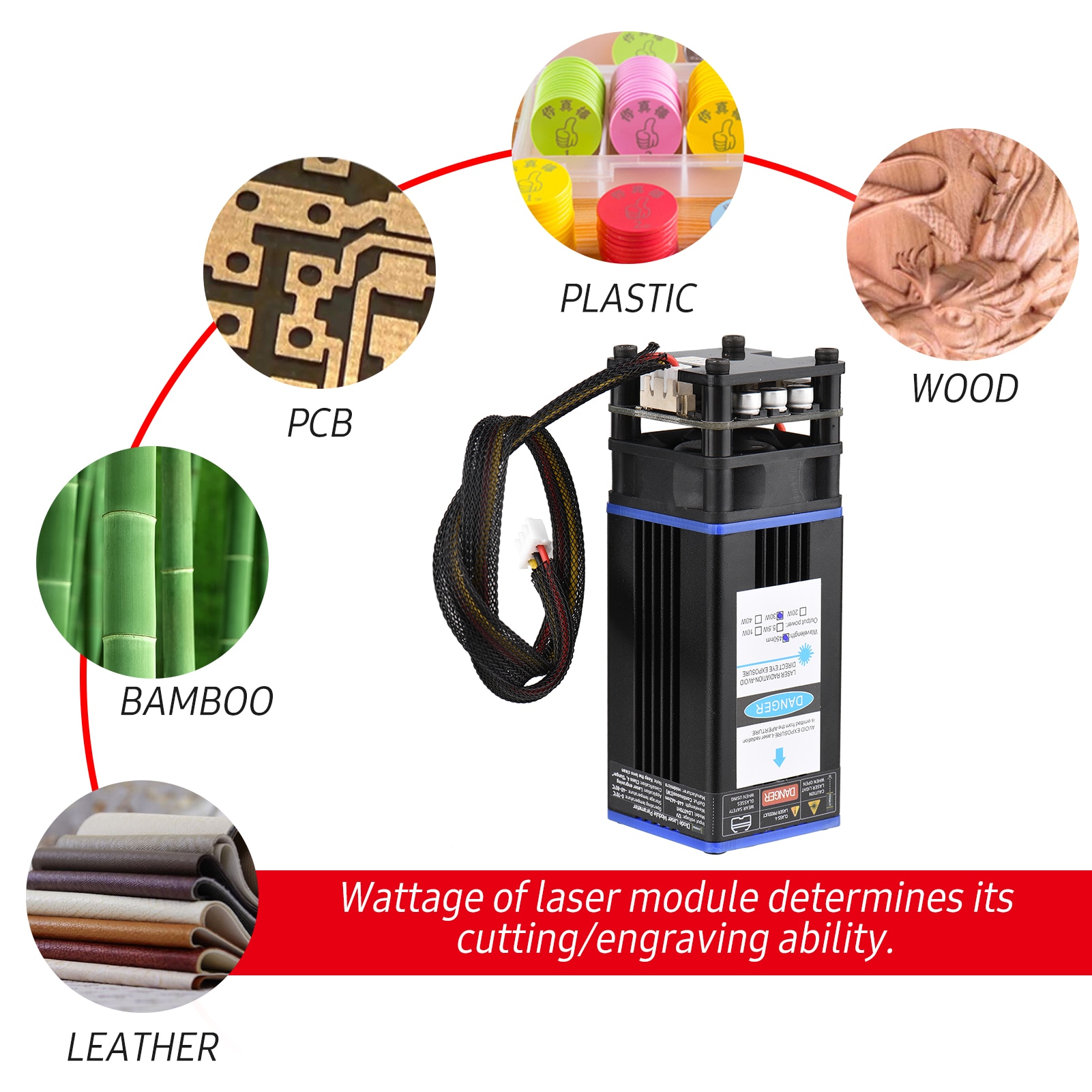

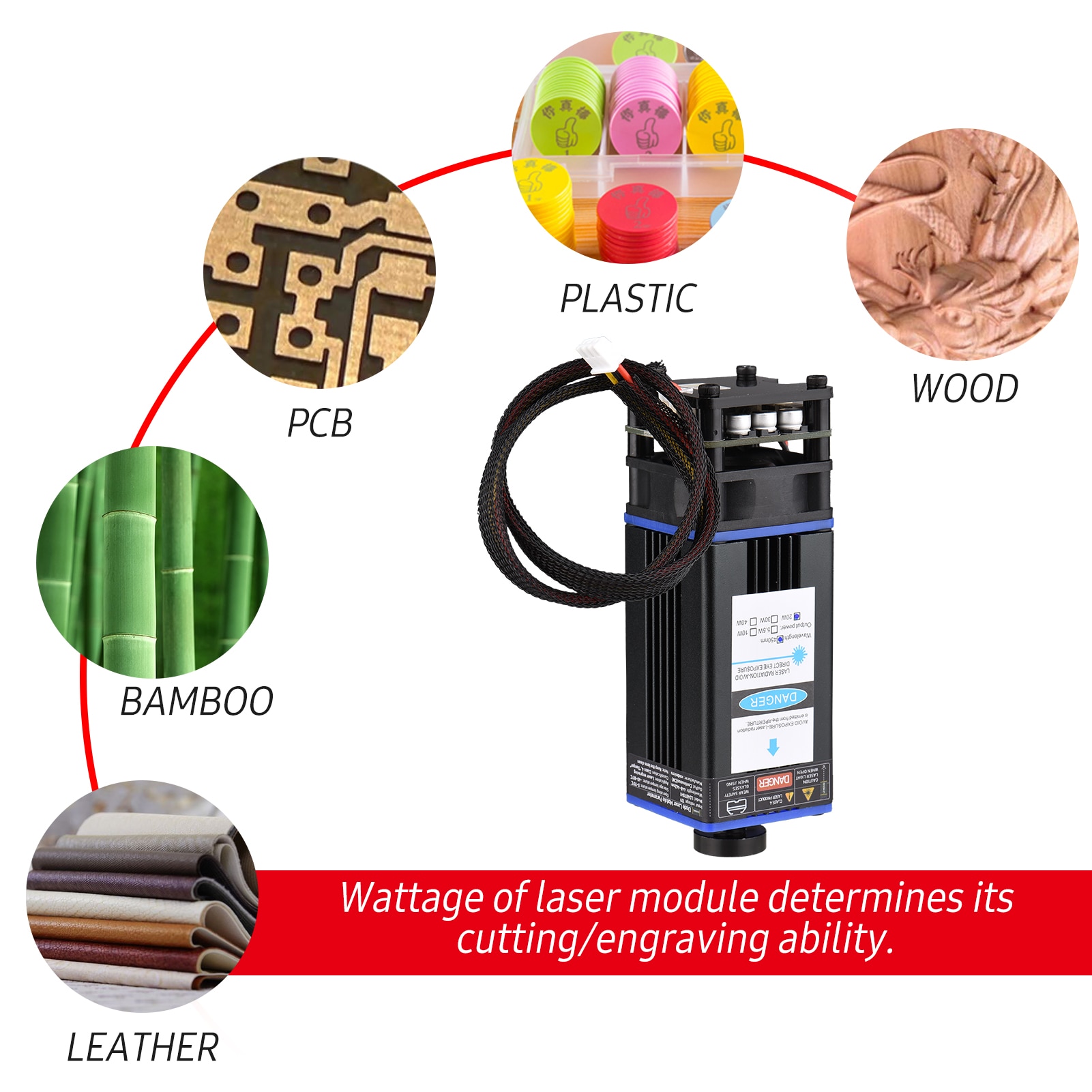

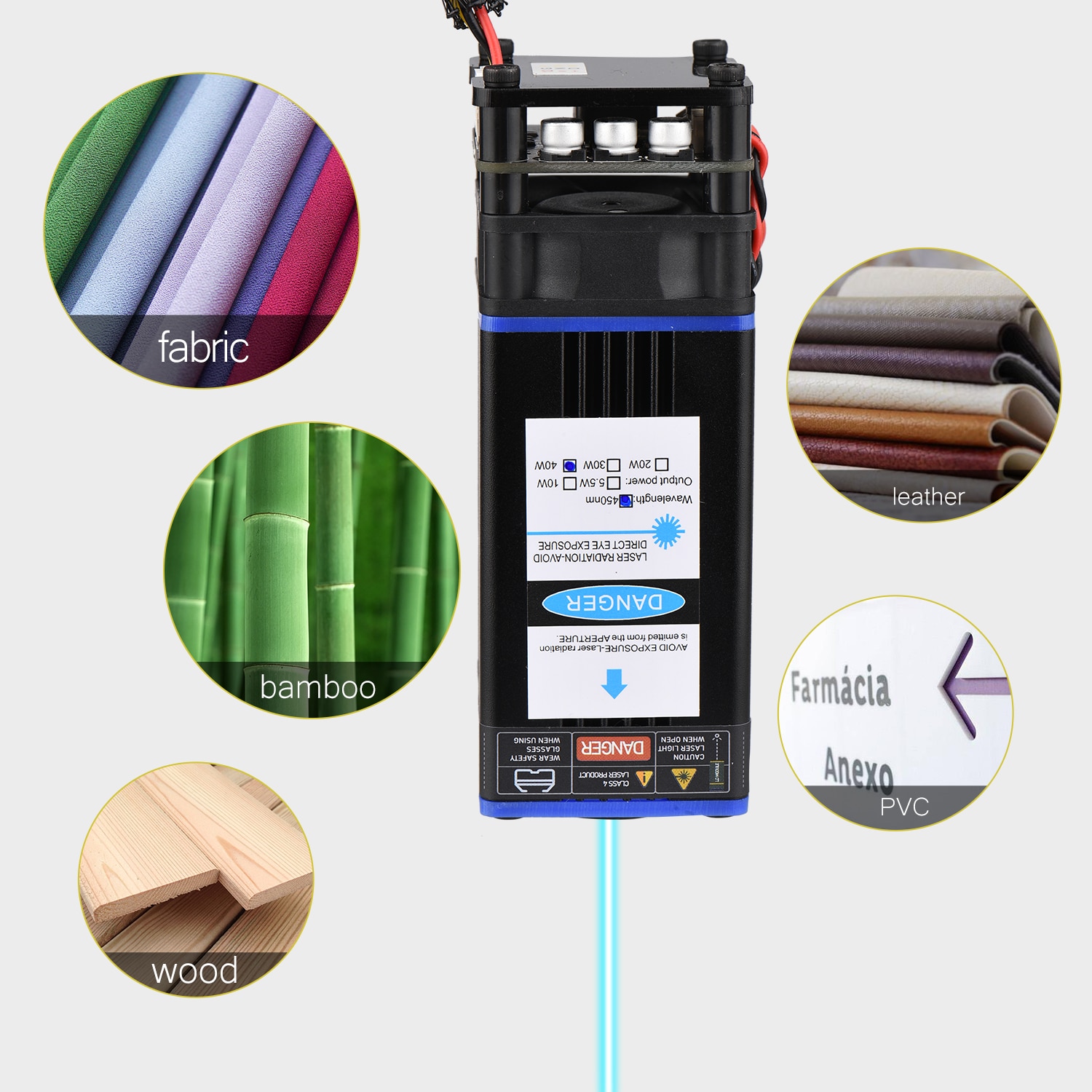

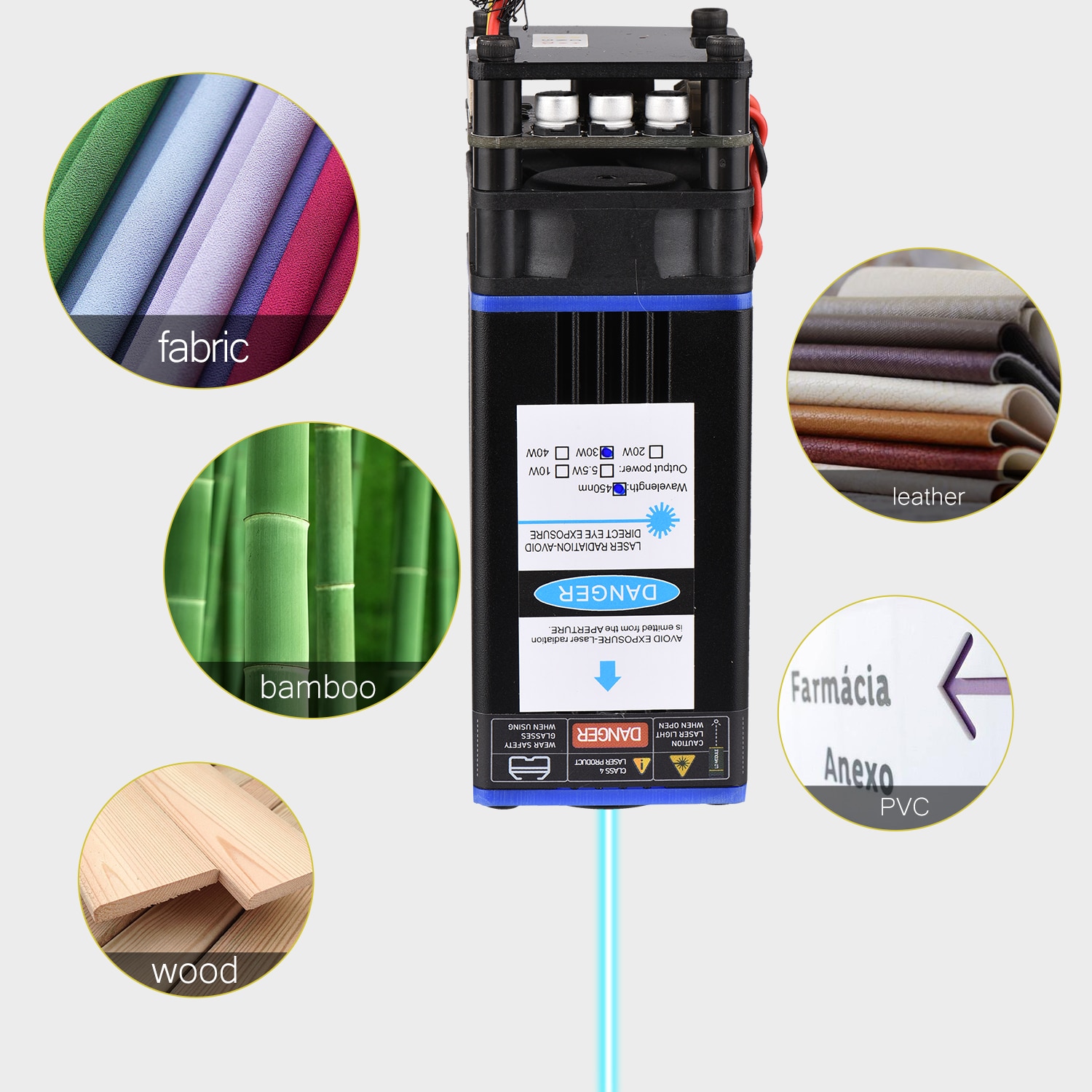

It can engrave paper, wood, fabric, plastic, leather, anodized aluminum, etc. Different laser modules for engraving/ cutting different kinds of material and different thicknesses.

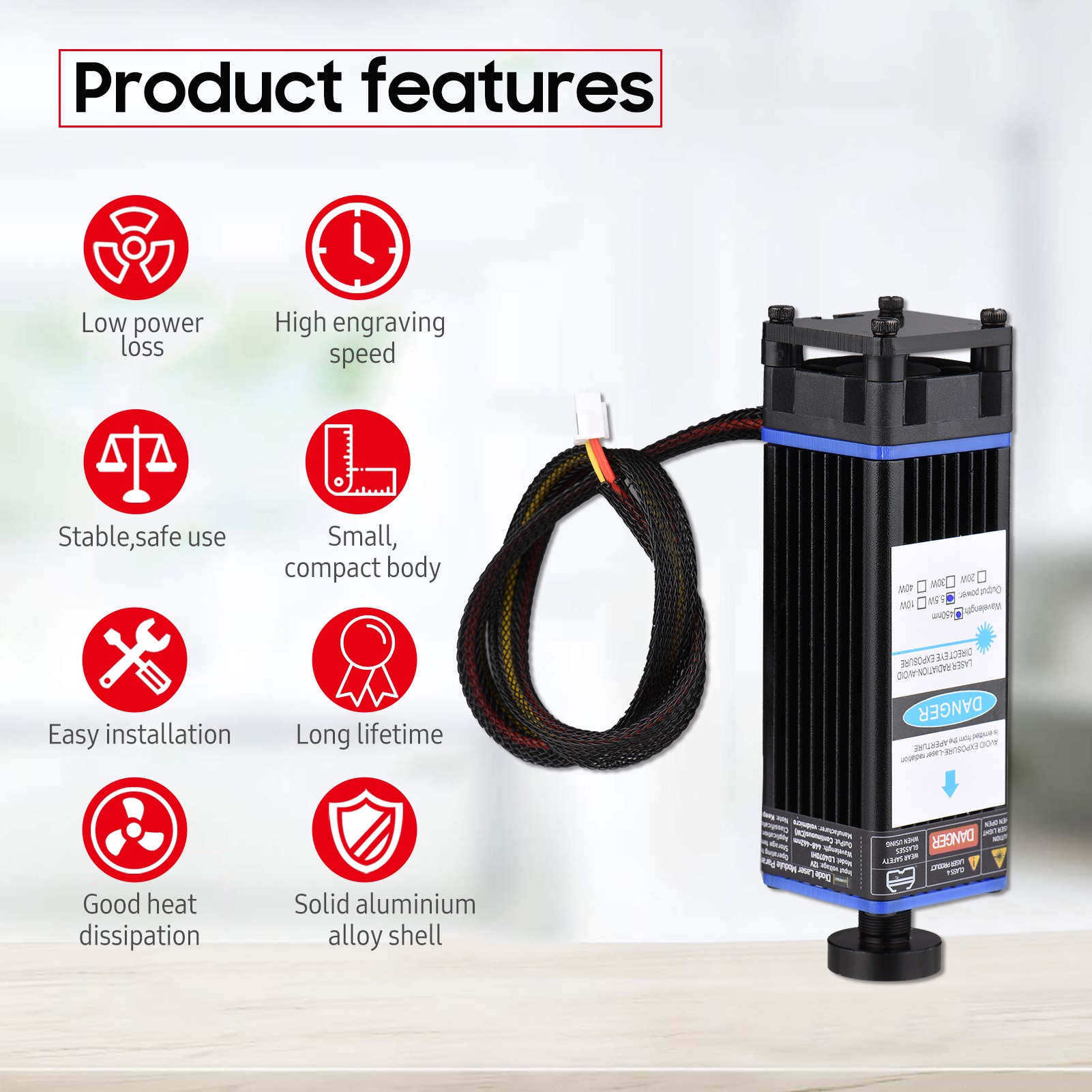

Features high engraving speed, low power loss, good stability and superior performance, with fine heat dissipation to extend its service life.

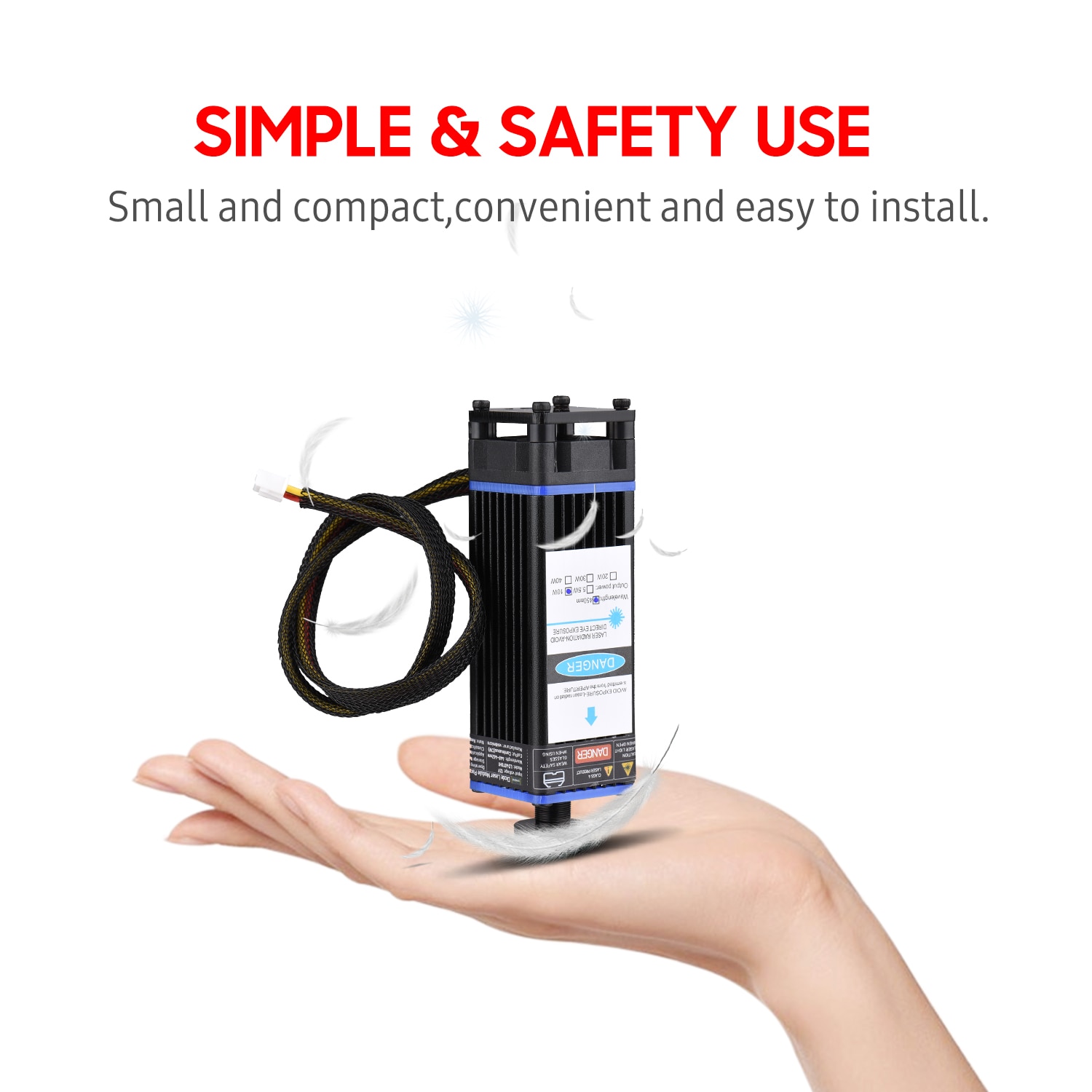

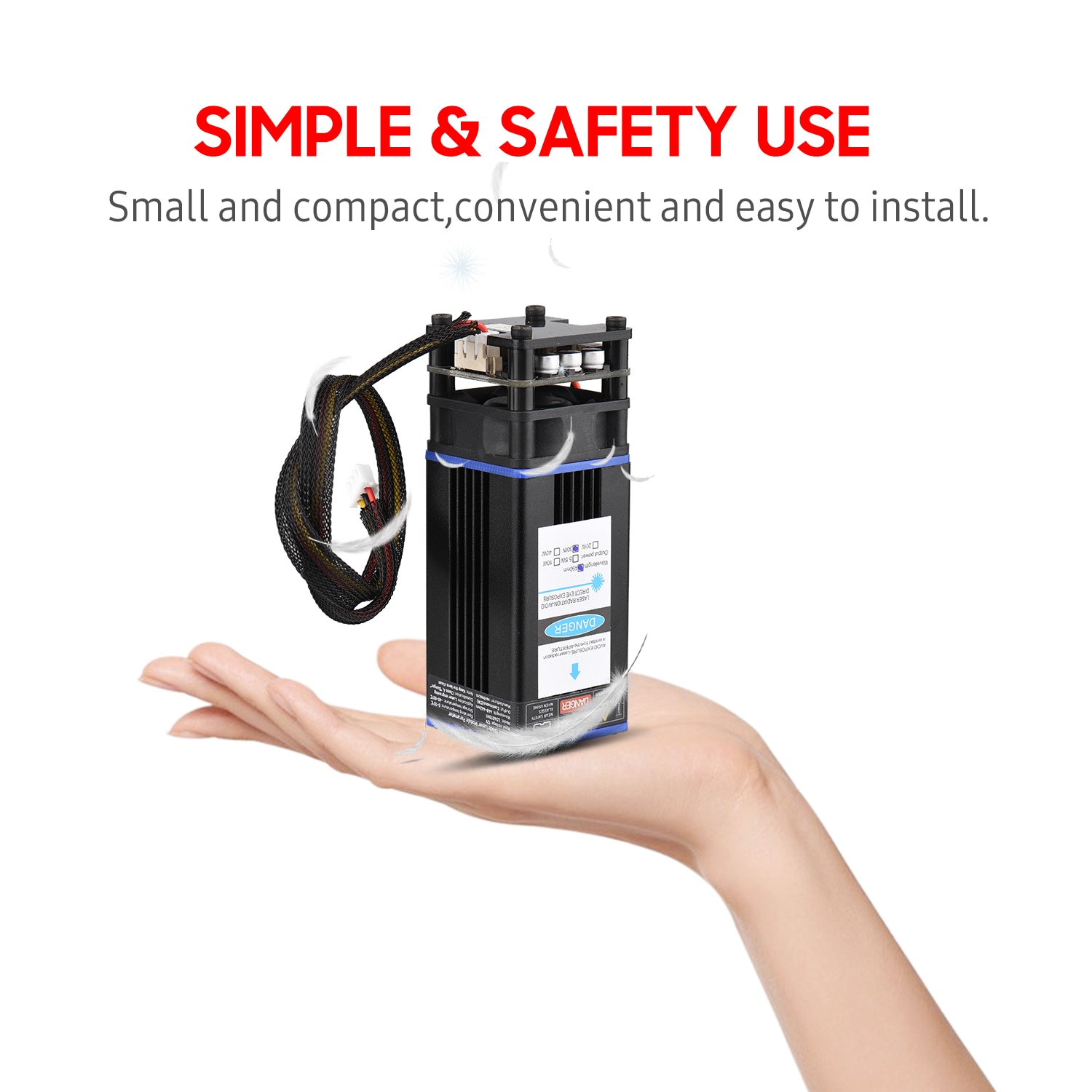

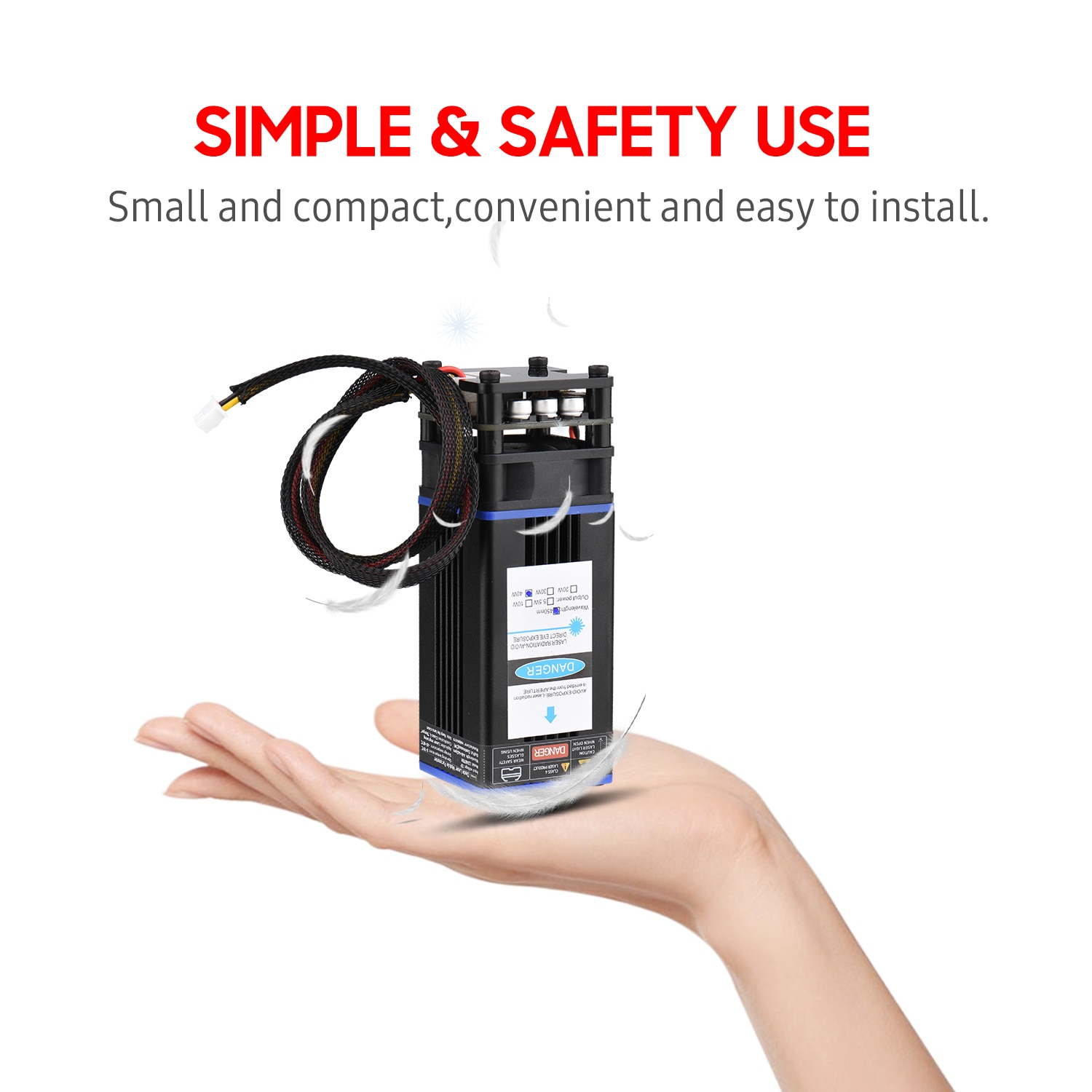

Compact and lightweight, easy to assemble, has over 30cm long line. Comes with screws, convenient and simple to be installed on the machine.
Wide application, it’s designed for laser engraver, laser cutting machine, 3D printer, CNC mill and so on, suitable for DIY lover, CNC engineer, artist and more
Note:
1. Please wear laser glasses during usage and avoid touching the laser directly with your eyes and skin.
2. Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
Specifications:

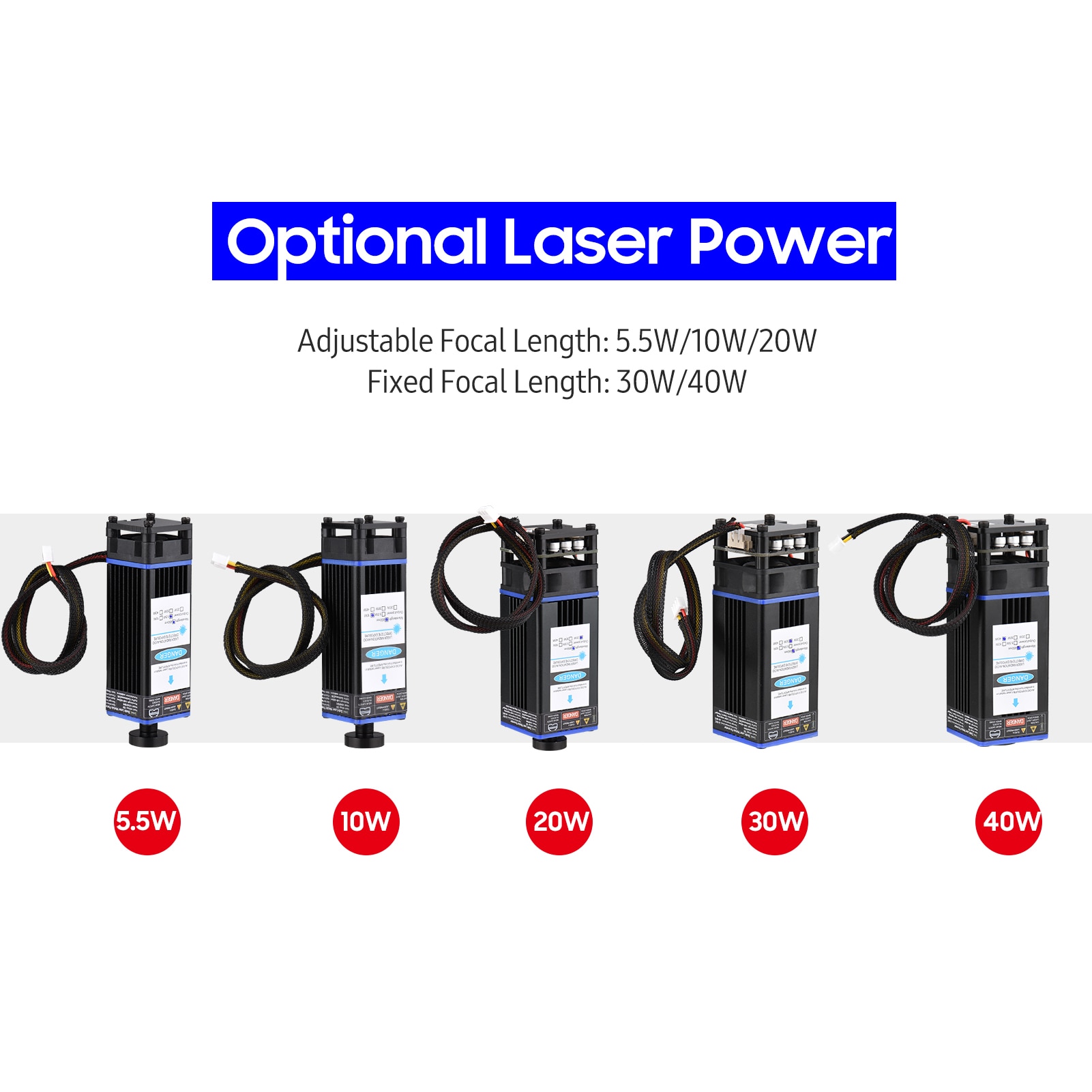

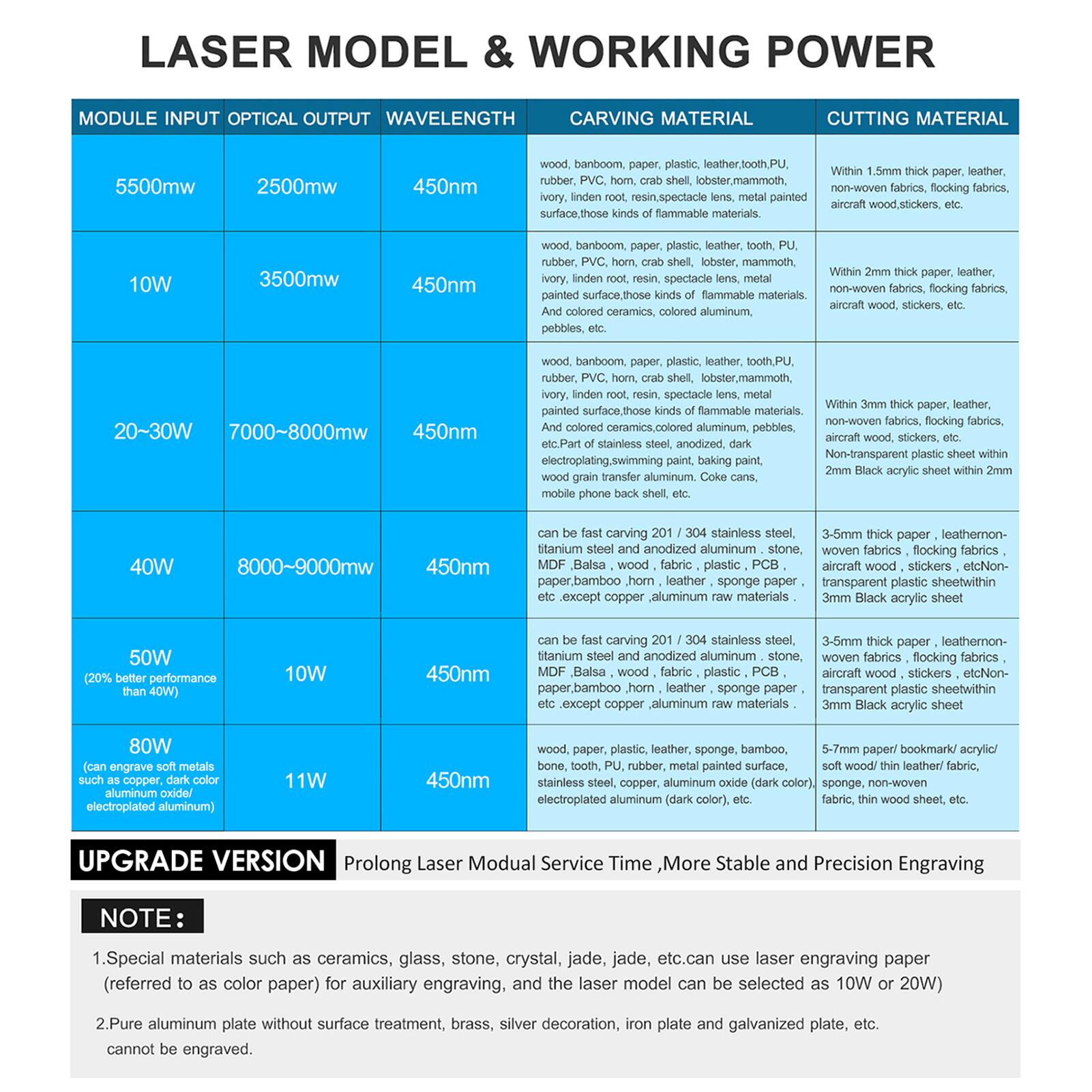

Laser Power: 5.5W/ 10W/ 20W/ 30W/ 40W (Optional)

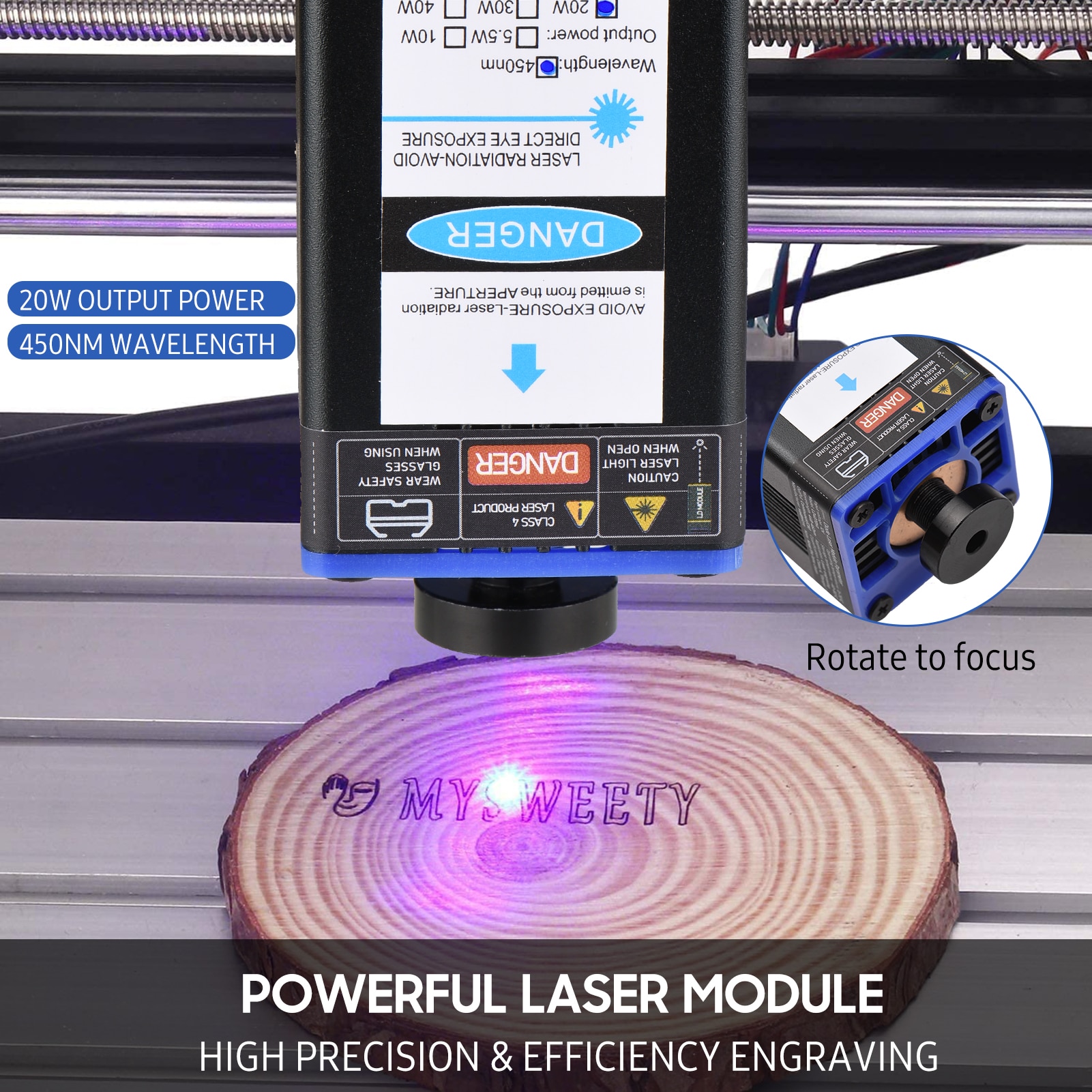

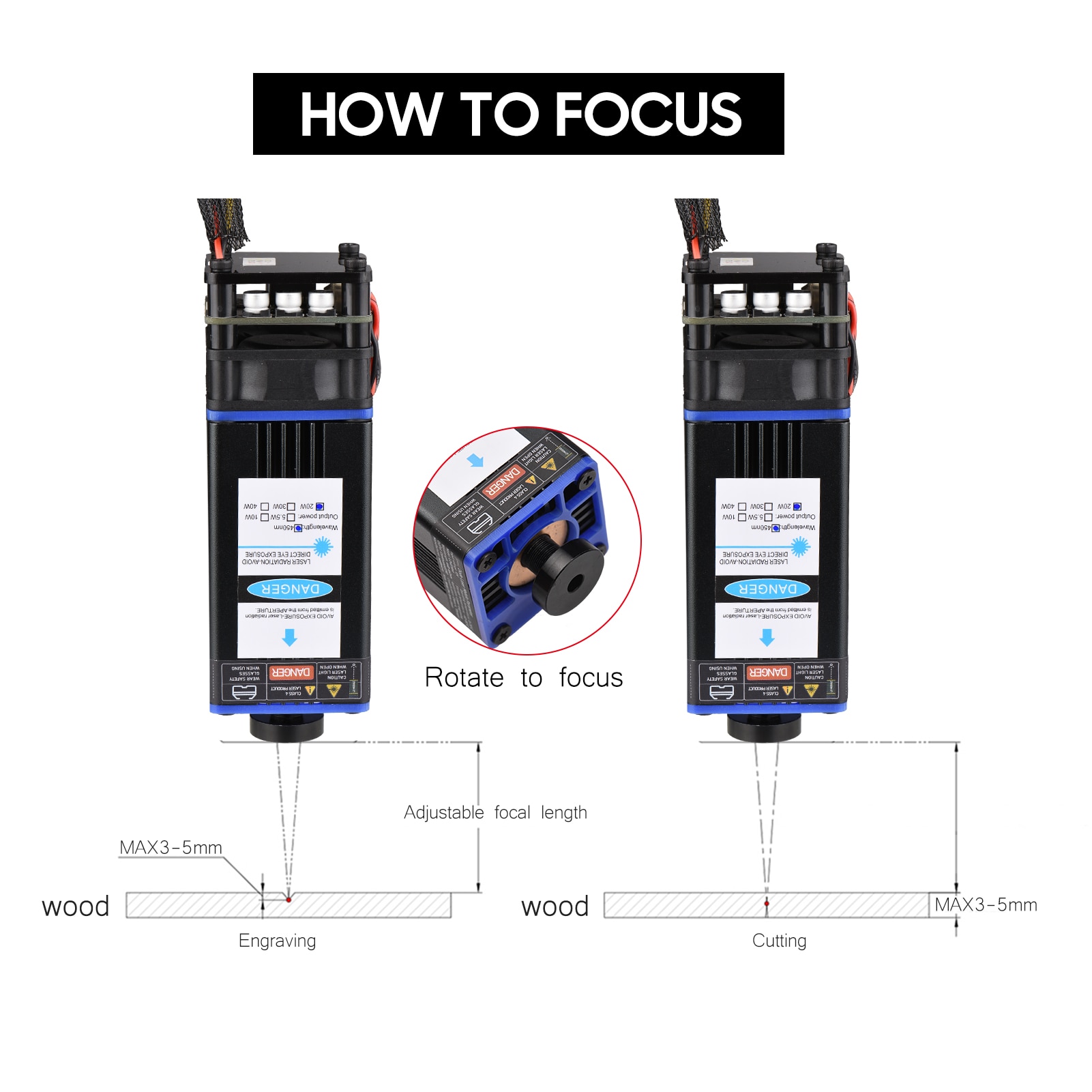

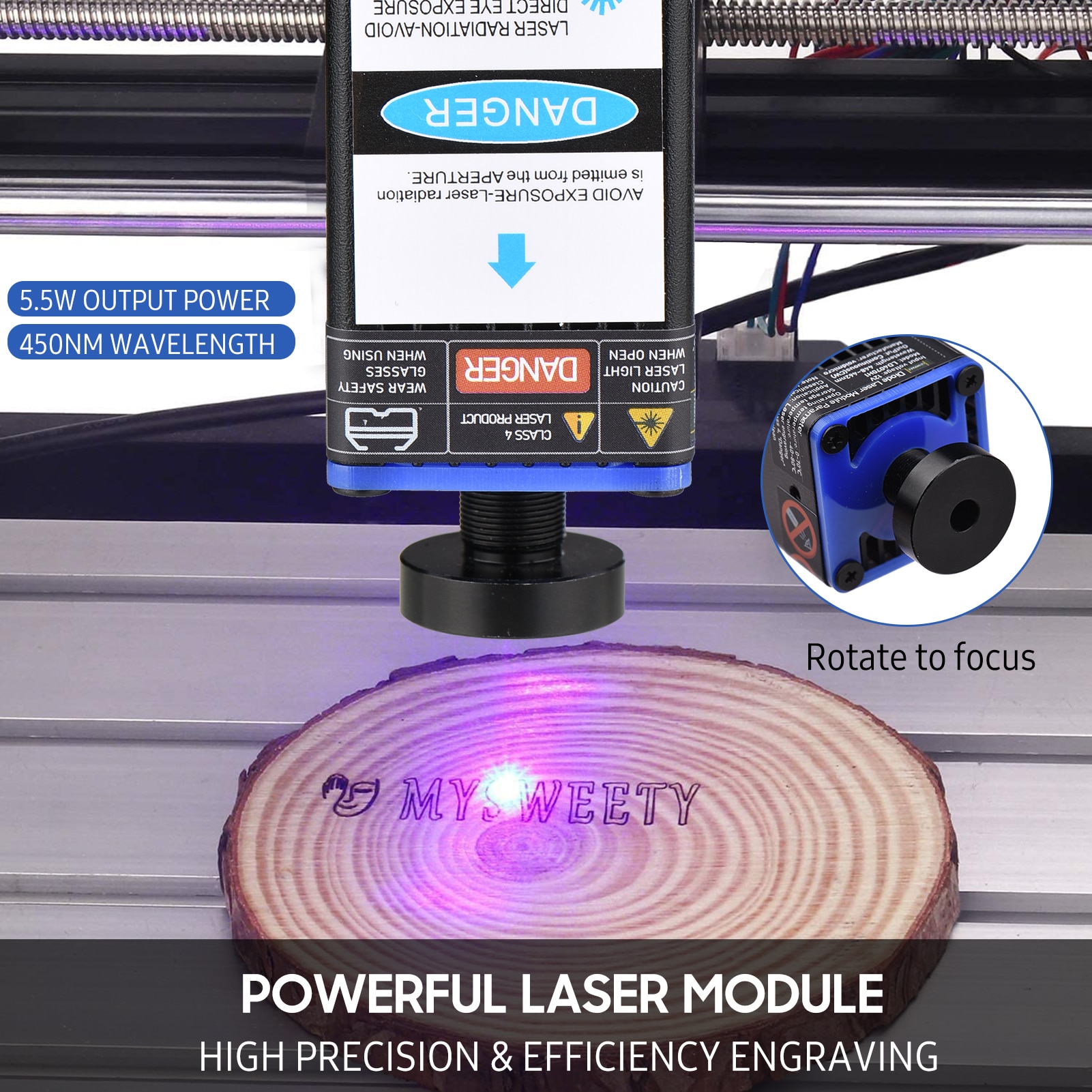

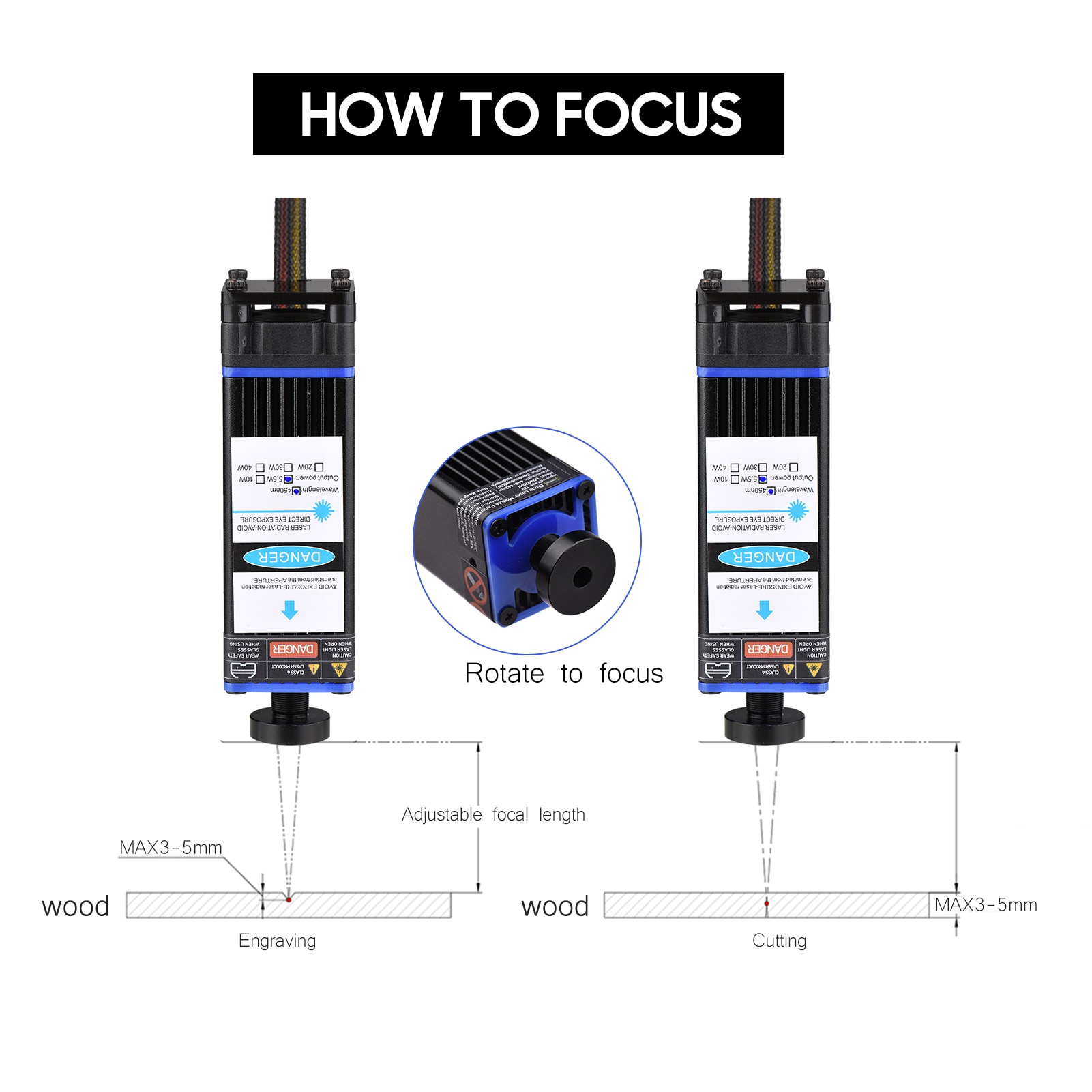

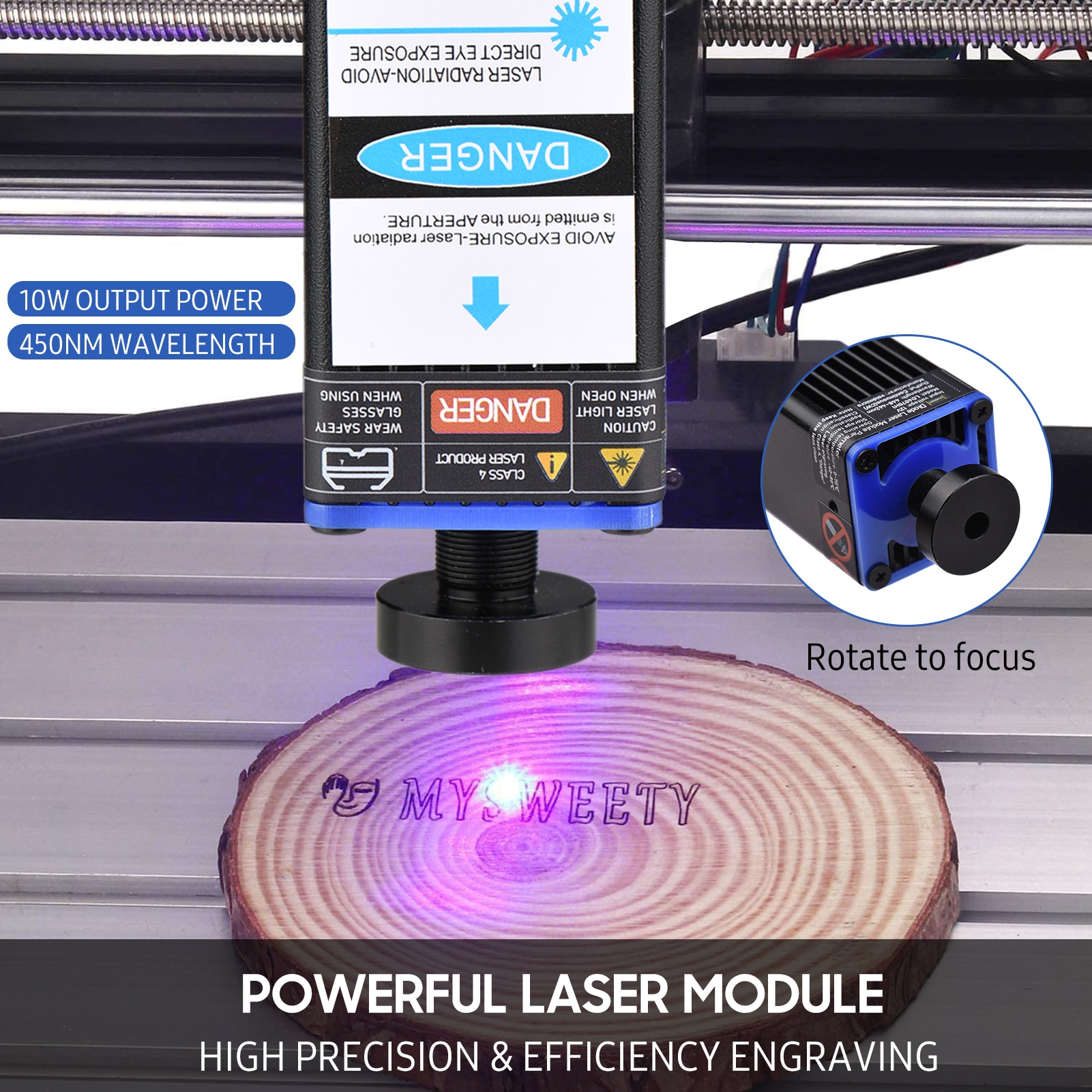

–Adjustable Focal Length: 5.5W/ 10W/ 20W (20-70mm)

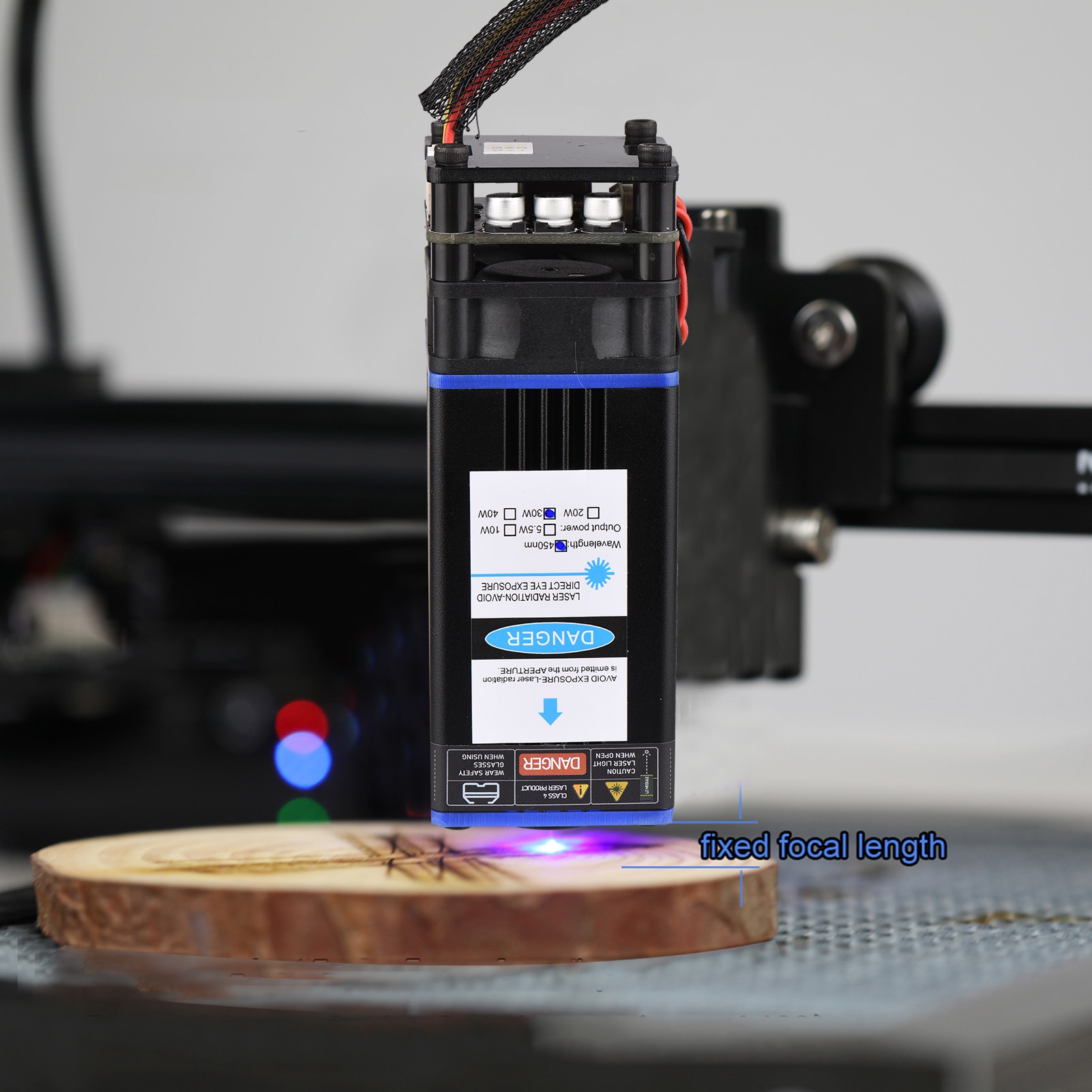

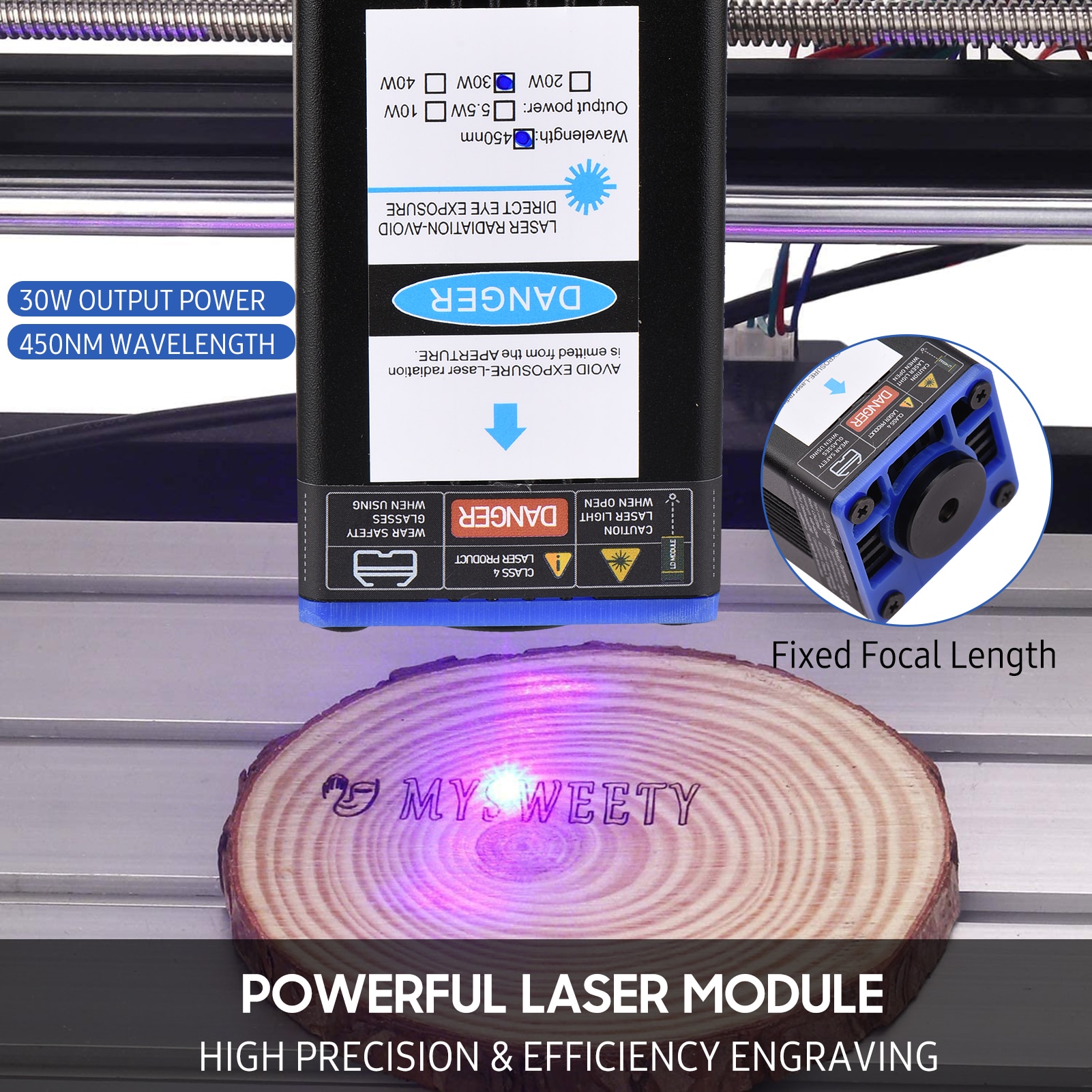

–Fixed Focal Length: 30W (126mm)/ 40W (150mm)
Color: Black
Material: Aluminum Alloy + Electronic Components
Wave Length: 450nm
Luminous Color: Blue
Operating Voltage: 12V
PWM/ TTL Input: DC 3.3V-12V, 100Hz-50KHz
Input Interface: XH2.54-3 Pin (+, -, PWM/ TTL)
Continuous Working: Unlimited
Operating Temperature: -20℃~70℃
Item Size: Approx.

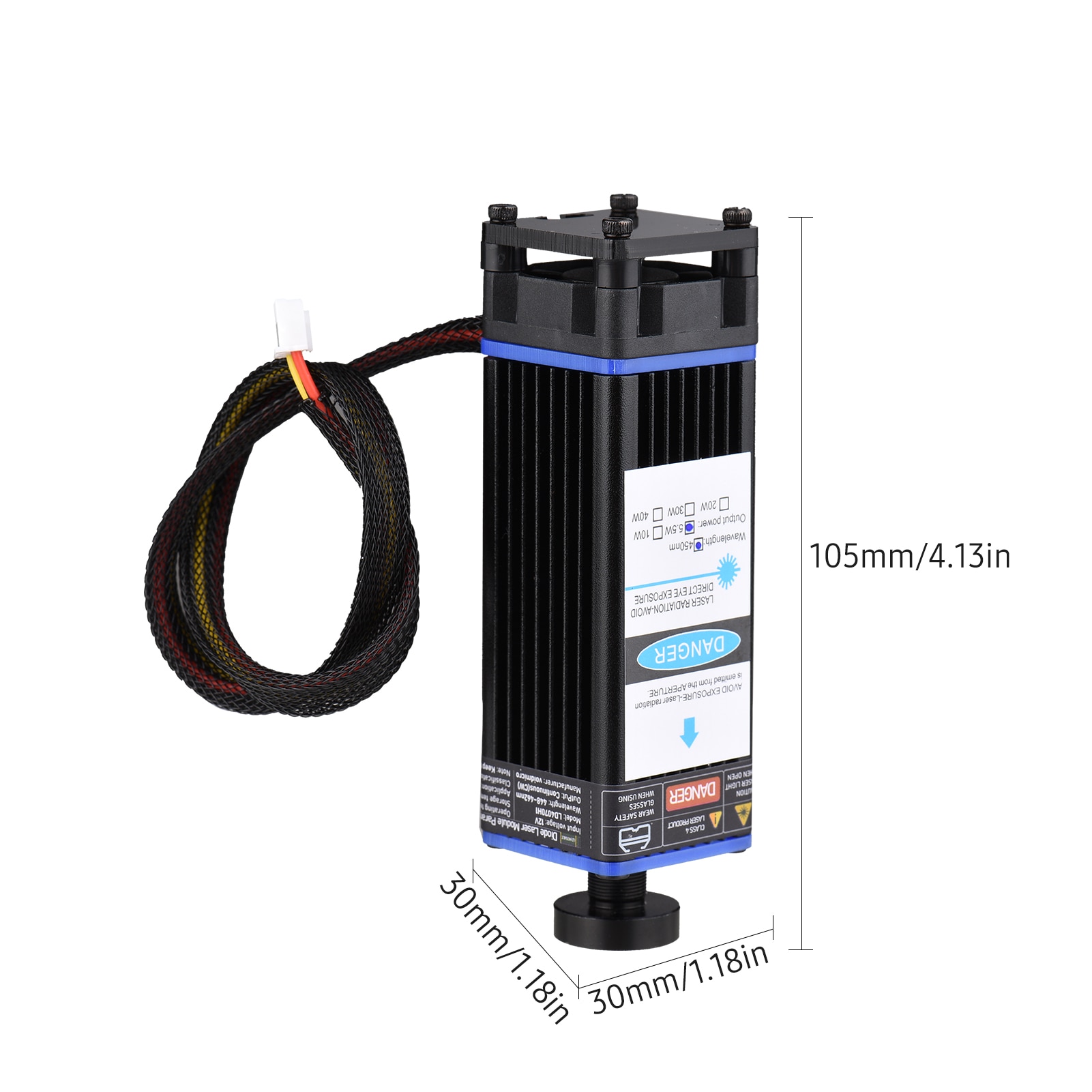

5.5W/ 10W: 105 * 30 * 30mm / 4.13 * 1.18 * 1.18in

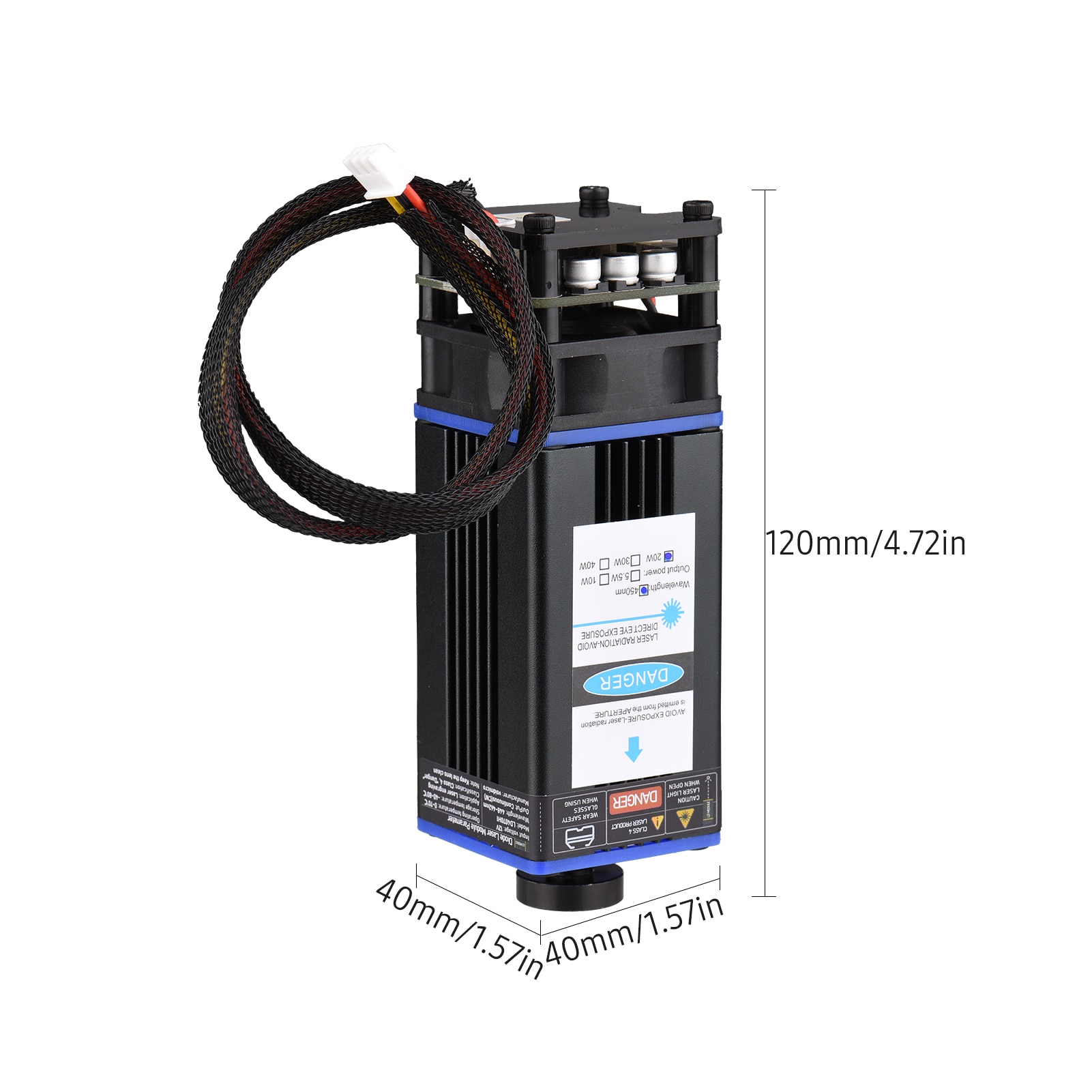

20W: 120 * 40 * 40mm / 4.72 * 1.57 * 1.57in

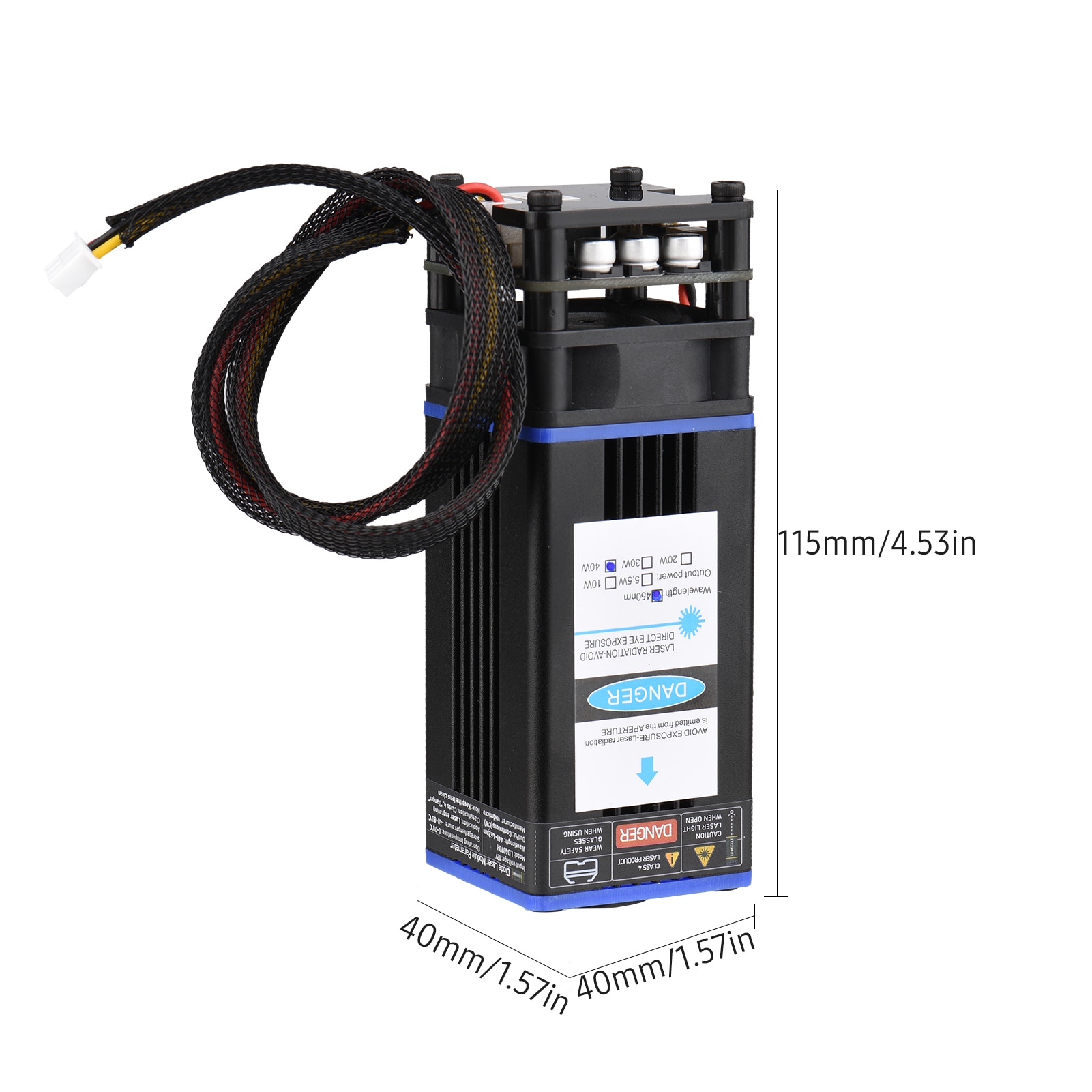

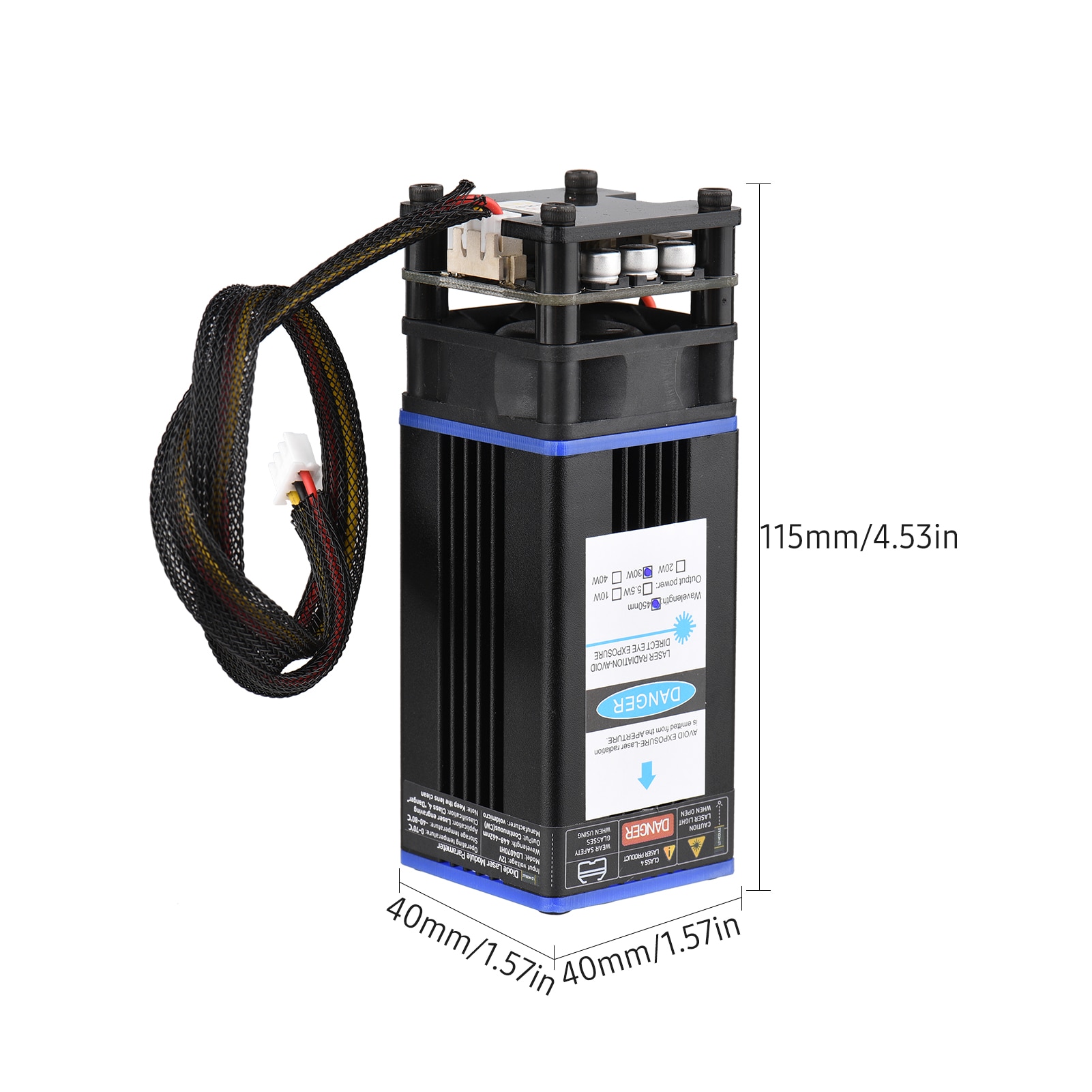

30W/ 40W: 115 * 40 * 40mm / 4.53 * 1.57 * 1.57in
Package Size: Approx. 16 * 6 * 6cm / 6.30 * 2.36 * 2.36in
Package Weight: Approx.
5.5W/ 10W: 170g / 5.99oz
20W: 258g / 9.09oz
30W/ 40W: 263g / 9.27oz

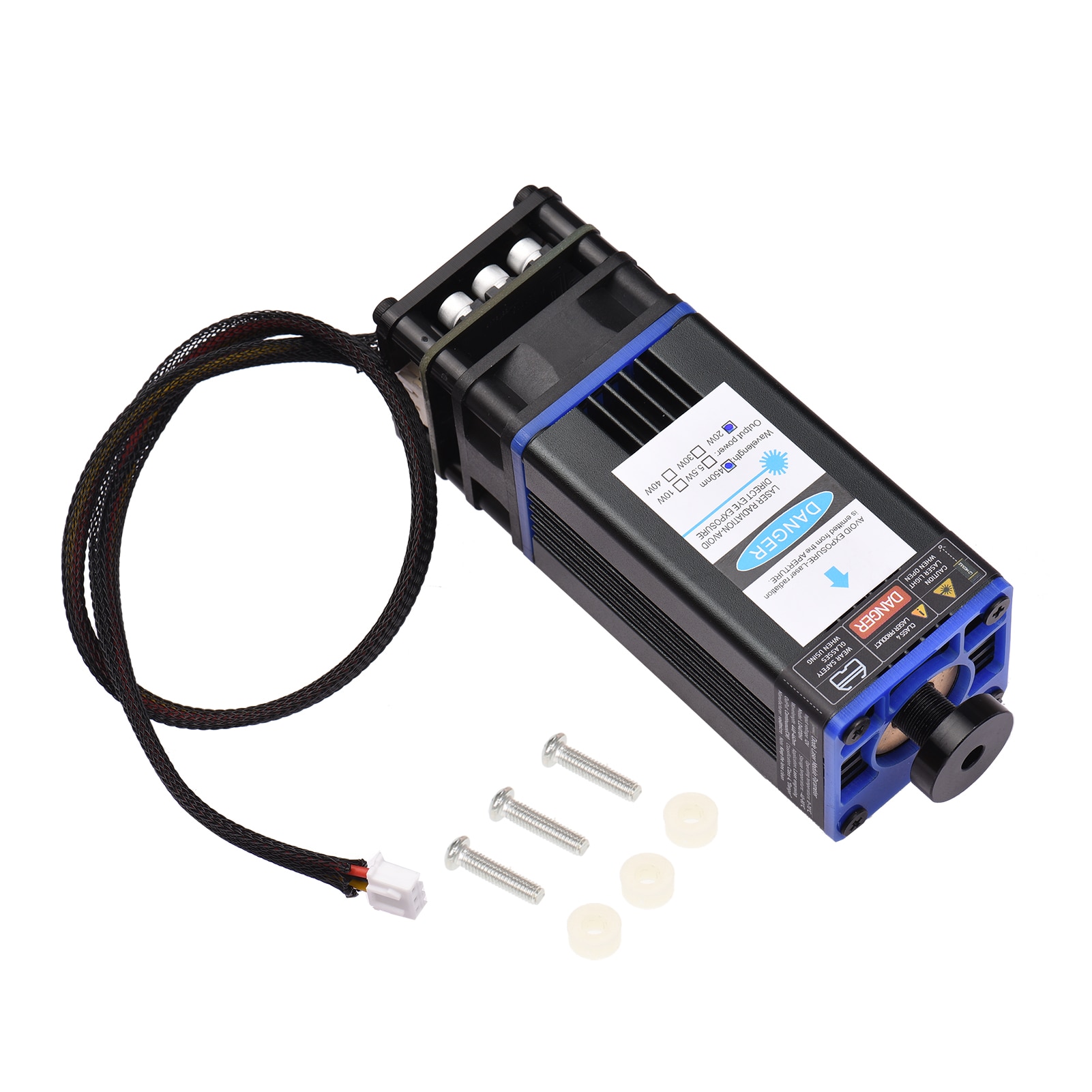

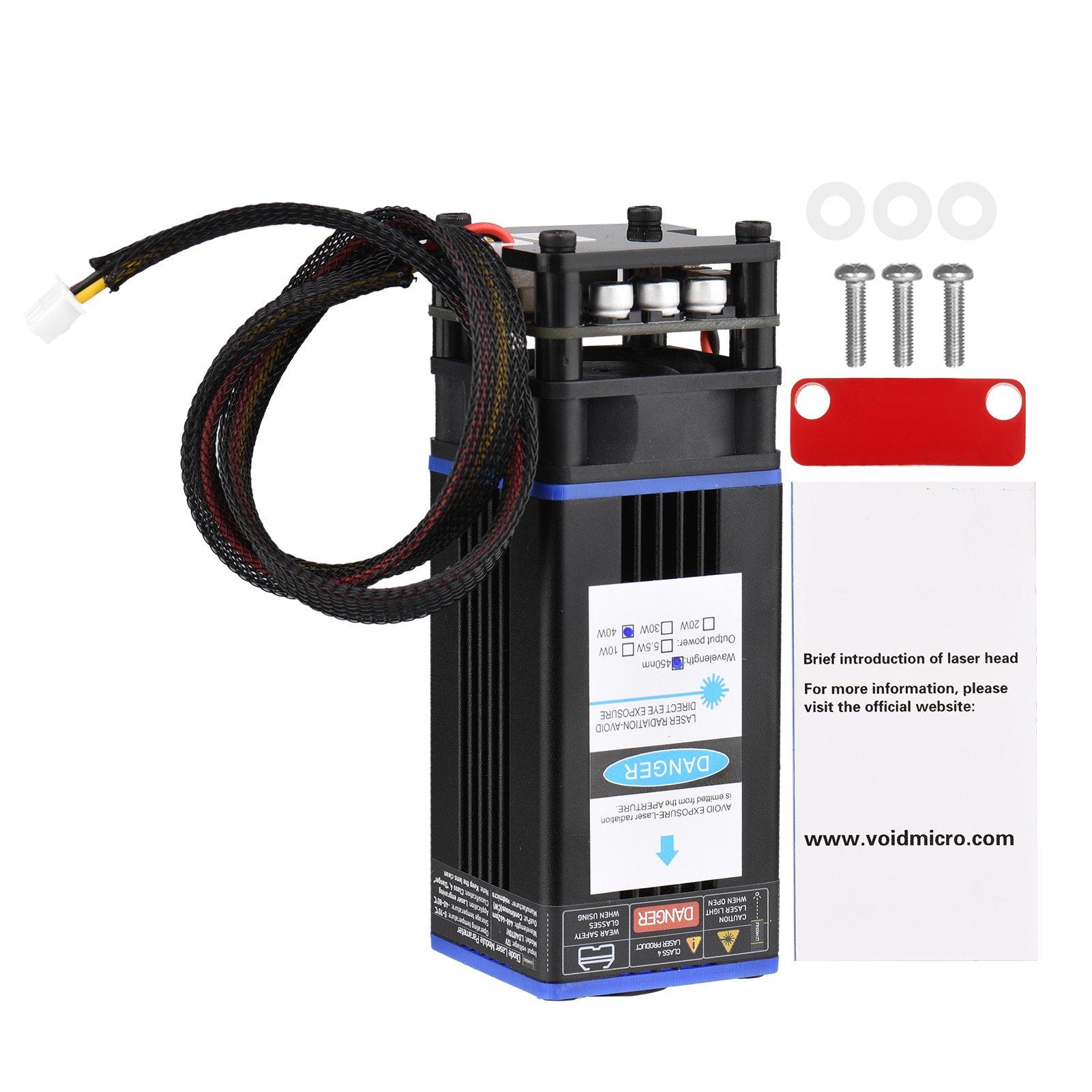

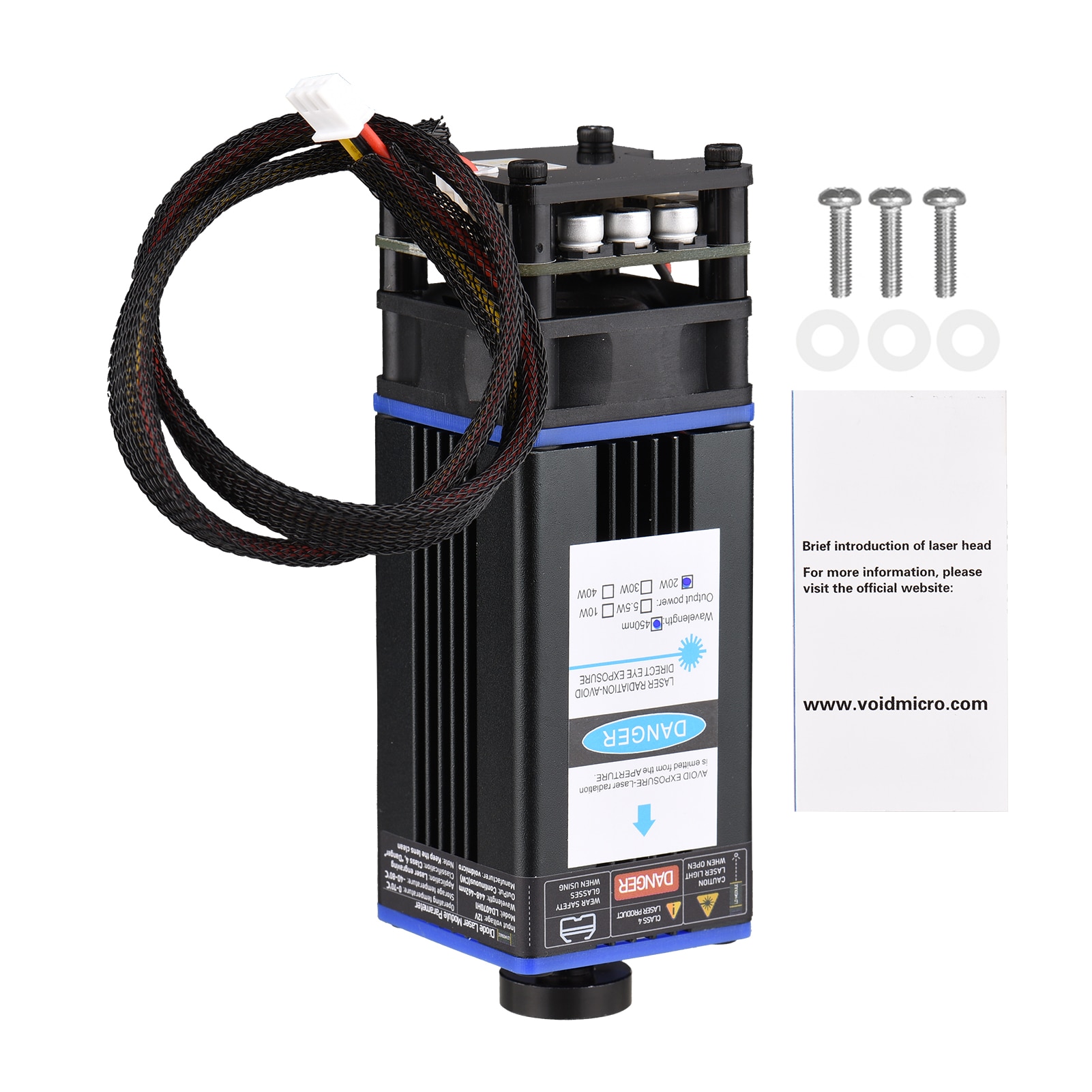

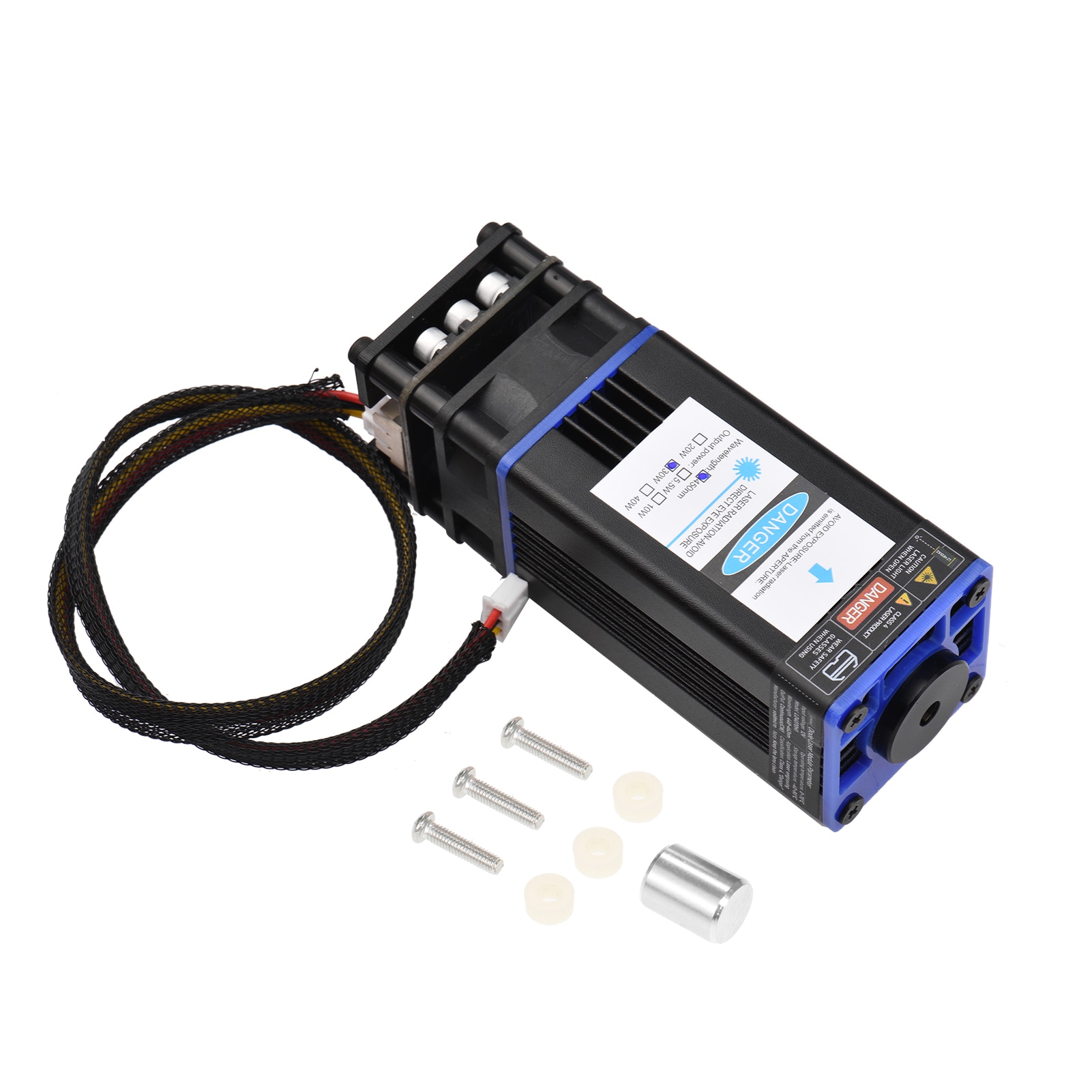

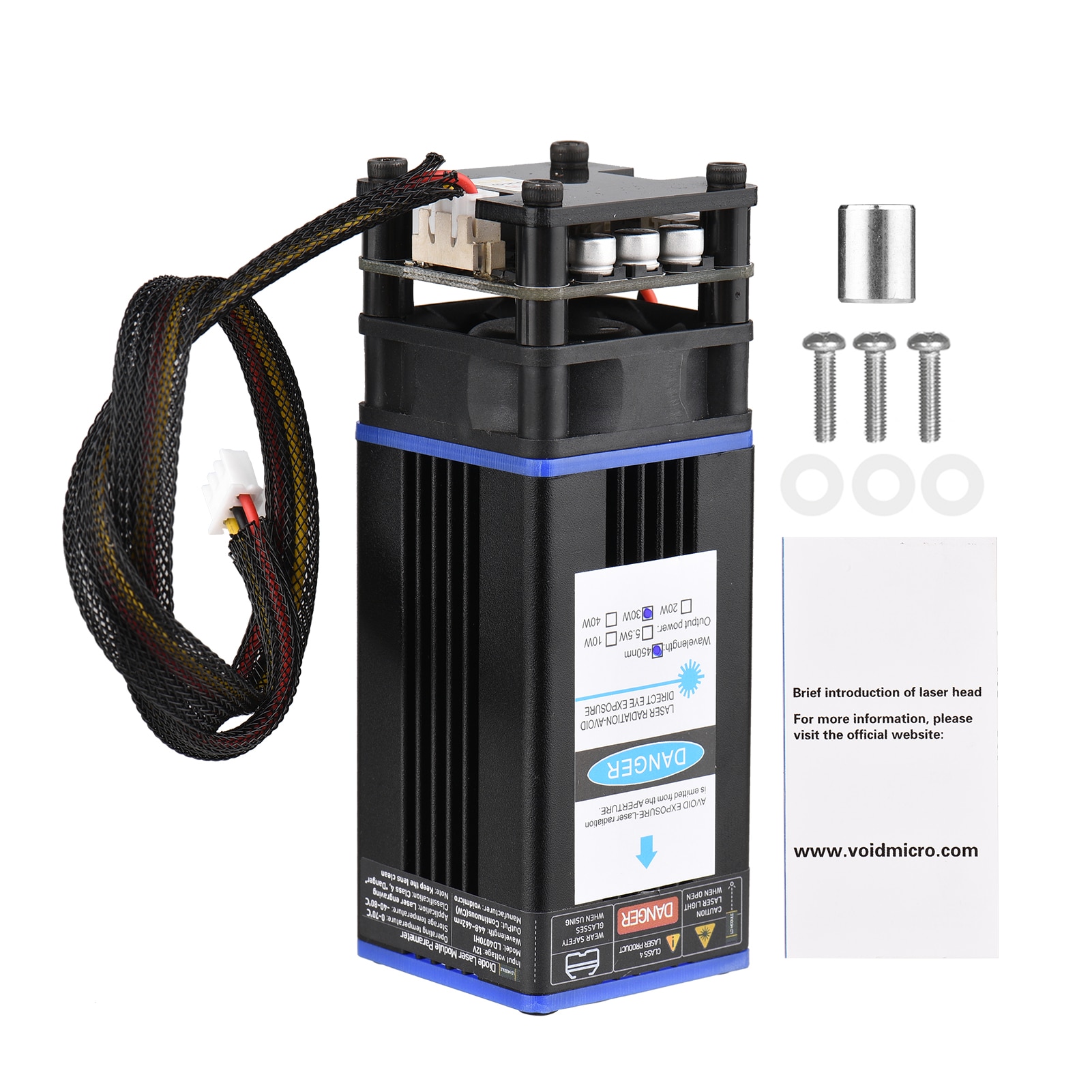

Packing List:
1 * Laser Module
3 * Screw
3 * Washer
1 * User Manual (English)
50W/80W
Professional laser module, easy to install, with lower loss, provides
450nm wavelength, for efficient, precise engraving and cutting of
plastic, wood, leather, paper and so on, suitable for a wide range of
engraving machines.
Features:

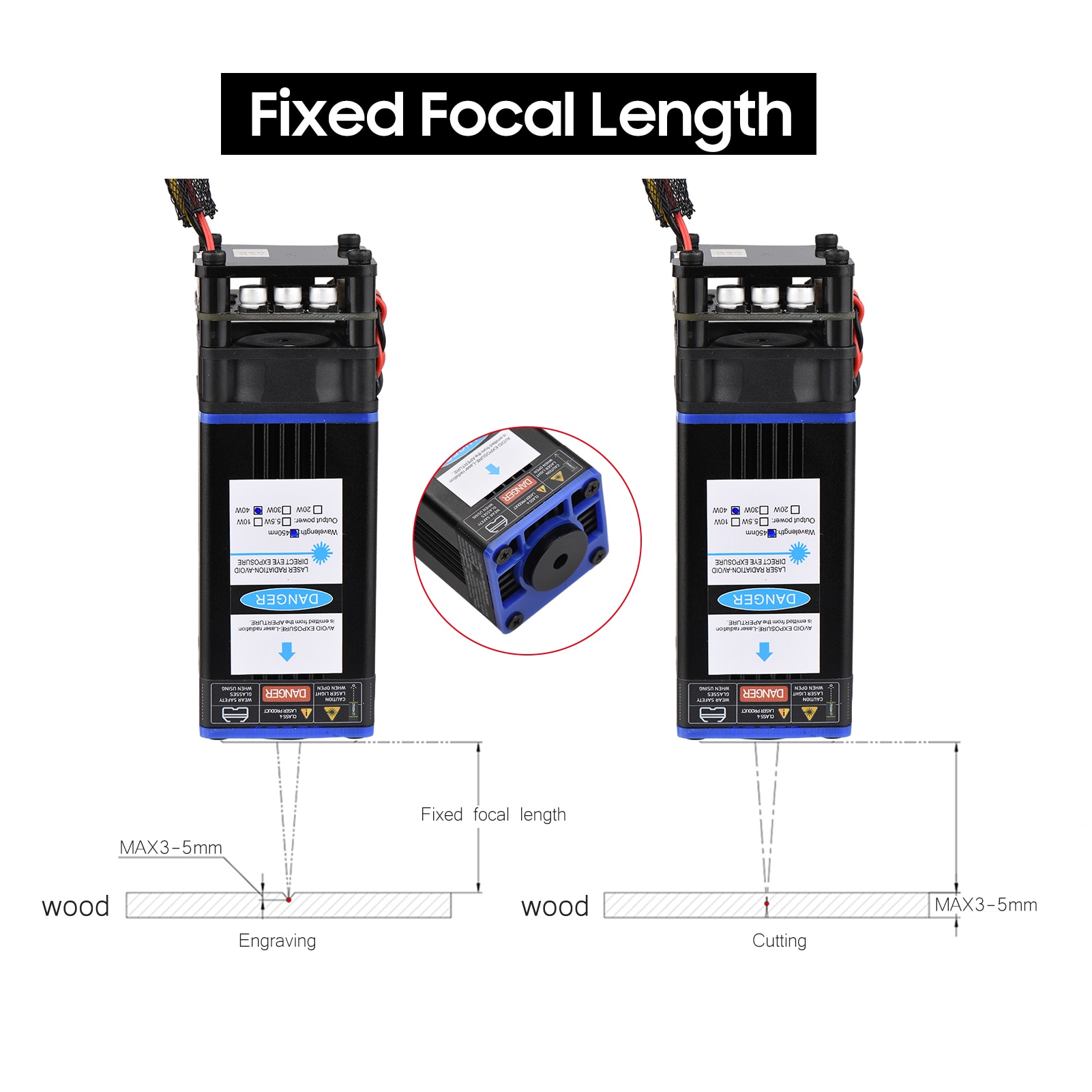

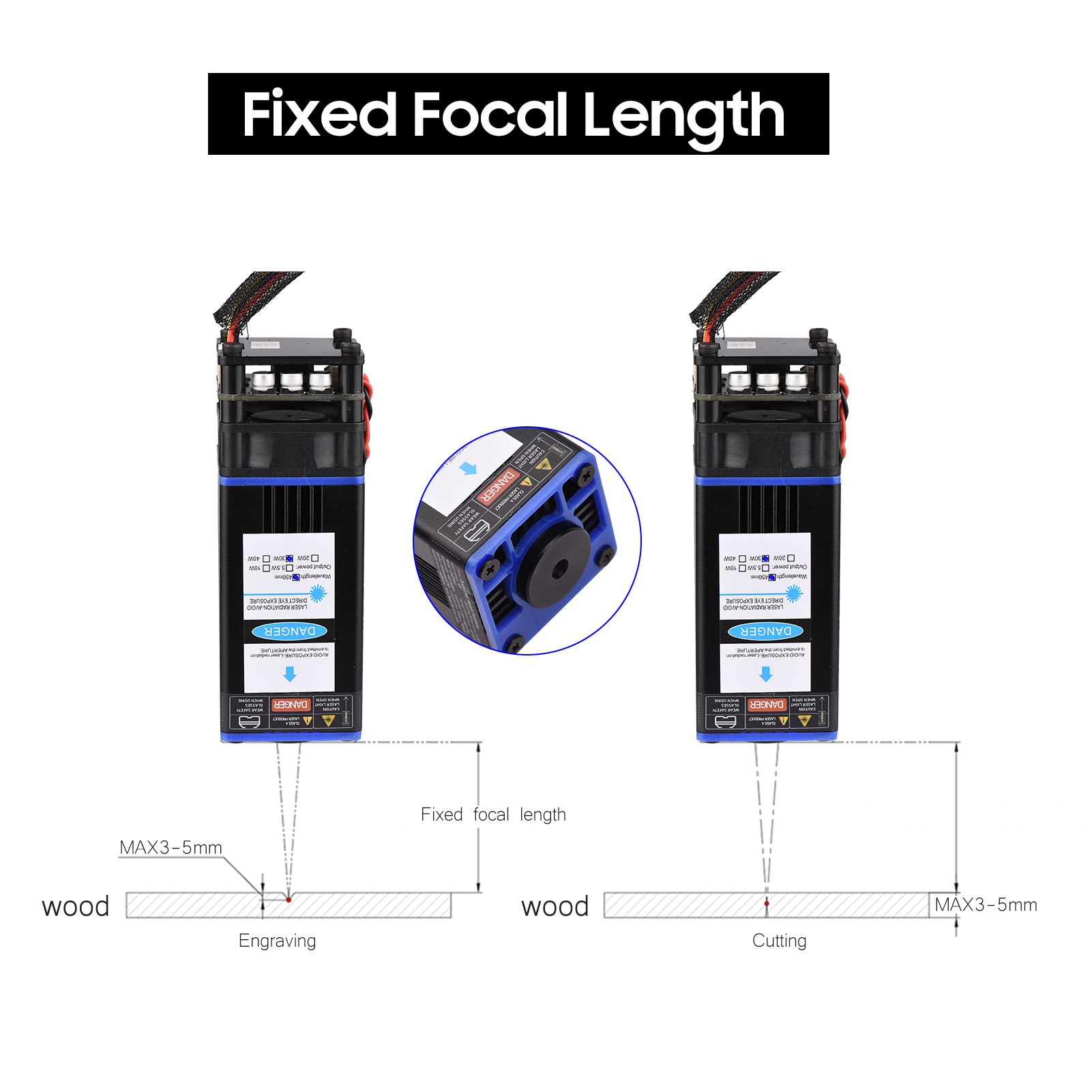

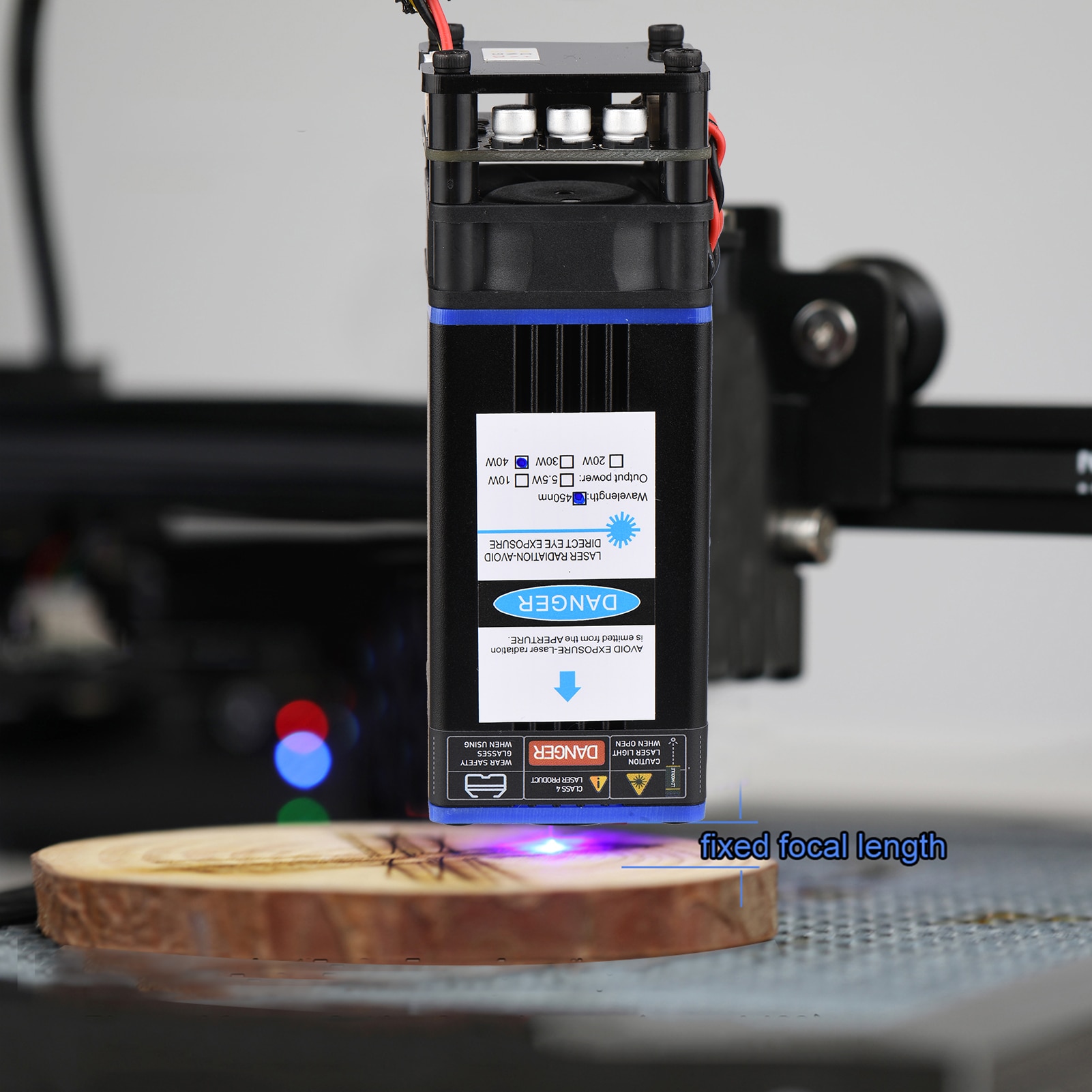

It has fixed
focal length (best focal length: keep the plastic bottom edge of the
laser head 8mm away from the engraving object). Made of premium quality
aluminum alloy casing with great durability.
It can engrave paper,
wood, plastic, leather, sponge, stainless steel, etc.. Different laser
modules for engraving/ cutting different kinds of material and different
thicknesses.
Features high engraving speed, low power loss, good
stability and superior performance, with fine heat dissipation to extend
its service life.
Compact and lightweight, easy to assemble, has
over 30cm long line. Comes with a metal plate and 3 screws, convenient
and simple to be installed on the machine.
Wide application, it’s
designed for laser engraver, laser cutting machine, 3D printer, CNC mill
and so on, suitable for DIY lover, CNC engineer, artist and more
Note:
1. Please wear laser glasses during usage and avoid touching the laser directly with your eyes and skin.
2. Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
Specifications:
Laser Power: 50W/ 80W (Optional)
Output Power: 10W/ 11W
Color: Black
Material: Aluminum Alloy + Electronic Components
Wave Length: 450nm
Focal Length: Fixed
Input Voltage: 12V
Output: Continuous (CW)
Operating Temperature: 0~70℃
Storage Temperature: -40~80℃
Item Size: Approx. 125 * 47 * 44mm / 4.92 * 1.85 * 1.73in
Item Weight: Approx. 248g / 8.76oz
Package Size: Approx. 16 * 6 * 5.5cm / 6.30 * 2.36 * 2.17in
Package Weight: Approx. 322g / 11.36oz

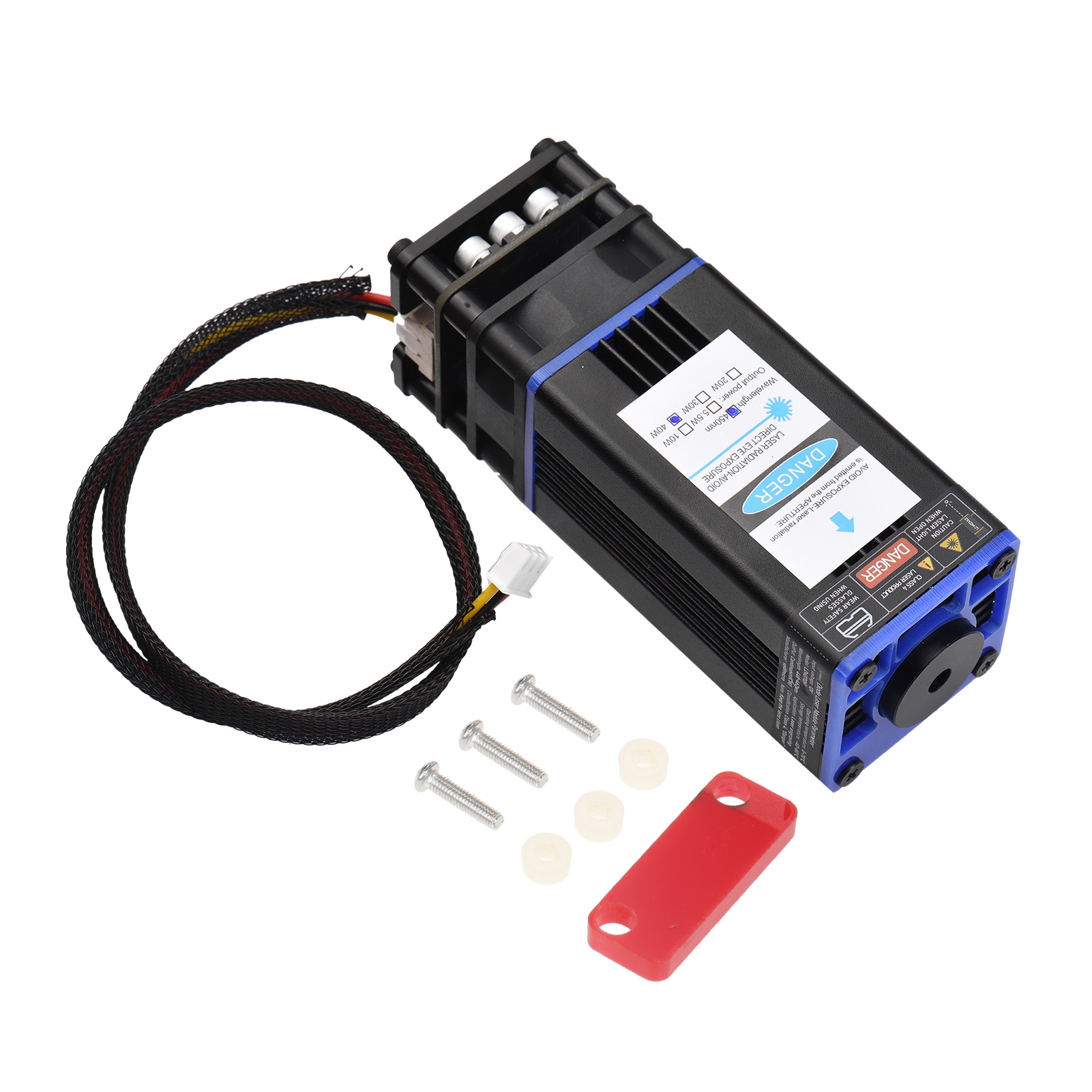

Packing List:
1 * Laser Module
1 * Metal Plate
3 * Screw
