Description
- Brand Name: Q-BAIHE
- Item Type: Stage Lighting Effect
- Items:: 3DB3DG3DR
- Mode :: CW, PWM (optional)
- Wavelength:: 405-660nm (optional)
- Output power:: 50mw (optional)
- Working Voltage :: 5-24V
- Working Current :: <300mA
- Working Temperature :: -20 ° ~ 50 °
- Storage Temperature:: -40 ° ~ 85 °
- Shell Material:: Environmentally Friendly Aluminum Parts (AL 6063 T1)
- Mean Time To Failure:: >8000H
- Spot Size:: Adjustable (120mm finest 30um)
- Angle Divergence angle:: 7-110°
- Lens Type:: Lens Powell Lens
- Dimensions :: 12x63mm
- Drive Circuit :: APC, ACC

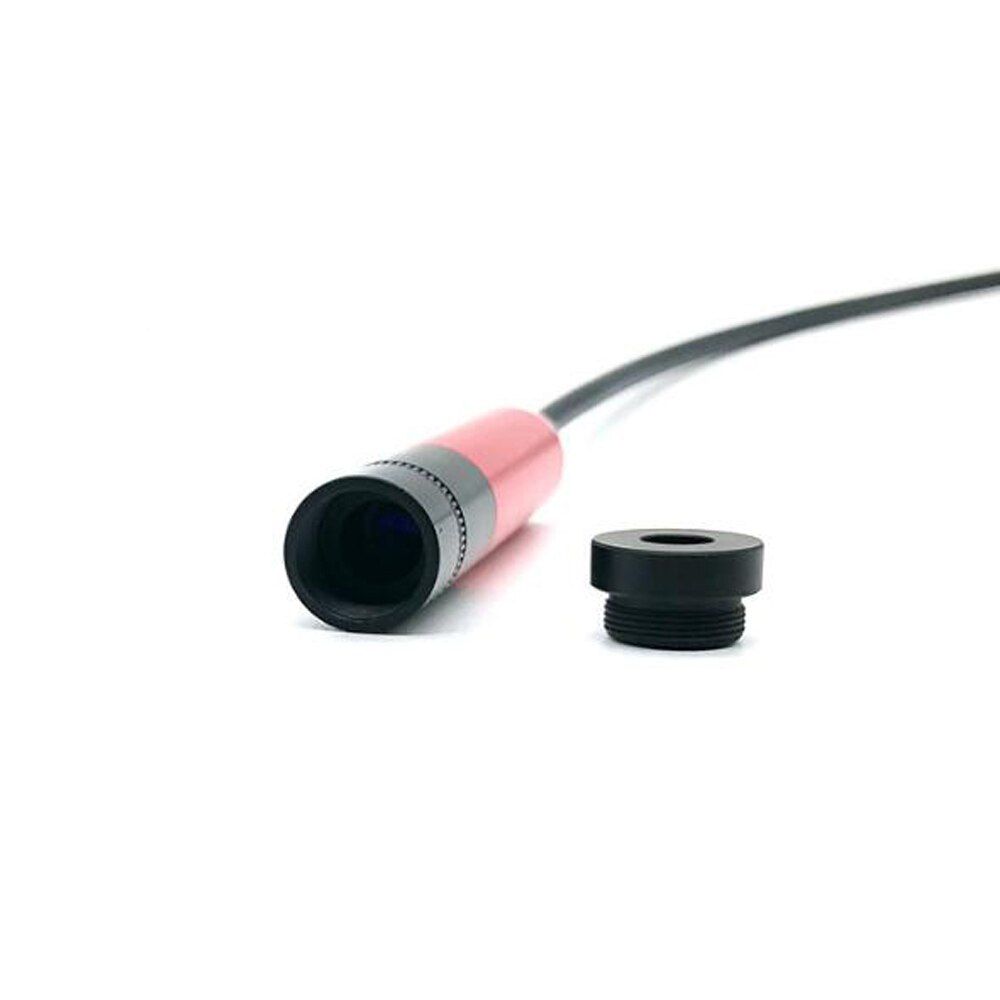

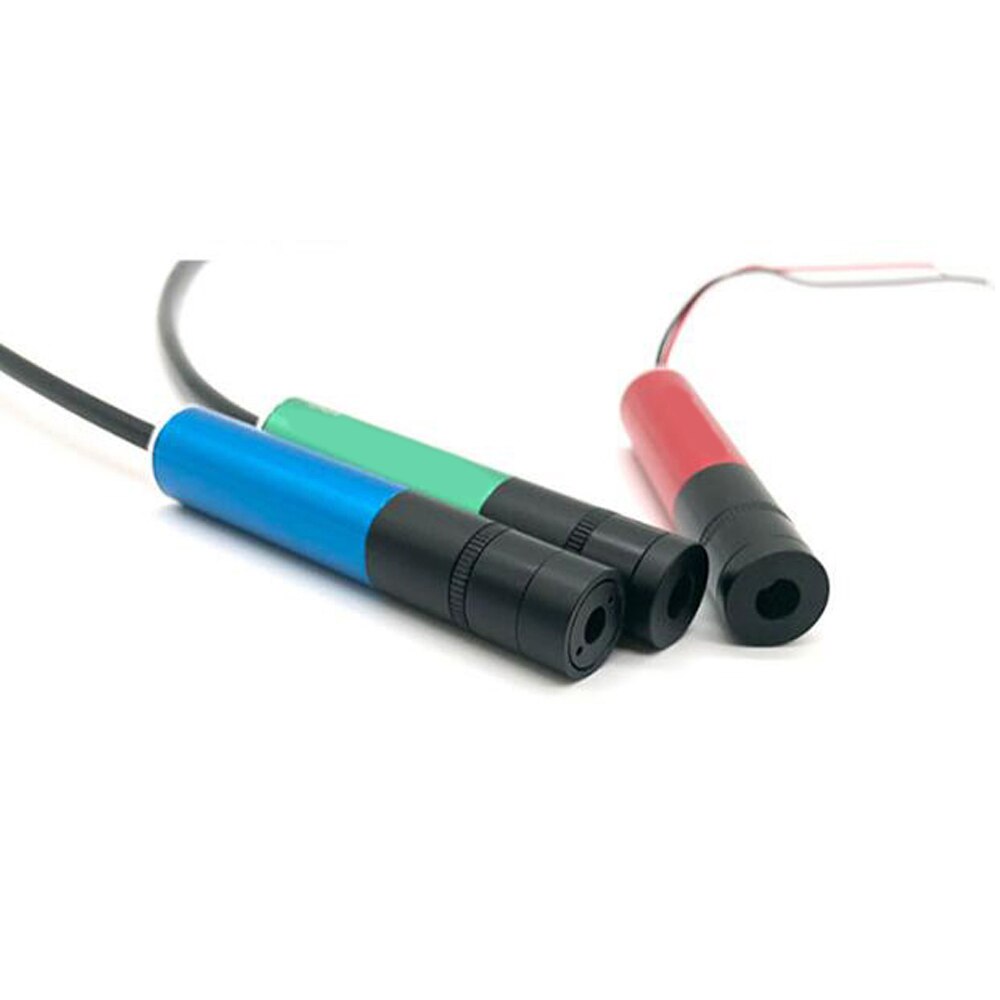

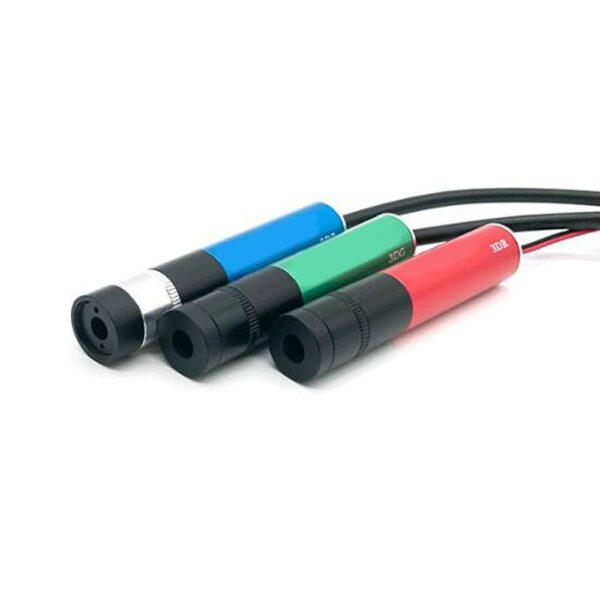

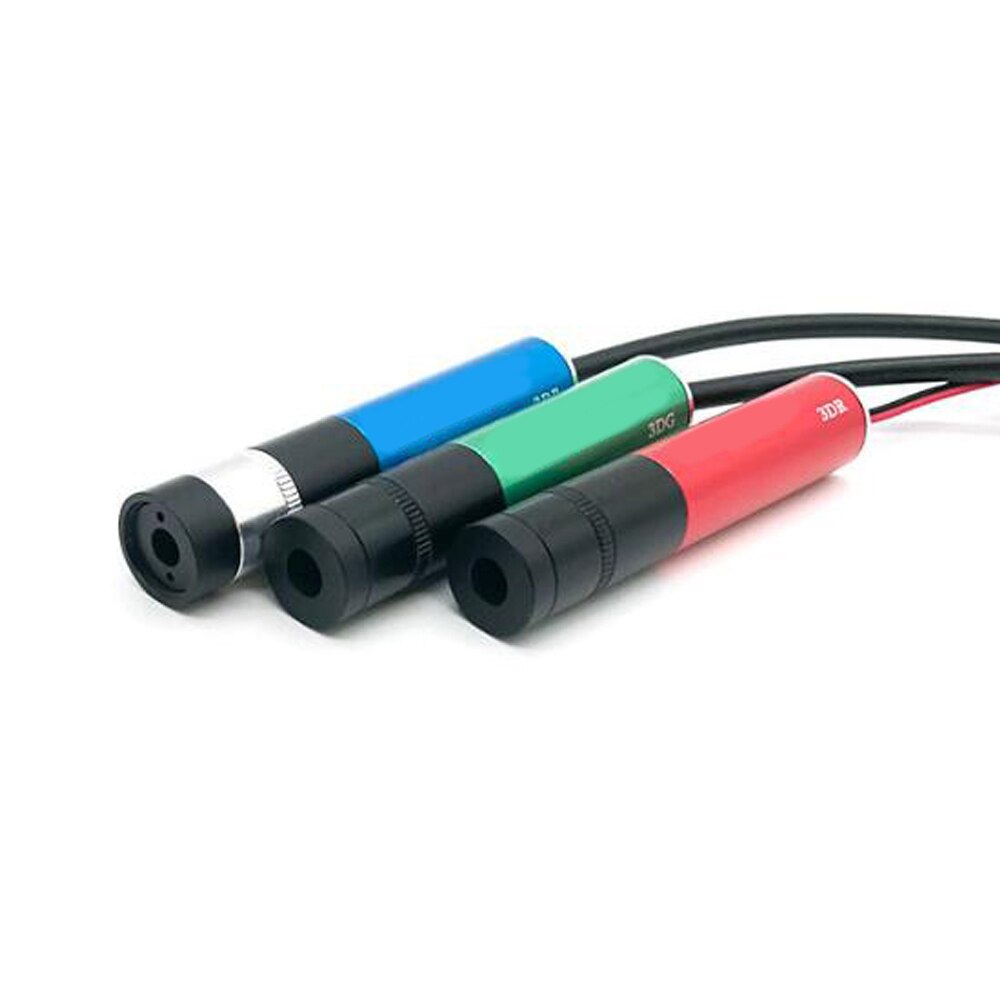

450nm 520nm 638nm 50mW Adjustable Focus Vision Laser Diode Module Optical Module Dot Line Laser DIY
| Title： | 450nm 520nm 638nm 50mW Adjustable Focus Vision 3D Imaging Laser Module Dot Line Integrated Test Laser | ||
| Items: | 3DB3DG3DR | Mode : | CW, PWM (Optional) |
| Wavelength: | 405-638nm (Optional) | Output power: | 50mw (Optional) |
| Working Voltage : | 5-24V | Working Current : | <300mA |
| Working Temperature : | -20 ° ~ + 50 ° | Storage Temperature: | -40 ° ~ + 85 ° |
| Shell Material: | Environmentally Friendly Aluminum Parts (AL 6063 T1) | Mean Time To Failure: | > 8000H |
| Laser Safety: | Class Ⅲa-Class Ⅲb | Spot Size: | Adjustable (120mm finest 30um) |
| Angle Divergence angle: | 7-110° | Lens Type: | Lens Powell Lens |
| Dimensions : | 12x63mm | Drive Circuit : | APC, ACC |
| Package: |
1 * Adjustable Focus Vision Laser Module Optical Module Dot Line Integrated Test Laser |
||
