Description

This is a kind of fine quality single arm carving machine accessory, focus distance adjustable, you can adjust it easily according to your demands. Recommended distance between carving head and carving item is 30-50mm. For protect carvinghead and prolong the service time, we recommended 5 min rest after 2 hours use. You can have a try.

Features:
Recommended distance between carvinghead and carving item is 30-50mm.
Focus distance adjustable, you can adjust it easily according to your demands.
Screw installation, simple and can fixed tightly on the arm, help ensure smooth carving effect.
Strong and powerful, with fine engraving effect and low failure rate.
It can be sculpted very quickly, taking only a few minutes to complete a sculpture.

5.5W:

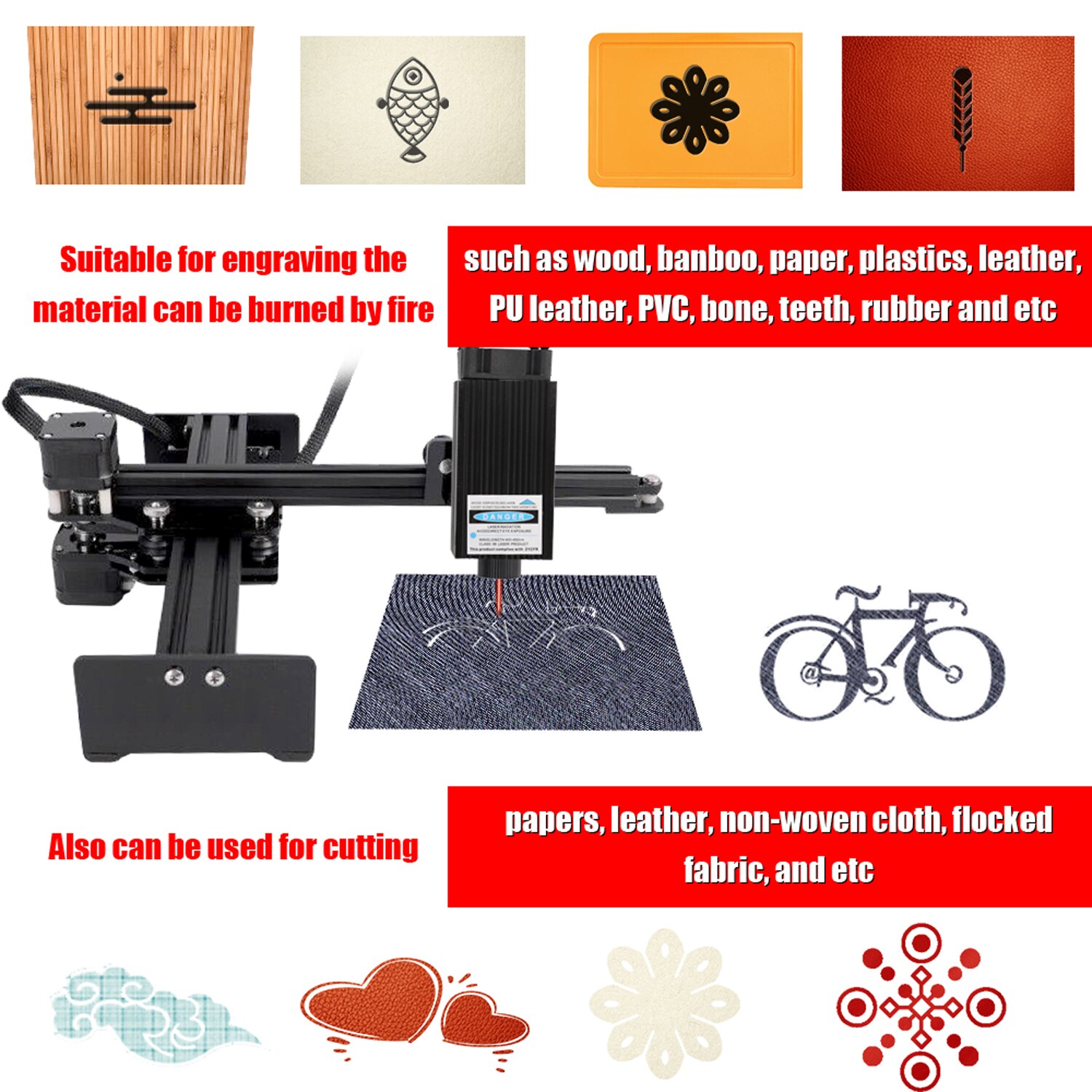

Suitable for engraving the material can be burned by fire, such as wood, banboo, paper, plastics, leather, PU leather, PVC, bone,  rubber and etc..
Also can be used for cutting papers, leather, non-woven cloth, flocked fabric, and etc.. which is no thicker than 1.5mm.

10W:
Suitable for engraving the material can be burned by fire, such as wood, banboo, paper, plastics, leather, PU leather, PVC, bone, rubber, colorful ceramics, colorful aluminum, cobblestone and etc..
Also can be used for cutting paper, leather, non-woven cloth, flocked fabric, and etc.. which is no thick than 2mm.

20W:
Suitable for engraving the material can be burned by fire, such as wood, banboo, paper, plastics, leather, PU leather, PVC, bone, rubber, colorful ceramics, colorful aluminum, cobblestone, some stainless steel, phoneshell, baking varnish, electrophoretic-coated and etc..
Also can be used for cutting paper, leather, non-woven cloth, flocked fabric, and etc.. which is no thicker than 3mm.
Light-tight plastics and black acrylic material is no thicker than 2mm.

Note:
Please check the focus is right or not.
Absolute prohibition directly shooting on eyes, no matter human or animals.
Please wear protective glasses.

Specifications:
Name: Engraving Machine
Wavelength: 450nm
Power: 5.5W, 10W, 20W (optional)

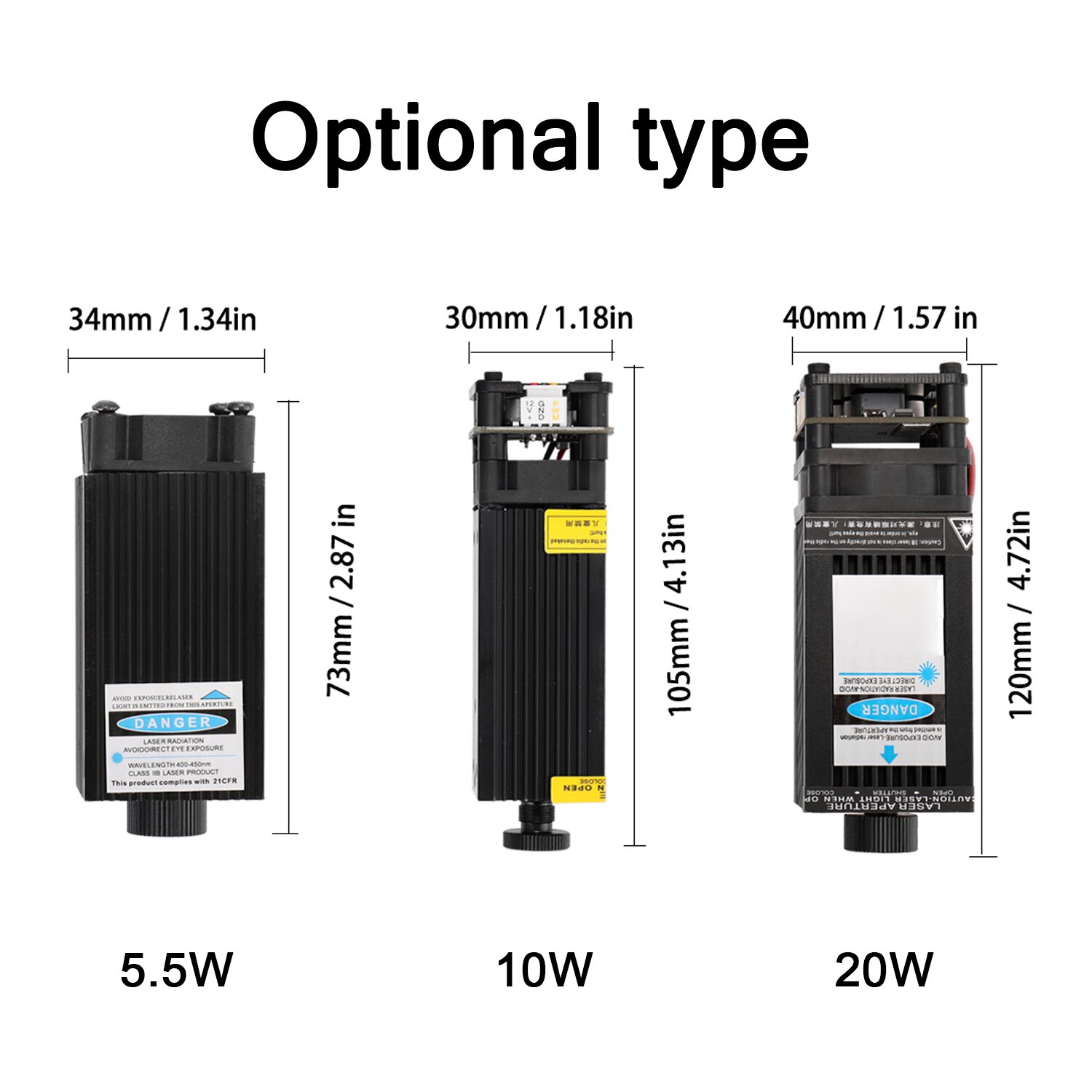

Item size:
5.5W: 73 * 34 * 34mm / 2.87 * 1.34 * 1.34in
10W: 105 * 30 * 30mm / 4.13 * 1.18 * 1.18in
20W: 120 * 40 * 40mm / 4.72 * 1.57 * 1.57in
Item weight:
5.5W: 152g / 5.36ounce
10W: 126g / 4.44ounce
20W: 300g / 10.58ounce
Package size:
5.5W: 170 * 120 * 50mm / 6.69 * 4.72 * 1.97in
10W: 180 * 120 * 35mm / 7.09 * 4.72 * 1.38in
20W: 165 * 120 * 45mm / 6.50 * 4.72 * 1.77in
Package weight:
5.5W: 162g / 5.71ounce
10W: 129g / 4.55ounce
20W: 305g / 10.76ounce

Package list:
1 * Engravinghead
