450nm 40W TTL laser engraving head DIY engraving laser module for Wood Engraving Tool,compressed spot technology

$684.62

9 in stock

SKU: 1005004297462608 Category:

Description

  • Brand Name: LanYuXuan
  • Type: Hand Tool Parts
  • Origin: Mainland China
  • Place of Origin: China
  • Warranty: 1 Year
  • After-sales Service Provided: Online support
  • Spare Parts Type: Laser Head
  • Video outgoing-inspection: Not Available
  • Machinery Test Report: Not Available
  • Marketing Type: New Product 2022
  • Brand Name: LASER TREE
  • Key Selling Points: High-accuracy
  • Showroom Location: None
  • Applicable Industries: Home Use
  • Weight (KG): 0.3 KG
  • Optical Output Power: 40W
  • Wavelength: 450nm
  • Modulation: 0/5-12V TTL/PWM
  • Features: Focal Fixed
  • Application: Engraving
  • After Warranty Service: No service
  • Local Service Location: None

Dear friends, welcome to my shop, if you need other models of this product, you can send me a message and I will send you the product link to buy it! If you have any questions about the product, you can add my whatsapp: +8615674995466, I will reply to you immediately

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{width:750px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-8{overflow:hidden;width:750px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:750px;height:300px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:463.9175257731959px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750.0000000000001px;height:463.9175257731959px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:600px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:600px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:654.3px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:654.3px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-18{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-20{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-21{overflow:hidden;width:373px;height:219.28103277060578px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:373px;height:219.28103277060578px}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:219px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:456.25px;height:219px}

Product Description

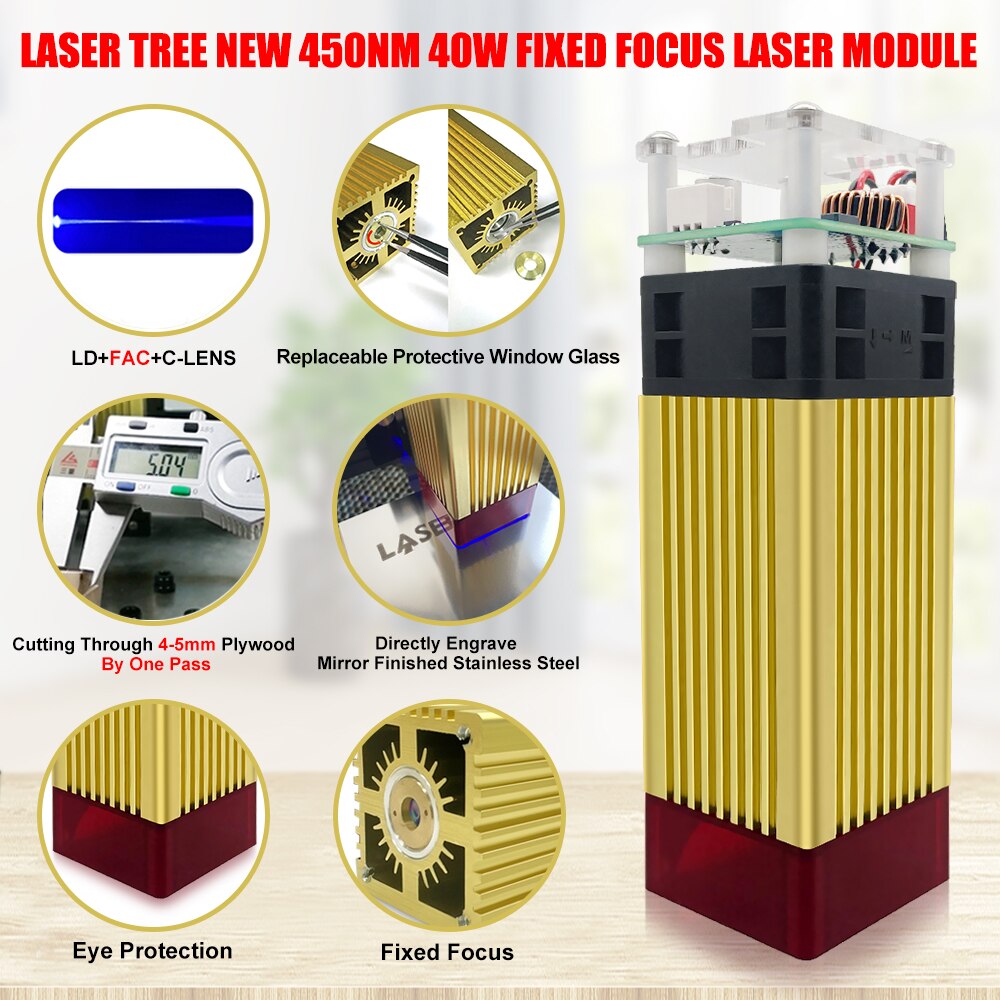

[Main performance]

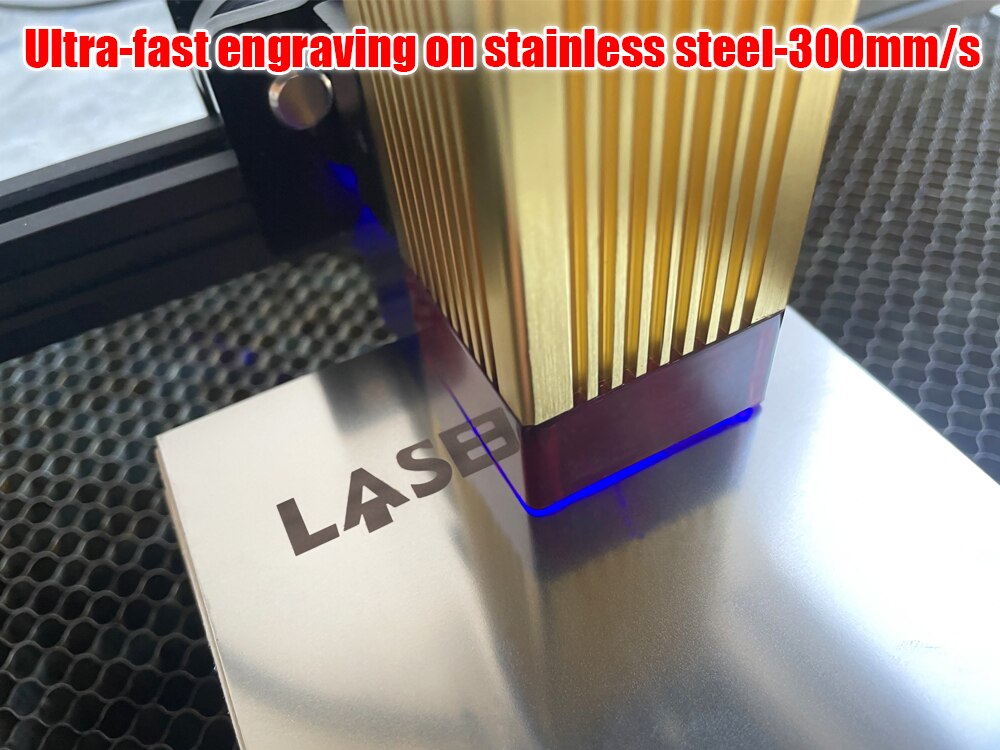

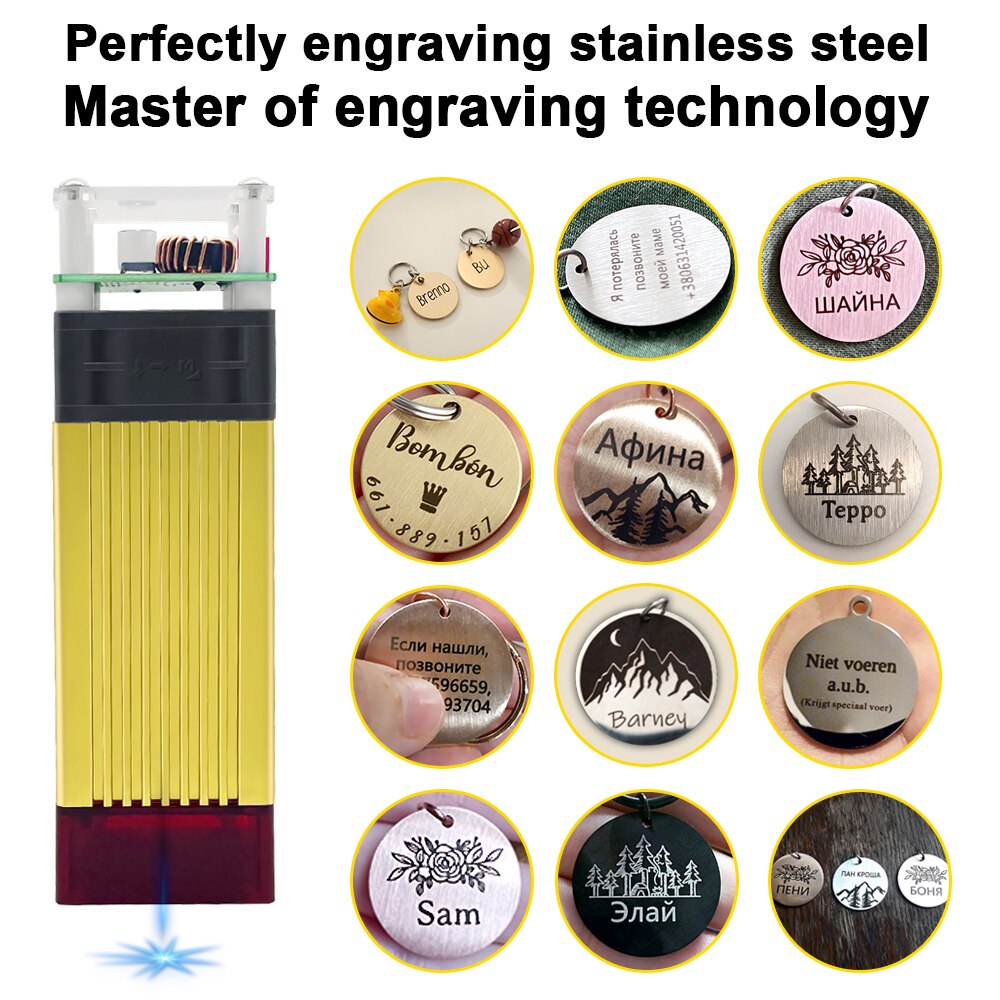

a.Directly engrave mirror stainless steel: no need painting black;

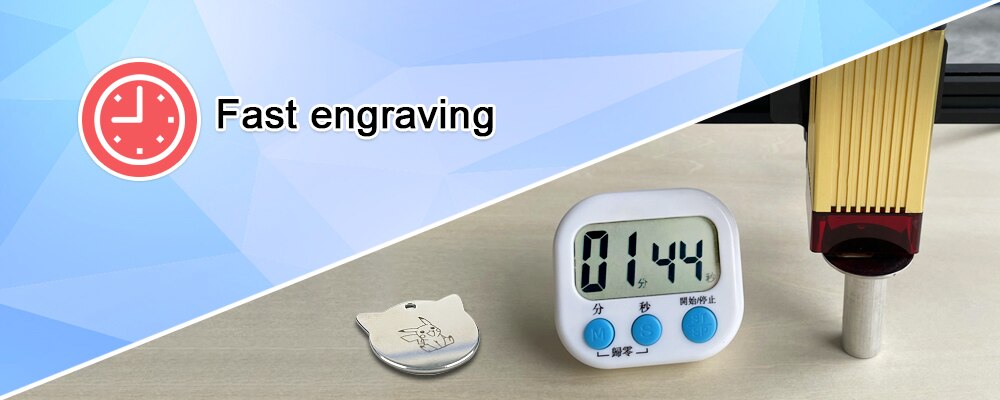

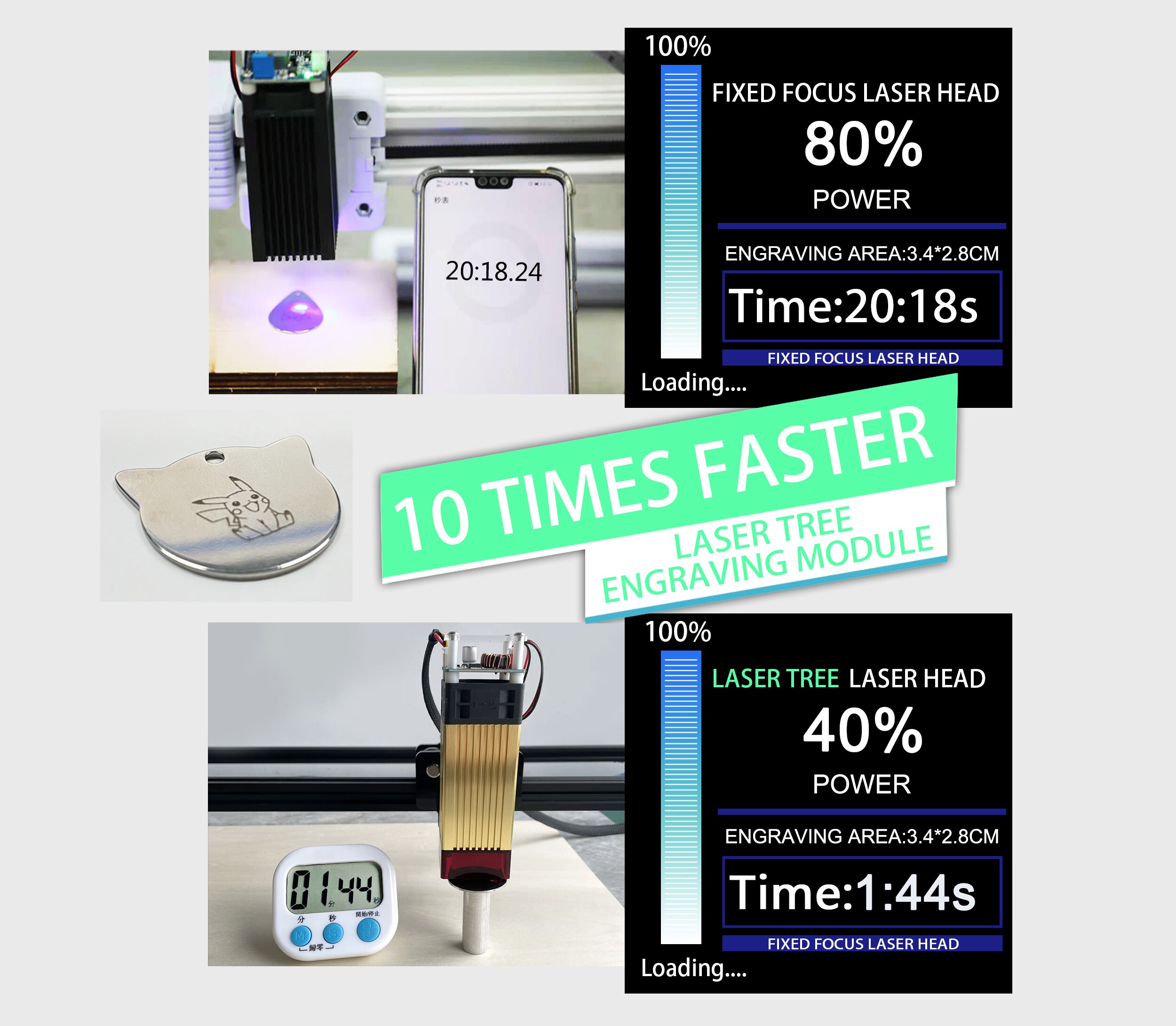

b. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 20mm focus length;

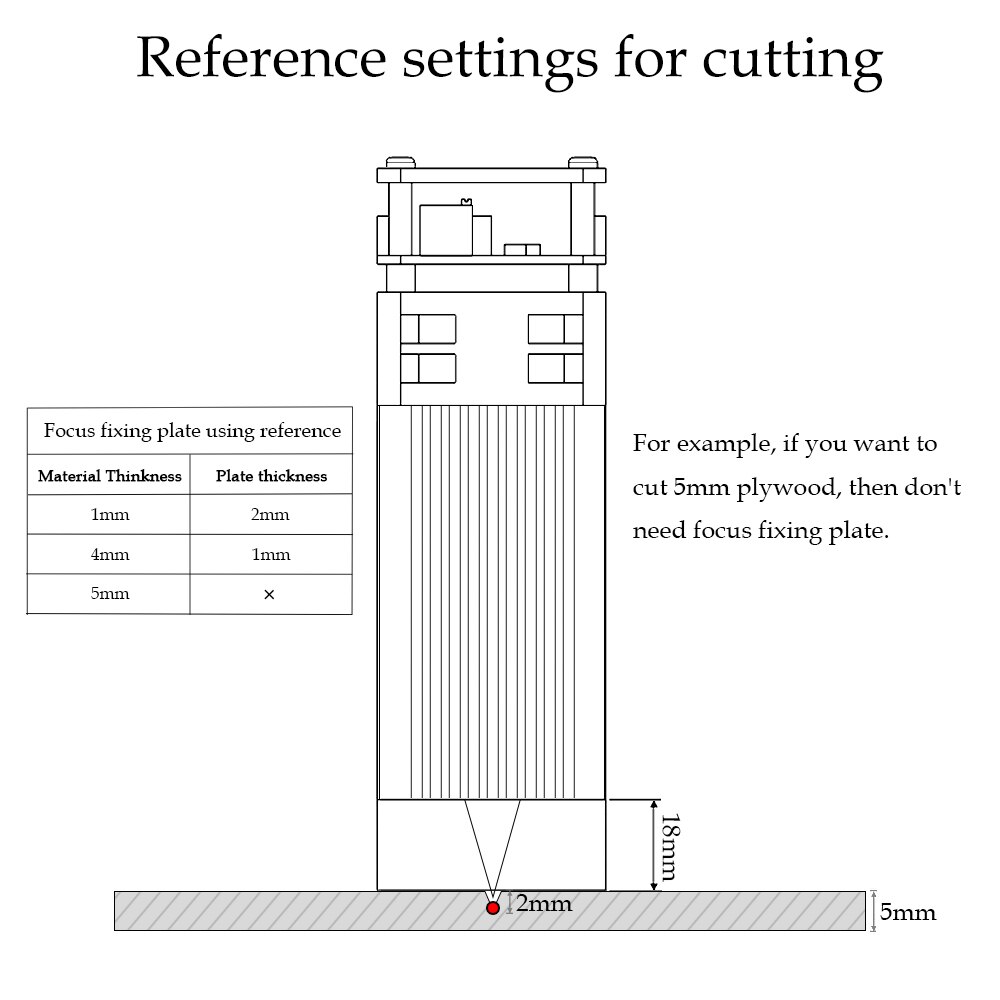

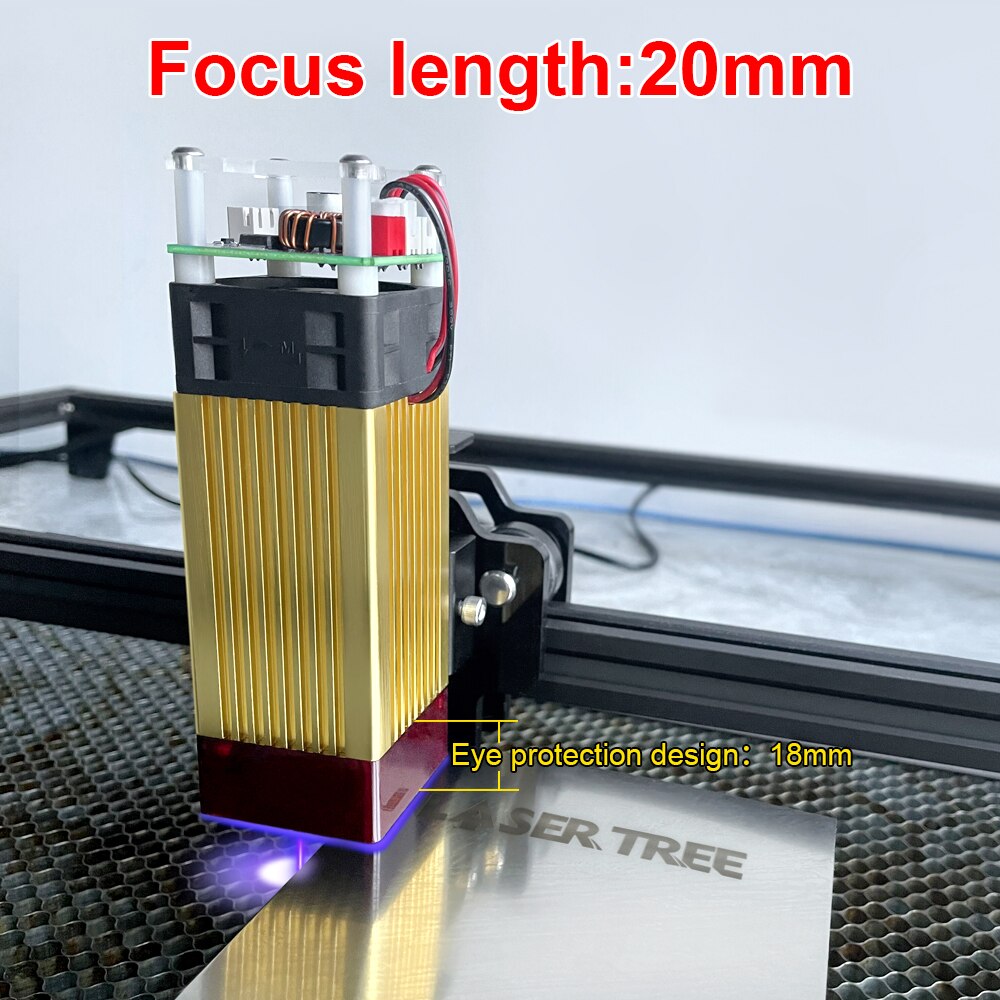

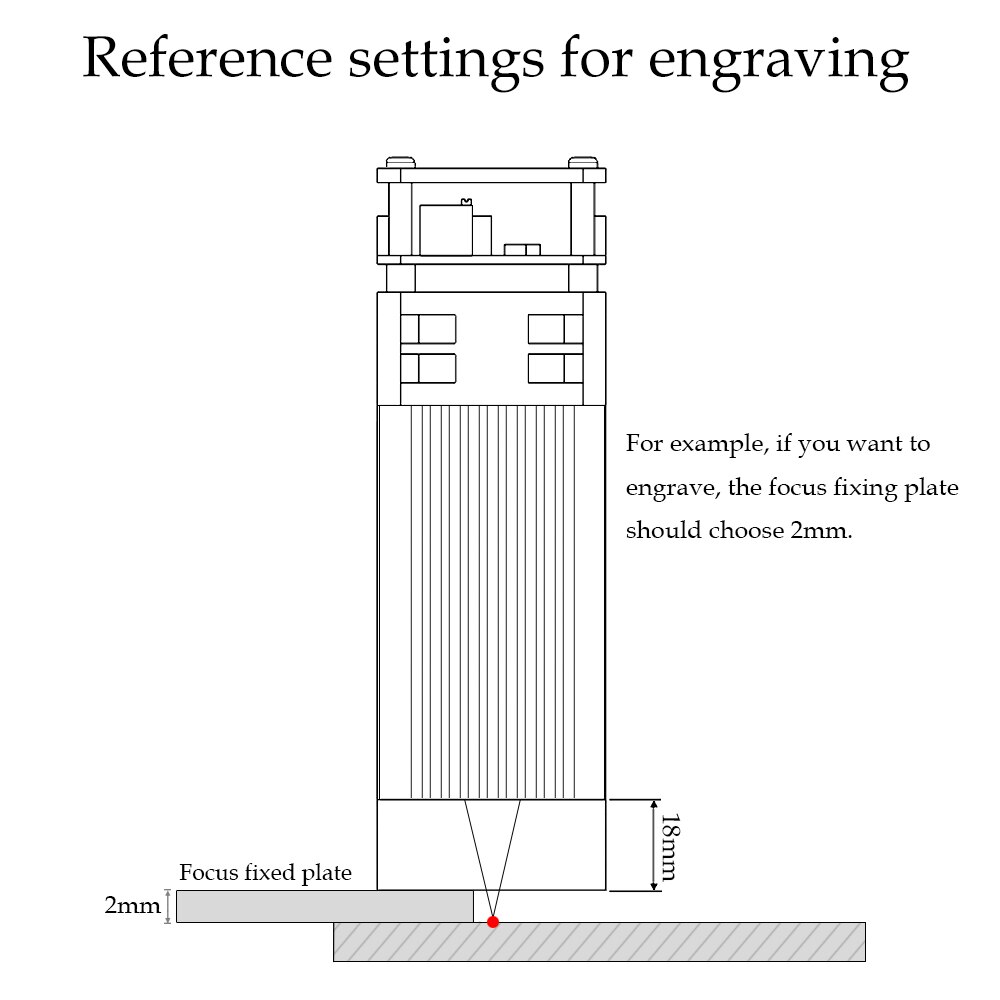

c. Remarkable cutting ability: cutting through 4-5mm thickness plywood by one pass at speed of 2mm/s with 20mm foucs lenght.

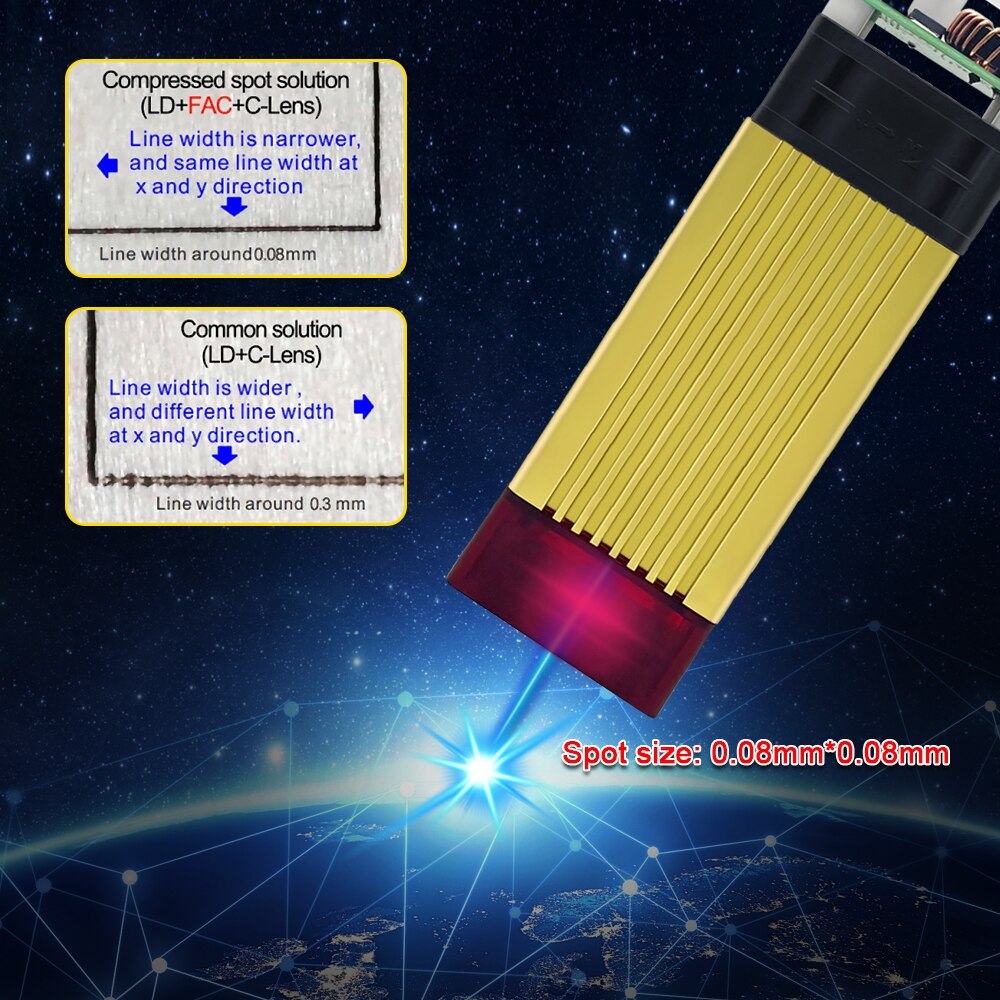

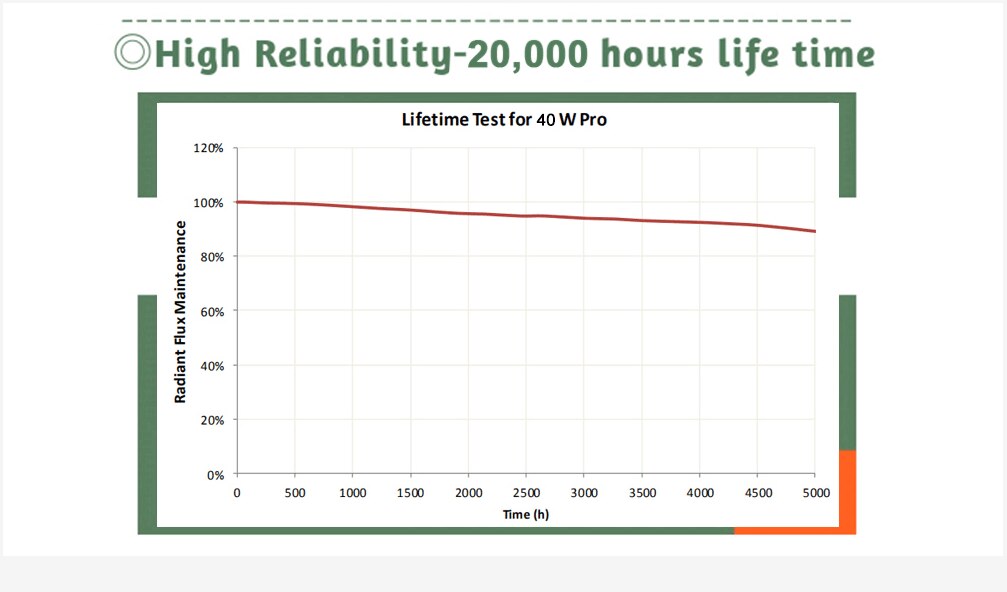

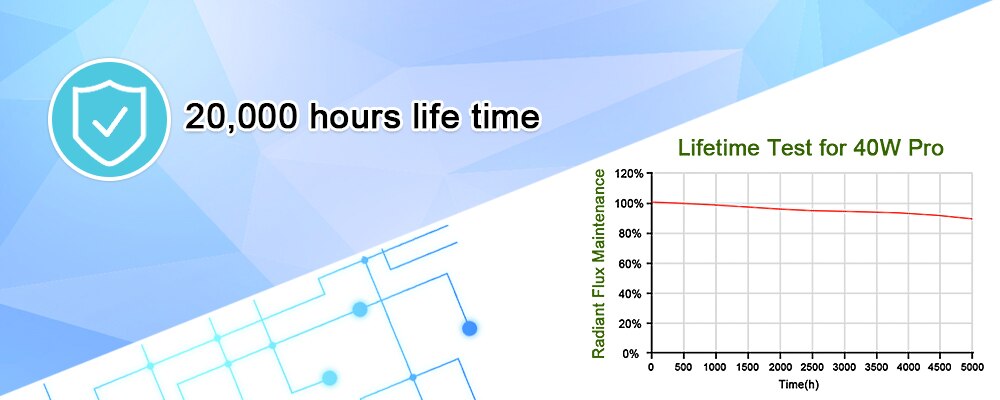

[Original diode with FAC] Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.

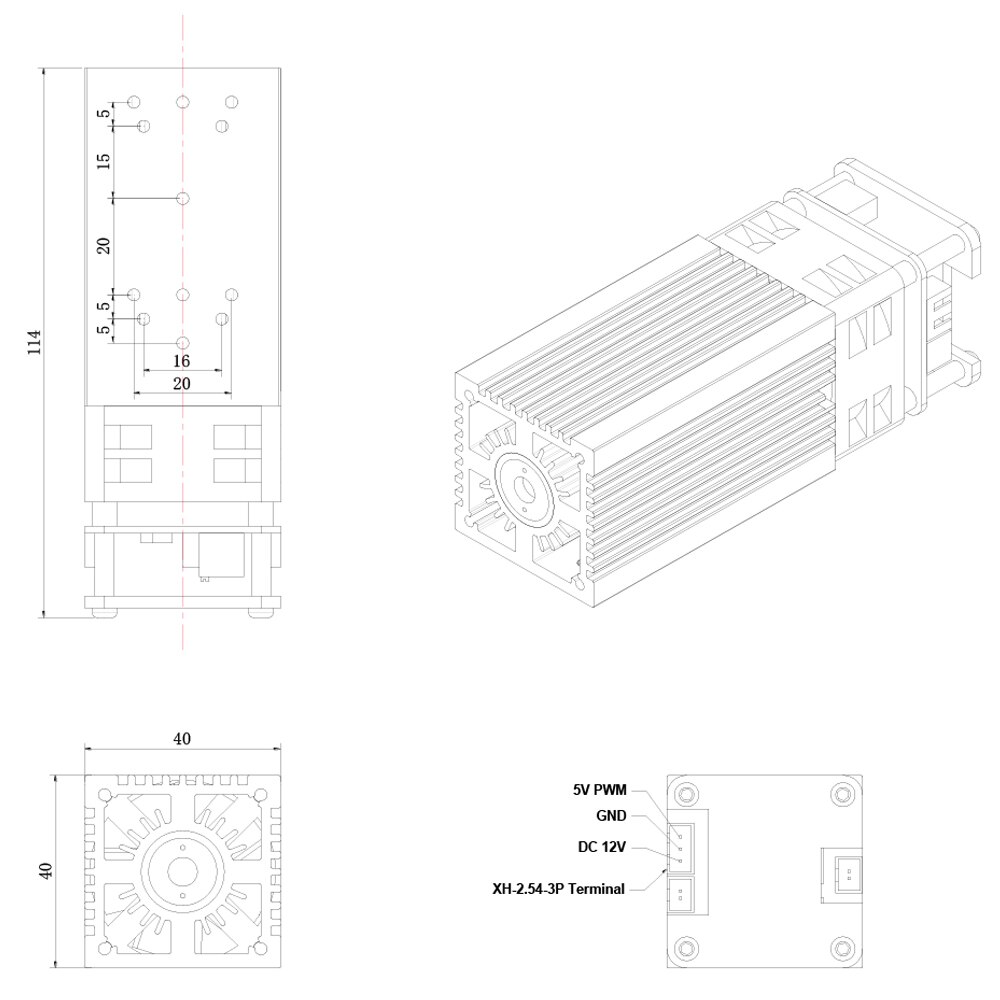

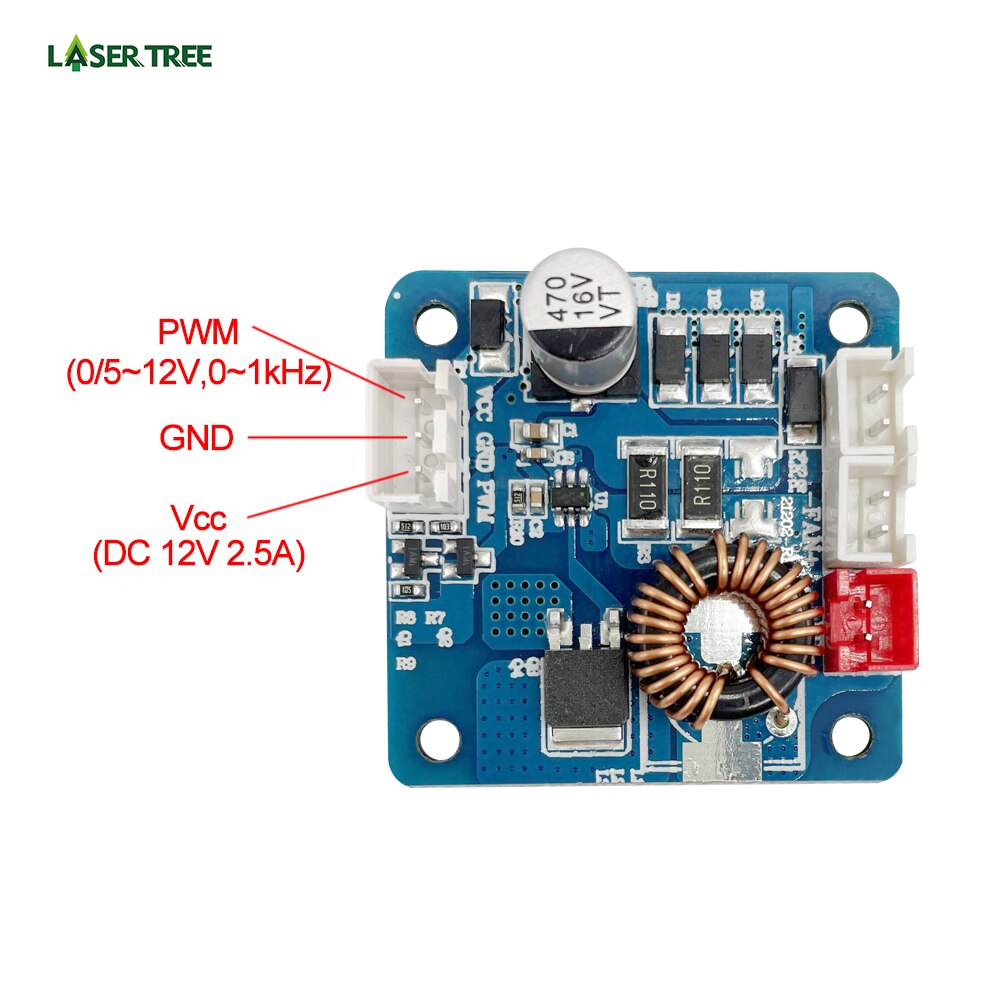

[Easy to use] Wavelength: 450nm, Input: DC 12V 2.5A , Power adjustable: Support 5V PWM modulation, Input port: XH2.54-3P socket,control line installation method: pluggable.Adjustable laser head, easy to adjust, suitable for DIY engraving machine.

[Applicable materials] Ceramics,Bone,MDF,Coated glass,Black acrylic,Mirror stainless steel,Plywood,Brushed stainless
steel,Stone,Bamboo,Leather,Rubber,Alumina,Solid wood, etc.

[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

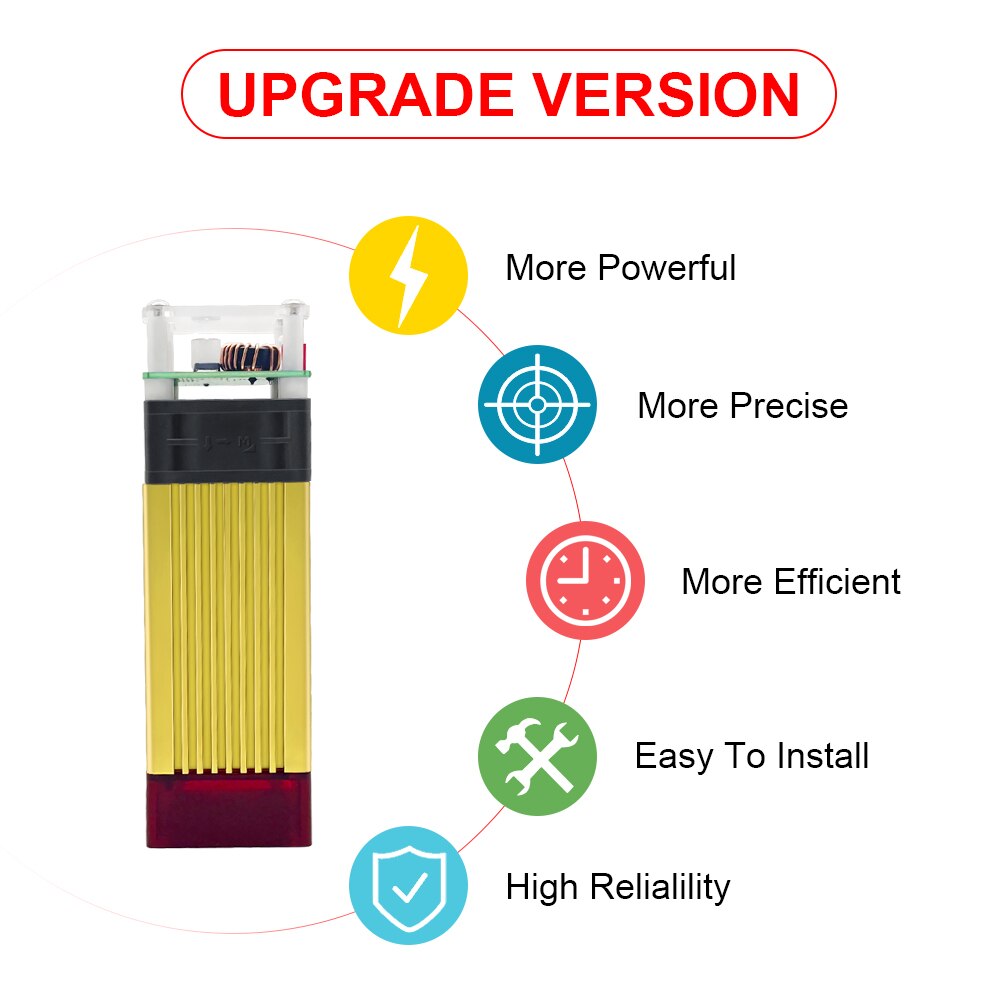

Feature:

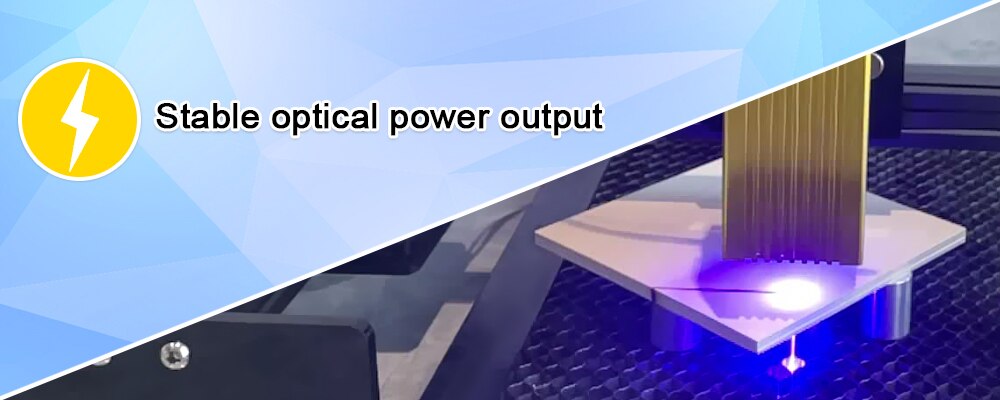

Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.

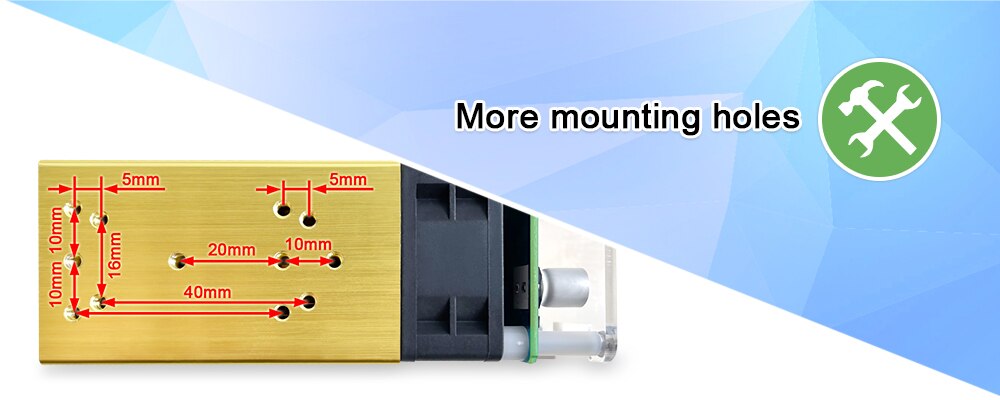

Fixed focus laser head, suitable for three-axis engraving machine, easy to install.

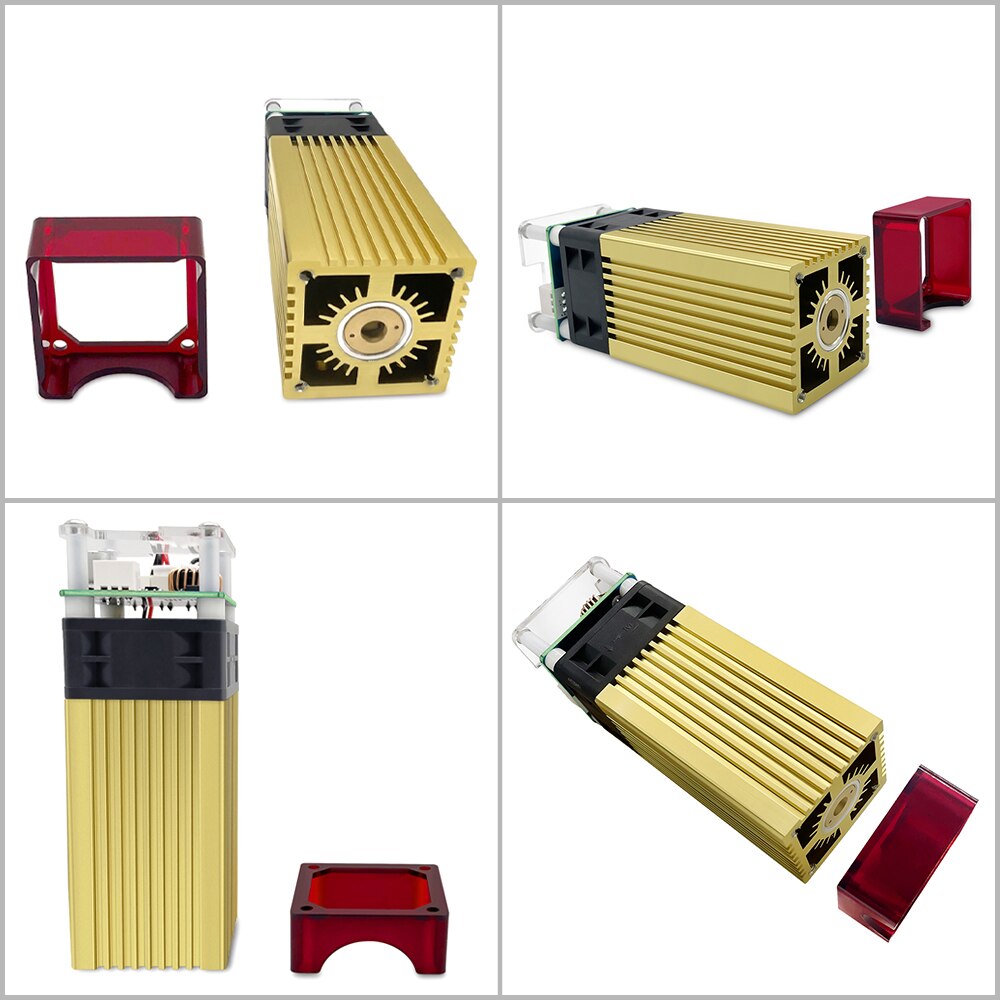

Easy to assemble—small, compact, convenient and easy to install.

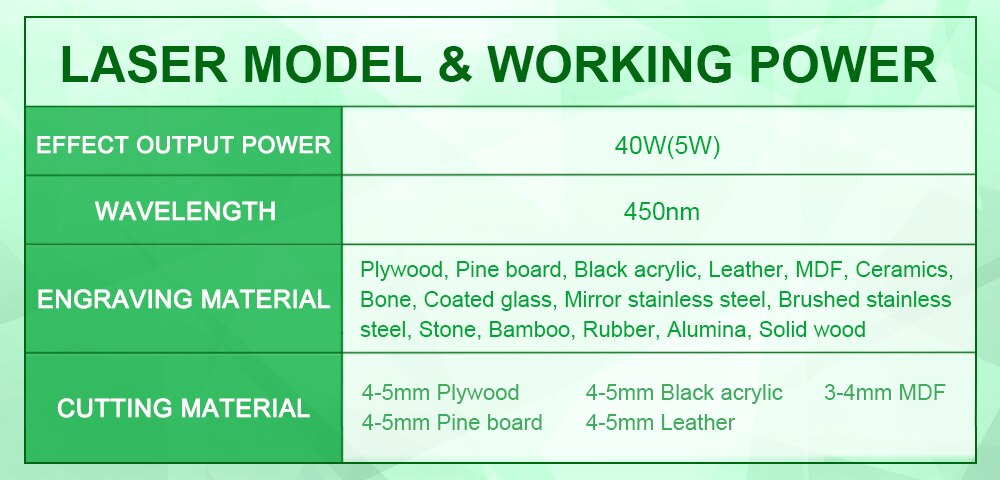

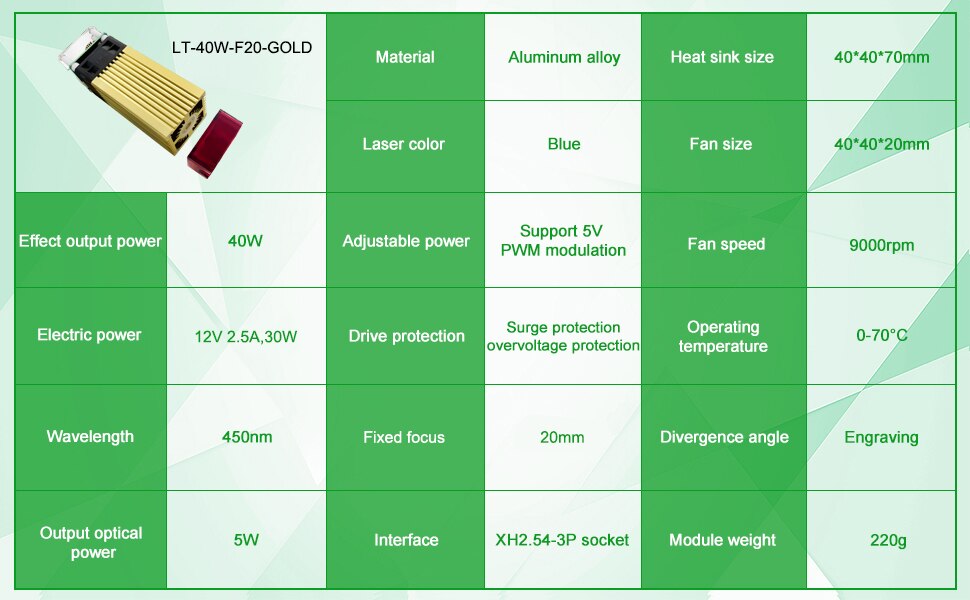

Specification:
Effect output power: 40W-Pro
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 2.5A
Interface parameters: support TTL signal control power

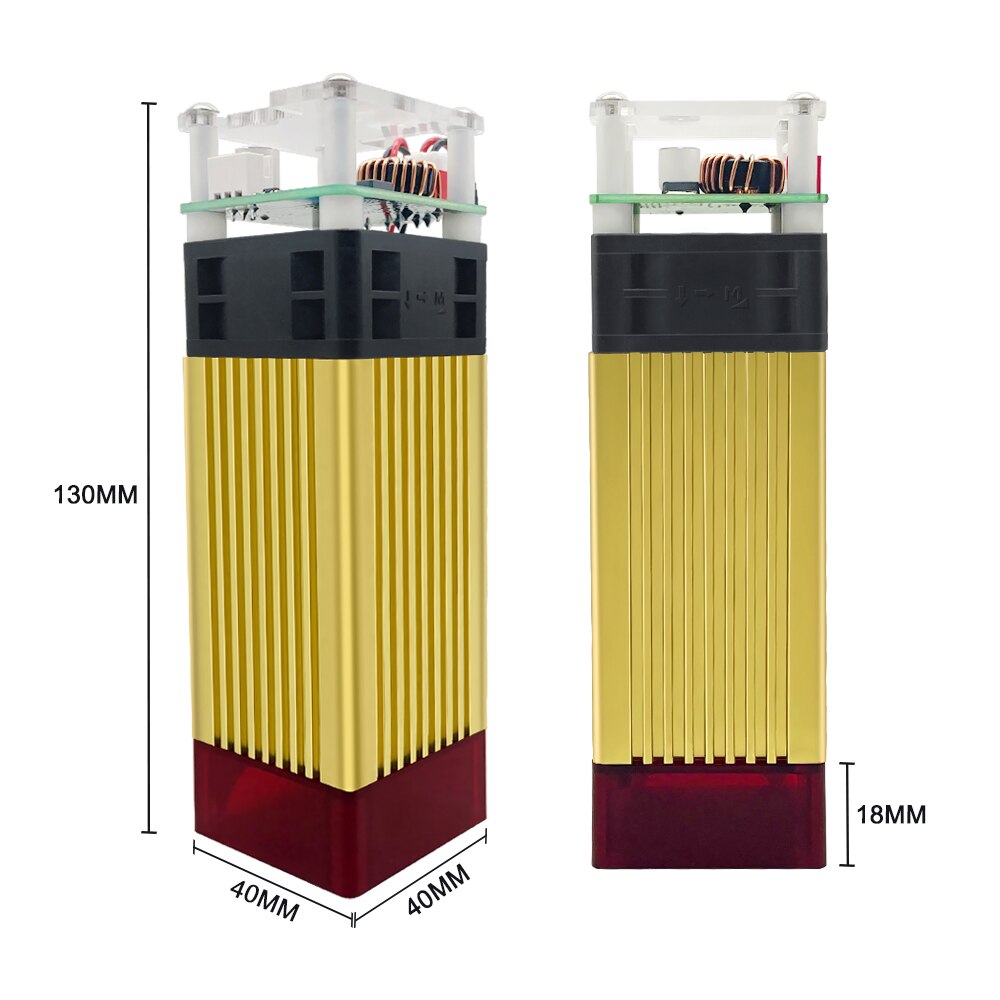

Item size: 12 * 4 * 4cm
Packing size: 14 * 6.2 * 6.2cm
Product weight: 300g

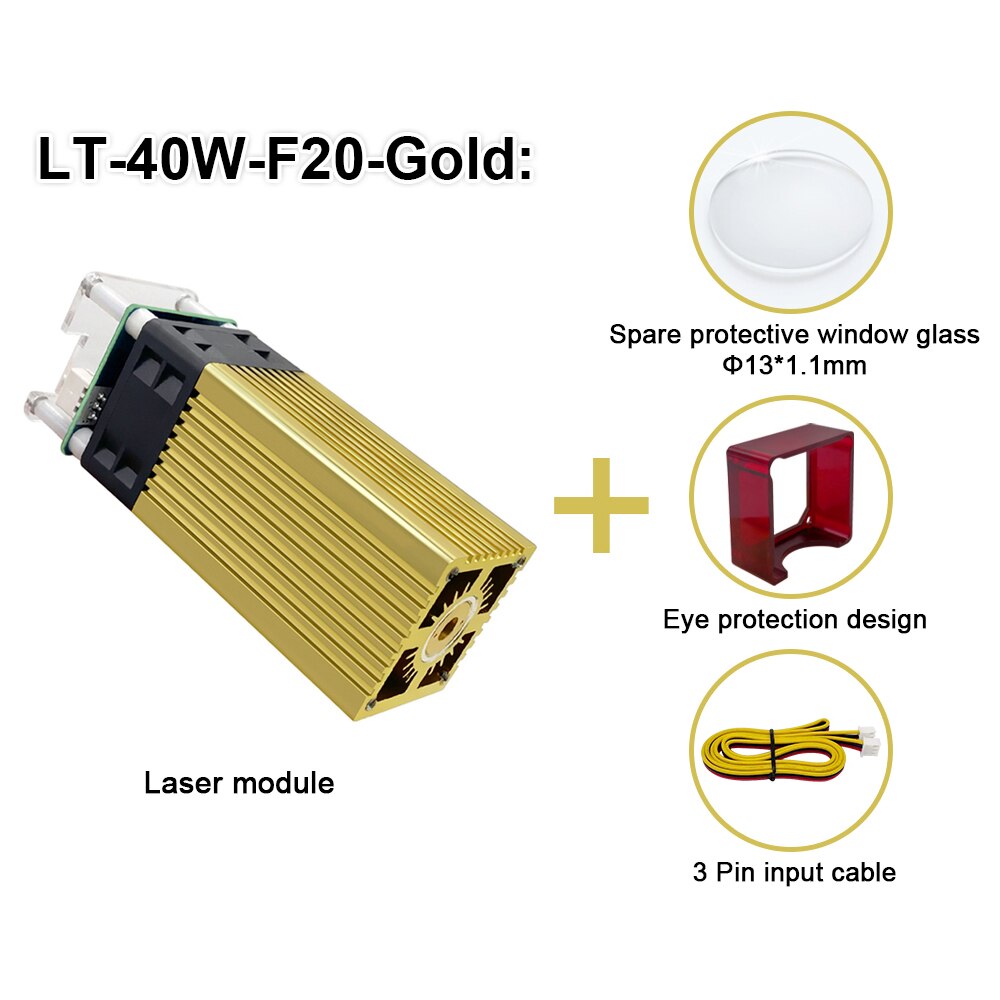

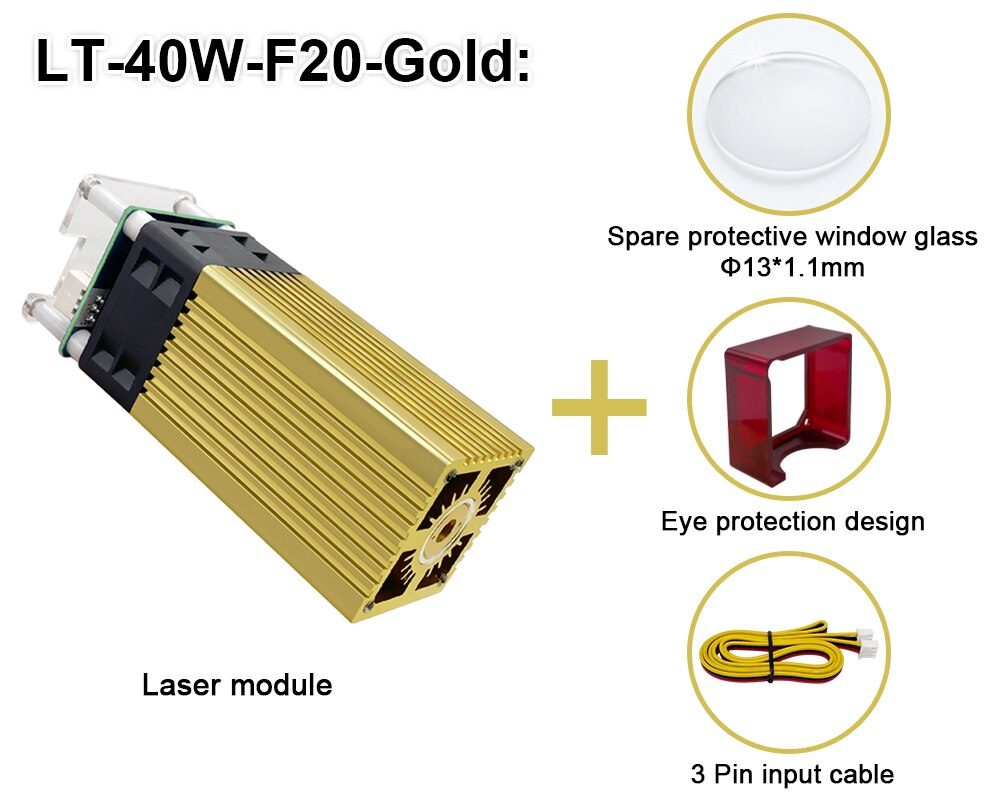

Packing list:

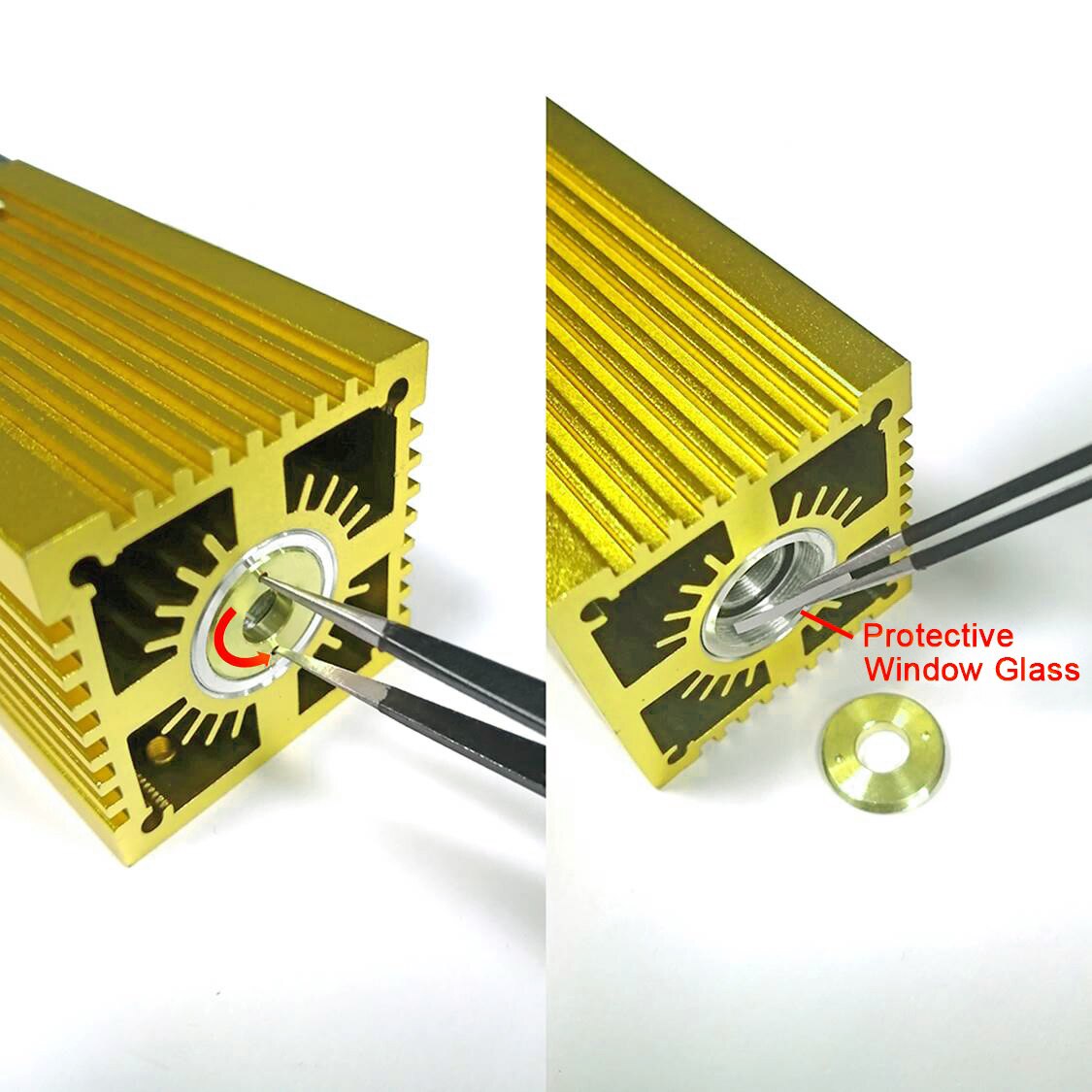

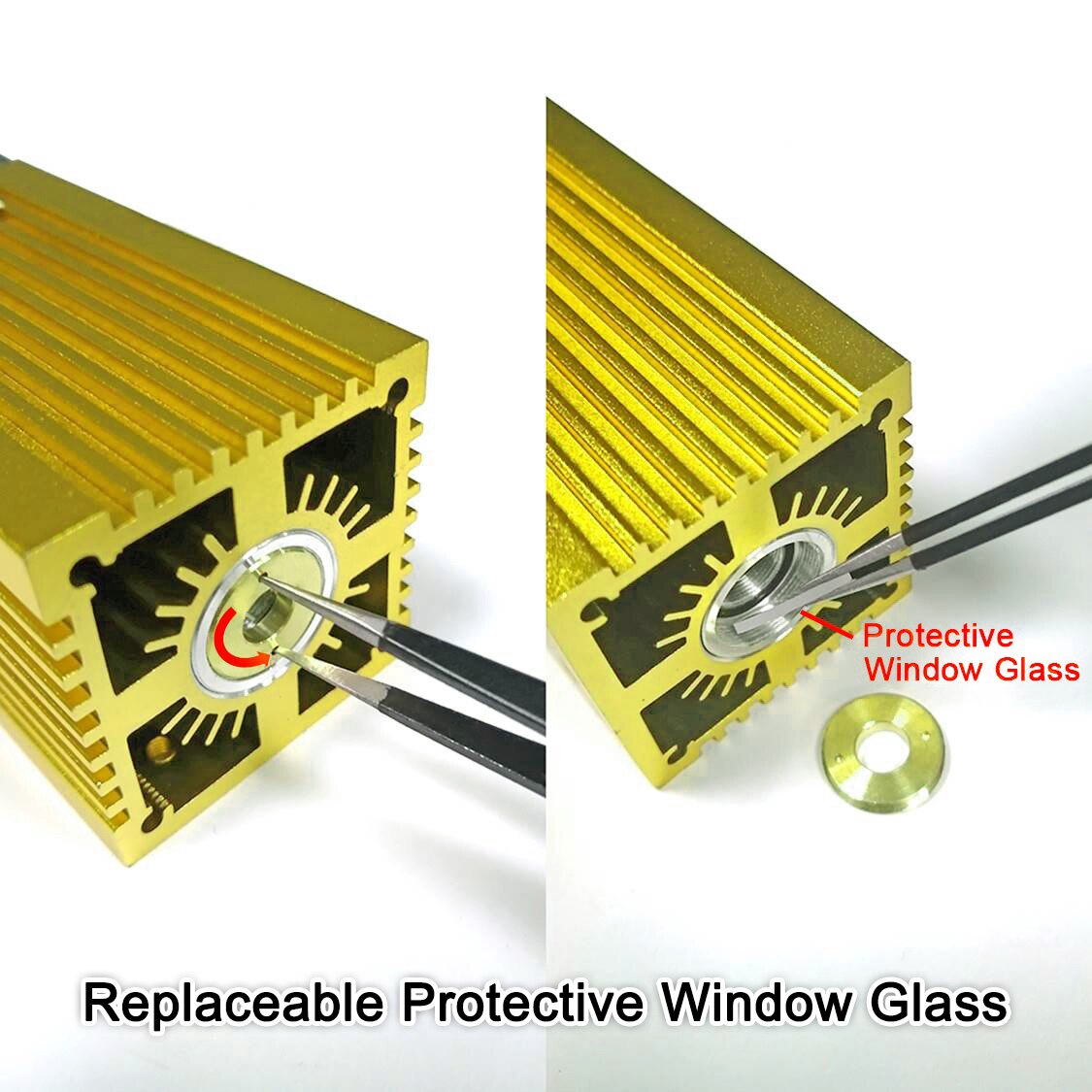

1 *Laser head 1*Eye protection design 1*Spare protective window glass 1*3 Pin input cable
