Description
- Brand Name: ZBAITU
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Origin: CN(Origin)
- Model Number: LASER FF40W
- Electric power: 40W
- Optical power: 5W
- wavelength: 450nm
- spot: 0.08*0.08

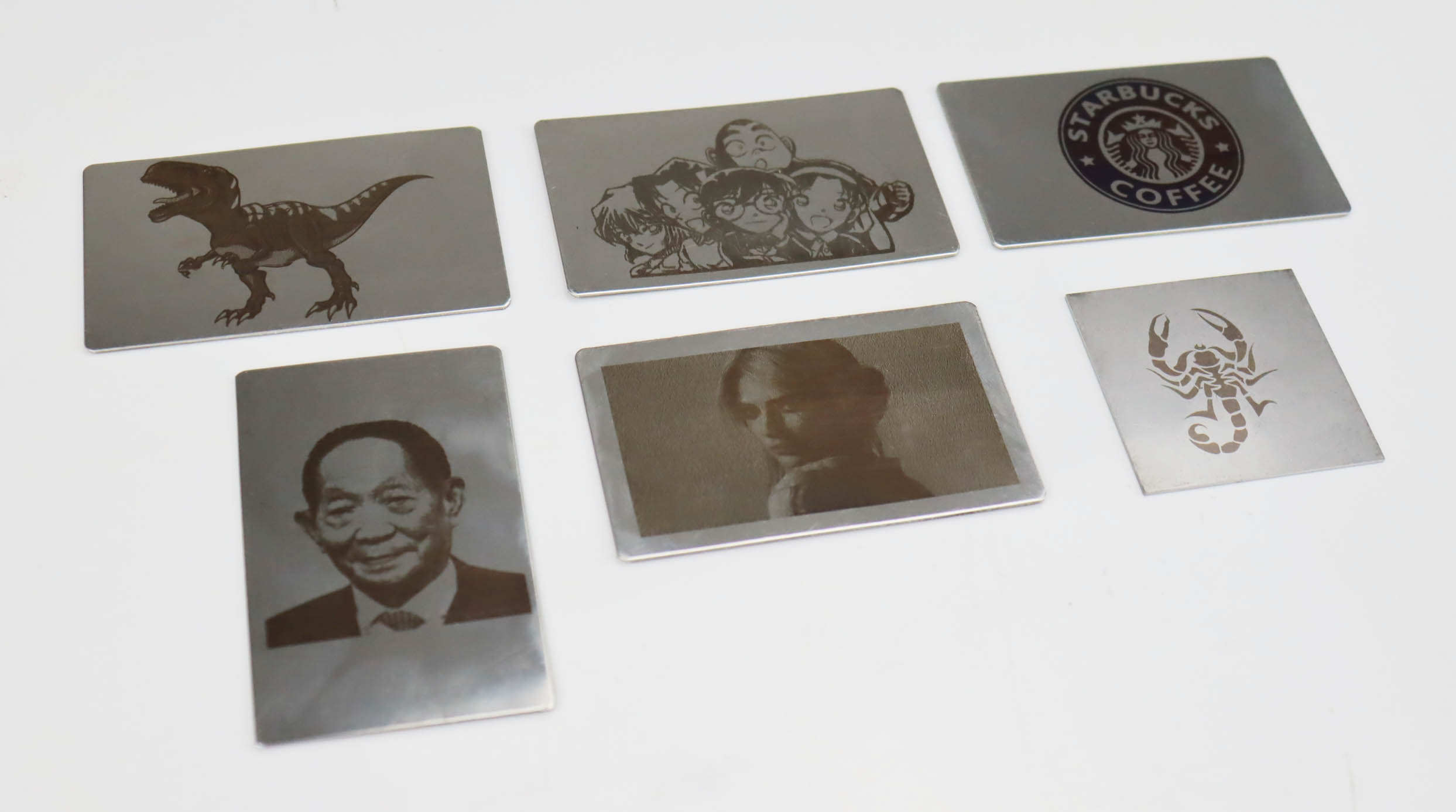

- engraving: yes
- cutting: yes

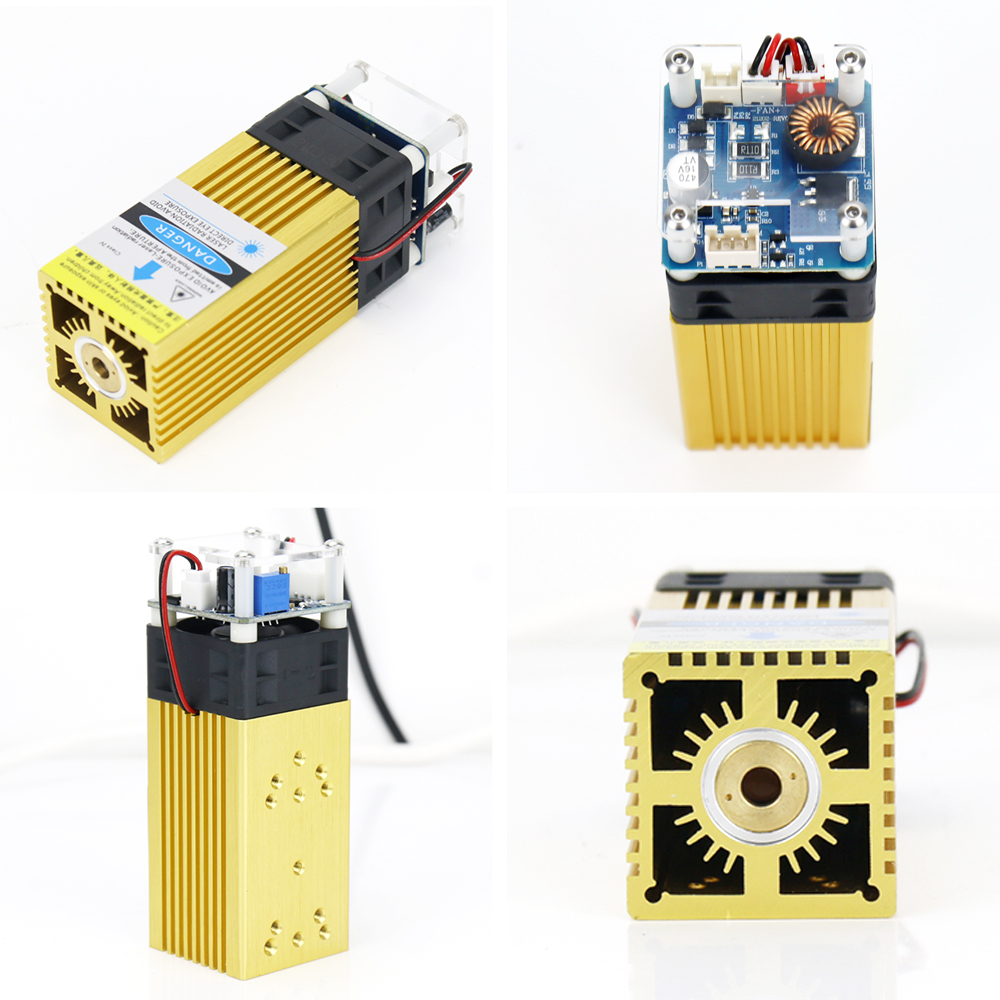

ZBAITU AF40 blue light laser module, with the second-generation FAC compression spot technology, specially designed for engraving machines and CNC machines, and supports faster cutting and engraving
20mm focal length is suitable for engraving graphics, the shorter the focal length, the finer the convergence power

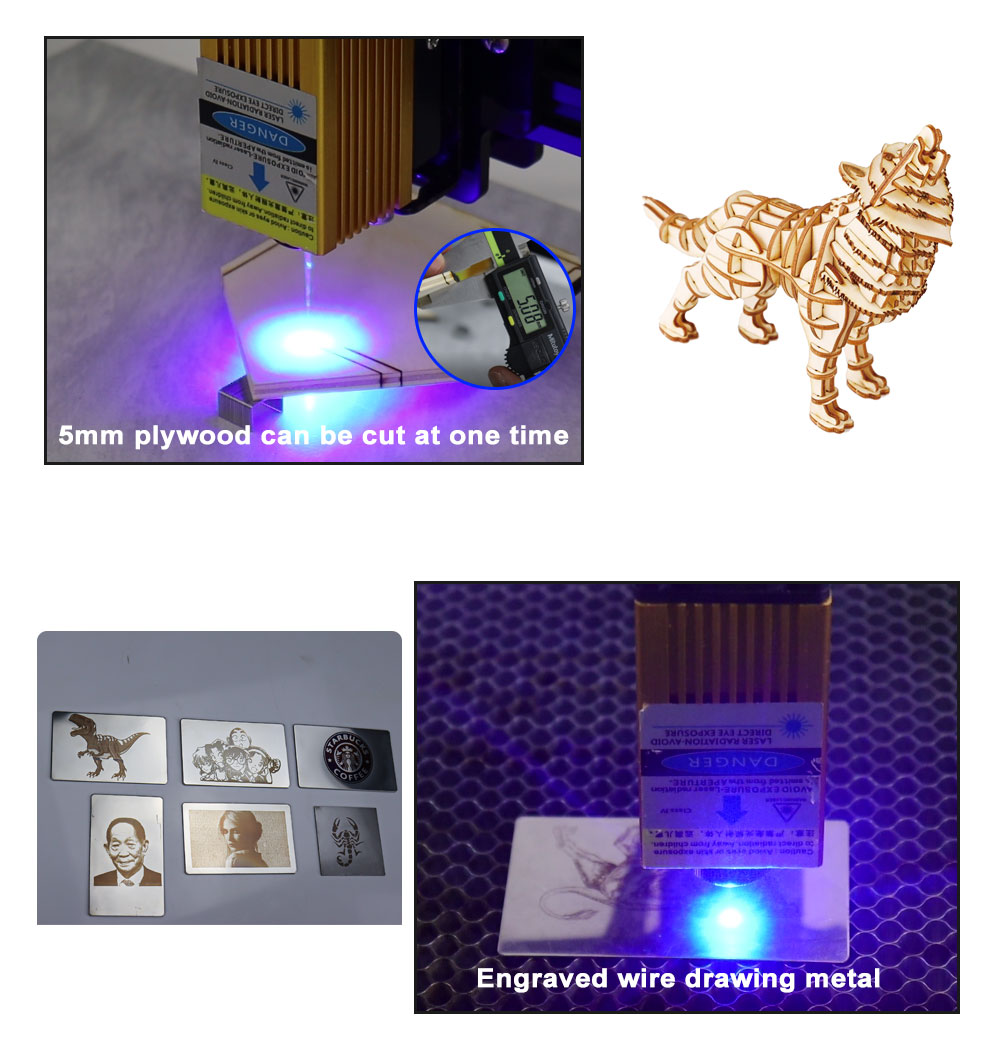

40mm focal length is used for cutting, long focal length light is more slender and can cut thicker boards
Can be used in many kinds of control panels and machines, please contact the buyer for inquiries
|
ZBAITU AF40 Laser Parameters |
||||
|
Parameter |
Unit |
Minimum |
Average |
Maximum |
|
Wavelength |
nm |
450 |
455 |
460 |
|
Output optical power |
W |
4.4 |
5 |
5.2 |
|
Focal length |
mm |
20 |
– |
40 |
|
Focal spot size |
μm |
70 |
80 |
90 |
|
Operating temperature |
℃ |
0 |
– |
60 |
|
Storage temperature |
℃ |
-45 |
– |
85 |
|
Input voltage (DC) |
V |
9 |
12 |
15 |
|
Input current (12V CW) |
A |
– |
1.7 |
2 |
|
Adjustment method |
5V PWM |
|||
|
Warranty period |
1 year |
|||
|
Items |
Parameter |
Items |
Parameter |
|

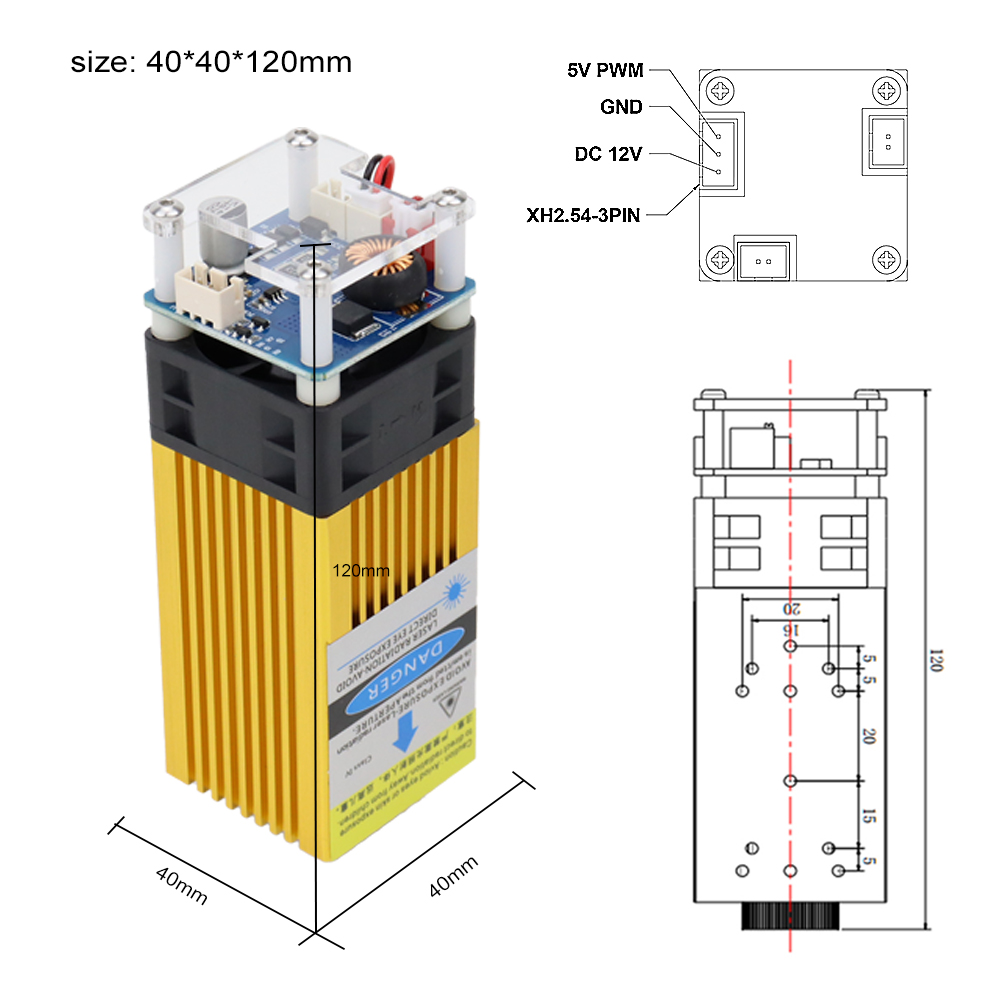

Module size |
40*40*123mm |

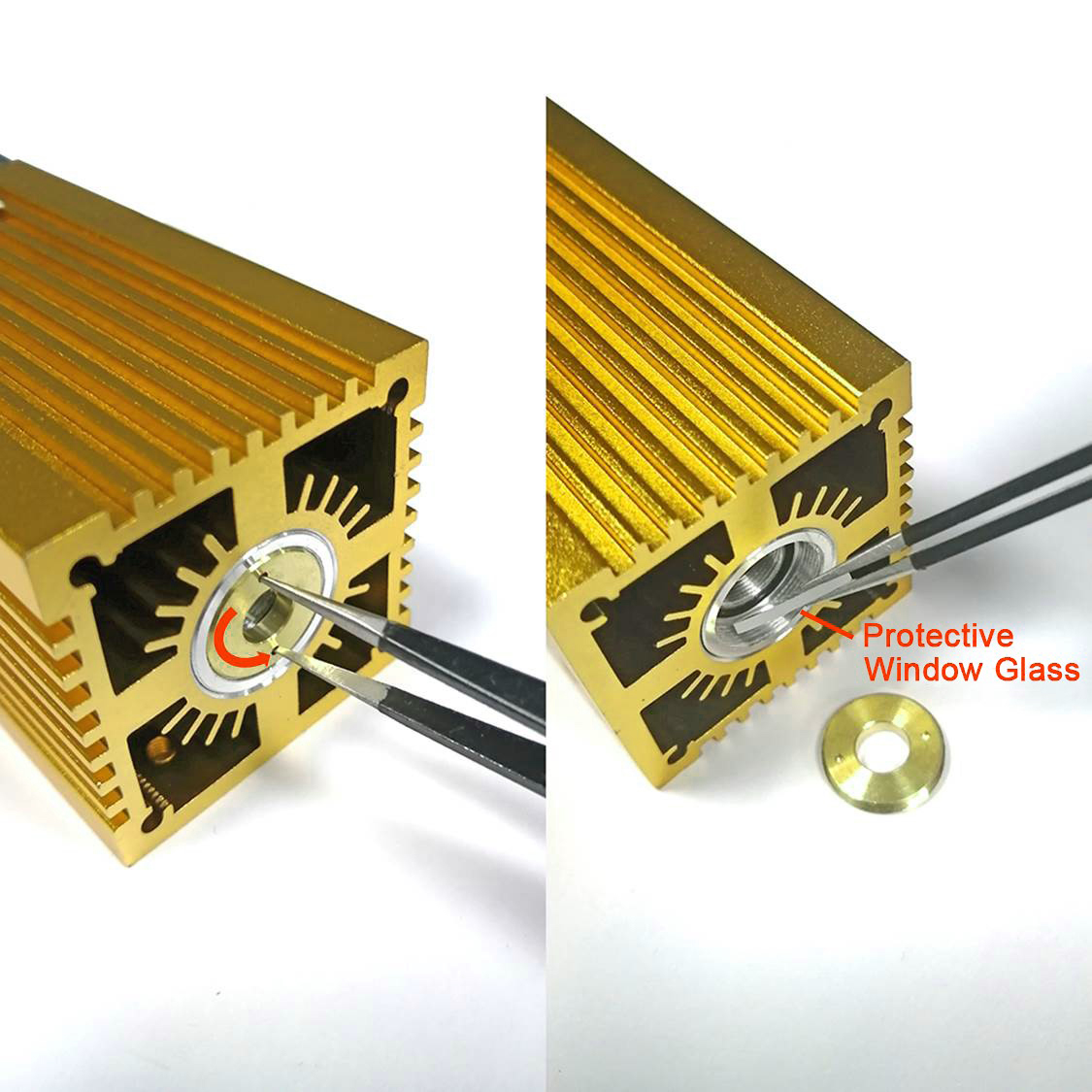

Optical Lens |
φ6/glass |
|
Circuit Board Size |
40*40mm |
Fan |
9000rpm |
|
Circuit Board |
5V PWM |
Product Material |
Aluminum 6061 anode |
|
input port |
XH2.54-3pin socket |
Product Net Weight |
0.24kg |
|
Package size |
18*7*7mm |
Package weight |
0.3kg |
