Description

The company is a laser module manufacturer, specializing in the production and development of various types of lasers, can provide customized solutions for enterprises, and accept customized various types of laser modules. The products have high technical content, stable quality and long service life.

Module features:

[Compression technology] FAC compression technology, small laser focus, faster engraving speed and higher precision, wood engraving speed can reach 6000mm per minute, stainless steel engraving speed 3000mm per minute

[New technology] The original divergence angle of the laser tube optical axis is 45 degrees. After FAC beam shaping, it is compressed to 8 degrees, which greatly improves the utilization rate of light, so that the laser is focused to achieve high-efficiency light transmission. The density is greatly improved

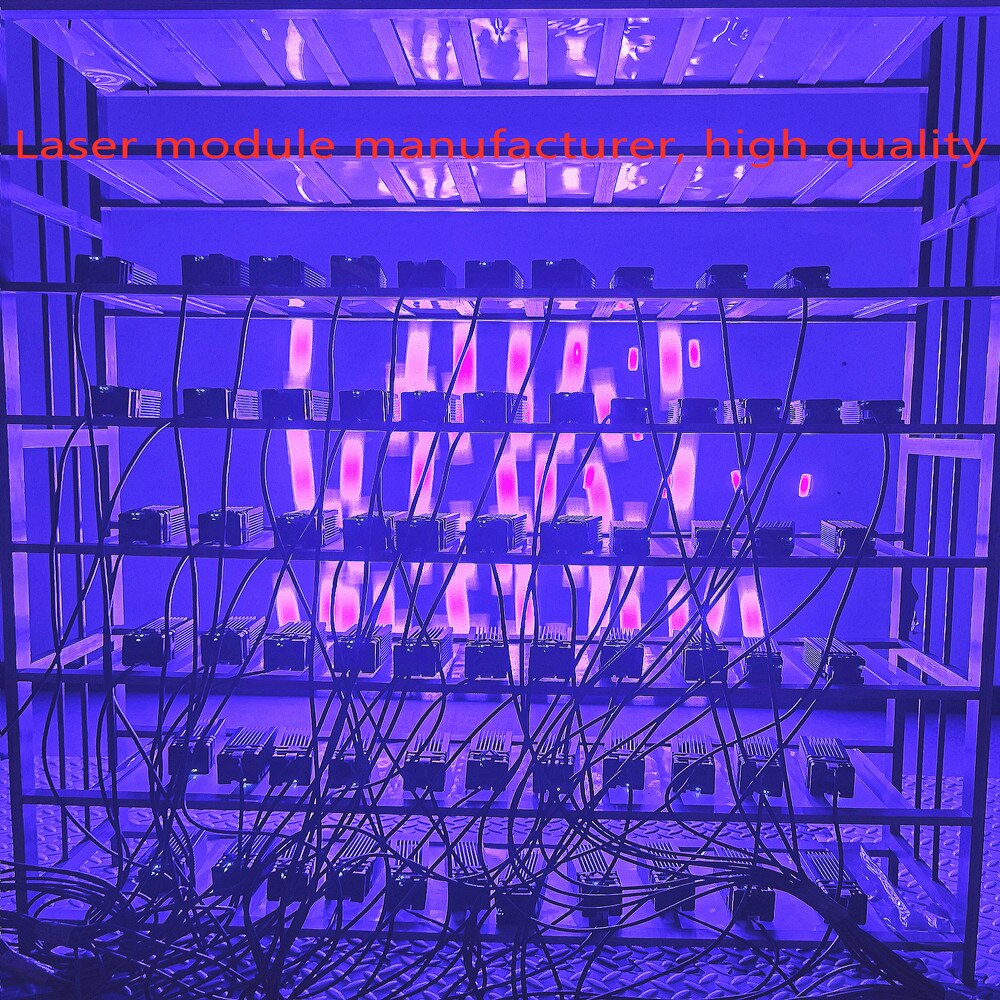

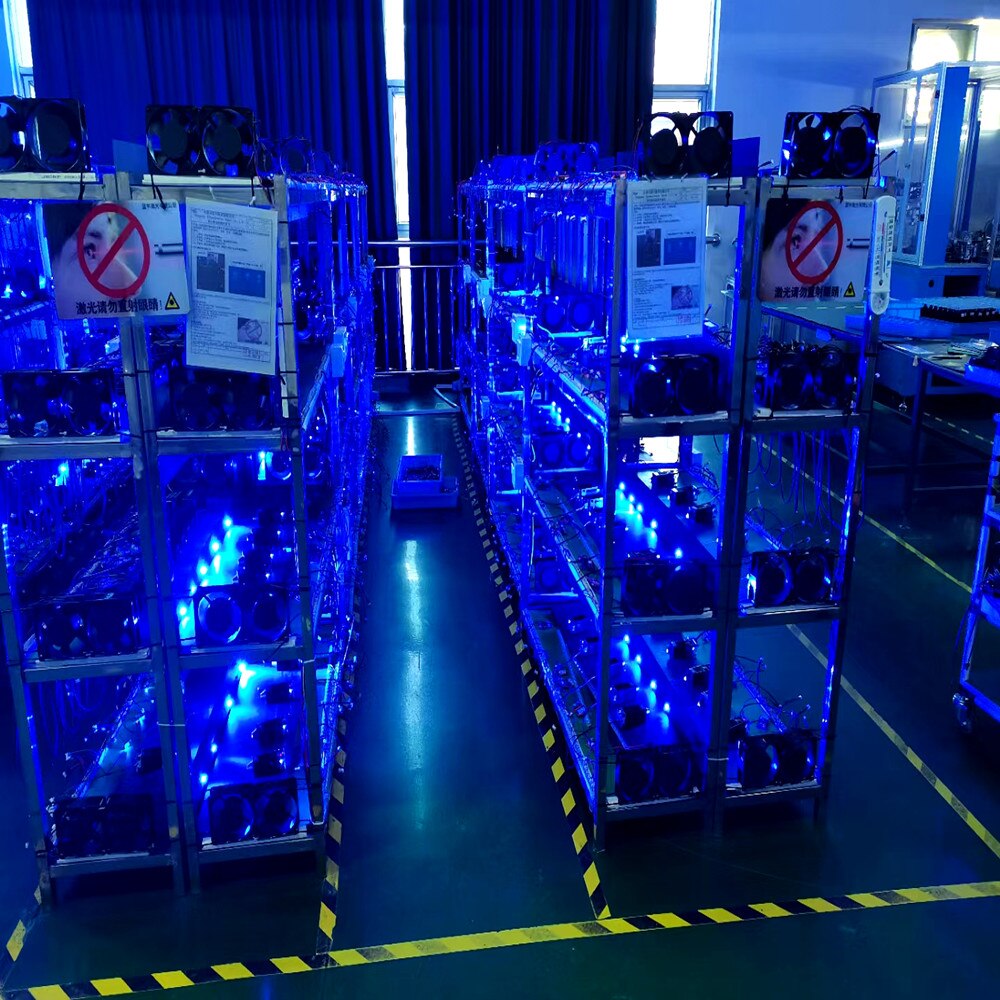

[Quality Assurance] The laser beam has high control accuracy, and the 100% power aging test is performed within 48 hours after leaving the factory to confirm that the heat dissipation of the module meets the requirements. It can ensure stable quality and long-term work.

[Fixed focus is better] Different from focusing, the fixed focus will be more superior. The fixed focus is set in the best working state during the CNC laser head production process, and the spot of the fixed focus laser module is smaller and more accurate.

[Original diode] This CNC laser module is manufactured by high-tech equipment, high-quality original diode, to ensure the service life, the use process is smooth, the engraving is accurate and lasting, the effect is clear and obvious, the conversion speed is faster and more accurate

Module specifications:

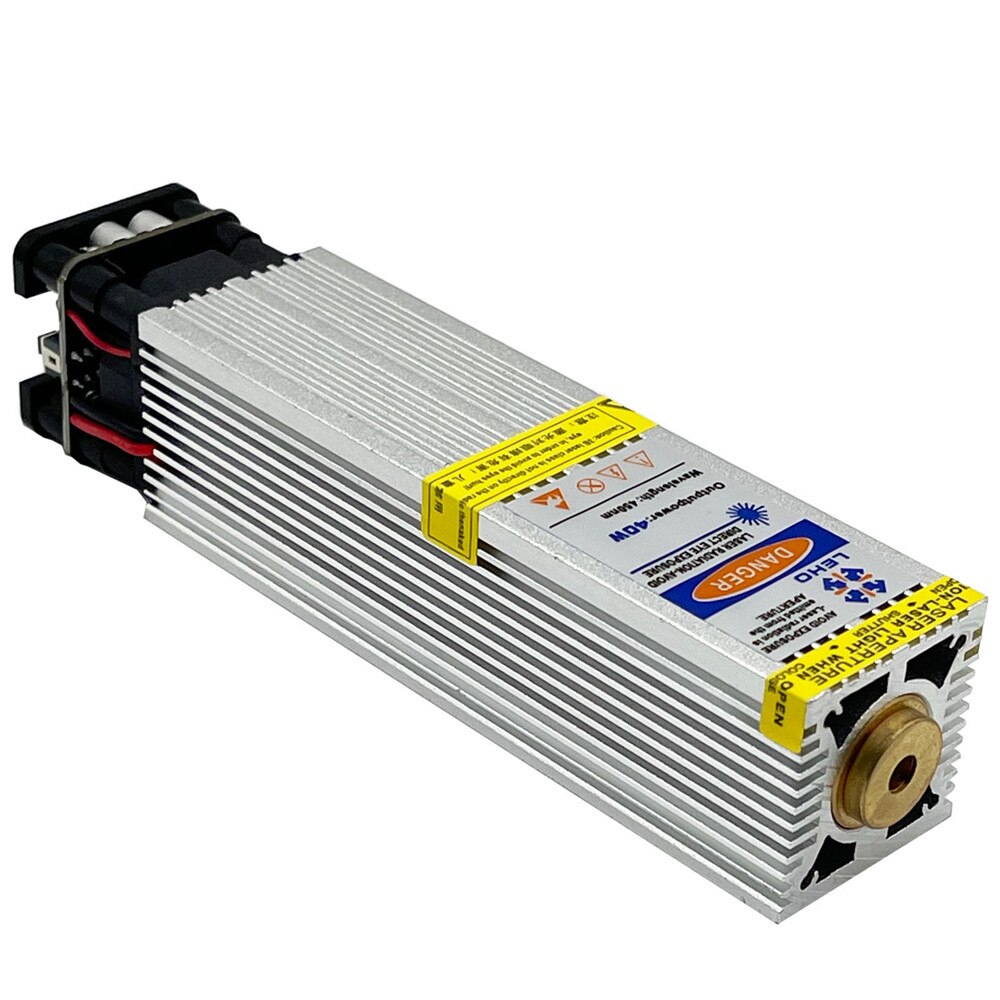

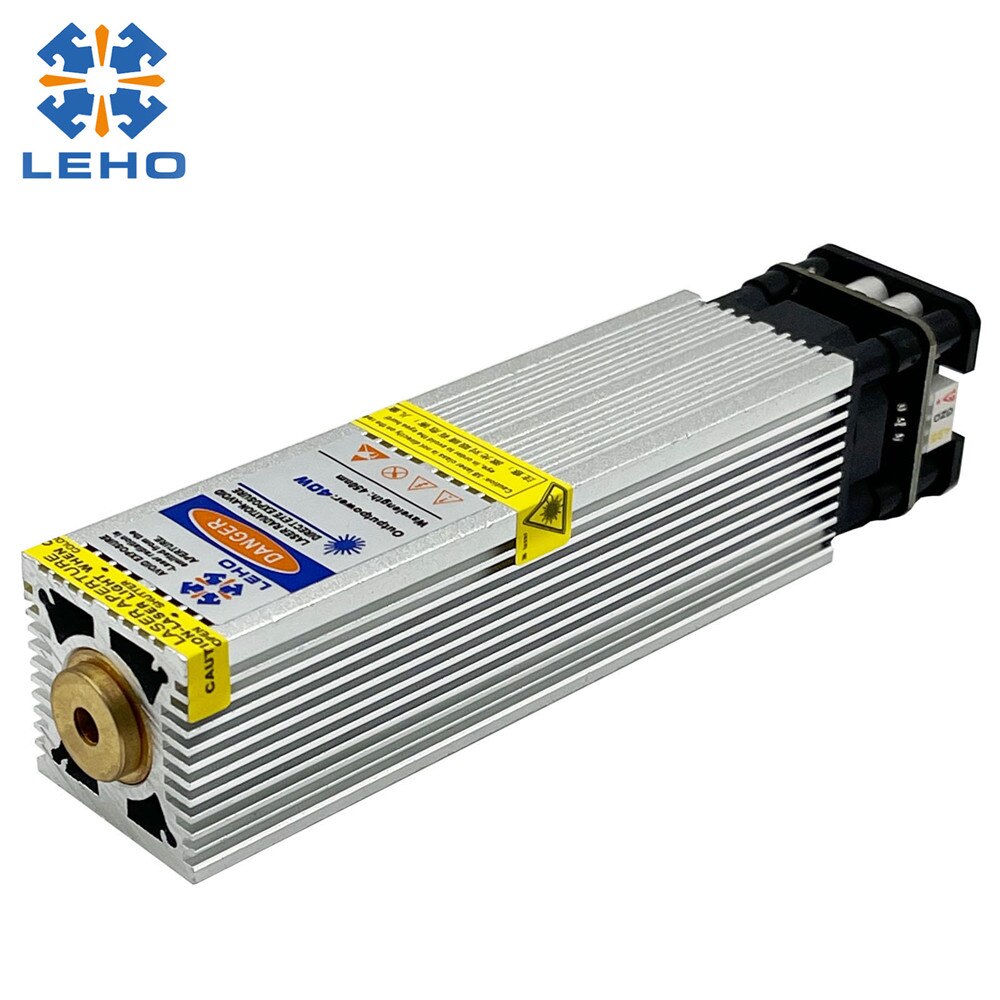

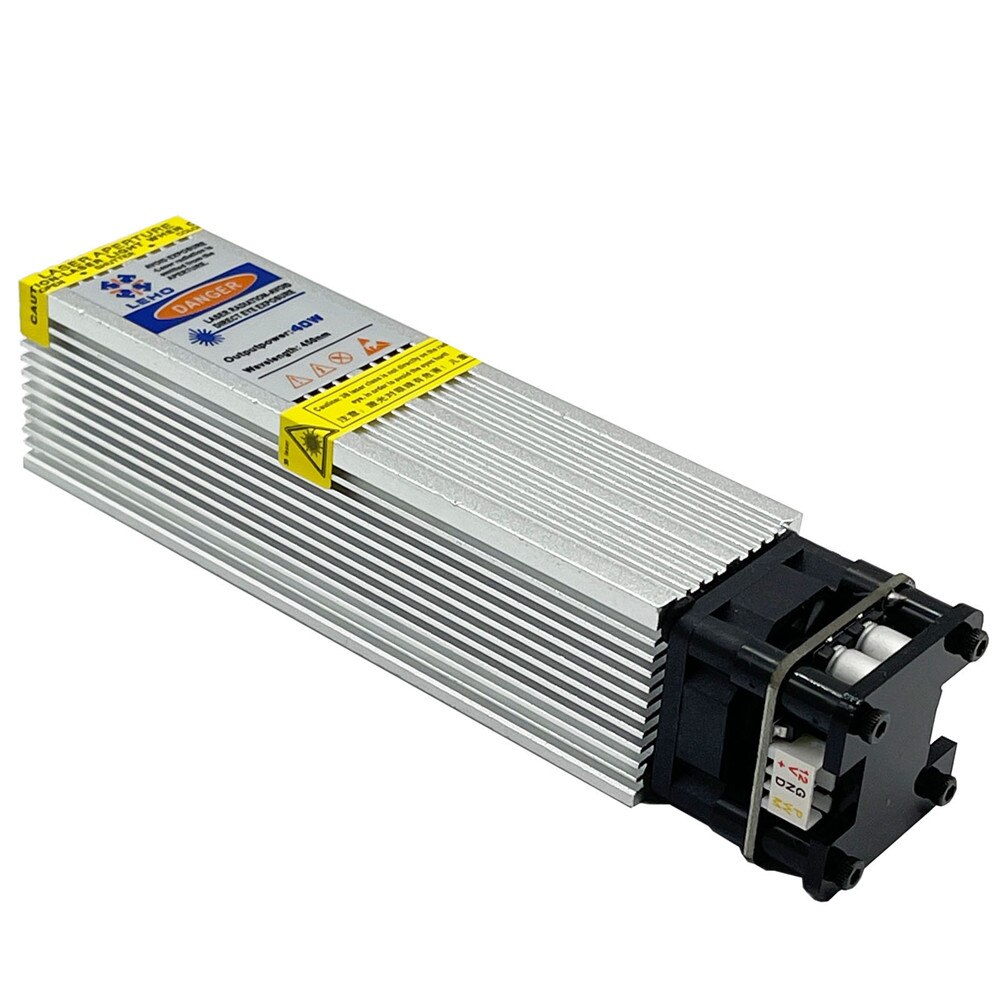

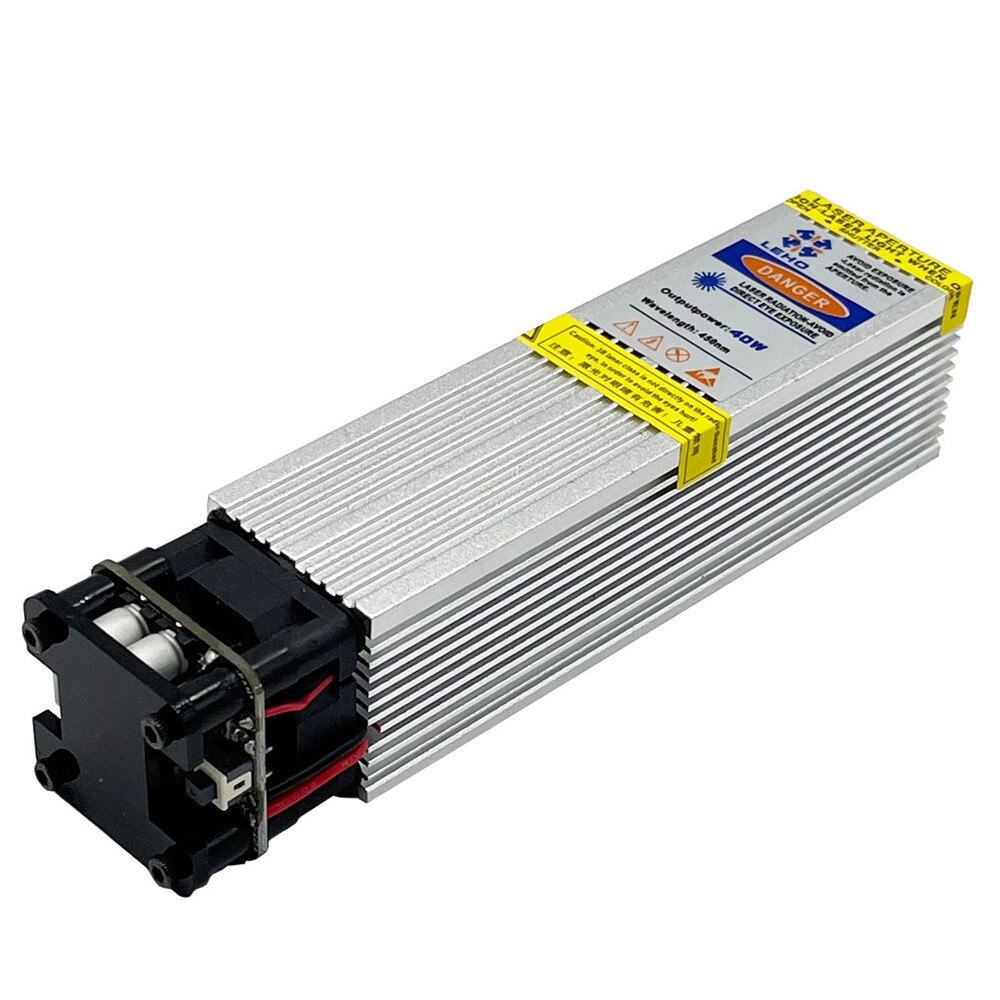

Shell size: 33×33×120mm (product weight 268g)

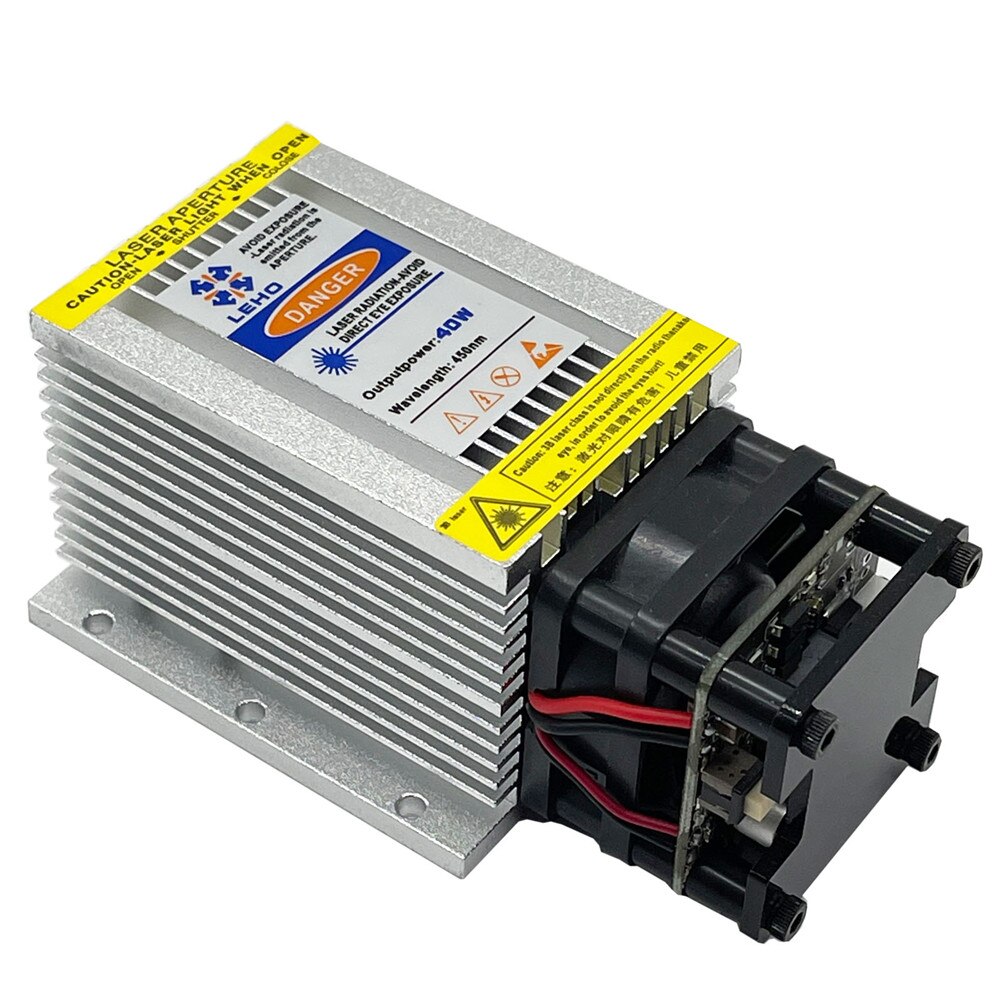

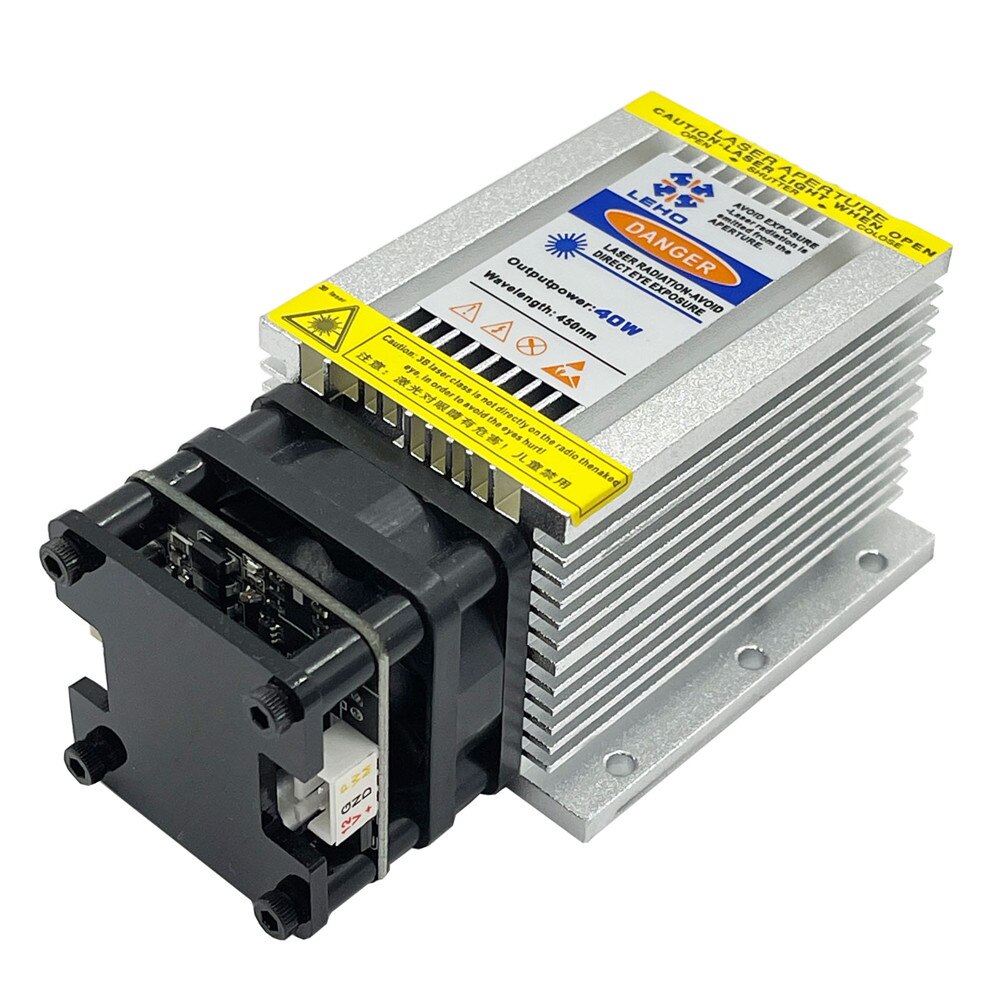

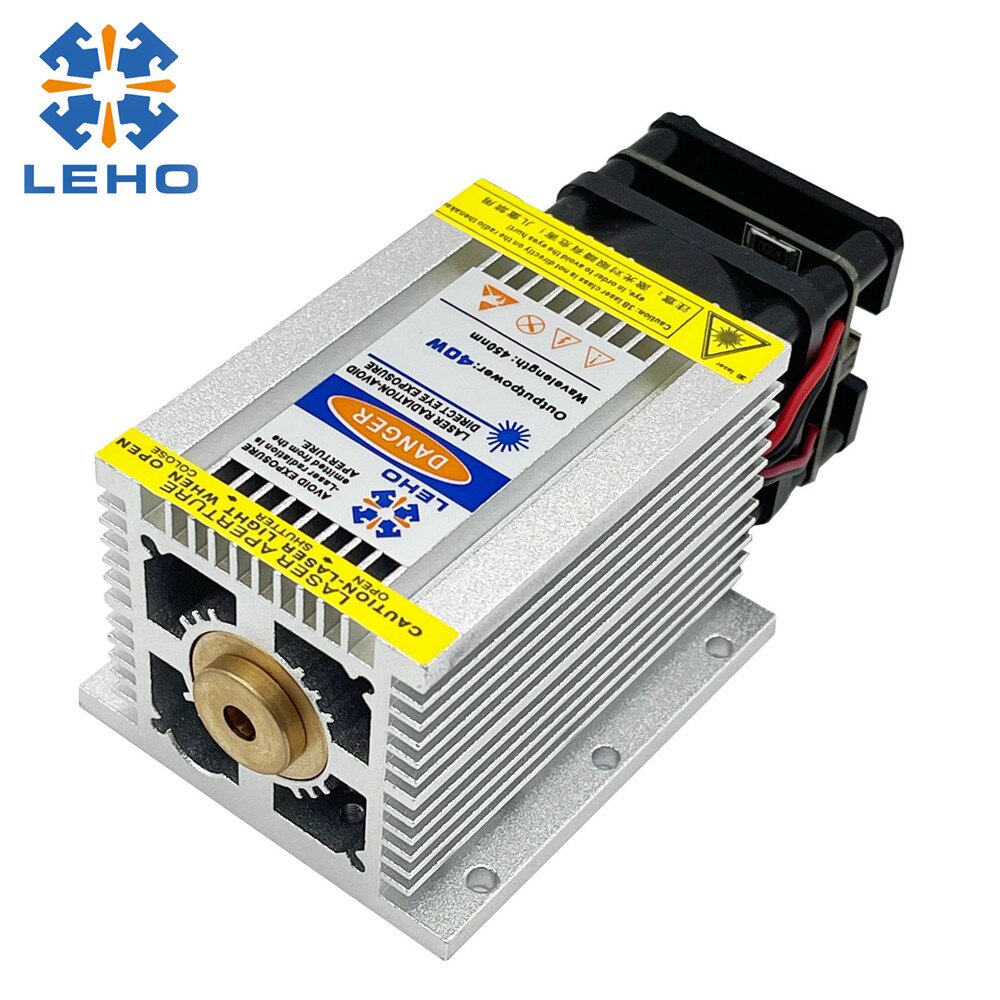

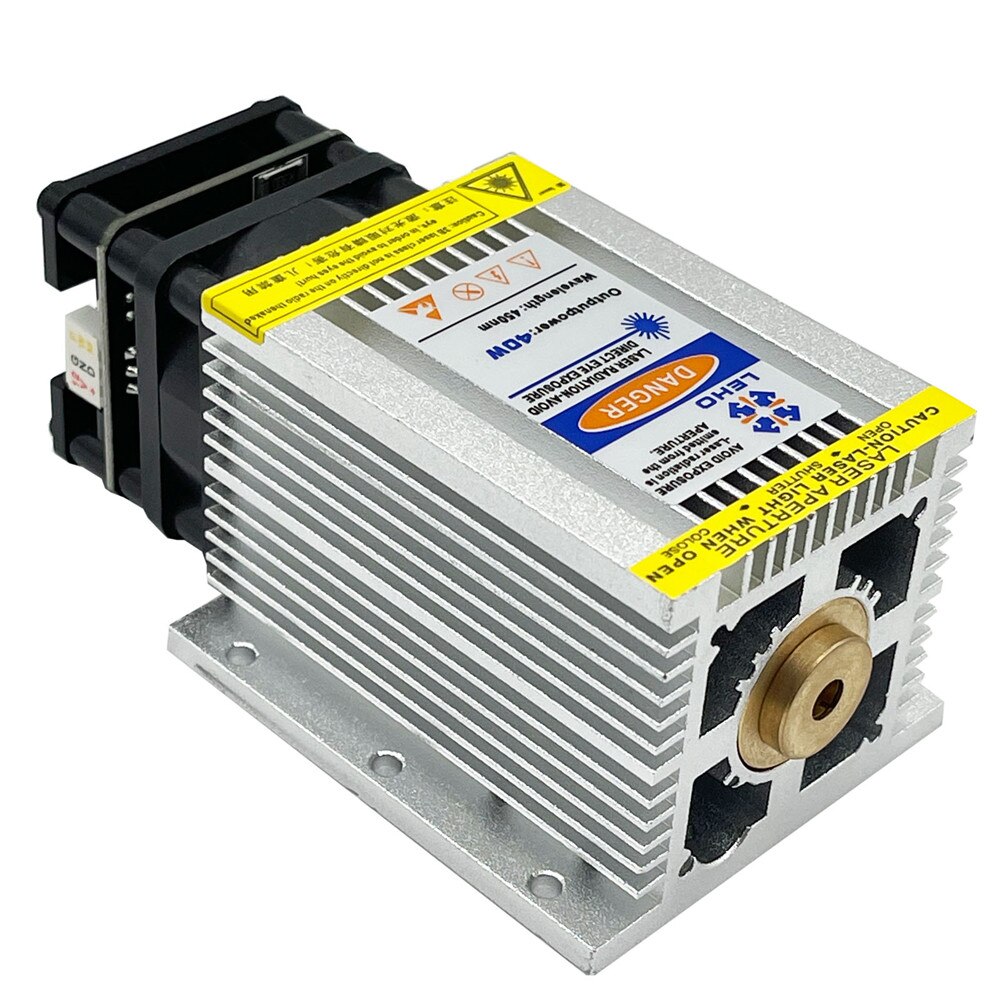

Shell size: 60×60×70mm (product weight 347 grams)

Shell material: aviation aluminum

Module center material: copper

Color: Oxygen silver

technical parameter

Power control: PWM TTL (signal control voltage 0-5V) (signal control voltage 0-12V)

Beam shape: dot

Laser focal length: fixed focus (engraving distance 20mm)

Interface specifications: 3pin 2.54 /4pin 2.54

Power supply current: 4A (constant current)

Laser wavelength: 450nm

Module power: 40W

Focus power: 25W

Power supply voltage: 12V

Optical lens material: efficient light transmittance

Laser light source: semiconductor blue light

Working life: 18000-20000 hours

Heat dissipation method: high-speed double ball fan cooling 13000 revolutions per minute, safer and more durable.

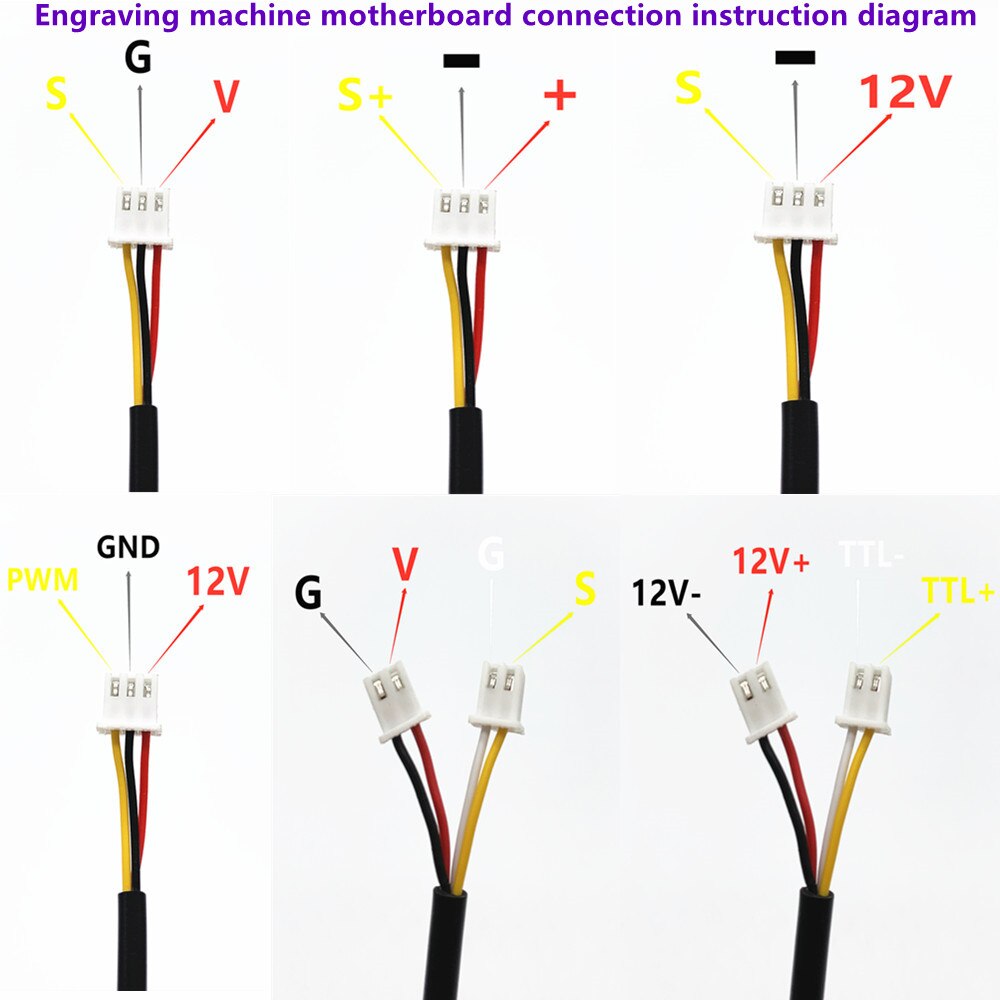

Easy to use: the laser module does not need an adapter board, just connect the laser port wires in sequence and accurately insert it into the main board of the engraving machine, plug and play

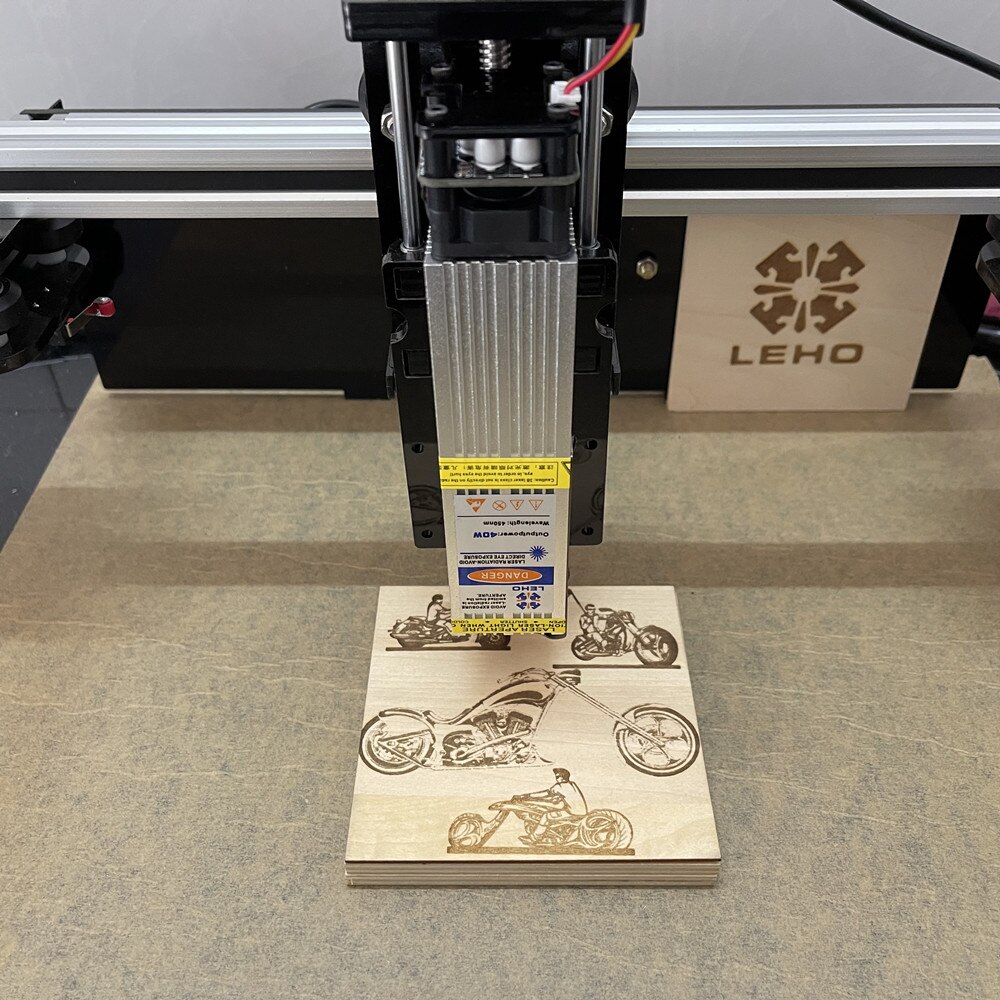

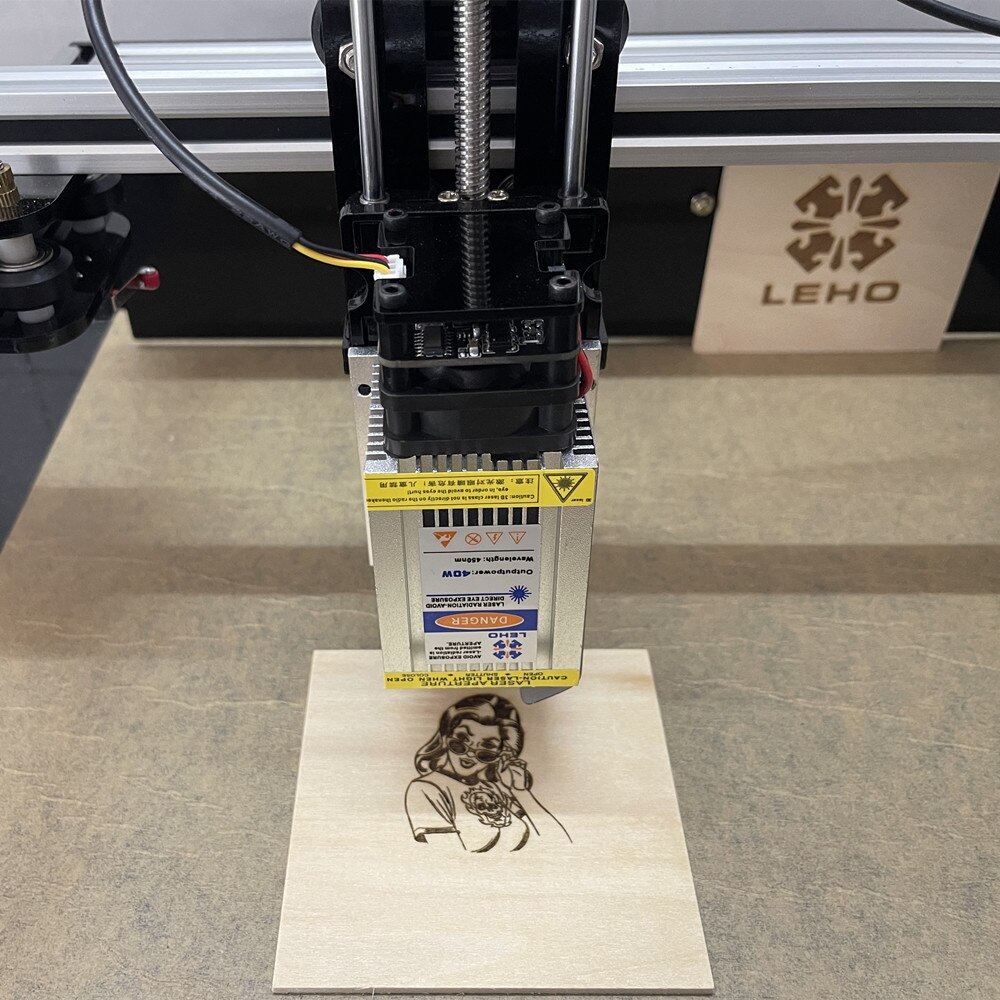

Can be carved: wood, stainless steel, oxidized metal, fabric, acrylic, plastic, MDF, PCB, paper, bamboo, horns, leather, balsam, rubber, etc.

Not engravable: metal raw materials/transparent materials/reflective materials

Can be cut: plywood, black acrylic board, leather, acrylic, paper, etc.

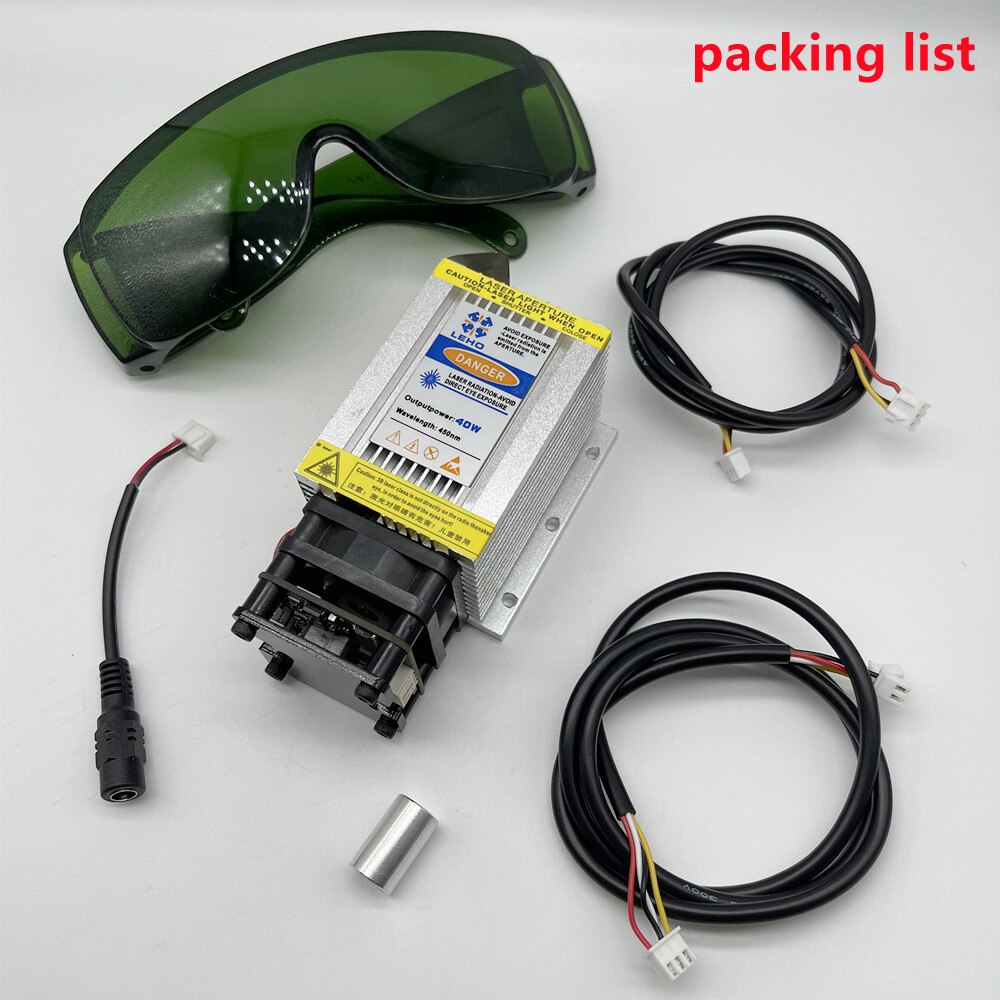

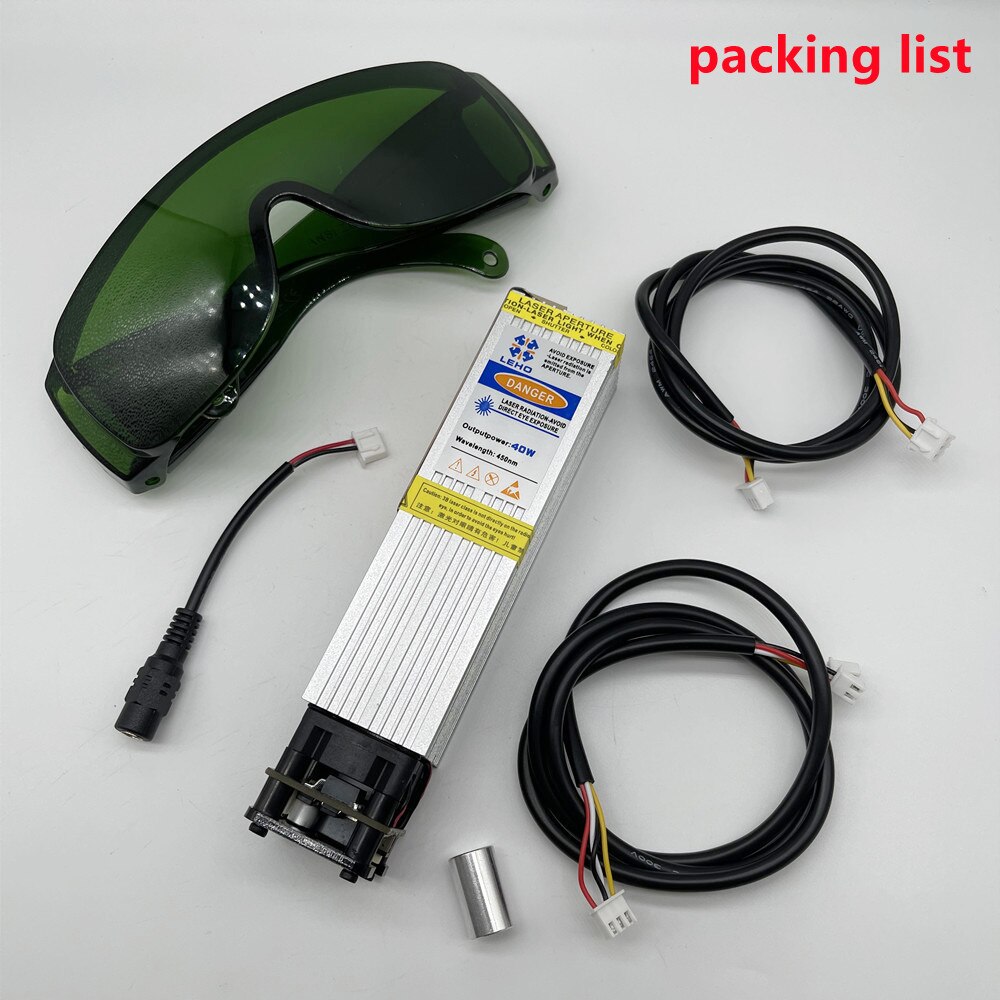

Shipping list:

1×40W laser module

1×Protective glasses

1×20mm focal length rod

1×4P line

1×3P line

1×Short-term DC

Note: When the laser is working, please do not touch any part of your body with the laser module.

If you don’t know whether this laser head is compatible with your engraving machine, you can send me the letters displayed on the connection port of your engraving machine motherboard and laser module.
