Description
- Brand Name: LanYuXuan
- Certification: ce
- Origin: CN(Origin)
- Place of Origin: China
- Condition: New
- Warranty: 13 months
- Spare Parts Type: laser head
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: New Product 2021
- Brand Name: ATOMSTACK
- Key Selling Points: High-accuracy
- Showroom Location: None
- Weight (KG): 0.21 KG
- Material: Aluminum Alloy Frame

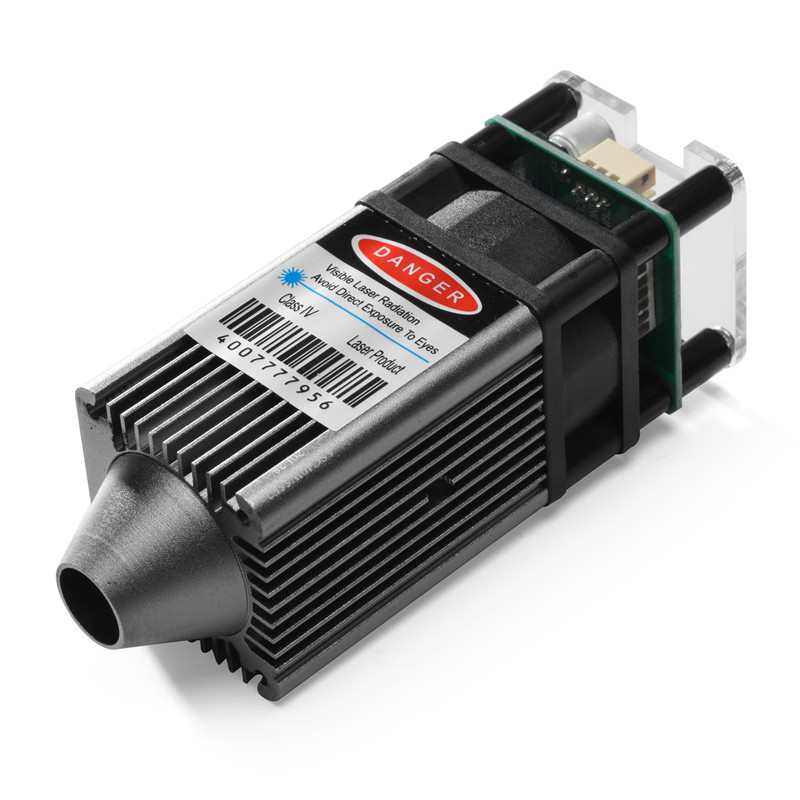

- Product name: laser Module
- Keywords: Laser accessories
- Application: Laser engraving/cutting/carving
- Dropshipping: yes
- Wholesale Price: yes
- OEM ODM: yes
- After Warranty Service: Online support
- Local Service Location: None
#detail_decorate_root .magic-0{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:351.5625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:351.5625px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-9{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-11{font-size:16px}#detail_decorate_root .magic-12{font-size:14px}#detail_decorate_root .magic-13{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-14{margin-bottom:0}#detail_decorate_root .magic-15{position:relative;width:100%}#detail_decorate_root .magic-16{font-size:24px}#detail_decorate_root .magic-17{width:750px;border-collapse:collapse}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:208px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:483px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:137px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:74px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:77px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:51px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:72px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:71px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:106px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:18px;padding:5px 10px;width:143px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:18px;padding:5px 10px;width:193px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:18px;padding:5px 10px;width:171px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:223.32015810276678px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:223.32015810276678px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:519.375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:519.375px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:517.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:517.5px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:513.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:513.75px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:499.6875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:499.6875px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:688px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:688px}#detail_decorate_root .magic-44{font-size:22px}
Russia Customers Please Note : due to there no dhl ,fedex ,tnt,ups to Russia ,so will shipping via China-Russia Special Line to door, shipping time is 18-30 days.

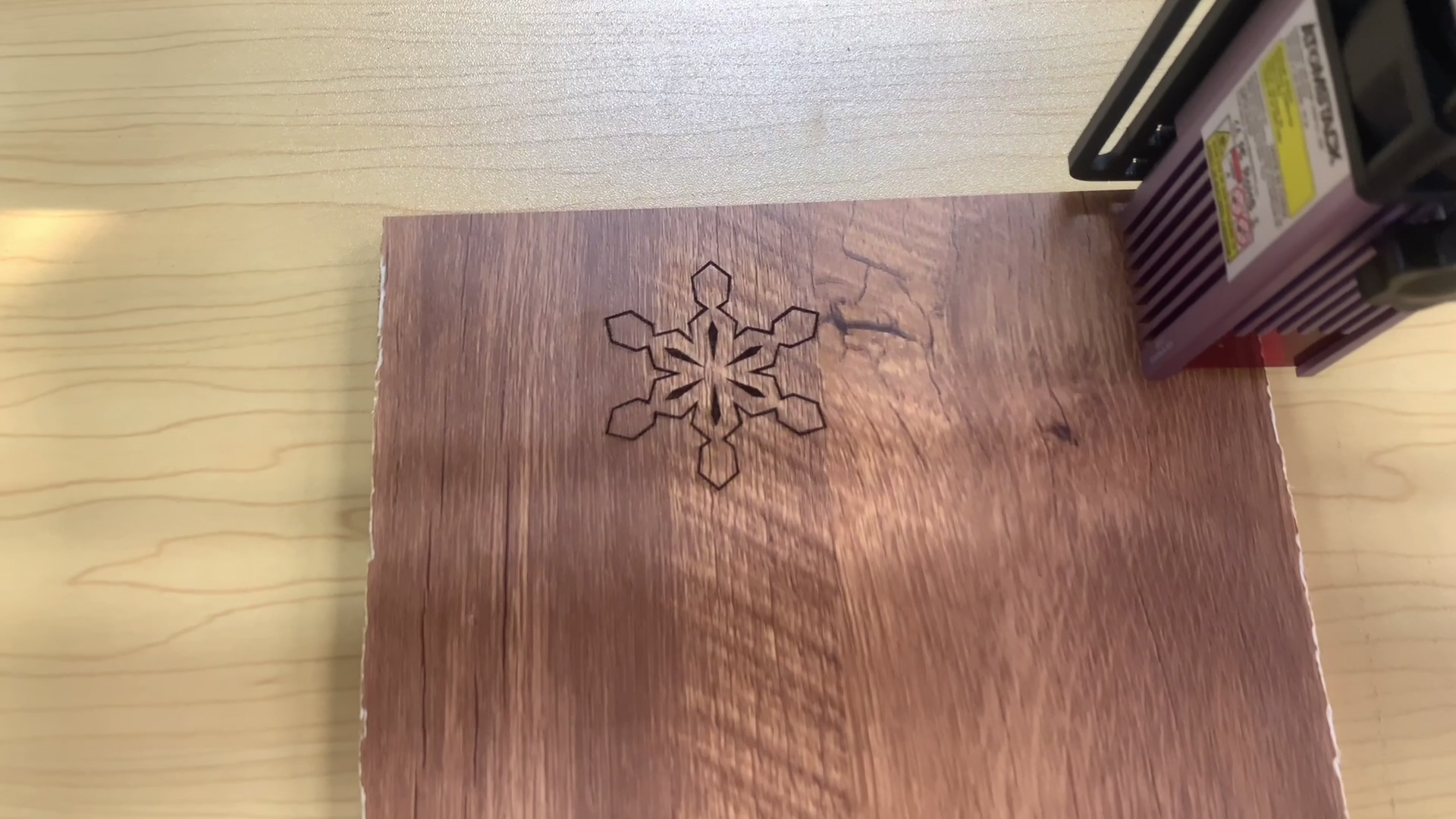

1.It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.

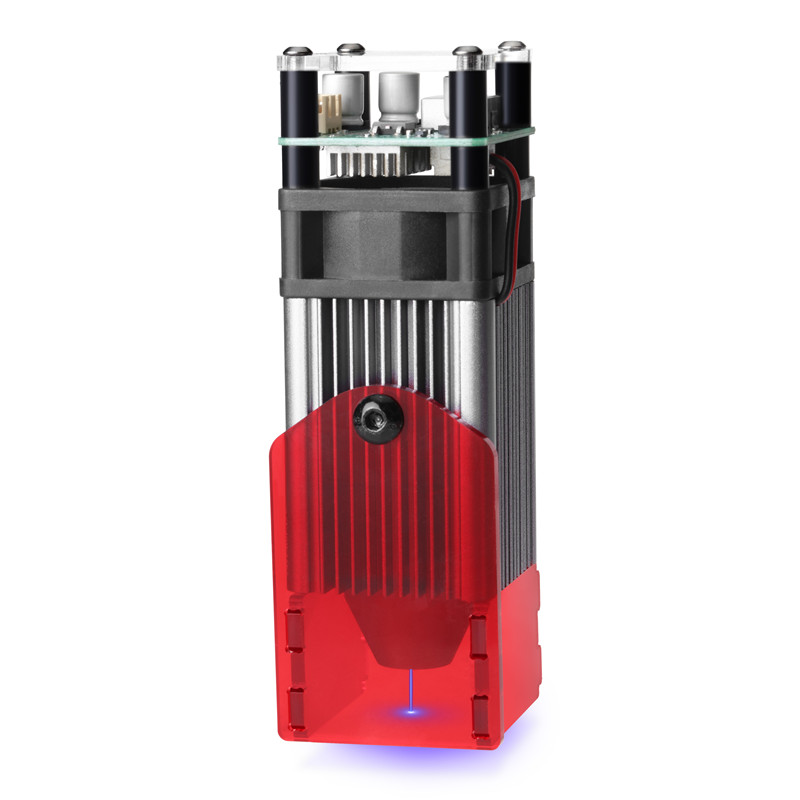

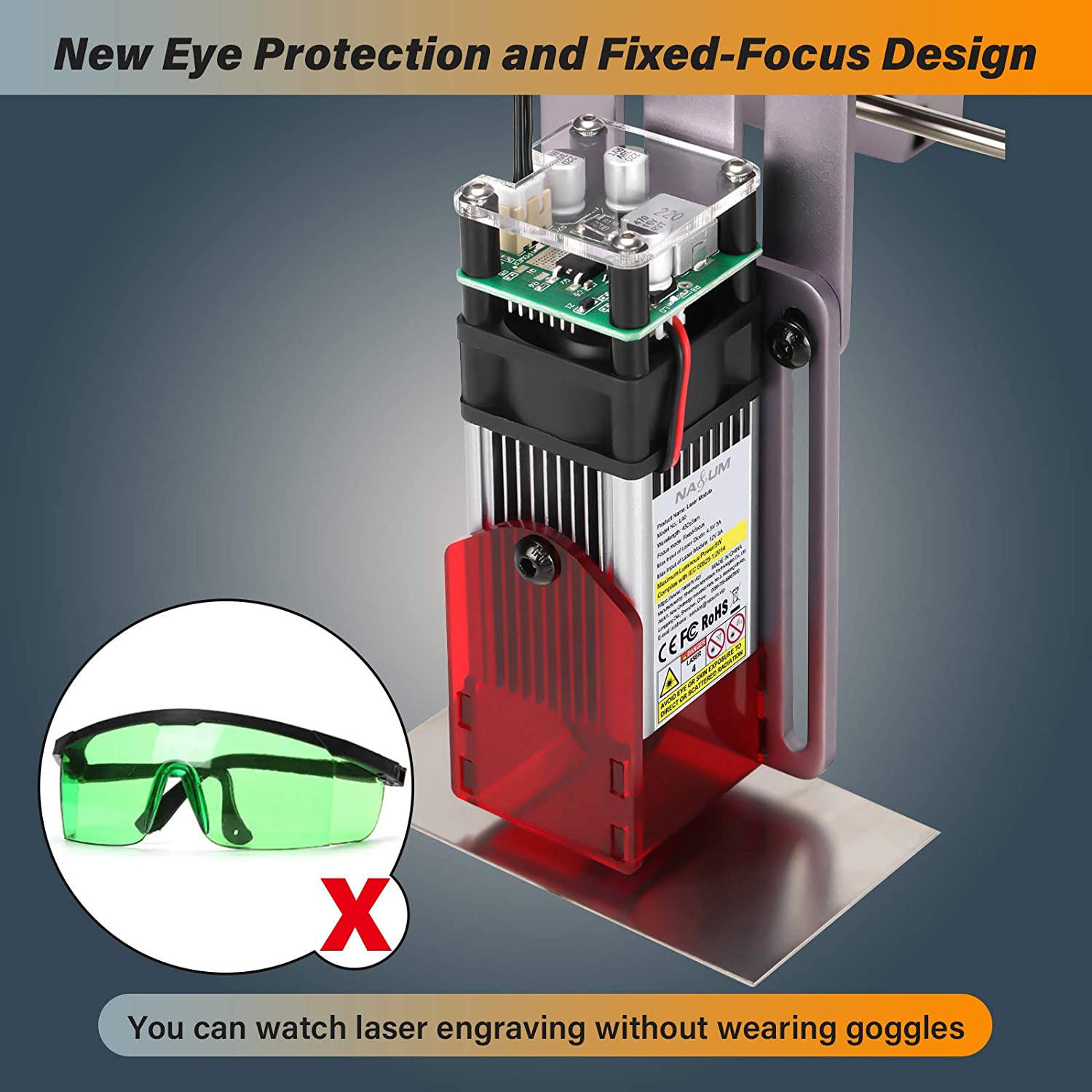

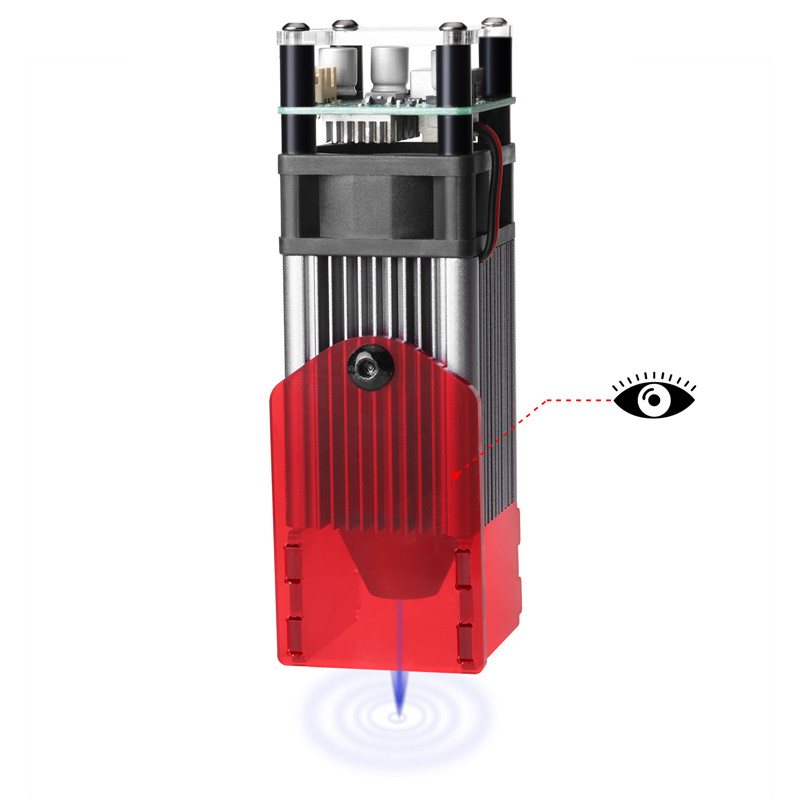

2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.
2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.
3. Made of aluminum, strong and durable.

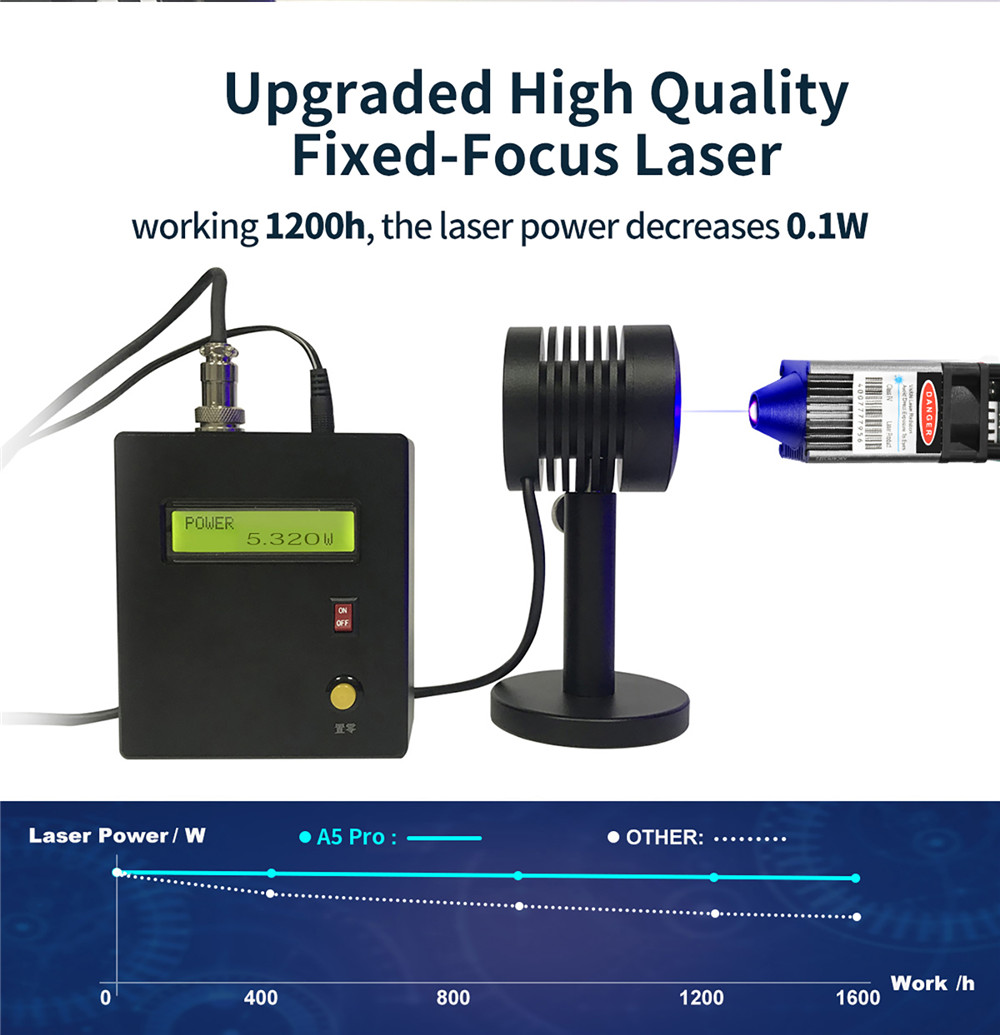

4.Fixed focus laser, no need to focus.

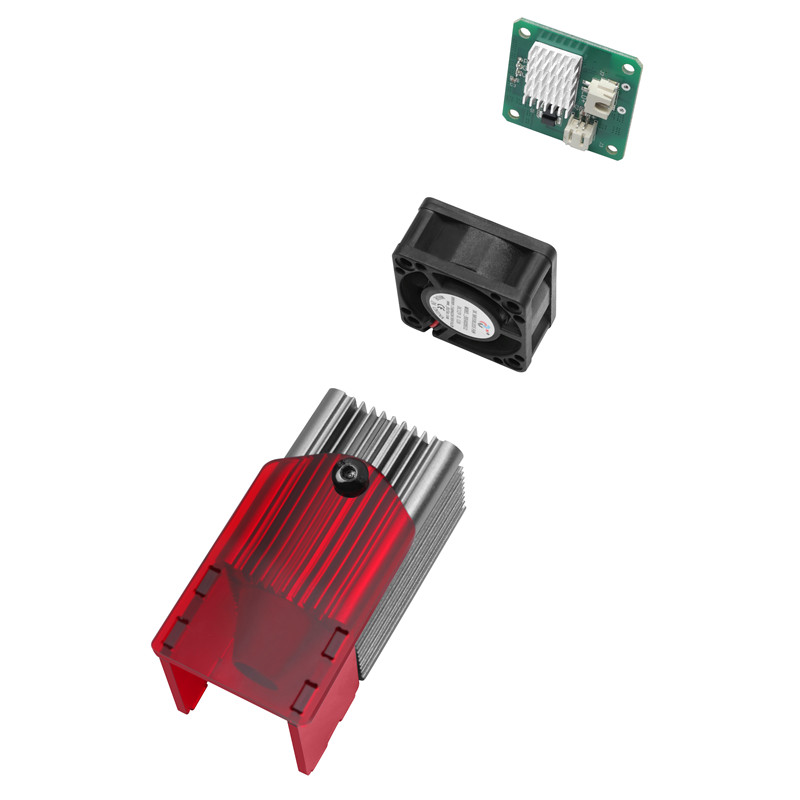

5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.
6.Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer
and lacquered metal, after blackening Utility knife.

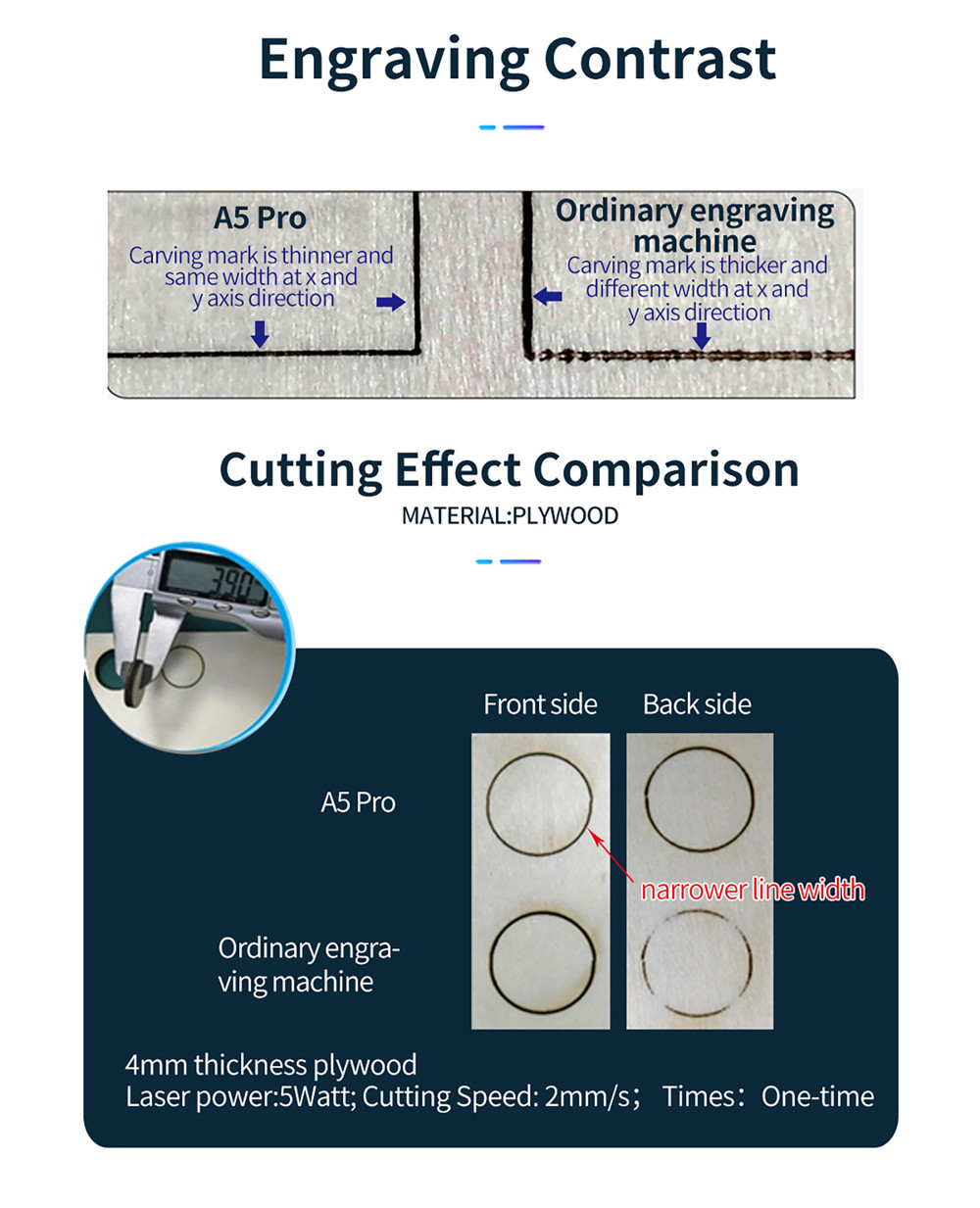

7.Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.

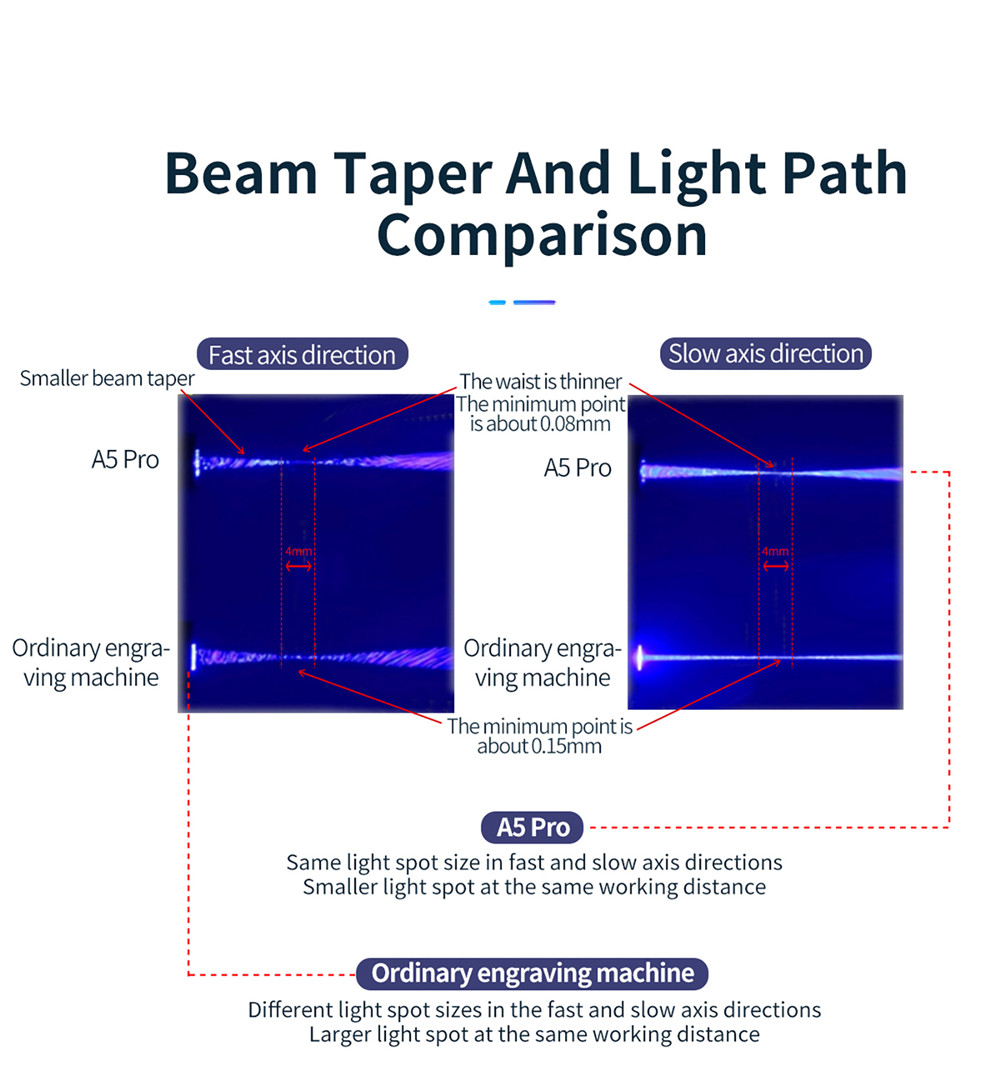

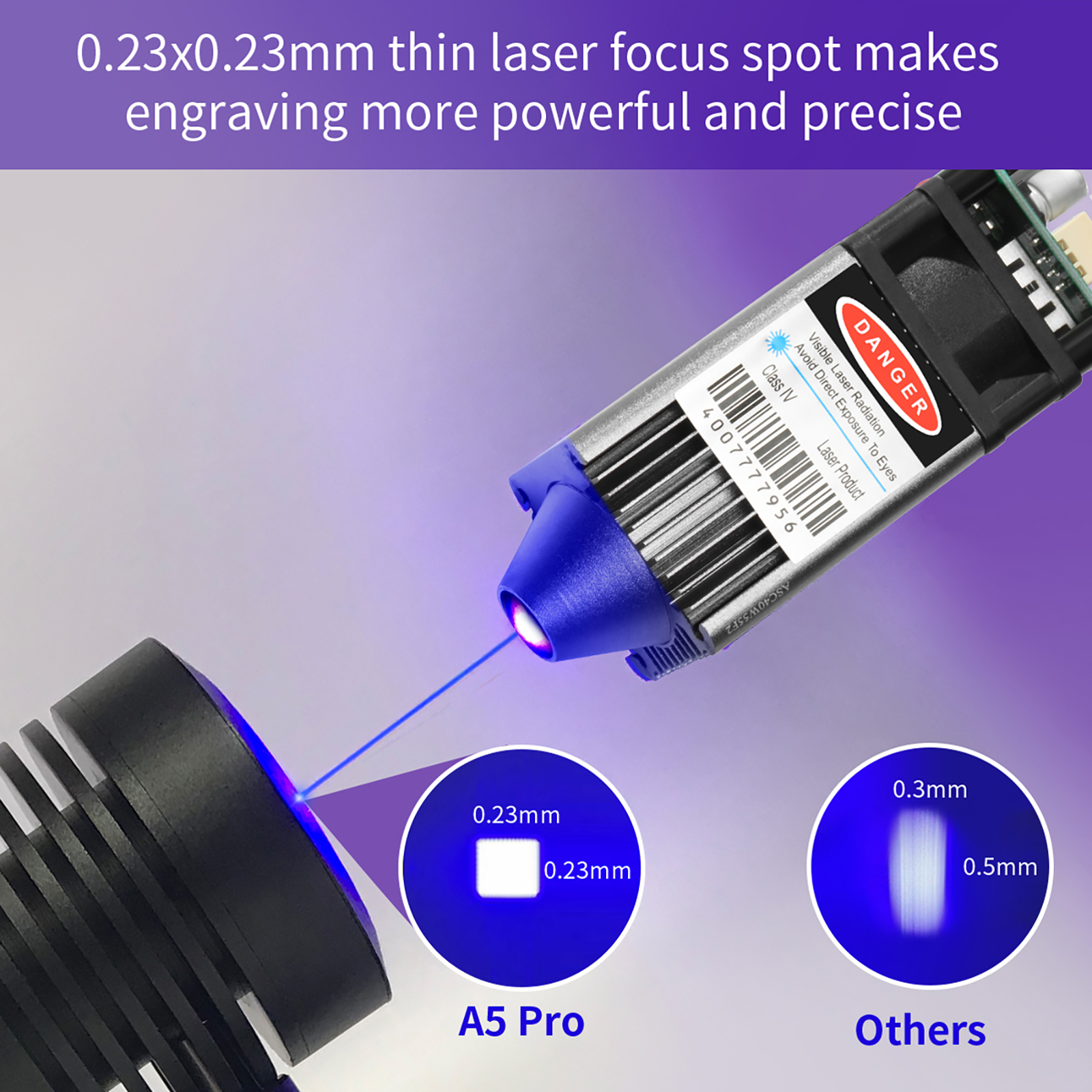

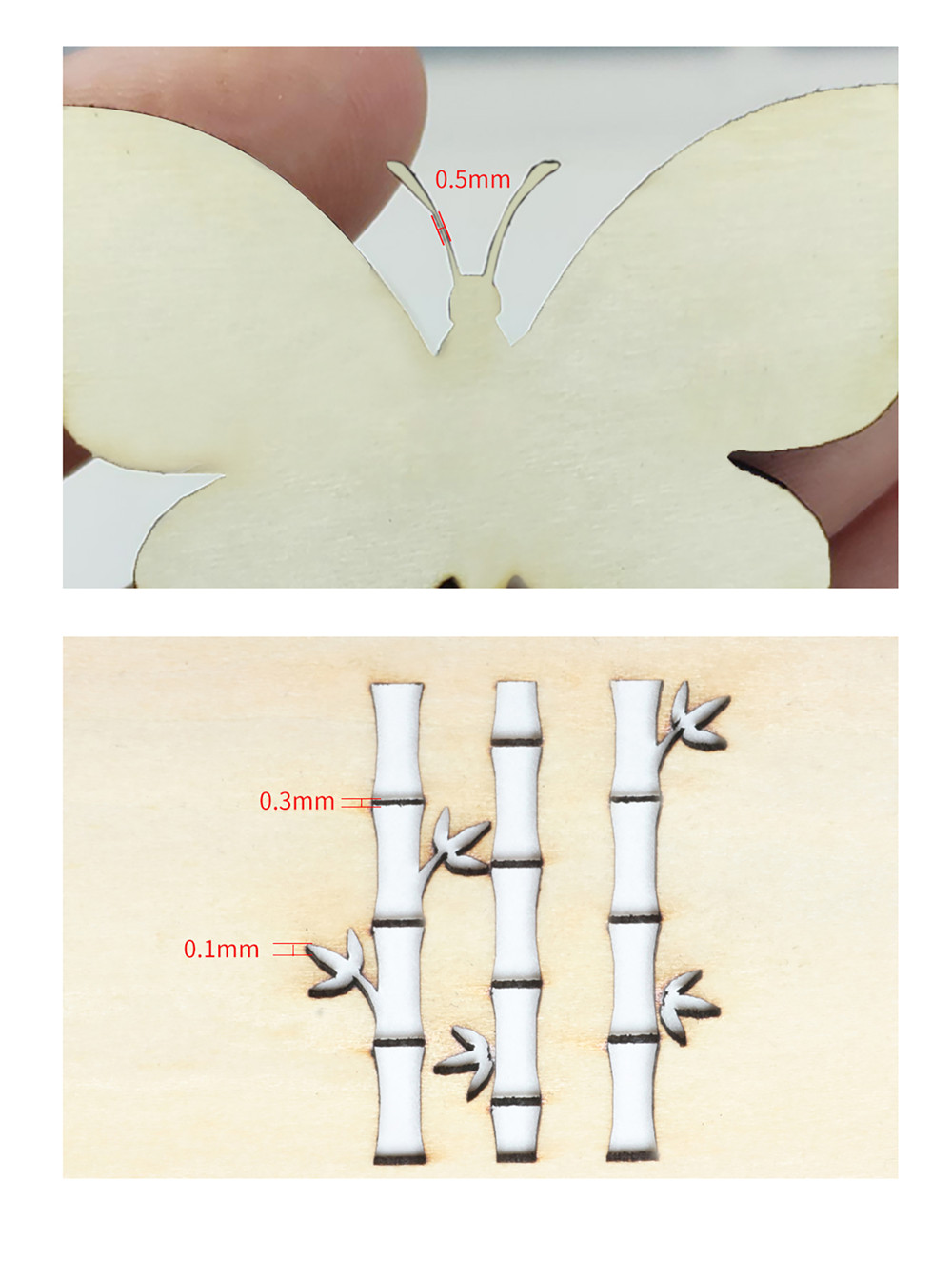

8.Upgrated Ultra-fine 0.23mm*0.23mm Laser Focal Area
Product Specifications :
|
Product Name
|
450 laser
|
|
Product Number
|
L40
|
|
Specification Model
|

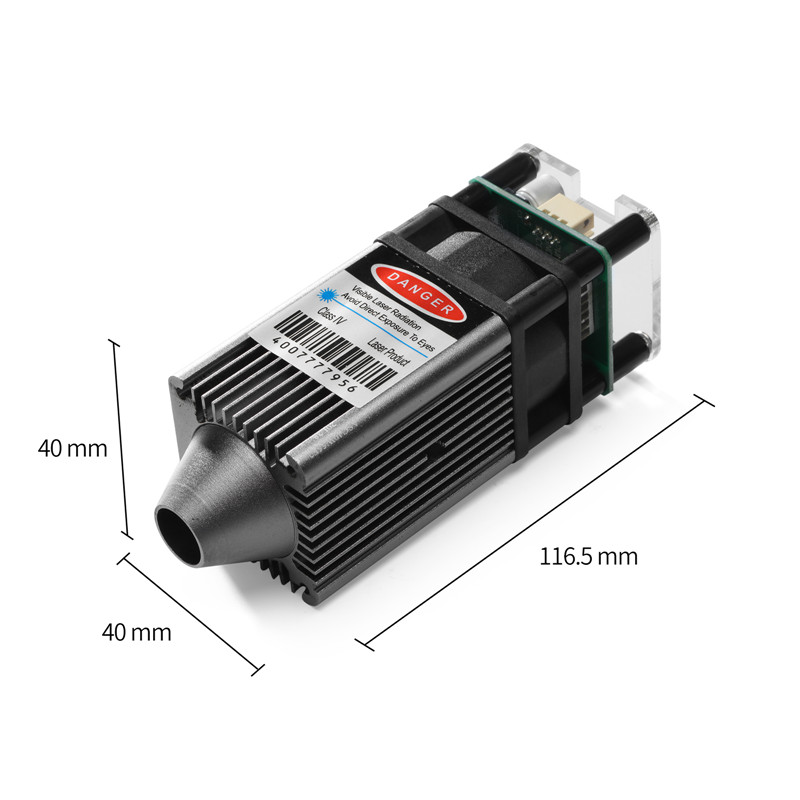

40*40*102mm
|
|
Housing size
|
40*40*55mm
|
|
Circuit Board Size
|
40*40mm
|
|
Circuit Board
|
12V/PWM modulation board
|
|
Wire Rod
|
22# 2P2.54 terminal reverse wire 80mm
|
|
Optical Lens
|
φ6/glass
|
|
Fan
|
12V
|
|
Product Material
|
Aluminum 6061 anode
|
|
Product Net Weight
|
196g
|
Optical Parameters:
TC=25℃
TC=25℃
|
Items
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
Condition
|
|
Optical Output Power
|
Po
|
4.5
|
/
|
5.5
|
W
|
12V Power
|
|
Working current
|
Iop
|
/
|
1.6
|
1.8
|
A
|
|
|
Operating Voltage
|
Vop
|
/
|
12 |
/
|
V
|
|
|
Laser Wavelength
|
λp |
450
|
455
|
460
|
nM
|
|
|
Electric Power
|
Wl |
/
|
19.2
|
21.6
|
W
|
|
|
Laser Beam Mode
|
Spot
|
Working Mode
|
Pulse work
|
|
Lightspot Size
|
30mm＜1mm
|
Working Temperature
|
0℃~70℃
|
|
Divergence Angle
|
/
|
Storage Temperature
|
-40℃~85℃
|
|
Working Time
|
10000H
|
Enclosure Polarity
|
/
|

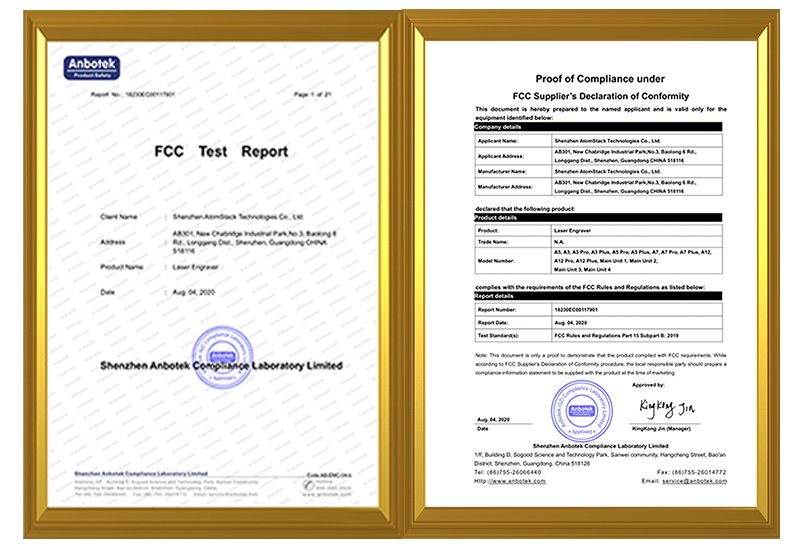

Certifications
Have CE ,FCC,Rohs Certifications , Quality is Guranteed 100%, no worries to purchase

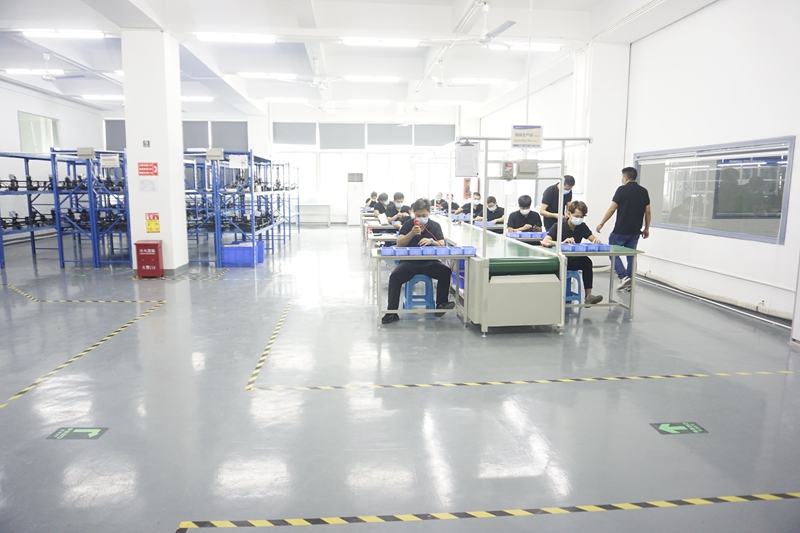

Our Company
our company’s main development direction is intelligent manufacturing, committed to direct manufacturing of consumer products in 3D.So that every consumer can use and afford personalized products.our company has mature sales channels, supply chains and core key technologies.Factory direct sales, specializing in the production of laser engraving machines, 3D printers, PLA consumables, washing resins and other printer peripheral products,Direct supply from foreign trade,professional international certification, high quality, quality assurance, perfect after-sales, spot supply, support for multiple languages,Export type with manual and software support multiple languages
Shipping Ways:
By Express-Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment-Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment-Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea-Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the mosteconomical way to reduce shipping cost.
Notice:
2.Laser module needs an appropriate laser driver(PCB). When the laser module connects with power supply, please set the output voltage to zero. The adjustment of the current should be slowly increased or decrease to avoid damaging the device.
1.The laser light emitted by the laser module is likely to injure persons’eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.
2.Laser module needs an appropriate laser driver(PCB). When the laser module connects with power supply, please set the output voltage to zero. The adjustment of the current should be slowly increased or decrease to avoid damaging the device.
3.Keep the device working or storing in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape.
4.Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the aging of the device.
5.When output power is higher than it’s specific parameter of operation, it will accelerate the aging of the device.
6.When the operation temperature of the laser diode is over 70 degree, please do well heat dissipation of it.
7.This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.
