FAQs:

【Stainless Steel Engraving】Engraving stainless steel only needs a small enough focus point and enough light power, F30130,A40640, A40630 and A30130 Compressed Spot Module, Support for Marking Metal engrave stainless steel.and N40620 and N40630 modules can engrave stainless steel by painted.

【Air Assist Sets】

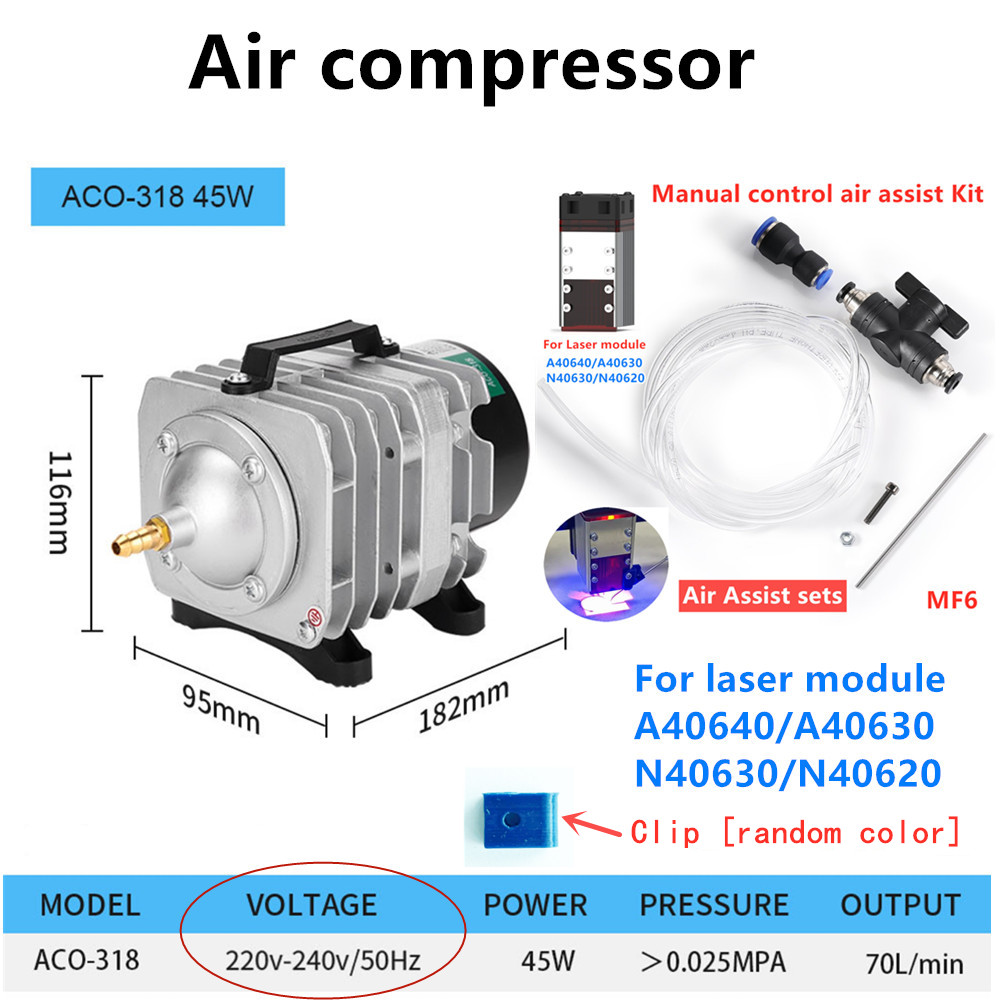

NEJE provide 2 types of air assist sets. One is specially designed for F30130 modules and requires a dry air compressor to provide support, the other is a fixed stainless steel tube that can support other NEJE modules. NEJE 3D printing drawings are provided, which can be downloaded at neje.wiki. These 2 air assist sets support 1.5mpa pressure, which can greatly improve the depth of engraving and cutting.

【What Does Standard for a Reliable Laser Module Have?】

Laser modules need to undergo an aging test to determine whether the heat dissipation of the module can match the requirements. The NEJE module has a built-in temperature sensing inside, and the 60mm threaded copper is attached with high thermal conductivity silicone grease, which can quickly export heat to make sure the temperature is controlled to keep a safe range. If the temperature and heat dissipation of the module cannot match the requirements, it can be screened out in the production process. At present, there is no module with temperature for sensing function to ensure a reliable service life in this industrial.

【How to Choose a Module?】

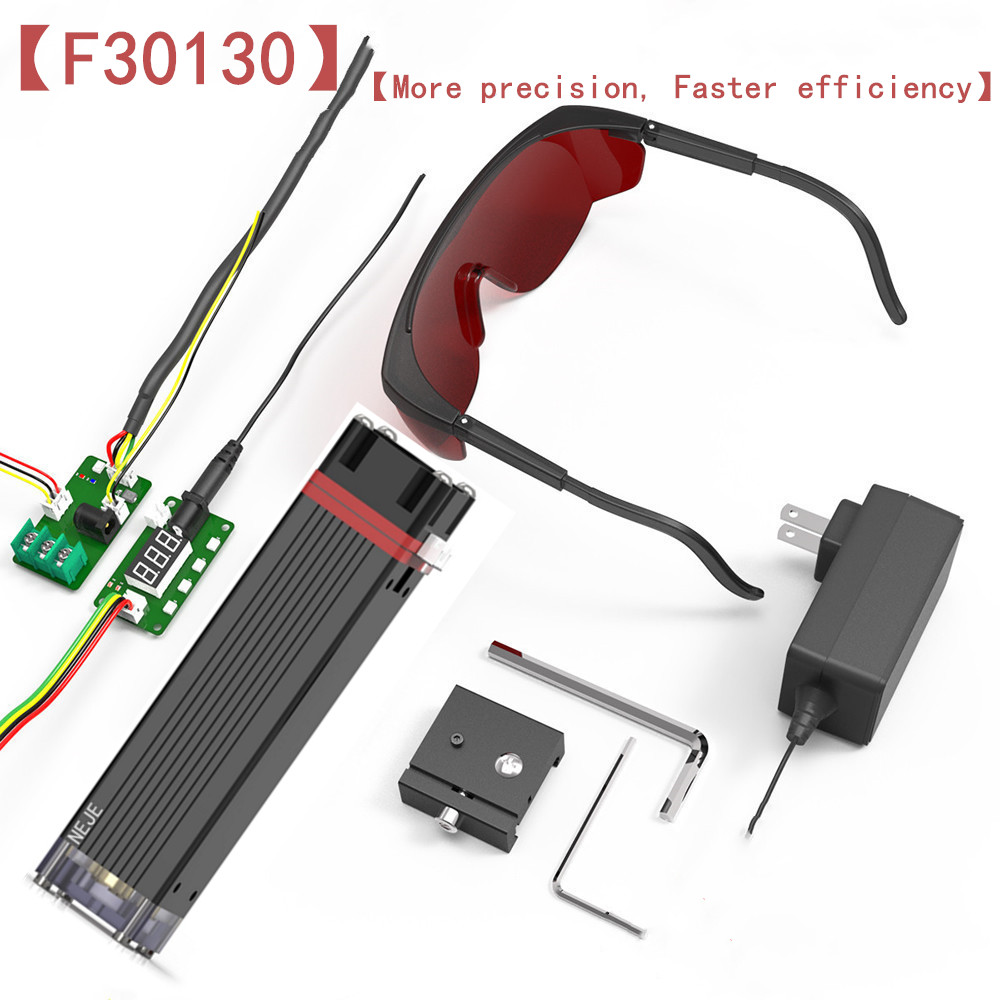

Cutting – If you are only cutting applications within 6mm, NEJE recommends N40620 and N40630 are nice choice. These two modules can cut 2-3mm plywood under air assist mode. If you want to cut 6-12mm, you can choose A40630 and A30100 and A40640 module. If there is a requirement for cutting of speed, the A40640 module is recommended, F30130 is suitable for users who have requirements for work efficiency and air compressor equipment. This module can cut 2-4mm plywood at a time with a maximum thickness of 4mm, It adopts a very simple focusing method. The focal length of 5mm can block more than 95% of the light and safe to use. If you often engrave portraits, you just need one of the NEJE B40635 405mm modules, this module is the current 405mm maximum optical power module, the 405mm module has a very good grayscale outcome. If you are just for a simple engraving, N30610 or B30635 will perfect match for you.

【100% Satisfaction】

NEJE factory are proud to provide the process of 48-hour temperature control for aging test to ensure the quality of each module and guaranteed 2 years (20,000 hours) free warranty.

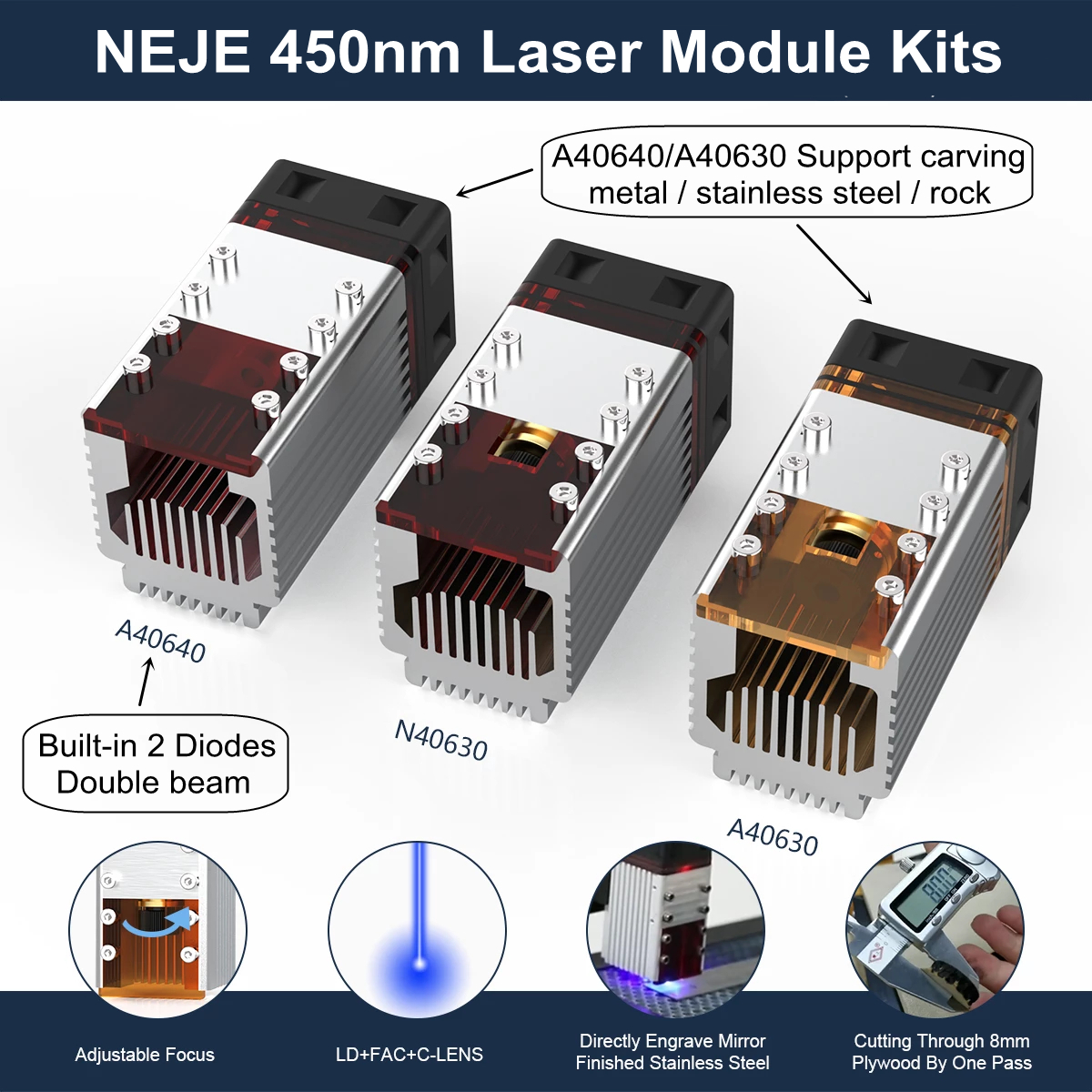

NEJE A40640 Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.
2.10W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.
3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
4..More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.
6.slidable mounting fixture is provided for easy adjustment of focus.

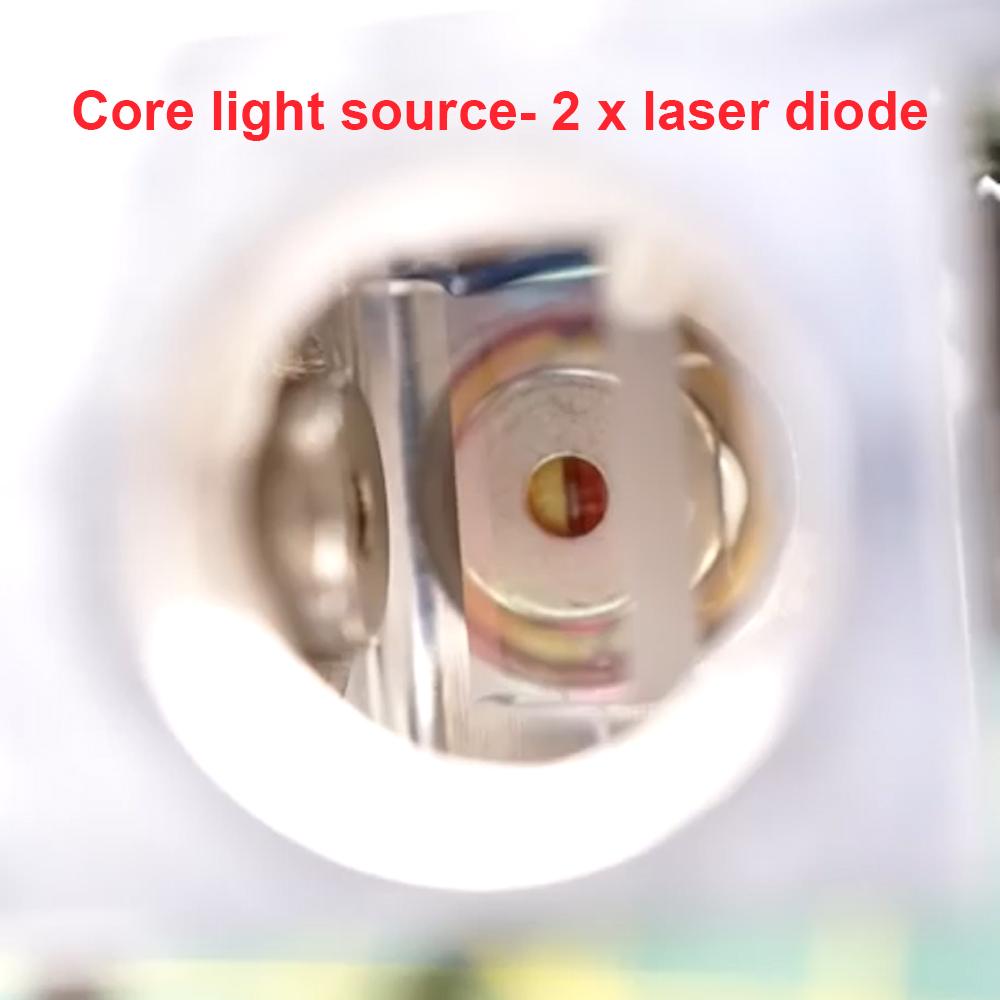

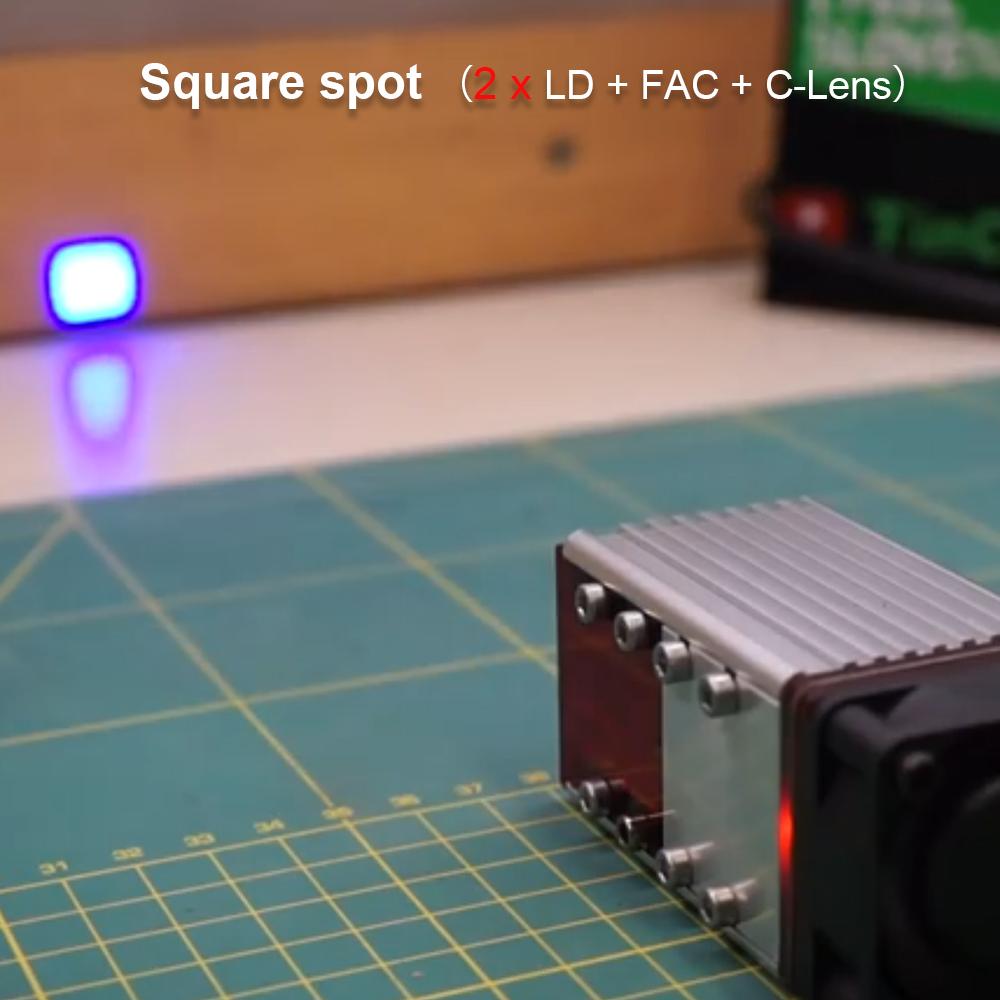

7.【Advanced laser module】 The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

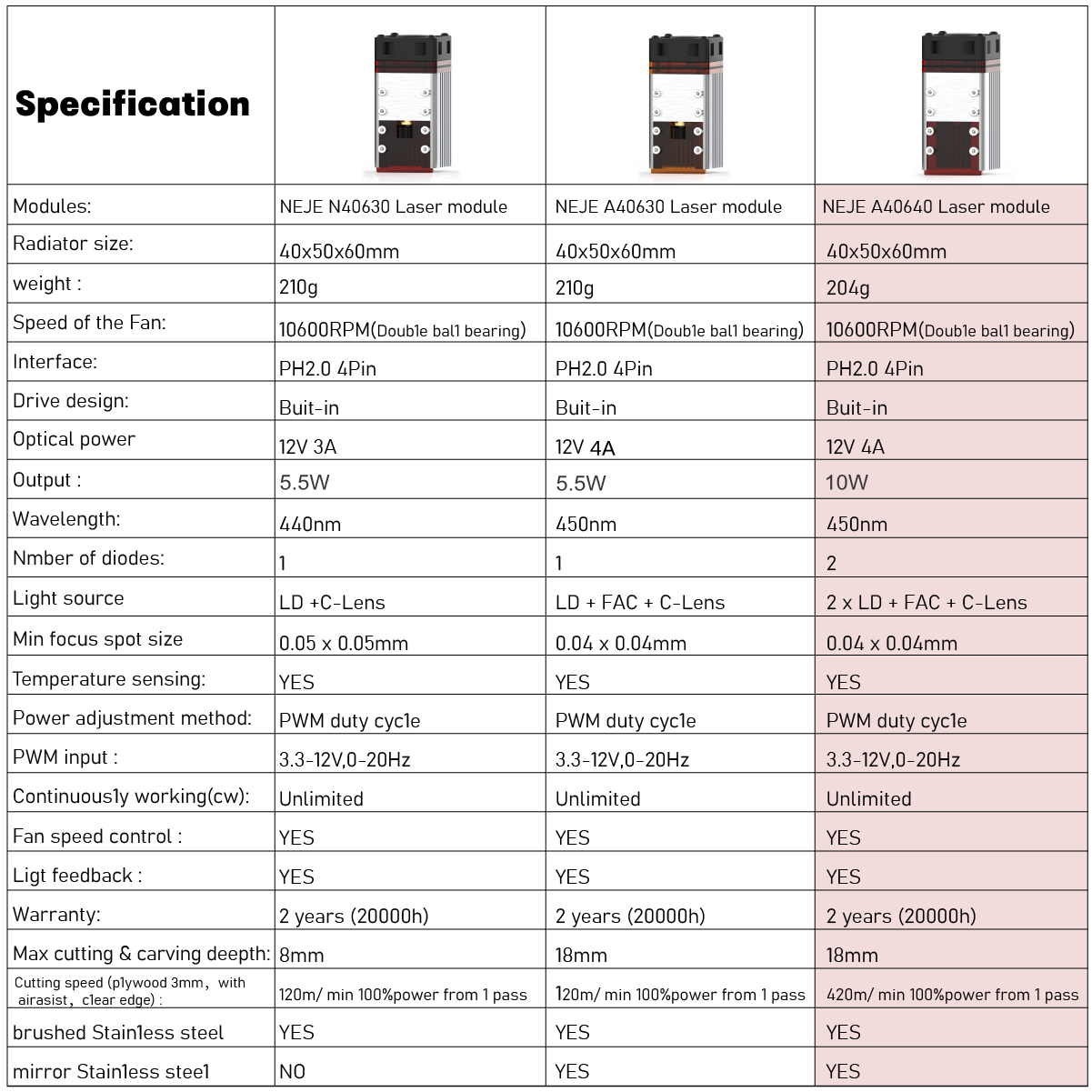

NEJE A40640 Product Specification

Model:NEJE Module （A40640）
Heatsink Material:Aircraft Aluminum + Brass Shell
Luminous Color:Blue
Section Size:40mm x 40mm
Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension:60 * 40 * 40mm
Adapter Plug:5.5 2.1 port

Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Metal/Stainless Steel
Can Not Engrave:Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

Technical Parameters:

Optical power output:10W
Wavelength:445-450nm
Beam Shape:Dot (Focusable)
Working Voltage:DC 12V
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
Input Voltage:DC12V 3-4A
PWM/TTL Input:DC3.3V-12V
Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode:External ACC
Safe temperature range:<60 ℃
Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time:10000-20000 hours

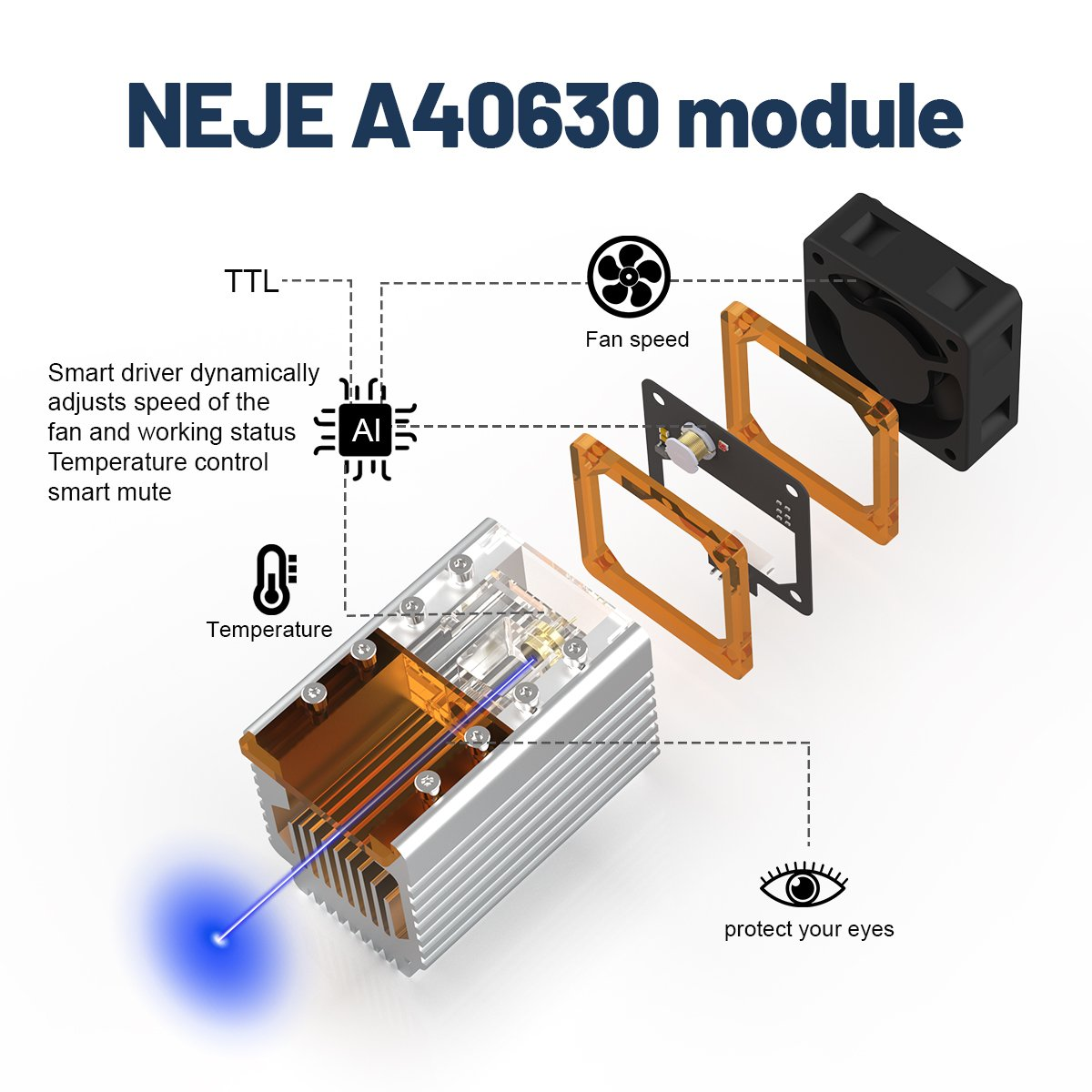

NEJE A40630 General Specification:

Model：NEJE Module （A40630）
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：Rock/Stainless Steel/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：40-50W
Optical power output：5.5W (5500mW)
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 4A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20,000 hours
Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification
Power input: DC 12V
Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
mode: 3 modes (off, manual pwm, pwm / ttl in)
temperature display: YES
pwm display: yes
Manual PWM control: YES

NEJE N40630 Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.
2.5.5W Optical power output, 2-3mm plywood from 1 pass(speed 100)
3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
4.More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.
6.Slidable mounting fixture is provided for easy adjustment of focus.

NEJE N40630 Product Specification

Model:NEJE Module N40630
Heatsink Material:Aircraft Aluminum + Brass Shell
Luminous Color:Blue
Section Size:40mm x 40mm
Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension:60 * 40 * 40mm
Adapter Plug:5.5 2.1 port

Engrave Material

Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

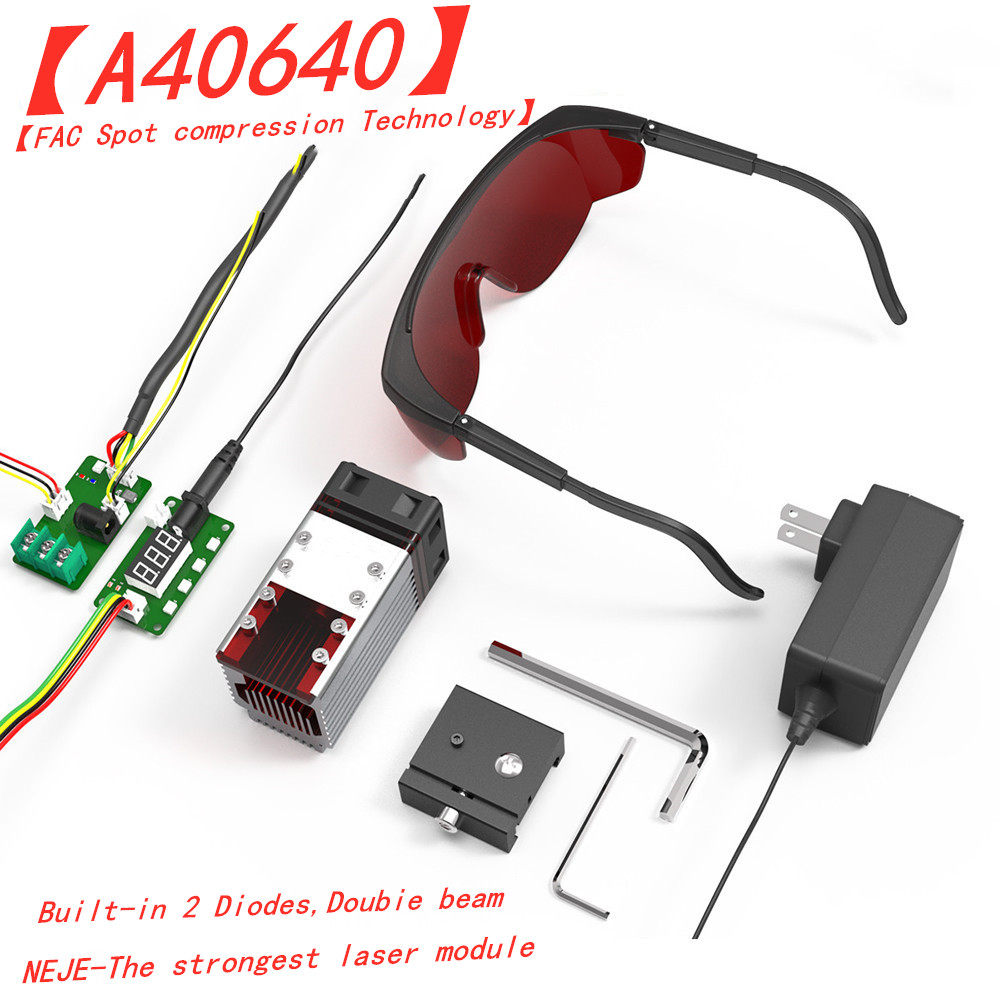

NEJE (A40640) Laser Module Small Kits Package List

1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x digital tube display test board
1 x interface adapter board
1 x 4pin laser line
1 x 2pin TTL control line
1 x 3pin 2.54 interface output cable

NEJE (A40640) Laser Module Large Kit Packing List

1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x interface adapter board
1 x digital tube display test board
1 x 4pin laser line
1 x 3pin 2.54 interface output cable
1 x 2pin TTL control line
1 x 12V power adapter
1 x goggles

NEJE (A40630) interface adapter board

1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x interface adapter board
1 x 4pin laser line
1 x 3pin 2.54 interface output cable
1 x 2pin TTL control line

NEJE (A40630) digital tube display test board

1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x digital tube display test board
1 x 4pin laser line
1 x 2pin TTL control line

NEJE (A40630) Laser Module Large Kit Packing List

1 x laser module
1 x sliding card slot
1 x L wrench
1 x L-shaped small wrench
1 x interface adapter board
1 x digital tube display test board
1 x 4pin laser line
1 x 3pin 2.54 interface output cable
1 x 2pin TTL control line
1 x 12V power adapter
1 x goggles

List of other laser modules A30130/F30103/N40630/N40620 As with the A40630, warehouse shipments are shipped based on buyer purchase kits.
