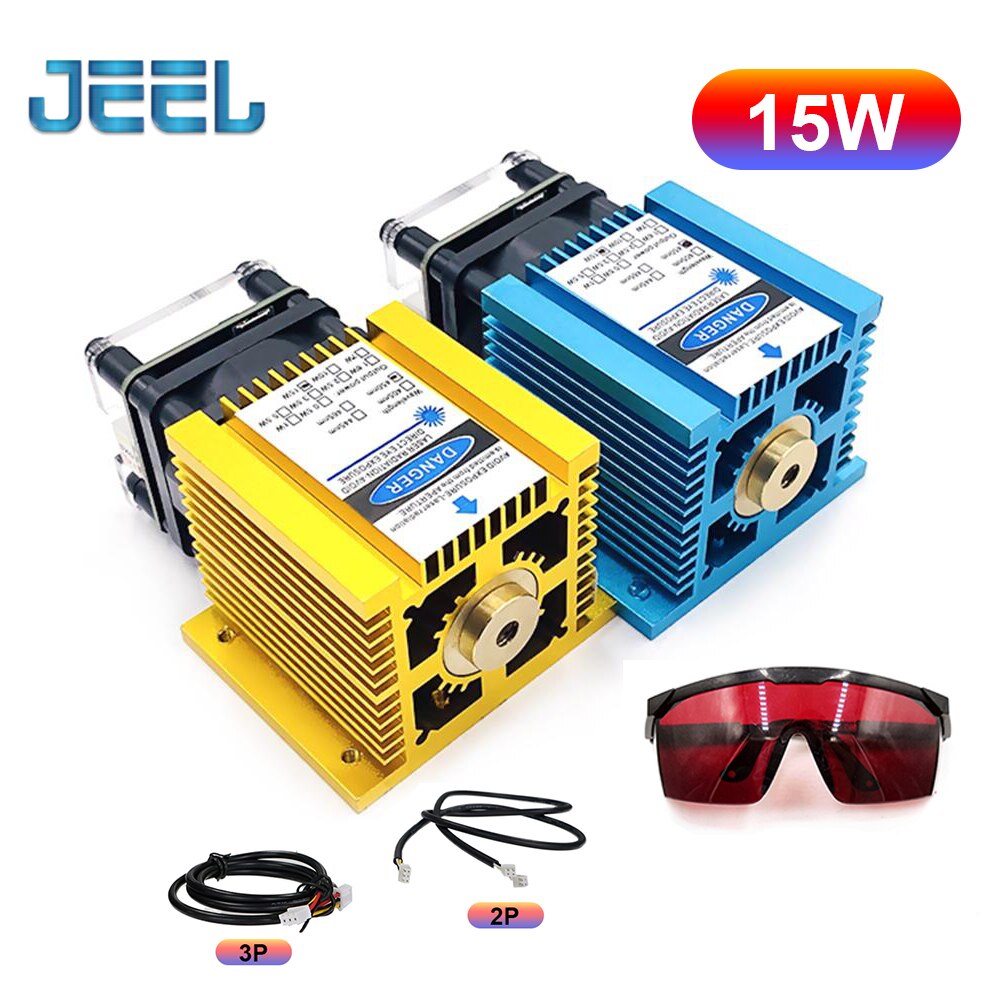

450nm 15W/30W 51mm 12V Fixed Focus Laser Module Diode TTL /PWM Laser Engraver Accessory DIY Tools Cutter Laser Head

15w laser module

• Optical Lens:φ6 glass

• Fan:12V

• Service life:10000 hours

• Radiator size:48MM*60MM*94MM

• lutput:12V 2.5A

• Optical Output Power:7.5W

• Electric Power:15W

• Wavelength:450NM

• Precision:0.01MM

• Lens focallength:20MM

• Speed of the Fan:15000RPM

• Interface:3Pin

• Product metarial:Aluminum 6061 anode/copper H59

• Cooling copper core:60mm copper with screw thread

• Cutting depth:Max 5MM (repeatedly)

• Quality assurance:1Years

• Laser Beam Module:Dot

• PWM:5V,0-20Hz

• Working Temperature:0℃ -60℃

30w laser module

• Optical Lens:φ6 glass

• Fan:12V

• Service life:10000 hours

• Radiator size:40MM*40MM*70MM

• lutput:12V 2.5A

• Optical Output Power:10W

• Electric Power:30W

• Wavelength:445NM

• Precision:0.01MM

• Lens focallength:20MM

• Speed of the Fan:15000RPM

• Interface:3Pin

• Product metarial:Aluminum 6061 anode/copper H59

• Cooling copper core:60mm copper with screw thread

• Cutting depth:Max 5MM (once)

• Quality assurance:1Years

• Laser Beam Module:Dot

• PWM:5V,0-20Hz

• Working Temperature:0 ℃-60℃

• Pleasewear the protective glasswhen you use the laser module.

• Do nottouching the laser light directly in case that hurt the body and skin.

• Keep children and pets away from the laser module when it working.

• The Laserdot could not be adjusted, please make sure the distance between bottom of the laser module and engraving material is 16mm(Use the plastic column to do it). Or it will influence the result.

• Please connect to the driver board carefully!The Red cord is 12V+, the black cord is GND-,the yellow cord is Signal(S). Please make sure you know how to connect it,Otherwise it might damage the laser module!

• If you received laser have any quality problem, please send a detailed video to us with a problem description in the first time!

• PleaseDO NOT disassemble the laser modulewithout our permission,it might cause the damage.

Engraving distance 2cm:

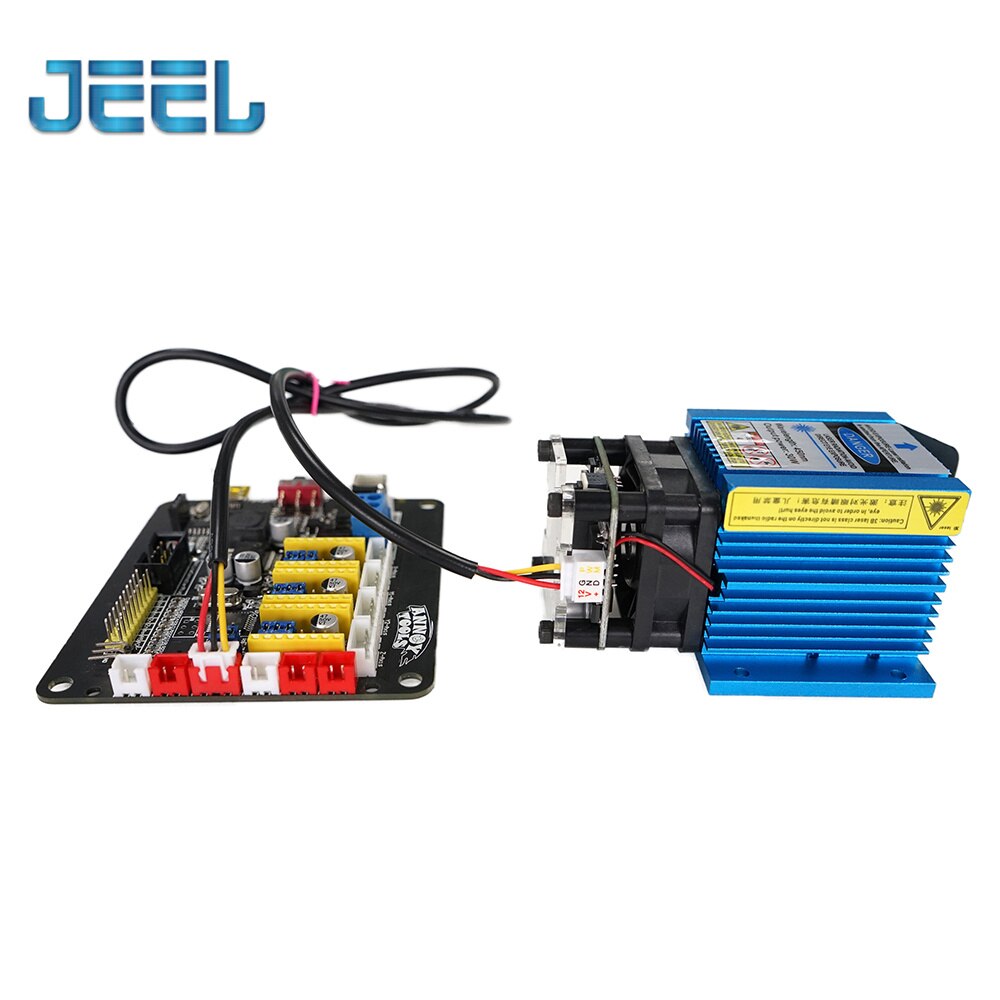

Connection diagram:
