Description
- Model Number: 450nm-15W-3P
- Current: <5A
- Laser Wavelength: 450nm (Blue Light)
- Spot Type: Dot (Fixed Focus)
- Operating Voltage: 12V
- Shell Material: Aluminum,Surface Anode Blue/Golden
- Module Material: Copper

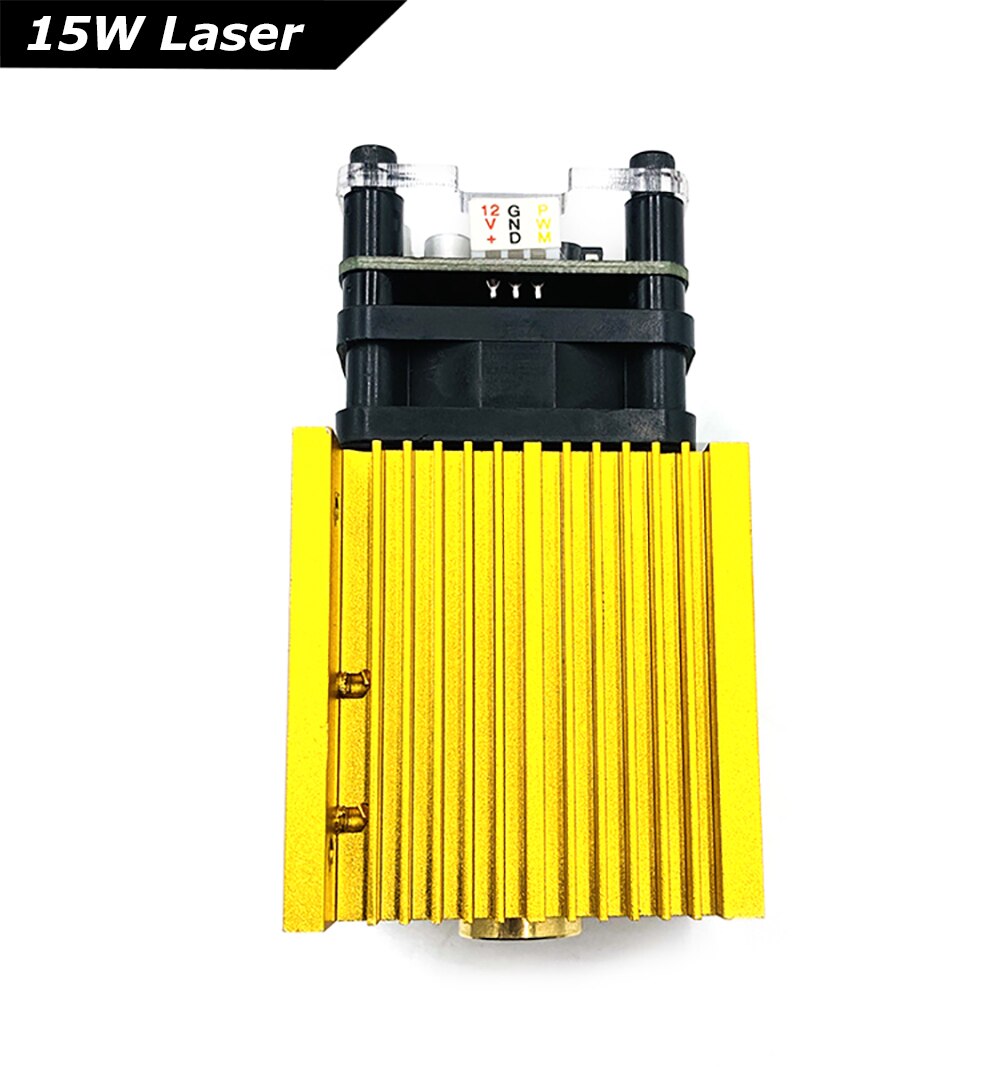

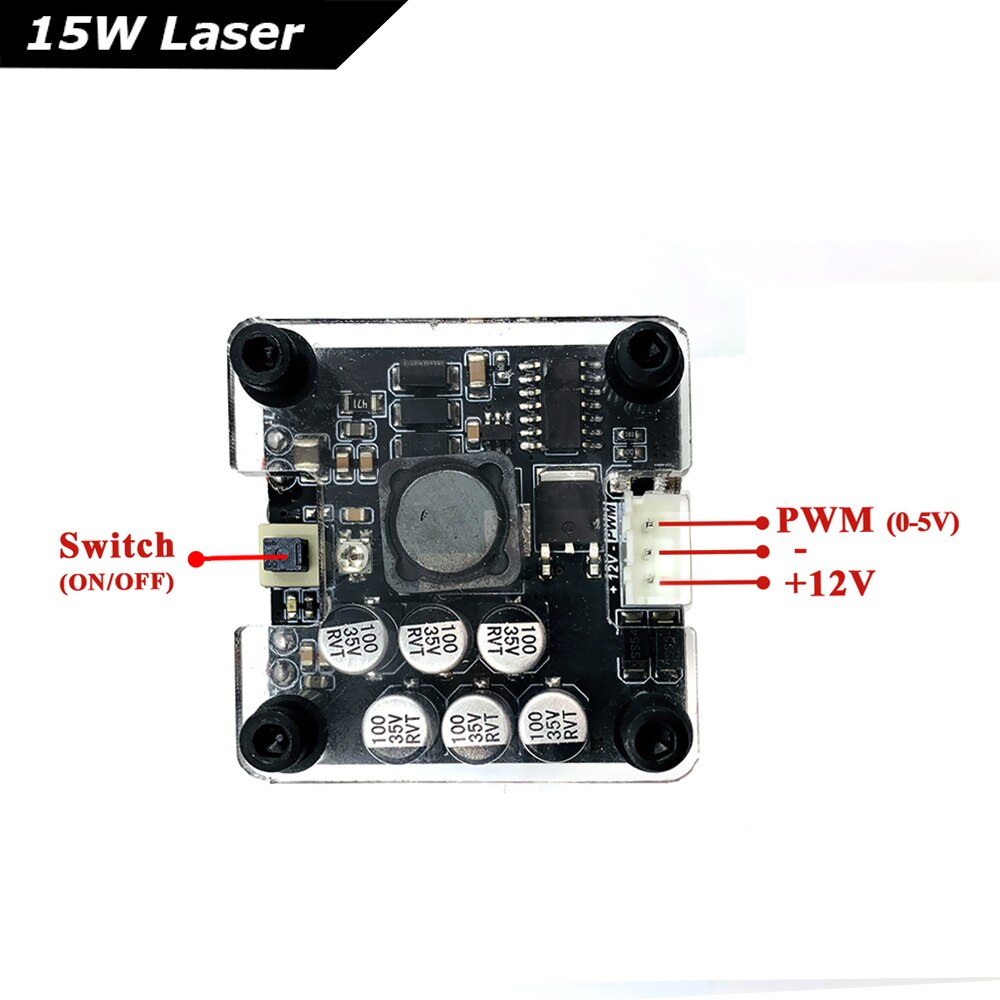

- Power Supply & Control Interface: 2×2.54(Power Supply) 1×2.54(PWM)
- Cooling Method: Forced Air Cooling
- Weight: 0.45kg
Specification:
Laser Power : Pulse 15W average 8W
Laser Wavelength: 445nM
Beam Shape: 0.1mm Point
Focal Length: Fixed focal lengh
Material: Aircraft Aluminum,Copper
Power Prot Input Voltage: DC 12V
PWM Prot Input Voltage: DC 5V
Power Supply Interface : XH2.54*3P
Driving mode: External ACC Constant Current Drive
Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Cork Wood/Foam Paper/Anodized Aluminum/Ceramics/Stone/Stainless steel
Can Not Engrave : Metal/Glass/PCB/Reflective Material/Transparent Material
Features:
* Made of high quality hard aluminum and brass material,
the surface is by anodizedand sandblasting ,
not easy rust,very durable.
* One of the most powerful diodes available,
upgrade your Wood engraver to a Metal Marking Machine.
* It can mark metal and stone, cut wood, foam and other materials easily.
* With heat dissipation fan,make it with longer service life.
*TTL and PWM is compatible, it can run only one of them at the meanwhile
PACKING LIST:
Laser*1
51cm 3Pin Cable*1
Glasses*1
