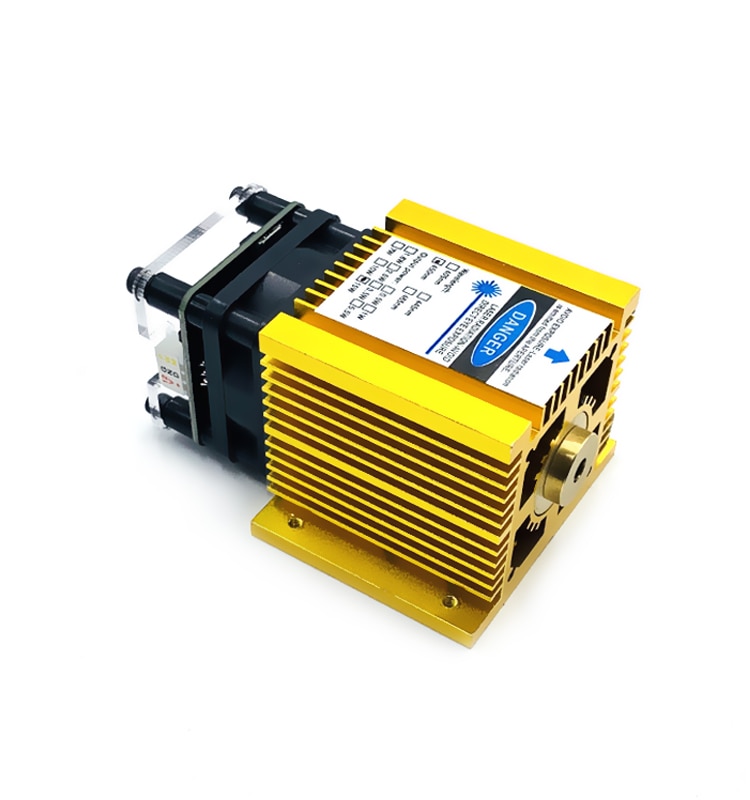

Description

Laser Power:Pulse 15W average 8W

laser Wavelength:450nM

Beam Shape:0.1mm Point

Focal Length: Fixed focal lengh

Material:Aircraft Aluminum,Copper

Power Prot Input Voltage: DC 12V

PWM Prot Input Voltage: DC 5V

Power Supply Interface :XH2.54*3P

Driving mode:External ACC Constant Current Drive

PACKING LIST:

Laser*1

60cm 3Pin Cable*1



• Made of high quality hard aluminum and brass material, the surface is by anodized  and sandblasting ,not easy rust,very durable.
• One of the most powerful diodes available, upgrade your Wood engraver to a Metal Marking Machine.
• It can mark metal and stone, cut wood, foam and other materials easily.
• With heat dissipation fan,make it with longer service life.

Friendly Reminder：

• Please wear the protective glass when you use the laser module.
• Do not touching the laser light directly in case that hurt the body and skin.
• Keep children and pets away from the laser module when it working.
• The Laser dot could not be adjusted, please make sure the distance between bottom of the laser module and engraving material is 16mm(Use the plastic column to do it). Or it will influence the result.
• Please connect to the driver board carefully! The Red cord is 12V+, the black cord is GND-,the yellow cord is Signal(S). Please make sure you know how to connect it,Otherwise it might damage the laser module!
