Description
- Brand Name: Q-LINE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: 450MD-100-3365-12V-XL
Specifications:
Host size: length 69mm * width 30mm * height 30mm
Circuit size: length 47.5mm * width 31.5mm * height 16mm
Output wavelength: 445 nm
Output power: 100mW
Cooling: aluminum heat
Modulation frequency: can be modulated
Working characteristics: continuous work
Surface treatment: blue
Housing material: aluminum
Circuit control: constant current
Reverse polarity protection: with positive and negative reverse polarity detection
Working voltage: DC = 12V (10-14V)
Working current: I <1.7A
Warm-up time: none
Operating temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃
Structural features: laser tube + lens + cooling tray
Note: The power supply is external
Note:
Please avoid direct eye exposure to the laser beam and wear 450nm protection glasses when your operate this laser module. The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly, if you have any technical problems, please contact us!
Package:

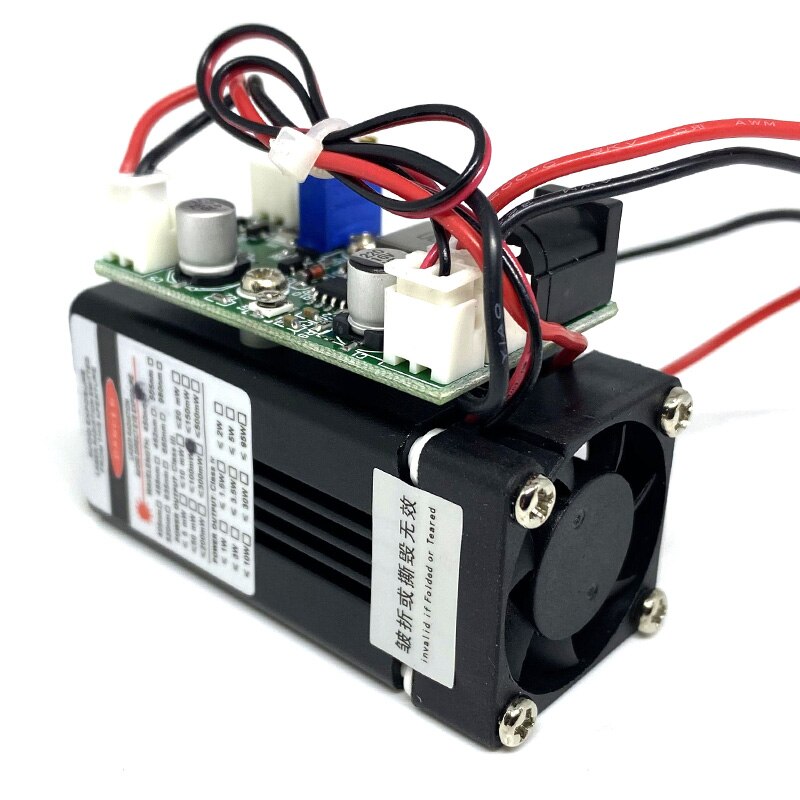

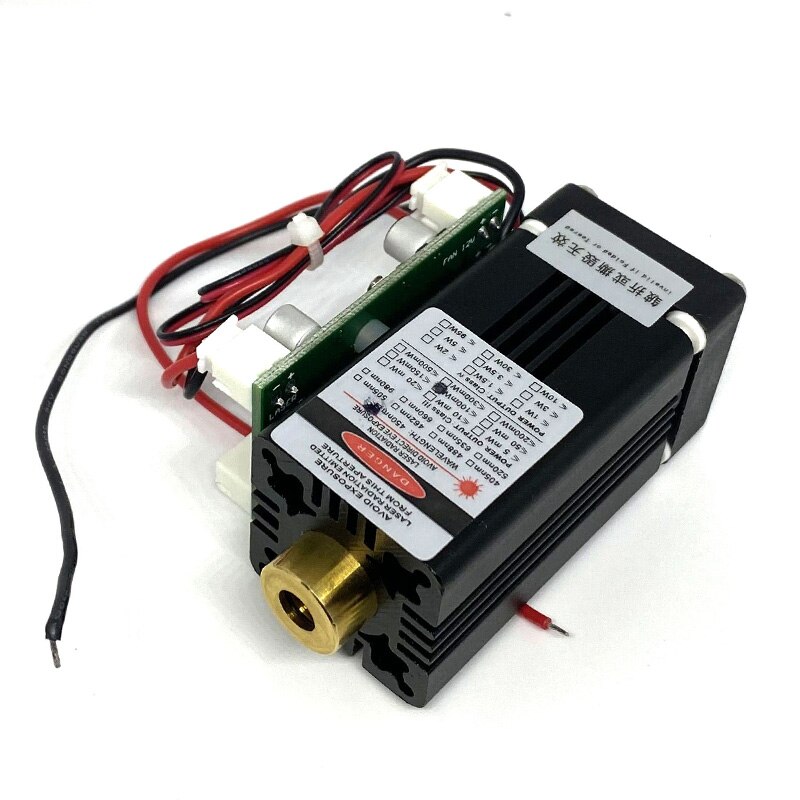

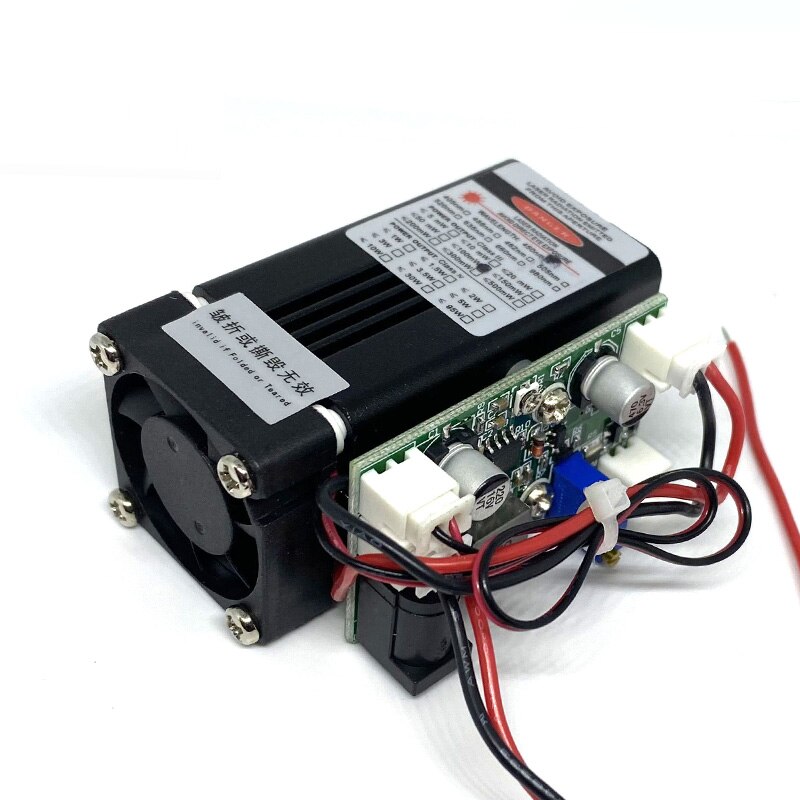

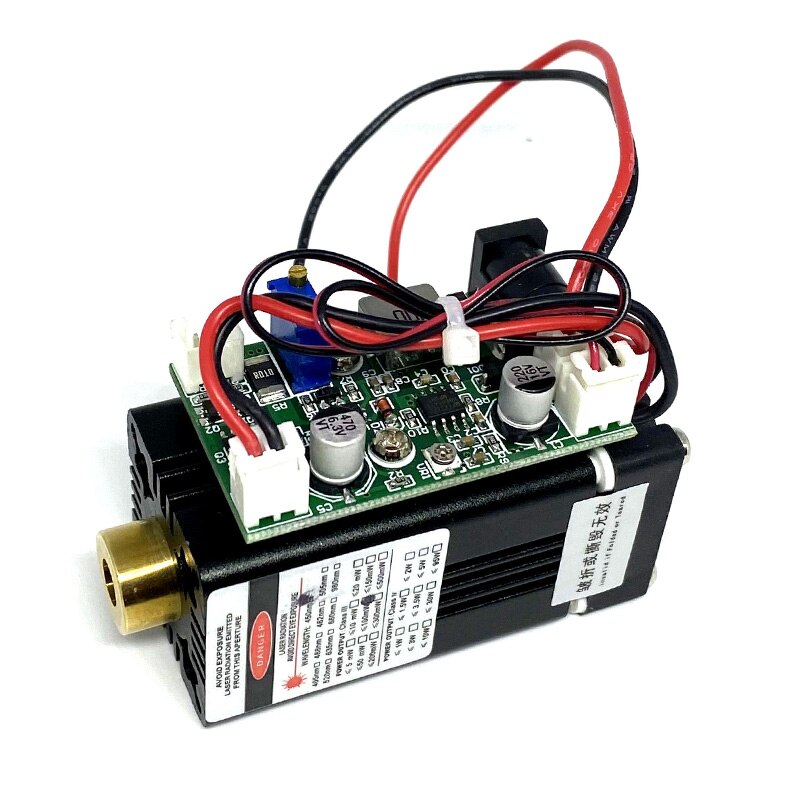

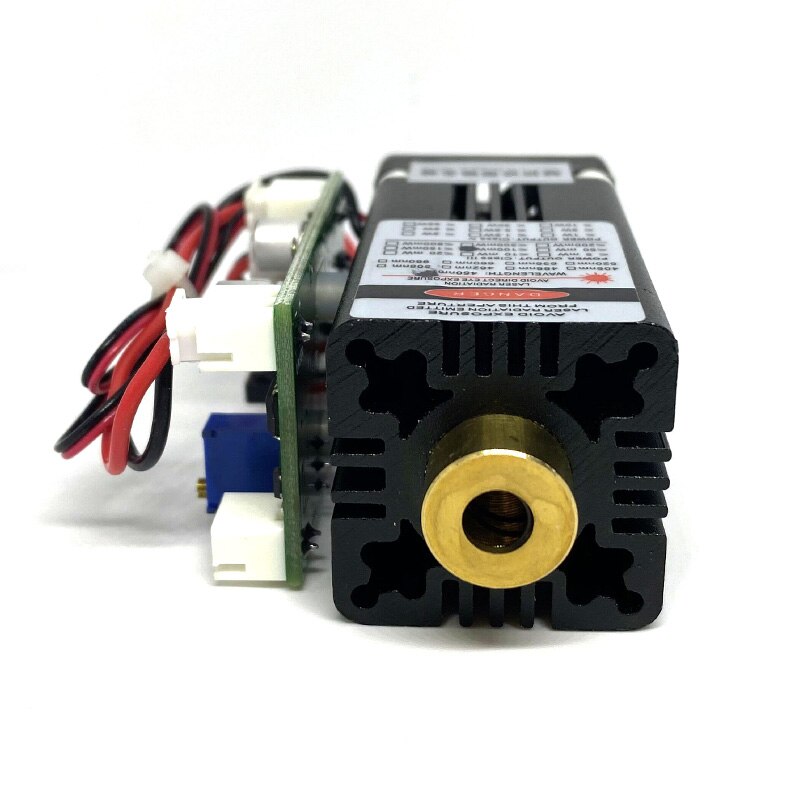

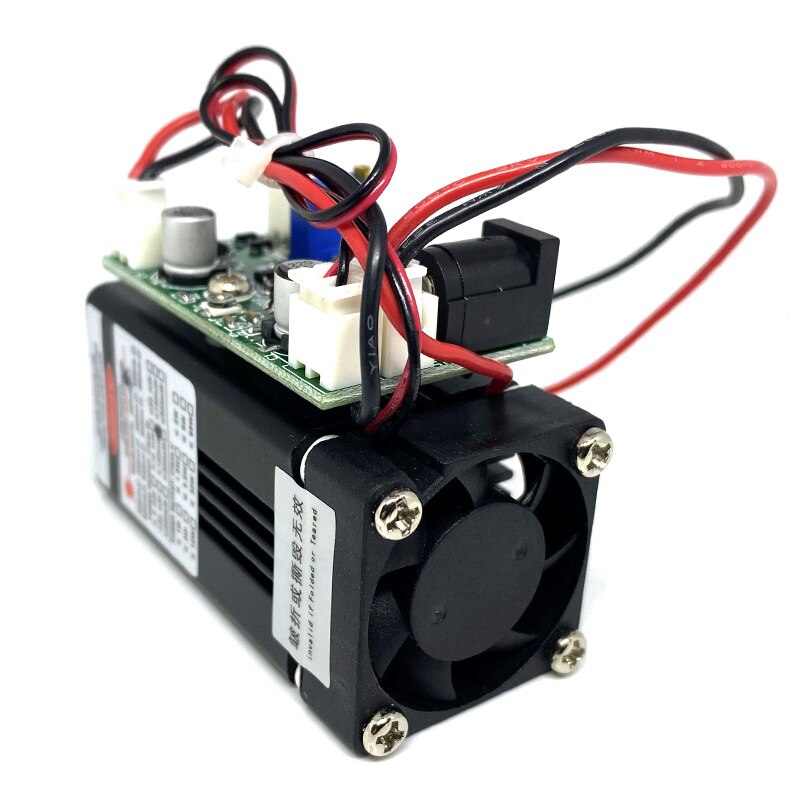

1 x 445nm 450nm 100mW focusable laser module with blue diode and TTL DC12V + fan cooling + long-term operation
