445nm 447nm 450nm blue laser diode module for scientific research laser pointing show RGB mixed laser systems applications

$1,372.40 – $2,568.40

SKU: 3572103018651 Category:

Description

Product Description

Model
MDL-445-E
Central wavelength (nm)
445±5
Operating mode
CW
Output power (mW)
>1000, 1100, 1200, …,3500
Power stability (rms, over 4 hours)
<1%, <2%, <3% (<0.5%, optional)
Transverse mode
Multimode
Beam diameter at the aperture ((1/e2,mm)
~2.7×2.7
Beam divergence, full angle (mrad)
1.4×0.2
Polarization ratio
>50:1 (>100:1, optional)

Horizonta±5 degree (Vertical Optional)
Warm-up time (minutes)
<5
Beam height from base plate (mm)
45
Operating temperature (℃)
10~35
Power supply (100-240VAC)
PSU-H-LED/ PSU-H-FDA
TTL / Analog modulation
TTL or Analog with 1Hz-1KHz 1KHz-10KHz, 10KHz-30KHz optional
Expected lifetime (hours)
10000
Warranty
1 year

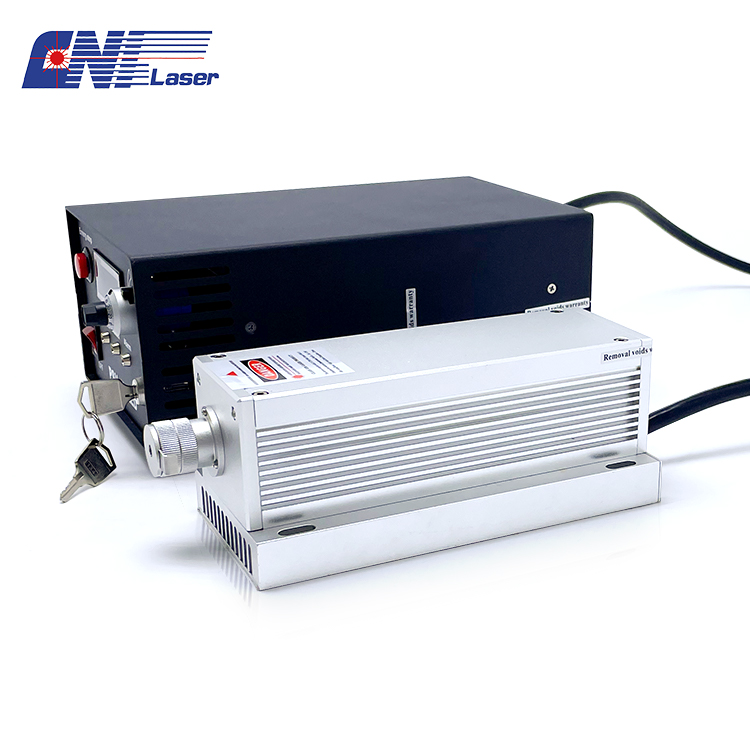

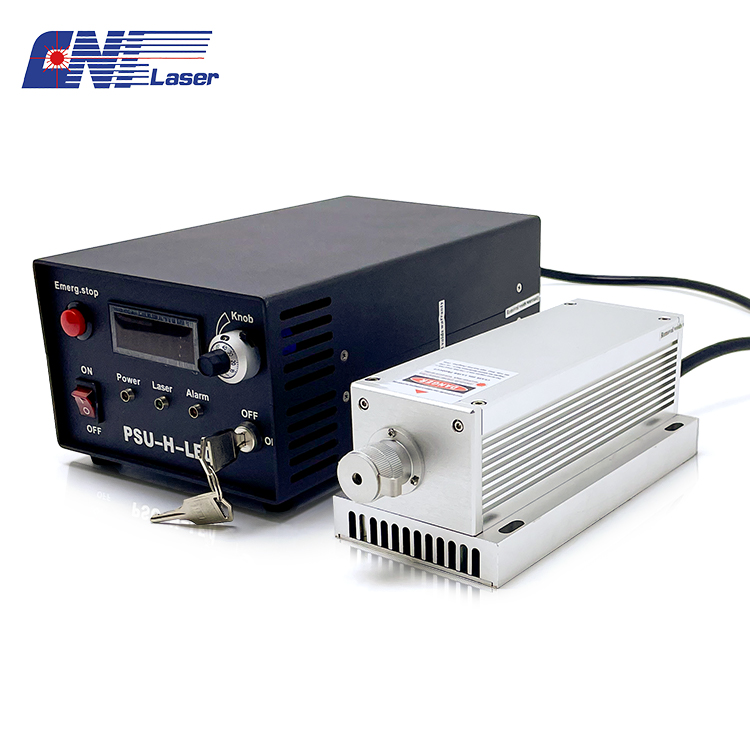

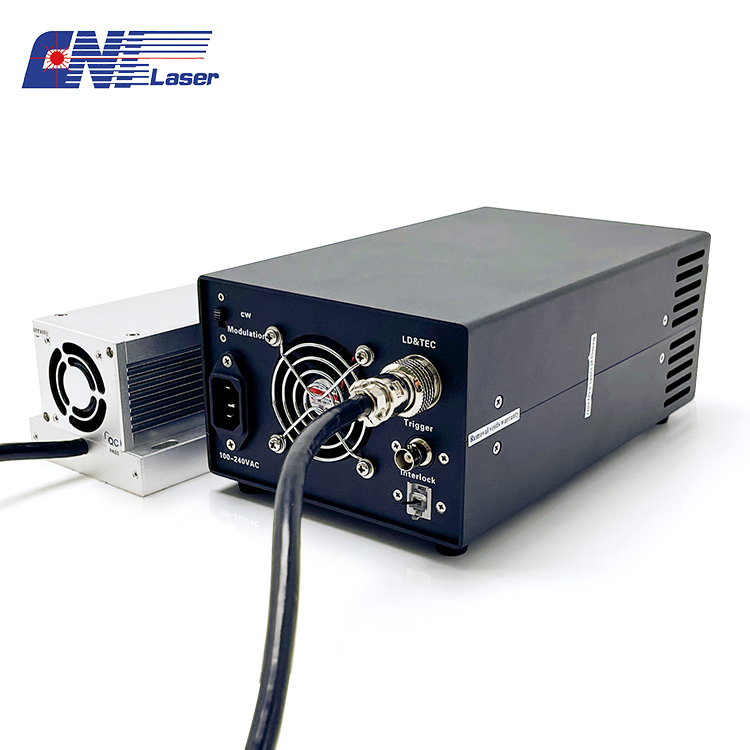

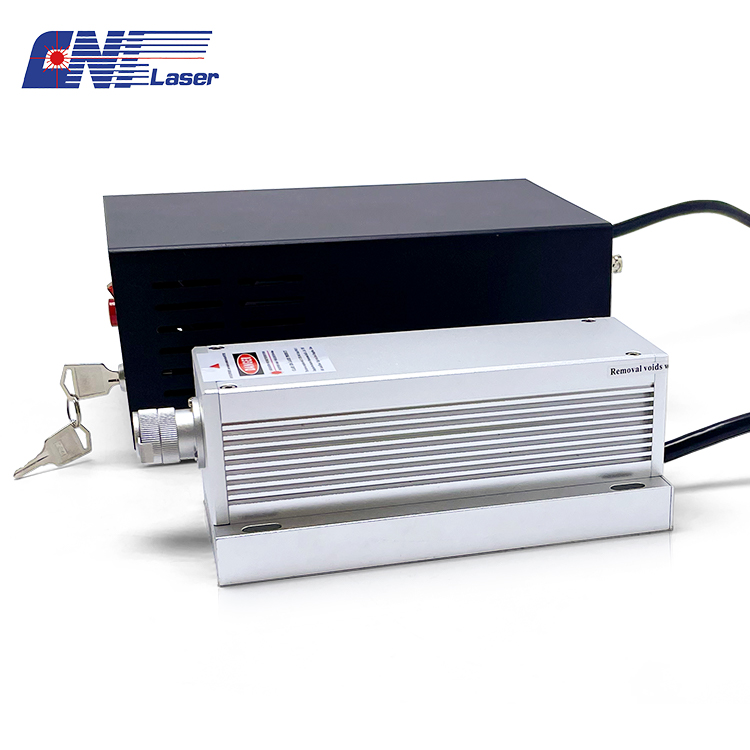

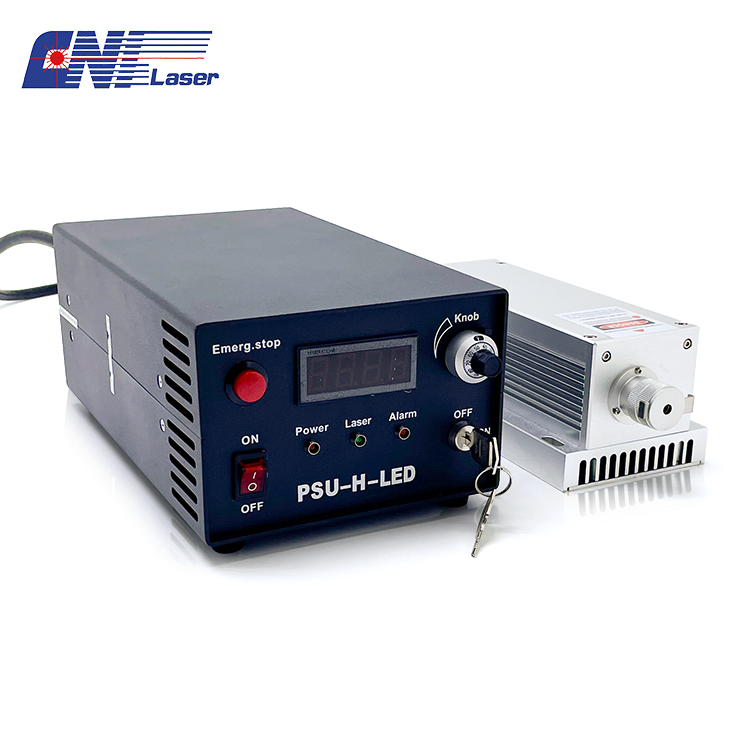

Product Show

Applications

Certificate

Additional information

Model Number

"MDL-445-E-3500mW-1% stability-include fixed power supply", "MDL-445-E-2000mW-1% stability-include fixed power supply", "MDL-445-E-1500mW-1% stability-include fixed power supply"
