Description
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Origin: CN(Origin)
- Model Number: LASER-40W
- power: 30W/30W-Pro
- Beam size: (0.08*0.08m)
- Power density: 5W/(0.08mm*0.08mm)=781W/mm2
- Optical Output:: 5W
- Wavelength: 450nm
- Input: 12V 3A
- Precision: 0.08mm
- size: 40mm*40m*120mm
- Lens: Zoom lens
- Focal length: 20mm~40mm
- Name 1: Laser Module
- Name 2: Laser Head
- Name 3: Laser Engraving Tools
2022 Newest laser module, no yellow edge!!!!
Professional laser module, suitable for cutting and engraving DIY, can be installed on the engraving machine. More precision, more power, faster efficiency

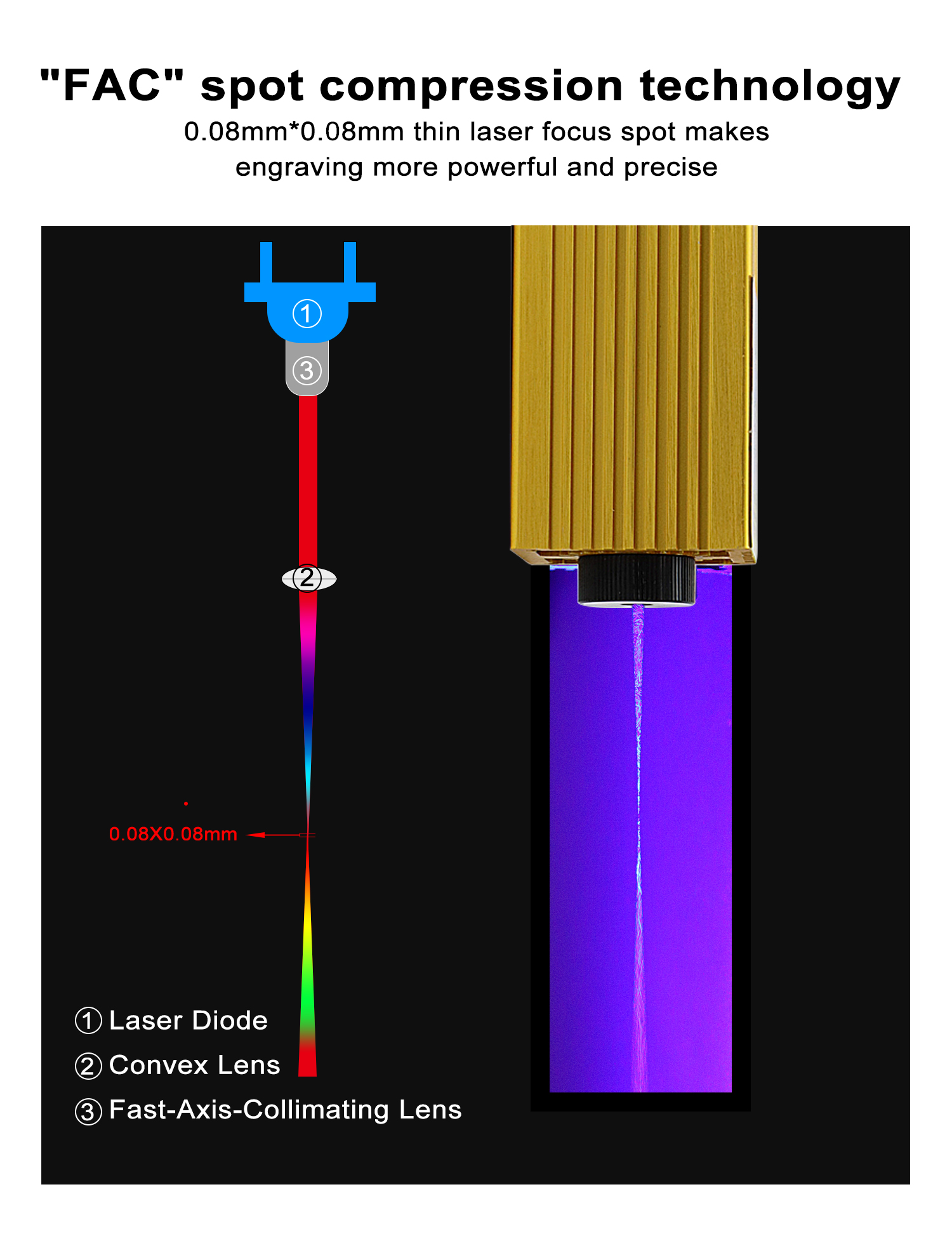

With the FAC technology the spot size is 0.08mm, which is high efficiency & precision than normal module
●Cutting Thought 5mm Plywood By One Pass!!
Welcome To ZBAITU Store, Please Note:
a. Freeshipping is not means free duty from china. As we all known, import high value goods would be charged import tax in each country; AND NOT included the remote area charge too
b. Usually, we shipping out your order within 48 hours by AliExpress Standard Shipping
c. Seller’s shipping methods are shipping by express company, such as Stander Shipment/DHL/FedEx/ UPS/ TNT; Please contact us！
Laser Introduction:

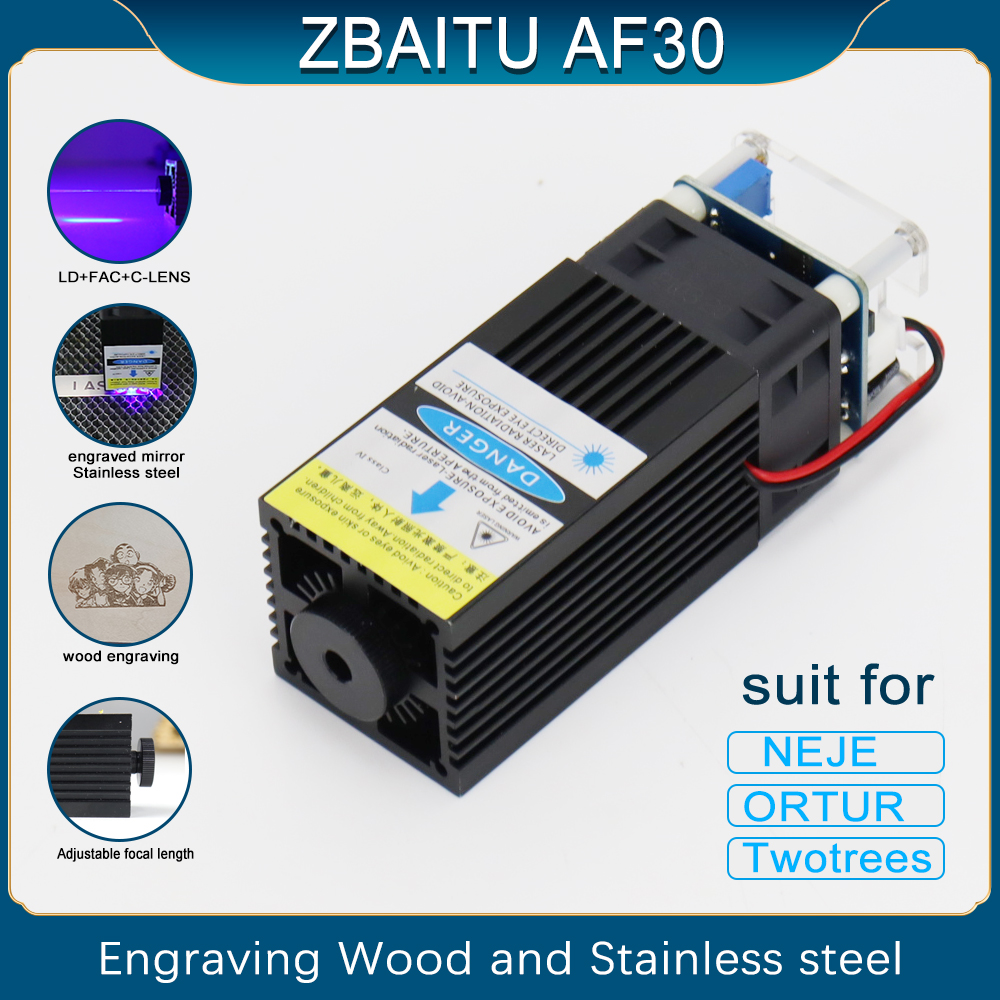

●ZBAITU AF30 blue light laser module, standard laser head, designed for engraving machine, CNC machine, support cutting and engraving
●ZBAITU AF40 blue light laser module, with the second-generation FAC compression spot technology, specially designed for engraving machines and CNC machines, and supports faster cutting and engraving
Feature:
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Upgrade FAC compression spot technology, engraving and cutting faster
3. The module is made of aluminum, which is sturdy and durable.

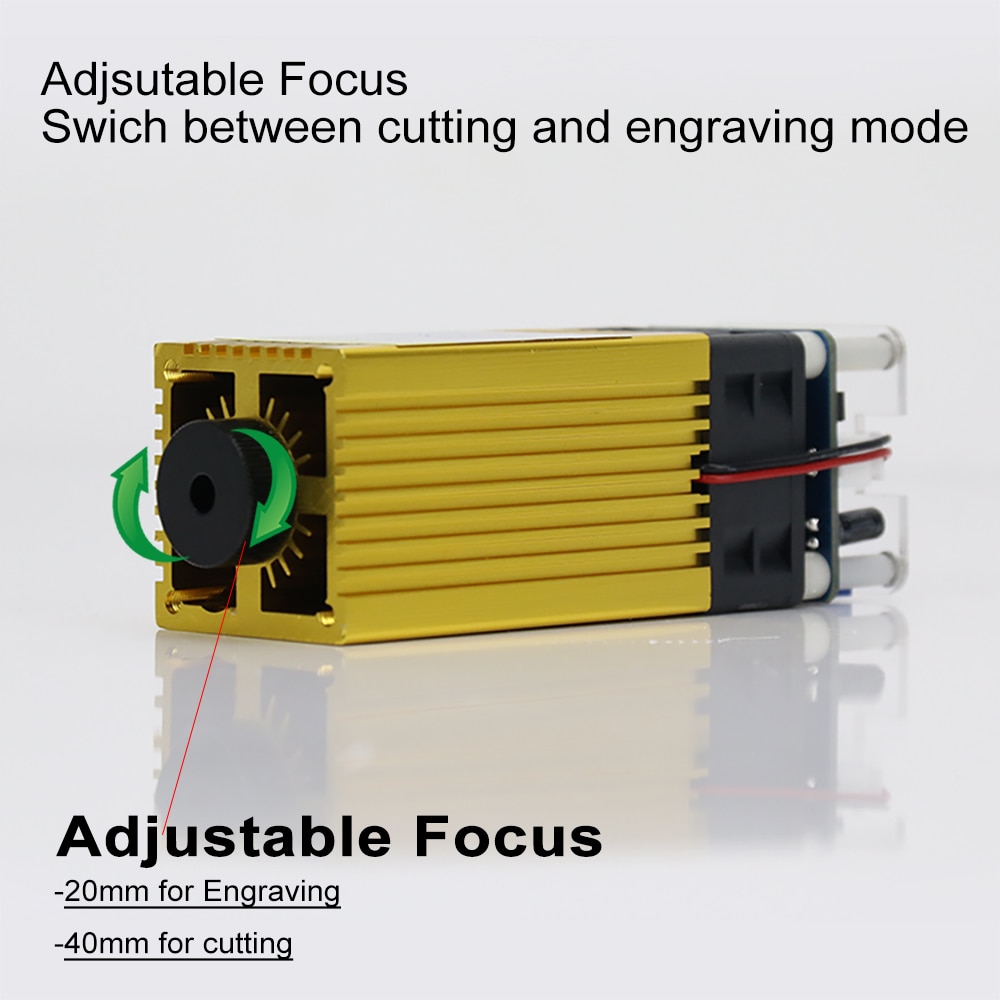

4. Adjustable focus lens, the longer the focal length is suitable for cutting, the shorter the focal length is suitable for engraving
5. Aviation aluminum TTL driver board with cooling fan to ensure continuous long-term work.

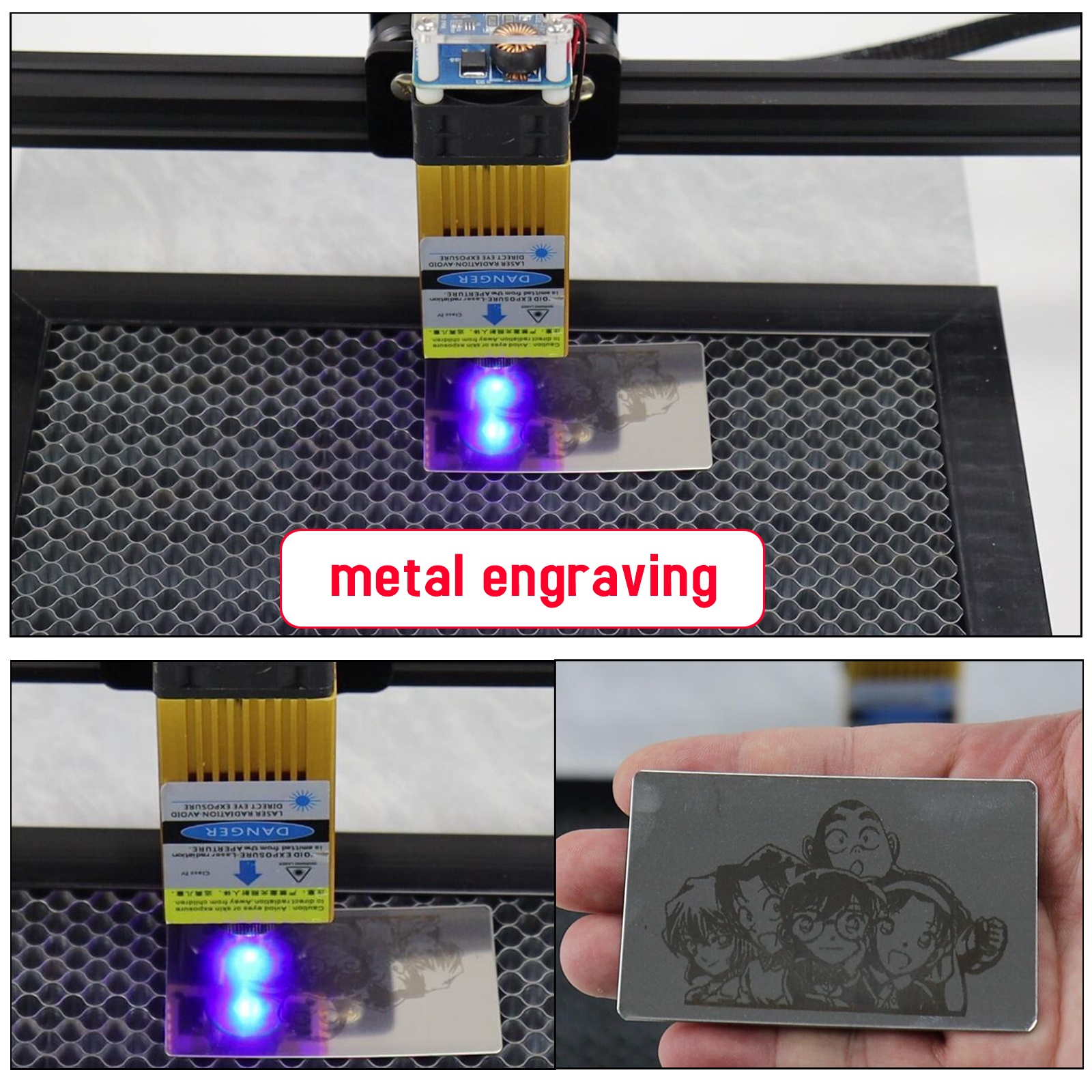

6. Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, stainless steel, non-reflective plating and lacquered metal, utility knife after blackening.
7. Cuttable materials: plywood, cardboard, non-woven, veneer, acrylic, some thin plastic sheets.

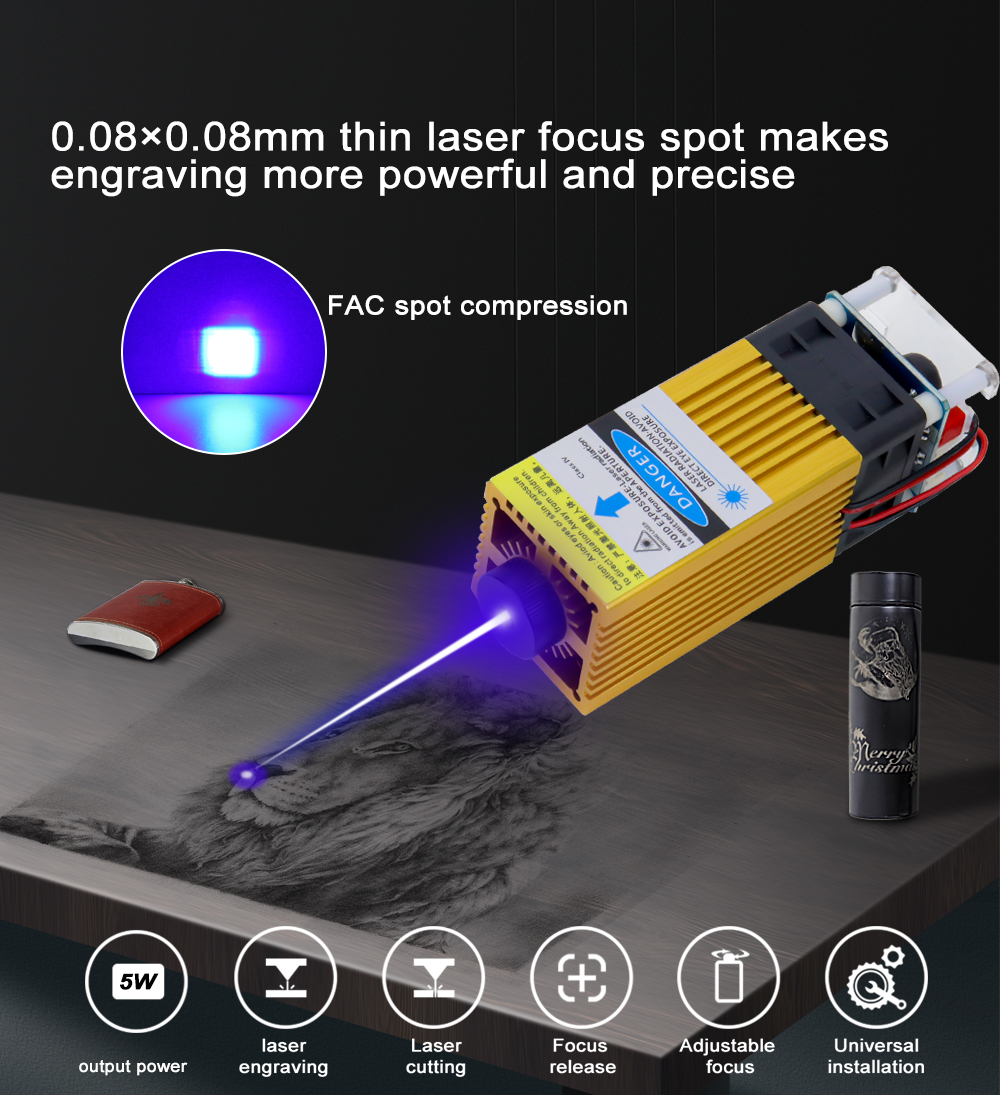

8. 0.08*0.08mm compression laser technology makes engraving more powerful and precise.
9. The engraving speed is 100% faster than other ordinary 5W lasers

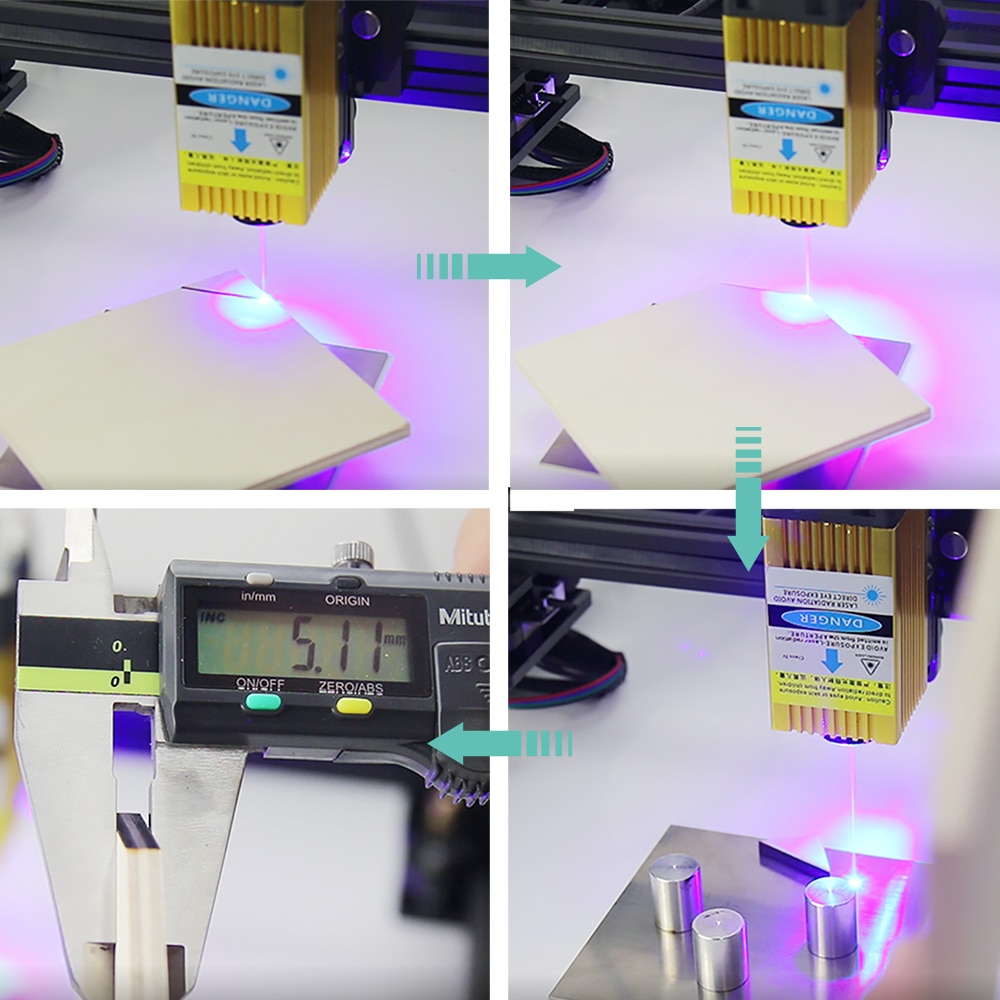

10. High energy cuts 5 thick plywood by one pass.
11. The laser sintering temperature is 1100 degrees, and the engraving metal effect is better.
12. The adapter circuit board is compatible with 95% of laser engraving machines on the market, including Atomstack, ortur, Neje, twotree, etc.
ZBAITU AF40 Laser Parameters |
||||
|
Parameter |
Unit |
Minimum |
Average |
Maximum |
|
Wavelength |
nm |
450 |
455 |
460 |
|
Output optical power |
W |
4.4 |
5 |
5.2 |
|
Focal length |
mm |
20 |
– |
40 |
|
Focal spot size |
μm |
70 |
80 |
90 |
|
Operating temperature |
℃ |
0 |
– |
60 |
|
Storage temperature |
℃ |
-45 |
– |
85 |
|
Input voltage (DC) |
V |
9 |
12 |
15 |
|
Input current (12V CW) |
A |
– |
1.7 |
2 |
|
Adjustment method |
5V PWM |
|||
|
Warranty period |
1 year |
|||
|
Items |
Parameter |
Items |
Parameter |
|

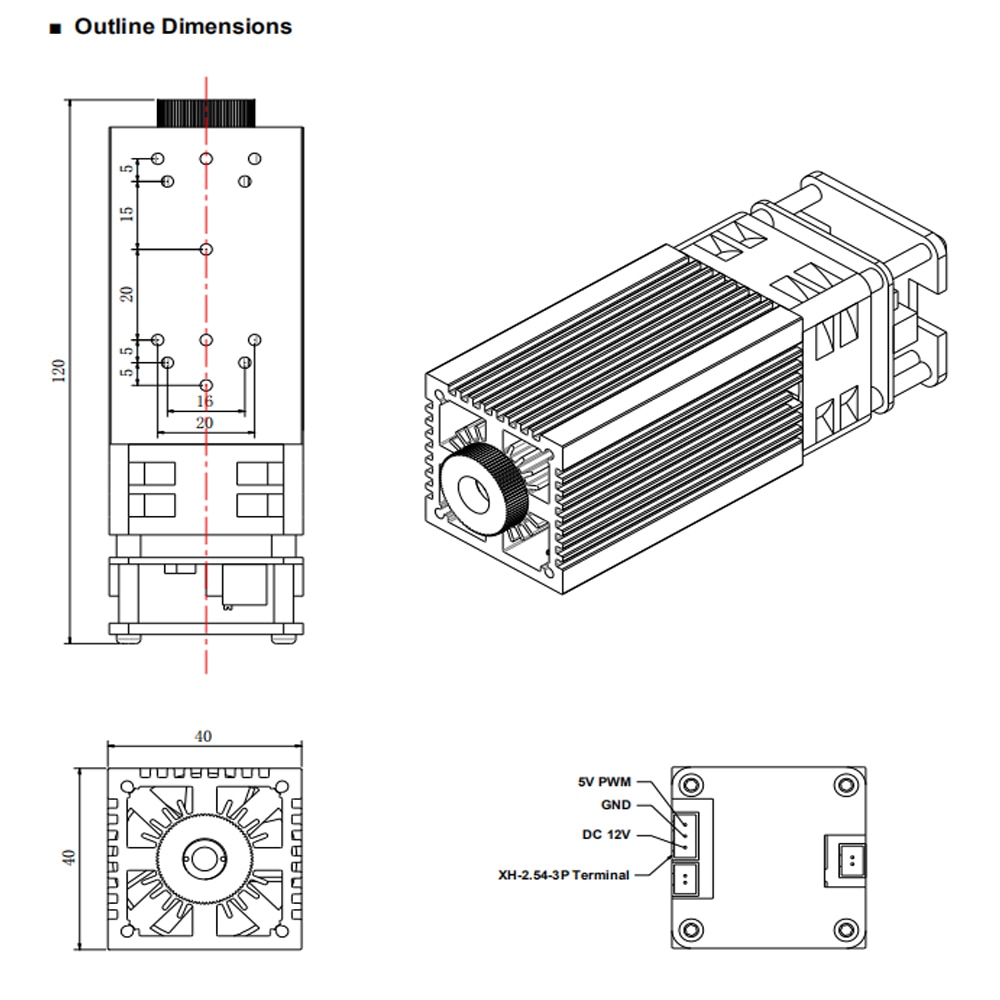

Module size |
40*40*123mm |
Optical Lens |
φ6/glass |
|
Circuit Board Size |
40*40mm |
Fan |
9000rpm |
|
Circuit Board |
5V PWM |
Product Material |
Aluminum 6061 anode |
|
input port |
XH2.54-3pin socket |
Product Net Weight |
0.24kg |
|
Package size |
18*7*7mm |
Package weight |
0.3kg |
