Professional laser module, suitable for cutting and engraving DIY, can be installed on the engraving machine. More precision, more power, faster efficiency

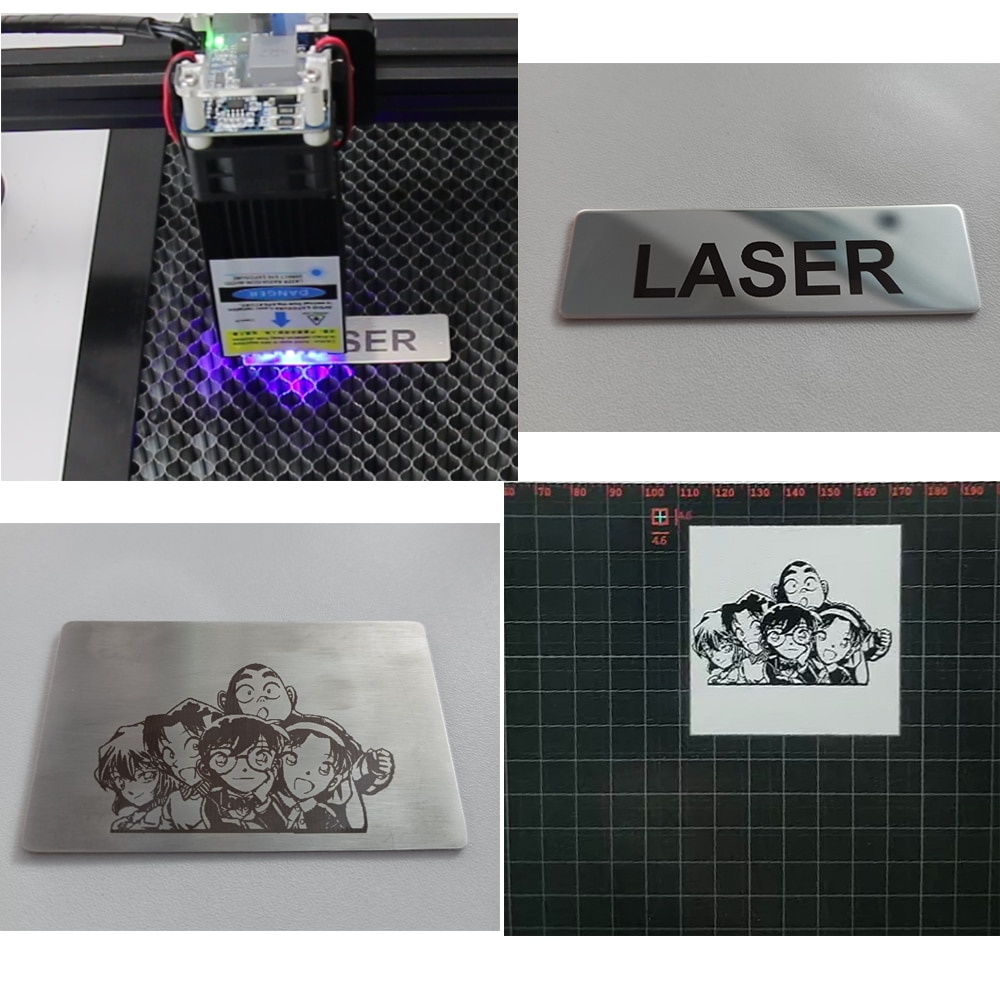

30W-Std, Suitable for engraving all kinds of materials, can cut 4mm plywood.

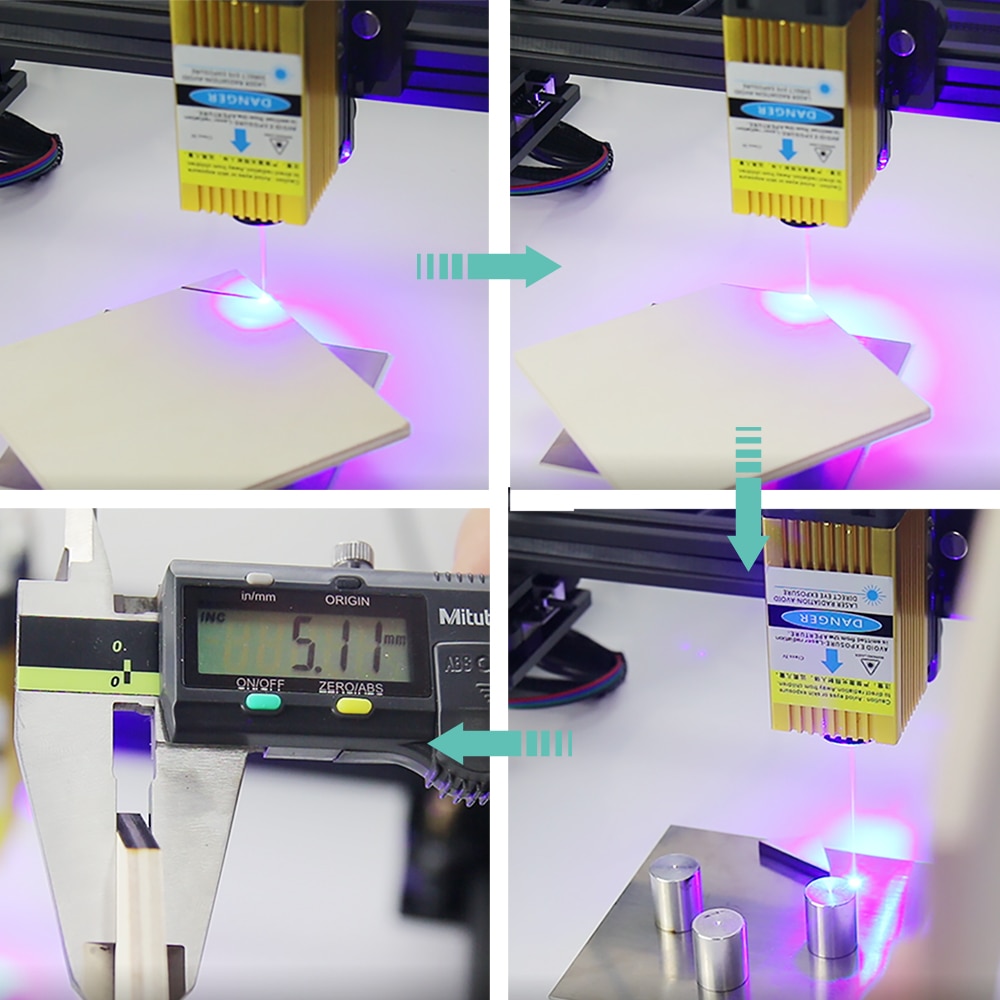

40W-Pro, The better choice, the more efficient carving work. Can cut 5mm plywood.

Laser Module

10,000 hours life time
Original high quality laser diode and professinal laser driver design.

Excellent heat disspation design
The well-contacted heat sink design reduces the working temperature of laser diode.

Selectable focus type
Type 1: Adjustable focus
It’s for professional DIY laser engraver player, Convenient to switch focus from 20mm to 40mm.
Type 2: 20mm fixed focus
Best focus for engraving work
Type 3: 40mm fixed focus
Best focus for cutting work

Specification

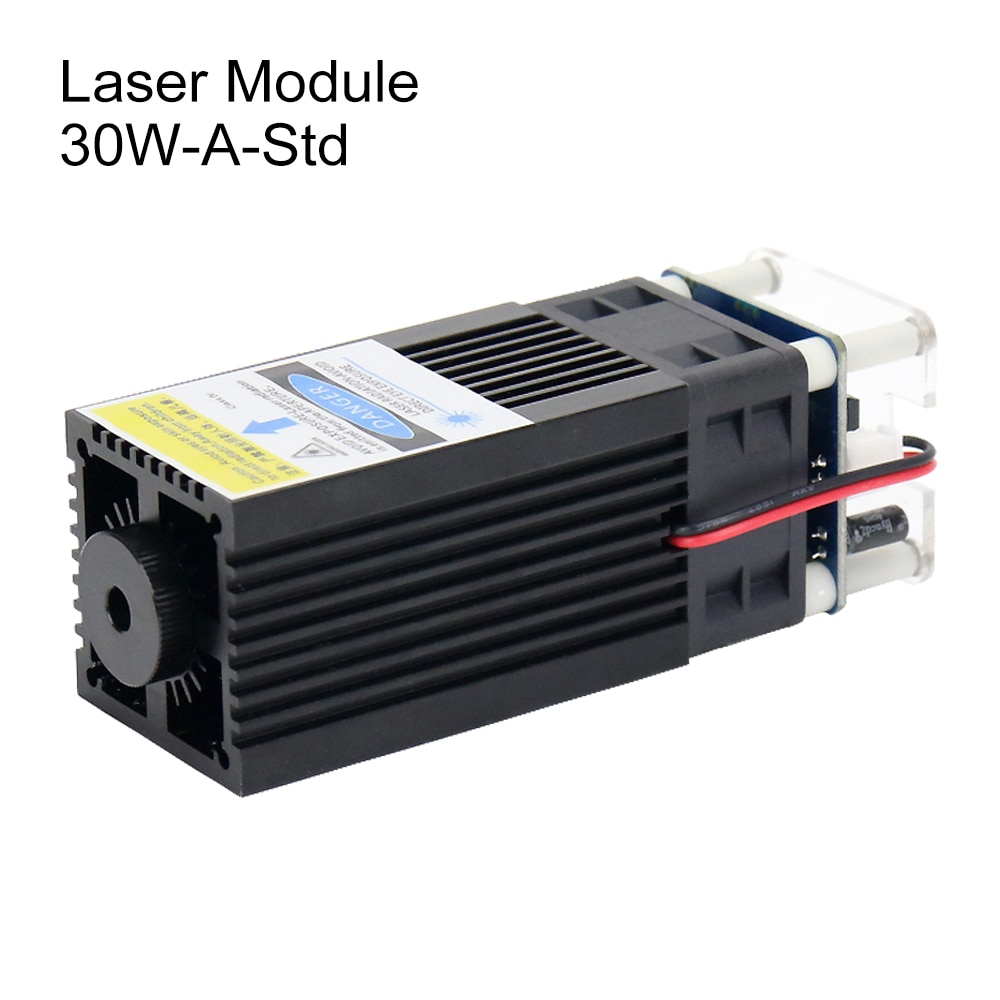

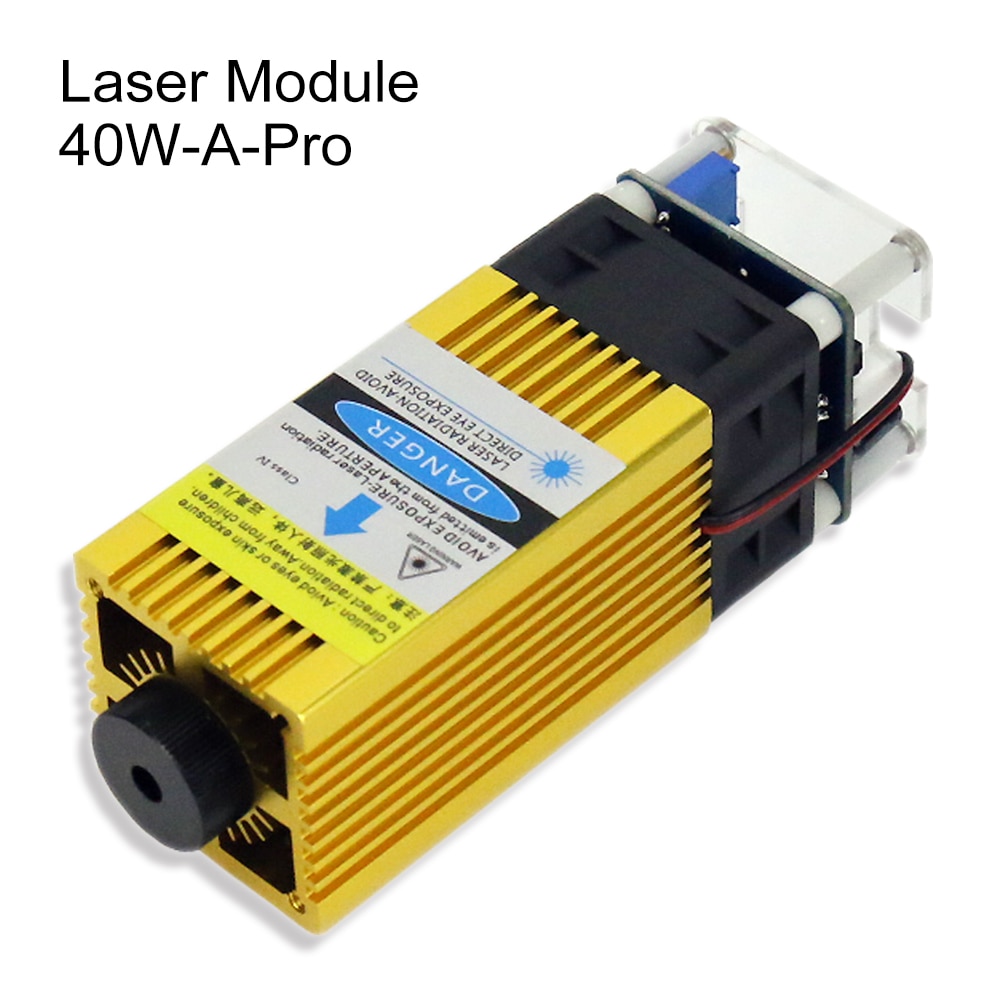

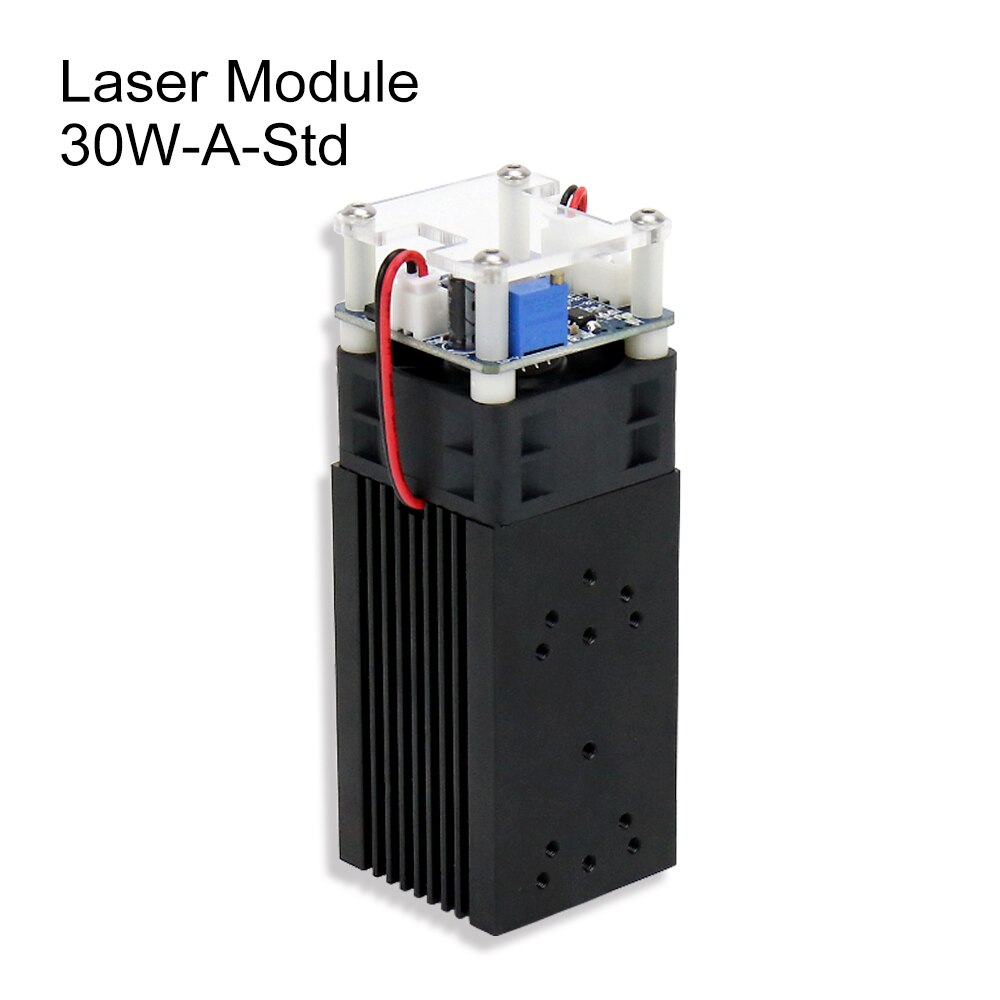

-Model: 30W-A-std/40W-A-Pro
-Effect ouput power: 40W
-Electric power: 30W
-Beam size : (0.08mm*0.08mm)
-Power density:5W/(0.08mm*0.08mm)=781W/mm2
-Input:12V, 2.5A
-Optical Output: 7.5W(30W-std)/10W(40W-Pro)
-Wavelength: 450nm
-Precision: 0.08mm
-Module Size：40mm*40m*120mm
-Focal length:20mm~40mm

Package List

1 * Laser Head

NOTE

1.Please wear laser safety goggles when using the product to protect your eyes from the direct laser beam.
2.Smoke will be generated when burned, please pay attention to indoor smoke exhaust.
3.Protect yourself from the laser when you operate on it.
