Company profile:

SAMONE Technology Co., Ltd. is a company engaged in laser production and R & D, and has seven years of R & D experience in this industry. The company has been committed to laser research for many years, and laser products are applied in many fields, including street lamp, bird driving laser lamp, high-power engraving laser and so on. We have been cooperating with customers all over the world for a long time. We accept the customized laser products. At present, the laser products are exported to 34 countries. Welcome all customers to experience and use our products, and can accept the customized needs of all customers.

Product parameters:

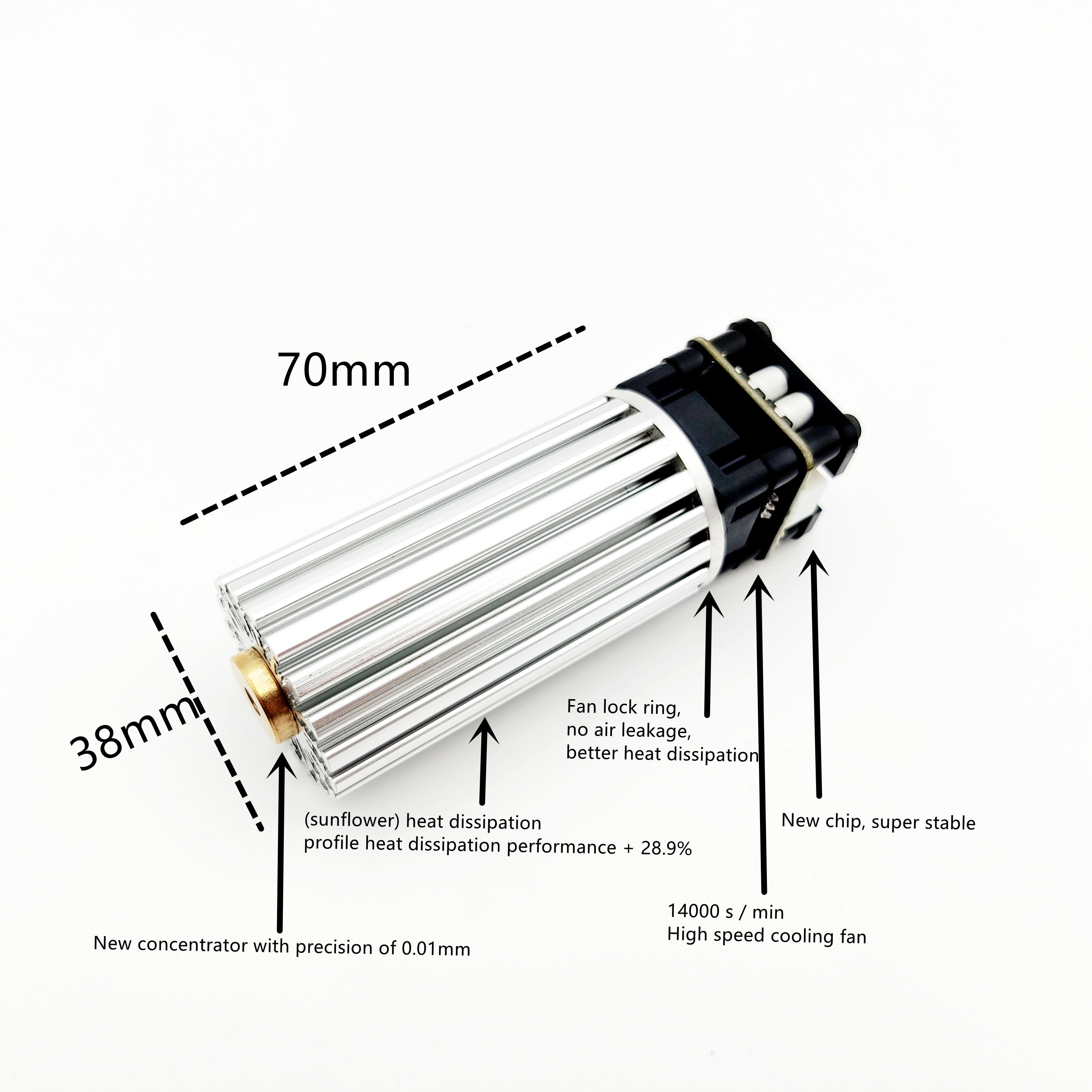

Size: 38*120mm
Circuit Board: PWM control
Product Net Weight: 256g
Output Power: 40w
Working Current: 1900ma
Operating Voltage: 12V
Laser Wavelength: 450nm
Laser Beam Mode: bot
Can adjust the focus: Fixed focal length
Working Temperature:0-42℃
Working Time：12000Hours
material： Aviation aluminum

Can be cut：

Plywood: 3-4mm
Acrylic: 3-4mm
Paper: 1-2mm (need to be fast)
test:
Plywood, thickness 3mm
Speed 330, cut 3 times, each cut 1.0mm
Speed 200, cut 2 times, 1.5mm each time
Speed 100, cut once, 3mm each time

Materials that can be engraved

Alumina,
stainless steel,
wood, stone, acrylic,
plywood, plastic, plastic,
leather, paper, glass (with colored paper)

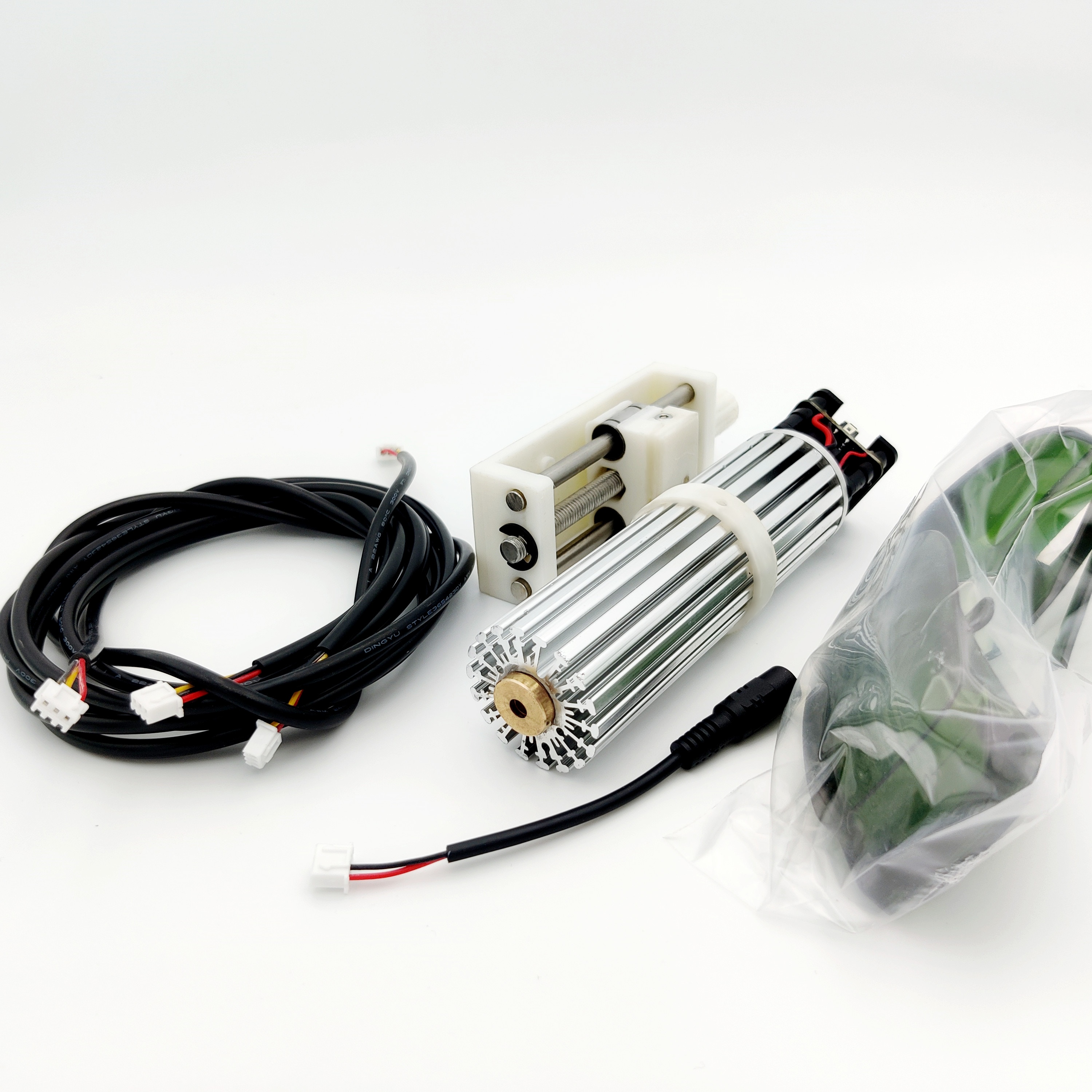

Delivery list：

1.3PIN line*1
2.4PIN line*1
3.Power line*1
4.Anti glare glasses
5.40W laser
6.Focal length measuring tool

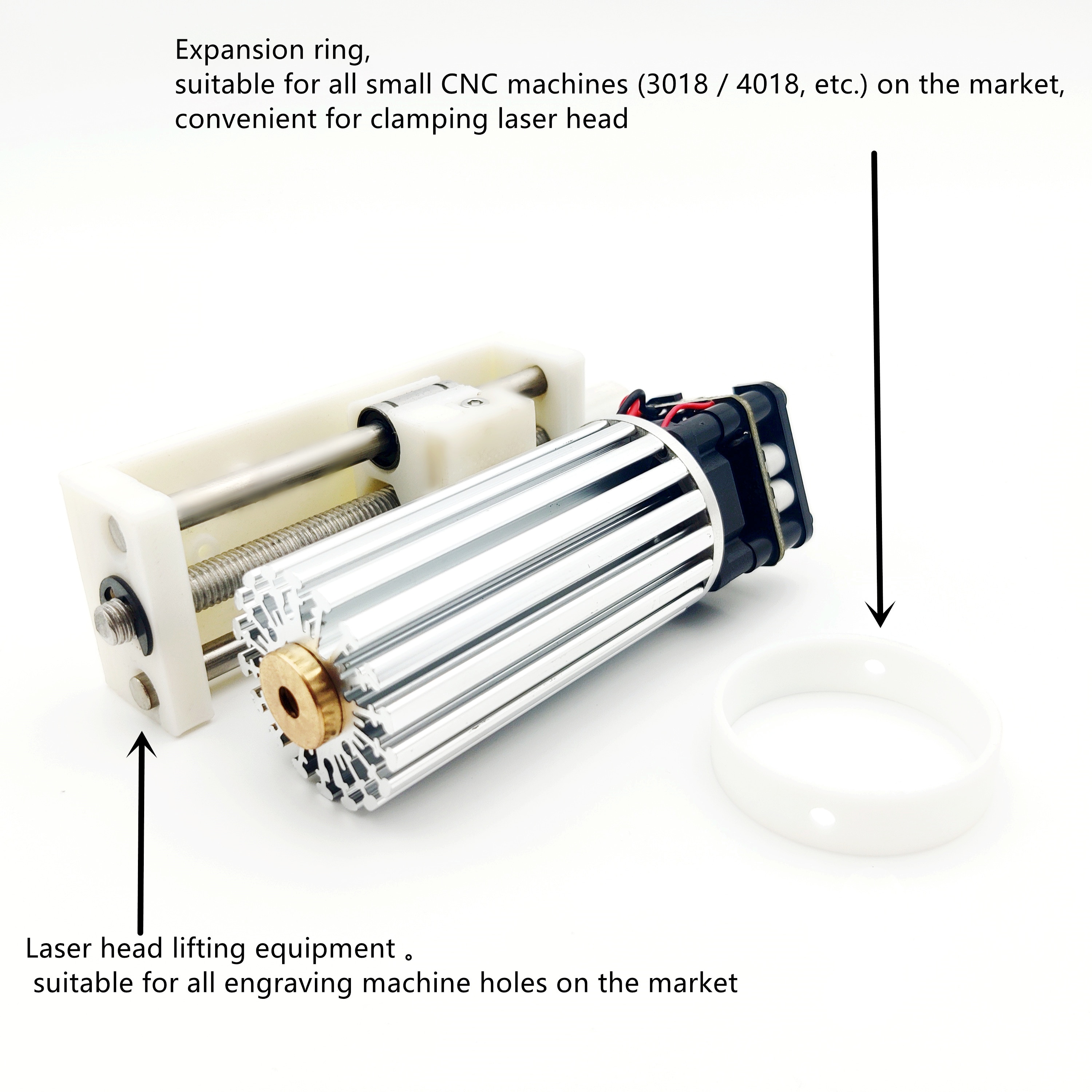

7.Laser lifting equipment（Black or white ）
8.Ring (for laser clamping of CNC equipment)
9.3mm hex screwdriver
10.3mm hexagon screw

Note(Please pay attention):

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.

FAQ

Are you a factory?
Yes, we are a professional manufacturer dedicated to the design, development and production of laser engraving machines
Since 2014.

Do you have a warehouse overseas?
We have warehouses in the Netherlands, the United Kingdom, Germany, Spain, the United States, and Russia, which can speed up service around the world.
Traditional products are delivered within 2-3 working days and arrive within 7-30 days.

What is a quality assurance policy.
According to different product series, a 1-year warranty is provided. For more details, please contact

Can you customize the product for me?
Yes, we can provide customized services, such as logo printing, packaging design…
We welcome OEM or ODM orders. Let us work together for a win-win situation.

How long does it take to ship my order?
Out of stock products: about 3 working days after payment receipt
Customized products: about 7 working days after payment receipt
Specific delivery date: please contact our sales team for two confirmations

maintenance:

1. Try to use the laser in a ventilated environment. If allowed, add a fan next to the laser to blow away some smoke generated by the engraving.
2. When the laser is working normally, avoid touching the laser directly with your hands to prevent the laser from being injured by the static electricity of the human body.
3. Avoid long-term use on the mirror material (laser reflection will damage the laser). If you want to engrave on this material, you can blacken the mirror!

Delivery statement / after sales support:

All products are guaranteed. Please make sure the package is not damaged after receiving the package.
Generally, the laser is not easy to be damaged. Please do not hit it vigorously.
DHL / special line and other delivery forms are used in our delivery to ensure that the products will be delivered to you within 3-15 days.
If you have any product problems or use problems, you can consult customer service before / after sales, including technical guidance. Please feel free to use our products. Thanks again!

Quality assurance

We have our own production line, global distribution network and supply system, and strong technical strength.
All our products meet international quality standards and have been greatly appreciated in different markets around the world. We are equipped with complete facilities and excellent quality control at all stages of production, allowing us to guarantee the overall satisfaction of our customers.
