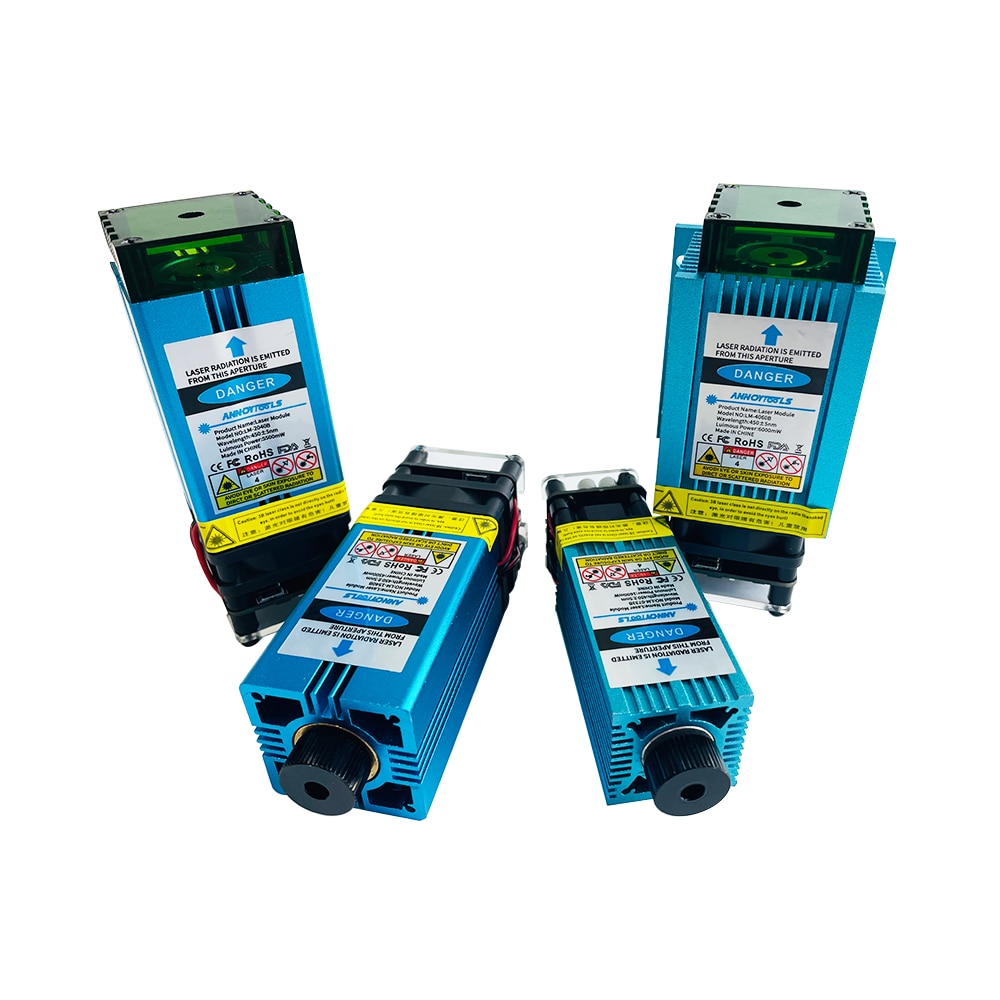

40W Laser Module Kit Laser Head 450nm TTL PWM Engraving Metal Cutting Wood Machine Tool Compressed Spot Technology+Laser Glasses

• The laser engraving head kits enables to engrave metal, wood, acrylic, and others substances. It can also cut wood and acrylic, depending on the wattage.

• It is suitable for Laser Engraver machine, Laser Cutter, 3D printer, CNC millling, and so on.

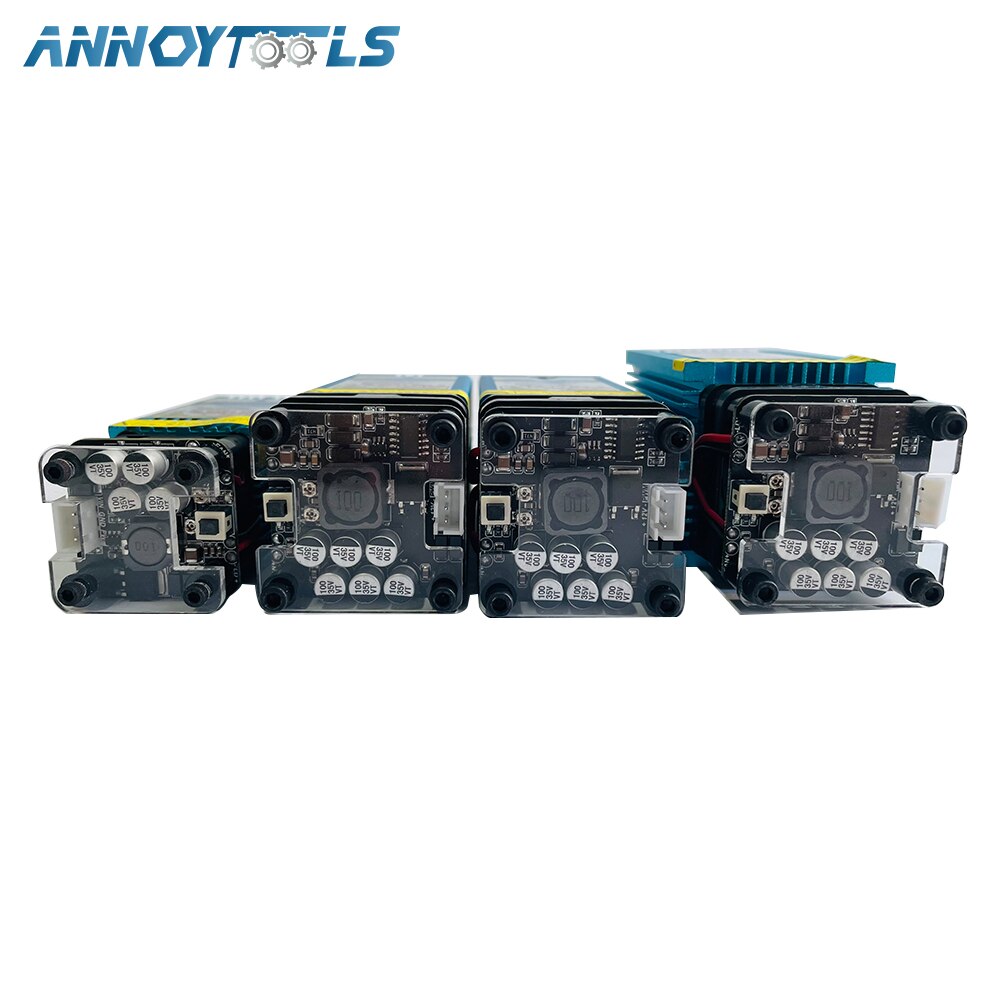

• Equiped with external drive, clearly visible. With switch, more easier to operate. More professional integrated board, stable performance.

• The Upgraded Laser Modele equiped with green protective cover can effectively reduce the damage of the laser to the eyes, and is safe and beautiful.

• Come with a protect goggles and fixed focus auxiliary tools (for 20w /40w), ensure a safety working process.

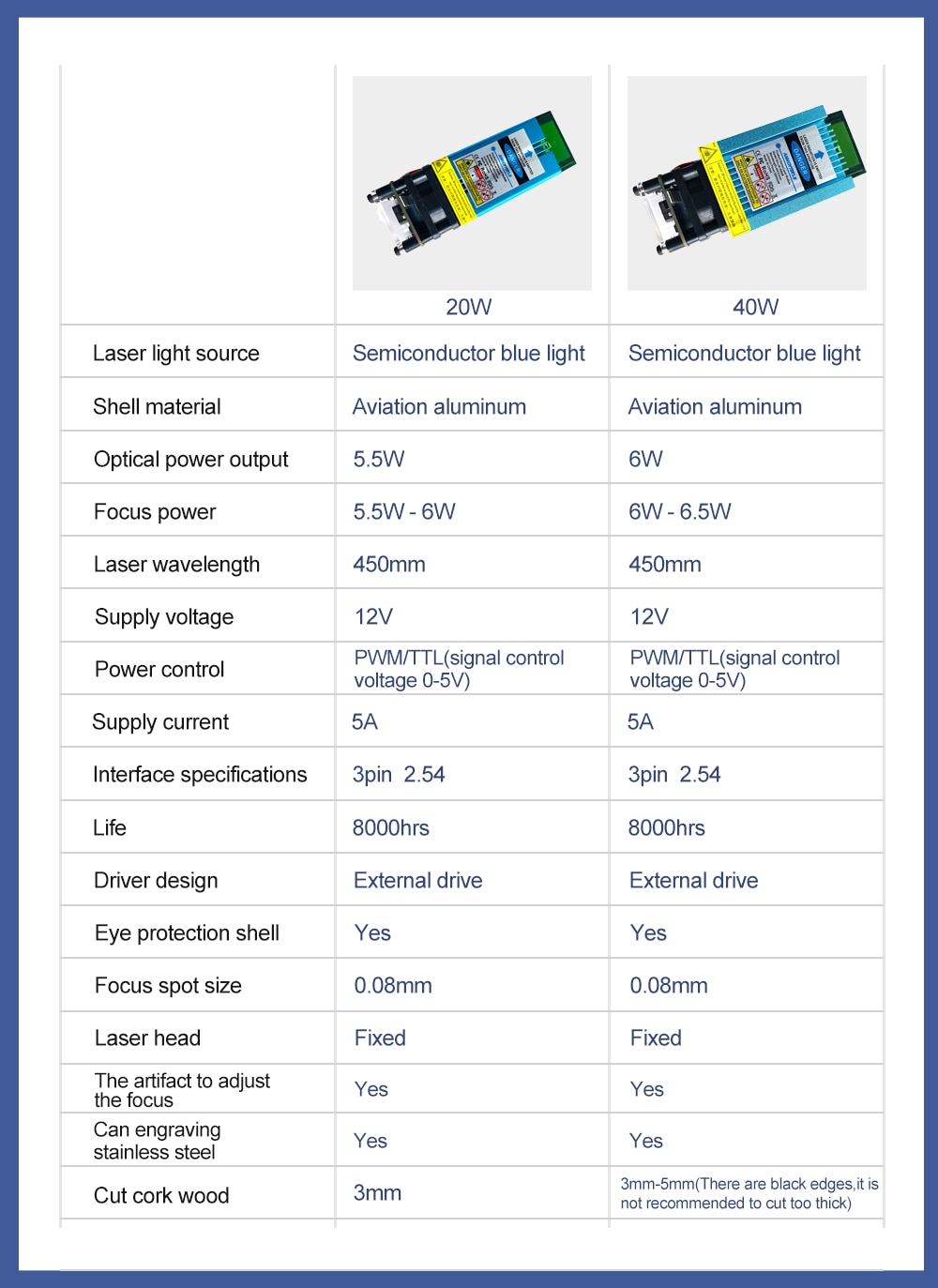

• Laser Wavelength: 450nm (blue viole)

• Laser Power: 20W/40W

• Drive mode: External ACC constant current drive

• Cooling Method: Forced air cooling

• Operating Voltage: 12V DC

• Shell Material: Aluminum,Surface Anodized

• Module Material: Copper

• Life Time:8,000 hours

• Working Temperature:-40-75Celsius


  Laser Module： 40W

    Plywood 2mm cut  : 300mm/min , S1000 , 1 Pass

    Plywood 3mm cut  : 250mm/min , S1000 , 1 Pass

    Plywood 4mm cut  : 200mm/min , S1000 , 1 Pass

    Plywood 5mm cut  : 100mm/min , S1000 , 1 Pass

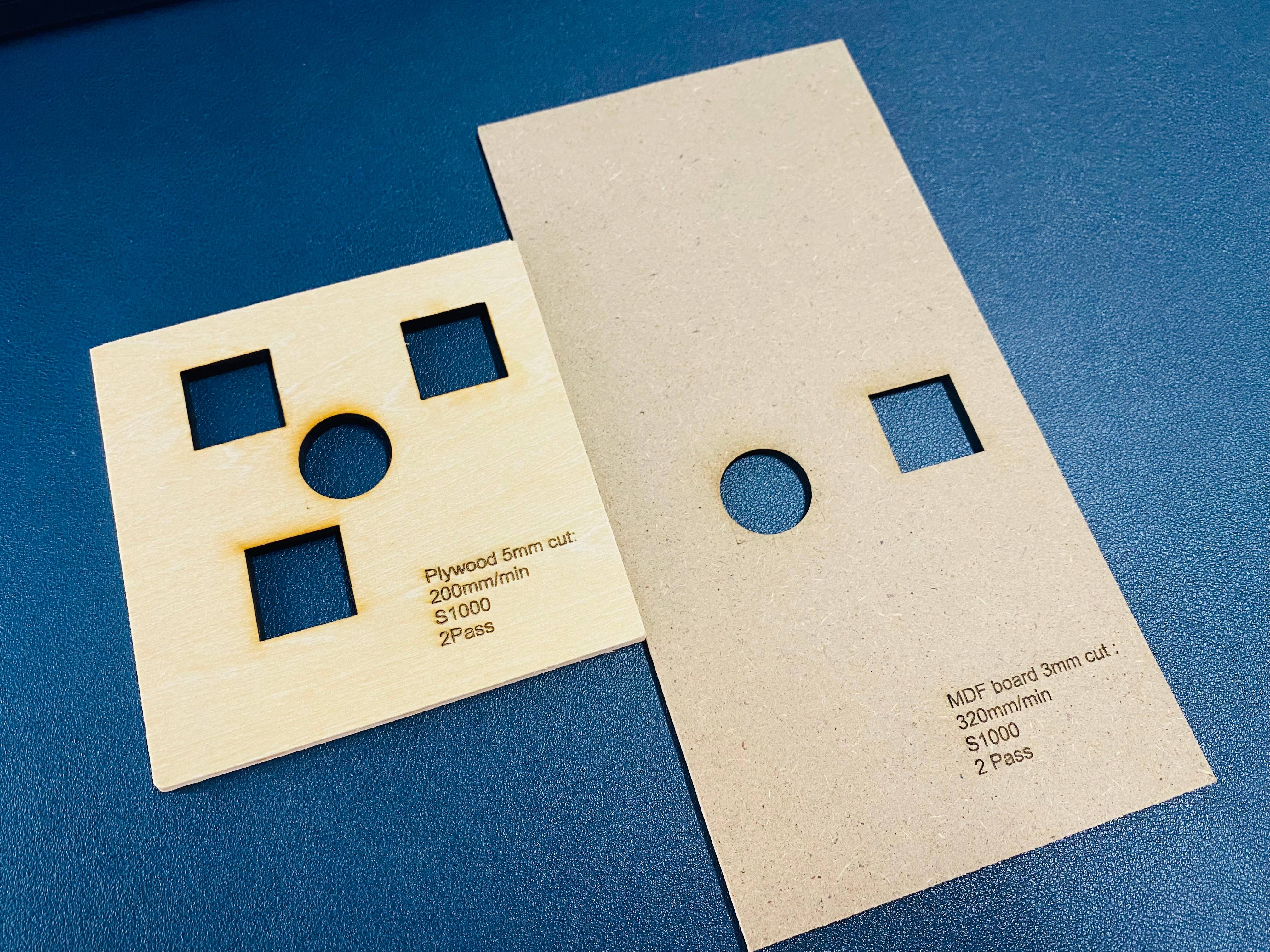

    Plywood 5mm cut  : 200mm/min , S1000 , 2 Pass

    MDF board 3mm cut : 100mm/min , S1000 , 1 Pass

    MDF board 3mm cut : 320mm/min , S1000 , 2 Pass

    Black acrylic plate 3mm : 120mm/min , S1000 , 1Pass

    Black acrylic plate 5mm : 100mm/min , S1000 , 3Pass

NOTE:The above data needs to add air assist correctly（0.6-1.5mPA）with LaserGRBL or LightBurn;

(LaserGRBL:60mm/min=1mm/sec,S1000=100%Power)

Note: If you need the other power laser module,please contact us

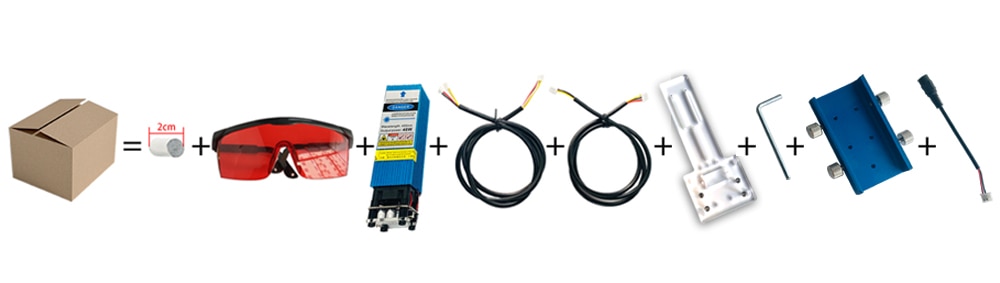

• • 1 x Laser Module

• 1 x 3 PIN Cable

• 1 x 3 PIN To 4 PIN Cable

• 1 x Protective Goggle

• 1 x Fixed focus auxiliary tools(come with the fixed focus laser)

• 1 x Heat sink

• 1 x Acryic+Wrench

• 1 x Test laser cable

Tips – Please do not use without goggles. Never use around flammables and please be careful you don’t destroy other things around it.
