Description

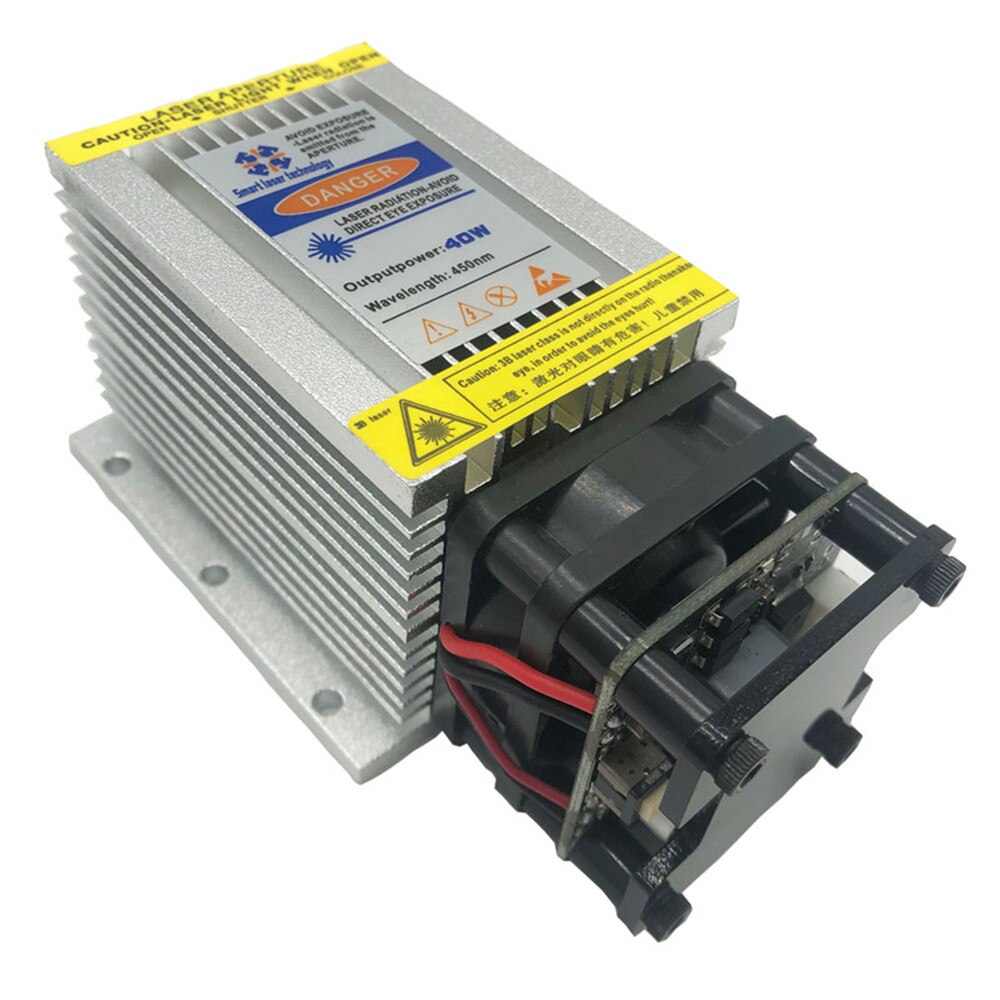

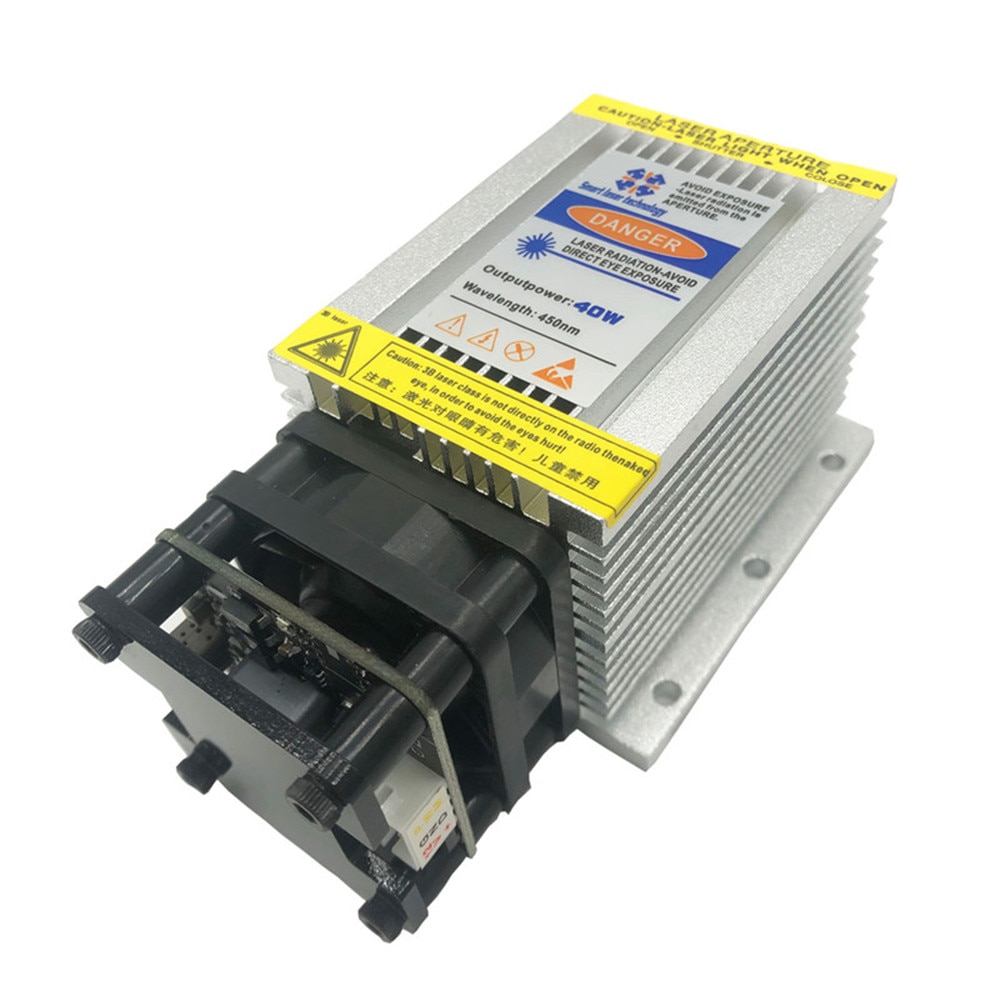

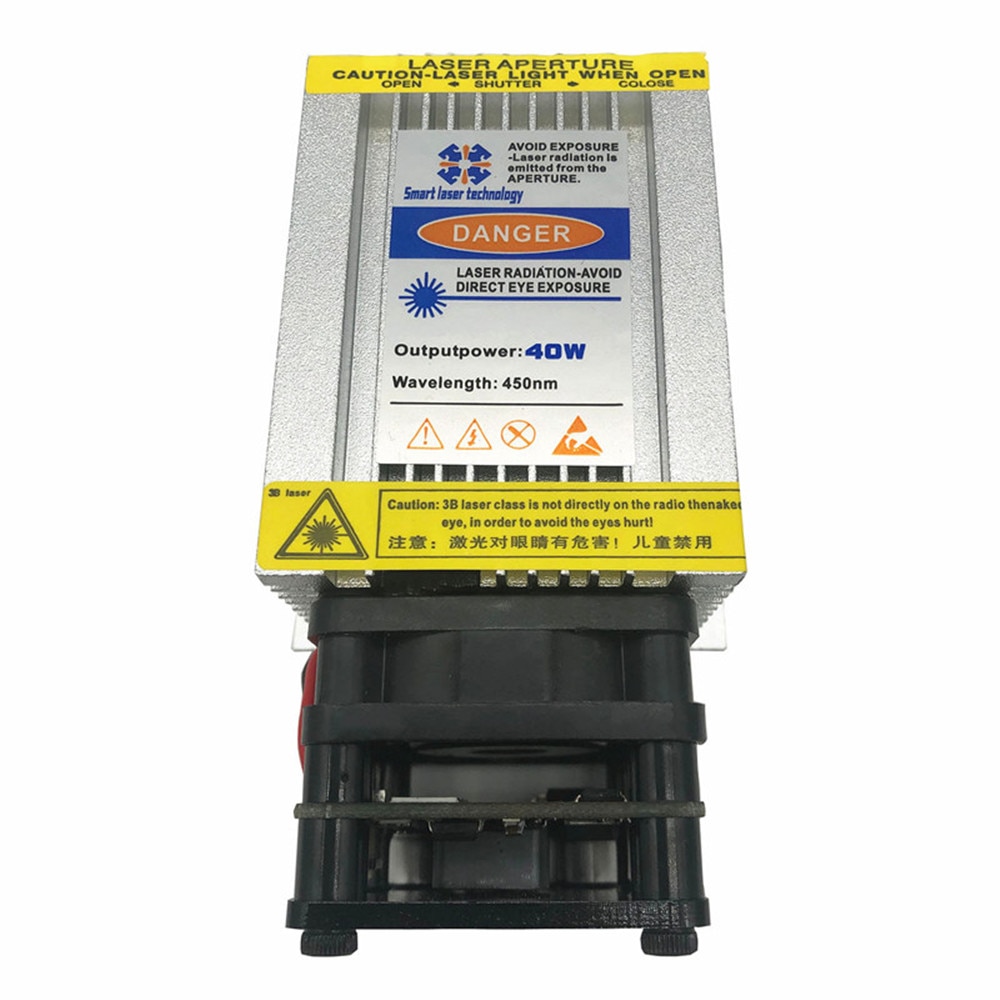

The newly upgraded 40W laser module is powerful, the engraving speed is 6-7 times higher than the traditional laser module, the engraving speed of stainless steel is 3000mm per minute, the engraving wood speed is 6000mm per minute, and it can cut 3-4mm plywood

The laser engraving accuracy is 3-4 times higher than that of the traditional laser module, the traditional 40W engraving stainless steel depth is 20%, and the newly upgraded 40W engraving stainless steel depth is 60%.

This laser module is manufactured by high-tech equipment to ensure that the original brand new high-quality diodes ensure long service life, smooth use, clear and obvious effects, and high-efficiency light transmittance.

The traditional 40W laser spot is 0.3MM, and the newly upgraded 40 spot is 0.08MM. The spot is accurate. The function of an excellent laser head is that the spot is small, the engraving speed is fast, and the depth of the engraved object is clear and obvious.

The company is a manufacturer of laser engraving modules. It has been committed to laser research for many years. The products have high technical content and stable quality. They can provide customized solutions for enterprises and accept customization of laser modules for various purposes.

Technical Parameters;

Laser light source: semiconductor blue light

Shell material: aviation aluminum

Module center material: copper

Electro-optical power output: 40W

Focus power: 25W

Laser wavelength: 450nm

Power supply voltage: 12V

Power supply current: 4A (constant current)

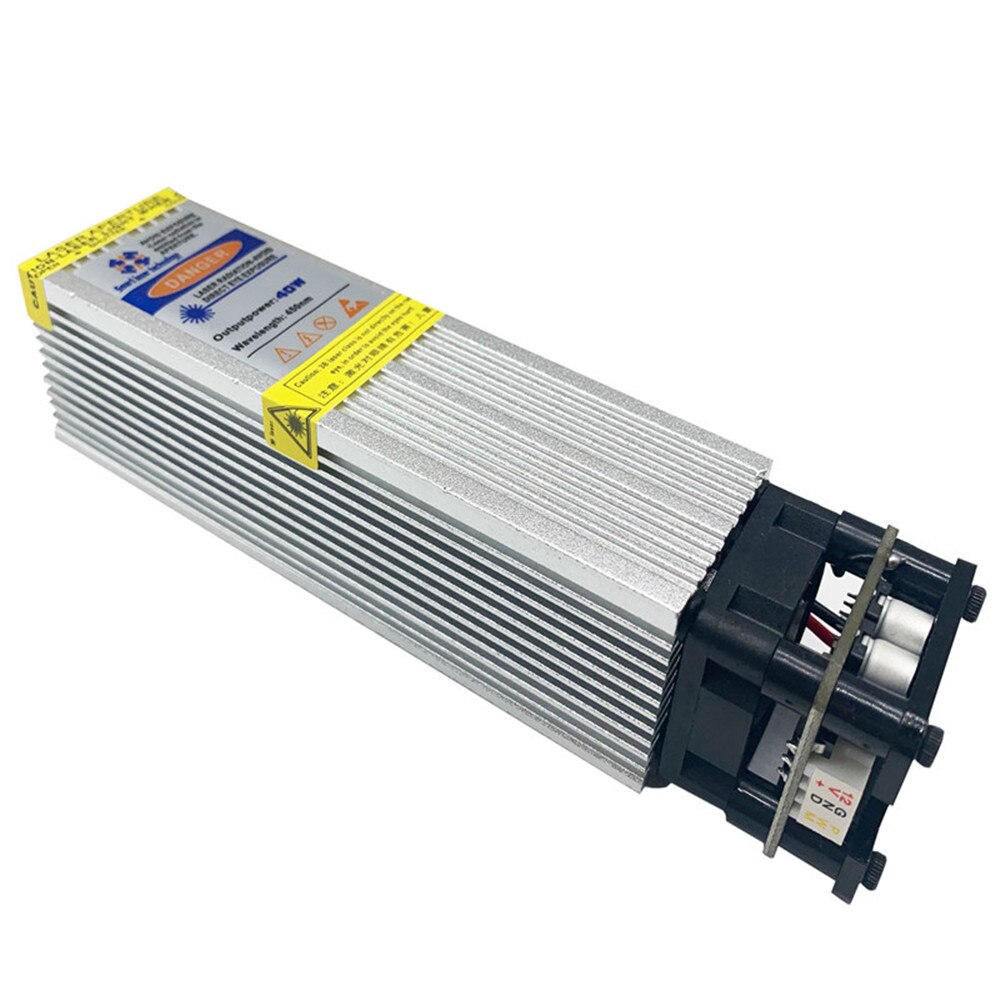

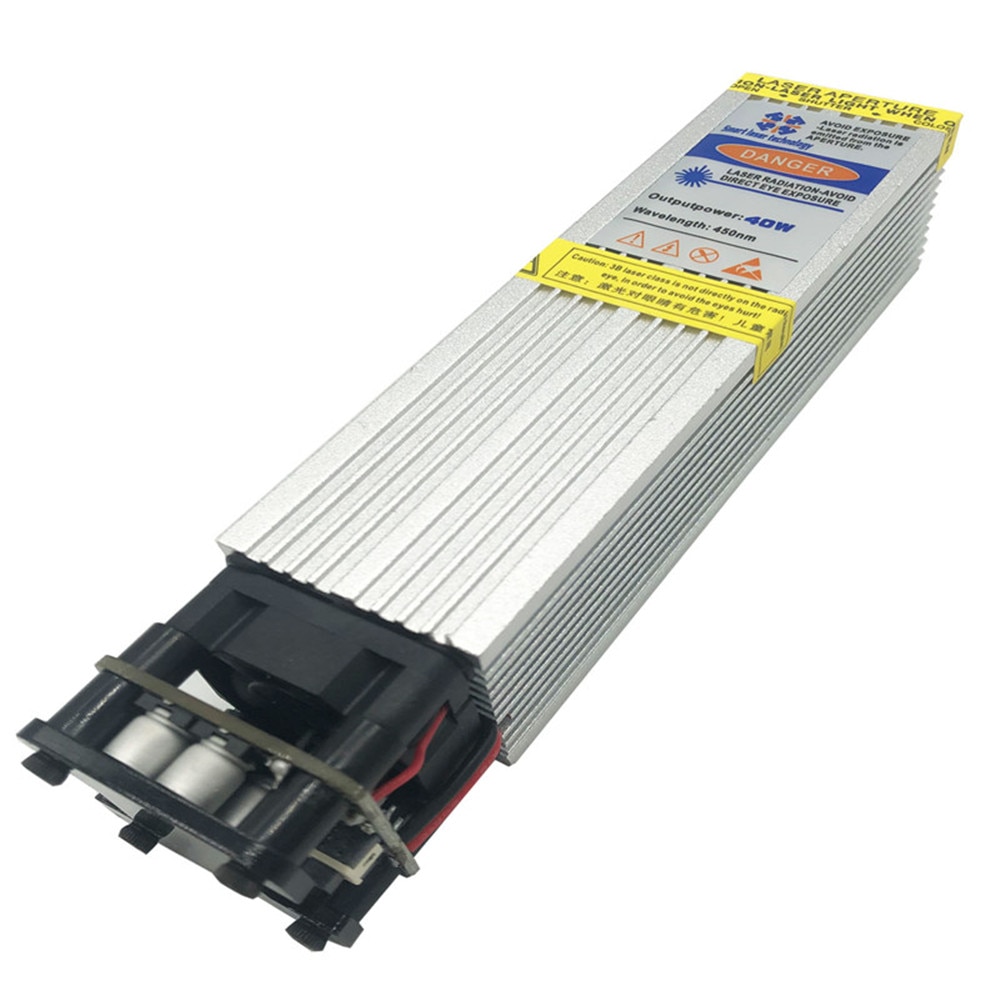

Shell size: 33×33×120mm, 60×60×70mm

Color: polar oxygen silver

Power control: PWM/TTL (signal control voltage 0-5V)

Interface specifications: 3pin 2.54 /4pin 2.54

Light shape: point-shaped fixed focus (according to the equipped fixed focus column, the best focal length of the laser is 20mm)

The list includes: laser module*1, glasses*1 (the color of the glasses is randomly distributed), 4P line*1, 3P line*1, short line DC*1, focal length column*1.

Note: You don't need to connect the laser head to the converter, just connect it directly to the main board of the engraving machine. A power adapter 12V 5A is required.

: If you need to replace the wires, please pay attention to the wire connection sequence, please check carefully.

: When working with the laser, please do not touch any part of your body with the laser head, otherwise you will be responsible for the consequences.

: It is forbidden for children and pets to come into contact with this laser product,

Can engrave: oxidized metal, 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horns, leather, sponge paper, etc.

No engraving: metal raw materials.

Engraving must know: Engraving reflective objects must be blacked out before engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.

Cutting material: cutting plywood, cutting black acrylic board, leather, paper, etc.

The lifetime of this 40W laser module is 20000-21000 hours. (If the smoke is blurred when the laser head is working, please add a fan when engraving or cutting)

If you don’t know whether this laser head can use your engraving machine, you can take a picture of your engraving motherboard and send it to me. If you take a picture, you can see the letters displayed on the connection port between the engraving motherboard and the laser module, or you can add Send me the link of your engraving machine.
