Description
- Brand Name: LYBGACNC
- Certification: CE
- Origin: CN(Origin)
- Model Number: 40W

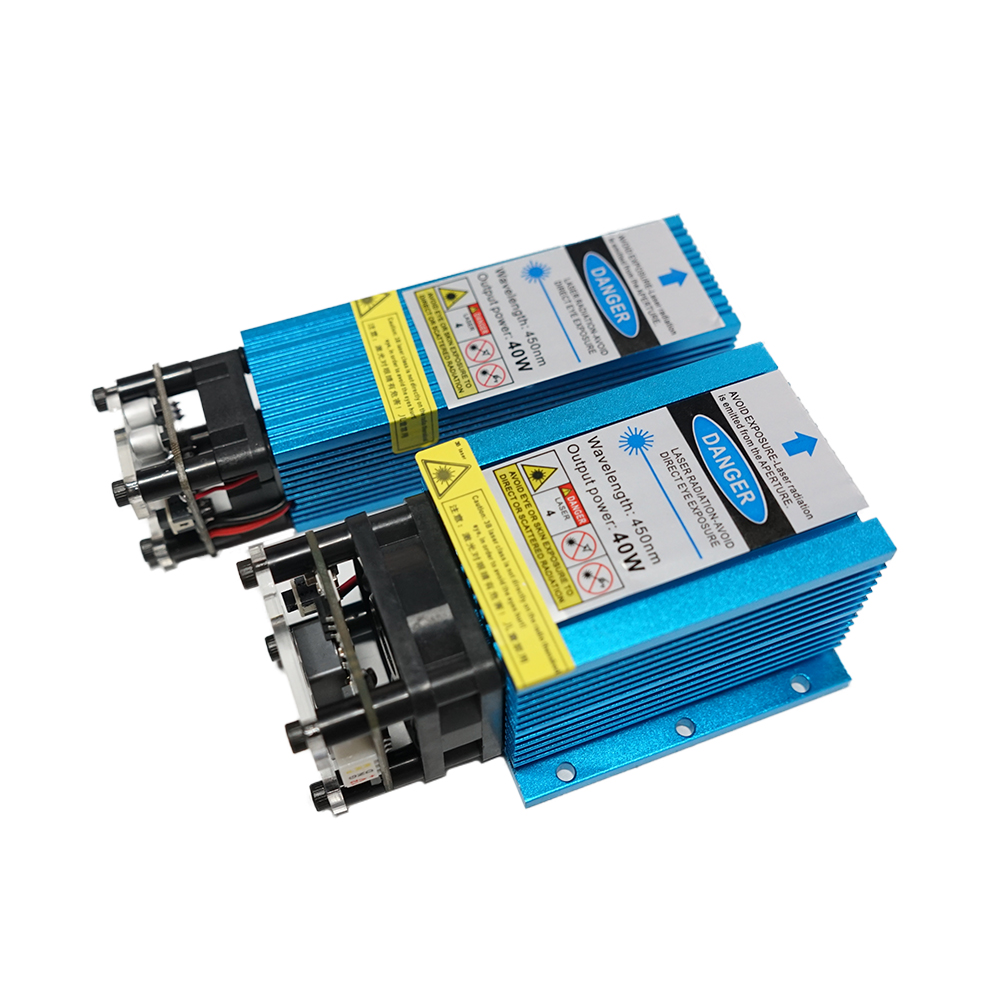

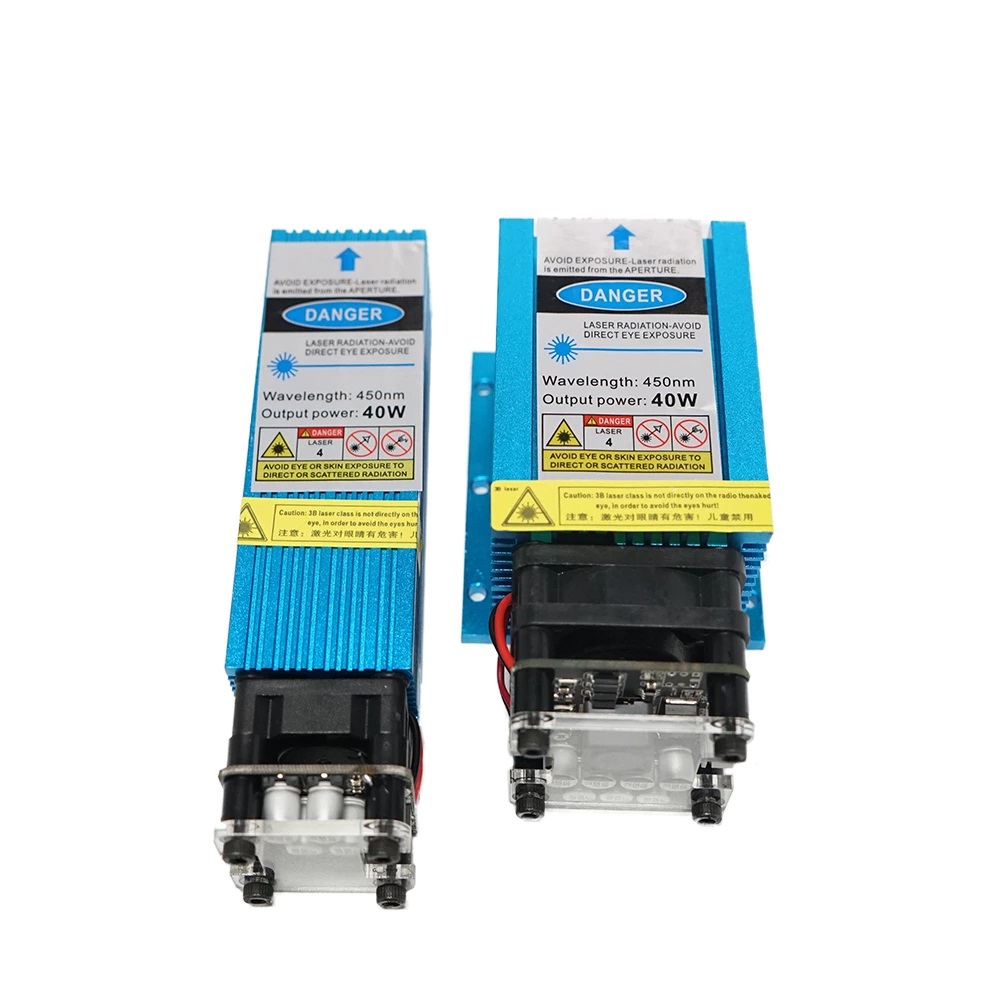

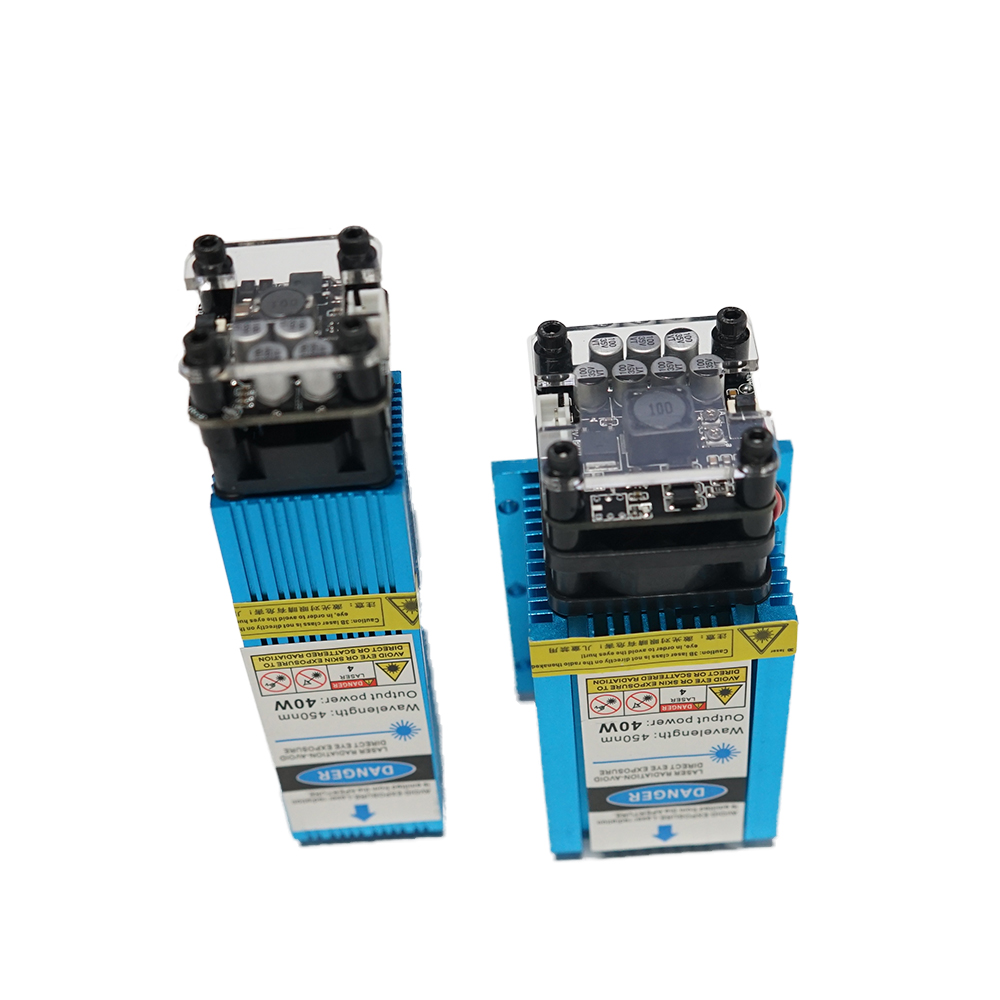

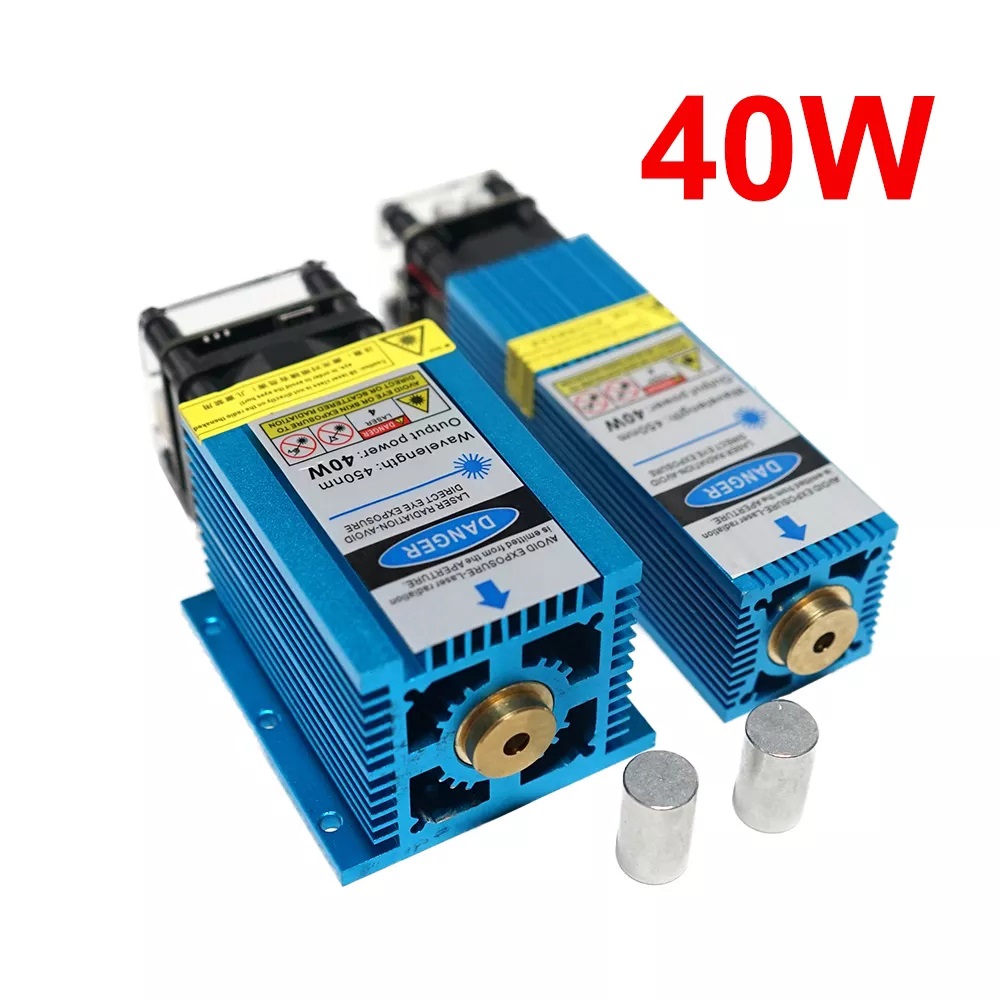

40W Diode Laser Module 445nm Fixed Focal Length Diameter 33mm/40mm/60mm For Industrial Hobby DIY desktop Laser Engraving Machine Use 12V 5A
RE:
- This selling link MOQ is 1 pc, not 2 or 3 pcs.

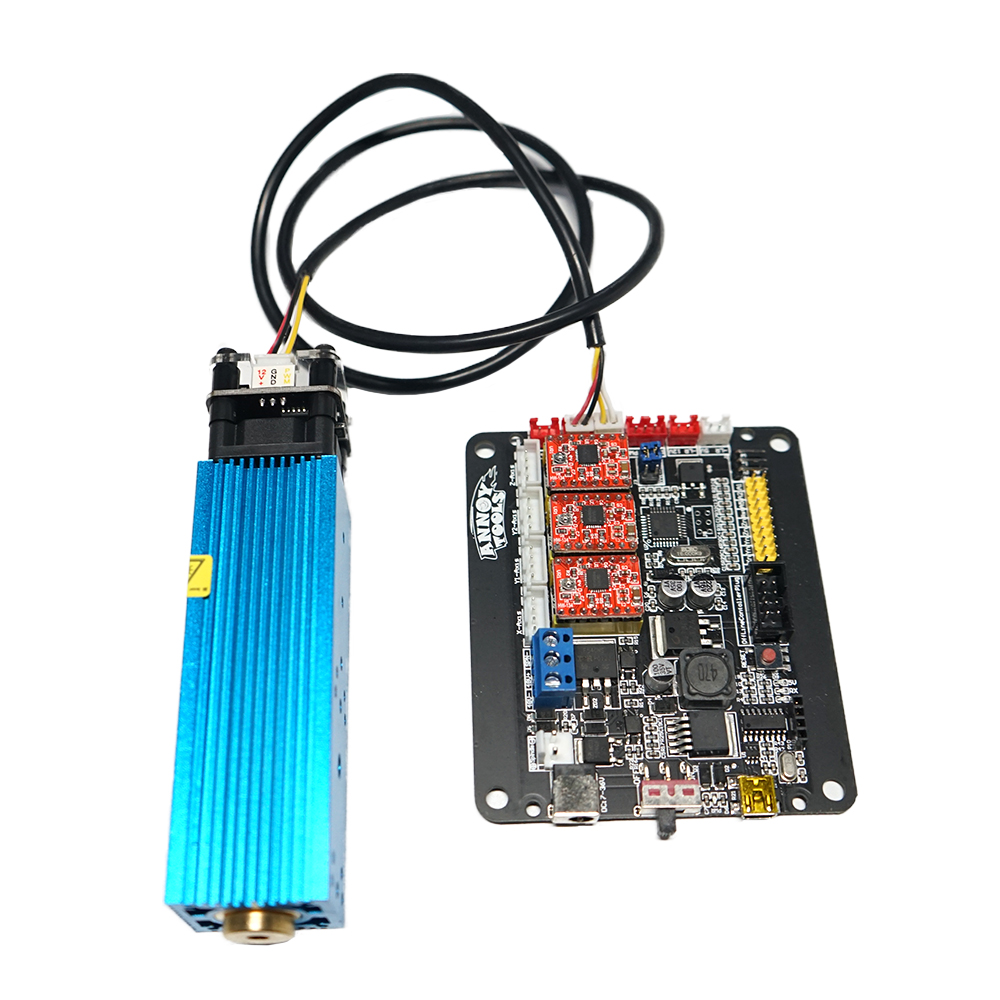

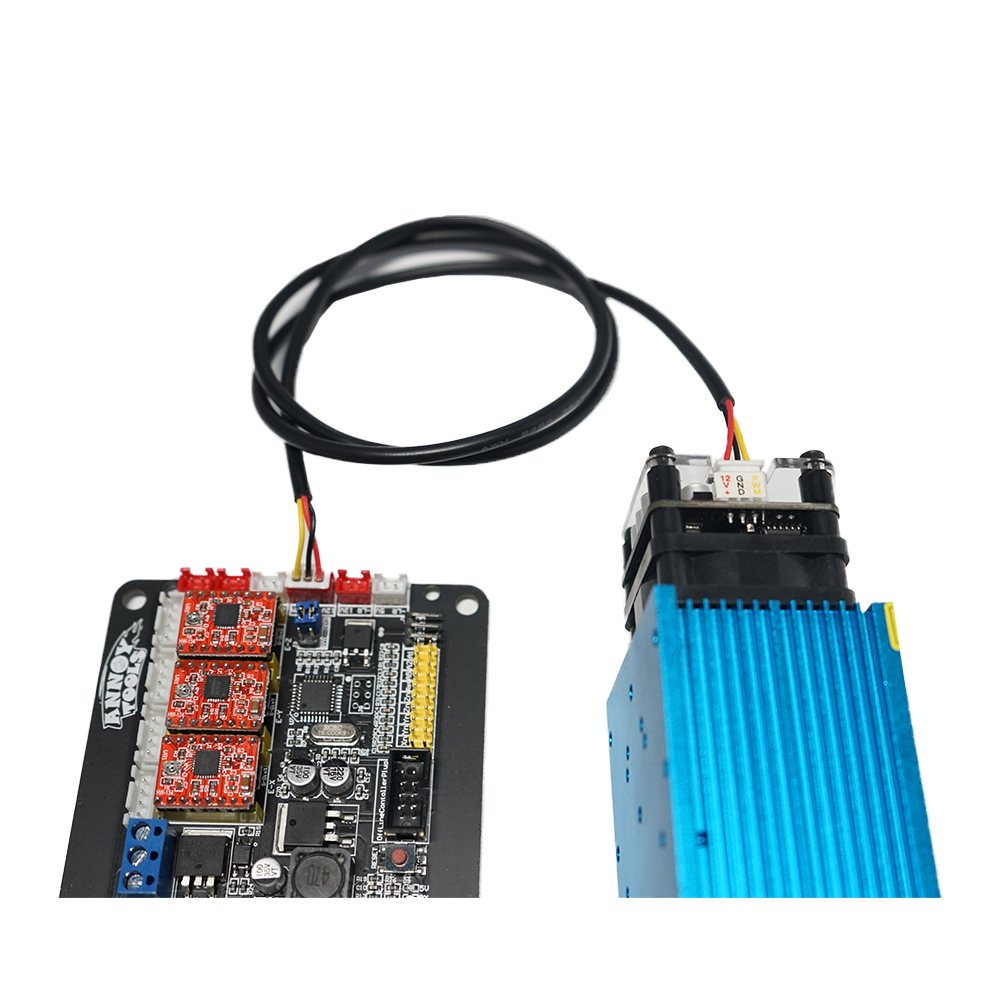

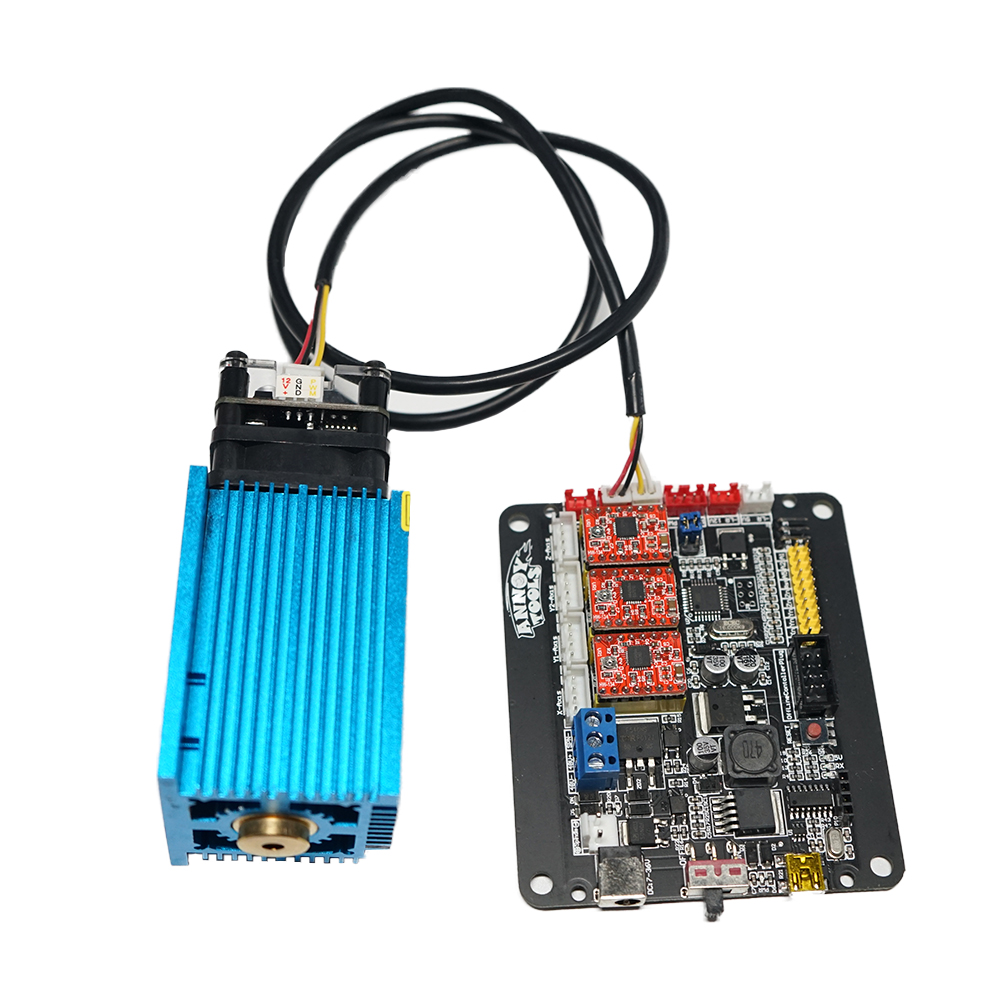

- Motherboard in Demo picture is for circuit show, not included in selling kit.
40W fixed focus laser is specially designed for DIY laser engraving machine, 3D printer, CNC CNC engraving machine and Arduino project.
4mm plywood and 3mm black acrylic board can be cut, and the set speed is 200mm / min.
Metal can be engraved with 201/316 stainless steel, and some metal surfaces treated (e.g. surface paint, anodizing, electroplating) do not need focusing.

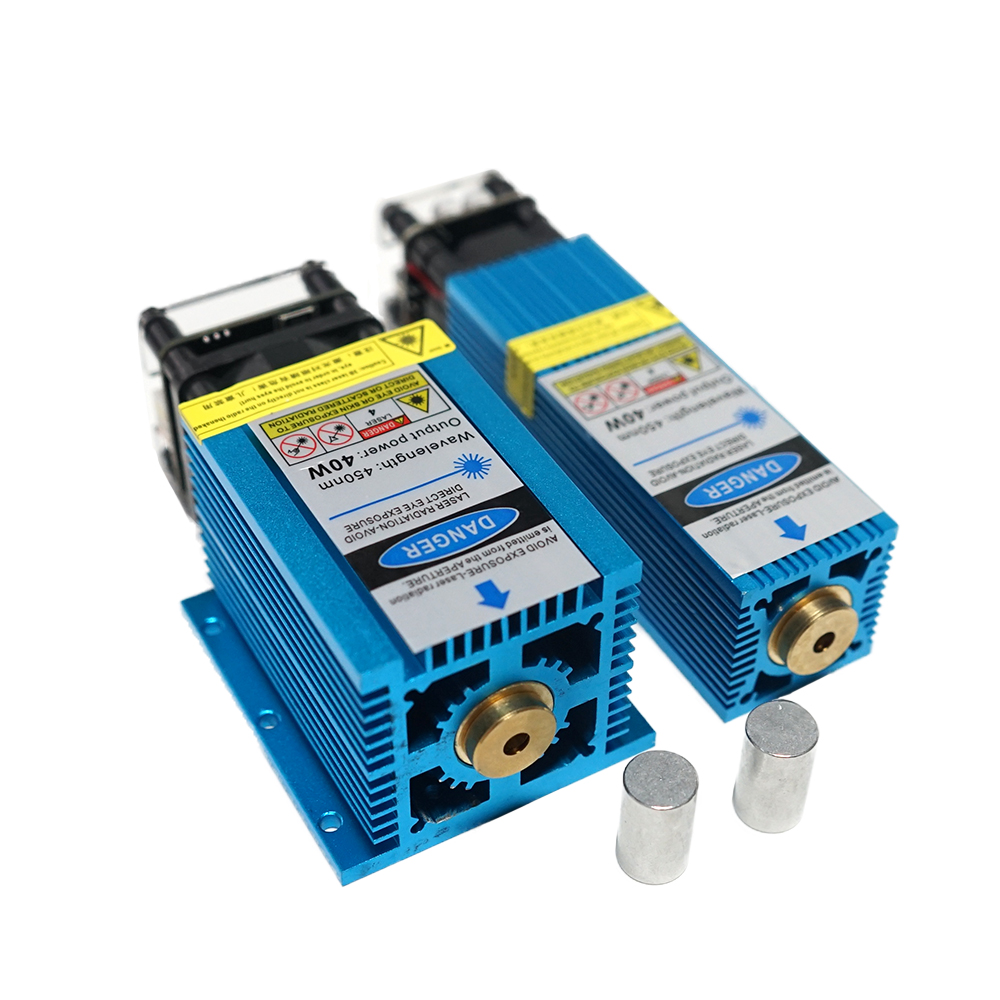

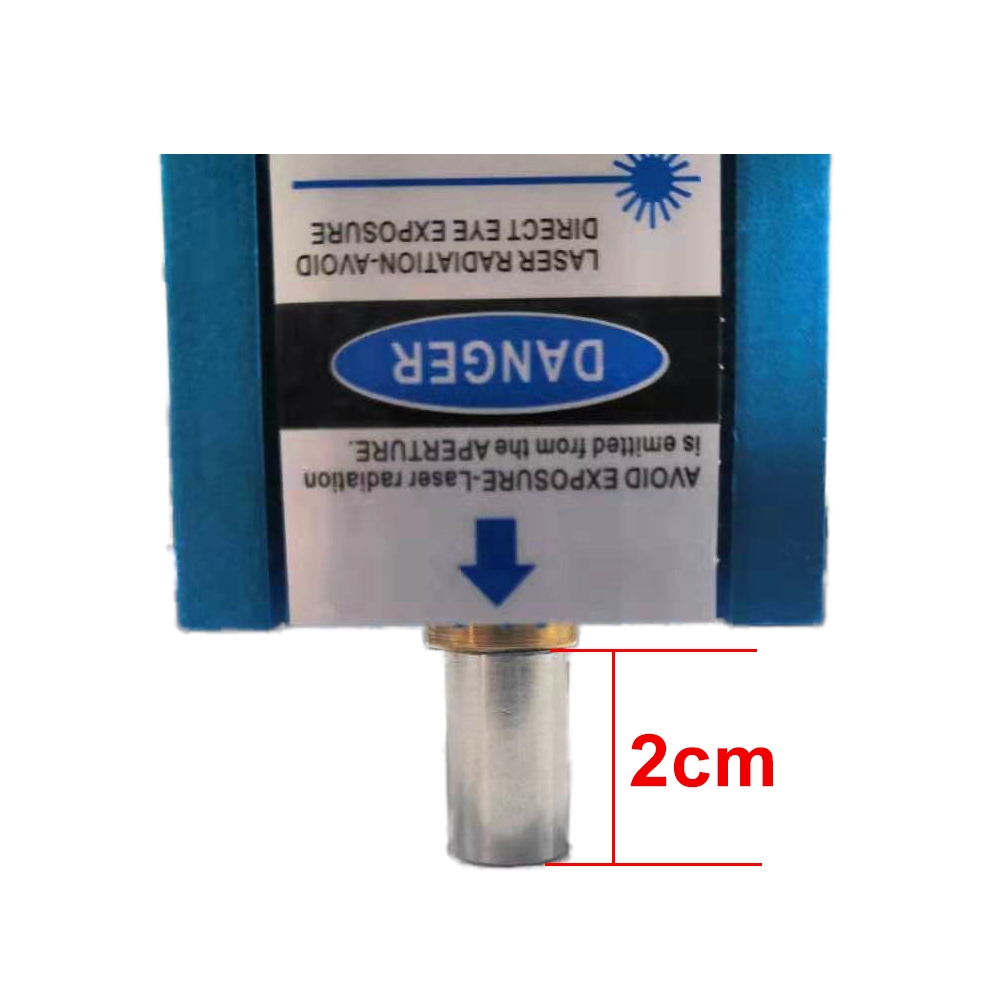

The 2CM fixed focus column is delivered to facilitate the adjustment of focal length. Usage of focusing column: before each engraving, ensure that the distance between the upper surface of the carved object and the laser head (focusing column) is just the height of the aluminum column.
Material: Copper + Aluminum
Power: 40W(output power about 10W)

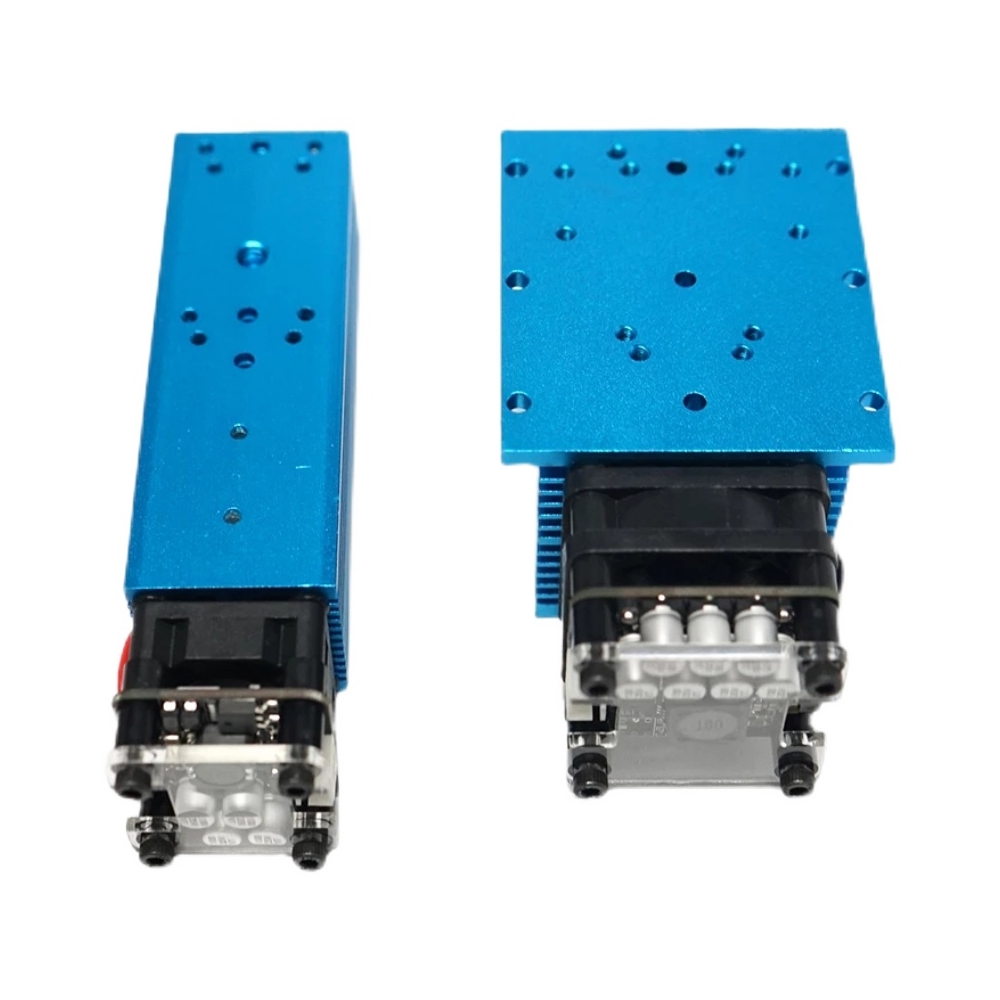

Diameter: 33mm/40mm/60mm (Optinal)
Wave Length: 445nm
Input power:12V 5a
Accuracy: 0.02mm
Drive Position: Behind
- Is the Power Adjustable: PWM can be adjusted/software can control to adjust
- Drive Protection: Surge protection, overvoltage protection
- Control Line Installation Method: Pluggable 3pin (Red: 12V, Black: GND, Yellow: PWM)
- Focus Range: 2cm
- Power can be adjusted manually
- Can display temperature/power
- Lifetime: 10000-20000 Hours
Warranty Period: 1-year

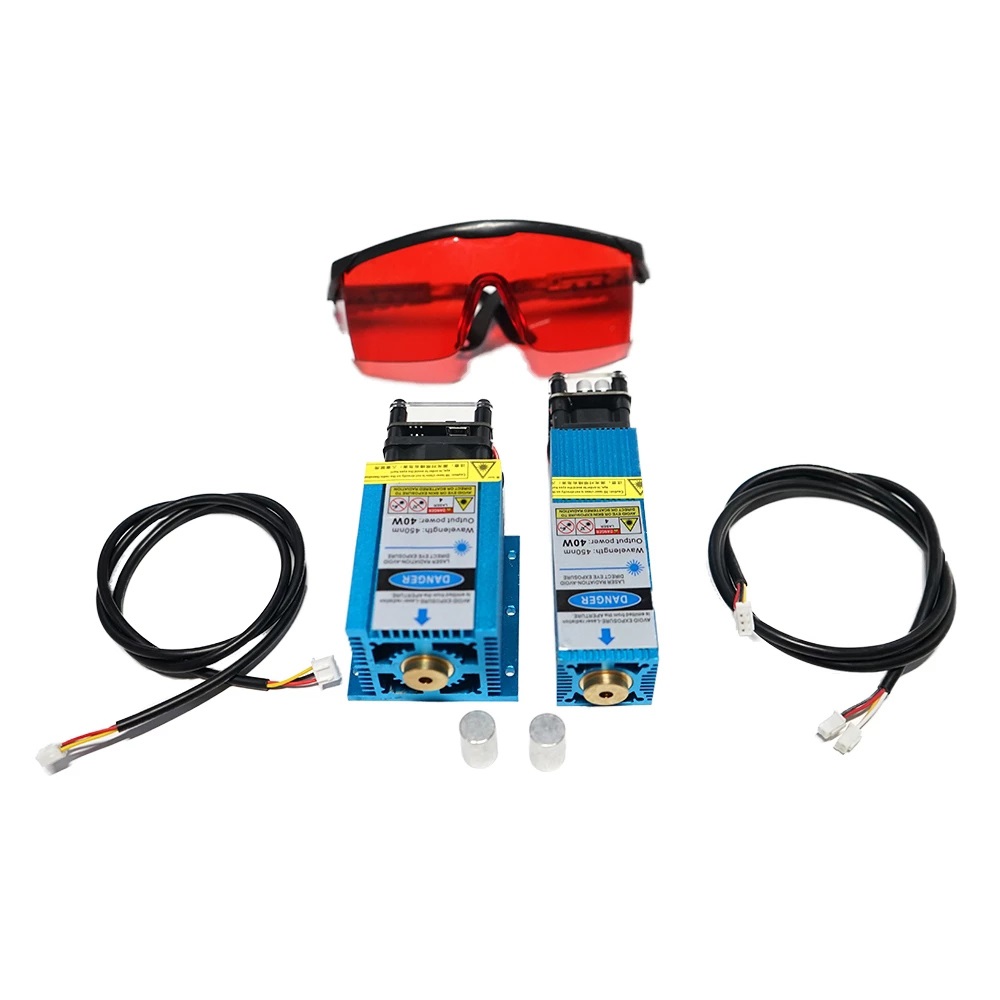

- Packing List:
1*40W laser Module
1*glasses
2* Cables
1* Focusing column(2cm)
