Description

Newly upgraded diode and design, laser focus for 40W is only 0.08MM , extream thin can engrave on all kinds of STAINLESS STEEL , and cutting plywood up to 6-8mm plywood. 40W is Fixed Focus, not focusable!! Focal length: about 2CM

30W is also Fixed focus, focal length: 2cm, laser focus is about 0.3MM, can cut plywood up to 5mm, and engrave unpolished stainless steel

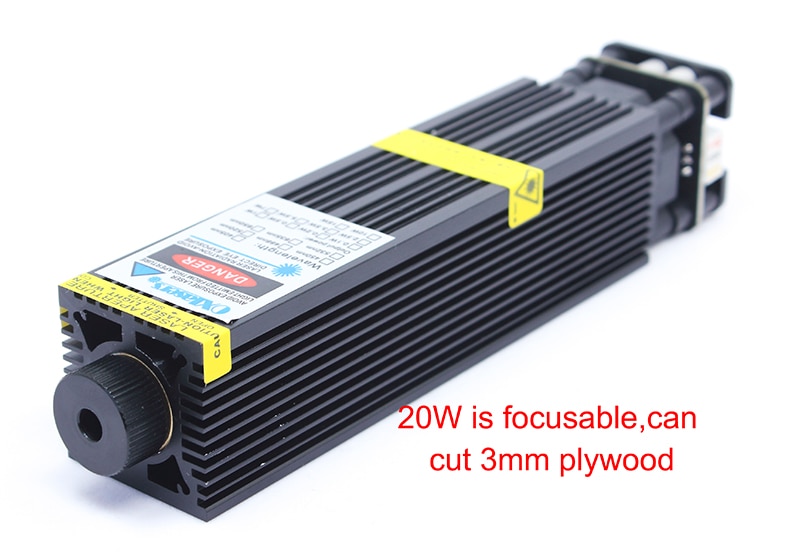

20W is focusable, can cut plywood upto 3MM, can not engrave stainless steel!

Laser wavelength: 445nm-450nm blue laser

Output power: 20W, 30W 40W

Focus: 20W is focusable, 30W and 40W are fixed focus, focal length: 2cm

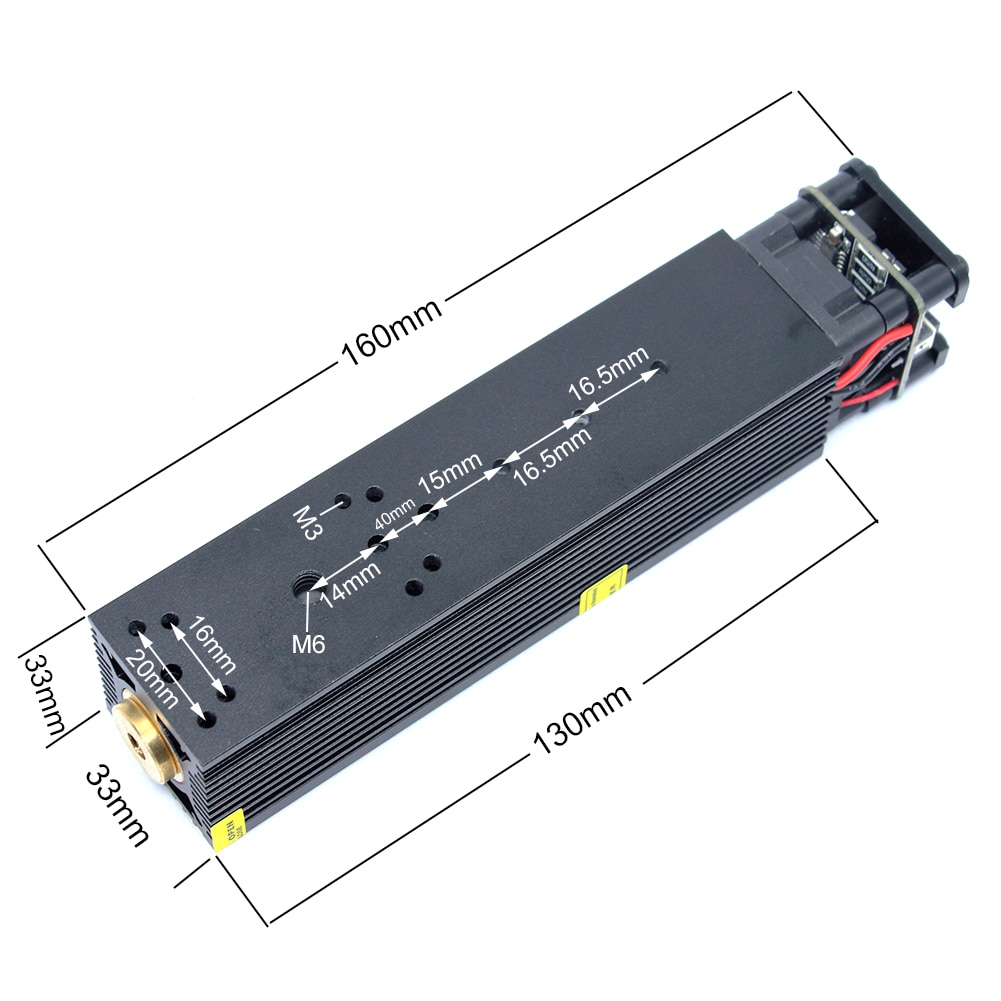

Heatsink Size: 33*130mm

Drive mode: external ACC constant current drive

Cooling method: forced air cooling
Operating voltage: 12V  5A DC
Shell material: aluminum, surface anodized
Collimator lens: optical glass coating

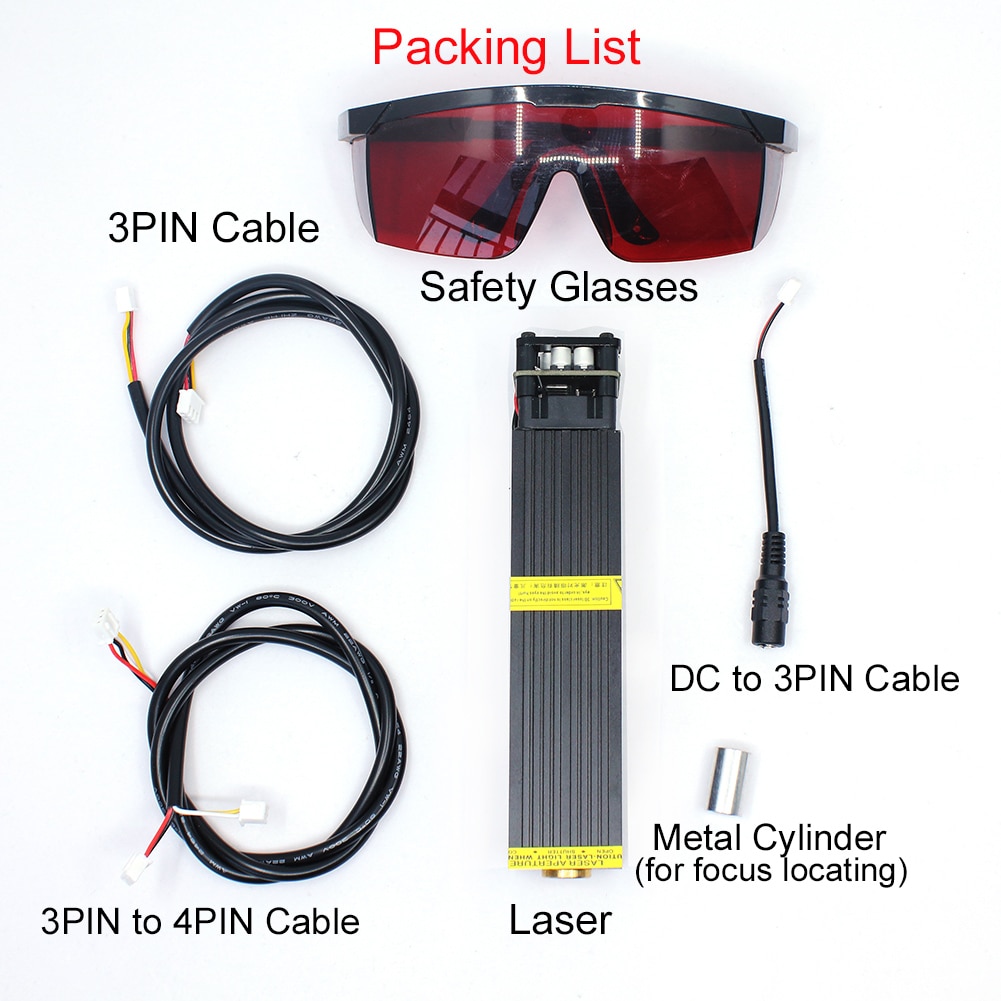

PACKING LIST:

LASER*1

3PIN CABLE*1

3PIN TO 4PIN CABLE*1

DC to 3PPIN CABLE*1

SAFETY GLASSES*1

Metal cylinder*1(for 30W and 40W only)

BUYER MUST READING:

there are 2 Volltages (12V and 24V) for these lasers available, most CNC Engraver uses 12V, and some 3D printer is 24V, please chose the right one that fits your device when placing your order!

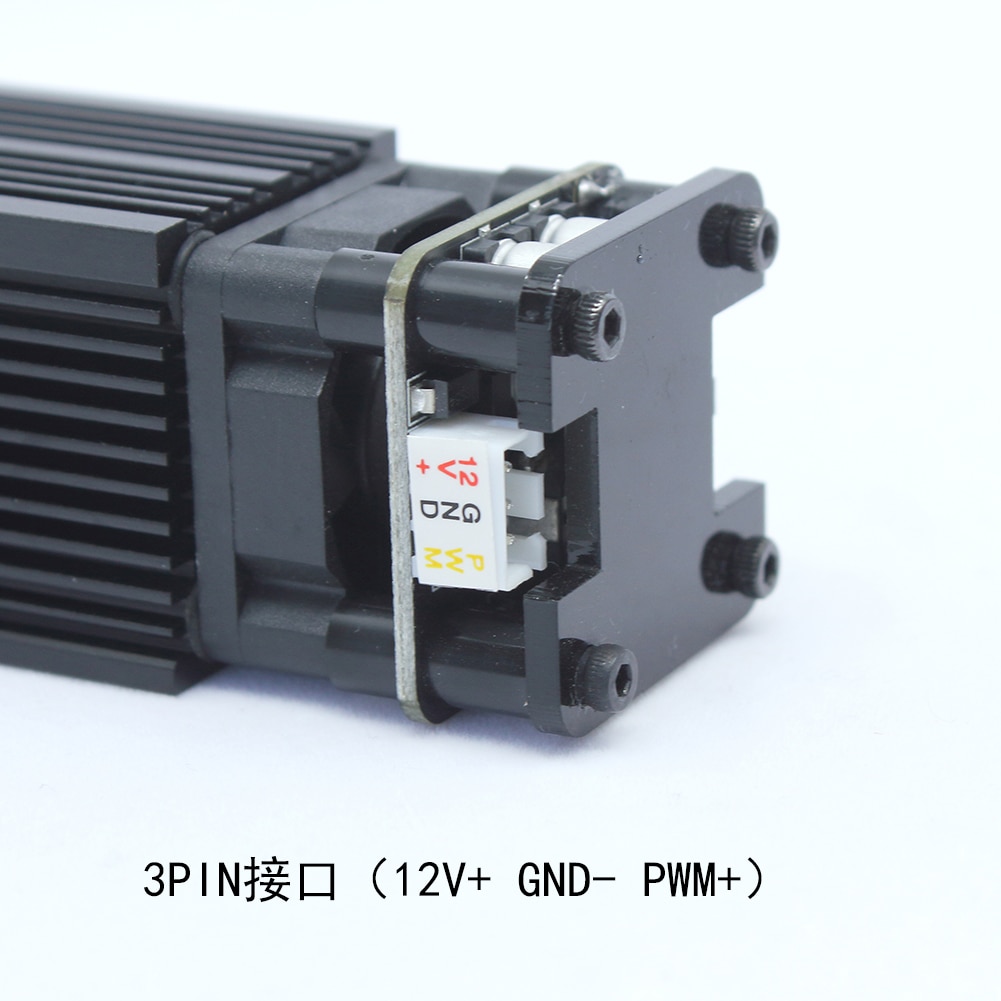

• Please pay attention when connecting wires : RED wire=12V+ /24V+ , BLACK wire=GND -, Yellow Wire= PWM+, White Wire= PWM- . !!! PWM and Laser share GND!!

• Wrong connection of the wires may damage the driver board and the diode

if your controller board’s laser interface pins are in different position, please change the wires position to make it match the positions of + – PWM of your interface. If the wires connected wrong, it will damage the diode and the driver board.

Frequency: <18khz, PWM/TTL: 0-5V

Please add a fan when engraving or cutting, in case smoke damage its lens
