Description
- Brand Name: Oriental-laser
- Material: laser808
- Power Source: Electric

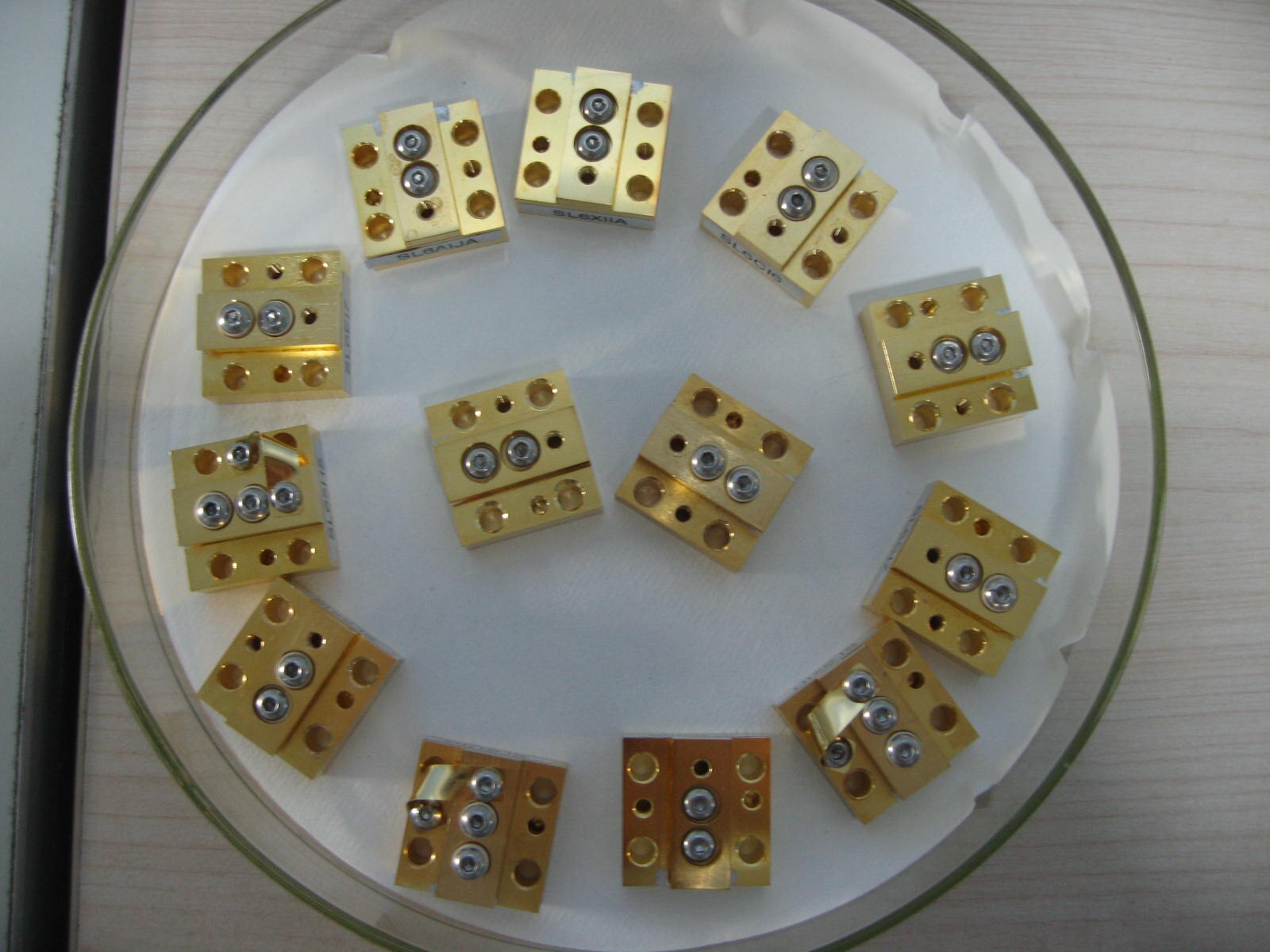

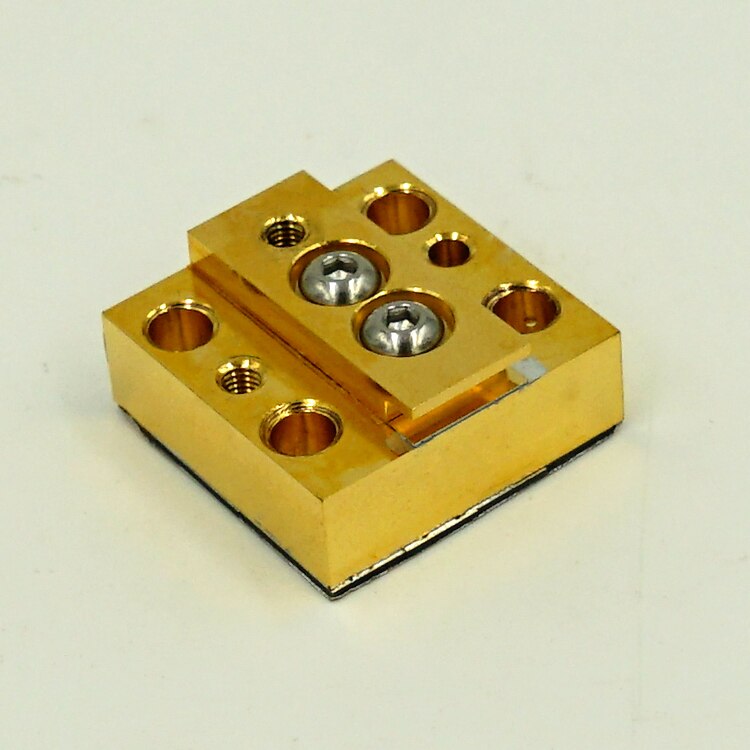

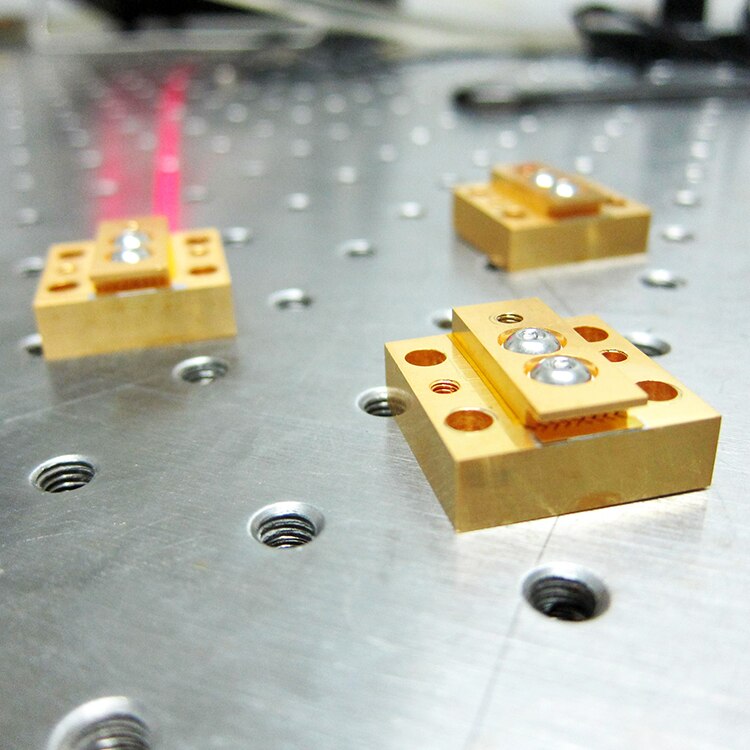

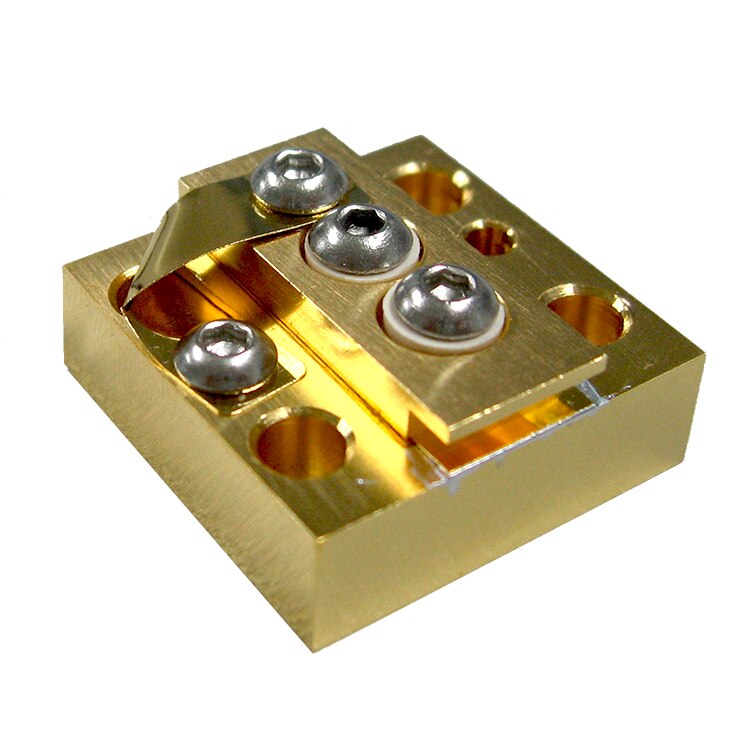

40W 60W 100W 808nm High Power CW CS Laser Diode Single Bar
This is a constant standard Conduction Cooled Package High Power Laser Diode Bar (Laser Diode Array). This diode bar’s wavelength is around 808nm. This product is mounted in our own lab in Beijing.
Specifications:
Products modle:CS20,CS40,CS60
· Wavelength: 808nm, 915nm, 940nm, 976-980nm
· Output Power: 20W, 40W, 60W CW & 100W QCW
· Solder: Indium / AuSn
· Heatsink: Cu / WCu90 / WCu85
· Fast Axis Can Be Collimated According to Request.
Other models also available
20W CW, 808nm, 880nm, 915nm, 940nm, 976nm, 980nm
40W CW, 808nm, 880nm, 976nm, 980nm
60W CW, 808nm
100W QCW, 808nm, 880nm, 915nm, 940nm, 976nm, 980nm
200W QCW, 808nm, 880nm, 915nm, 940nm, 976nm, 980nm
300W QCW, 808nm 880nm, 915nm, 940nm, 976nm, 980nm

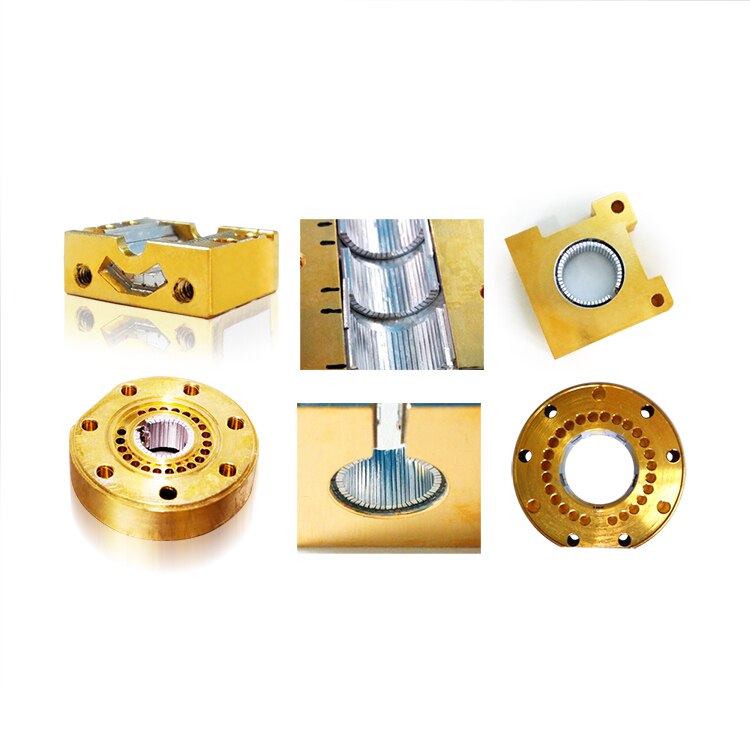

Customized Heatsink
